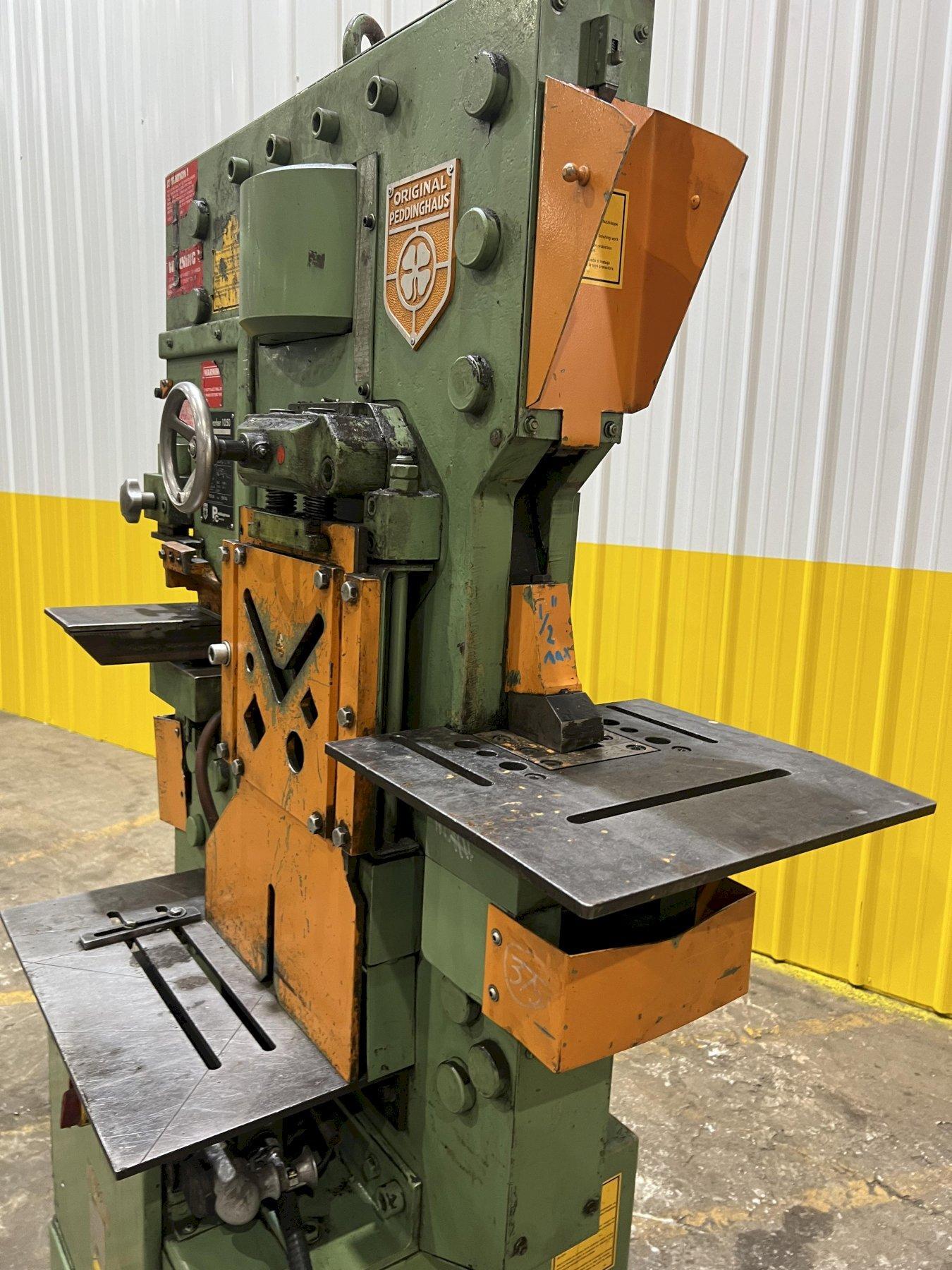

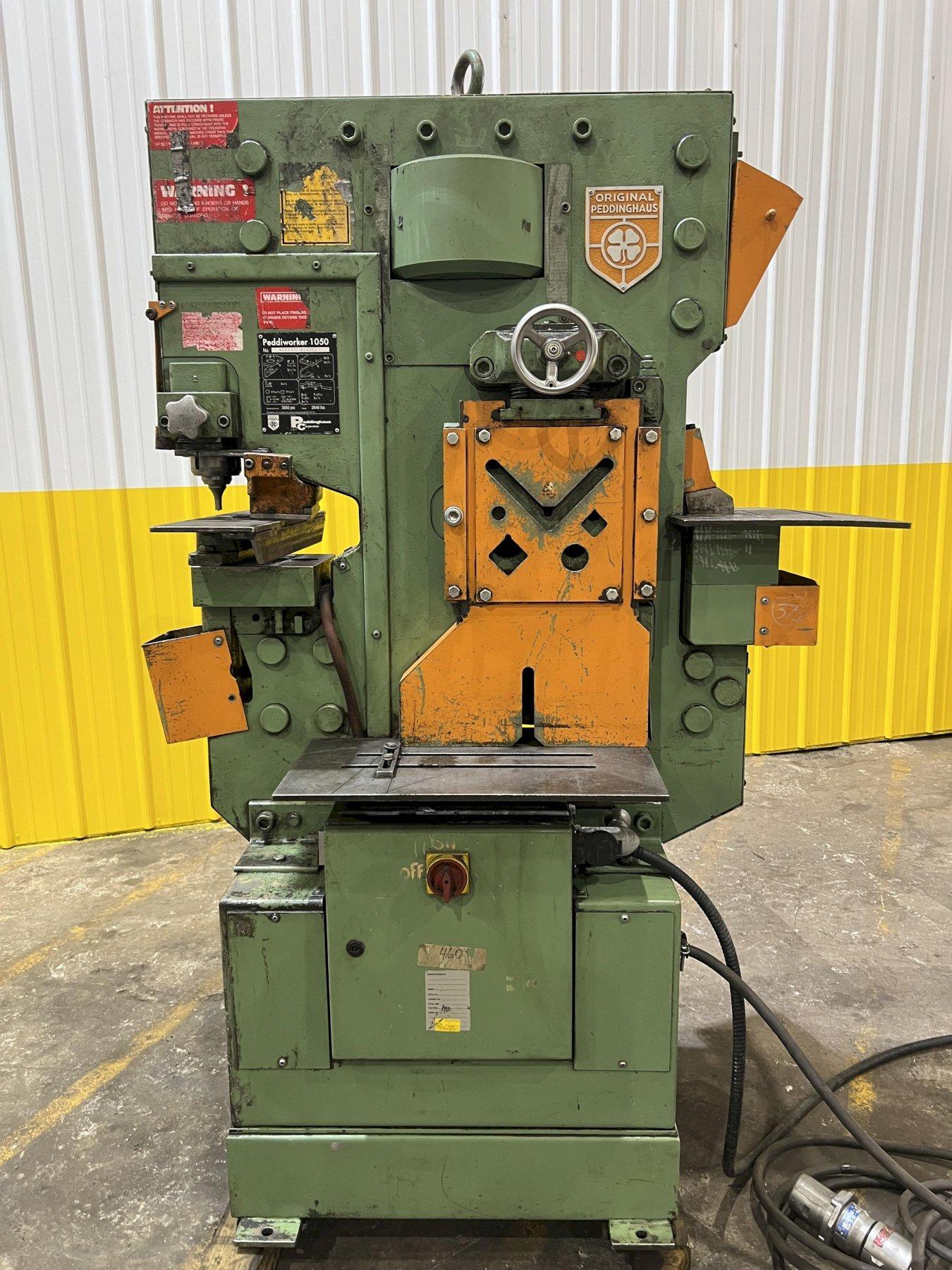

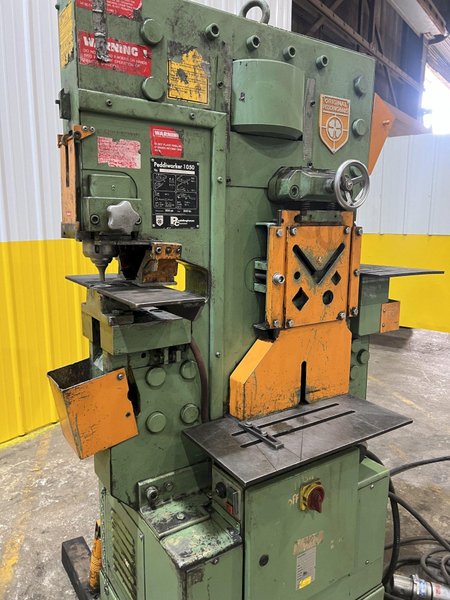

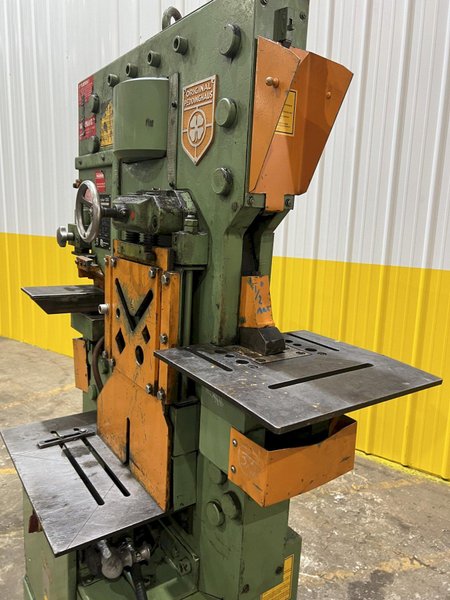

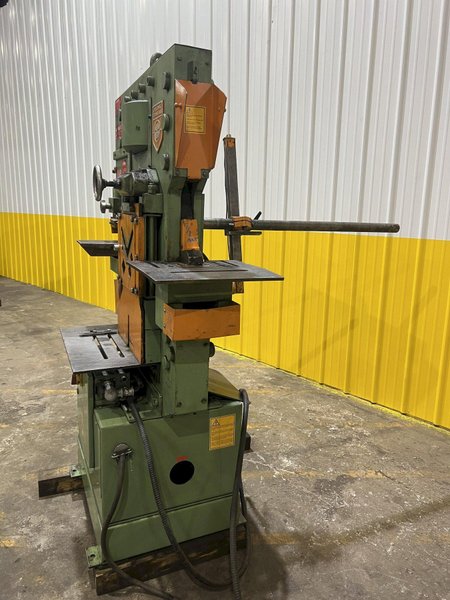

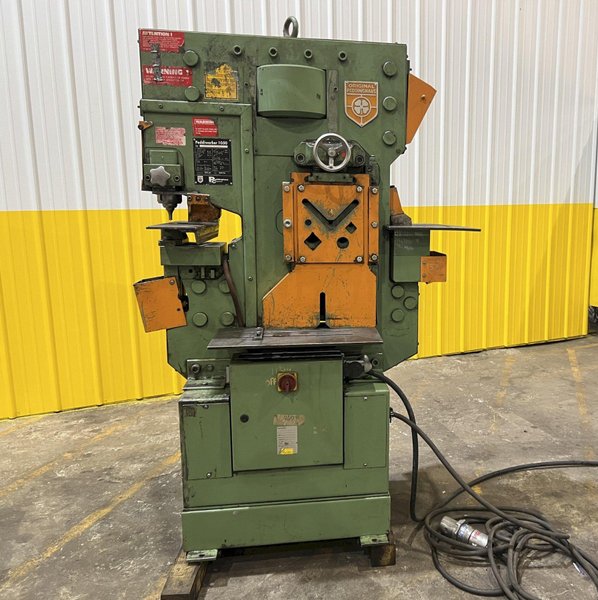

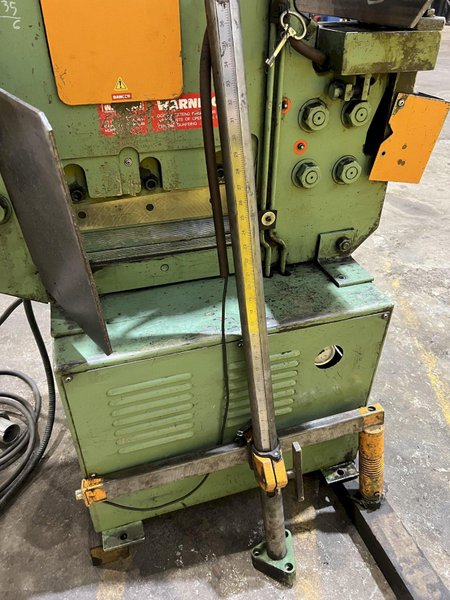

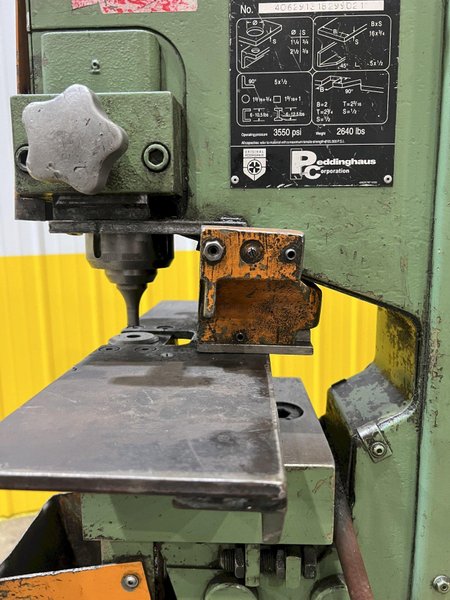

110 TON PEDDINGHAUS PEDDIWORKER MODEL #1050 HYDRAULIC IRONWORKER: STOCK #19922
Brand
Not specified
Category
Type
Model
1050
Stock #
19922
Year
Not specified
Condition
Good
Location
Ohio
|

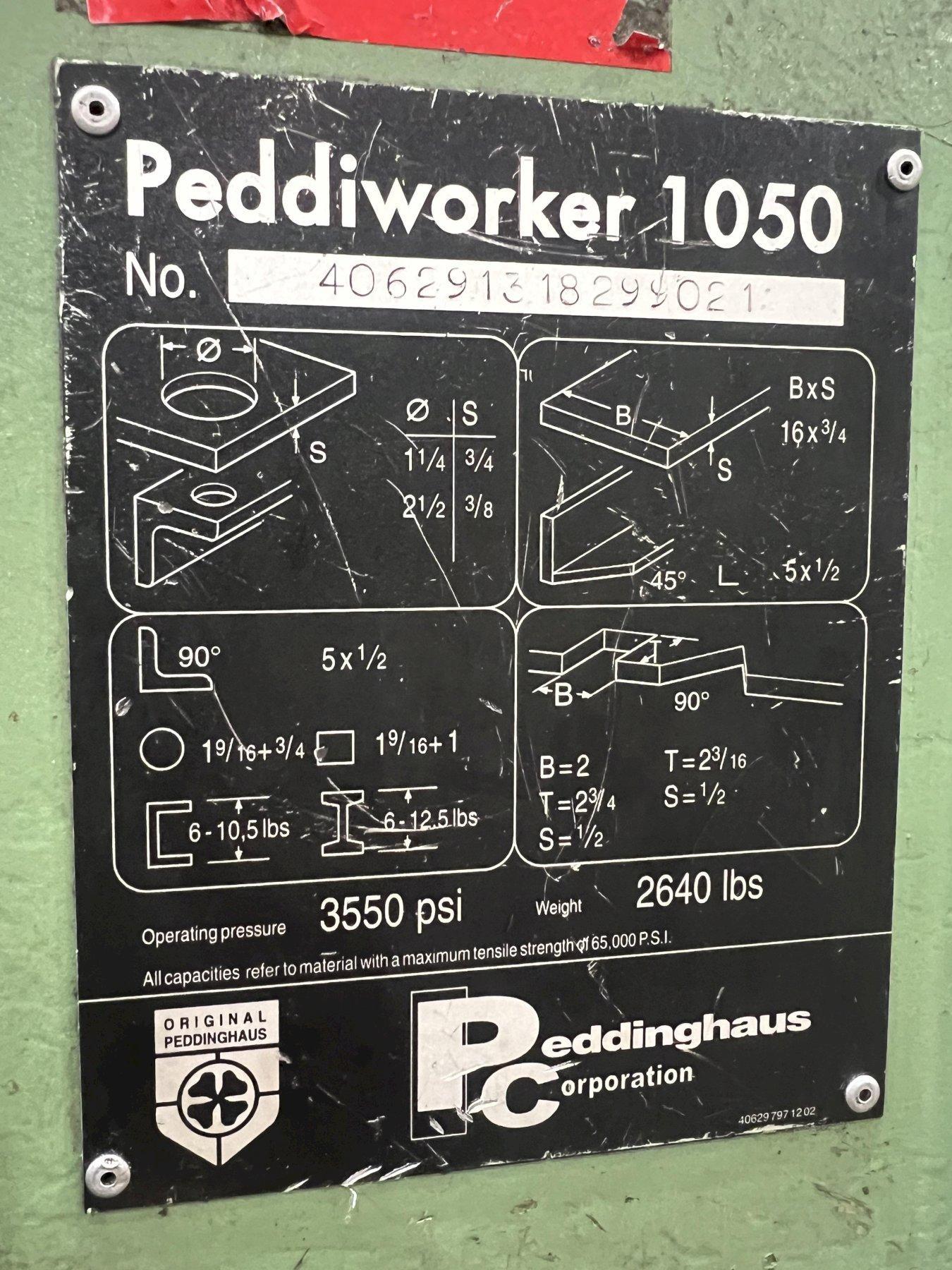

SERIAL ................... 406291218299021
MODEL .................... PEDDIWORKER 1050
STROKES ON PUNCH ......... 17
STROKE ................... 3/8" TO 1-5/8"
MOTOR .................... 5-1/2 HP

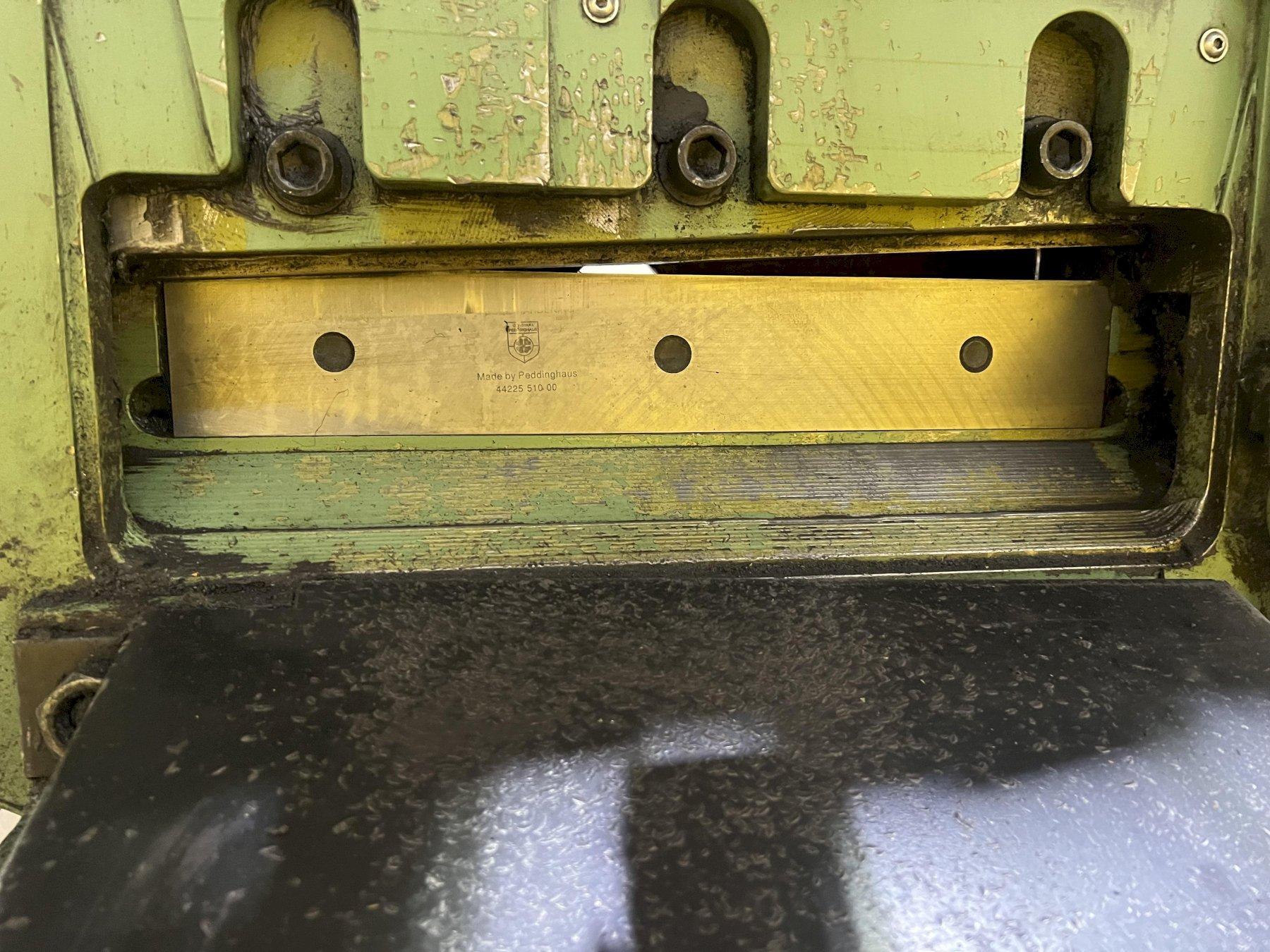

FLAT BAR SHEAR SPECIFICATION:
CAPACITY ................. 16" X 3/4"
12" X 5/8"
12" X 1"
45 DEGREE IRON CAPACITY .. 5" X 3/8"
BLADE CUT LENGTH ......... 16-1/2"
WORKING HEIGHT ........... 30"

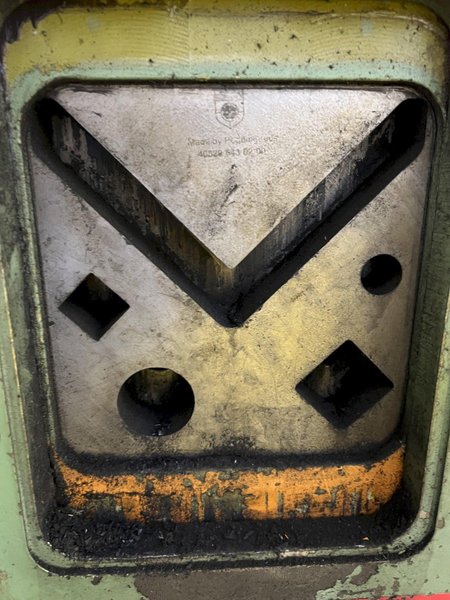

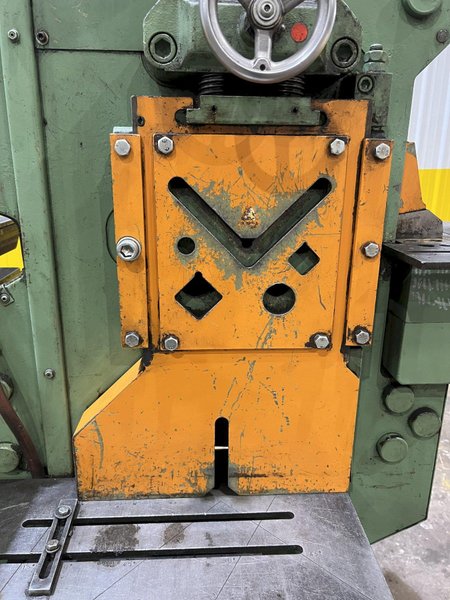

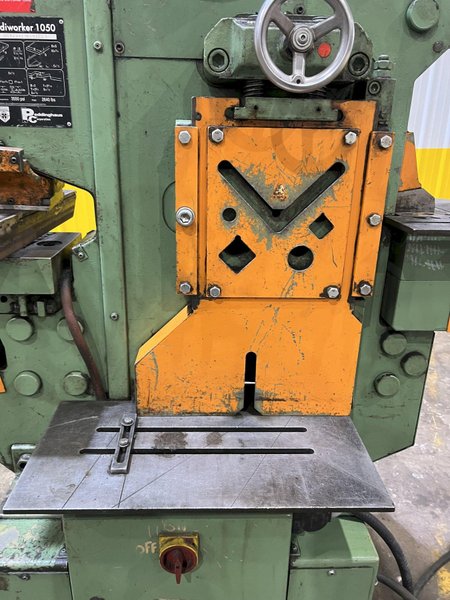

SECTION AND BAR STOCK SHEAR SPECIFICATION:
CROSS SECTION ............ 4-3/4" SQUARED
CUTS WITH STANDARD BLADES SPECIFICATION:
ANGLES, 90 DEGREES ....... 5" X 5" X 1/2"
ROUNDS ................... 1-9/16", 3/4"
SQUARES .................. 1-9/16", 1"
CUTS WITH SPECIAL KNIVES SPECIFICATION:
CHANNELS, 90 DEGREES ..... 6"
WORKING HEIGHT ........... 45-7/8" CENTER OF BLADE
SQUARE NOTCHER SPECIFICATION:
PLATE .................... 1/2"
ANGLES ................... 3" X 3/8"
CHANNELS IN FLANGE ....... 3" TO 5"
NOTCH WIDE ............... 2"
NOTCH DEPTH .............. 2-3/4"
TRIANGULAR NOTCHER SPECIFICATION:
PLATE .................... 1/2"
ANGLES ................... 2-1/2" X 3/8"
NOTCH DEPTH .............. 2-3/16"
WORKING HEIGHT ........... 44-1/4"

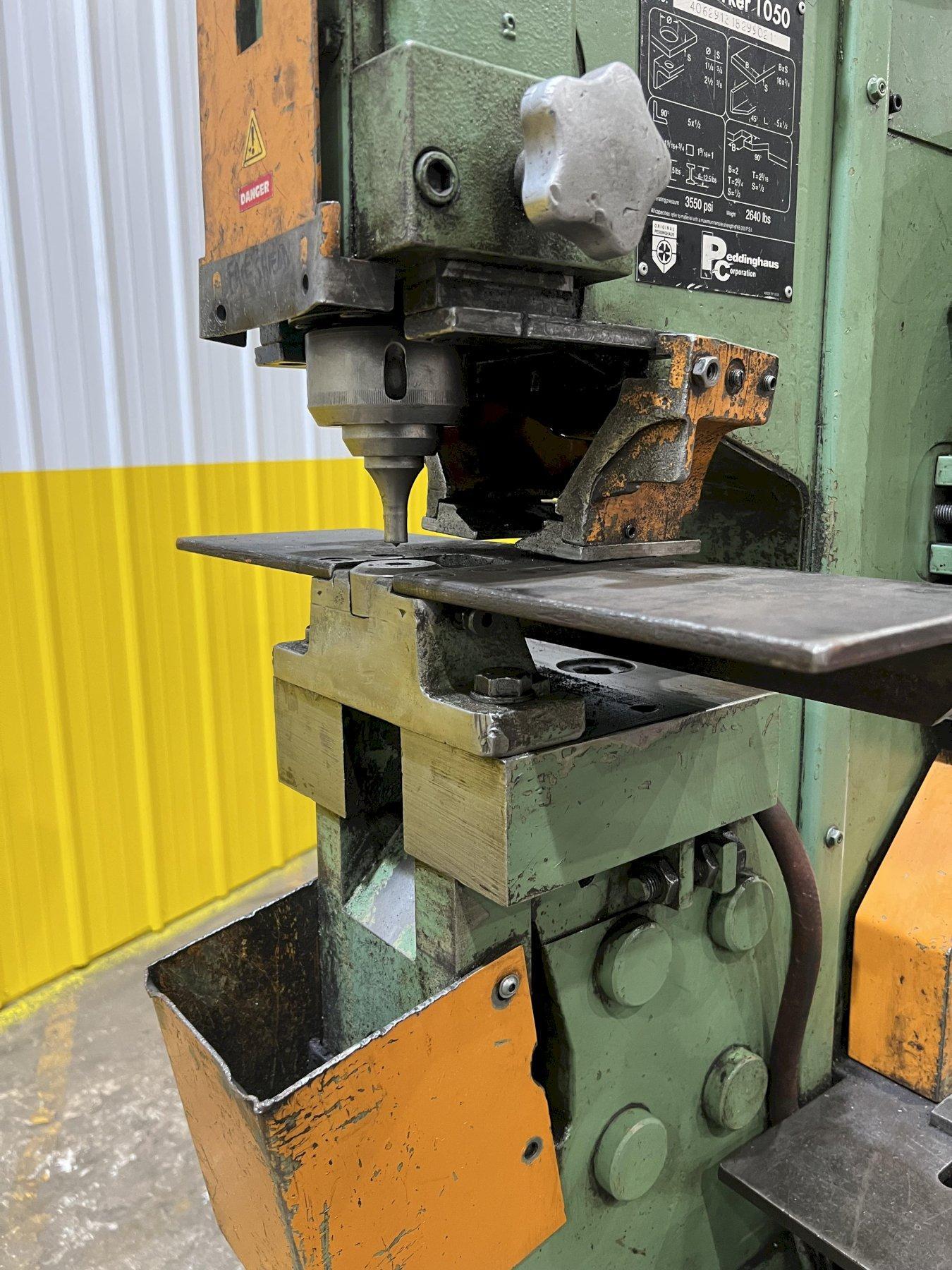

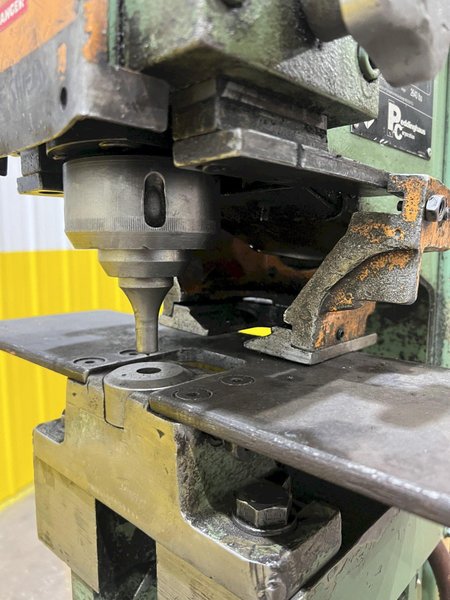

PUNCH UNIT SPECIFICATION:
CAPACITY ................. 105 TONS
PUNCH CAPACITY ........... 1-1/4" IN 3/4"
CHANNELS IN FLANGE ....... 4" TO 15"
CHANNELS IN WEB .......... 4" TO 15"
PUNCH WITH OVERSIZE PUNCHING ATTACHMENT:
UP TO 2-1/2" ............. 2-1/2" X 7/16"
UP TO 3-1/2" ............. 3-1/2" X 11/32"
THROAT DEPTH ............. 10"
WORKING HEIGHT ........... 44-3/4" |
