Main Motor | 20HP |
Swing | 30 inches |
Swing | 34 inches |
Spindle Bore | 12.5 inches |
Spindle Taper | 3/4" |
Spindle Nose | ASA A2-20 |
Spindle Speed | 16 Speeds |
Swing Over Cross Slide | 20.75 inches |
Center Distance | 118 inches |
Spindle Speed (RPM) | 5-300 |
CNC Control | no |
Dimensions | 86"W x 205"L |
Weight | 17700 pounds |
Swing Over Bed - 30″
Swing Over Cross Slide - 20.75″
Distance Between Centers - 118”

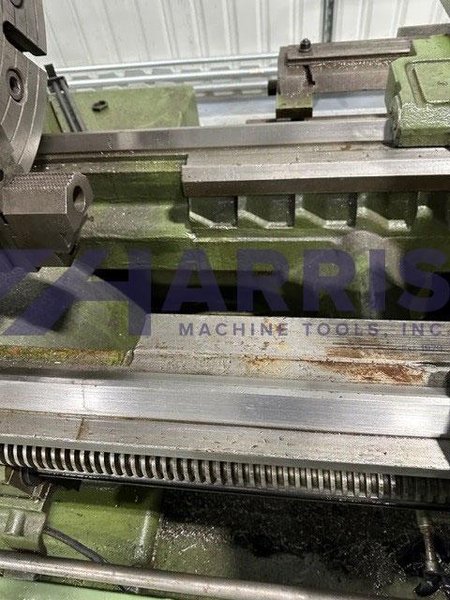

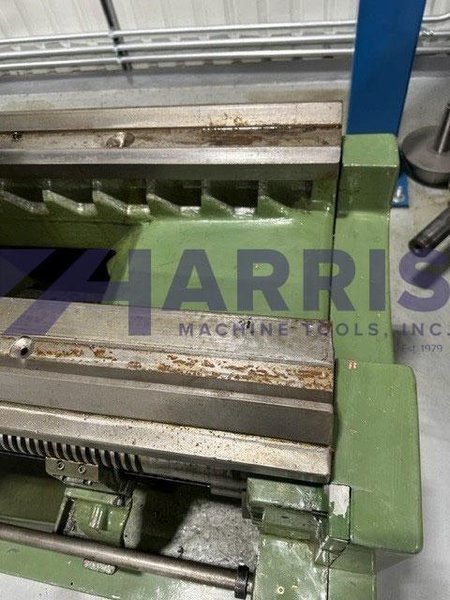

Width of Bed - 22″
Height of Center from Leg Bottom - 46.44”
Spindle Bore - 12.5″
Taper of Spindle Bore & Center - 3/4” Taper per Foot
Type of Spindle Nose - ASA A2-20
Number of Spindle Speeds - 16
Spindle RPM - 5 – 300 RPM

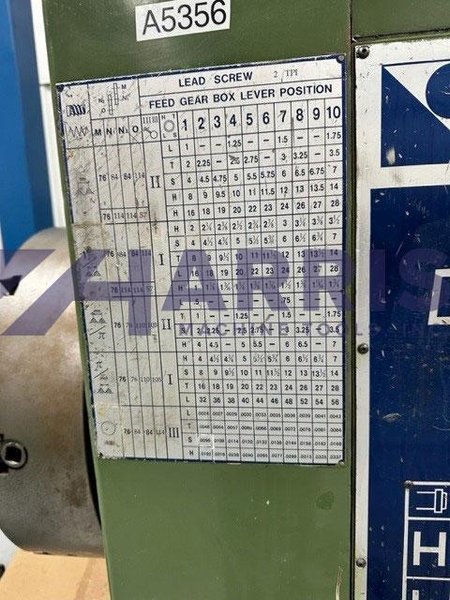

Number of Feed Changes - 40 Kinds
Range of Feeds per Revolution - 0.0024”-0.0337″
Longitudinal Cross - 1/2 of Longitudinal Feed
Leadscrew Diam. & Threads per Inch - 1.875” / 2 TPI
Threading - inch/metric
Threading range Whitworth - 1 to 28 TPI (50)
Threading range Metric - 1 to 28mm pitch (41)
Threading range Module - 0.5 to 7 M (20)
Threading range D.P. - 4 to 56 D.P. (40)

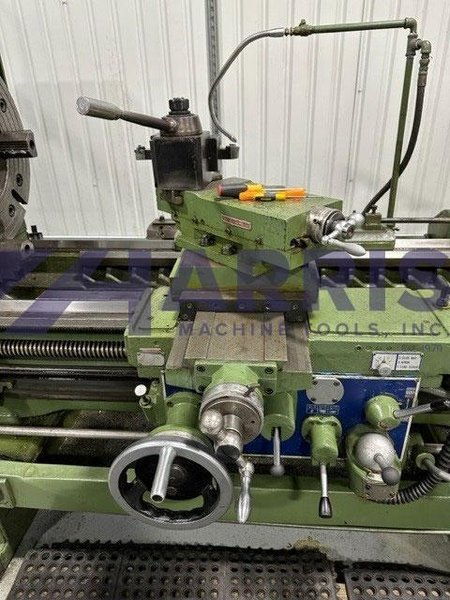

Maximum Travel of Compound - 9.75″
Maximum Travel of Cross Slide - 21.25″

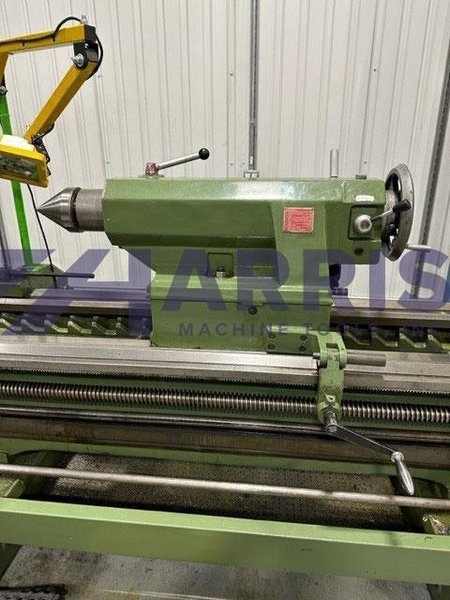

Tailstock Quill Travel - 11.75″
Tailstock Quill Diameter - 5.125″
Tailstock Center - M.T. #6
Main Drive Motor - 20 HP (15kw), 6P
Coolant Pump Motor - 1/4 HP
Floor Space - W: 86″ L: 205″
Machine Weight - 17,700
Specifications subject to buyer verification |
