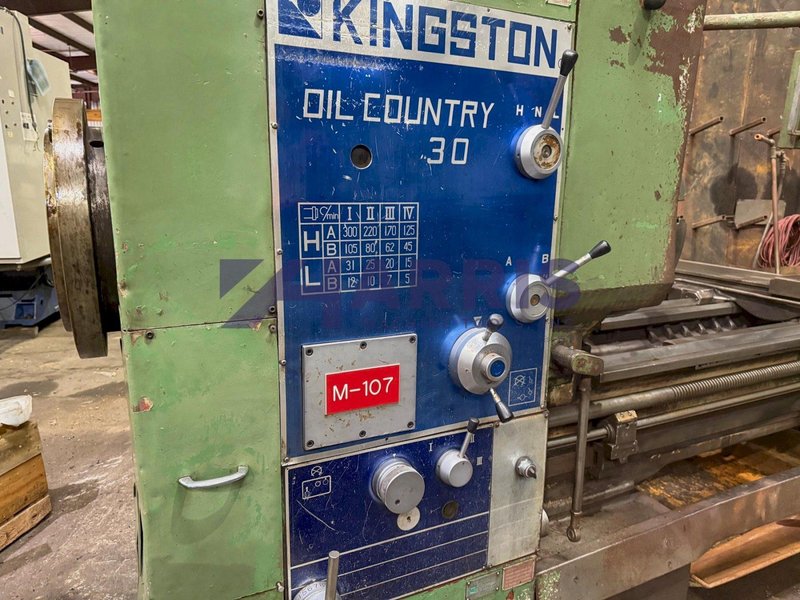

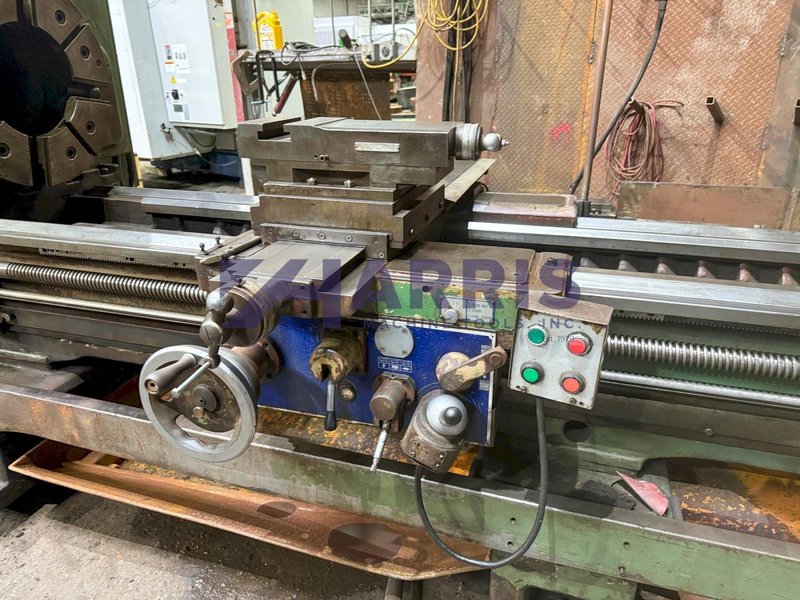

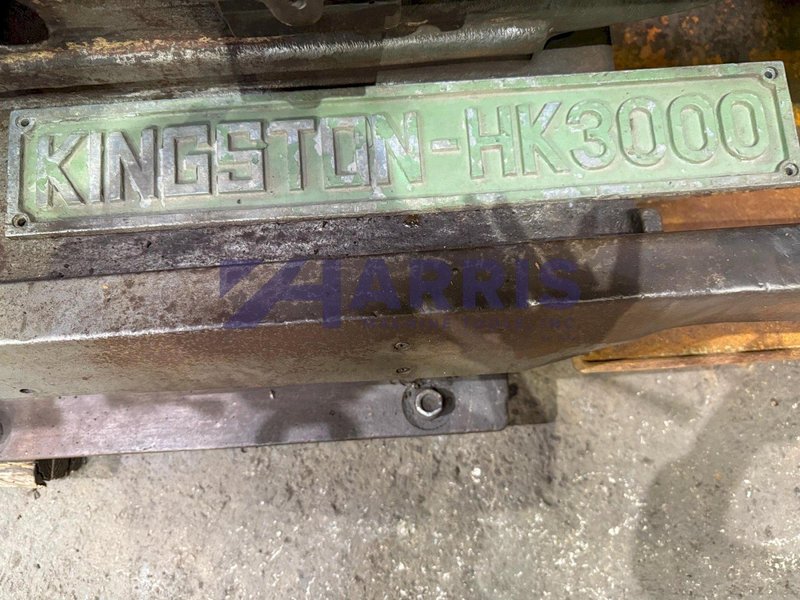

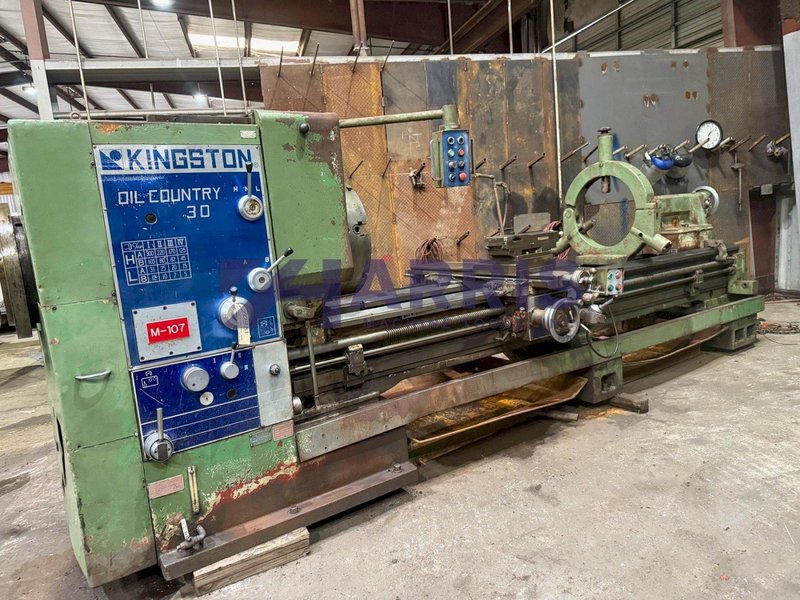

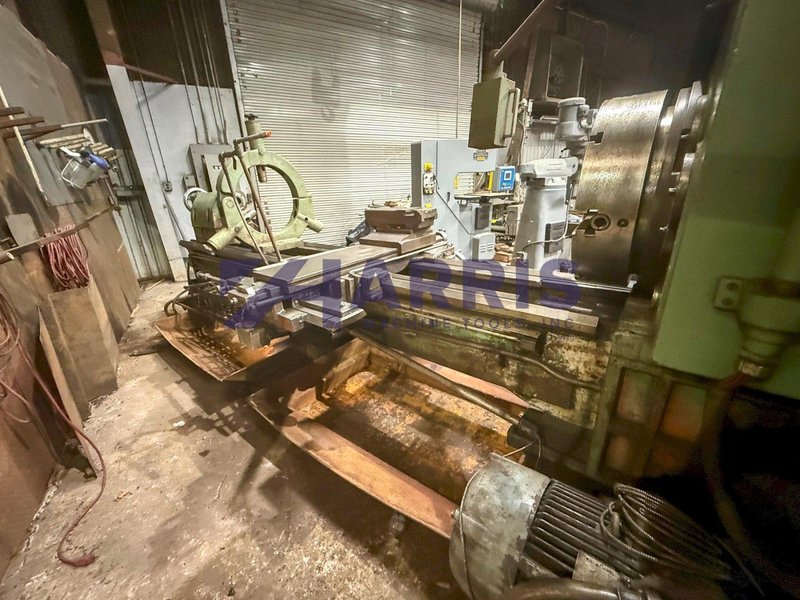

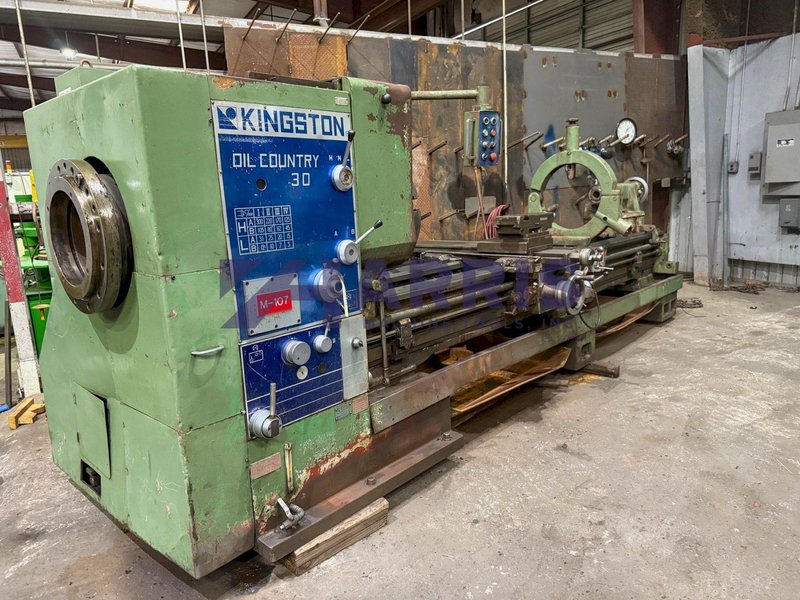

30” x 120” Kingston Hollow Spindle Lathe with 12” Spindle Bore, HK3000
Brand
Category
Model
HK3000
Stock #
20381
Year
Not specified
Condition
Used
Location
Texas
| Swing Over Cross Slide | 20.75 inches |
| Centers | 118 inches |
| Bed Width | 22 inches |
| Spindle Bore | 12.5 inches |
| Spindle Nose | ASA A2-20 |
| RPM | 300 |
| Power | 20 horsepower |
| Dimensions | 86"W x 205"L |
| Weight | 17700 pounds |
|
Swing Over Bed 30″
Swing Over Cross Slide 20.75″
Distance Between Centers 118”

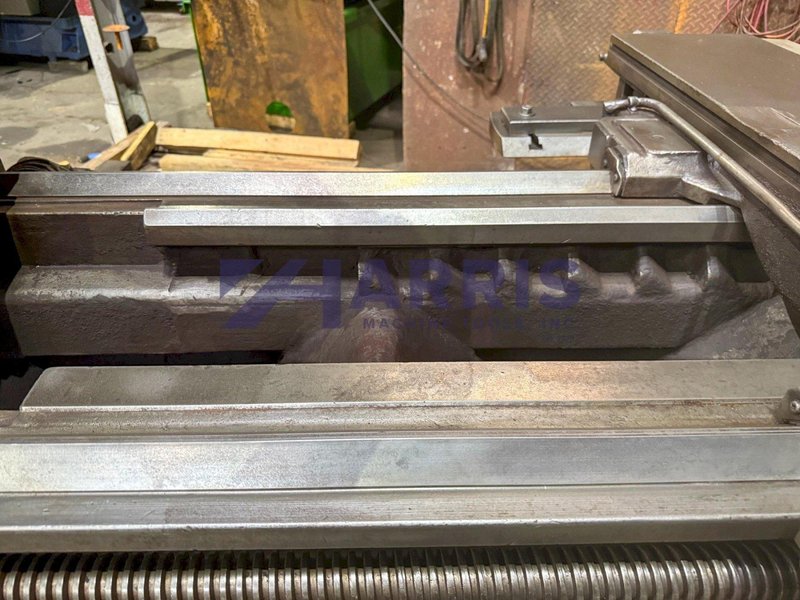

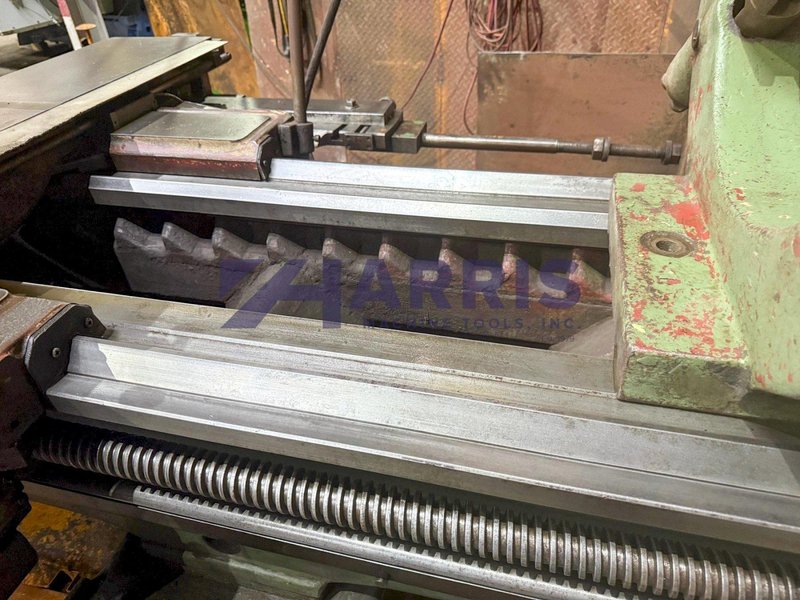

Width of Bed 22″
Height of Center from Leg Bottom 46.44”

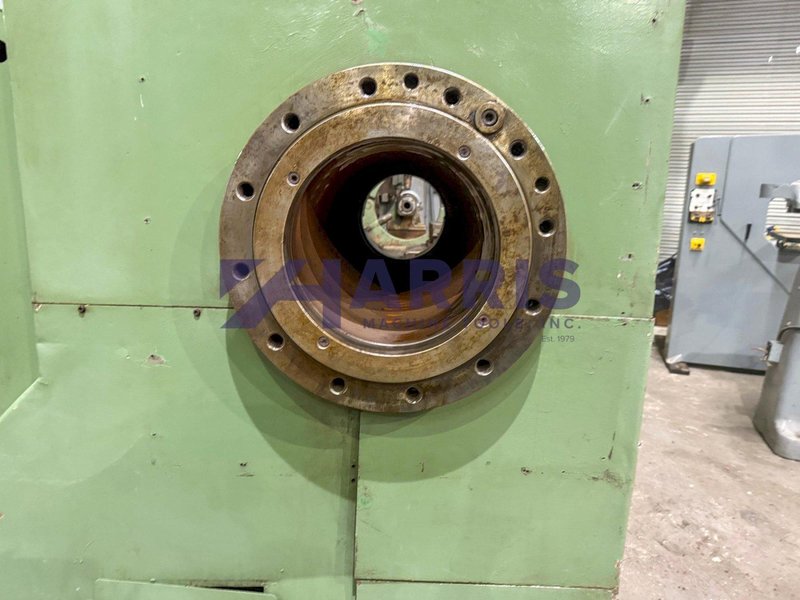

Spindle Bore 12.5″
Taper of Spindle Bore & Center 3/4” Taper per Foot
Type of Spindle Nose ASA A2-20
Number of Spindle Speeds 16
Spindle RPM 5 – 300 RPM
Number of Feed Changes 40 Kinds
Range of Feeds per Revolution 0.0024”-0.0337″
Longitudinal Cross 1/2 of Longitudinal Feed
Leadscrew Diam. & Threads per Inch 1.875” / 2 TPI
Threading inch/metric
Threading range Whitworth 1 to 28 TPI (50)
Threading range Metric 1 to 28mm pitch (41)
Threading range Module 0.5 to 7 M (20)
Threading range D.P. 4 to 56 D.P. (40)
Maximum Travel of Compound 9.75″
Maximum Travel of Cross Slide 21.25″
Tailstock Quill Travel 11.75″
Tailstock Quill Diameter 5.125″
Tailstock Center M.T. #6
Main Drive Motor 20 HP (15kw), 6P
Coolant Pump Motor 1/4 HP
Floor Space W: 86″ L: 205″
Machine Weight 17,700 *All specs are subject to buyer review. |
|
