Max Dia. Hole Drilled | 2 inches |
Max Drilling Depth | 84 inches |
# Spindles | 1 |
CNC Control | yes |

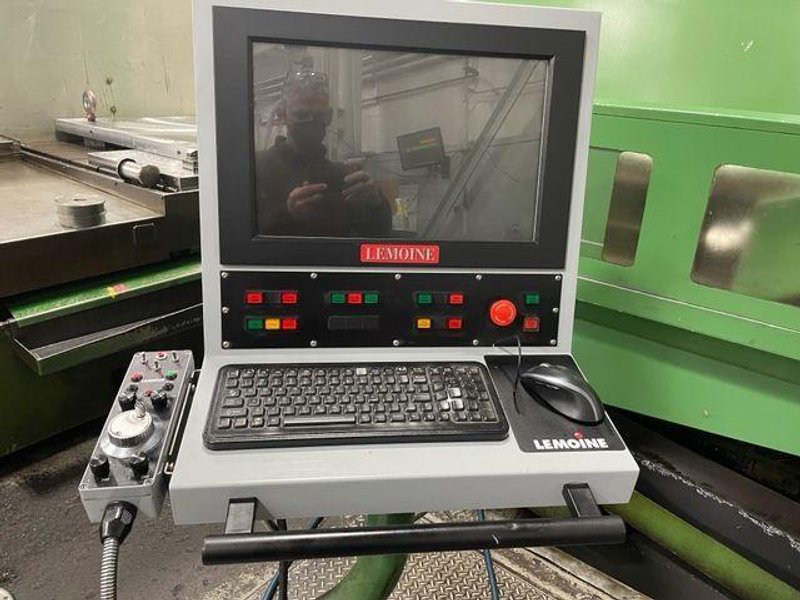

Type of CNC Control | LEMOINE |

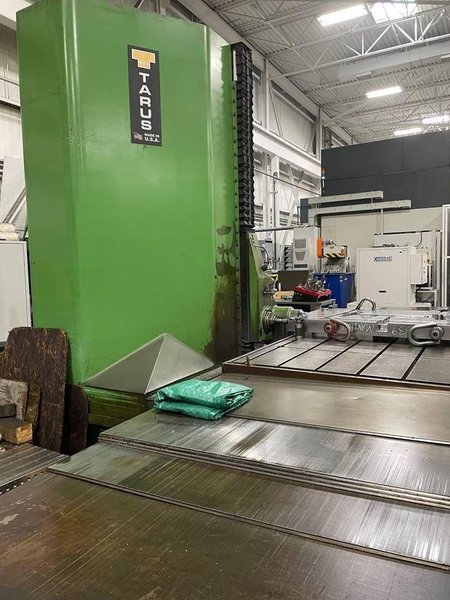

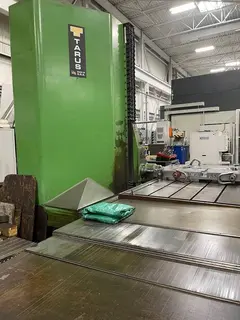

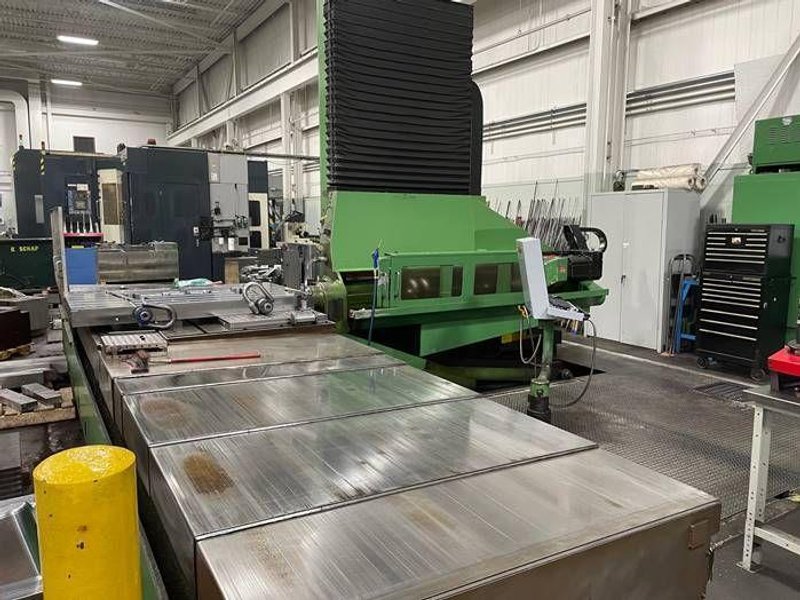

CONTROL: LEMOINE RETROFIT in 2015 15 HP Main Spindle / 3500 RPM X Axis : 106" Table Left/Right Y Axis : 60" Vertical Z Axis : 84" (Drill Stroke) Drill Capacity: .250 - 2.00 inch 60" x 108" Table Size 50,000 Lbs. Table Weight Capacity Hydraulic Tapping Auxiliary Spindle #50 Taper Coolant Tank Chip Conveyor
Equipped With:

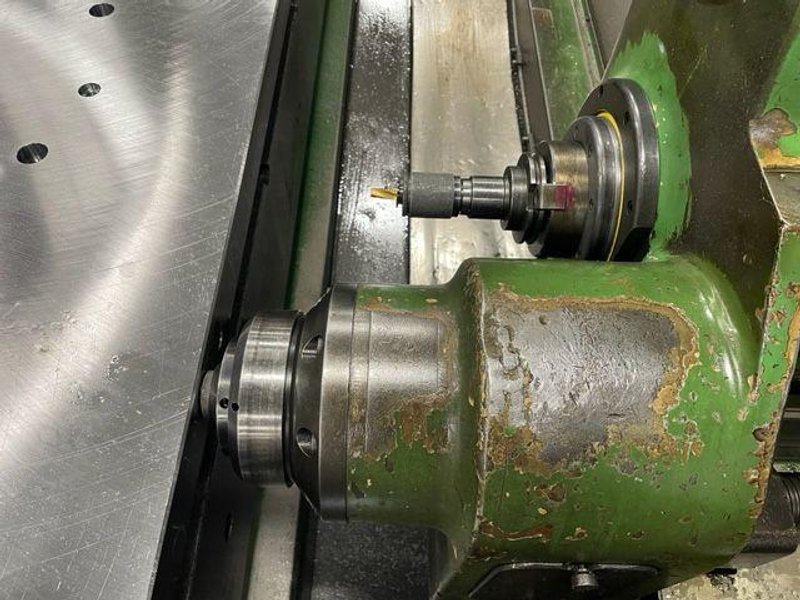

Lemoine retrofit , was installed early 2015 Table size 60” X 108” Milling head CAT 50 taper Drilling capacity is 2” x 84“ Whip guides Cat 50 tool holders for milling head
|
