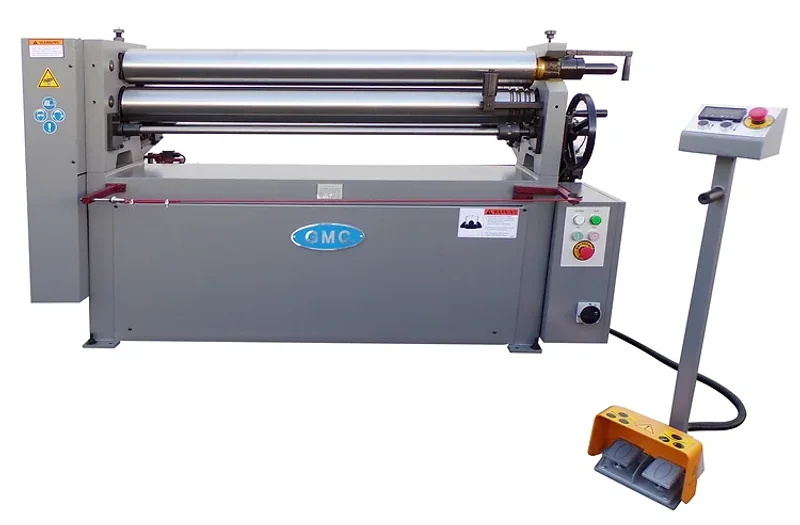

NEW 4' X 1/4" GMC MODEL PBR-0425E PLATE BENDING ROLL

Brand
GMC
Category
Bending & Forming Equipment
Type
Rolls, Plate Bending (incld Pinch)
Model
PBR-0425E
Stock #
19162
Year
Not specified
Condition
New
Location
Not specified
NEW 4' X 1/4" GMC MODEL PBR-0425E PLATE BENDING ROLL
  • SO 9001 certified
  • Taiwan machines

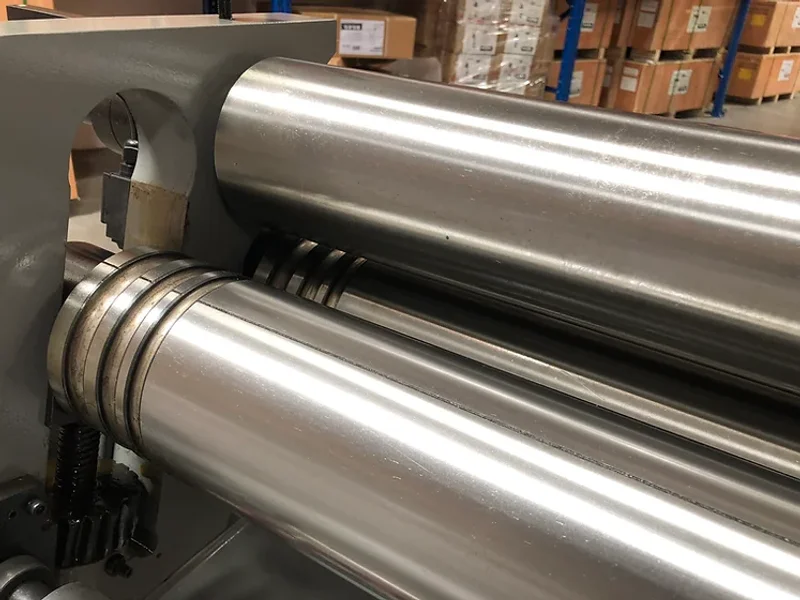

  • All (3) rolls are hardened rolls, up to 50-52 HRC
  • 3-rollers are driven to perform high accuracy
  • Adjustable cone attachment included
  • 3/8”, ½” and 5/8” grooves on rollers
  • One wheel one-side operated for bending roll
  • One wheel one-site operated for pinch roll (E model is powered)
  • Heavy duty casting frame
  • Heavy duty all steel welded construction
  • 1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance.
  • Quiet running operation
  • Easy swing-out top roller
  • Safety line all around the machine for emergency stop
  • All rolls run forward and reverse
  • Safety type forward/reverse foot pedal
  • Power source 220V, (option: 440V, 3 phase)
  • One year industrial warranty for parts


STANDARD EQUIPMENT
  • Adjustable cone attachment
  • 3/8”, ½” and 5/8” grooves on rollers
  • All (3) hardened rolls
  • Removable safety foot pedal
  • Operation & parts manual
  • Orange color front cover is optional.
  • E models come with motorized bending roll up/down w/ push button and digital display for easy operation of repeat jobs


OPTIONAL EQUIPMENT
Safety fence for enclosure of the back side of the machine - $1,150.00

Capacity:

Mild Steel



4'3" x 1/4"

Capacity:

Stainless Steel



4’3” x 3/16"
Roll Dia.  6 1/4"
Min. Bending Dia. Inch 8 1/4"
Pre-bend inch 0.25"
Rolls Speed ft/min 20
Rolls Opening  1/2"
Main Motor 4HP 3PH
Weight 3,850 lbs.
Overal Dimensions  78" x 33" x 52"
