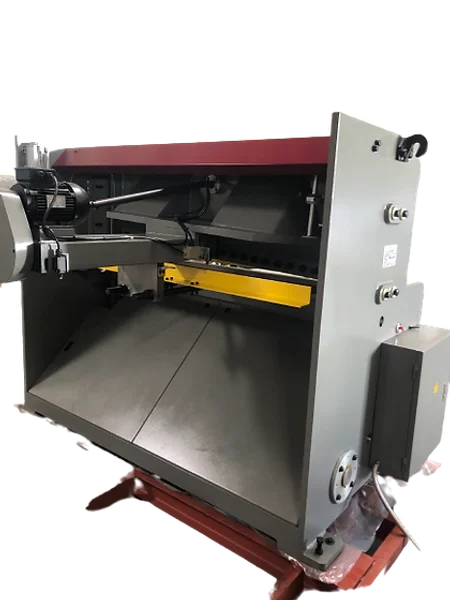

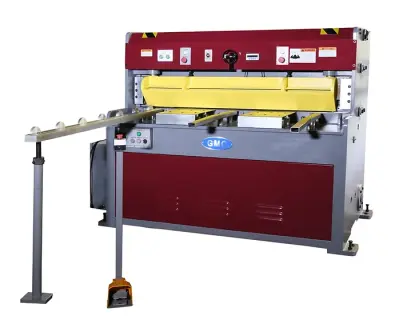

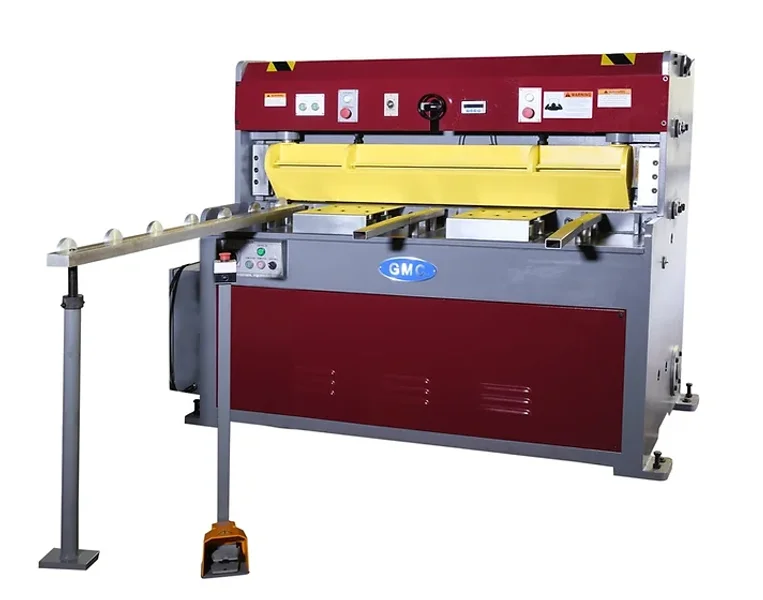

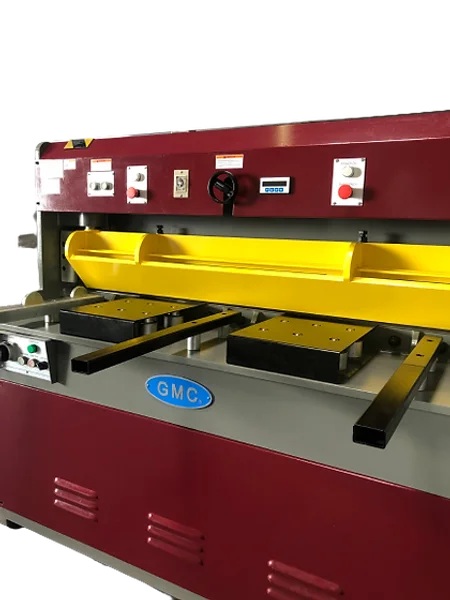

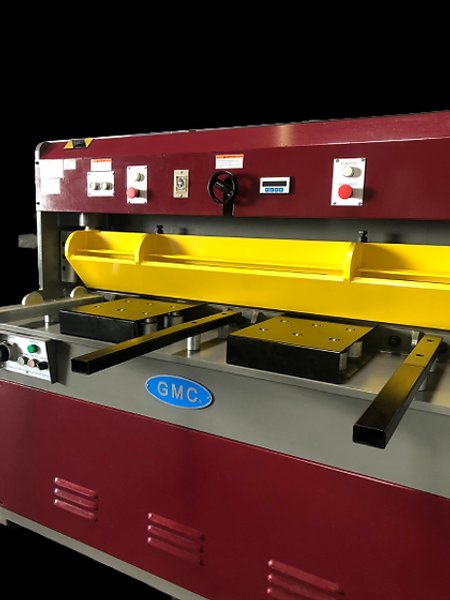

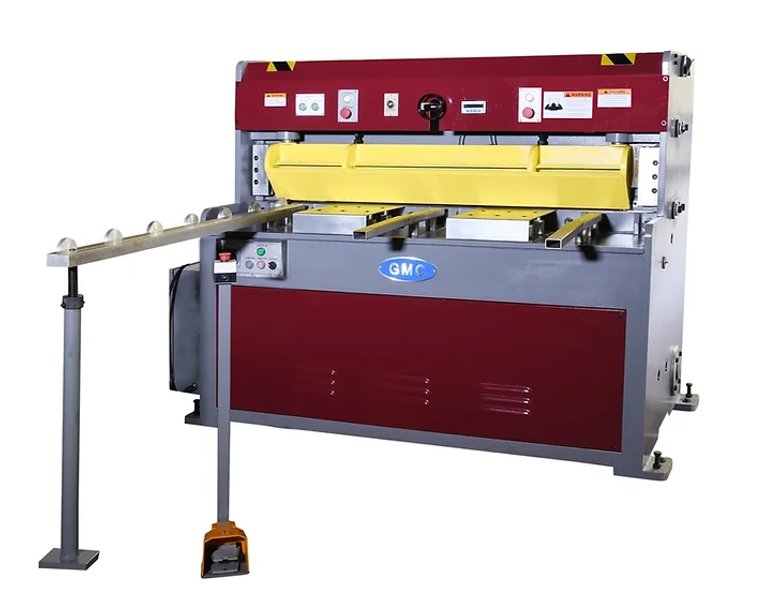

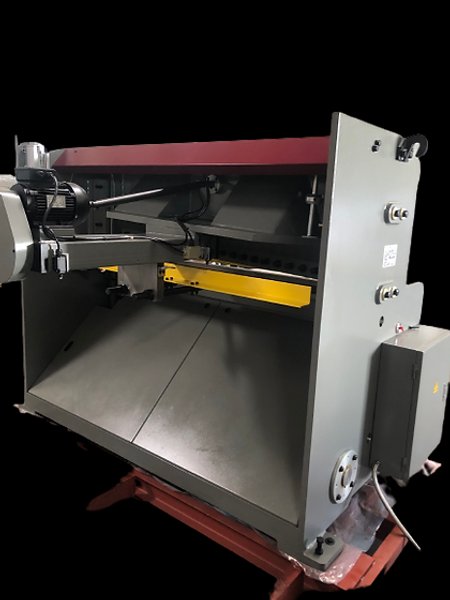

NEW 6' X 1/4" GMC MODEL HS-0625E HYDRAULIC SHEAR

Brand
GMC
Category
Shearing Equipment
Type
Shears, Power Squaring (In)
Model
HS-0625E
Stock #
19131
Year
Not specified
Condition
New
Location
Not specified
NEW 6' X 1/4" GMC MODEL HS-0625E HYDRAULIC SHEAR
  • ISO 9001 certified
  • Taiwan machines
  • 24” German SIKO Front Operated power back gauge w/ micro adjustment 0.004” inch/mm digital display
  • Quick Change Blade Gap Adjustment (BGA), with gap dial
  • CE standard “OMERO” electric control system
  • Meet OSHA safety standard code
  • Shadow line for accurate straight cutting
  • Adjustable cutting length and stroke
  • Ball transfer plates on worktable for easy loading workpiece
  • Dual voltage 220V/440V
  • Well balanced and sturdy all steel machine frame
  • German made Hydraulic logic system centrally located and quiet
  • Hydraulic hold-downs with anti-mar neoprene
  • Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
  • Full length viewable safety finger guard to protect operator from cutting hazard
  • Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
  • Hydraulic, electrical overload protection
  • Compact operator control panel
  • All motors are overload protected & low voltage control system
  • Jog or continuous auto cycle cutting operation modes
  • One year industrial warranty for parts


STANDARD EQUIPMENT
  • 24” German SIKO Front Operated Power Back Gauge with micro adjustment , accuracy 0.004” inch/metric digital display
  • 1 each 60” squaring arm with inlaid inch/metric dual scale
  • Quick change blade gap adjustment (BGA)
  • Shadow line for accurate straight cutting
  • Material support and drop back chuter
  • Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
  • 2 each 24” front support arms
  • Hydraulic hold-downs with anti-mar neoprene
  • Full length viewable finger guard
  • Removable safety foot pedal
  • Tool box


OPTIONAL EQUIPMENT
  • Safety fence for enclosure of the back side of the machine -  $1,950.00
  • Rotary Phase Converter with Smart Booster #PL-30 - $5,550.00

Cutting capacity:

Mild steel

Stainless steel



6’ x ¼”

6’ x 10 Ga.
Blade length 6'6"
Strokes per minute 10-17
Throat depth 18"
Worktable height 34 1/2"
Front support arm 24"

Back gauge for E model

36" powered B.G.
Blade rake angle 2 degree
Oil tank cap. 2117L = 31 Gal

Main Motor



Powered B.G. Motor

15 HP, 220V/50A

440V/25A



1 HP
Machine weight 7,650 LBS
Machine dimmensions 102" x 89" x 63"


  • The minimum material thickness this Shear can handle is 20 gauge.
