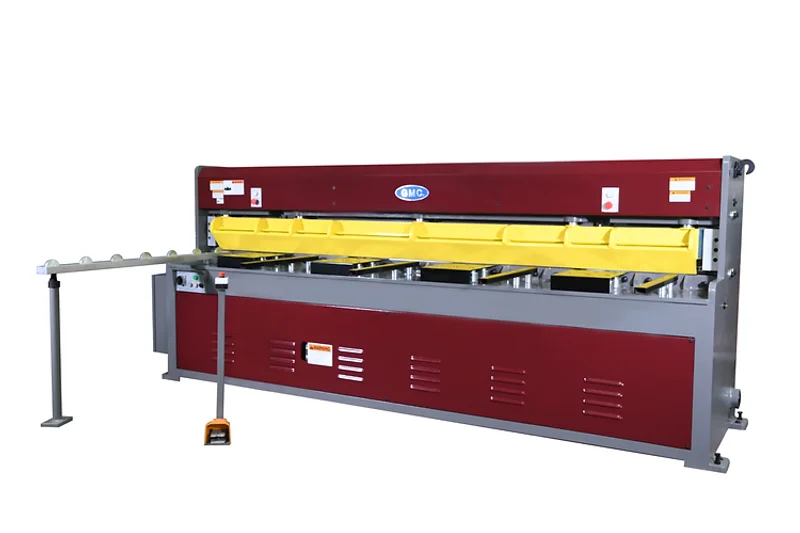

NEW 8' X 1/4" GMC MODEL HS-0825E HYDRAULIC SHEAR

Name: NEW 8' X 1/4" GMC MODEL HS-0825E HYDRAULIC SHEAR
Brand: GMC
SKU: 19129
Availability: InStock

Brand

GMC

Not specified

NEW 8' X 1/4" GMC MODEL HS-0825E HYDRAULIC SHEAR

ISO 9001 certified
Taiwan machines
36” German SIKO Front Operated power back gauge w/ micro adjustment 0.004” , inch/mm digital display
Quick Change Blade Gap Adjustment (BGA), with gap dial
CE standard “OMERO” electric control system
Meet OSHA safety standard code
Shadow line for accurate straight cutting
Adjustable cutting length and stroke
Ball transfer plates on worktable for easy loading workpiece
Well balanced and sturdy all steel machine frame
German made Hydraulic logic system centrally located and quiet
Hydraulic hold-downs with anti-mar neoprene
Shear blades are high grade carbon/chrome alloy steel and hardened
to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
Full length viewable safety finger guard to protect operator from cutting hazard
Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
Hydraulic, electrical overload protection
Compact operator control panel
All motors are overload protected & low voltage control system
Jog or continuous auto cycle cutting operation modes
One year industrial warranty for parts

STANDARD EQUIPMENT

36” German SIKO Front Operated Power Back Gauge with micro adjustment , accuracy 0.004” inch/metric digital display.
1 each 60” squaring arm with inlaid inch/metric dual scale
Quick change blade gap adjustment (BGA) with gap dial
Shadow line for accurate straight cutting
Material support and drop back chuter
Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
2 each 24” front support arms
Hydraulic hold-downs with anti-mar neoprene
Full length viewable finger guard
Removable safety foot pedal
Tool box

OPTIONAL EQUIPMENT

Safety fence for enclosure of the back side of the machine - $1,150.00

Cutting capacity: Mild steel Stainless steel	8’ x 1/4" 8’ x 10 Ga.
Blade length	8' 2" = 98"
Strokes per minute	10-15
Throat depth	18"
Worktable height	34 1/2"
Front support arm	24"
Back gauge	36" SIKO powered B.G.
Blade rake angle	2 degree
Oil tank cap.	32 Gal
Main Motor Powered B.G. Motor	20 HP, 220V/70A - 440V/35A, 3 Phase 1 HP, 220V/440V, 3 Phase
Machine weight	12,850 LBS
Machine dimensions	157" x 99" x 65"
