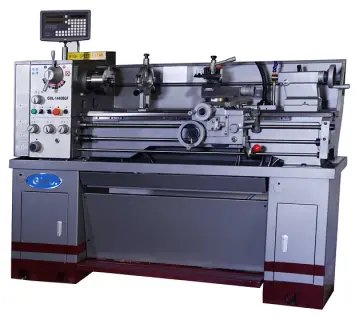

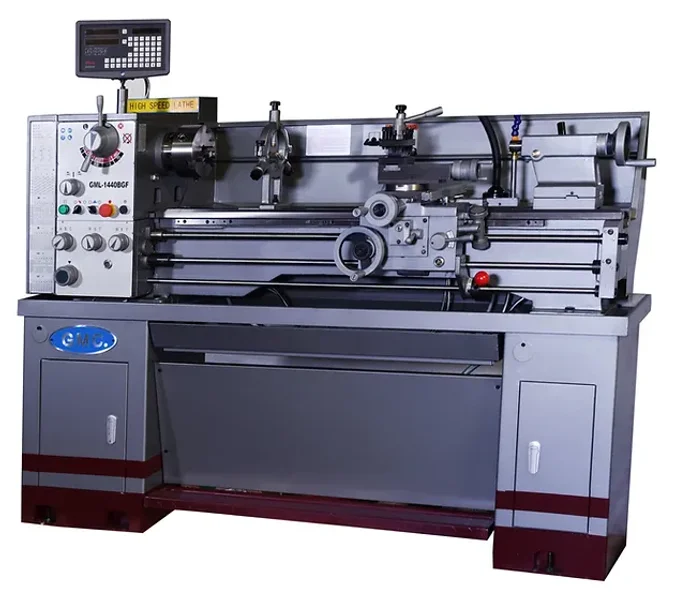

NEW 14" X 40" GMC MODEL GML-1440BGF-3 HIGH SPEED GEARED HEAD ENGINE LATHE

L A T H E  C A P A C I T Y

Max. Swing Over Bed

14”

Max. length of workpiece

40”

Max. length of cutting

34”

Max. Swing Over Cross Slide

8.25”

Center Height

7”

Distance between centers

40”

Bed Width

7.5”

Bed Length

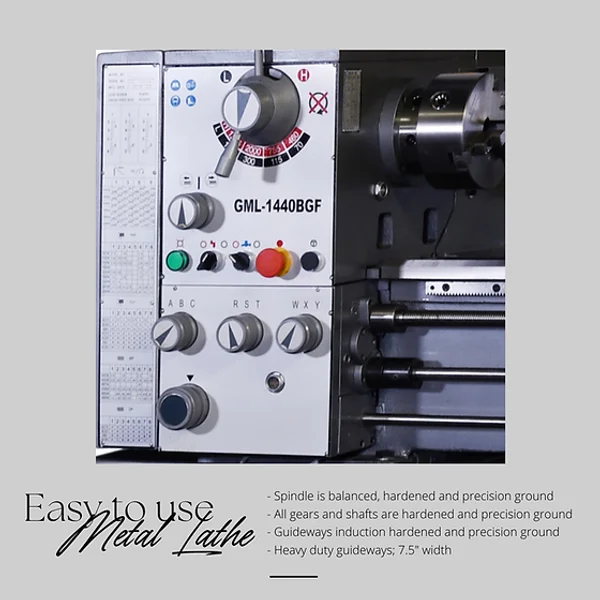

S P I N D L E

Spindle Nose

D1-4 Camlock

Spindle Bore

1.5”

Spindle Taper Nose

MT5 (Morse Taper #5)

Spindle Taper Sleeve

MT3 (Morse Taper #3)

Range of Spindle Speeds

70-2,000 RPM

Low Spindle Speeds

70/115/190/300 RPM

High Spindle Speeds

460/755/1255/2000 RPM

Steps of Spindle Speed

8 steps

F E E D

Range of Longitudinal Feeds

0.00168” - 0.11750”/rev.

IPR, 24 kinds

Range of Cross feeds

0.00046” - 0.03231” /rev.

IPR, 24 kinds

T H R E A D I N G

Imperial Threads  QTY. / Speed

56 / 4-112 TPI

Metric Threads QTY. / Speed

44 / 0.1-7.0 mm

Diametral Pitch threads QTY. / Speed

32 / 16-112 DP

Module threads

34 / 0.1 – 1.75 mm

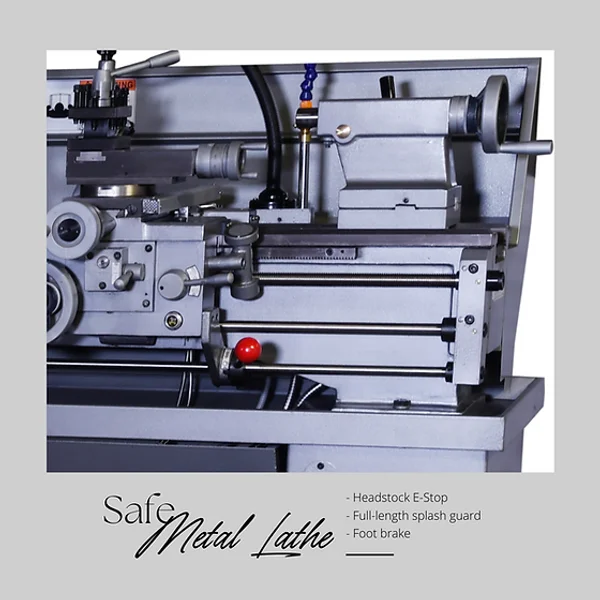

T A I L S T O C K

Tailstock Quill Diameter

1.5”

Tailstock Quill Taper

MT3 (Morse Taper #3)

Tailstock Quill Travel

4”

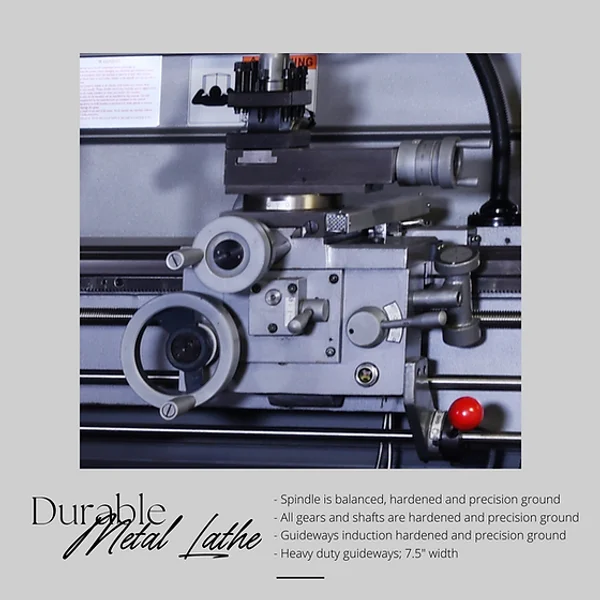

A P R O N

Compound Slide Travel

4.25”

Cross Slide Travel

7.25”

Cross Feed QTY. / Speed

0.014 – 0.380mm / rev

Leadscrew Diameter

7/8”

Feed Rod Diameter

3/4"

Max. Cutting Tool – 4 Way Tool Post

5/8”

M O T O R S  &  E L E C T R I C A L

Main motor

3 HP Three Phase

Power (prewired voltage)

220VAC

Full-Load Current Rating

12 Amps.

Minimum Circuit Size

15 Amps.

Connection Type

Pig Tail; hardwire or add plug

Coolant pump

1/16HP, 220V, Single Phase

F L U I D   C A P A C I T I E S

Headstock Capacity | Type

4 Gal. | ISO 32 (eg. Texaco Regal R&O 32 or Mobil DTE Oil Light)

Gearbox Capacity | Type

1.4 Qt. | ISO 68 (eg. Texaco Regal R&O 68 or Mobil DTE Heavy)

Apron Capacity | Type

1.2 Qt. | ISO 68 (eg. Texaco Regal R&O 68 or Mobil DTE Heavy)

M A C H I N E   D I M S.

Net Weight (approx.)

1,730 LBS

Overall Dimensions

70”L x 35”W x 59”H

Shipping Type

Wood Slat Crate

Quantity

Accessory Description

Part Number

Price

1

10” Drive Plate

# DPD410

$200

1

Micro Carriage Stop

#MCS1440

$250

1

5-C Hand lever type collet closer ”JFK” USA (free install)

#5C

$1,650.00

1 set

1/16” - 1-1/16" by 32nds 33 pc. 5C Collet Set

#900-0014

$395.00

1 set

BXA 6 pc. ALORIS type Quick Change Tool Post (piston type)

#900-0051-200

$425.00

1

MT3 Medium Duty Live Center

#900-0050-03

$75.00

1

1/32”- 1/2” Drill Chuck with Key

#700-0102

$35.00

1

JT33 Drill Chuck Arbor Tang End

#700-0153

$35.00

1 set

Lathe Package #1

• 5pc Indexable Carbide Turning Tool Set - #2003-0003
• 1/32”- 1/2” Drill Chuck with Key #700-0102
• JT33 Drill Chuck Arbor Tang End #700-0153
• 29 pc. TIN Coated HSS Drill Set 1/16”-1/2” by 64 THS #5000-0001T

#GMCLP1

$295.00
