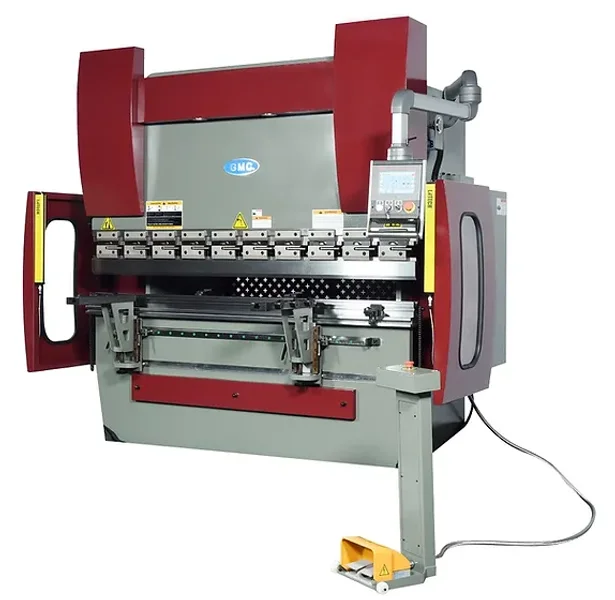

NEW 70 TON X 6' GMC MODEL HPB-7006 HYDRAULIC PRESS BRAKE

NEW 70 TON X 6' GMC MODEL HPB-7006 HYDRAULIC PRESS BRAKE

Name: NEW 70 TON X 6' GMC MODEL HPB-7006 HYDRAULIC PRESS BRAKE
Brand: GMC
SKU: 19108
Availability: InStock

Brand

GMC

Location

Not specified

Specifications
Files & Videos

NEW 70 TON X 6' GMC MODEL HPB-7006 HYDRAULIC PRESS BRAKE

ISO 9001 certified
Meet OSHA and CE safety standard
ESA (Italy) Model 625, 2 Axis CNC Controller
Die library, offline programming, stores thousands of programs
Programmable Angle/ Angle Correct
Germany Rexroth hydraulic system
Yaskawa Servo motor and Drives
Schneider electrical components
Hydraulic crowning
All steel construction for maximum rigidity
Hydraulic logic system centrally located and quiet
Safety type foot pedal with handle and E-stop switch
Safety 24V low voltage & overload protection
One year industrial warranty for parts

STANDARD EQUIPMENT

ESA (Italy) Model 625, 2 Axis CNC Controller
(2) 24” front support arms, Quick Release for easy positioning
Quick release segmented (American Style Tooling) punch holder

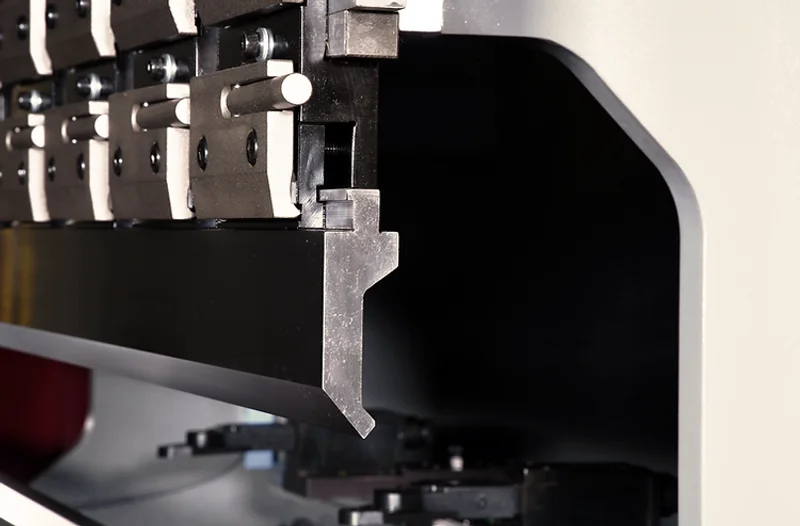

Full Length Gooseneck Punch HRC 50 ( Punch is rated for 10 gauge and lighter .062” radius punch) Additional Tooling may be required for thicker materials and purchaser’s specific products/parts - Ask your dealer for custom tooling quotes)

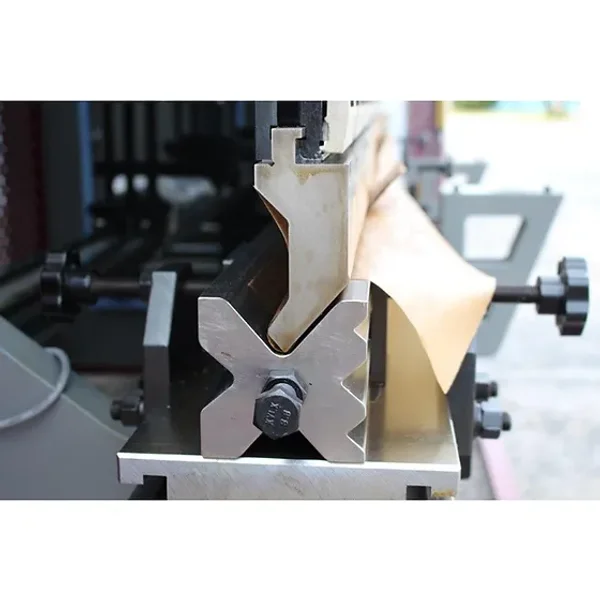

Full Length Vee Die with 6 assorted sizes HRC 50
Lntech Light Curtain System
Side and Back Safety Fence
Movable Foot Pedal with Estop meet OSHA safety standard

OPTIONAL EQUIPMENT

For ¼” tooling: Need single V die holder $1,595.00
4’ of punch and 2.5” single V Die , Flame hardened with safety tang $2,550.00
On-site training, one day…………………………….. $4995.00

Maximum Pressure	70 Tons
Bending Lenght Capacity	80" (6'8")
Distance Between Uprights (housing)	63"
Ram Stroke Travel Cylinder Travel Adjustment (max)	6" 3 1/8"
Table Width	6"
Distance Between Table and Ram Max Stacked Tooling Height	15 1/4" 8-1/2"
Throat Depth	10"
Back Gauge Distance	24"
Back Gauge Repeatability	.0039"
Y-Axis Repeatability	.0039"
Approach speed, inch / second Working speed, inch / second Return speed, inch / second	3.14” 0.35” 2.36”
Main motor: Servo motor for back gauge: Servo motor for bending angle setting	7-1/2 HP, 3 Phase 30 AMP Prewired: 220VAC (+/- 10%) 1 HP, 3 Phase 220VAC (+/- 10%) 1/2HP, 3 Phase 220VAC (+/- 10%)
Hydraulic oil tank capacity: Recommended Oil:	52 Gal. Hydraulic Oil Shell #68HD
Machine weight: Machine size, L x W x H: Shipping Dimensions:	8,650 LBS 103" x 63" x 87” 109"x66"x98"

Warranty for Rotary Phase Convertor Users : Electrical Parts Warranty is not available if A Rotary Phase Convertor is used. Mechanical parts warranty only

Note: the following models do not work with rotary phase converters:

All EPS models, HS-0825E,HS-0425E, HS-0625E,HS-1010E, HS-1025E, HBB-1010NC, GML-(ALL LATHES)

HPB-4504CNC, HPB-7006CNC, HPB-7006CNC-3R, and HPB-3305CNC

These models listed above cannot run on any phase converters, Warranty will be voided.

GMC will pre-wire the Phase converter to our machine and it is ready to use.
