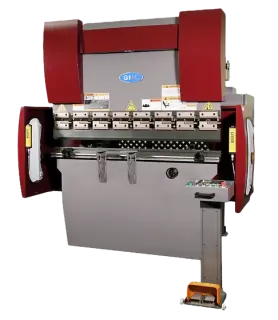

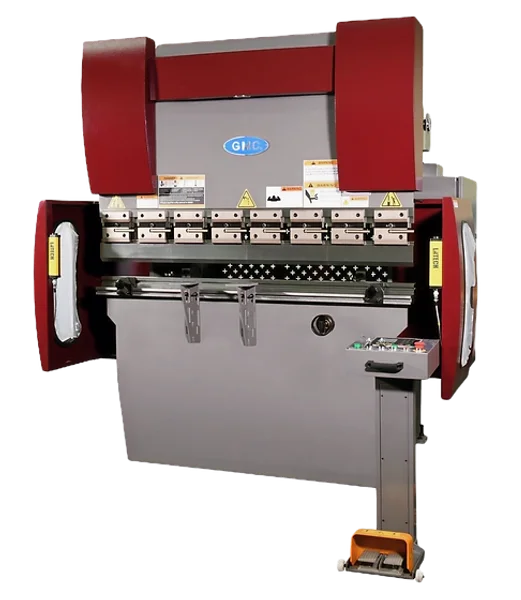

NEW 33 TON X 5' GMC MODEL HPB-3305CNC HYDRAULIC PRESS BRAKE

NEW 33 TON X 5' GMC MODEL HPB-3305CNC HYDRAULIC PRESS BRAKE

Brand

GMC

Category

Bending & Forming Equipment

Type

Brakes, Press

Model

HPB-3305CNC

Stock #

19106

Year

Not specified

Condition

New

Location

Not specified

Specifications
Files & Videos

NEW 33 TON X 5' GMC MODEL HPB-3305CNC HYDRAULIC PRESS BRAKE

ISO 9001 certified
Meet OSHA and CE safety standard

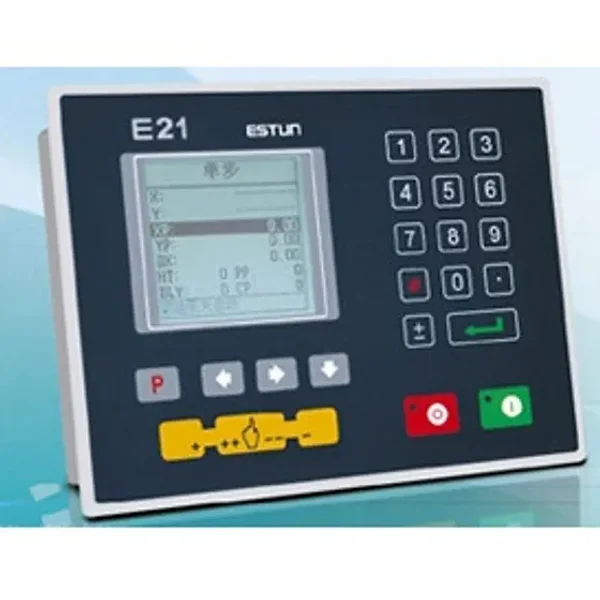

Easy-to-use programmable Estun E21 control
Easy programming, stores 40 programs
Estun E21 control keep a pice count for large production run
Japan Yaskawa drive
Precision ball screws for 24” back gauge

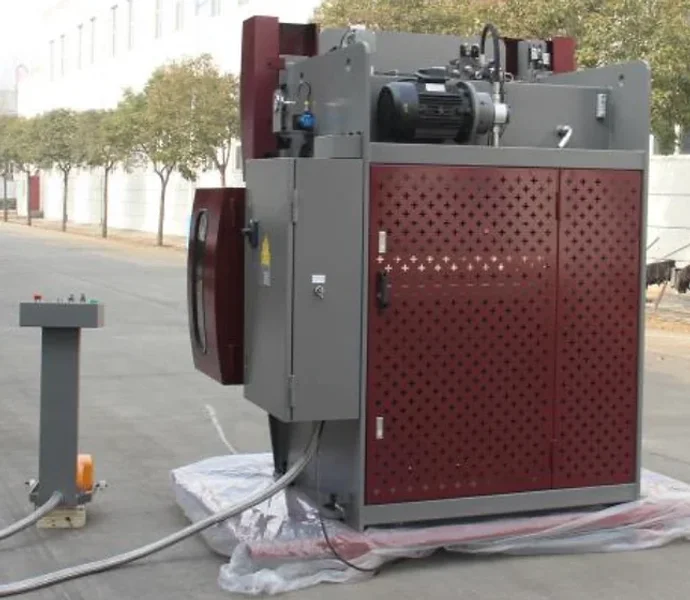

Germany Rexroth hydraulic system
Schneider electrical components
All steel construction for maximum rigidity
Hydraulic logic system centrally located and quiet

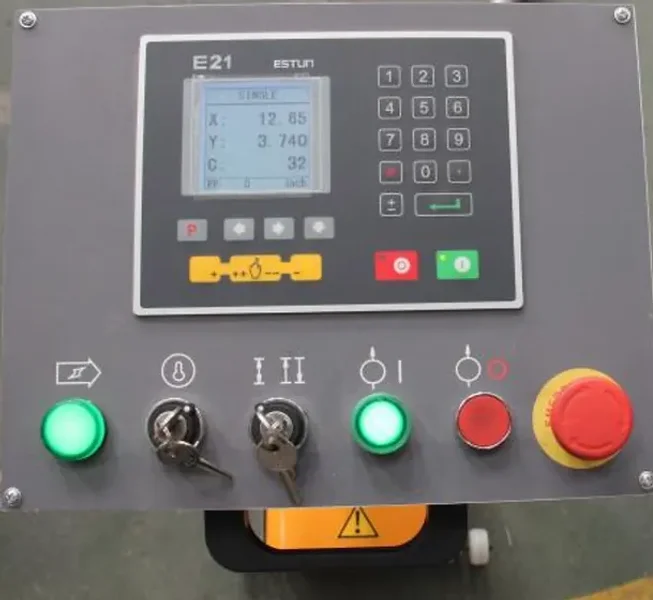

Safety type foot pedal with E21 screen, control panel and E-stop switch
Safety 24V low voltage & overload protection
One year industrial warranty for parts

STANDARD EQUIPMENT

Estun E21, 2 Axis Controller
( 2 ) 24” front support arms

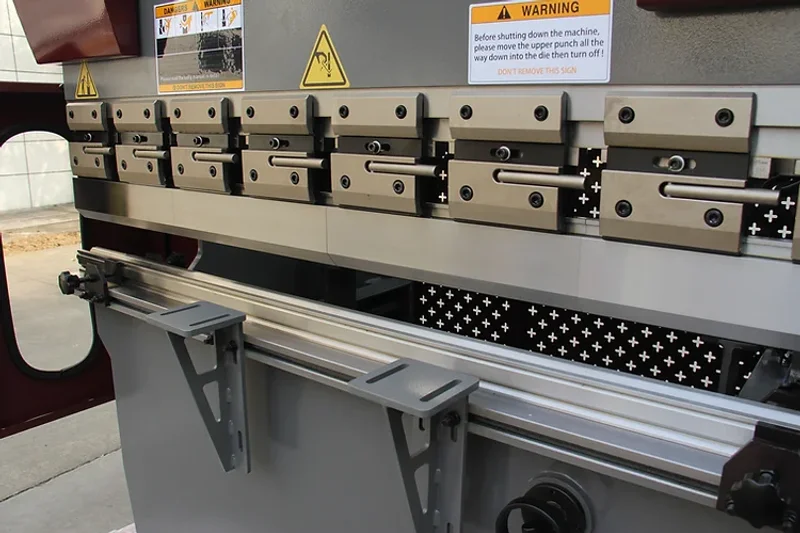

Quick release segmented ( American Style Tooling ) punch holder
Full Length Gooseneck Punch HRC 50 Full Length Vee Die with 6 assorted sizes HRC 50,1”,3/4”,5/8”, ½”, 3/8”, ¼”
Lntech Light Curtain System
Side and Back Safety Fence
Movable Foot Pedal with E21 screen, control panel ,and E-stop meet OSHA safety standard

On-site training, one day…………………………….. $4995.00

Maximum Pressure	33 Tons
Bending Lenght Capacity	63" (5'3")
Distance Between Uprights (housing)	51"
Ram Stroke Travel Cylinder Travel Adjustment (max)	4" 2"
Table Width	6"
Distance Between Table and Ram	13-1/4"
Throat Depth	8"
Back Gauge Distance	21"
Back Gauge Repeatability	.008"
Y-Axis Repeatability	.008"
Approach speed, inch / second Working speed, inch / second Return speed, inch / second	3.5” 0.39” 2.75”
Main motor: Motor for back gauge: Motor for bending angle setting:	7-1/2 HP, 3 Phase 30 AMP Prewired: 220VAC (+/- 10%) 1 HP, 3 Phase 220VAC (+/- 10%) 1/2HP, 3 Phase 220VAC, (+/- 10%)
Hydraulic oil tank capacity: Recommended Oil:	20 Gal. Hydraulic Oil Shell #68HD
Machine weight: Machine size, L x W x H: Shipping dimensions:	5,350 LBS 91"x56"x87” 91"x56"x87"

Warranty for Rotary Phase Convertor Users : Electrical Parts Warranty is not available if A Rotary Phase Convertor is used. Mechanical parts warranty only

Note: the following models do not work with rotary phase converters:

All EPS models, HS-0825E,HS-0425E, HS-0625E,HS-1010E, HS-1025E, HBB-1010NC, GML-(ALL LATHES)

HPB-4504CNC, HPB-7006CNC, HPB-7006CNC-3R, and HPB-3305CNC

These models listed above cannot run on any phase converters, Warranty will be voided.

GMC will pre-wire the Phase converter to our machine and it is ready to use.
