300mm KIESERLING TYPE KZTS BAR PEELING MACHINE Stock # 14256
Brand
Category
Model
300mm Diameter
Stock #
14256
Year
Not specified
Condition
Rebuilt
Location
Not specified
|

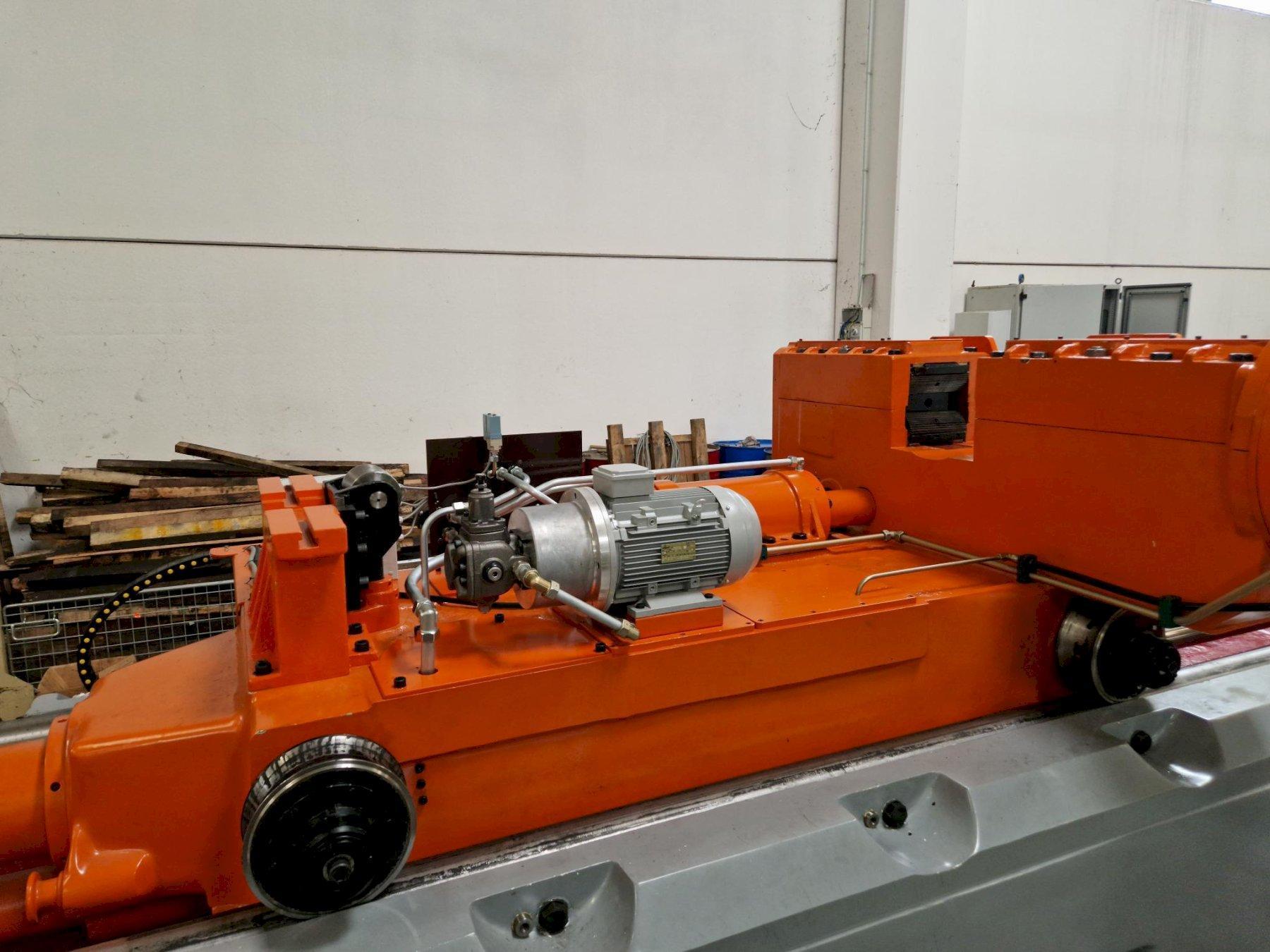

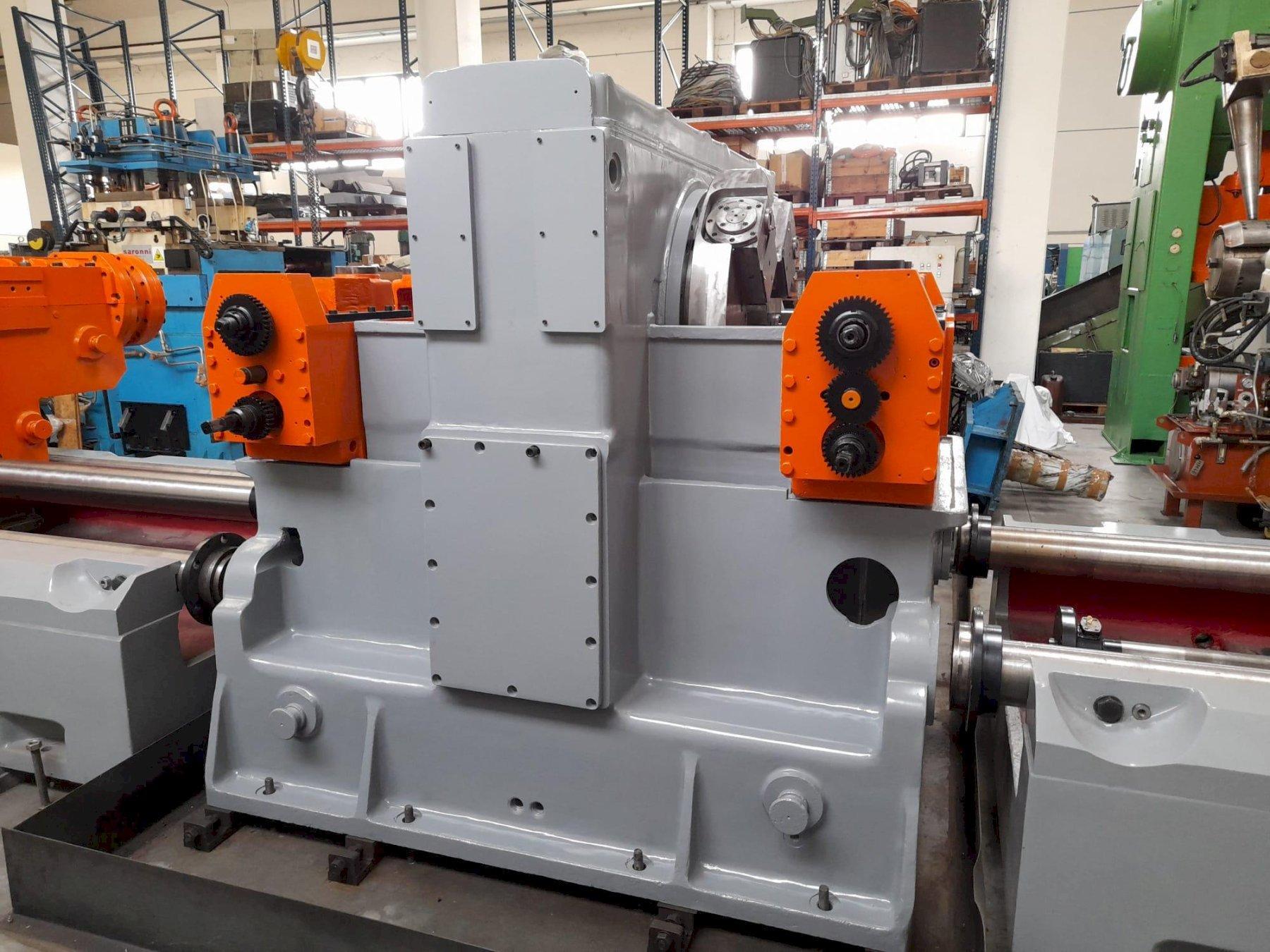

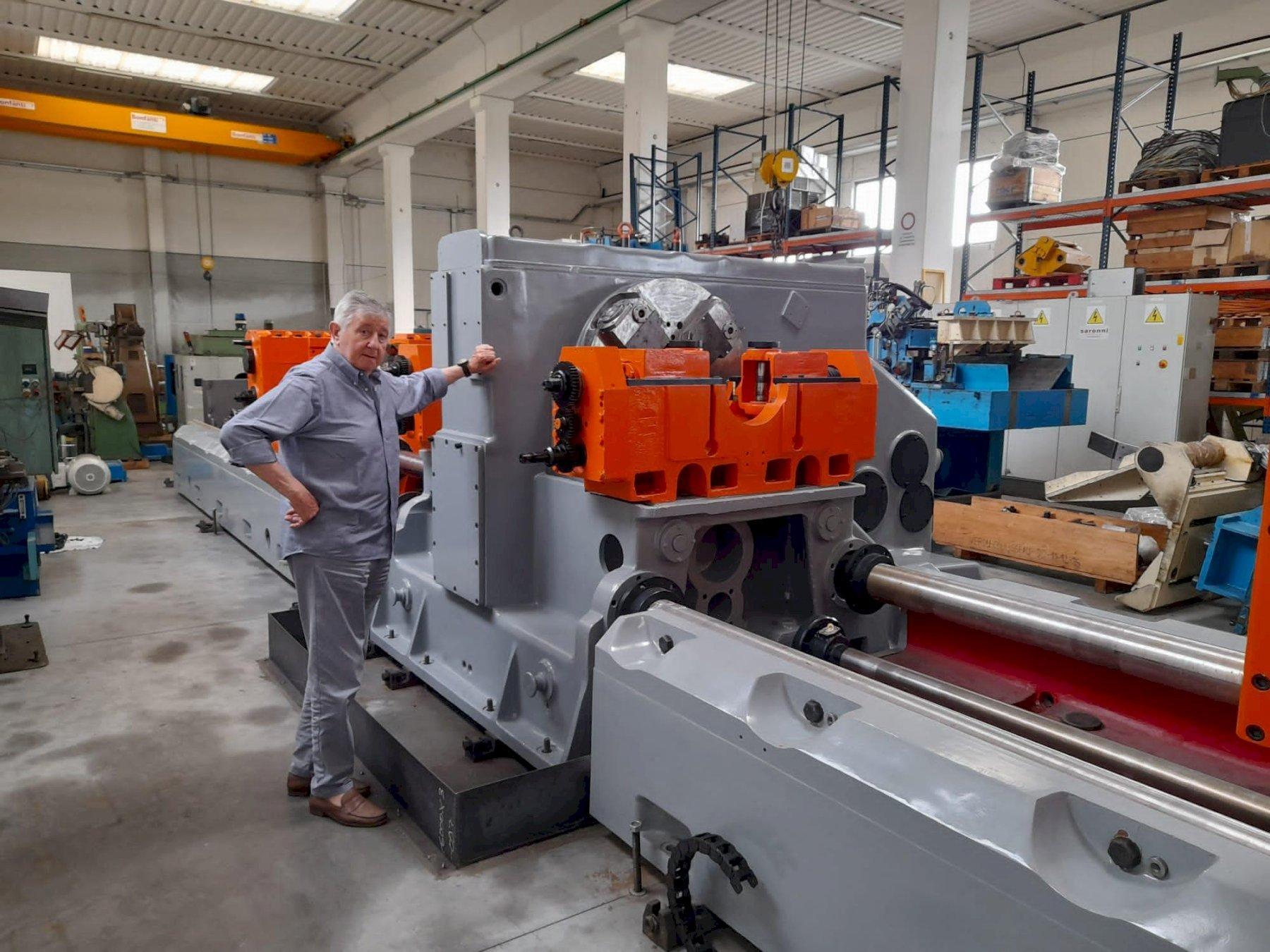

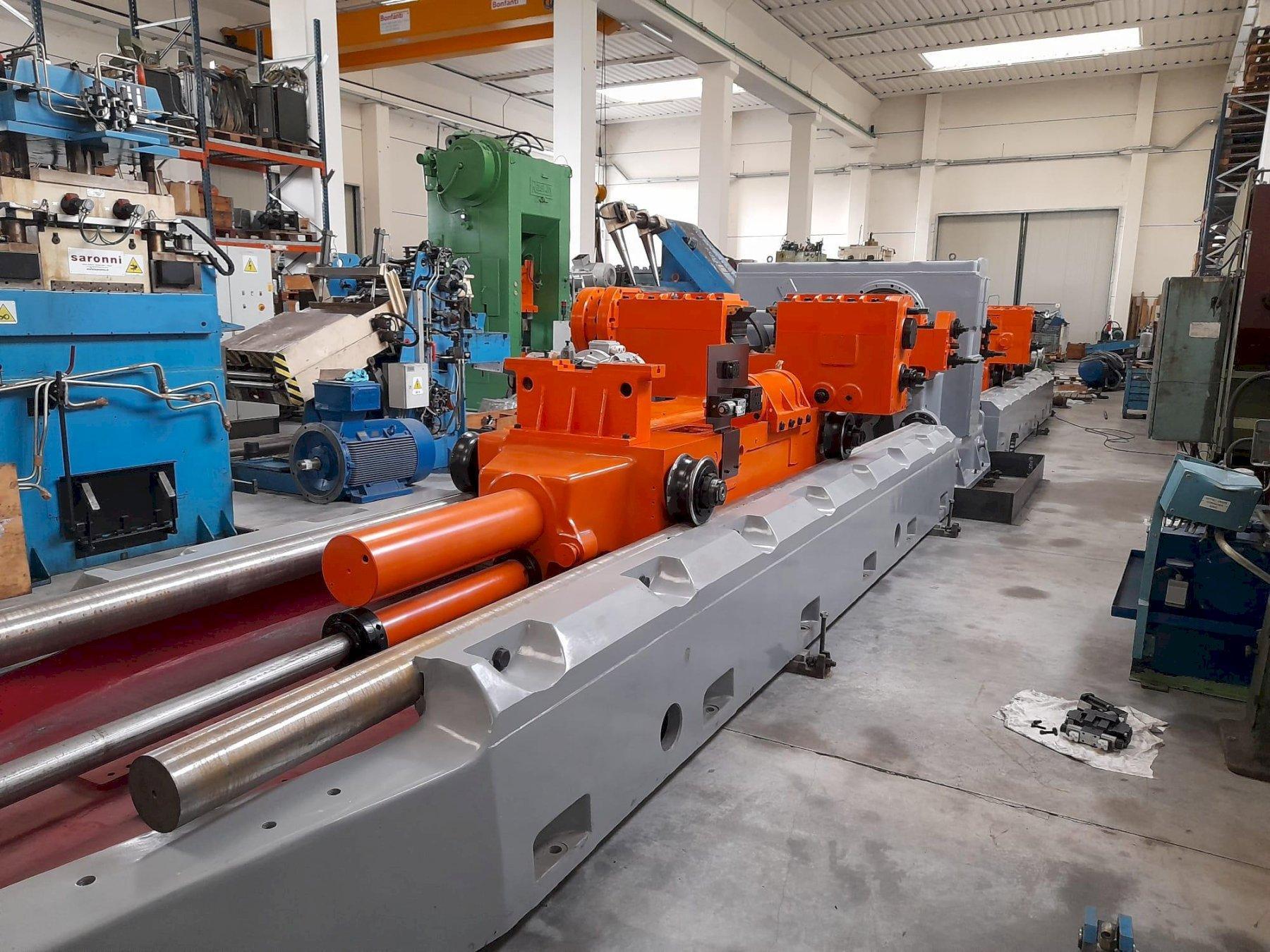

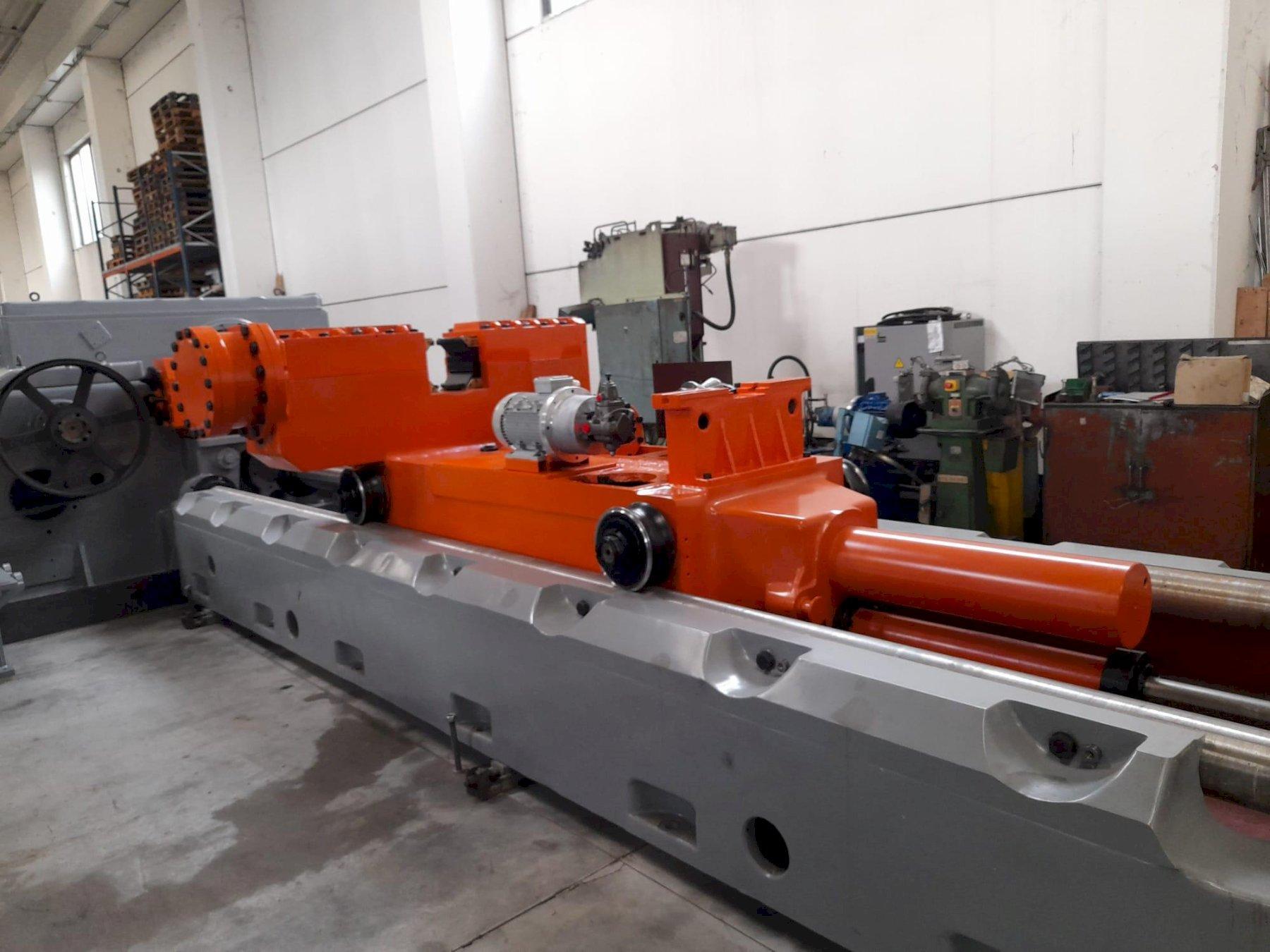

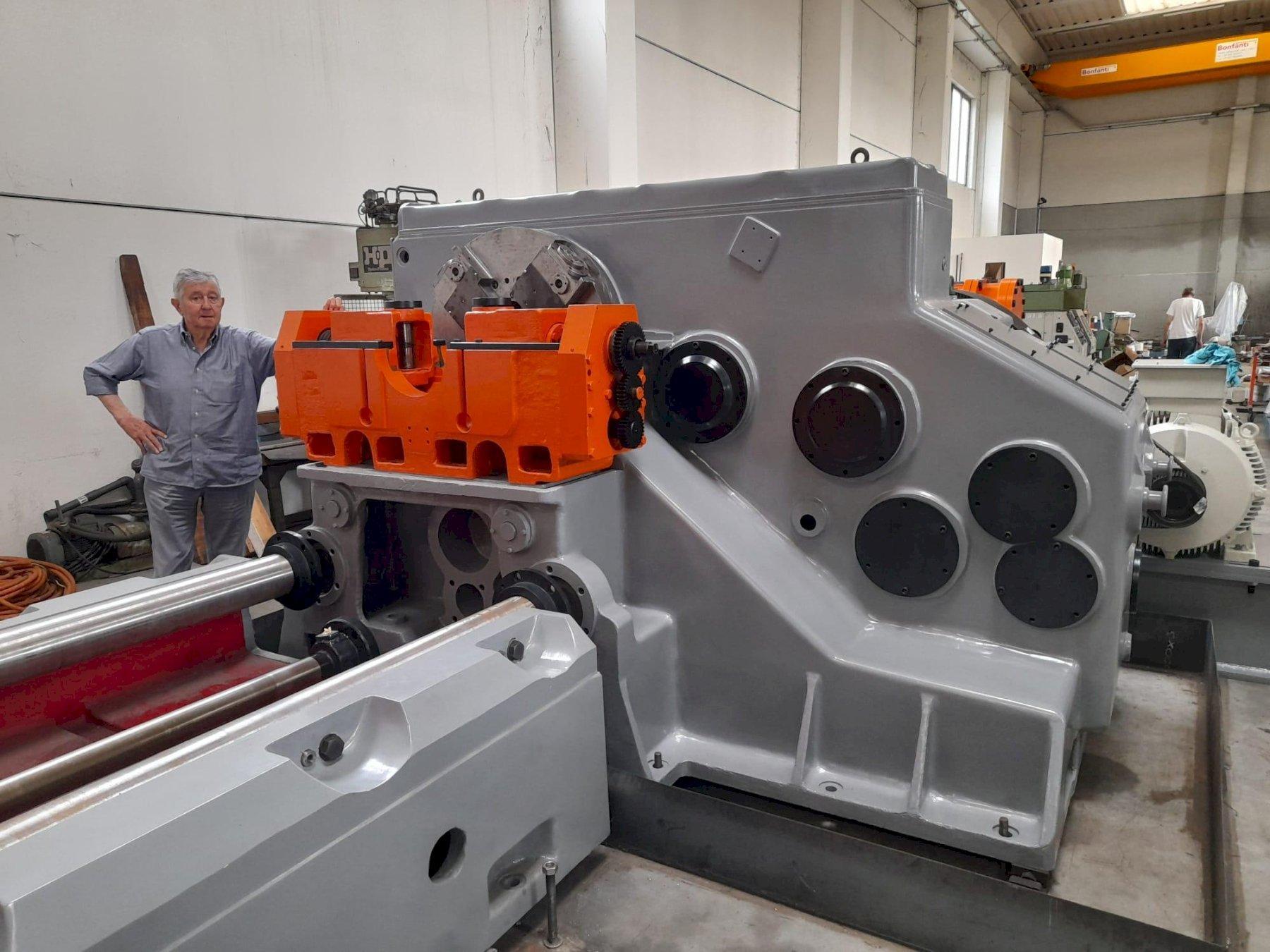

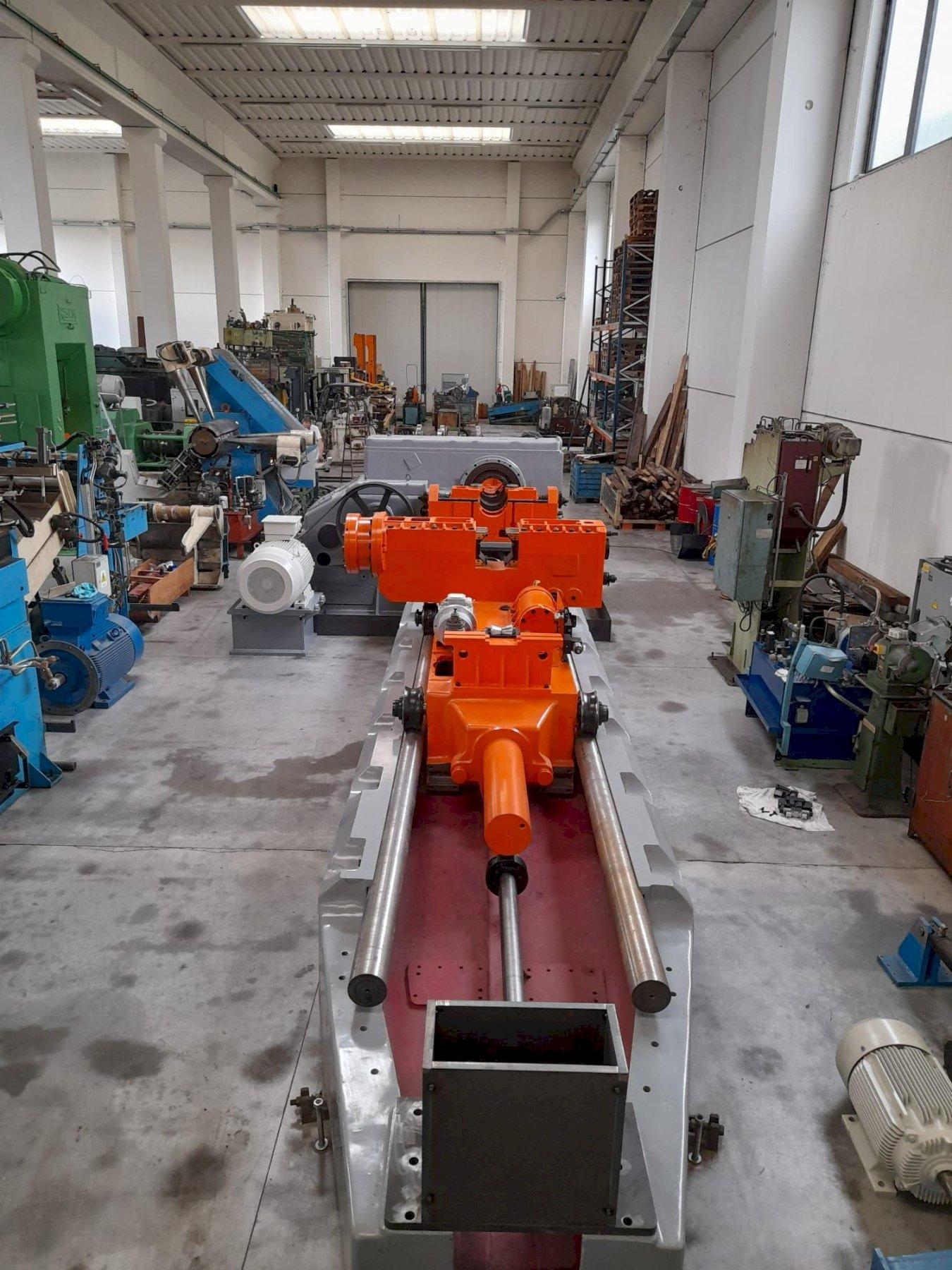

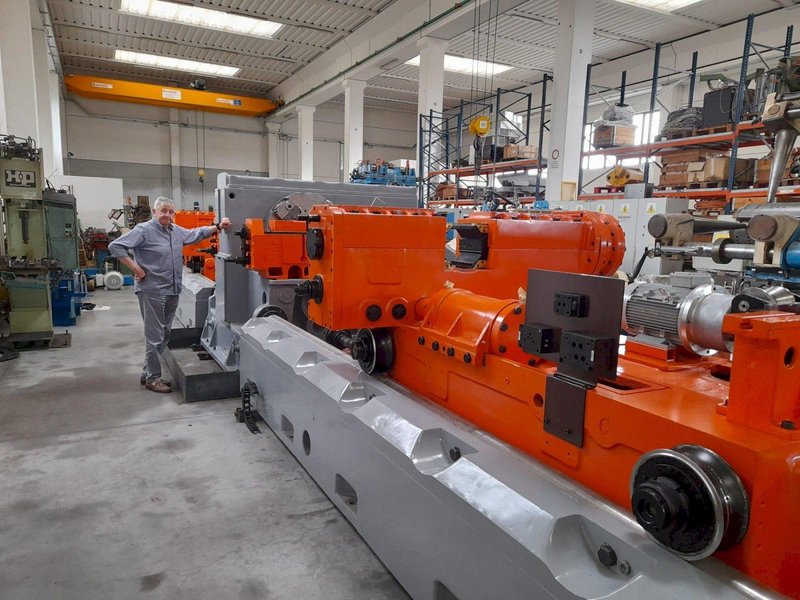

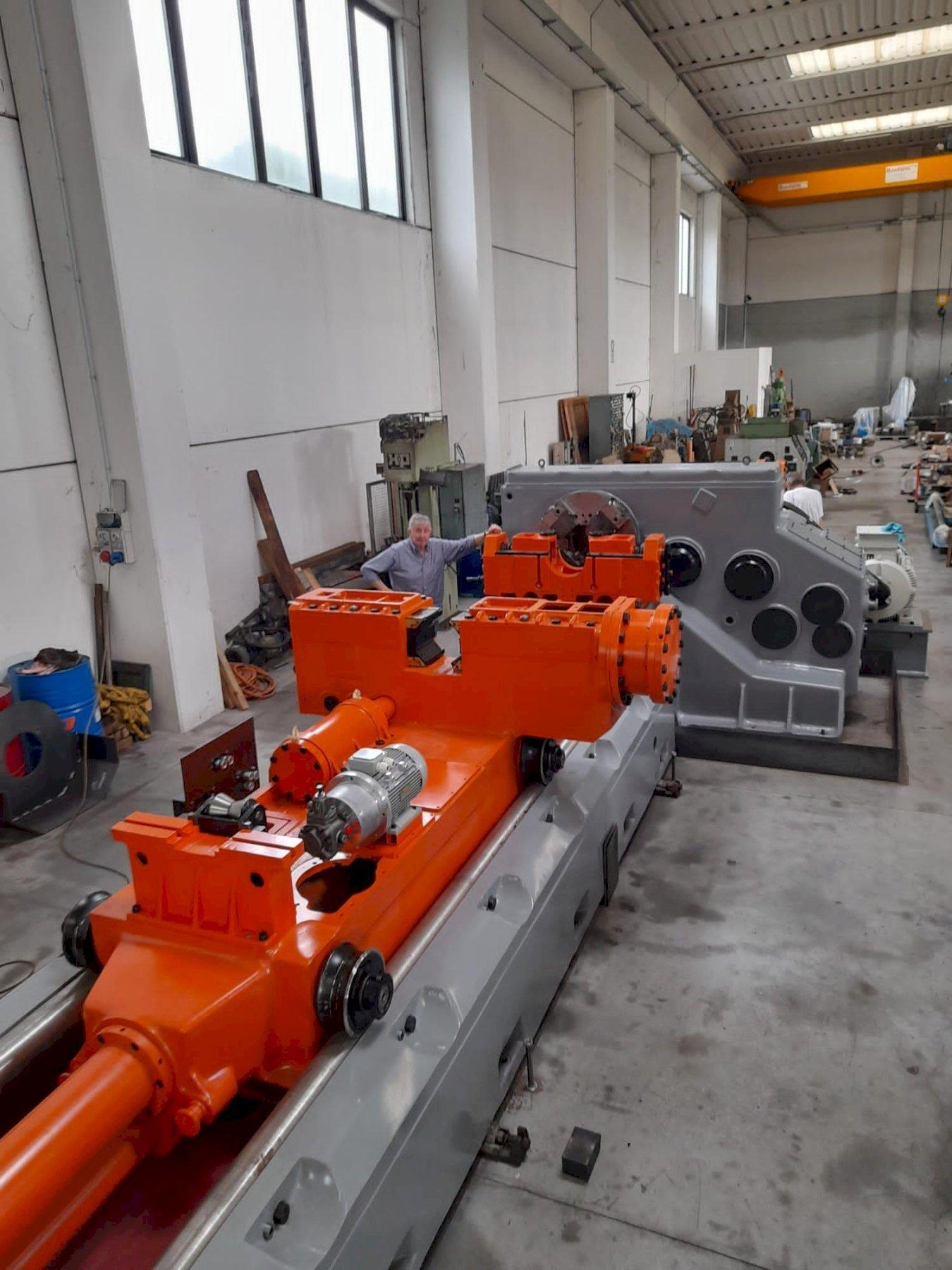

300mm KIESERLING TYPE KZTS BAR PEELING MACHINE

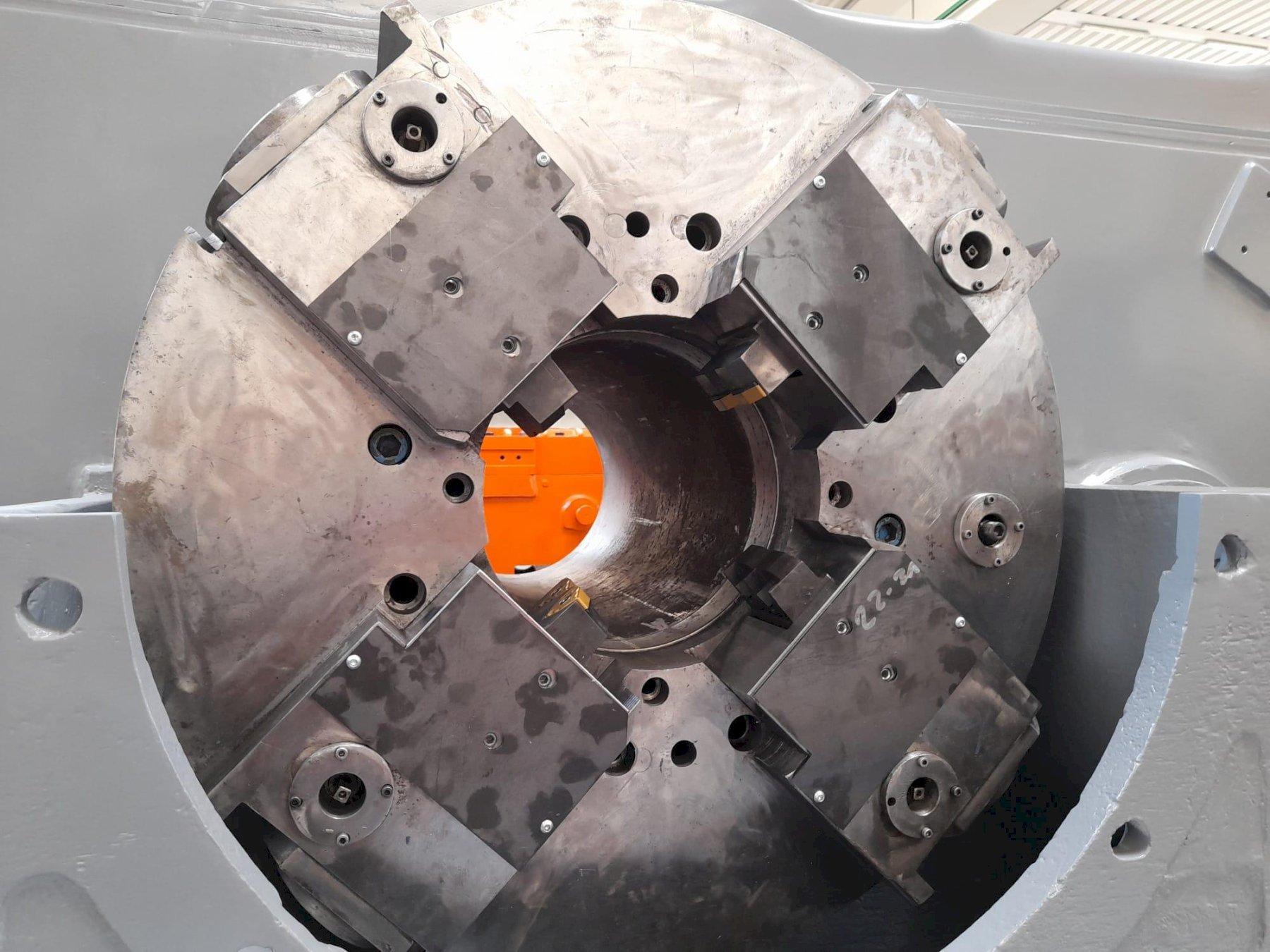

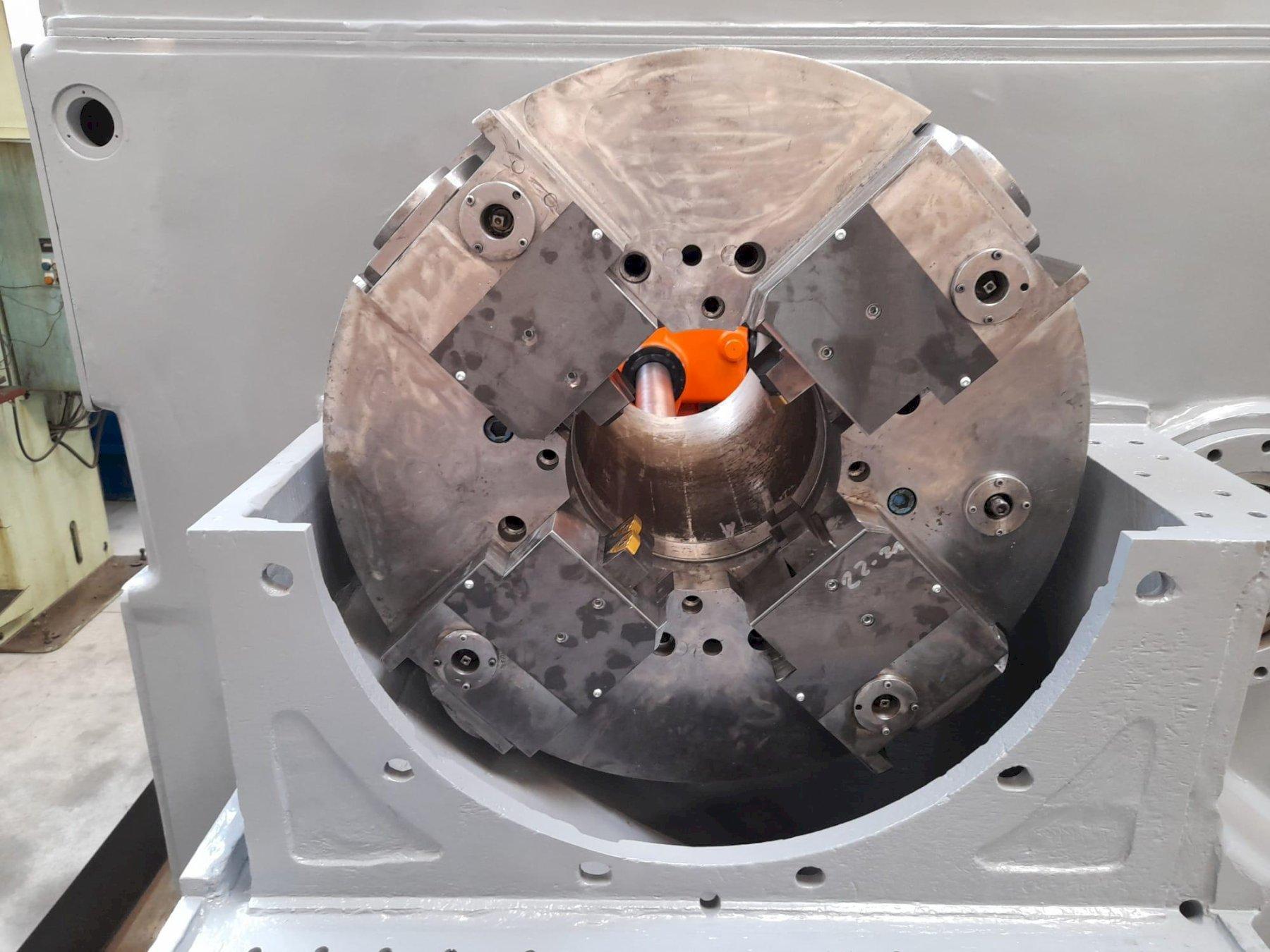

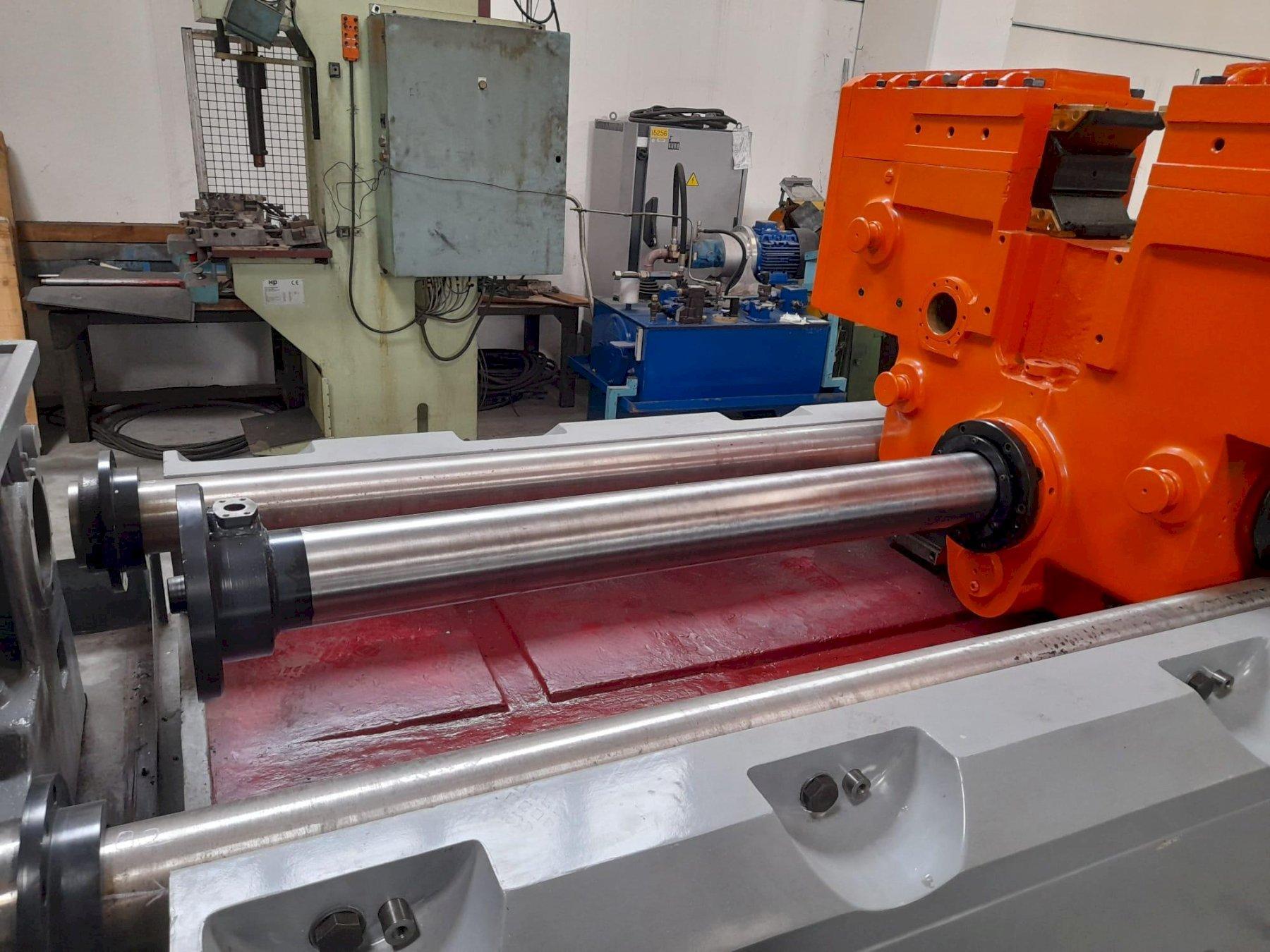

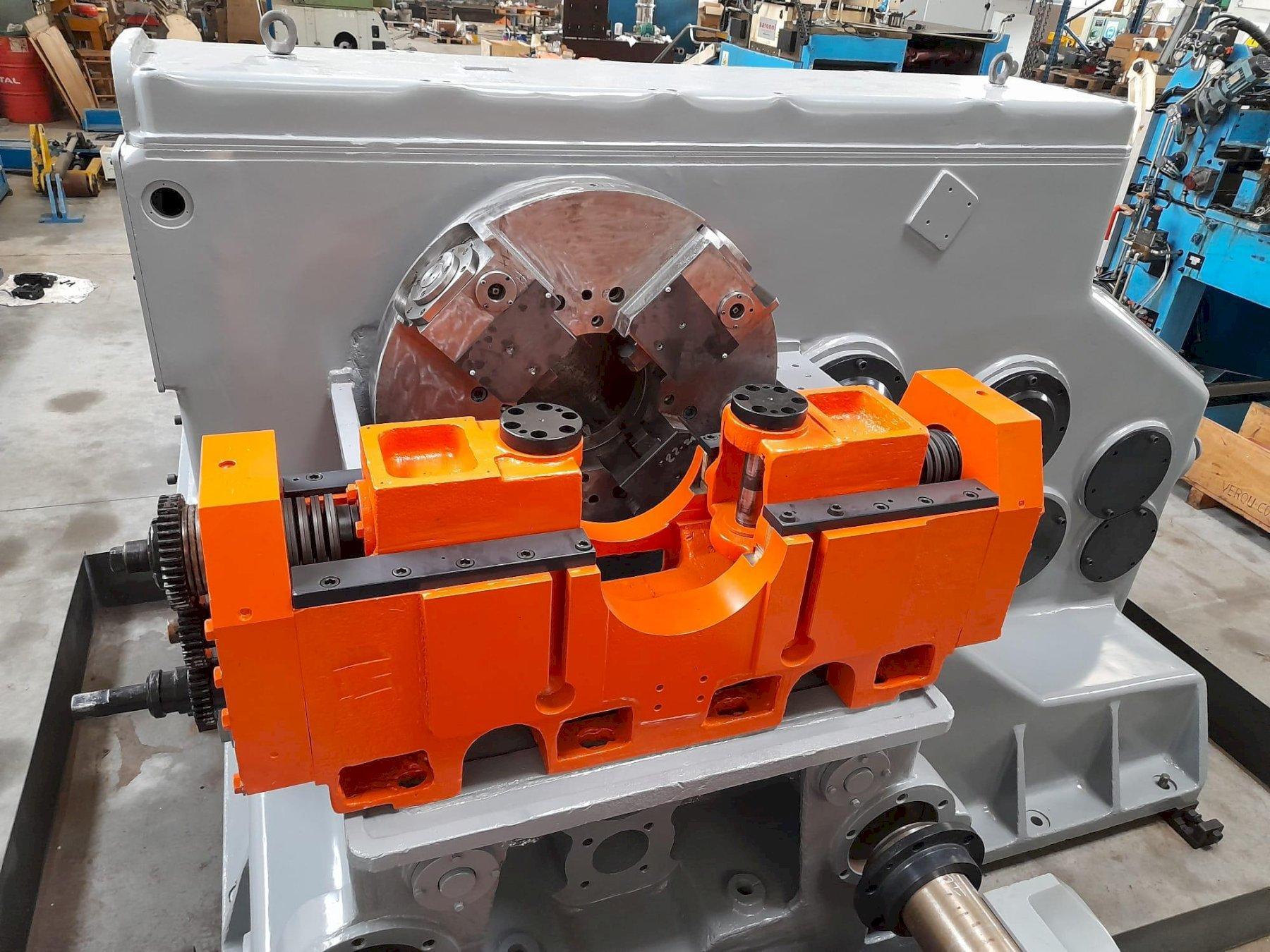

Stock # 14256 Manufacturer: KZTS ( KIESERLING TYPE ) Working range: In-put material diam. min. . 150 mm In-put material diam. max : 300 mm Number of cutting heads: 1 (one) Nr. tool holders 4 (four) Stroke of tool holder max: 50 mm the cutting head is manual with the possibility to adjust the position of each tool holder The Feeding Clamping Force is 76 Ton ( 60 bars ) Maximum depth of cut radial in one pass: - 4 mm radial - 8 mm on diameter Feeding speed (mm/min): min. 0,1 meter / min. max 2 meter / min. Of course the peeler production speed depend of many factors: the kind of material , the straightness of the bars , the dia. of the bars ect. Minimum peeler bar length: 3.000 mm Weight of the machine: approx. 80 ton Force of spindle main motor : 200 Kw Complete of electrical part with PLC **Temporary Specifications Subject to Reivisions** **PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE** **ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION** |
