1.18" - 5" CALOW MODEL S-125 BAR PEELER (14519)

Brand
Model
S-125
Stock #
14519
Year
Not specified
Condition
Not specified

Location

Not specified

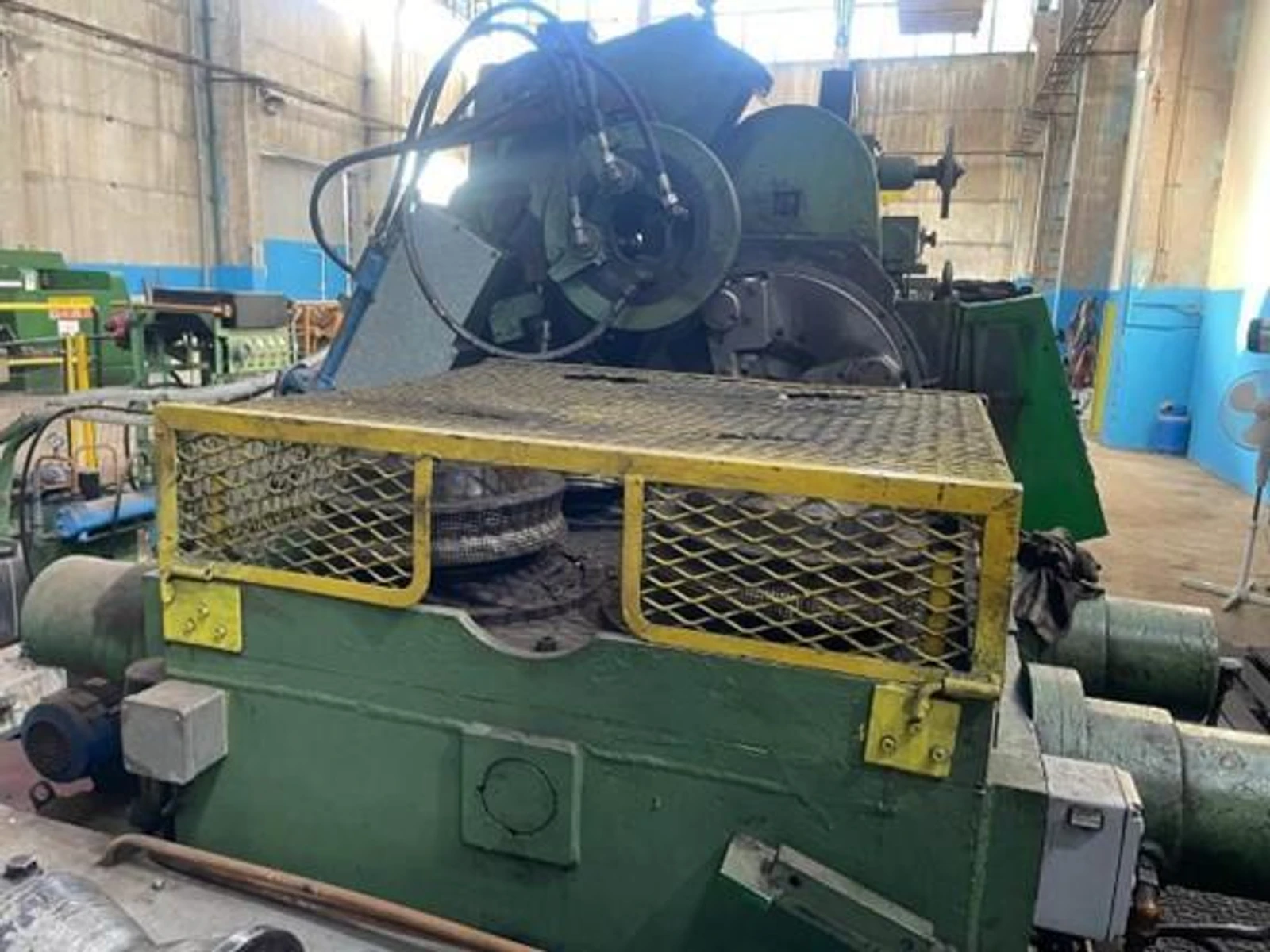

CALOW MODEL S-125 BAR PEELER
STOCK # 14519

Manufacturer    CALOW
Model    S 125
Year    Completely reconditioned in 2023
Working range    Ø 30 – 125 mm. finished diameter
Finishing tolerance    ISO h9 (DIN 669) with inlet material complying with DIN 1013 norms
Bars length    2,5 - 8 mt.
Peeling depth    Up to 3 mm. according to steel grade characteristics
Typical steel grades to be peeled    Bearing steel, carbon steel, spring steel …
Advancing speed of the bar    Adjustable from 0,5 up to 30 mt./min. stepless
Revolution of the cutting head    Adjustable up to 1700 rpm
Cutting tools    Carbide bits
Motor power    182 HP – d.c. motor 650 – 1’900 rpm
Tension    380 V. - 50 Hz.

COMPOSITION OF THE LINE
Loading table
Feeding roller conveyor with motorized height regulation
Entry pinch-roll – n°4 rollers at the vertical axis

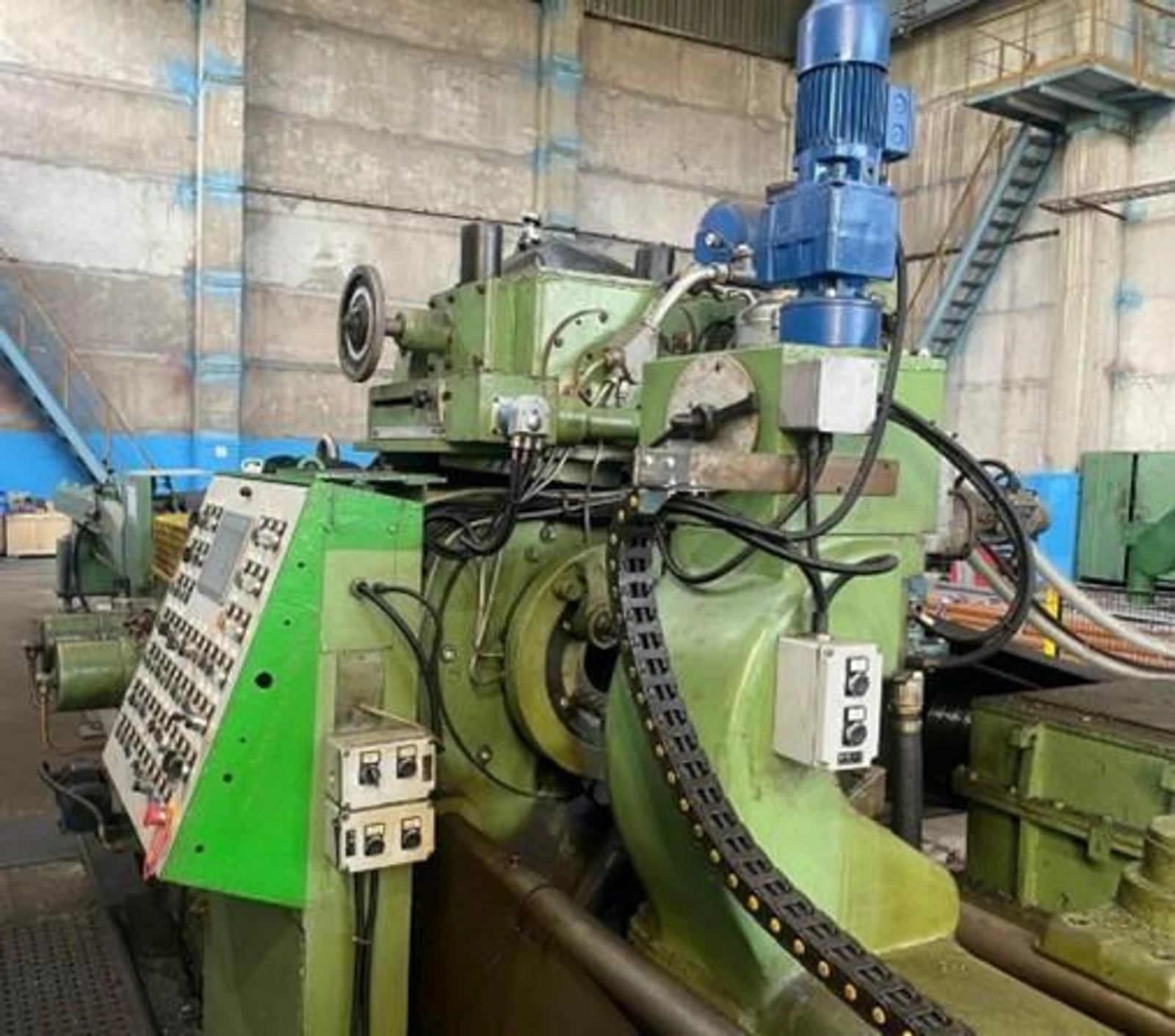

Peeling machine comprising:    Front bar guiding system hydraulically controlled

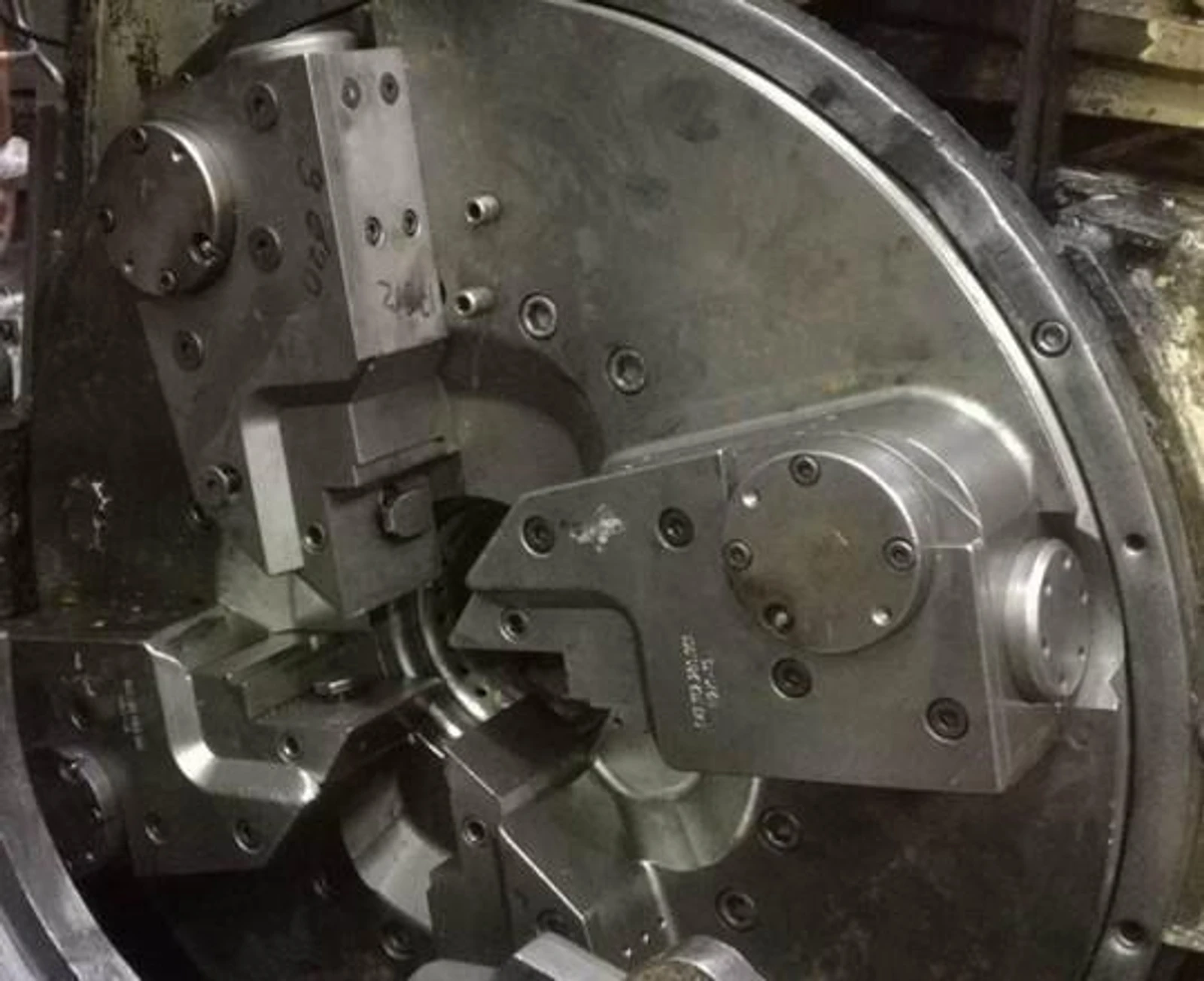

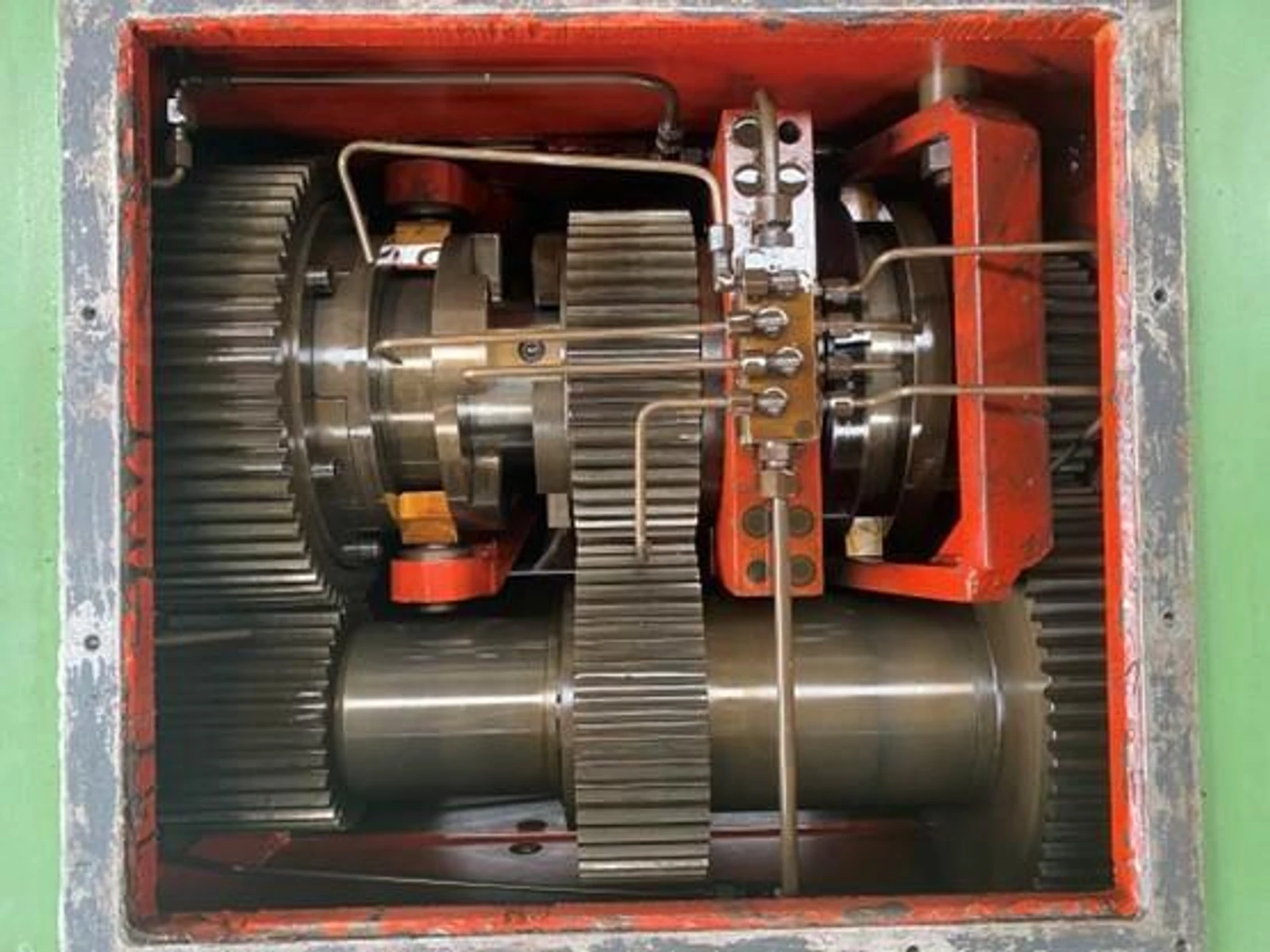

Peeling head
Back bar guiding system, hydraulically controlled Bar extraction carriage

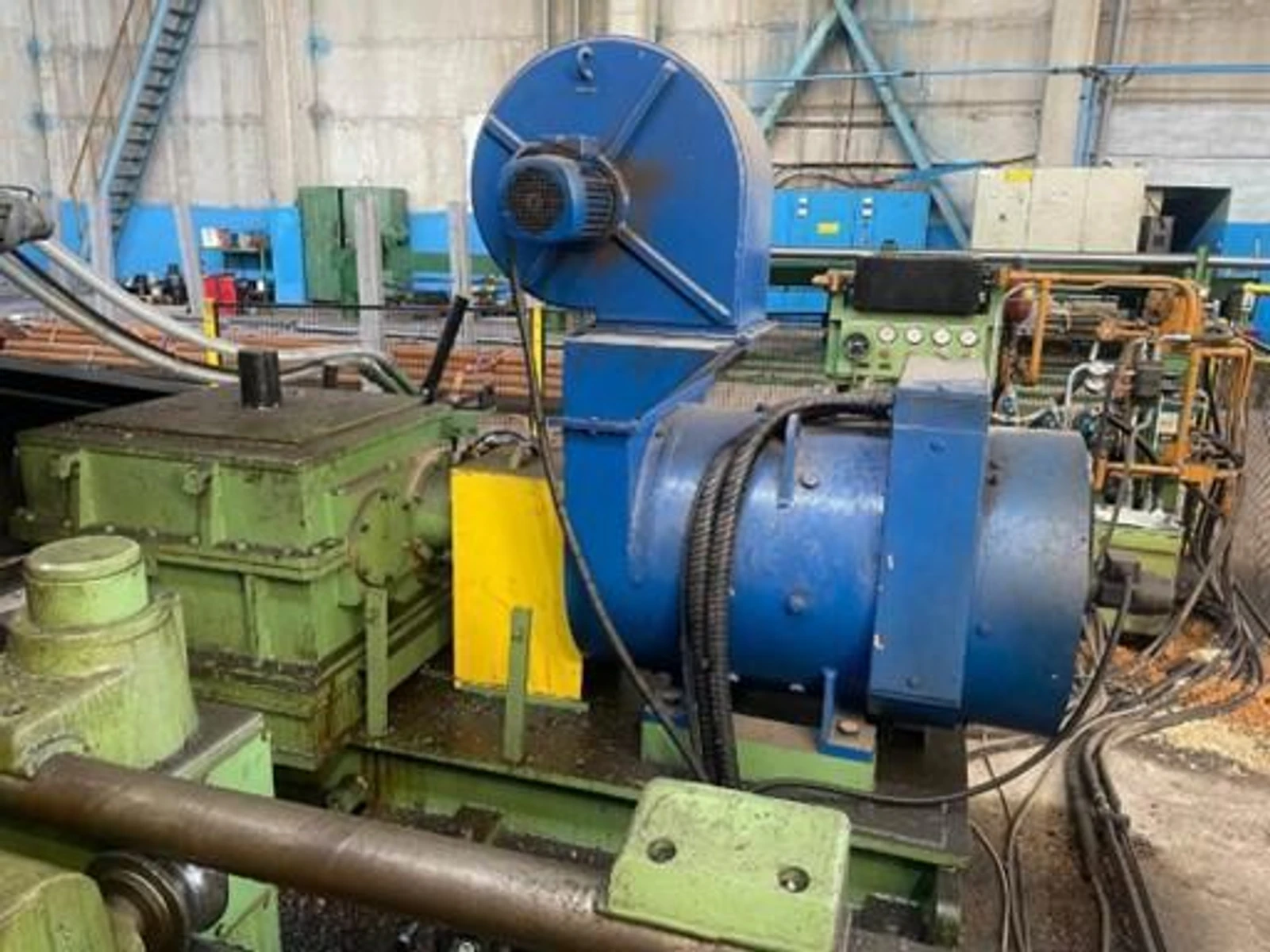

Main motor and transmission
Motorized cutter adjustment system

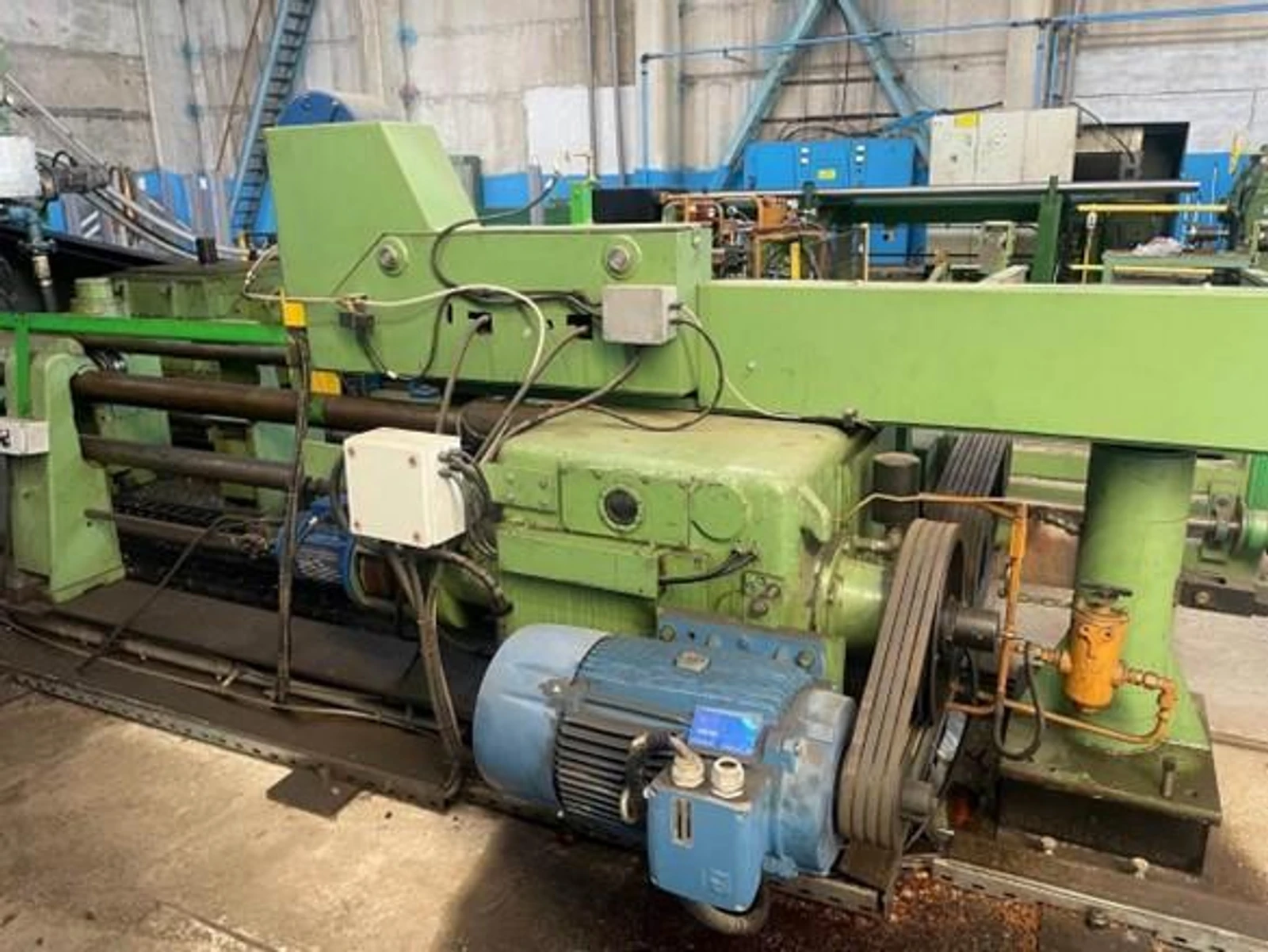

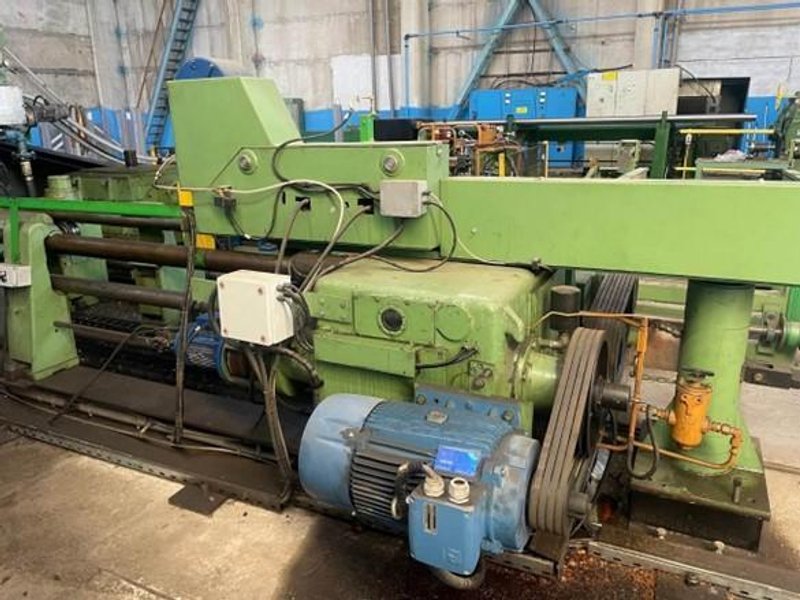

Double exit pinch-roll

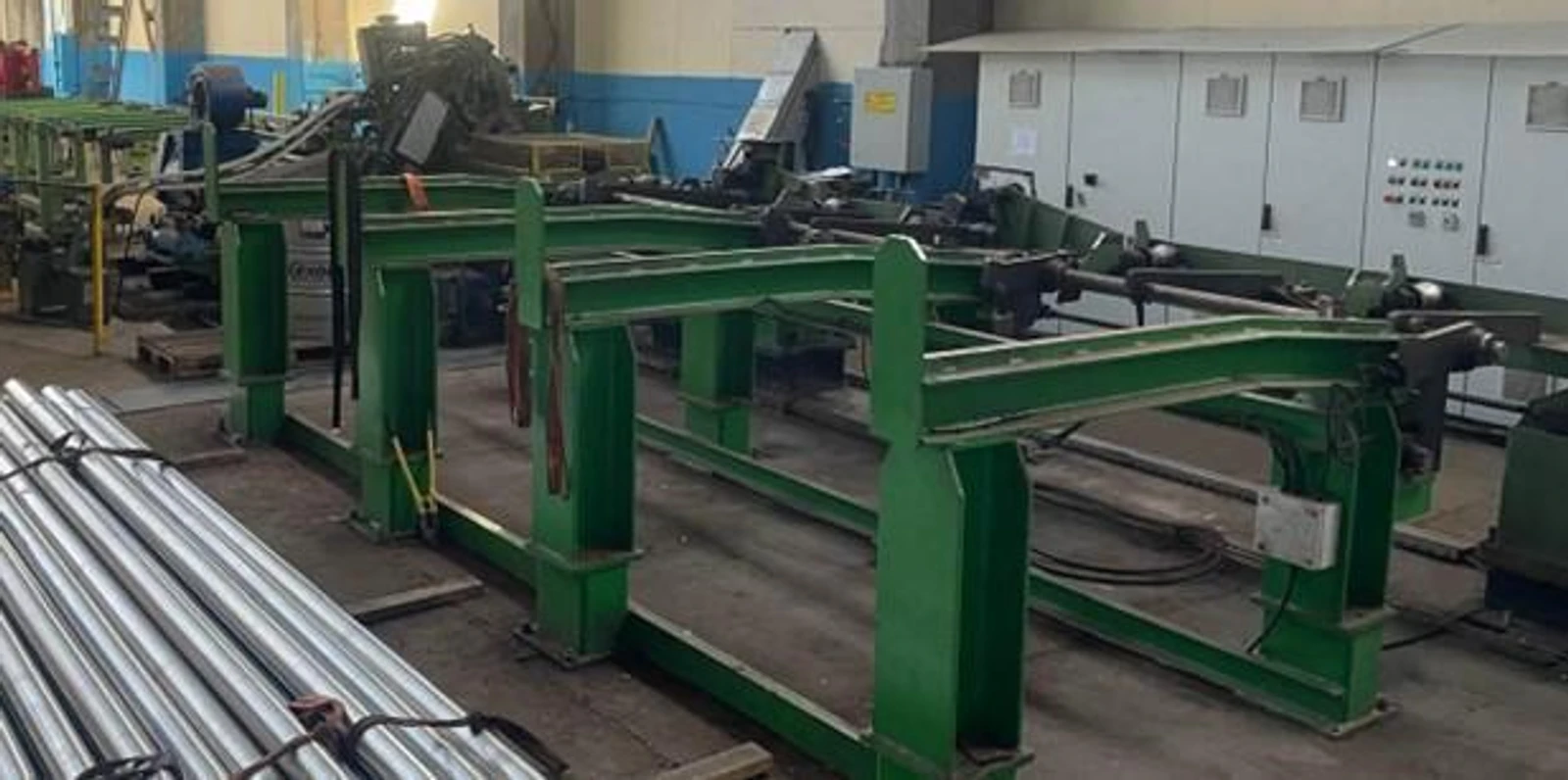

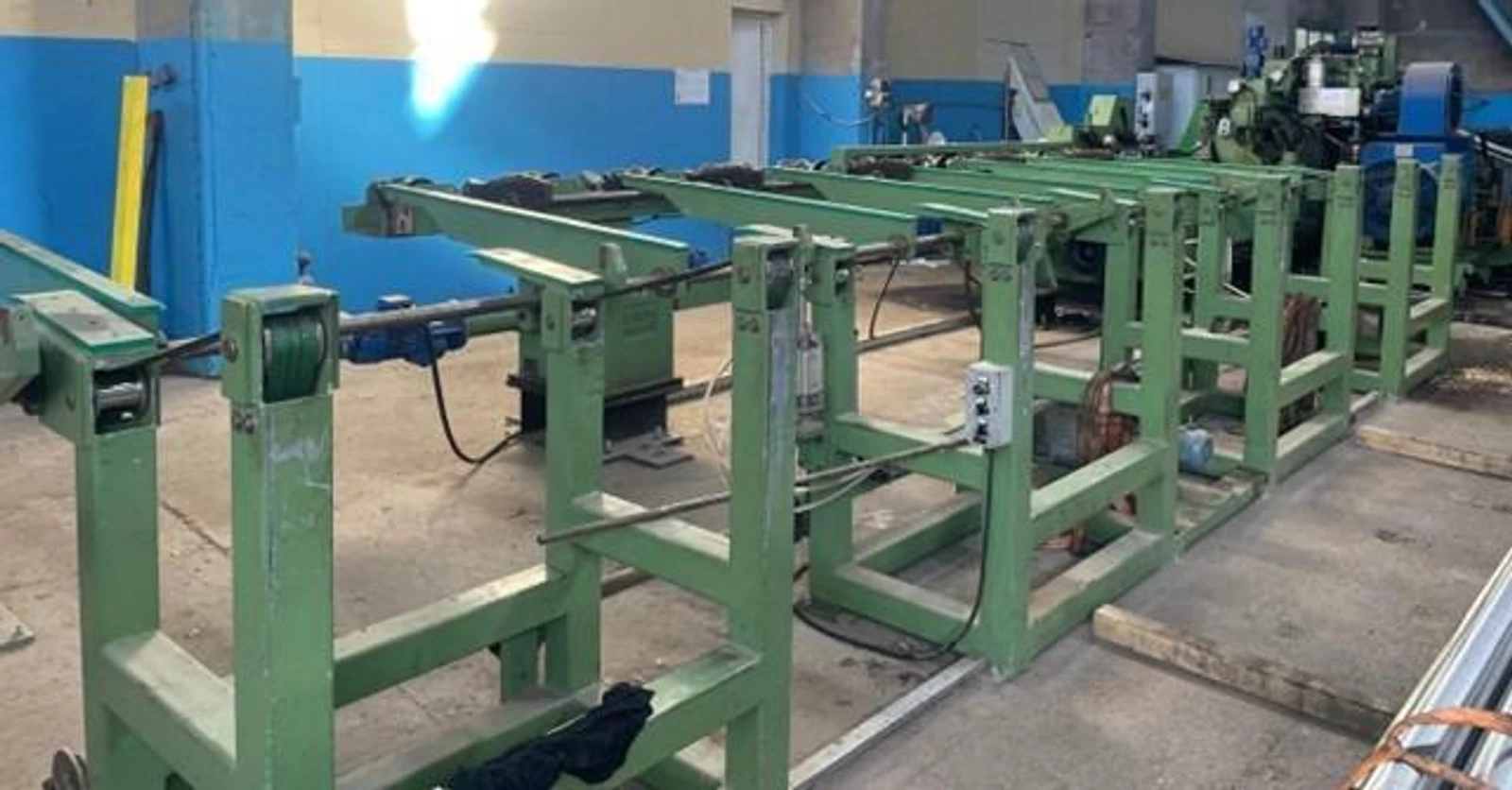

Discharging bench with motorized height regulation
Collecting cradles with lowering belts
Hydraulic equipment

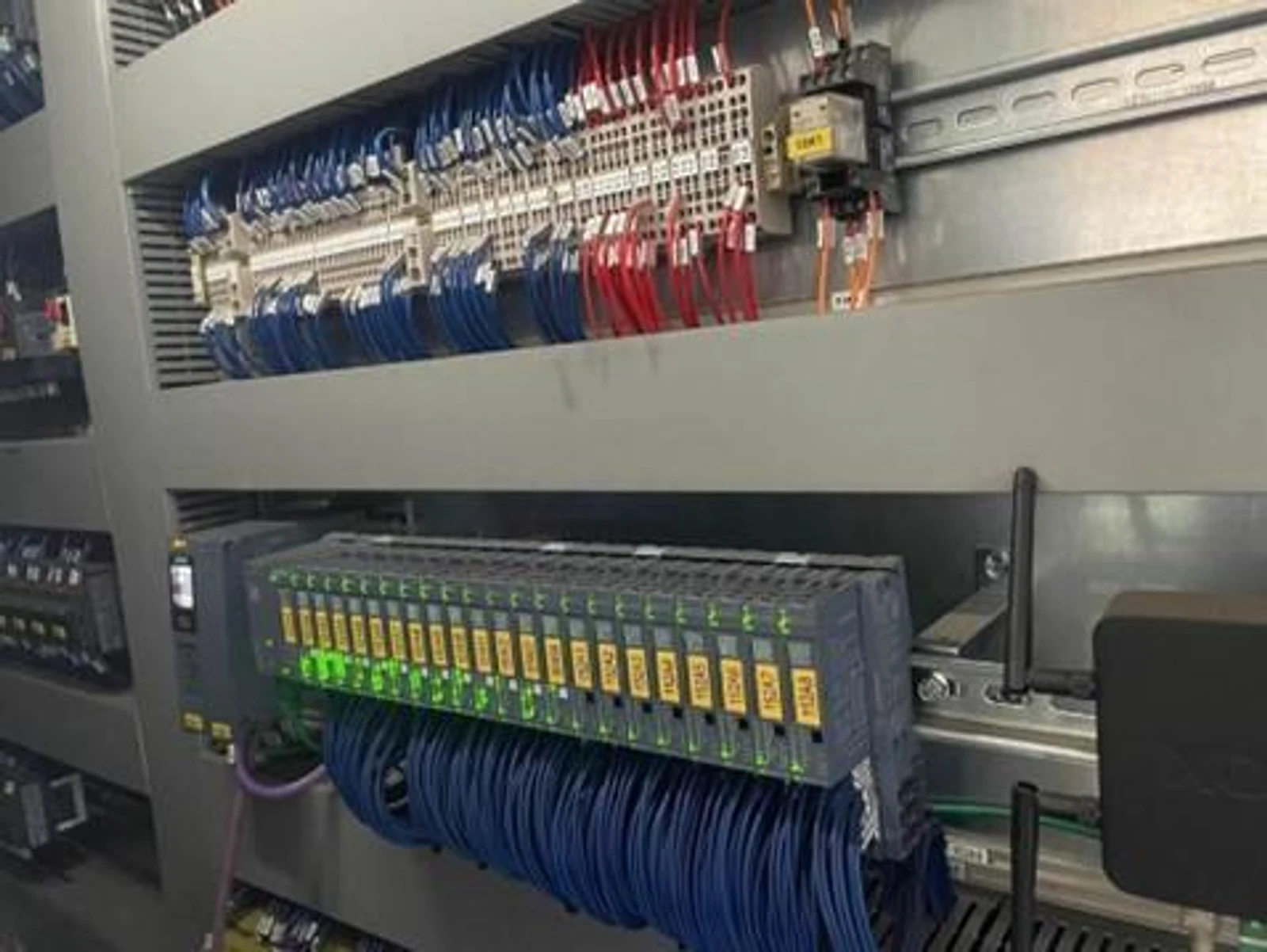

Electric cabinet

MACHINE CONDITION

In year 2023, the machine underwent the following repairing and upgrade:
•    New driving belt
•    New pinch-rollers
•    New motor for tool adjusting
•    New main bearings of the turning head
•    New entry guide (main frame, brass slides, arms…)
•    New labyrinth flange
•    New d.c. motor for the synchro between feeding pinch-roll and exit carriage
•    New electric system
•    New sensors and on-board connections

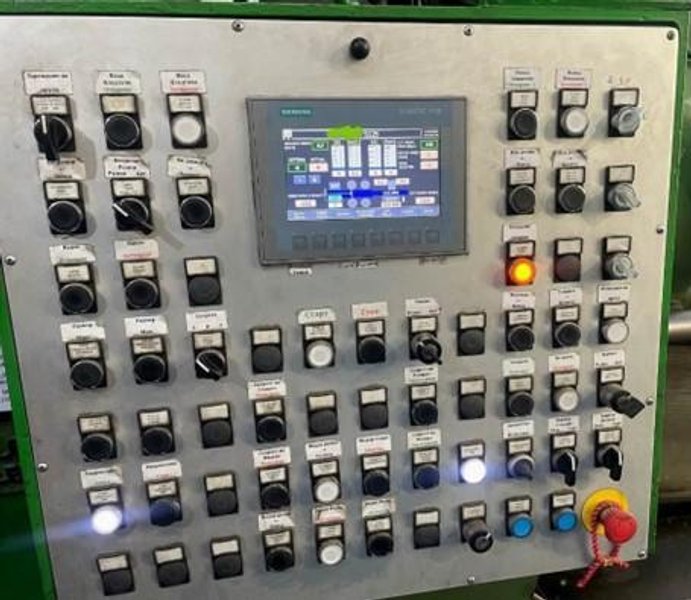

•    New SIMATIC HMI
•    New hydraulic unit
•    New peeling head
•    New bearings of the gear box
•    General repairing of the carpentry
•    Cleaning and painting

The machine is in perfect working conditions

**TEMPORARY SPECIFICATIONS SUBJECT TO REVISIONS**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
Watch https://youtu.be/Ta0FsFICsUY

Want to request a quote from the owner of this listing?

Similar Listings to - 1.18" - 5" CALOW MODEL S-125 BAR PEELER (14519)

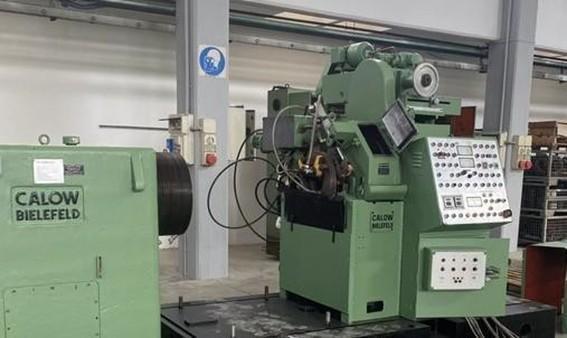

CALOW  - Bar Turners / Peelers
