10' X 135 TON NIAGARA HYDRAULIC PRESS BRAKE MODEL HBM-135-8-10
Brand
Category
Type
Model
HBM-135-8-10
Stock #
4713
Year
1992
Condition
Used
Location
Michigan
|

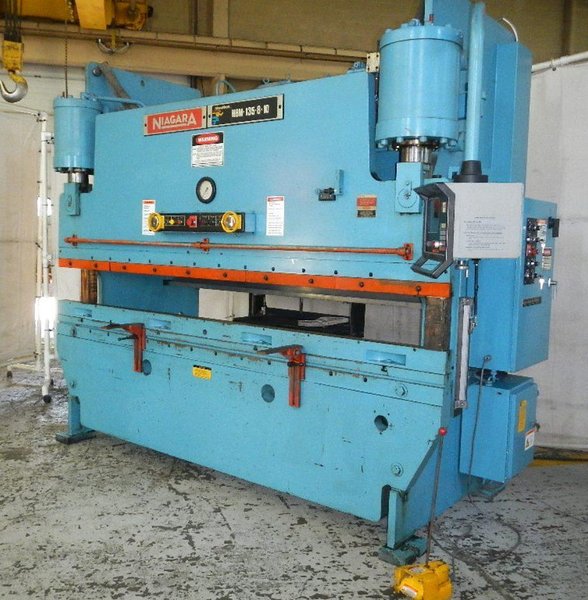

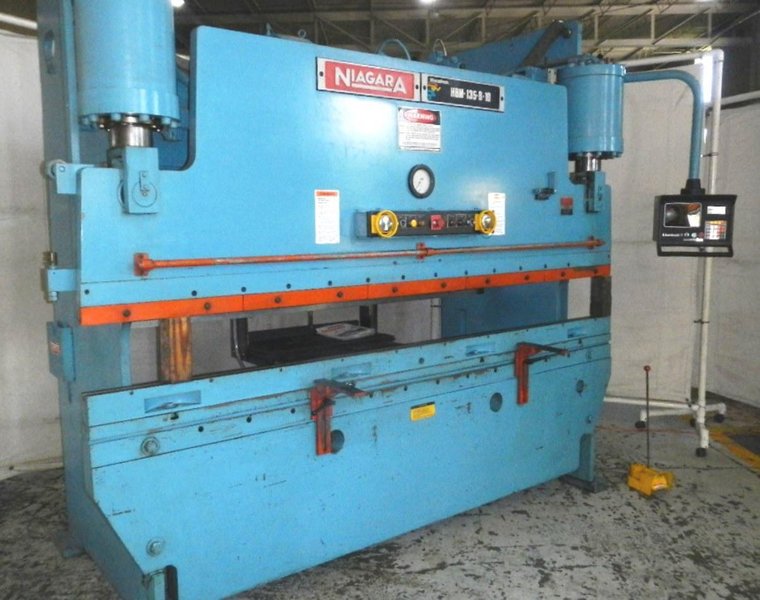

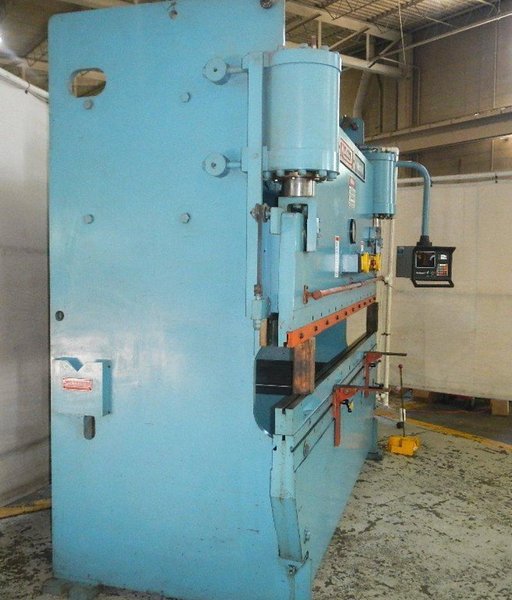

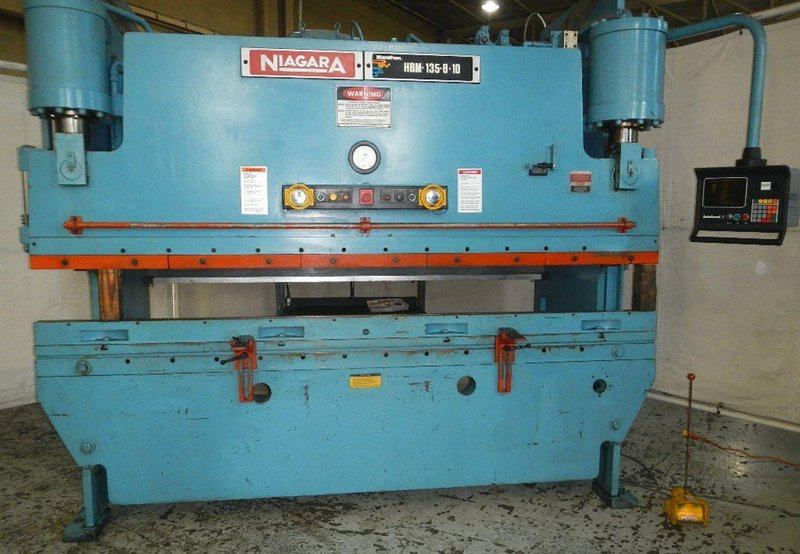

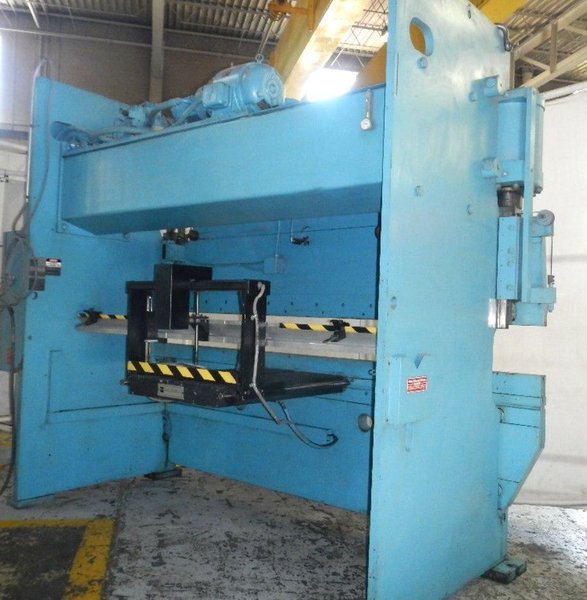

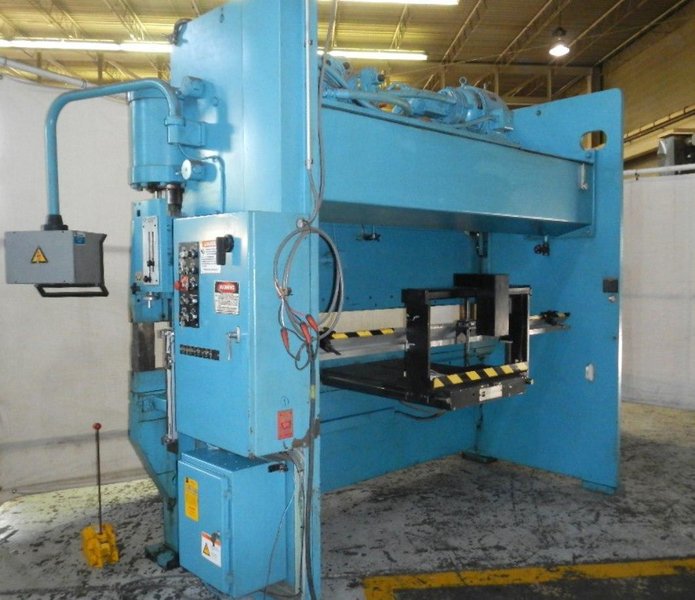

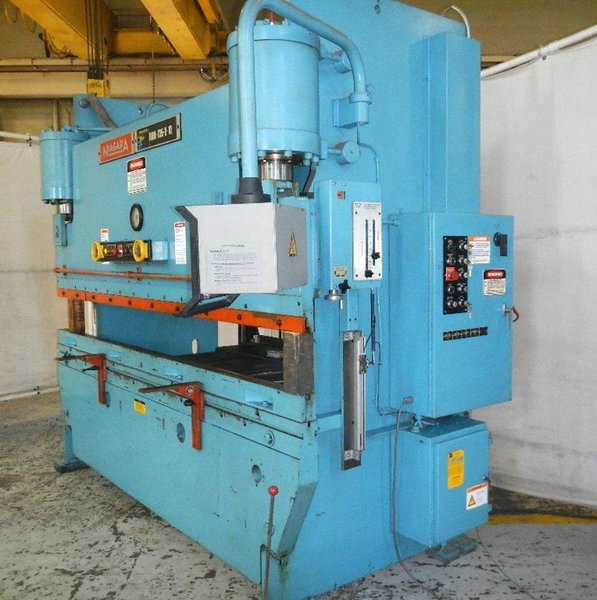

10' X 135 TON NIAGARA HYDRAULIC PRESS BRAKE
MODEL HBM-135-8-10
New 1992 Specifications: Capacity ........................ 135 ton
Rated to bend ................... 6' x 5/16"
7'6" x 1/4"
Overall length of bed and ram ... 10'
Distance between housings ....... 8'6"

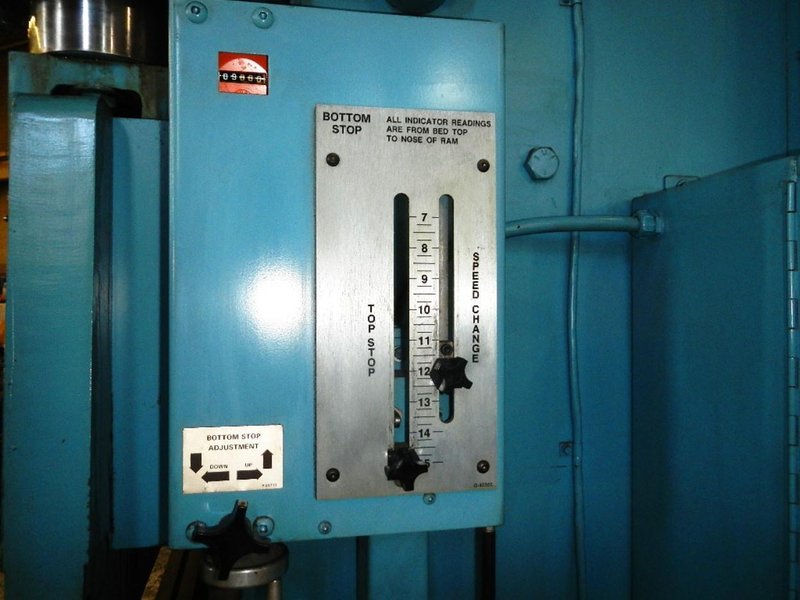

Stroke (adjustable) ............. 8" (maximum)
Open height ..................... 15"
Closed height ................... 7"
Throat depth .................... 8"
Ram Speeds: Rapid Advance ....... 153 IPM
Anti-Back Bend ...... 17 IPM
Rapid Return ........ 153 IPM

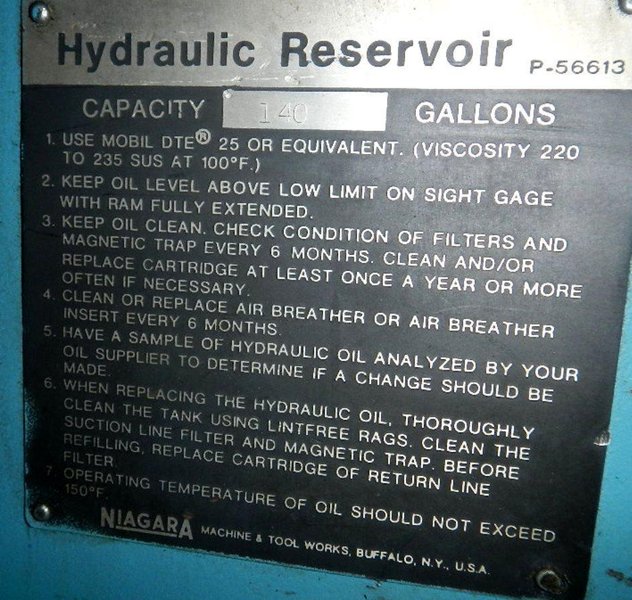

Oil capacity .................... 140 gallons
Main drive motor ................ 25 HP
Approximate overall dimensions: 130"W x 54"D x 108"H
Approximate weight: 17,000 lbs.
Machine is equipped with:

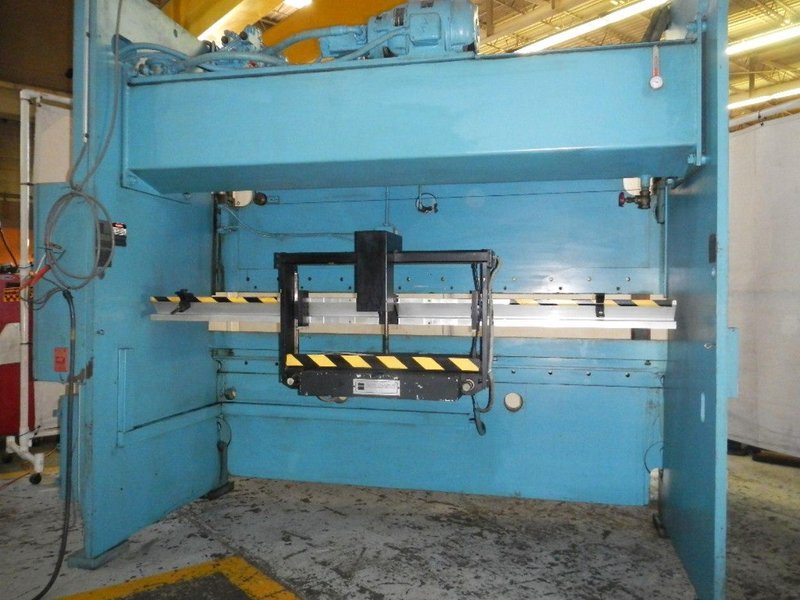

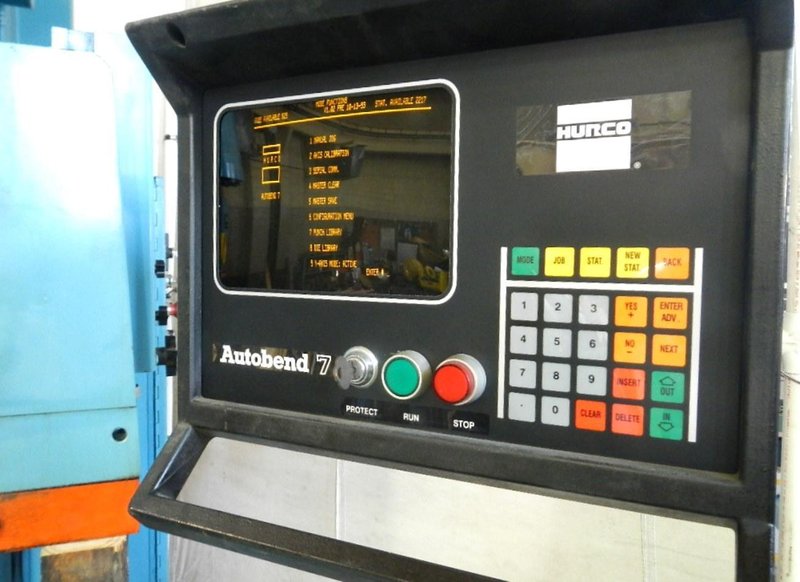

- Hurco 7 3-axis (X, Y & R) CNC back gauge
- Inch / single stroke modes
- Hand / foot actuation
- Rapid / slow speeds

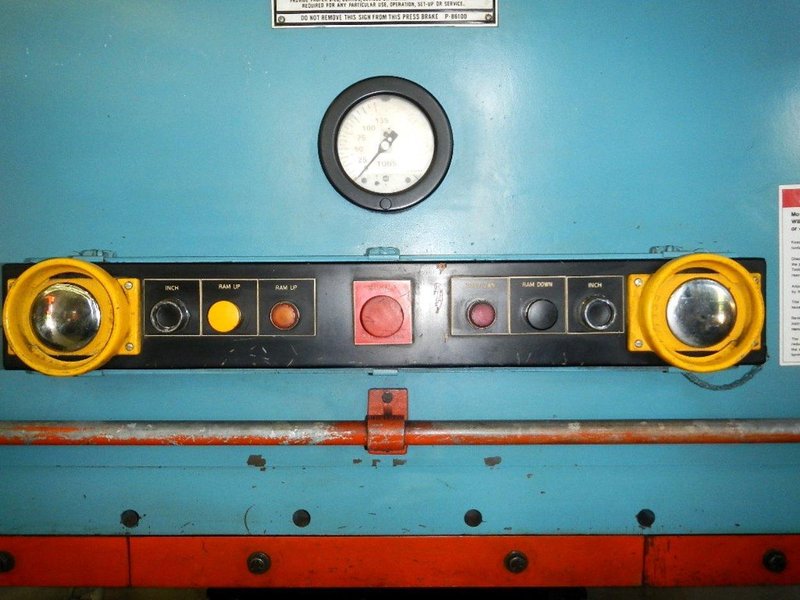

- Adjustable pressure with tonnage gauge

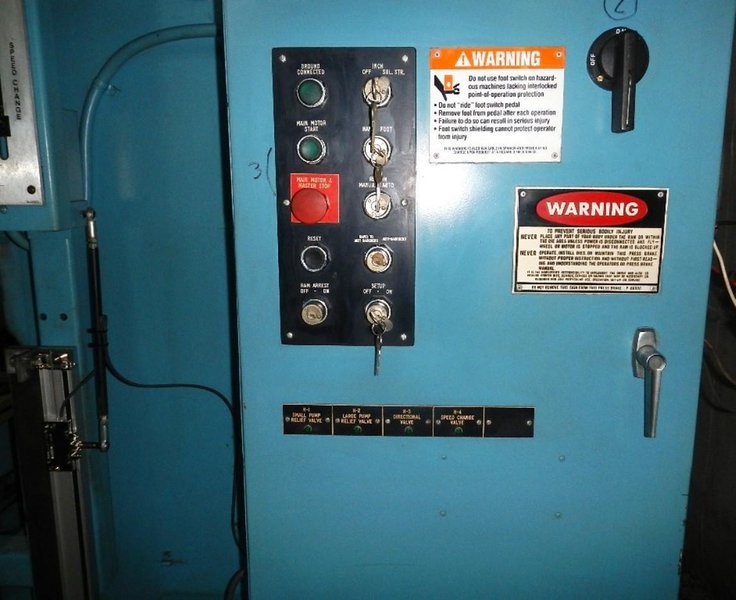

- Press mounted palm buttons with mode controls & E-stop
- Remote foot pedal
- (2) adjustable front support arms
- Lower die rail
- Full set of manuals & schematics
FOB: Origin |
