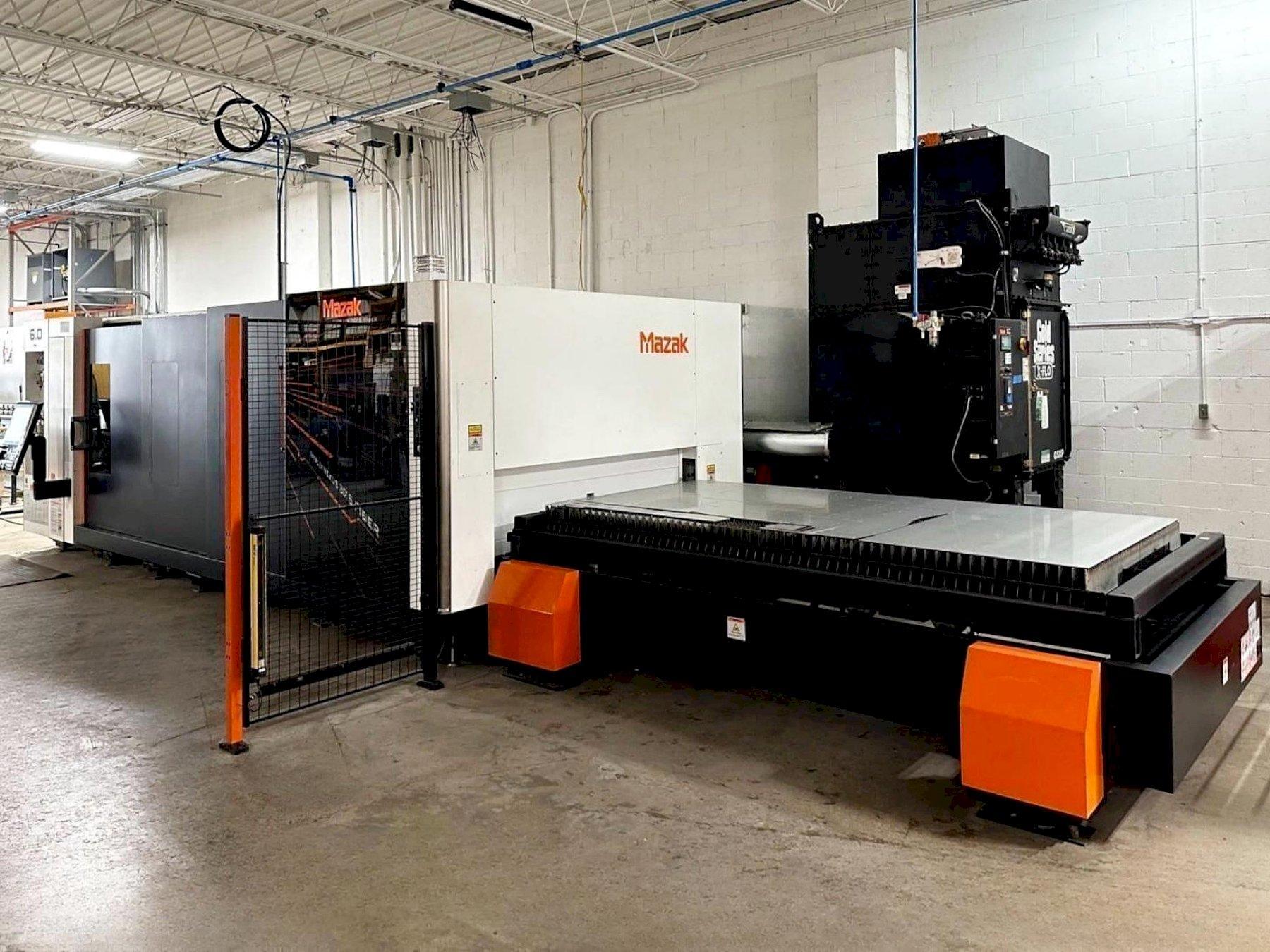

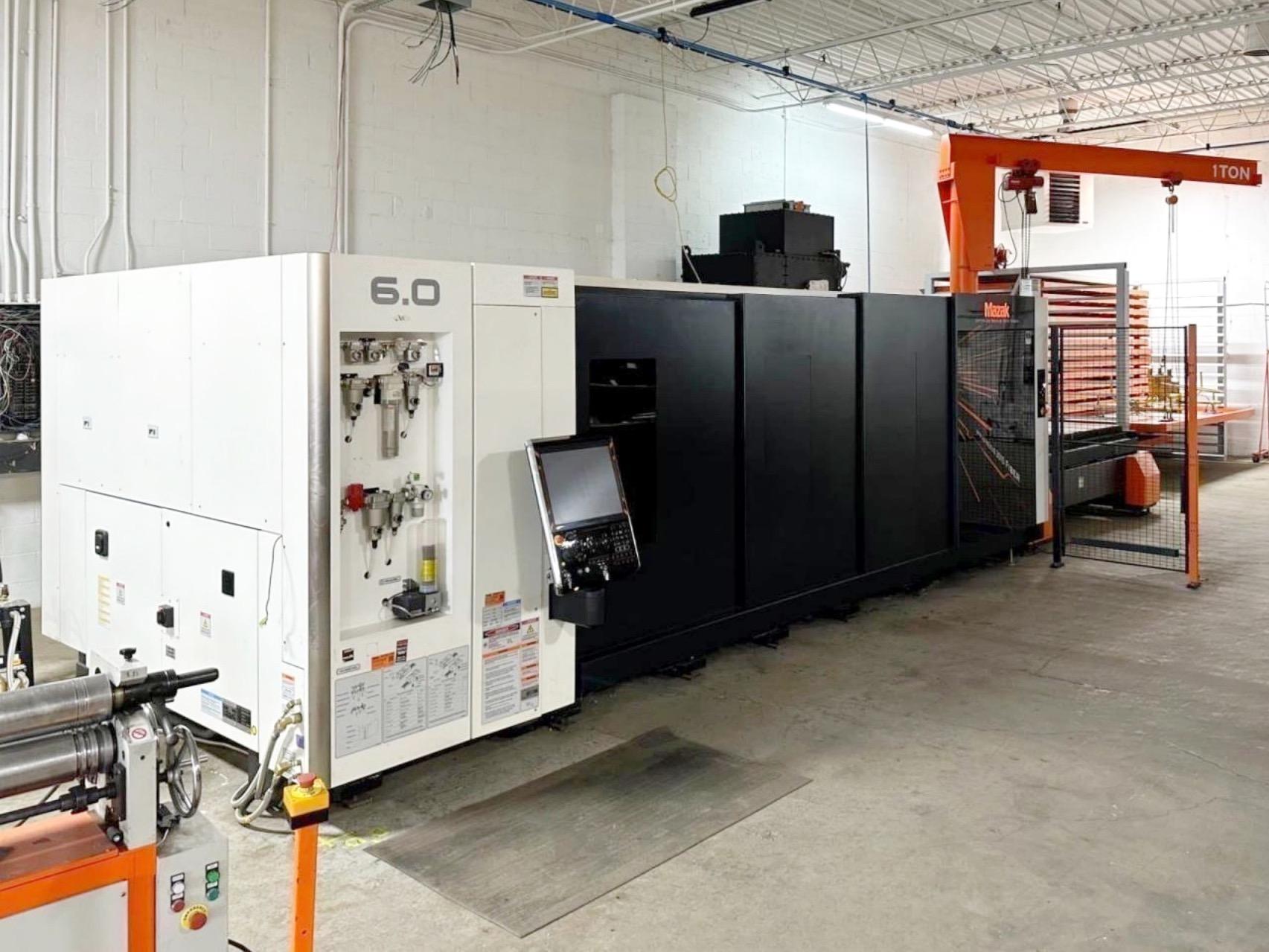

Type | Fiber Laser |

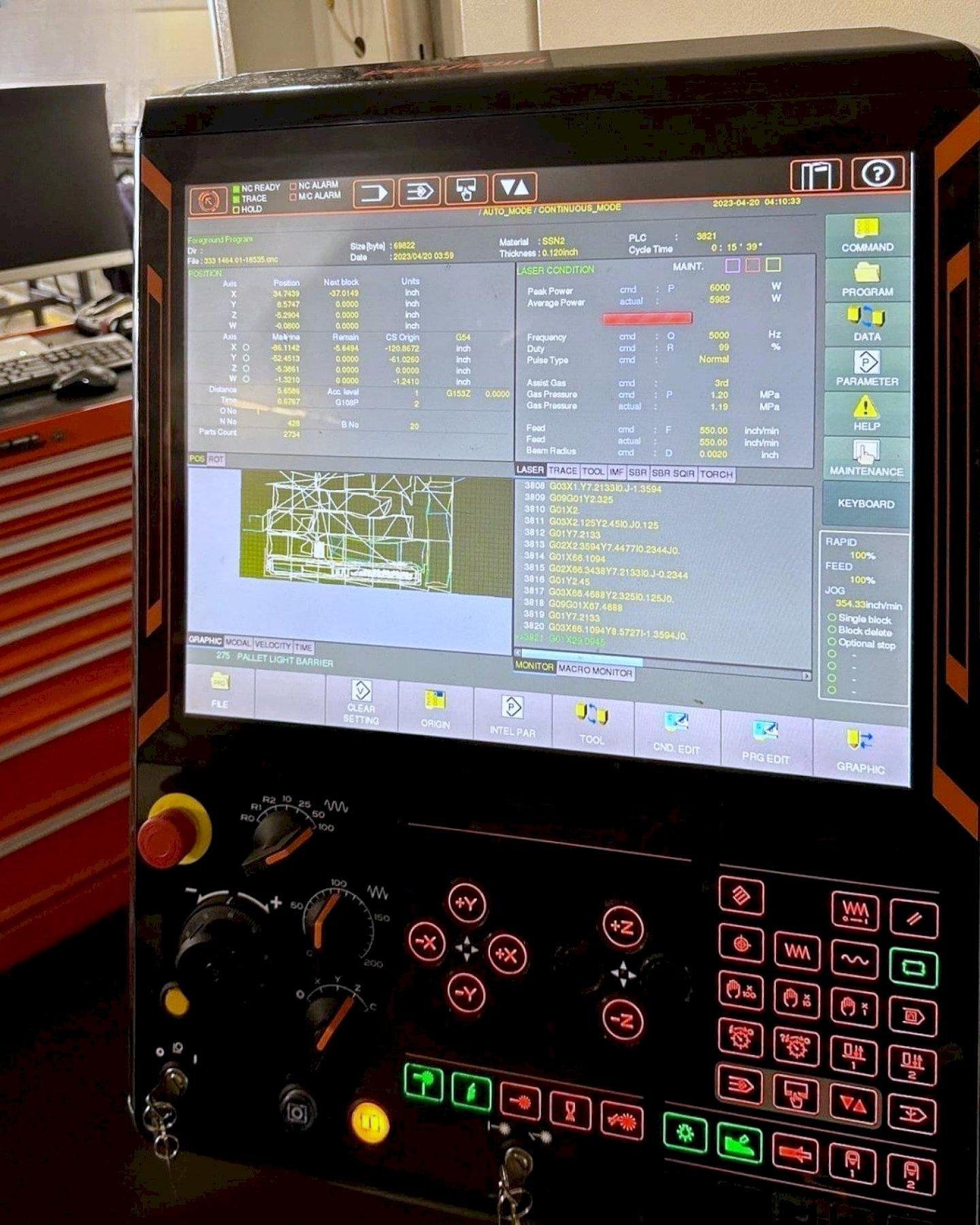

Control | Mazatrol Preview 2 W/CPU 64 bit |
Resonator | IPG Fiber Laser Source |
Power Output | 6000 Watts |
Max. Workpiece Dims. | 60.039" x 120.078" |
Max. Workpiece Weight | 2,050 lbs. |
Y Axis Travels | 122.05" |
X Axis Travels | 62.20" |
Z-Axis Travel | 4.33" |
Drive Type X/Y Axis | Rack and Pinion Drive |
Drive Type Z-Axis | Ball Screw Drive |
Machine Structure | Flying Optics |
Work Table Height | 35.43" |
Number of Controlled Axis | 3 |
Position Detection System | Encoder |
Min. Command Unit | 0.0001" |
Rapid Travel Speed (X,Y-axis) | 2,362 IPM |
Pos. Accuracy X, Y Axis | 0.0002"/19.69" |
Pos. Accuracy Z | 0.0004"/3.94" |
Max. Processing Feedrate X,Y Axis | 2,362 IPM |
Max Thickness Mild Steel | 1.0” |
Max Thickness Stainless Steel | 0.70” |
Max Thickness Aluminum | 0.57” |
Total Electrical Requirement | 71 Kva |
Footprint | W 394" x D 240" |
Machine Unit Dimensions | W 119.5" X D 392.1" X H 95.3" |
Machine Unit Weight | 28,330 lbs. |

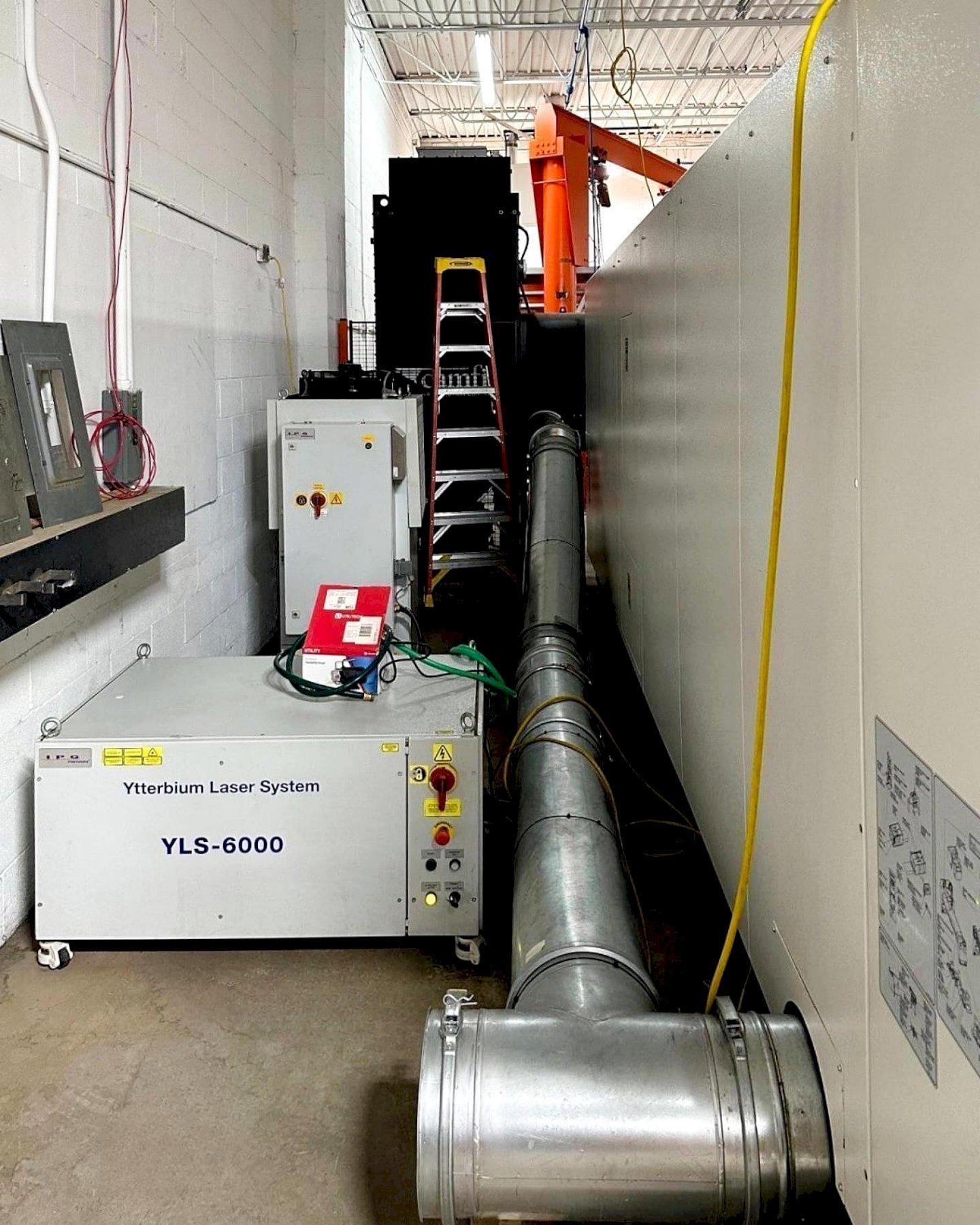

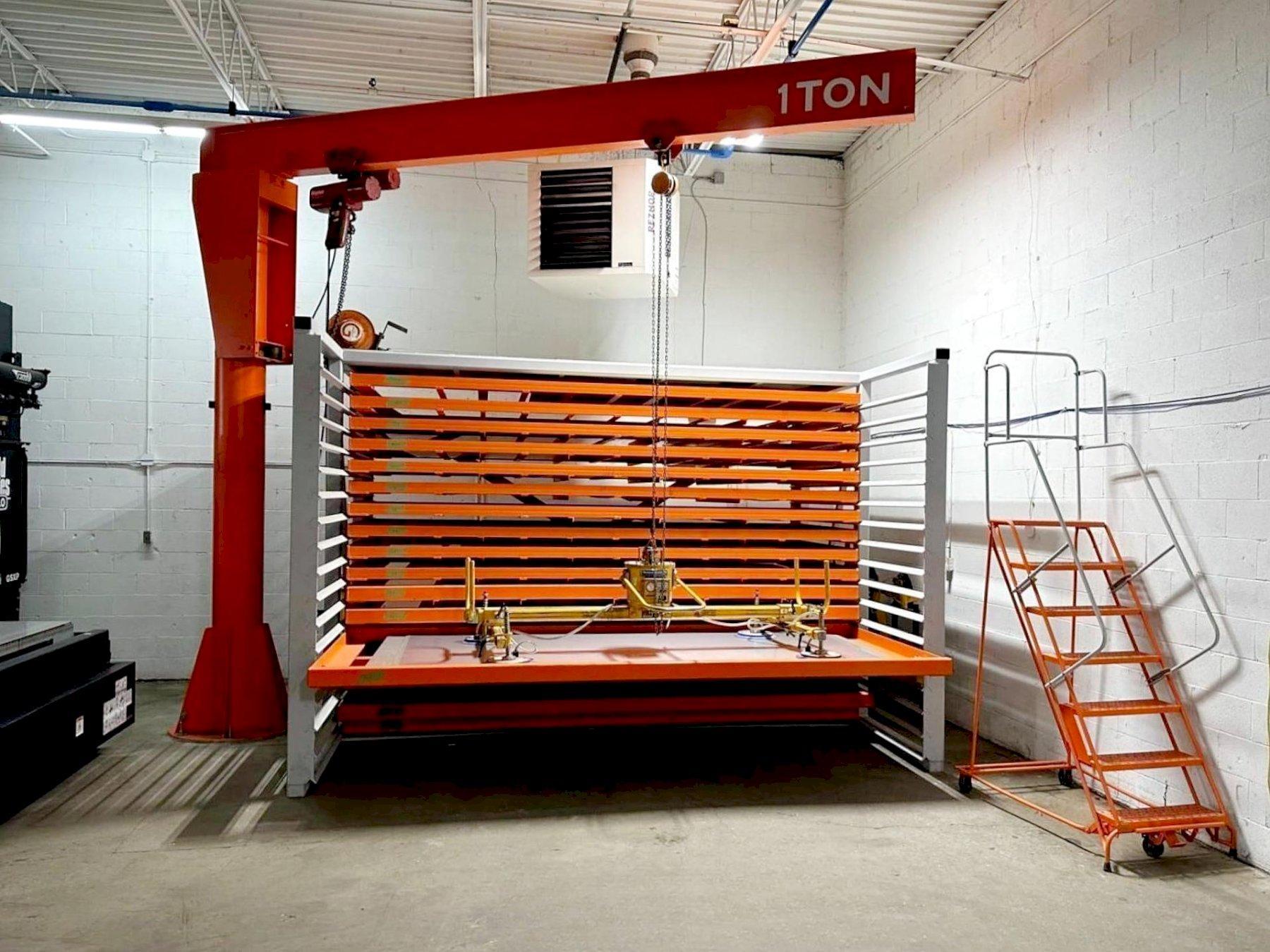

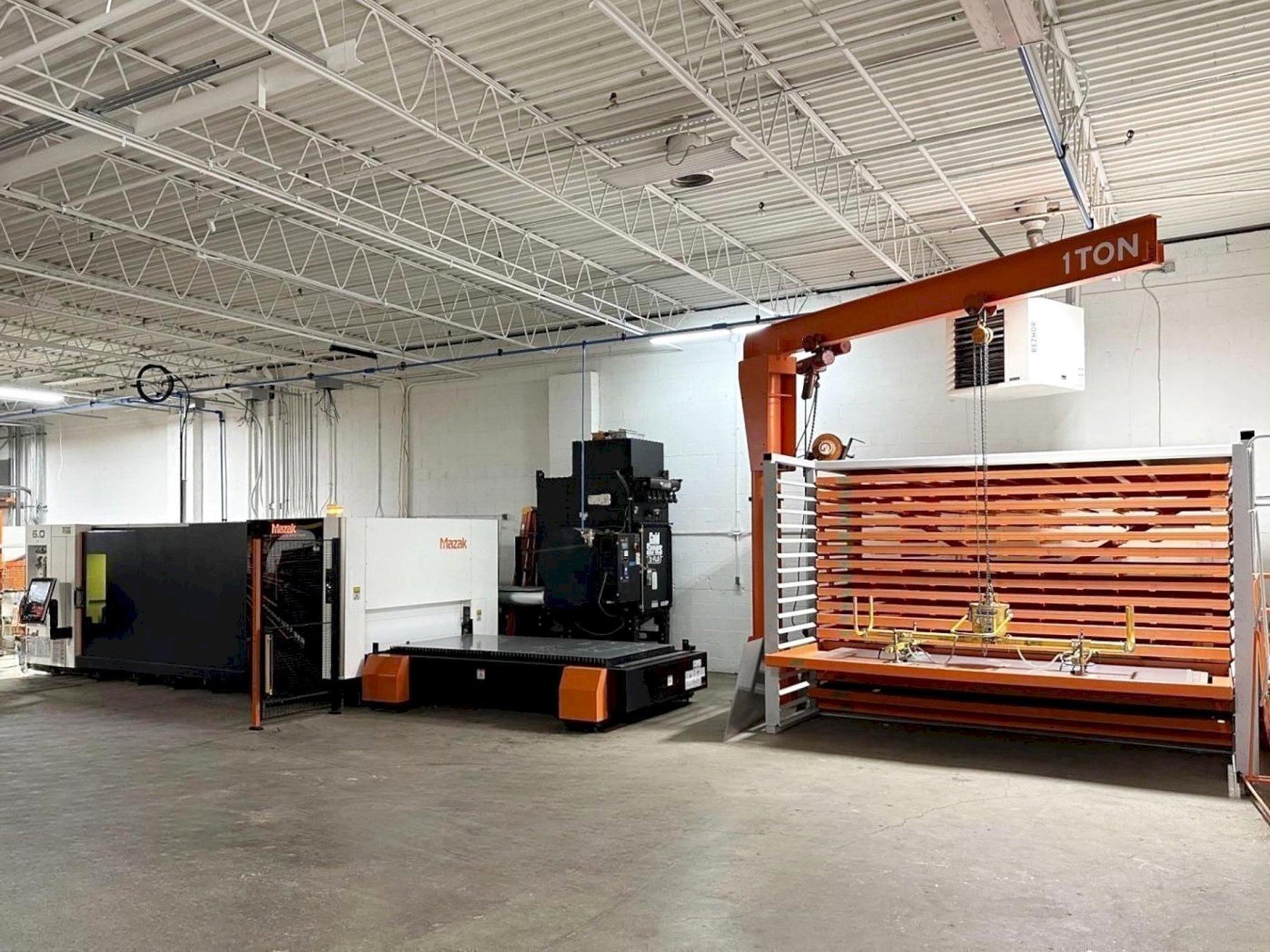

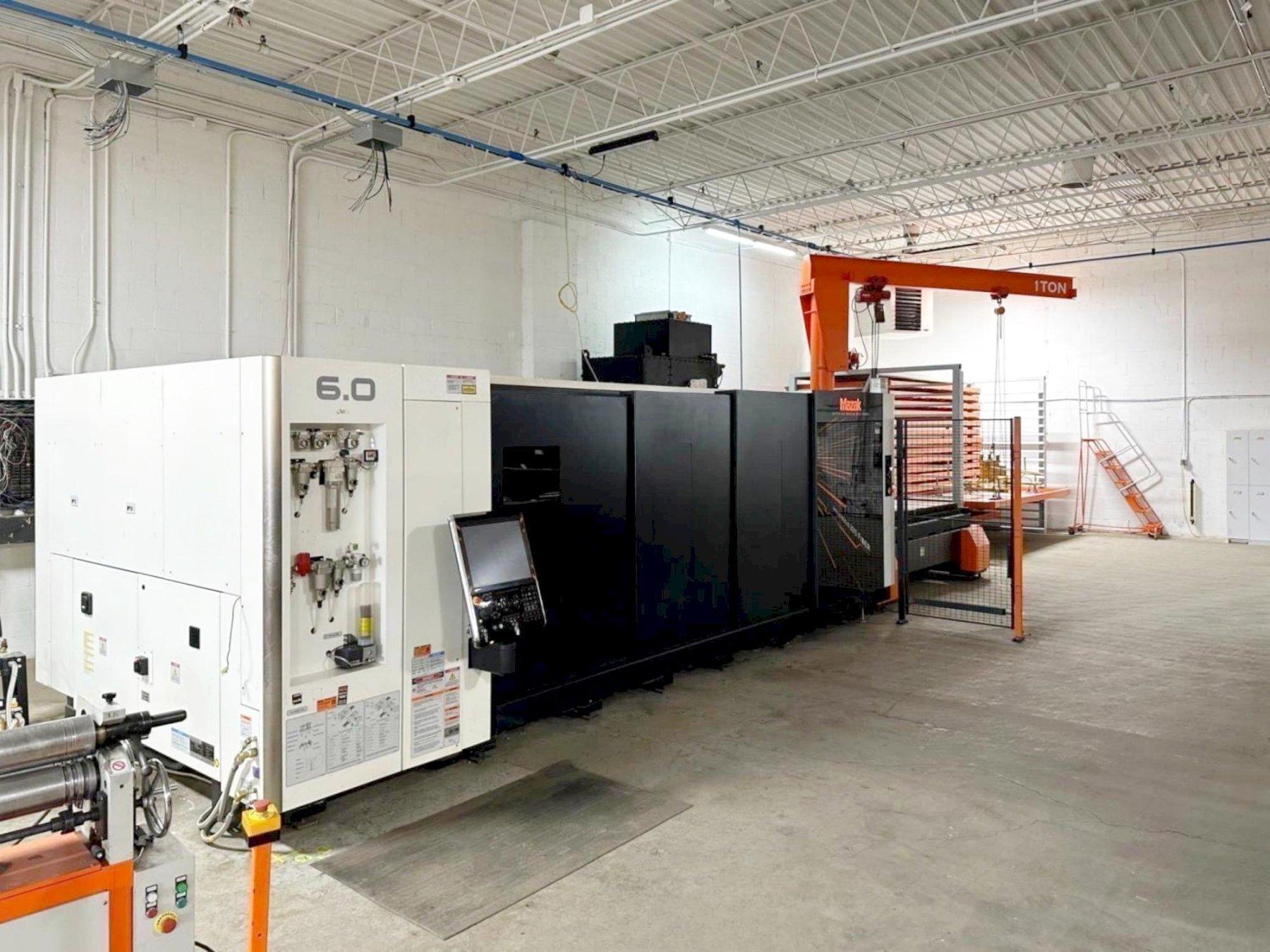

Equipped With: Mazak Mazatrol Preview 2 CNC Controls IPG YLS-6000 6KW Fiber Laser Power Source Auto Nozzle Changer Rack and Pinion Drives X/Y Axis Dual Auto Pallet Changer Camfil Dust Collector IPG Chiller Unit Jib Crane Vacuum Lift Trolly Hoist 16 Shelf Storage Rack Stairs For Storage System
|
