Max Dia. Hole Drilled | 1.25 inches |
Max Drilling Depth | 76 inches |
# Spindles | 2 |
CNC Control | yes |
Type of CNC Control | lemoine |

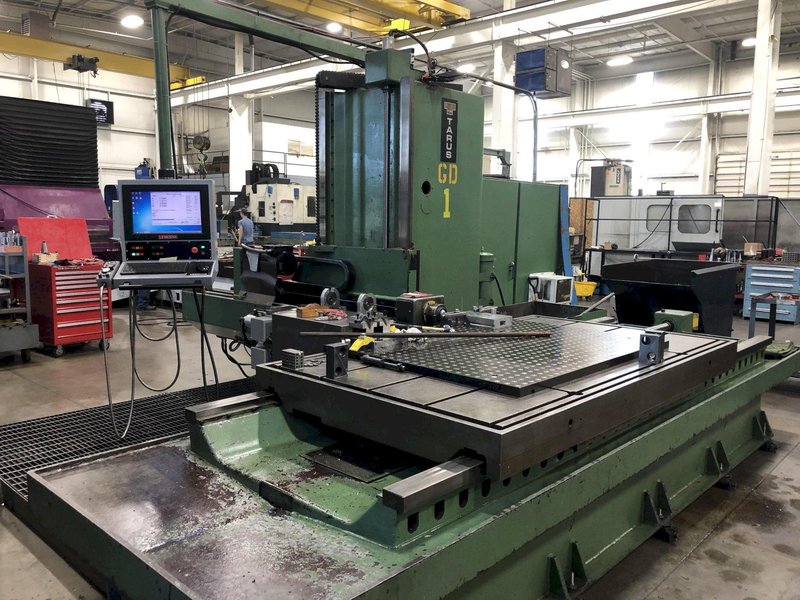

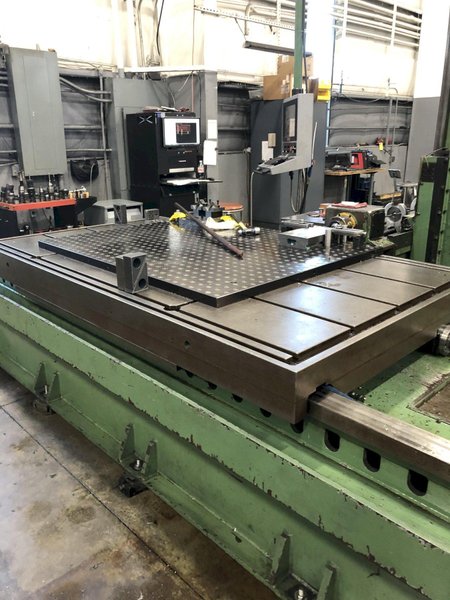

CONTROL: LEMOINE NEW RETROFIT IN 2019 TABLE SIZE: 98" X 52" TRAVELS: X.........: 95.6" Y.........: 49.5" Z.........: 15.8" (HEAD SLIDE) W.........: 76" (GUN DRILL DEPTH) DRILLING CAPACITY.........: 1/8" TO 1 1/4" (.125" TO 1.250") DRILLING MOTOR............: 15 HP

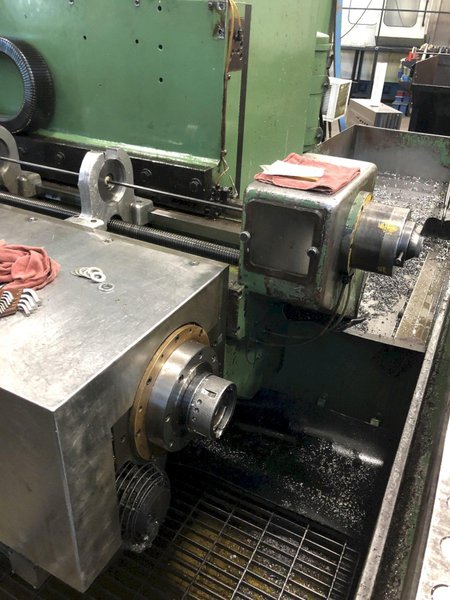

EQUIPPED WITH: ALL NEW YASKAWA DRIVES X,Y,Z,W COOLANT IN TABLE ABOVE FLOOR LEMOINE LIFETIME KEY WHIPS AND GUIDES ALL NEW BALL SCREWS FANUC SPINDLE MOTOR DRIVE AUXILLARY TAPPING HEAD BOX WAYS ALL NEW WIRING IN THE CONTROL CABINET THIS IS A COMPLETE RETROFIT AUXILARY CNC MILLING & TAPPING SPINDLE 2000 RPM EVERYTHING ON THIS MACHINE IS FLOOR STANDING INCL. COOLANT #40 TAPER MILLING & TAPPING HOLDERS DRILL BUSHINGS
|
