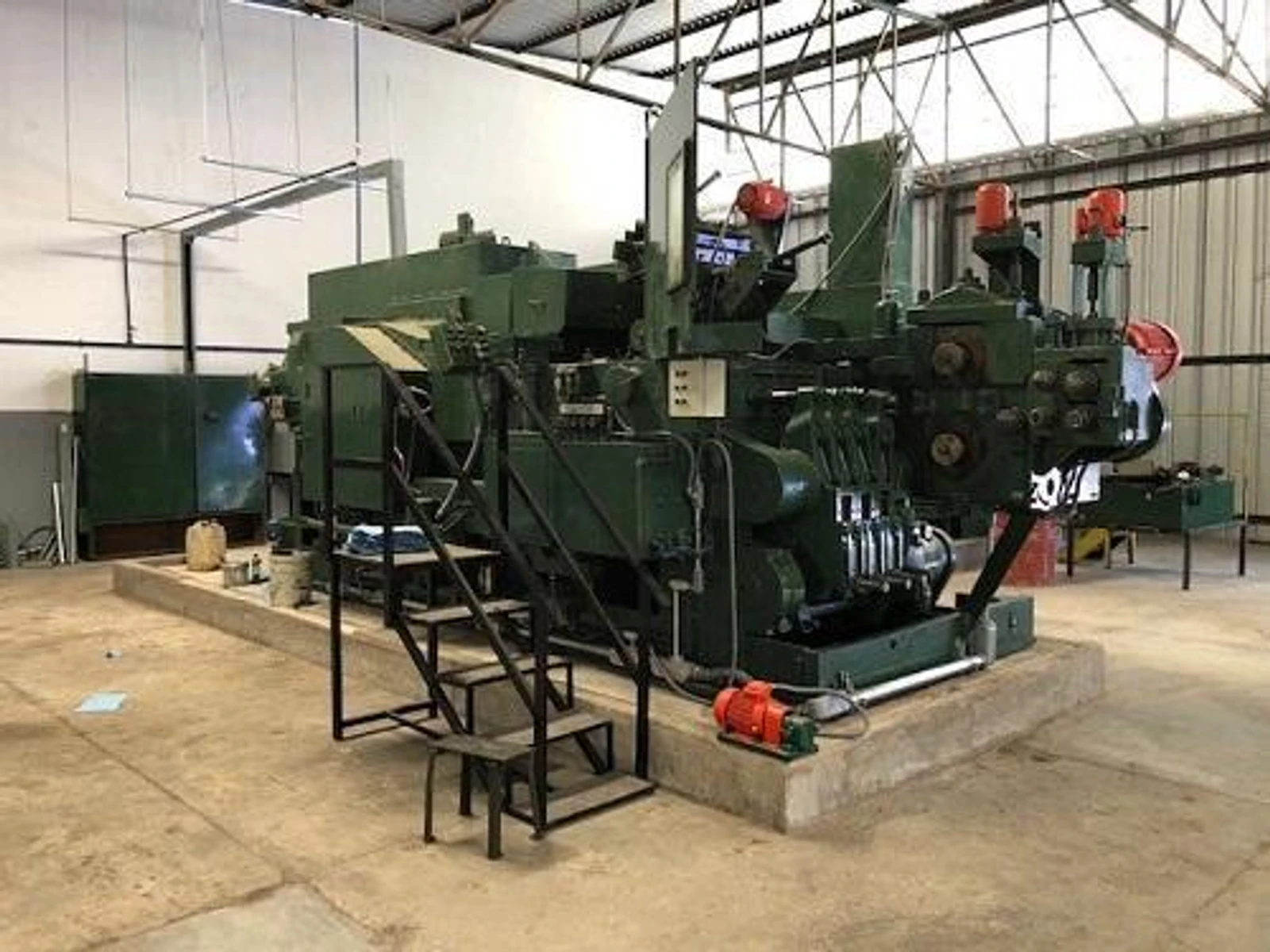

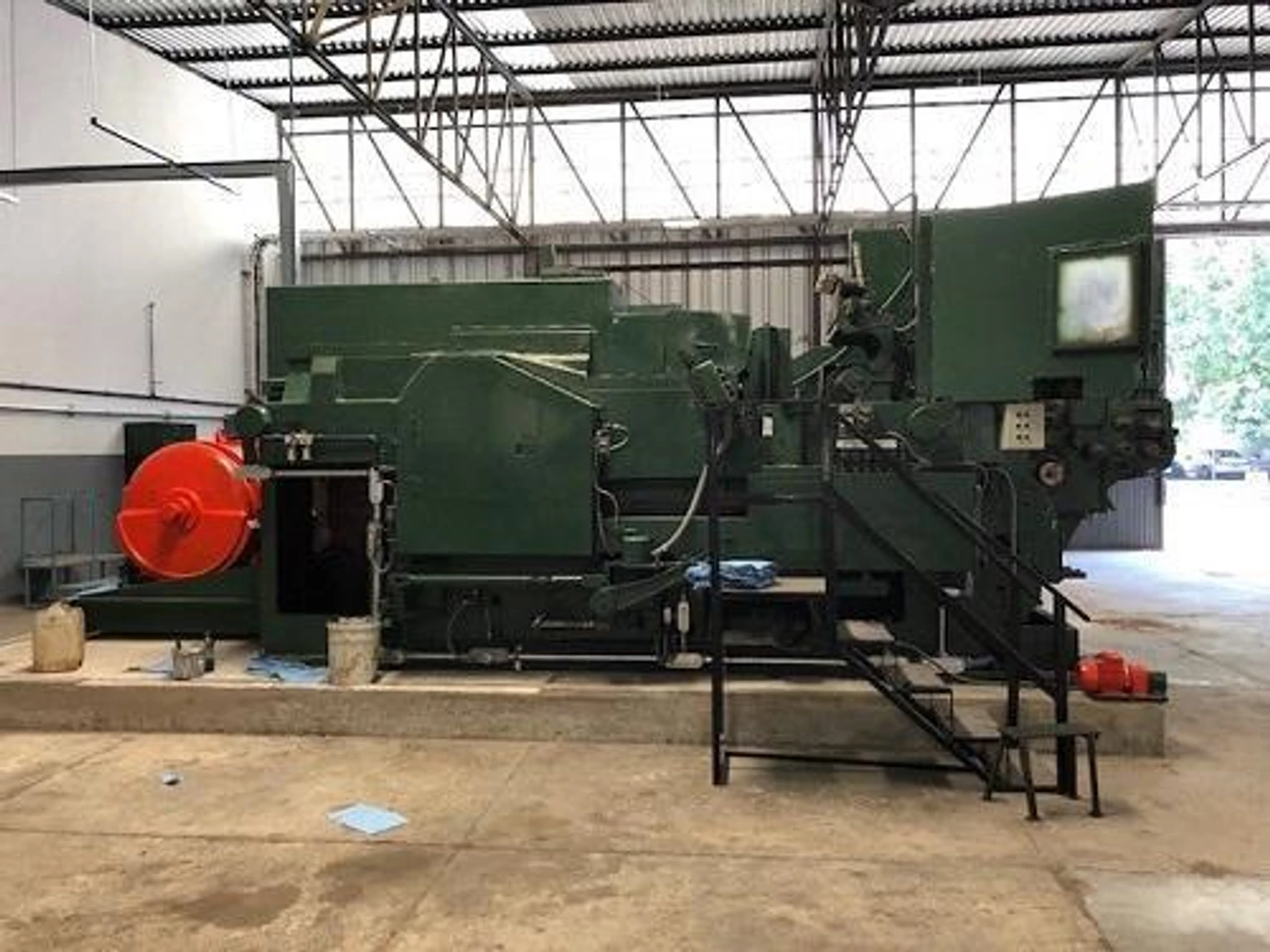

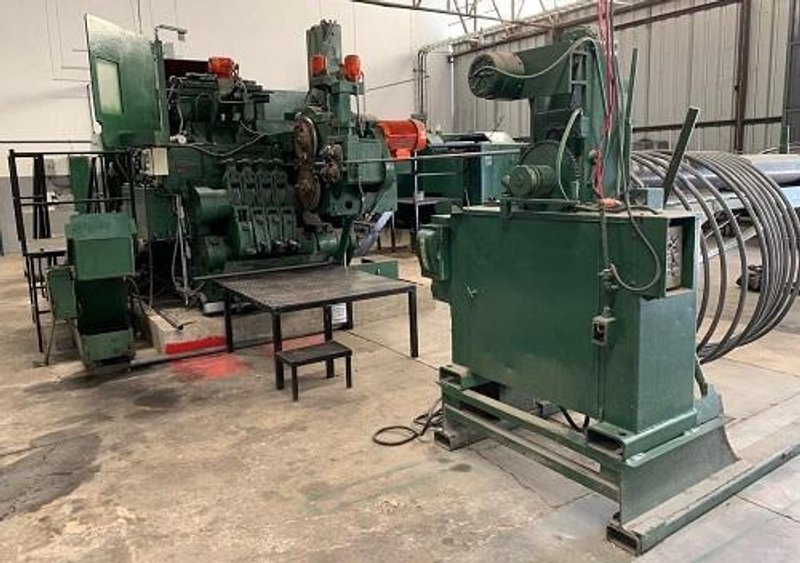

1" NATIONAL MODEL# 1000 LONG STROKE 4-DIE PROGRESSIVE HEADER
Brand
Category
Model
1000
Stock #
116080
Year
1970
Condition
Used
Location
Not specified
|

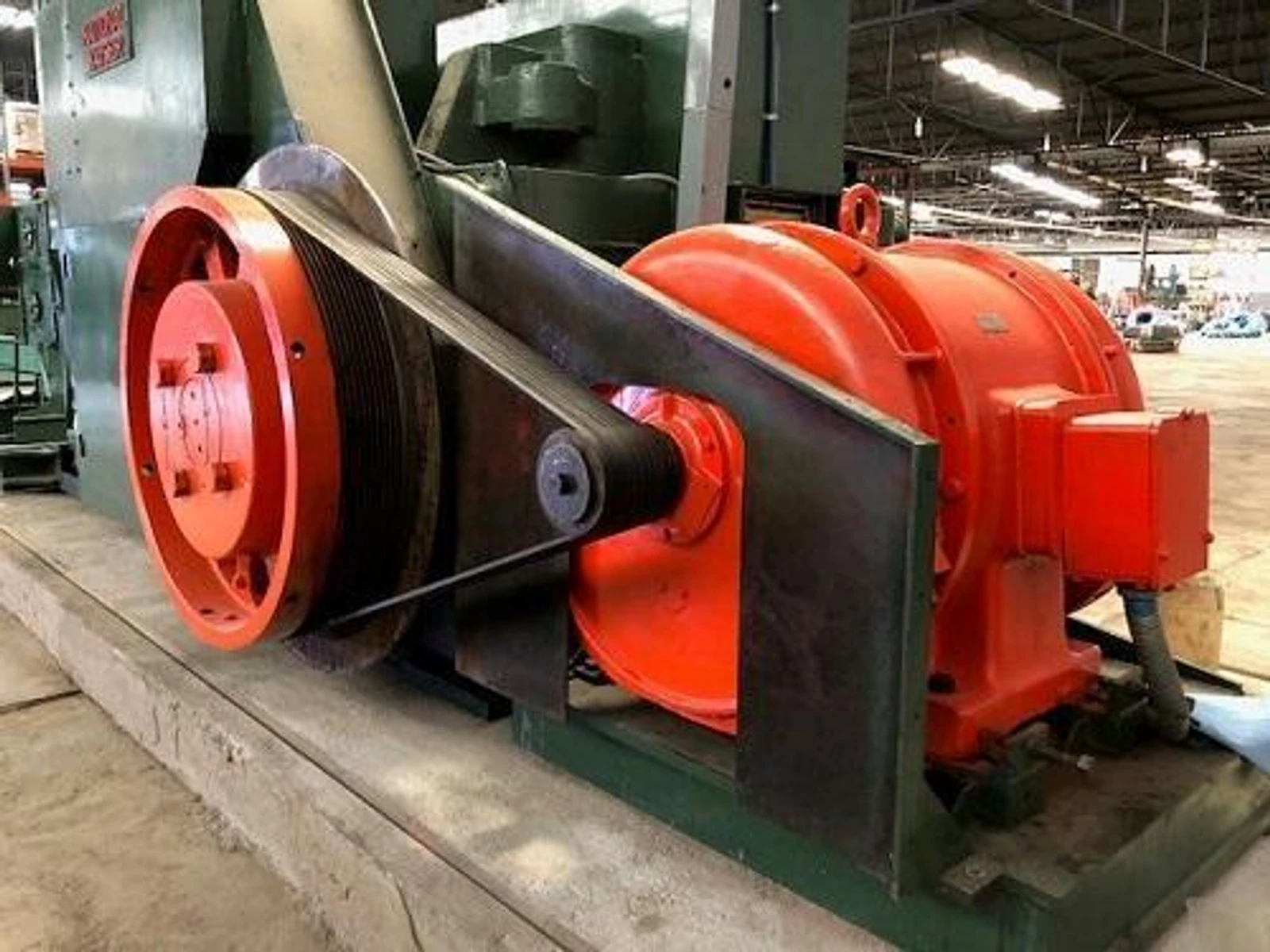

1" NATIONAL MODEL# 1000 LONG STROKE 4-DIE PROGRESSIVE HEADER Number of forming dies .......................... 4 Production per minute .............................. 65 Major Specifications: Max. Cutoff diameter......... 1.125” ........... 28.6mm Min. Cutoff length............... 1.5” ............... 38.1mm Max. Cutoff length.............. 11.0” ............. 279.4mm Max. Kickout stroke (die)... 9.0” ............... 220.5mm Kickout stroke punch......... 2.25” ............. 56mm Across flats hex................... 1.42” ............. 61mm Die diameters....................... 5.375” ........... 136.5mm Punche diameters................ 4.375” ........... 111.1mm Total Heading Load............ 400tons.......... 400tons Main Motor.......................... 100HP............ 75kw Net weight (approx.).......... 139,800lbs..... 63,545kgs Floor Space: Length................................... 25’8” ............ 7,823mm Height................................... 10’1” ............. 3,353mm Width.................................... 10’11” ........... 3,327mm

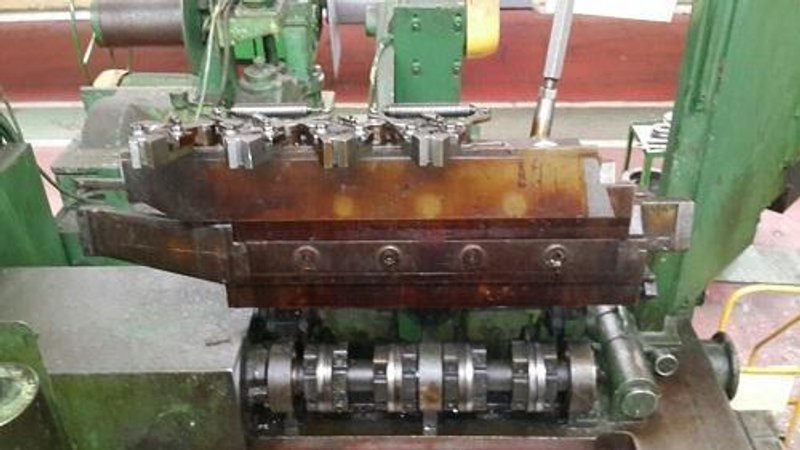

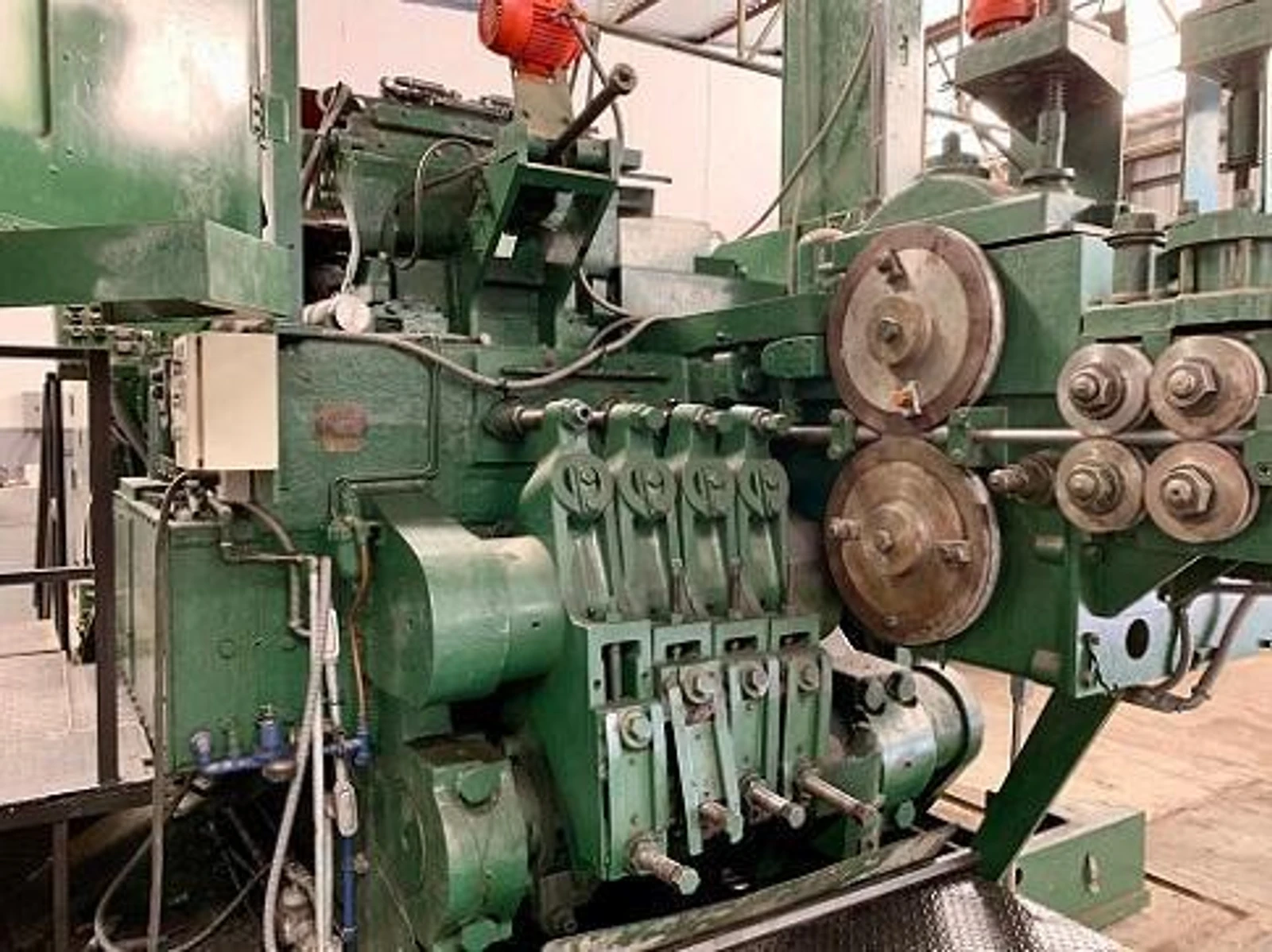

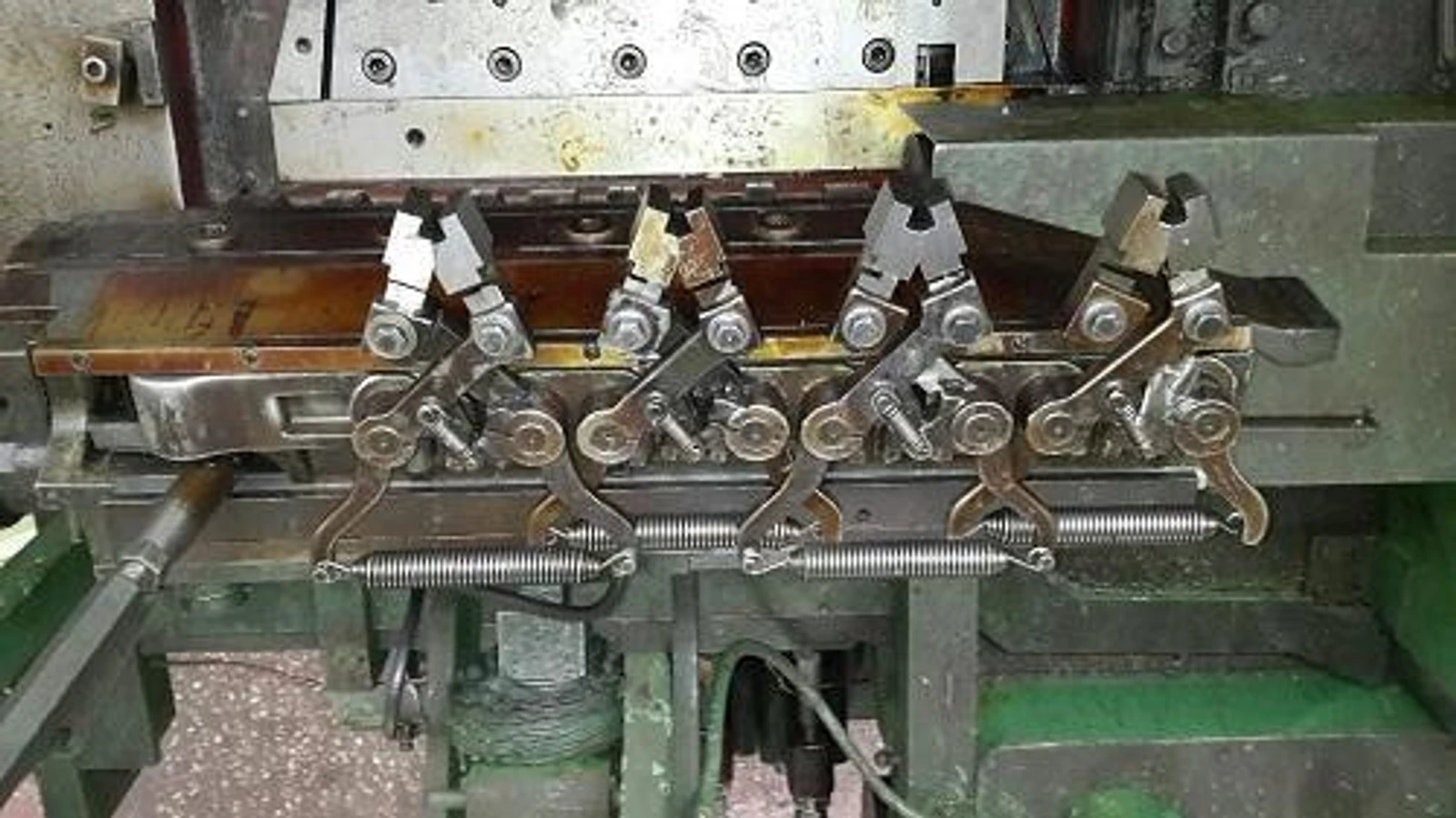

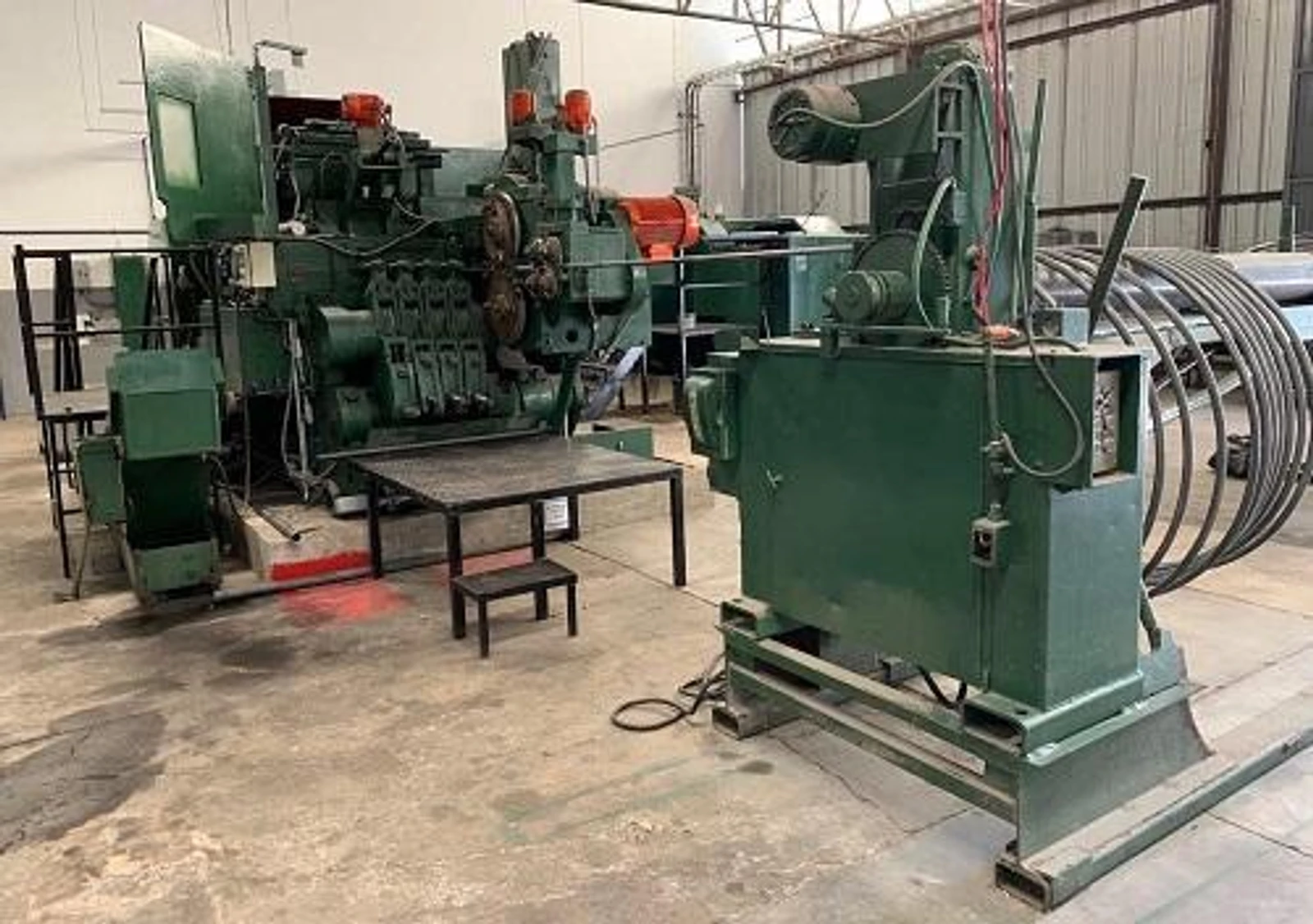

Complete with: Heat treated allow steel bedframeOver-arm heading ram (4) Four full forming dies Bushing cutoff system Arranged for TKO in all stations Individual adjustment of punch holders Pneumatically conotrolled feed roll gripping pressure Individually adjustable finger opening & closing transfer Pneumatic transfer lift (5) roll power straightener (mounted on machine) Recirculating oil lubriction system Funtionally located operator adjustments and controls Spare tooling, operators platform and wire stand |
