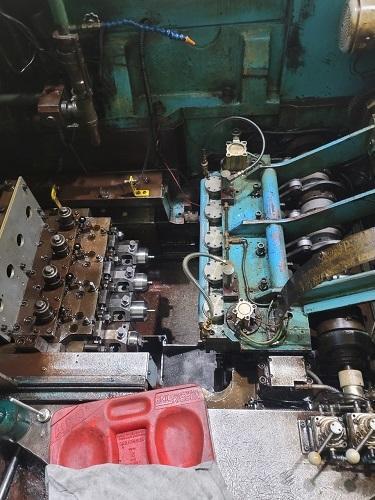

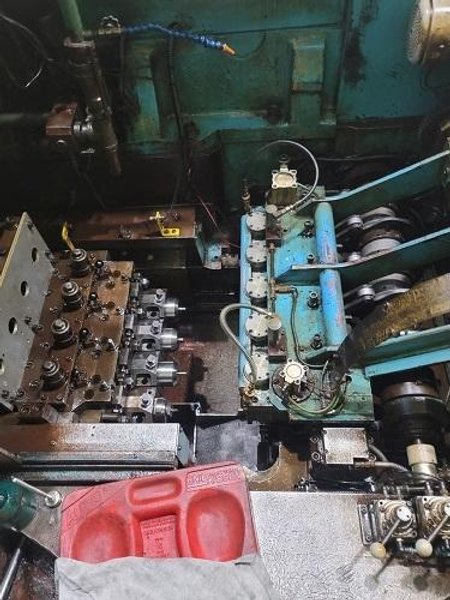

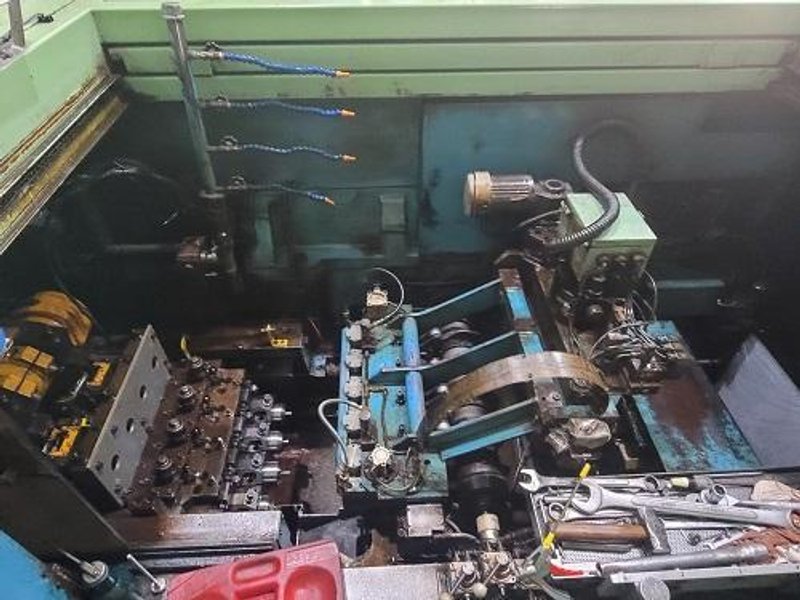

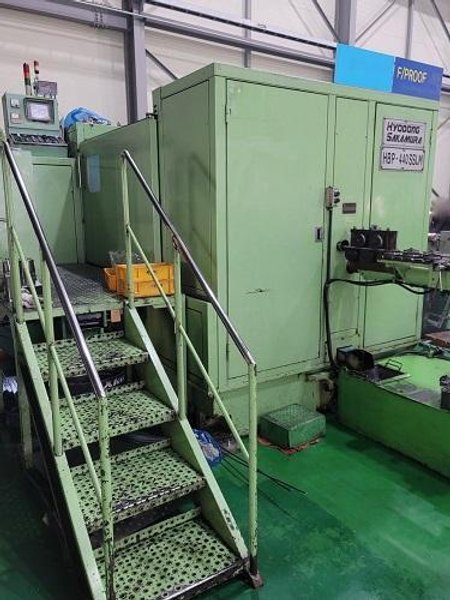

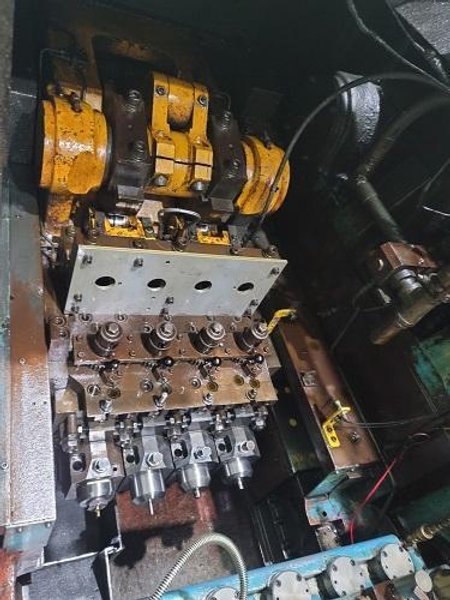

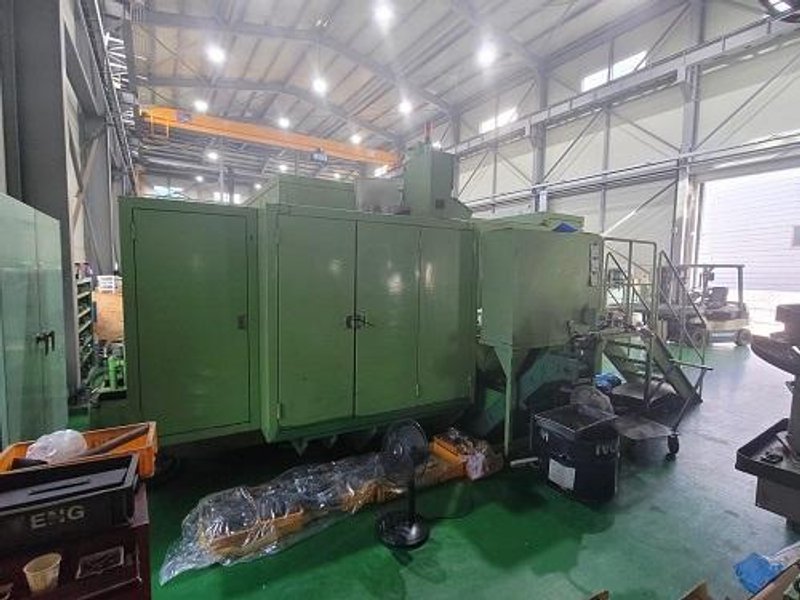

HYODONG SAKAMURA #HBP-440SSLM 4 DIE PROGRESSIVE HEADER
MAJOR SPECIFICATION:
FORGING STATION - 4 STATION
BOLT SIZE (M) - 12MM (21AF)
OPEN-UP DIA, - 27MM
SHANK LENGTH - 18 -1 50MM
FORGING LOAD - 140,000 KGF
CUT-OFF DIA. - 18MM
CUT-OFF LENGTH - 25 - 175MM
CUT-OFF KNIFE SIZE - 60 x 25MM
CUT-OFF QUILL SIZE - 55 x 95MM
PUNCH DIA. - 75 x 145MM
DIE DIA.- 96 x 180MM
CENTER DISTANCE BETWEEN DIES - 108MM
P.K.O STROKE - CS 25MM
K. O STROKE - IC 155MM
RAM STROKE - 250MM
CRANK SHAFT DIA - 260MM
MAX. RPM . - 150 Pcs/Min
MAIN MOTOR - 45 (6) KW
MACHINE DIMENSIONS - 5.3L x 3.0W x 2.5H
MACHINE WEIGHT - 35,000 KG
ELECTRIC CAVITY - 60 KVA
AIR CAVITY - 3.0 L/J
LUBRICAION & COOLANT OIL CAVITY - 350 L
DIE BLOCK SIZE - 180MM
CENTER DISTANCE QUILL & PUSHER - 45MM
PUNCH HOLDER SIZE - 110MM
LUBRICATION PUMP CAVITY - 0.75KW
COOLANT PUMP CAVITY - 0.4KW
THIS SPEC. IS DEPEN UPON TENSILE 50KGF/MM2
CUT-OFF DIA, IS DEPEND UPON WIRE TENSILE 65KGF /MM2
|
