2 Ft x 24 Ga. ROLL FORMER Stand-Alone (SA) Perforation Machine
Brand
Category
Model
SA Perforation Machine
Stock #
4700
Year
Not specified
Condition
New
Location
New York
|

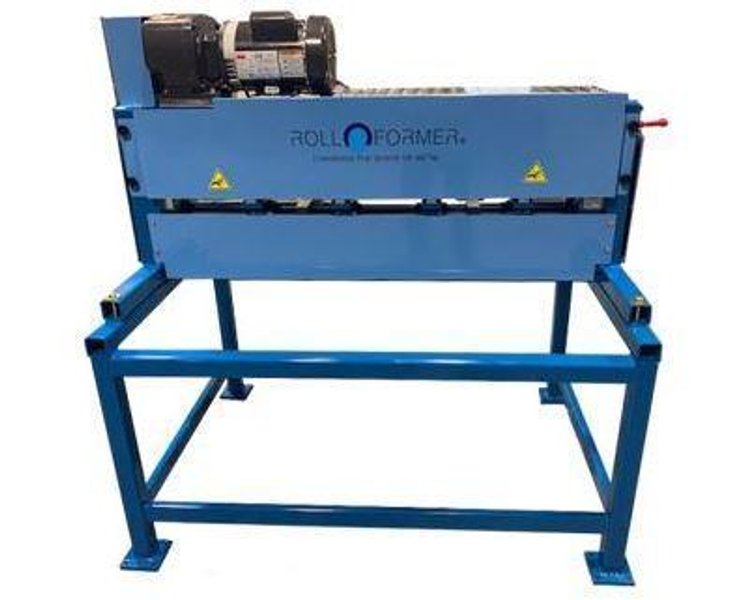

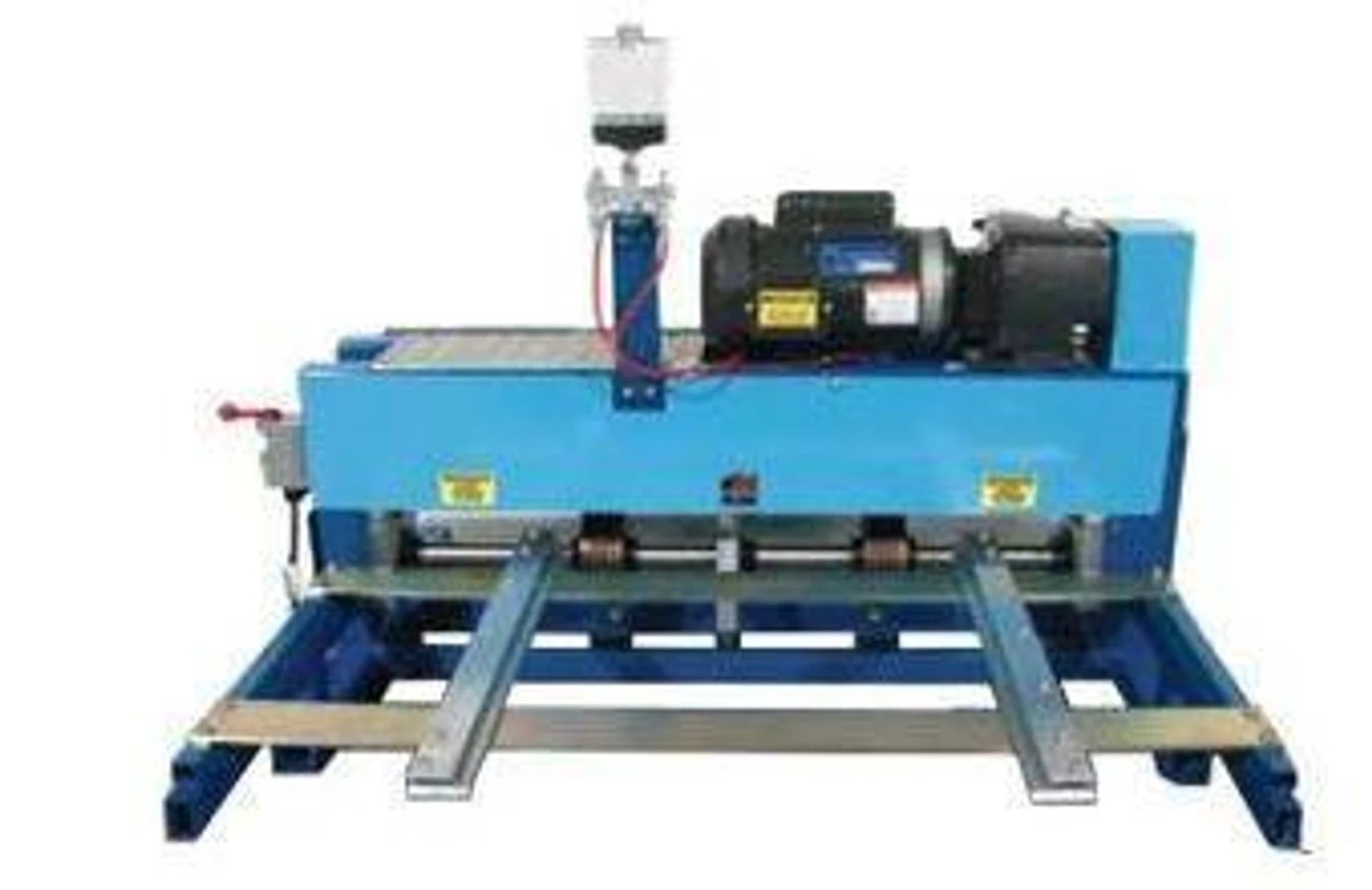

2 Ft x 24 Ga. ROLL FORMER Stand-Alone (SA) Perforation Machine
Stand Alone Perforation Unit for Ridge Soffit Venting Save time and money using our Stand Alone Perforation Machine.
The Stand-Alone Perforation Machine is ideal to perforate your metal for Ridge Cap venting and Soffit area venting. It can accept up to 24″ wide sheet stock in 24 – 26 ga. Steel, .032″ Aluminum, and 12 – 24 oz. Copper. With a quick
adjustment, it can also perforate 1″ deep preformed soffit panels like our FL105 profile. The Perf Dies are adjustable up/down and side to side (Two (2) Sets with each set having Four (4) rows), oiler kit to lubricate the dies.
Powered by a heavy-duty 110 Volt 1 Phase Electric Gearbox.
Adjustable for up to 24’’ wide material Two sets of perforation die- side to side and up and down
Oiler kit for perforation dies
Sheet Fed
Stripper Dies to prevent material curl on female rolls
Electric - Gearbox 110V Single Phase
Capacities:
24-26 gauge steel
.032’’ painted aluminum
12-20 oz. copper
Air Flow:
5.376 Square Inches per Linear Foot based on the following formula:
14 perforations per ft. X 4 rows X (.06” depth x .4” long x 2 open sides) X 2 Perf Dies within the machine.
Optional: Machine Stand with Leveler Pads- $400 FOB: PA |
