Coil Weight 20 tons
Width 1550 millimeters
Thickness 3 millimeters
Manufacturer: Bonak
Line Direction: Right to Left
Line Speed: 120 m/min
Thickness Range: 0.4mm to 3mm
Coil Width Range (Entry and Exit): 150mm to 1550mm
Max Coil Weight: 20 Ton
Coil OD Range: 700mm to 1950mm
Coil ID Range: 475mm to 670mm
Stacked Product Dimensions:
Length: 200mm to 6000mm
Width: 150mm to 1500mm
Pallet Height Max: 500mm
Stacked Weight Max: 5 Ton
Complete Line with:
Pit Type Coil Car
Max Weight Capacity: 20ton

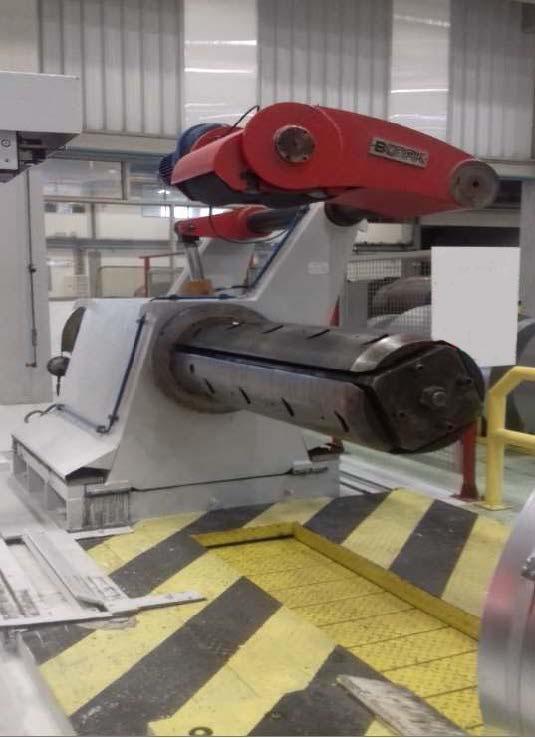

Bonak Mandrel Uncoiler
Type: 155-20-DC
Max Coil Weight: 20 Ton
Coil OD Range: 700mm to 1950mm
Coil ID Range: 475mm to 670mm
Hydraulic Expansion
Sliding Base
Powered Hold Down Roll
Peeler Table
Entry Powered Edge Guides

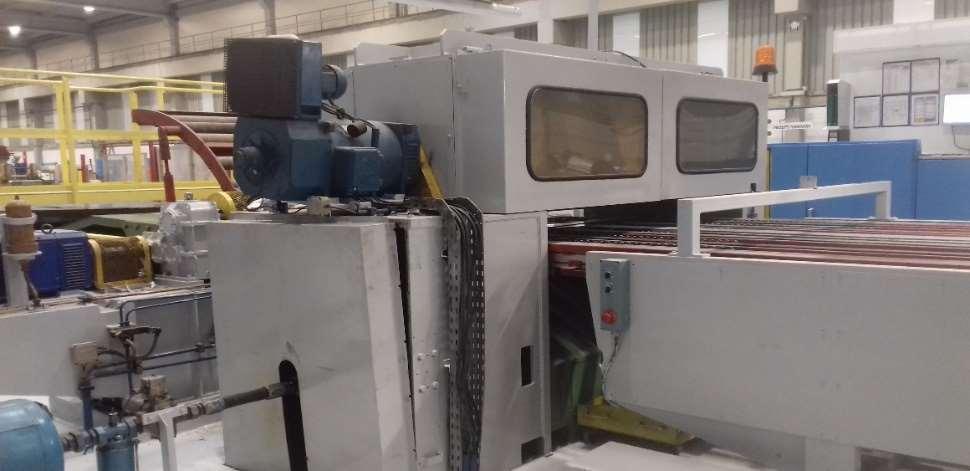

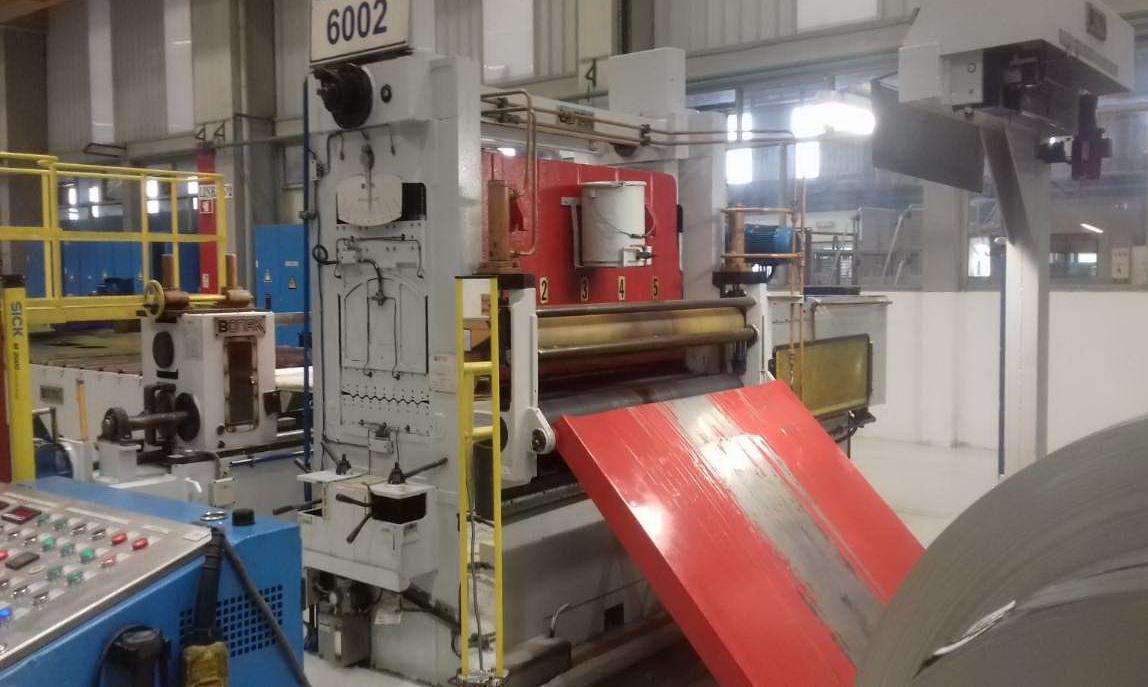

Bonak 4-HI Precision Bonak Leveler
17 Work Roll Design
52mm Work Roll Diameter
5 Flights of Top and Bottom Backups
Thickness Range: 0.4mm to 3mm
Shear Strength: 45 KG/mm2
85KW Motor Drive

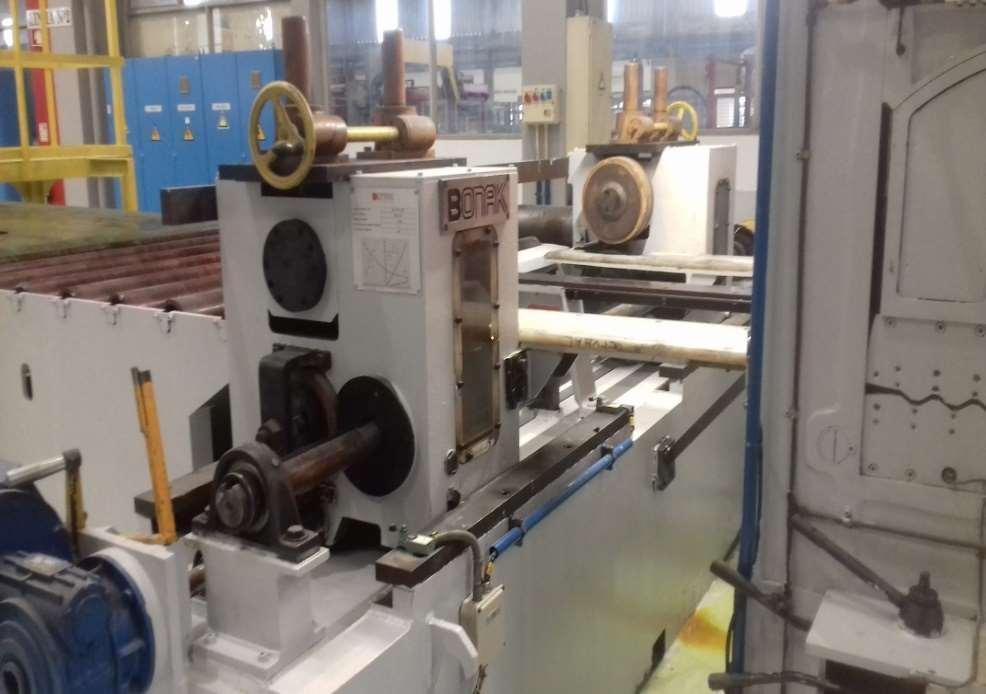

Bonak Edge Trimmer
Single Scrap Baller: 7.5KW Motor Drive
Exit Roller Conveyor
Entry and Exit Cascade Rolls
Pit Cross Over Table
Servo Feeder
Bonak Mechanical Shear
Up-Cut Design
30KW Motor Drive

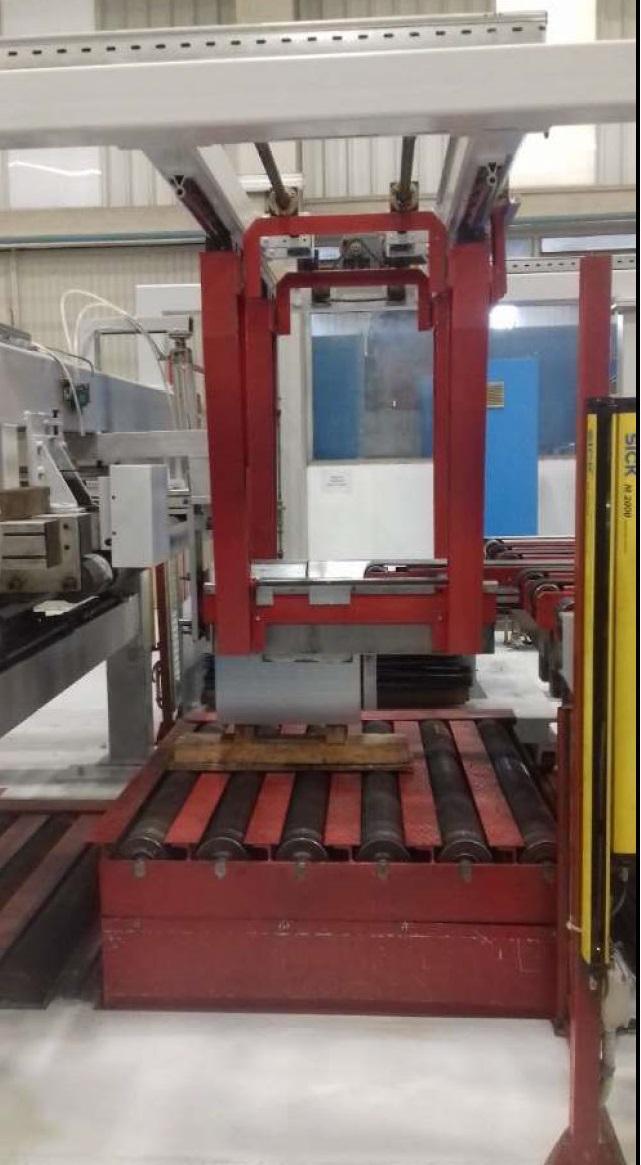

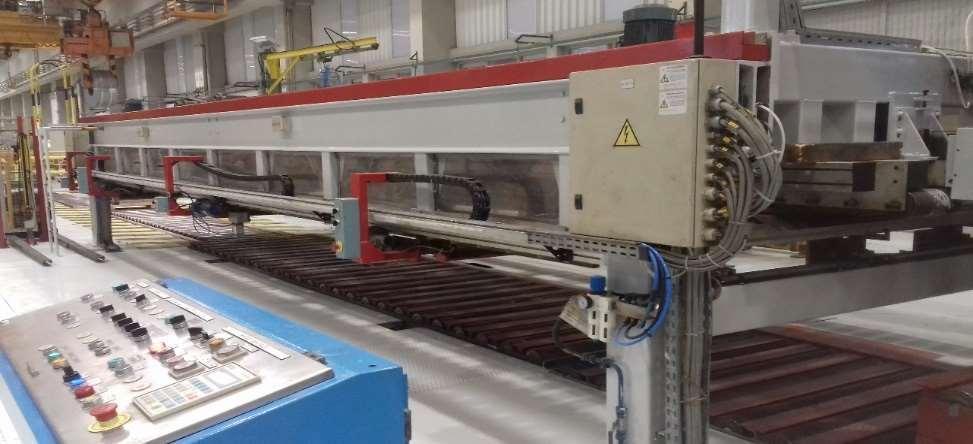

Biele Electromagnetic Stacker
Installed with Controls, Hydraulics, Electrics
|
