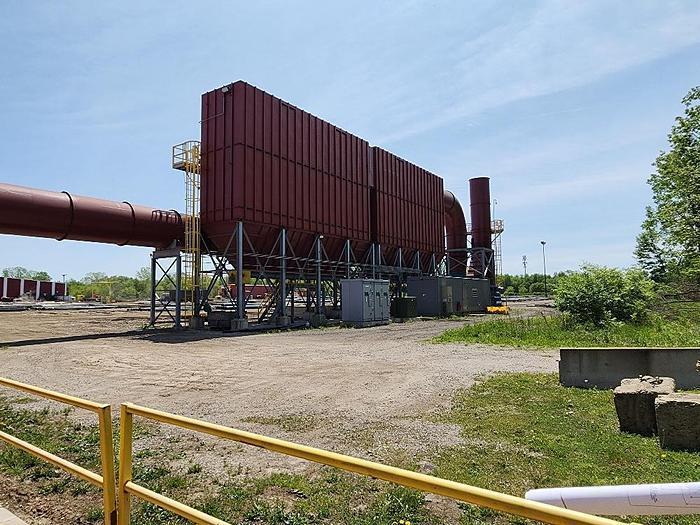

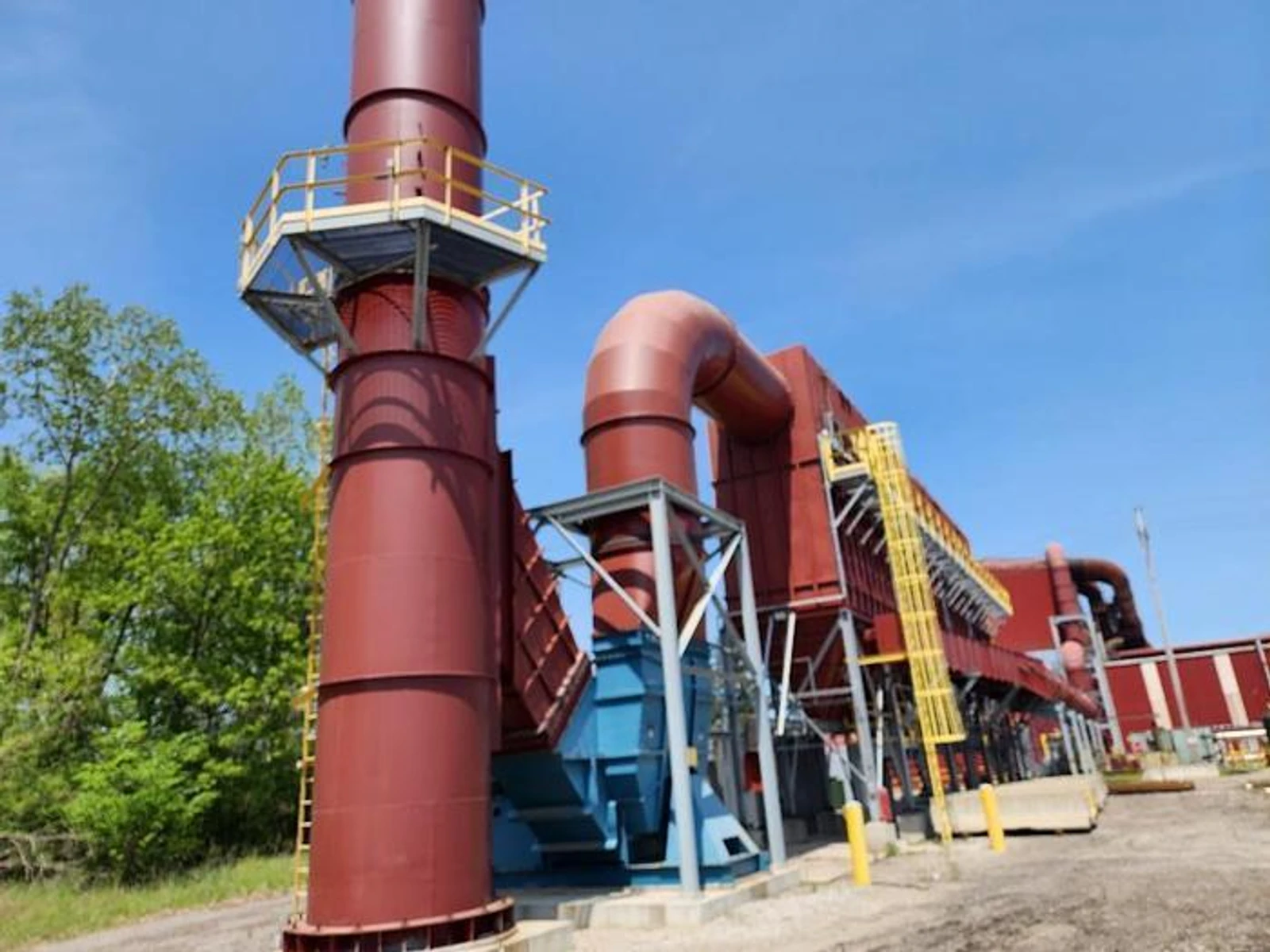

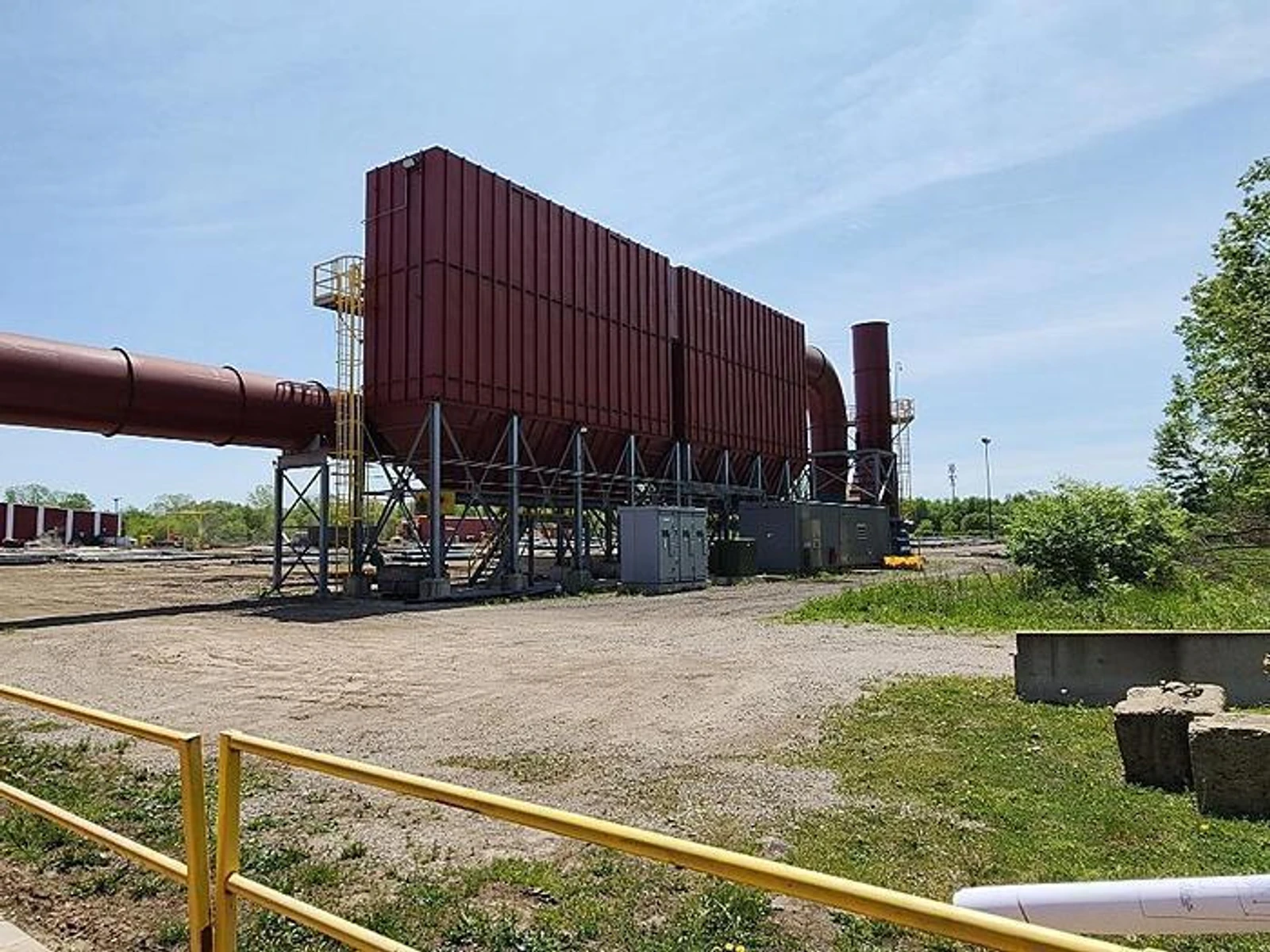

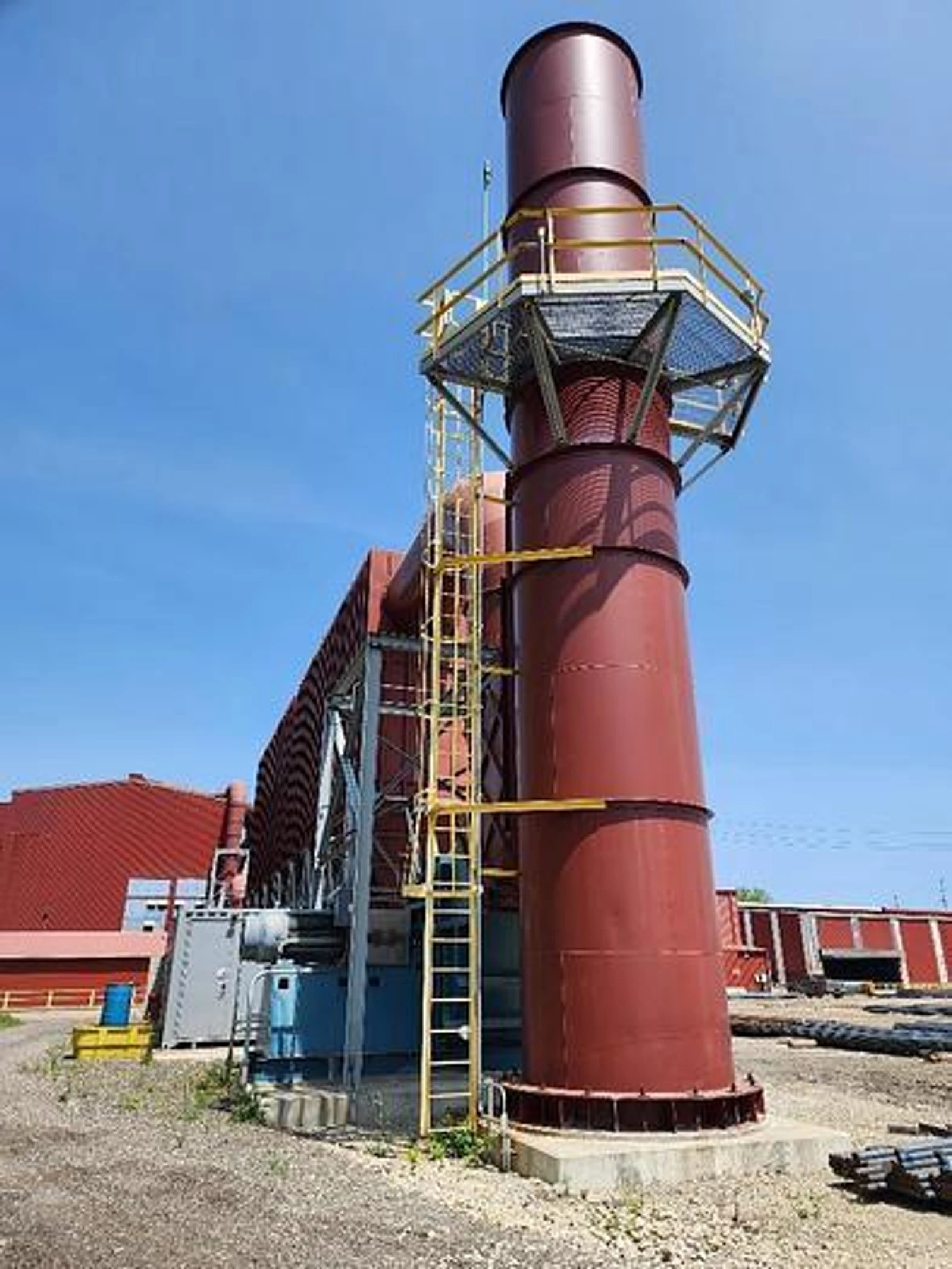

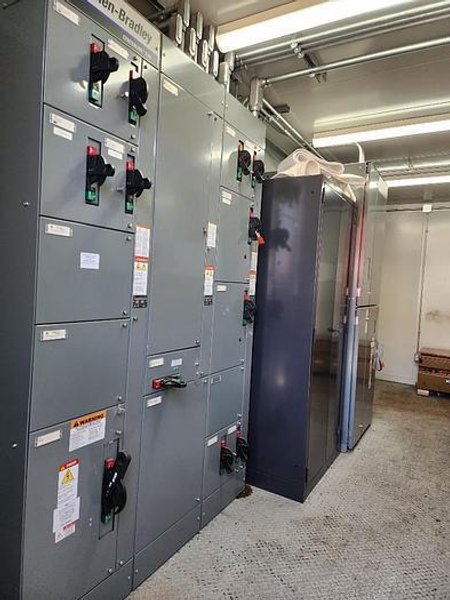

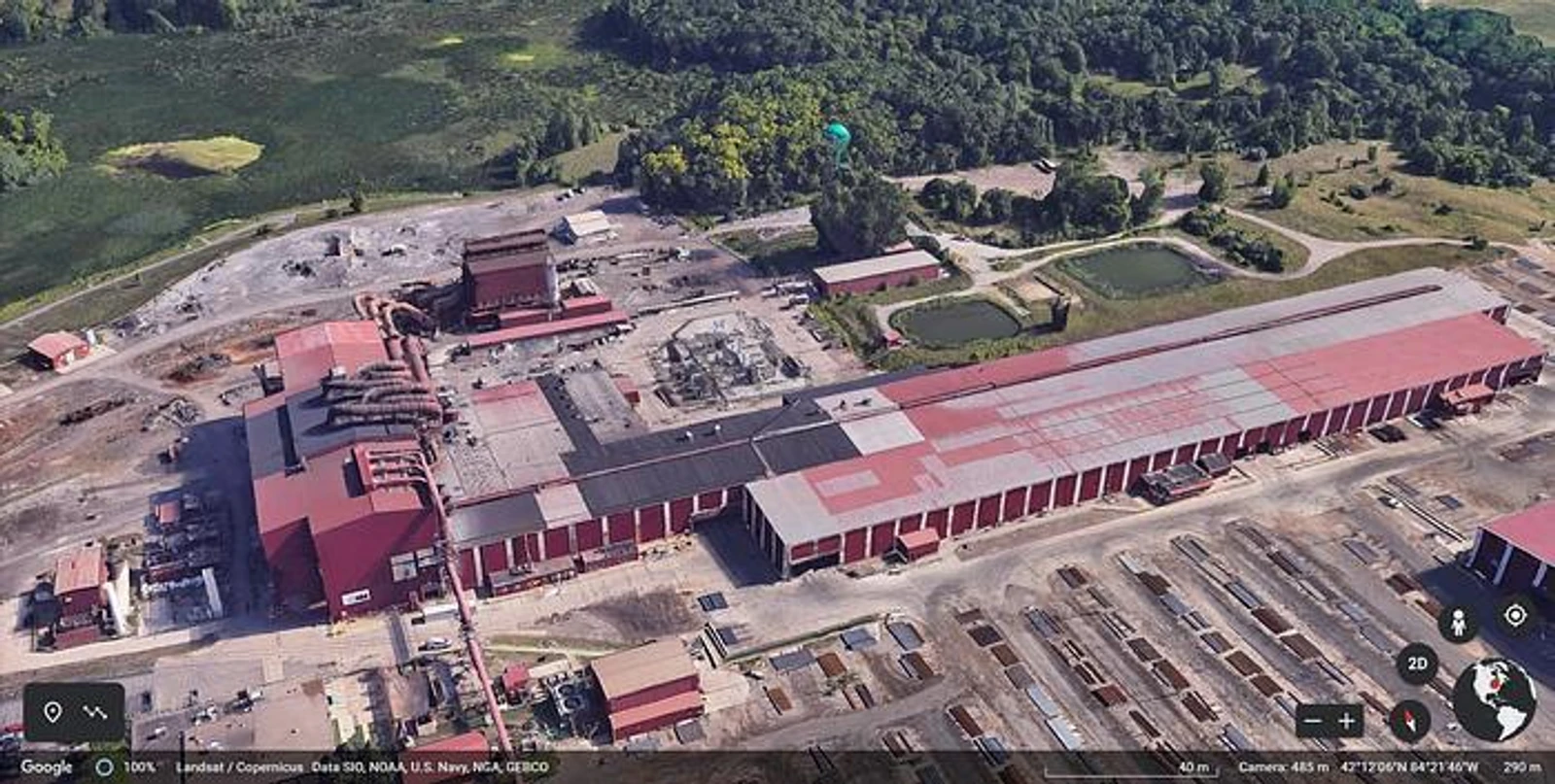

MELT SHOP - MAIN EQUIPMENT REFERENCE

Products and steel grades:

-Low-carbon:         yes

-Medium-carbon: yes

-High-carbon:   yes

-Alloyed:          yes

Scrap Yard:

-Storage area:  35,000 T

-Internal railroads:   Yes

Bucket Charge:

-Charging area:

-Buckets:         2 + 2 Spares

-BVolume:          800 cu Ft.

-Charged by:   2 x locomotive cranes w/magnet

-Transfer:         2 scrap cars with scales

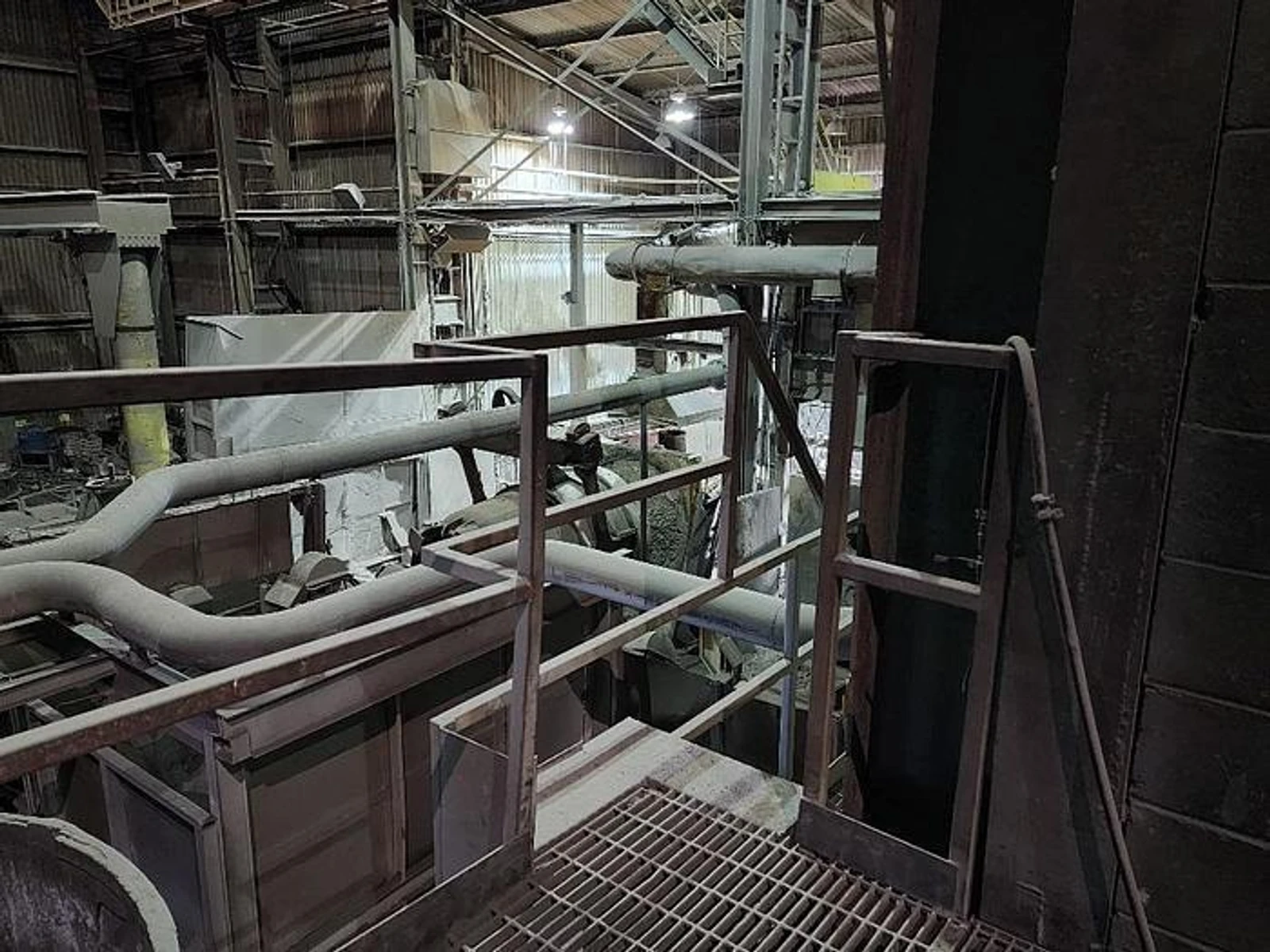

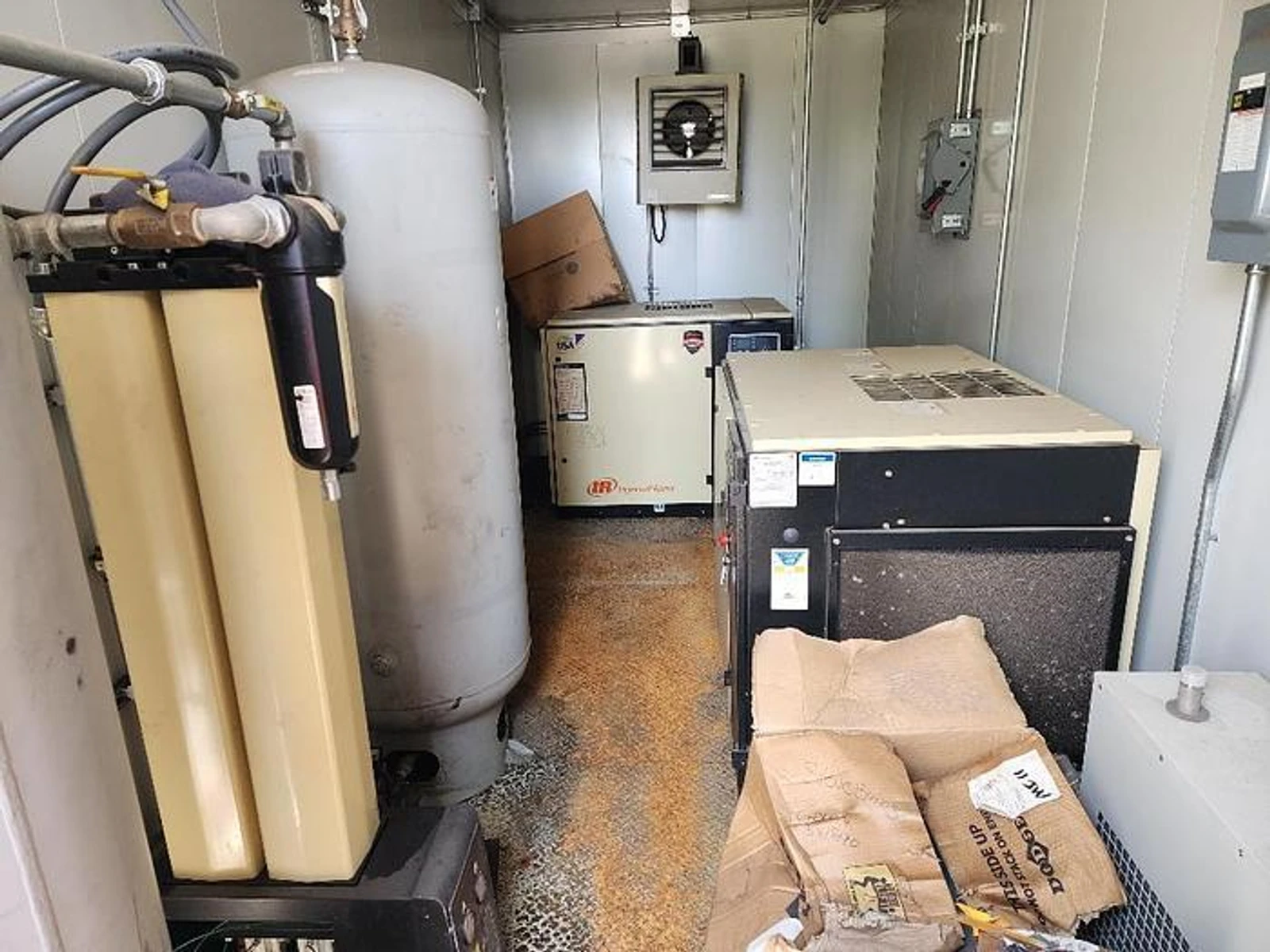

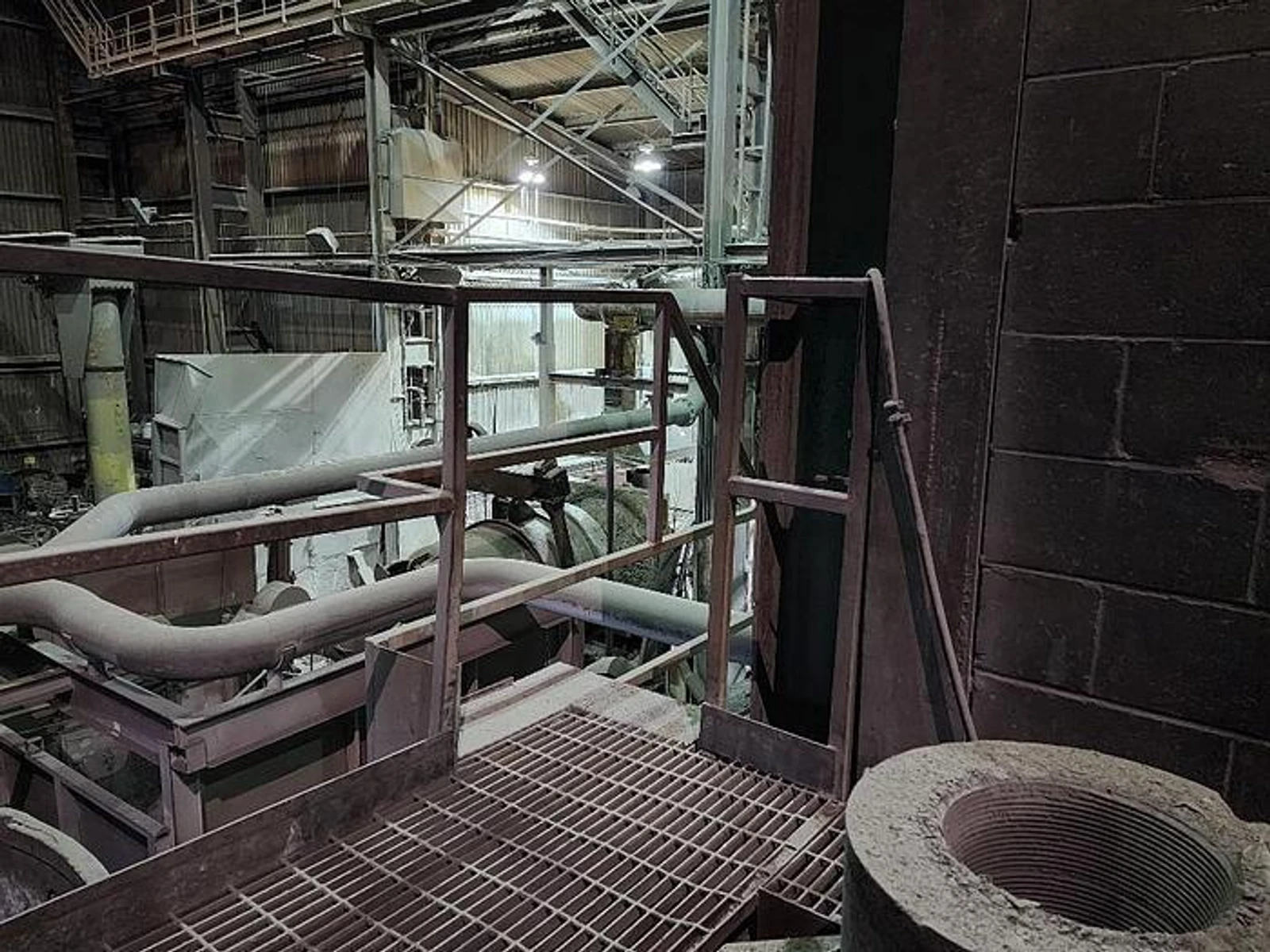

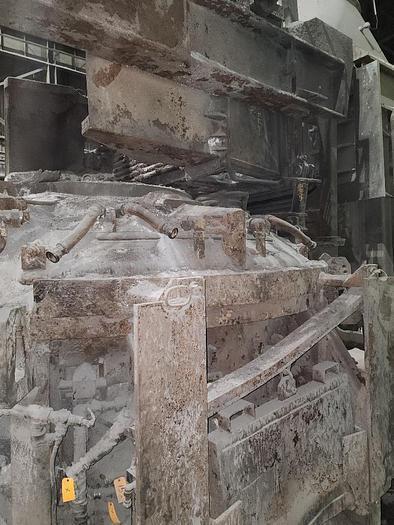

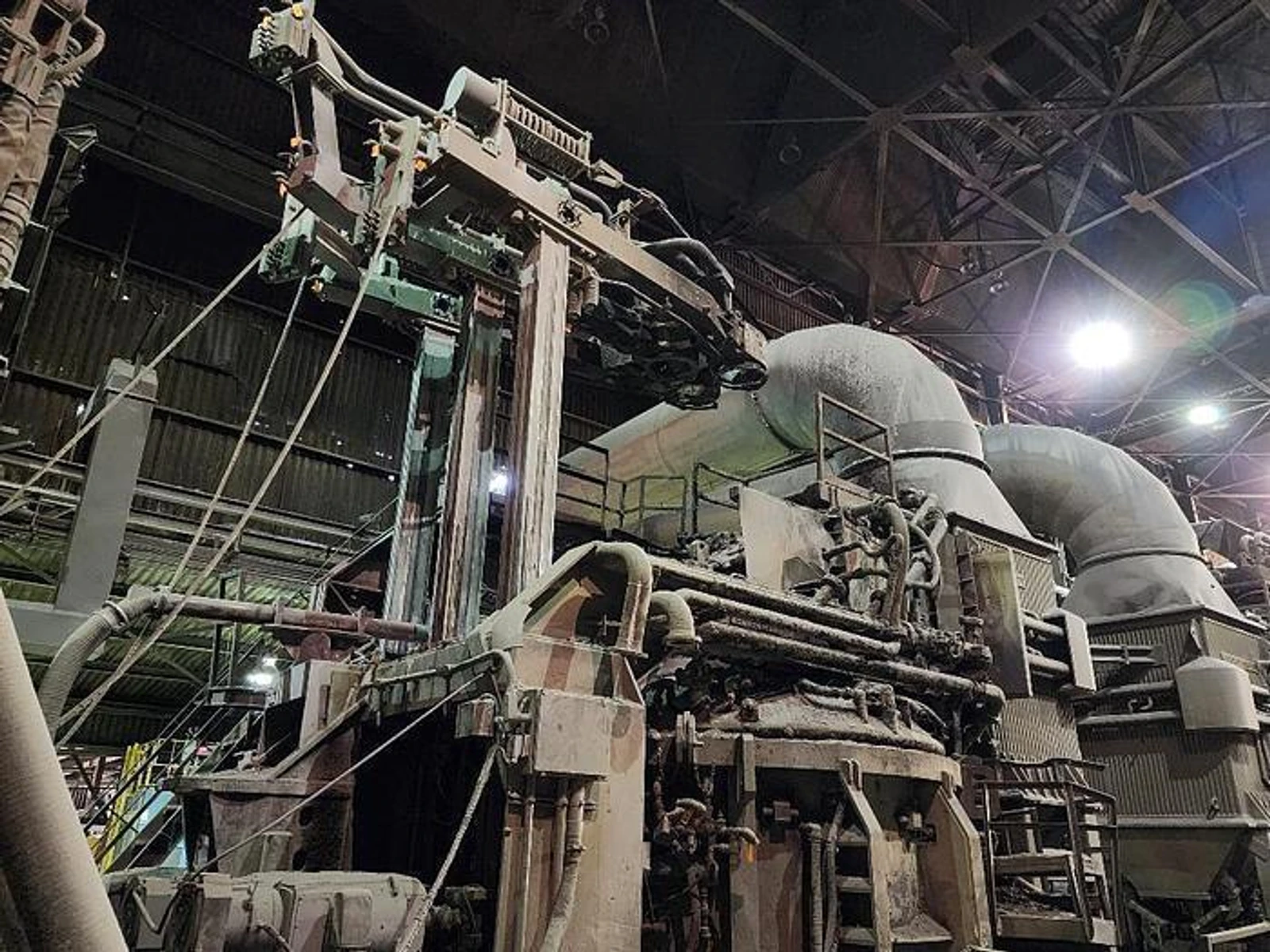

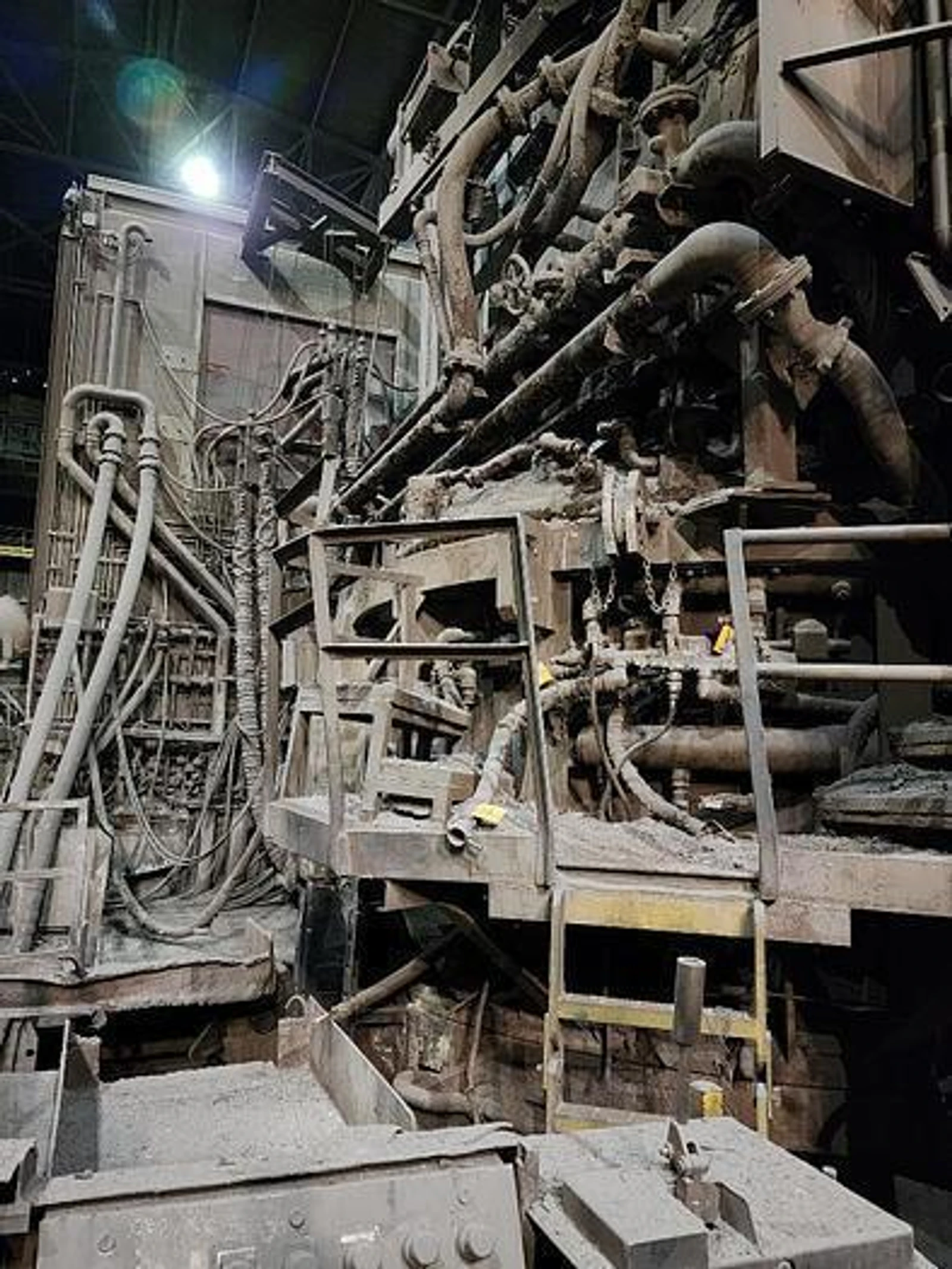

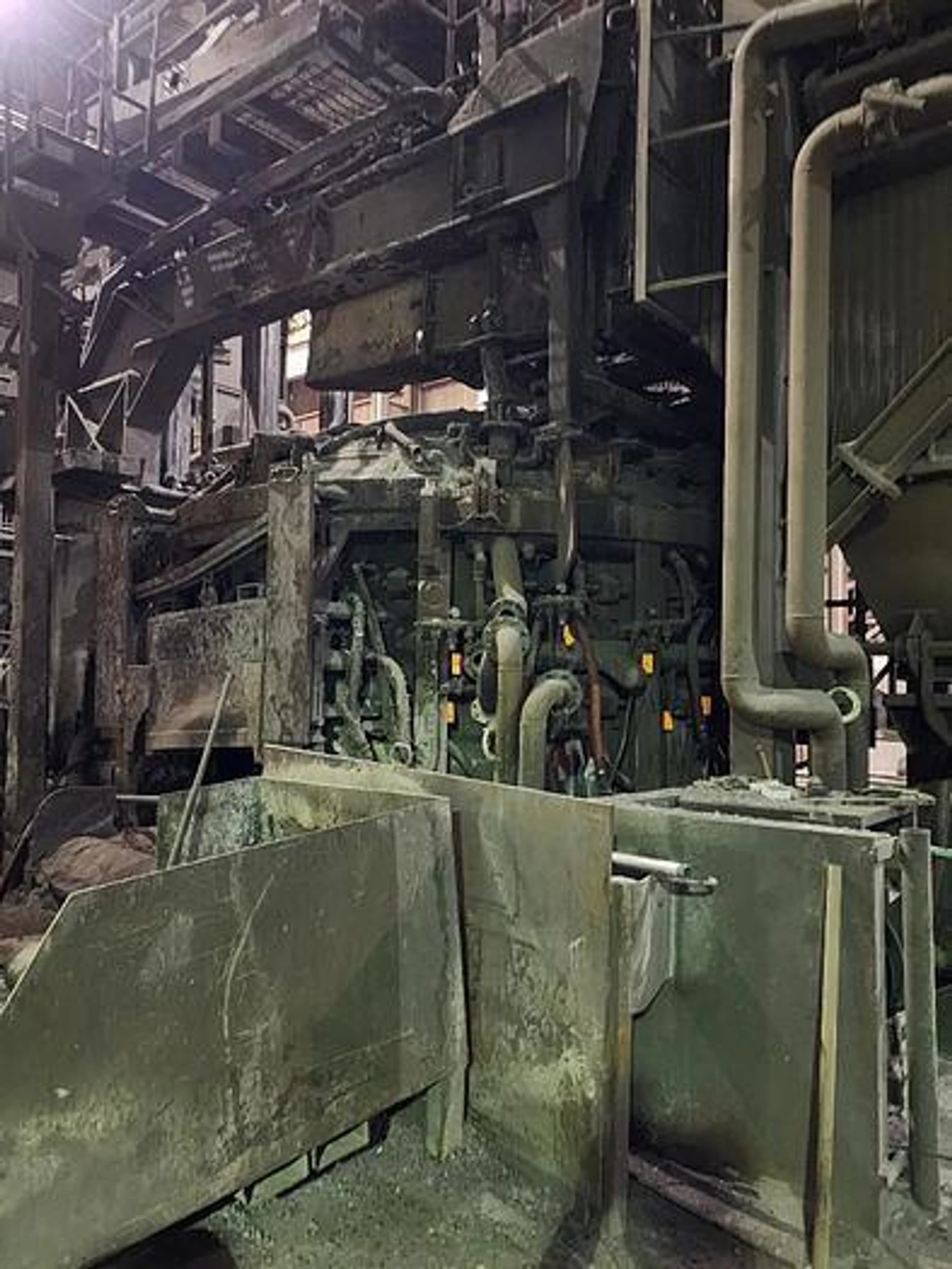

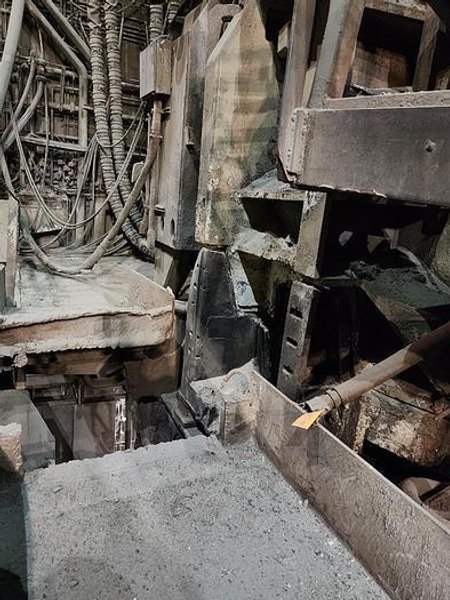

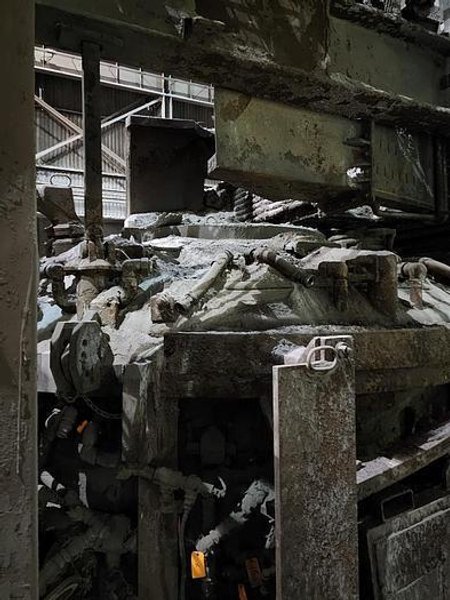

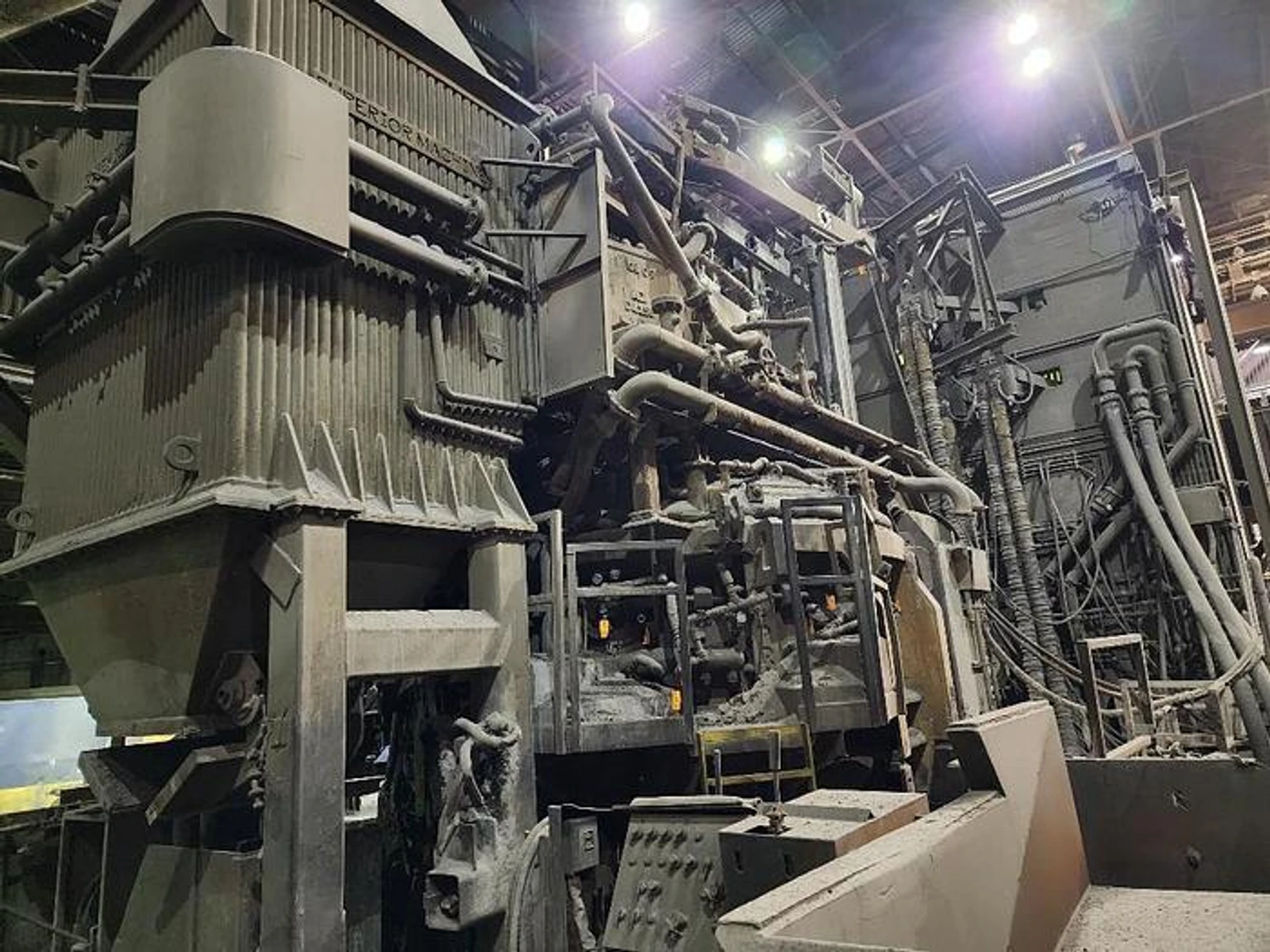

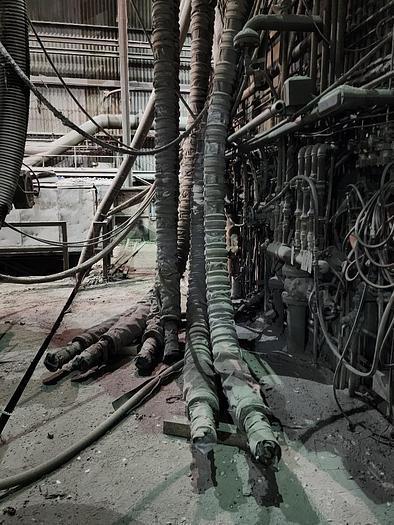

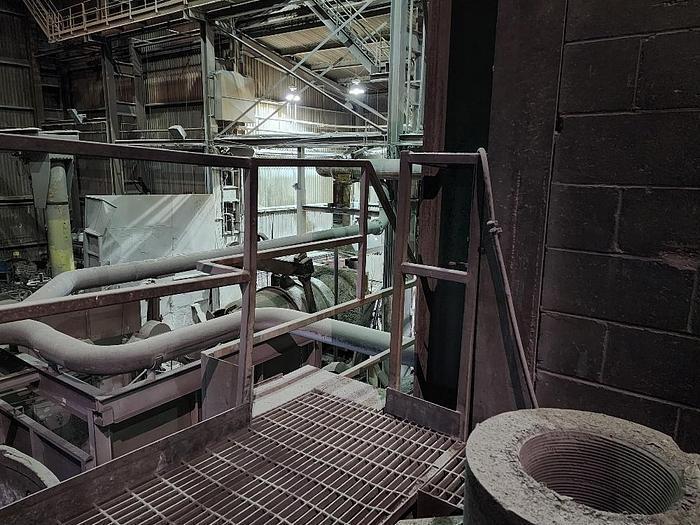

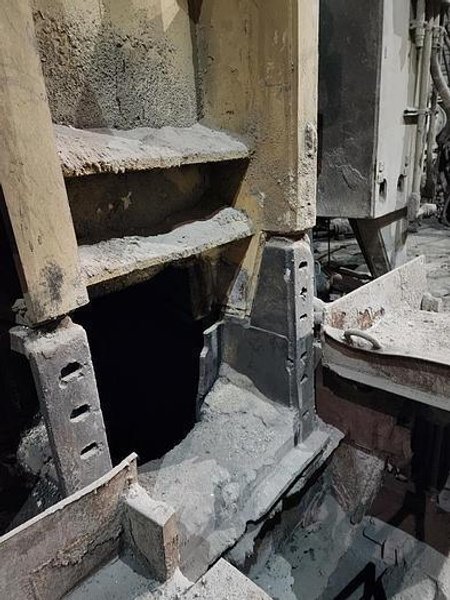

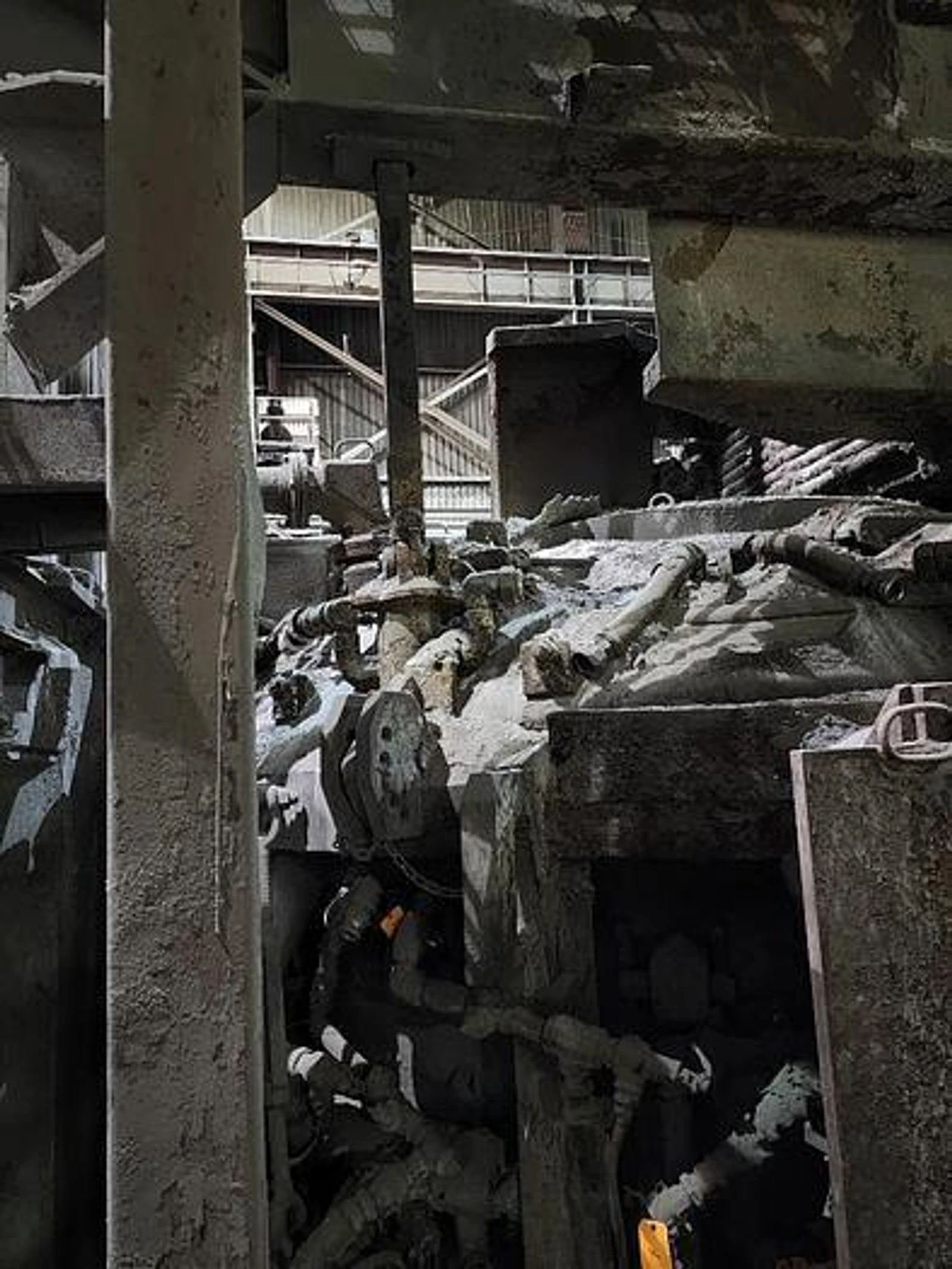

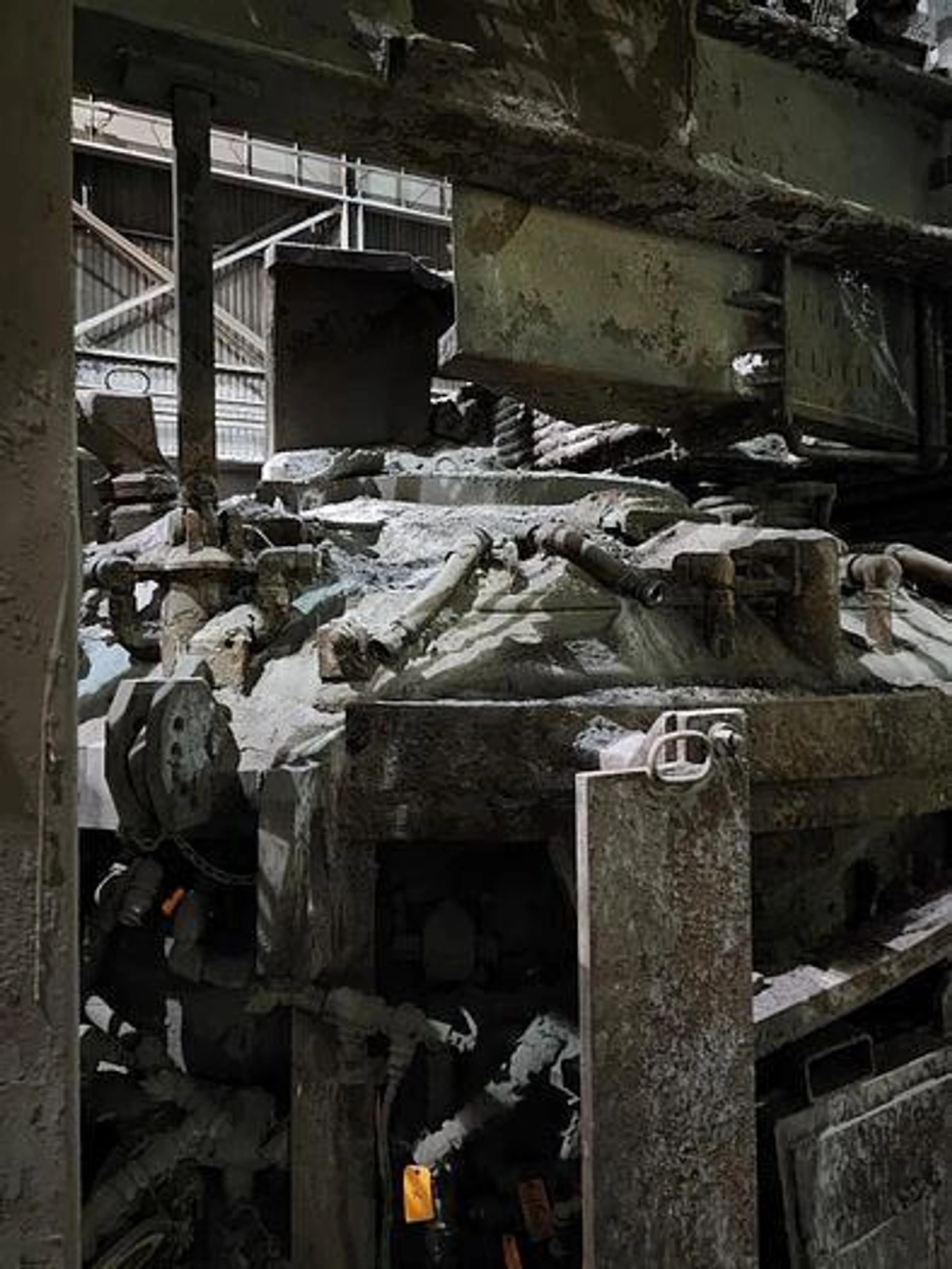

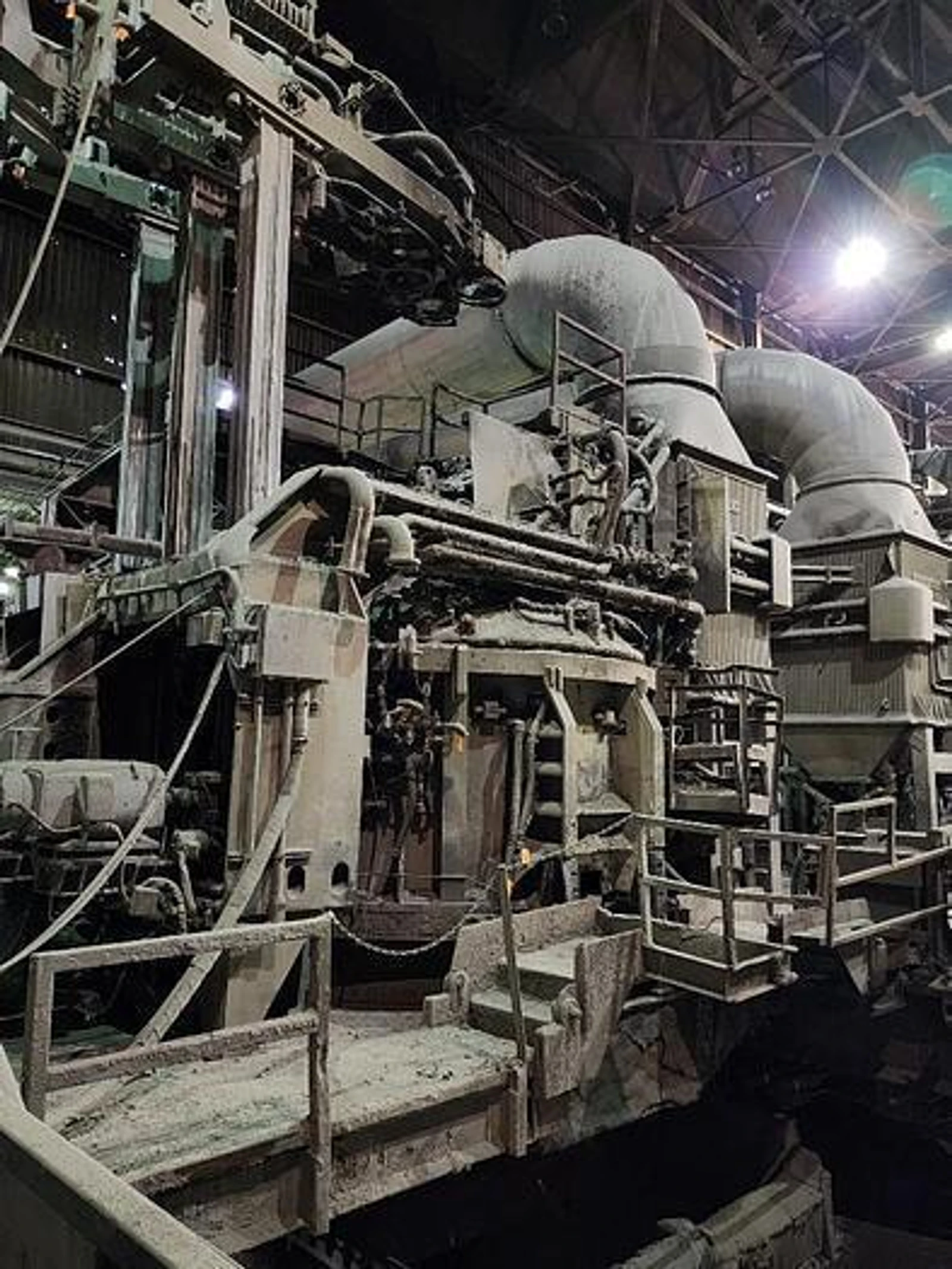

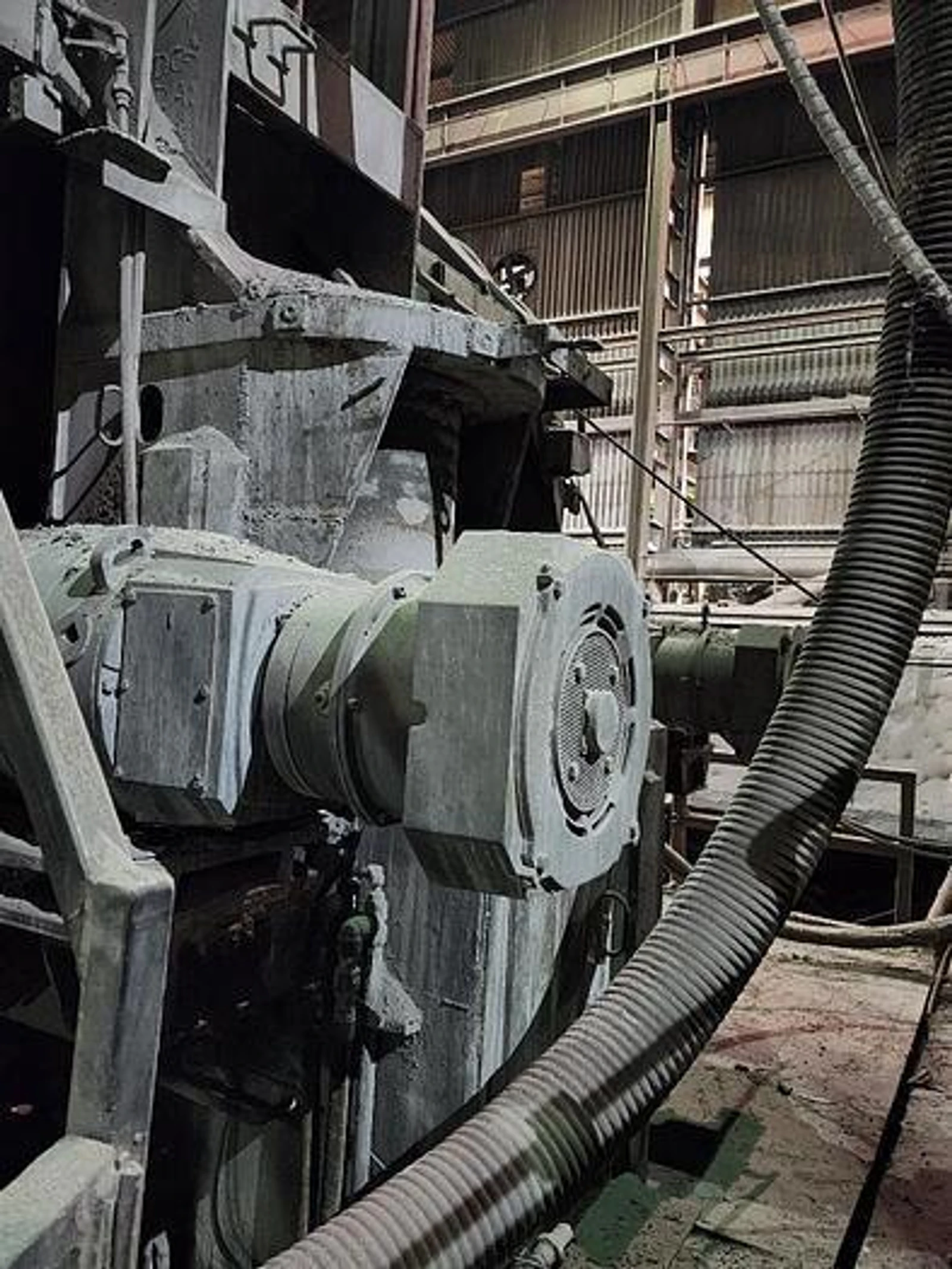

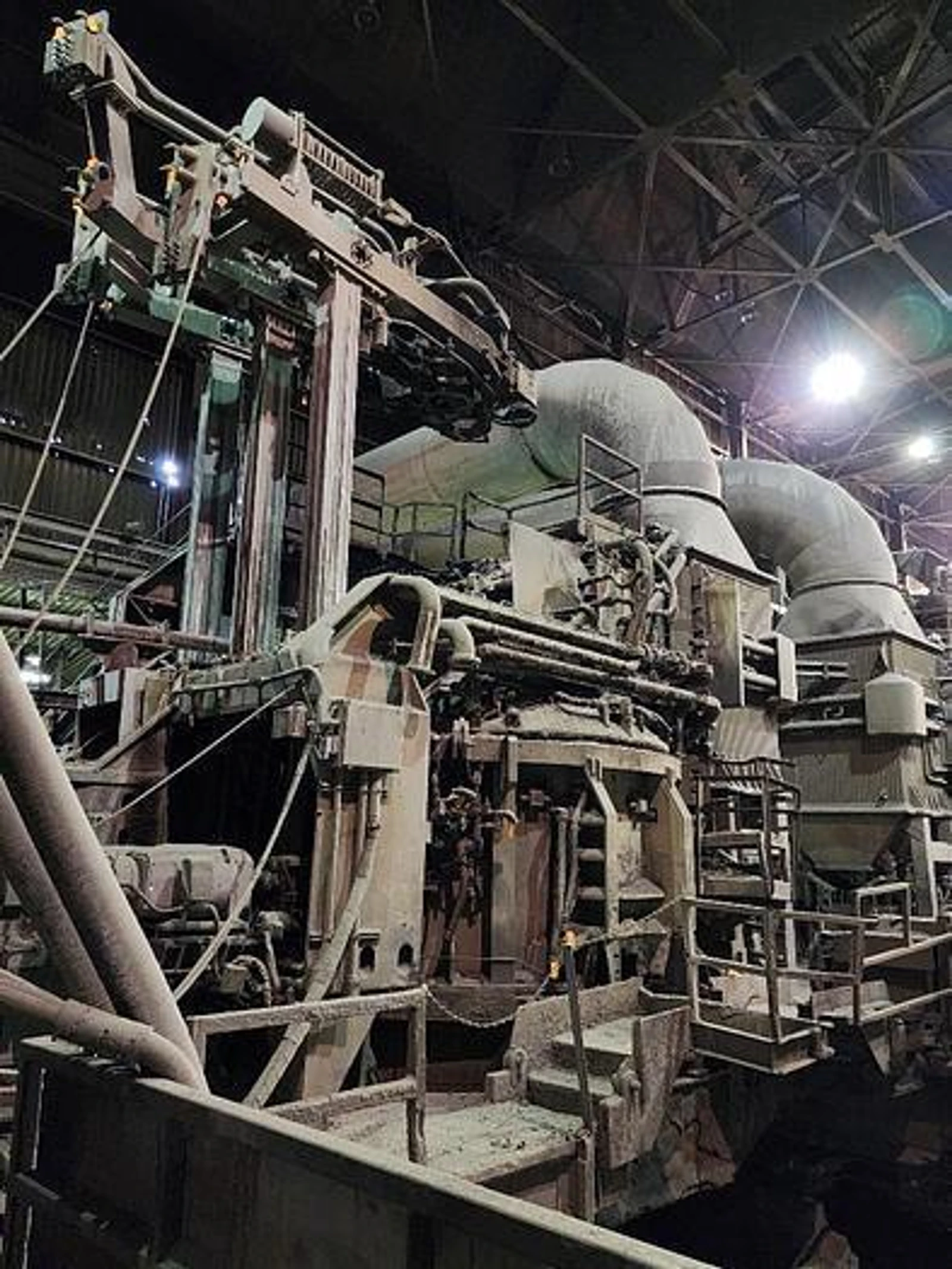

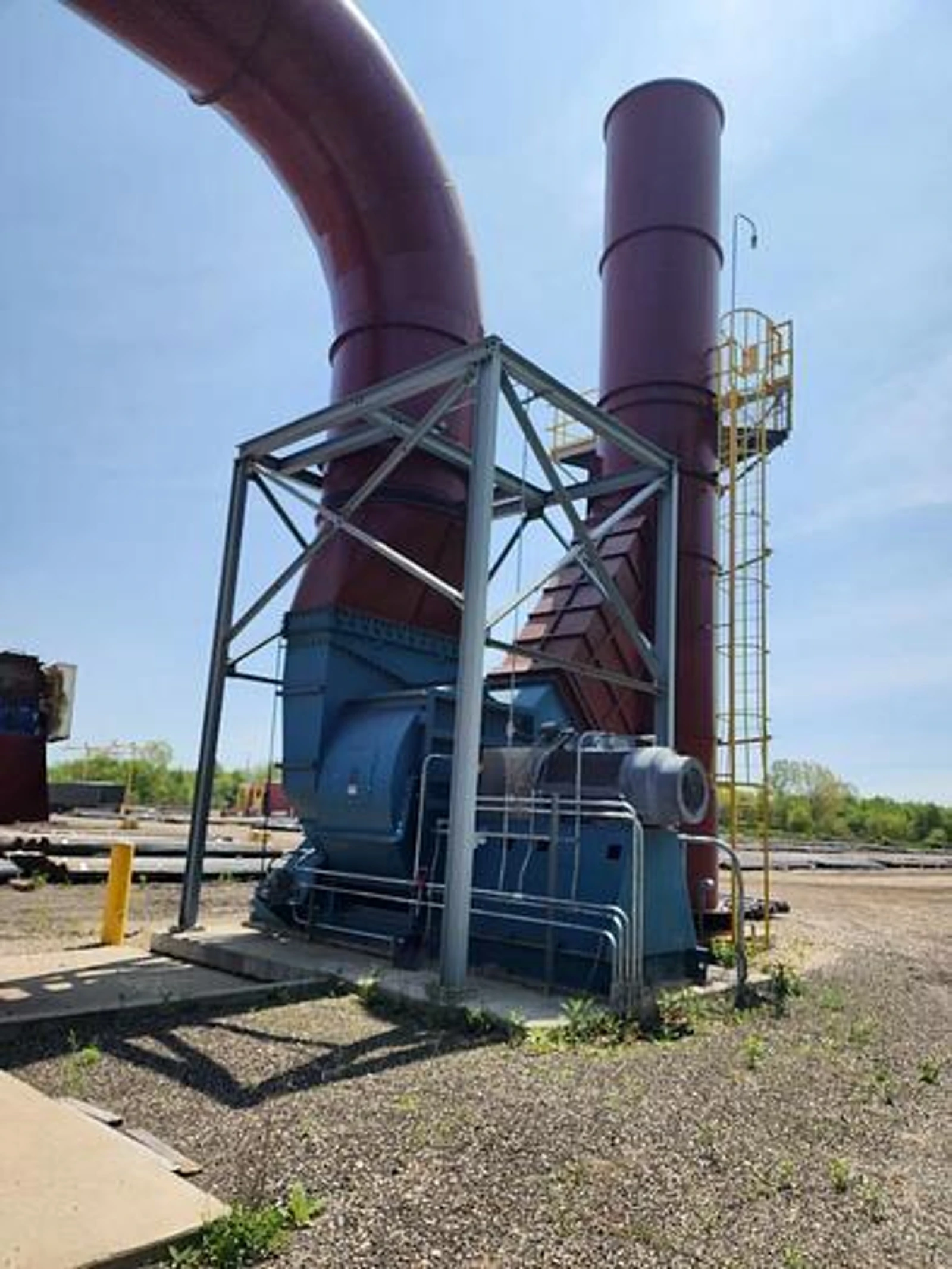

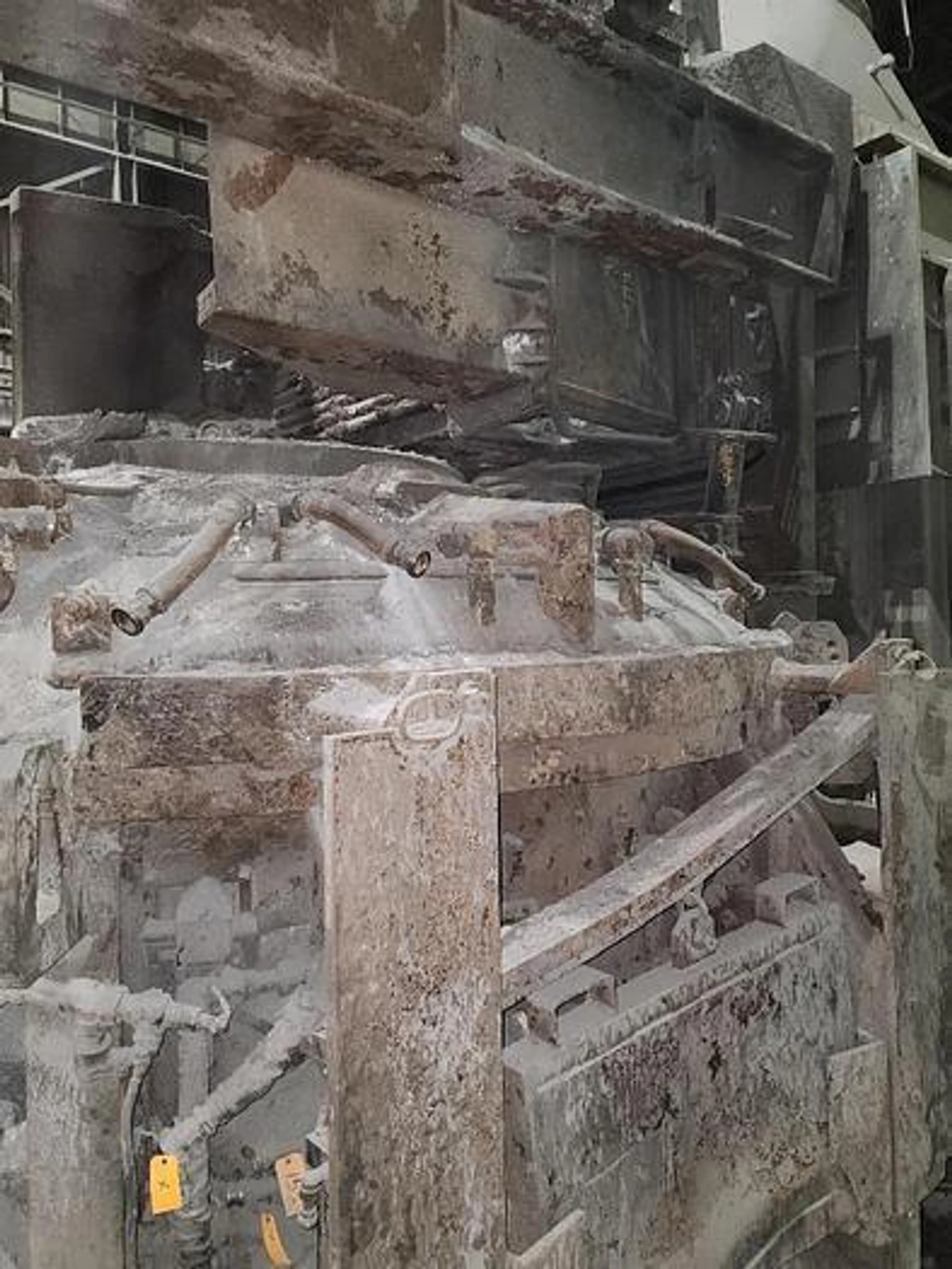

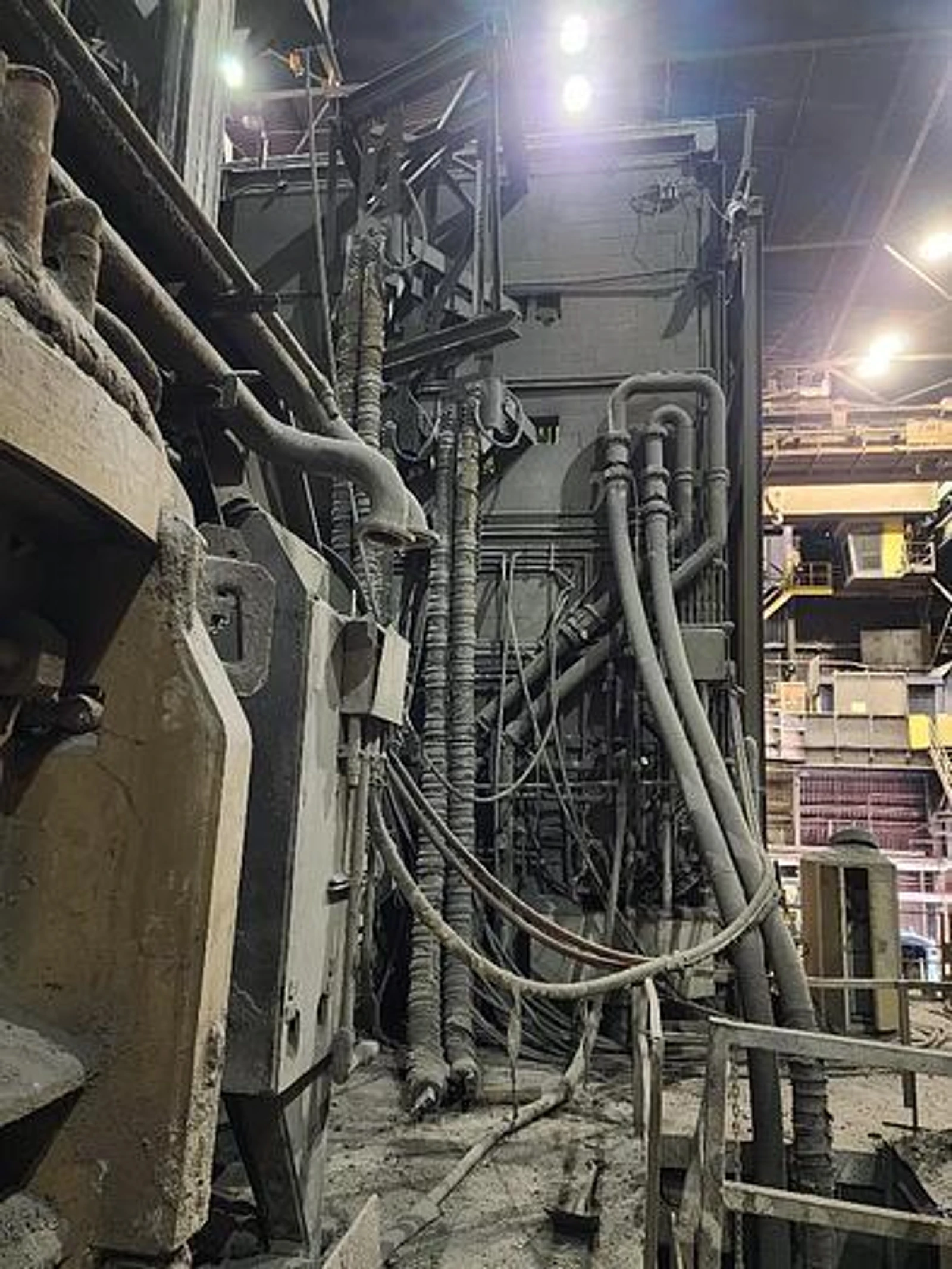

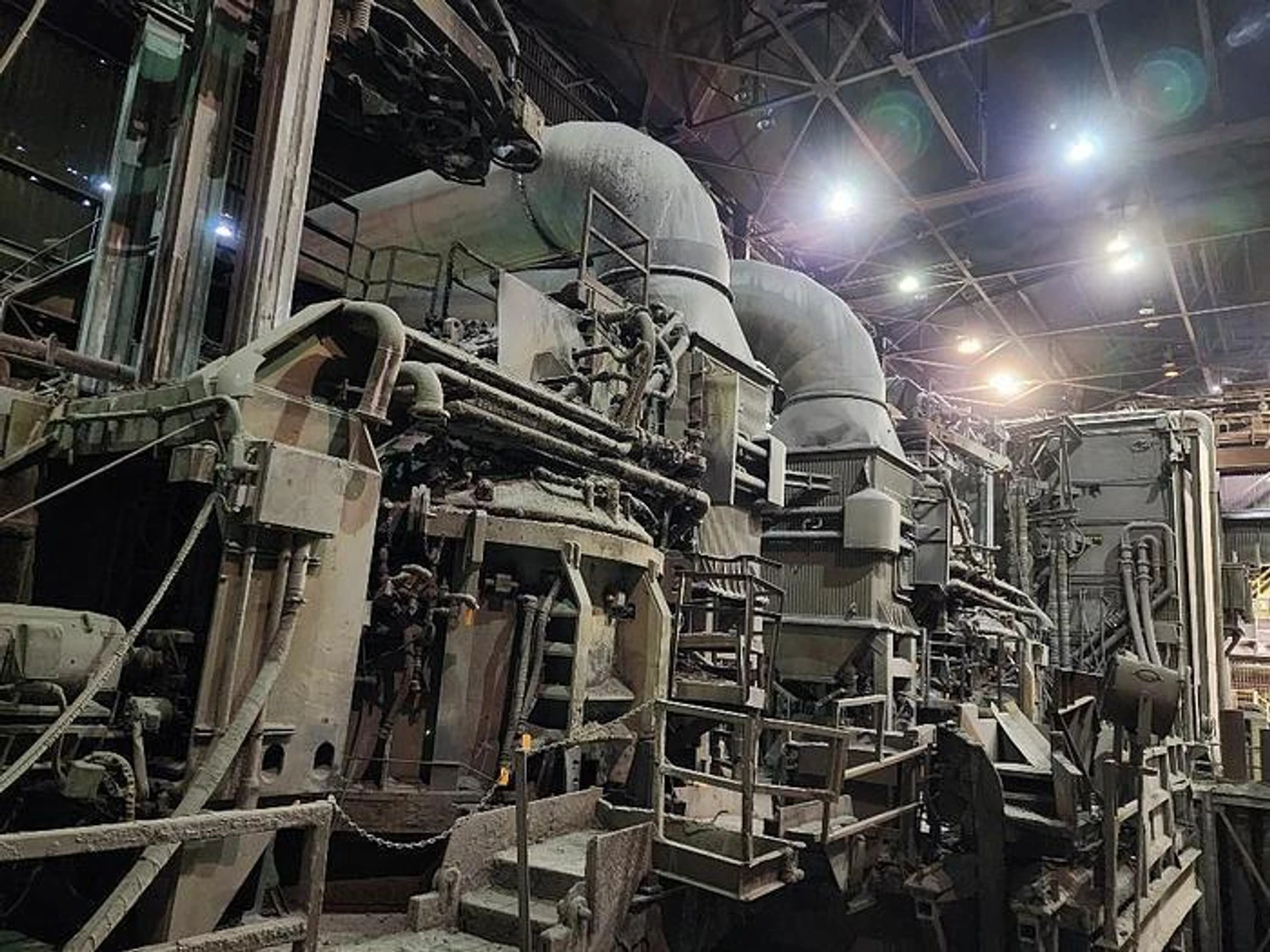

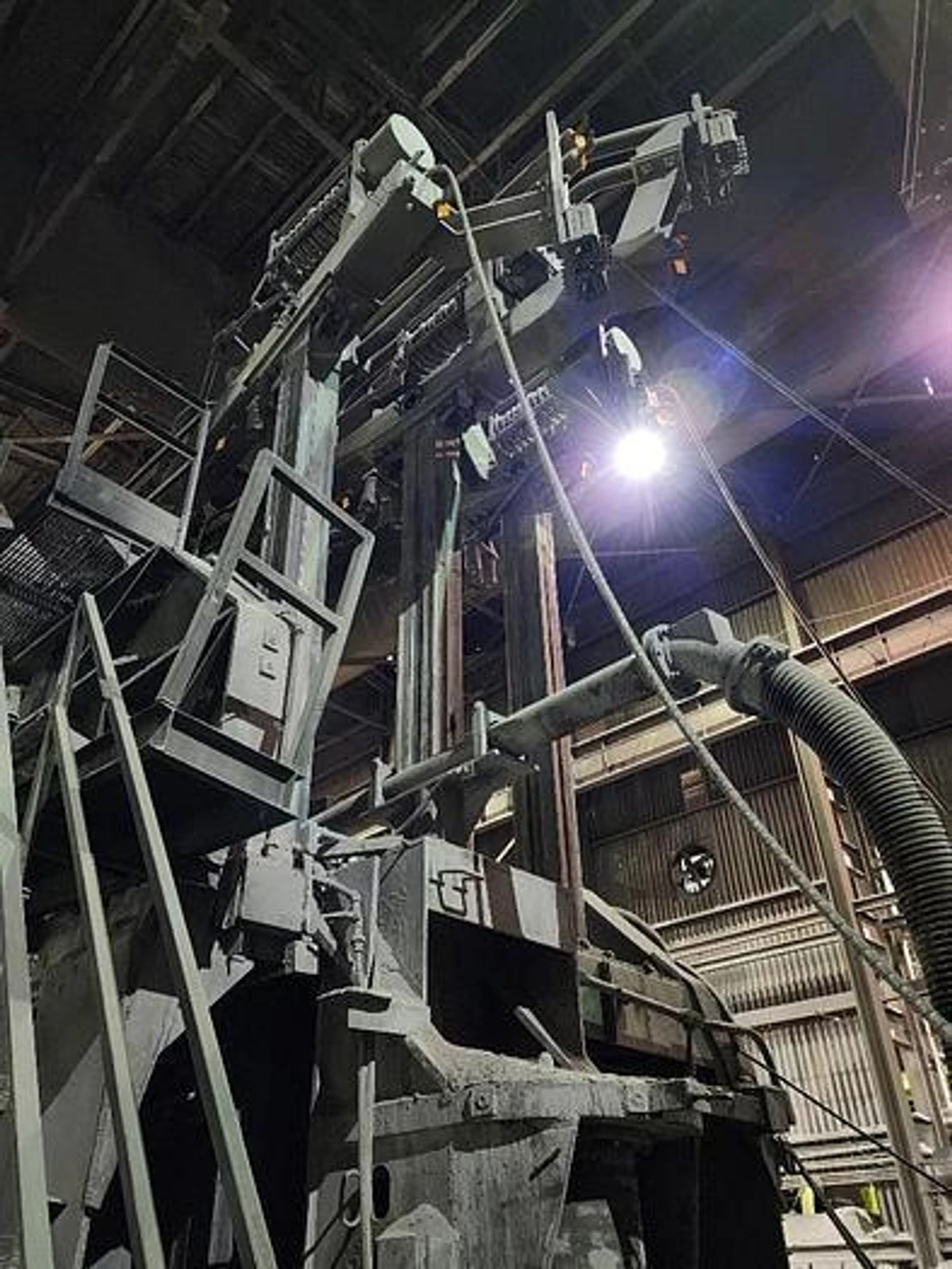

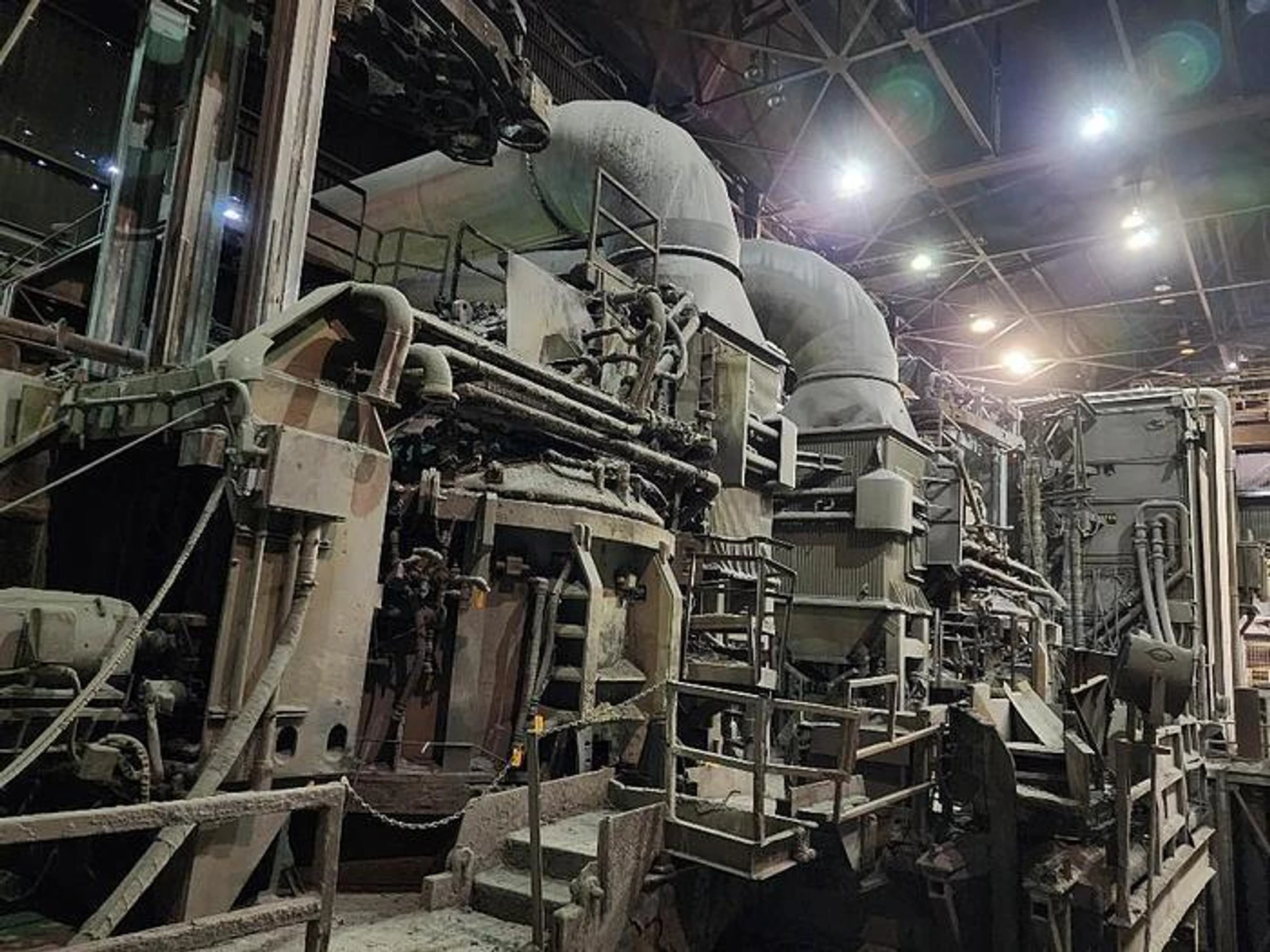

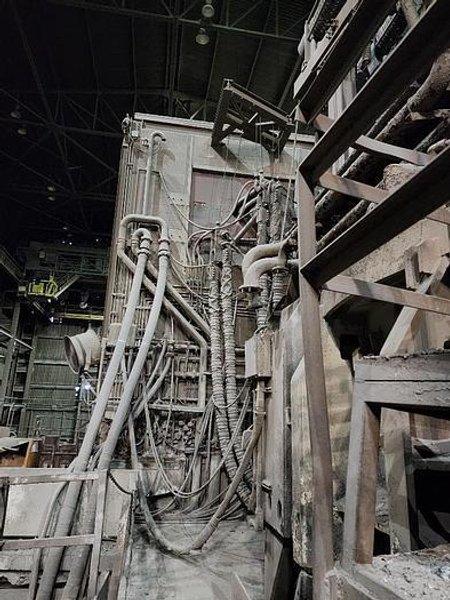

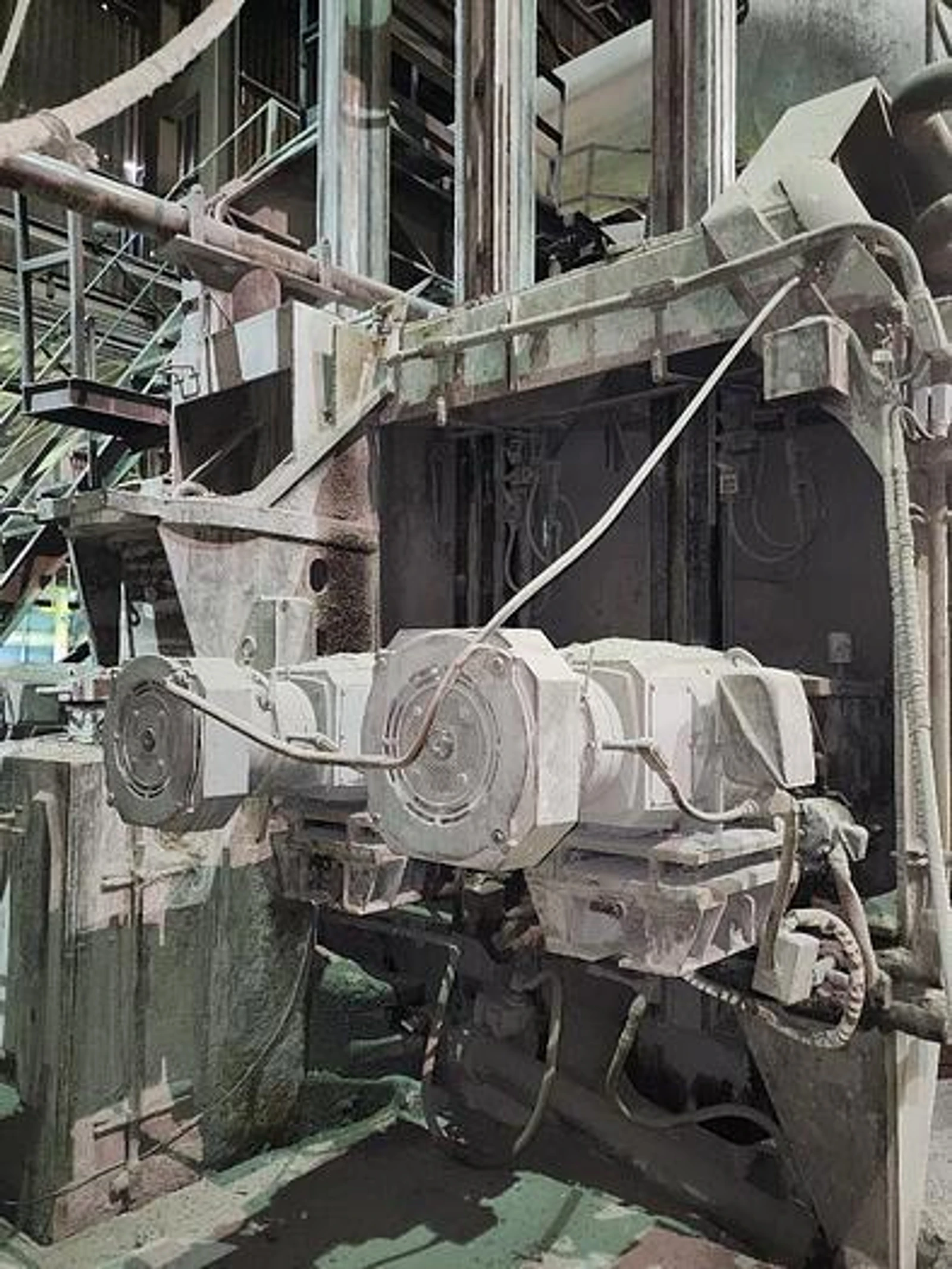

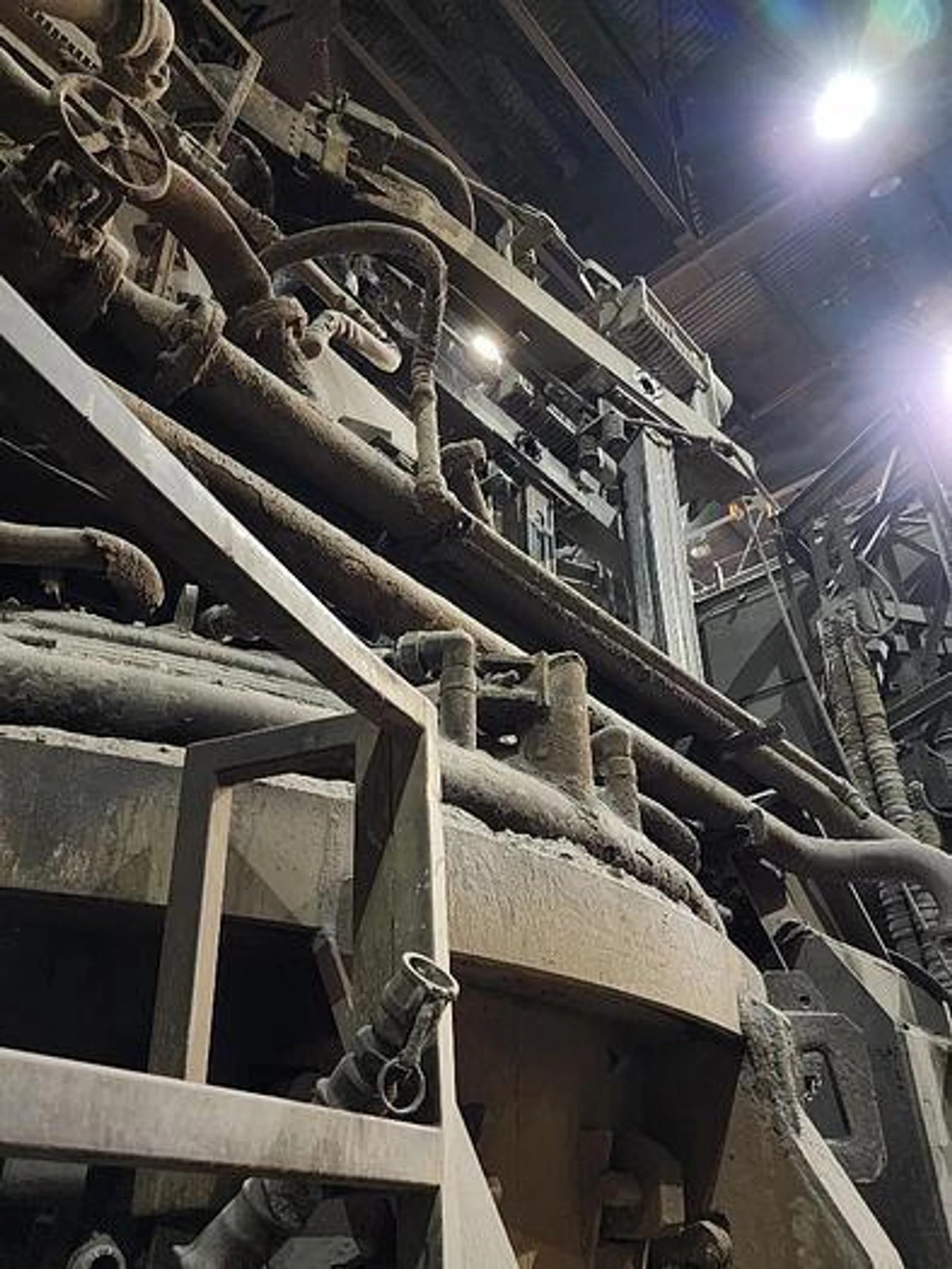

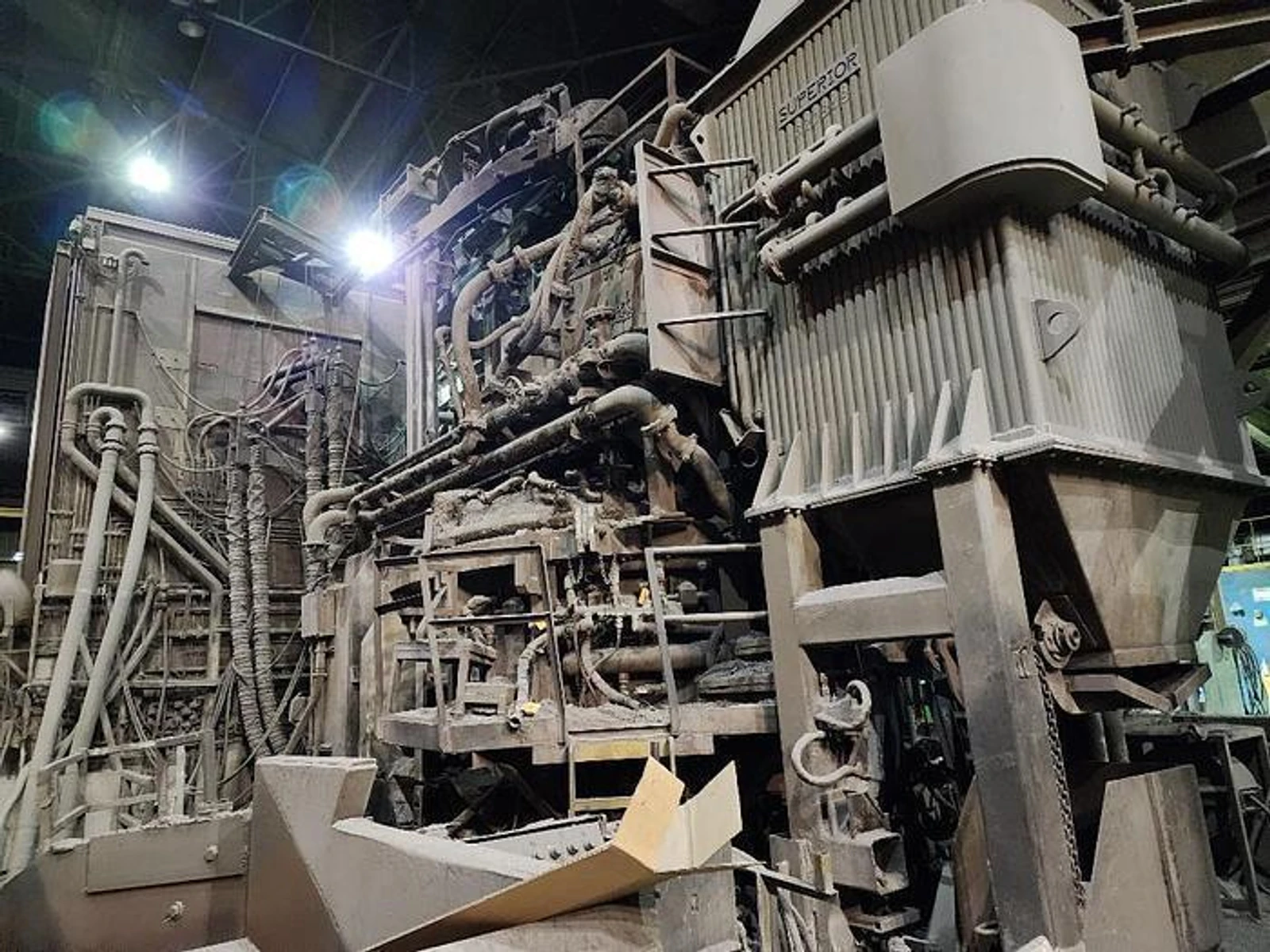

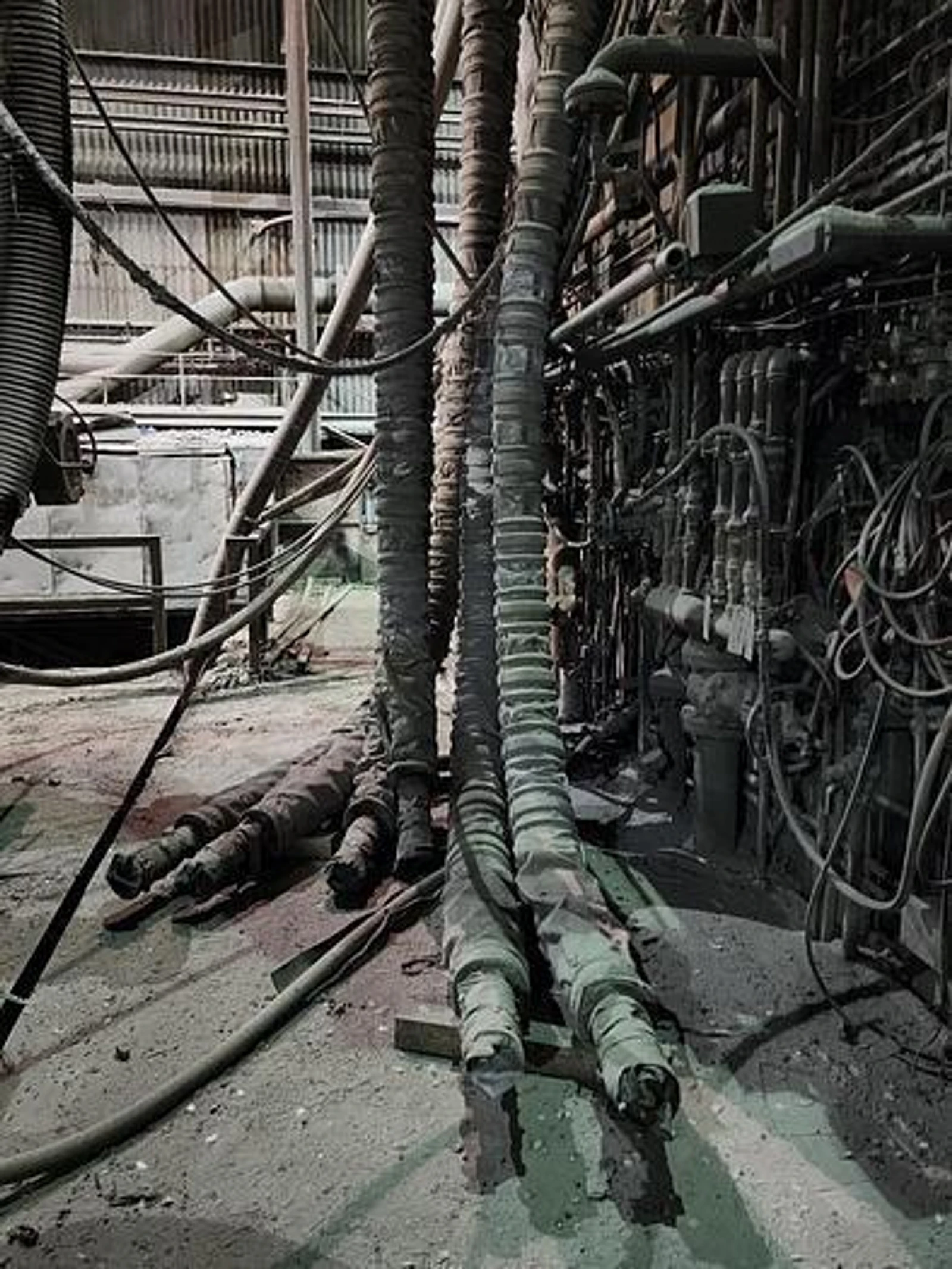

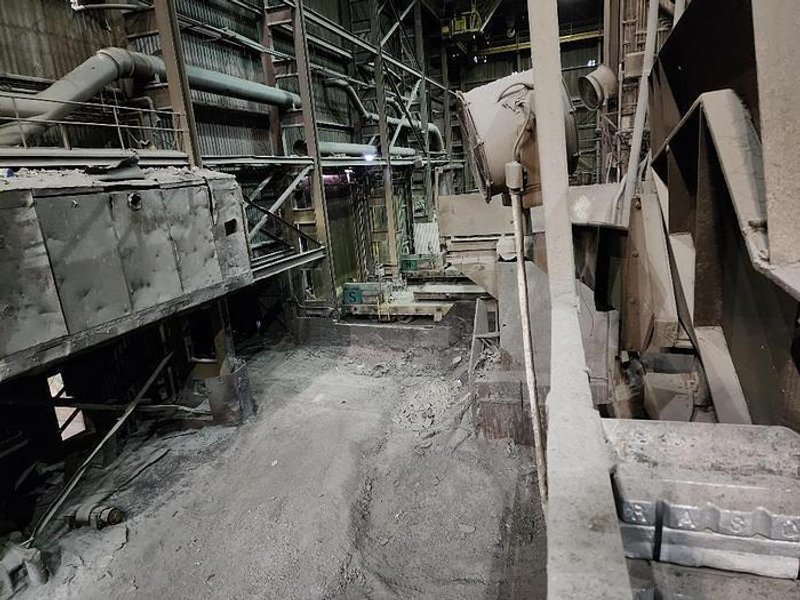

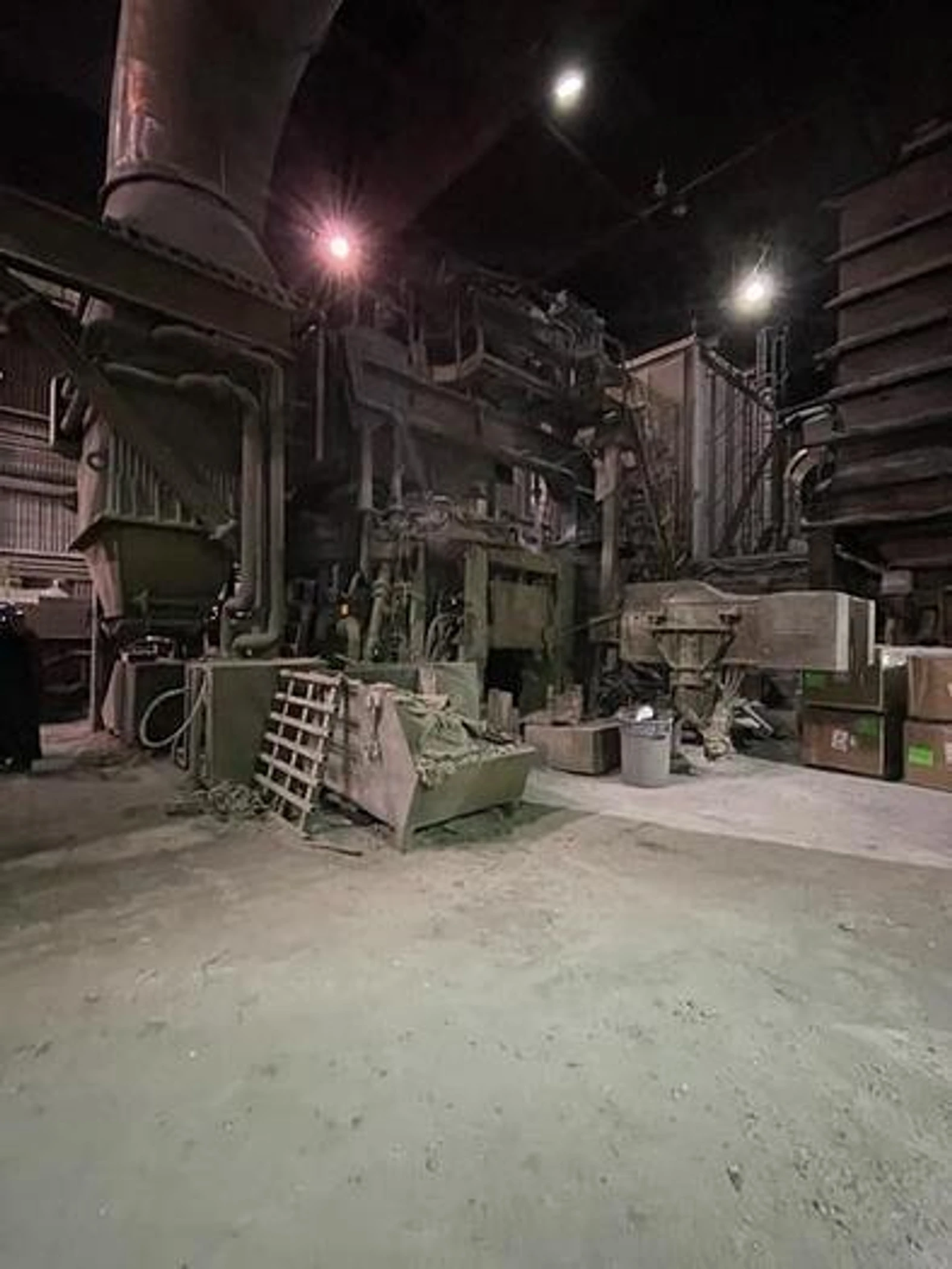

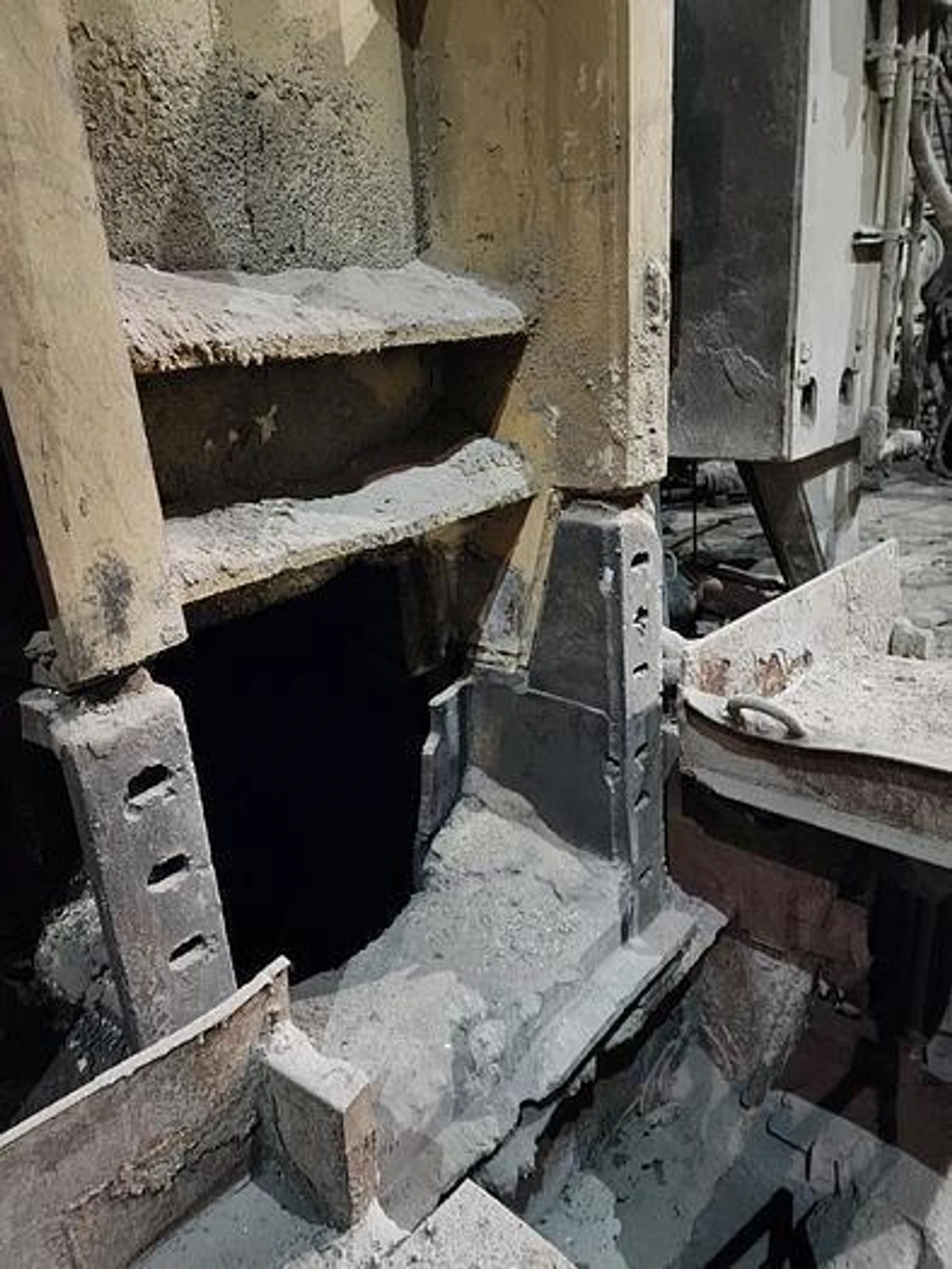

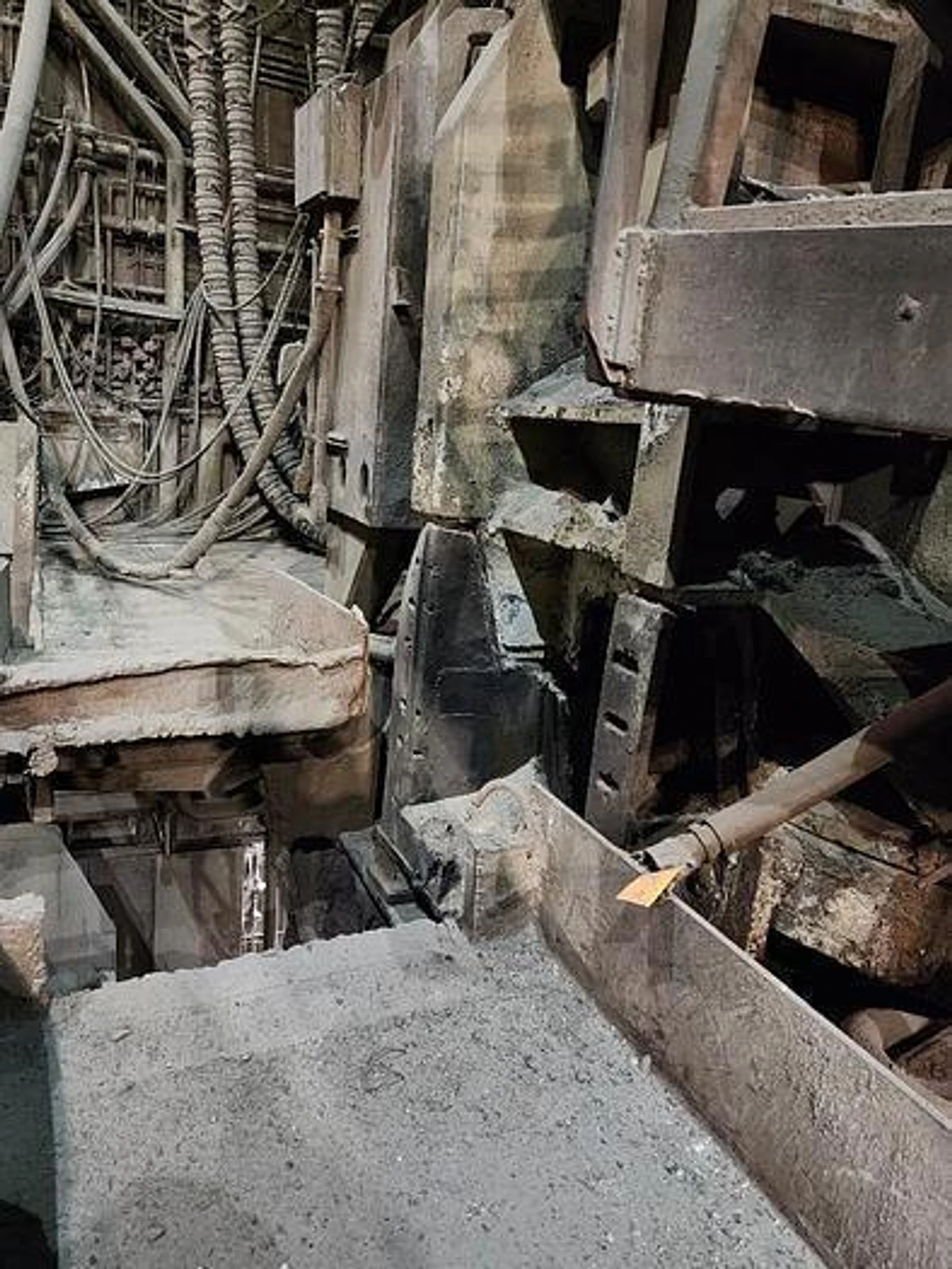

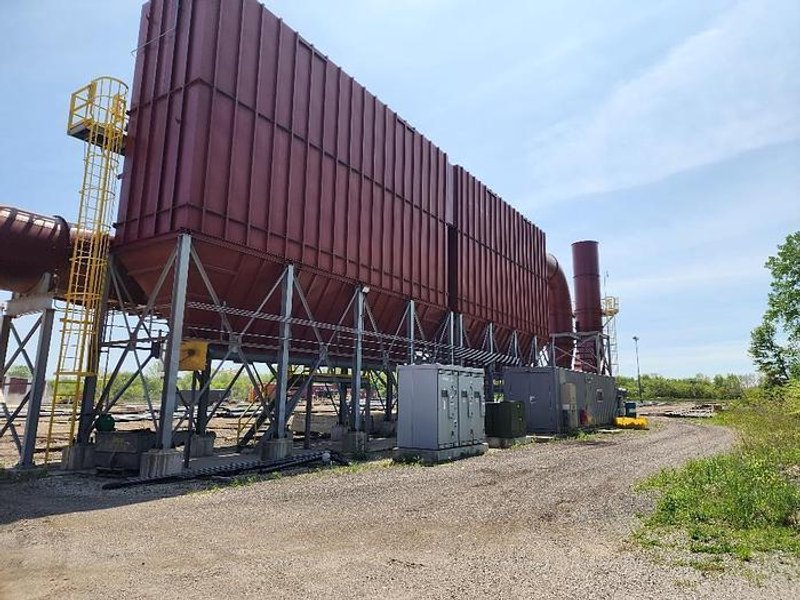

Electric Arc Furnace:    Lectromelt

-Number of Electric Arc Furnaces (EAF): 2

-Furnace Type: Spout Tap

-Tap to Tap Time: 120 minutes

-Average Steel Heat Size: 41 metric ton

-Sidewall Refractory Panel: Water Cooled

-Roof Refractory Panel: Water Cooled

-Oxy-Fuel Burners: Yes

-Shell Diameter: 4.6 meters

-Transformer Capacity: 27 MVA.

-Electrode Diameter: 450 mm (18 inch)

-Charge Materials: 100 % Ferrous Scrap

-Energy Consumption: 521 kWh/metric tap ton

-Approximate Furnace Volume to Top of Side Panel: 22.65 cubic meters

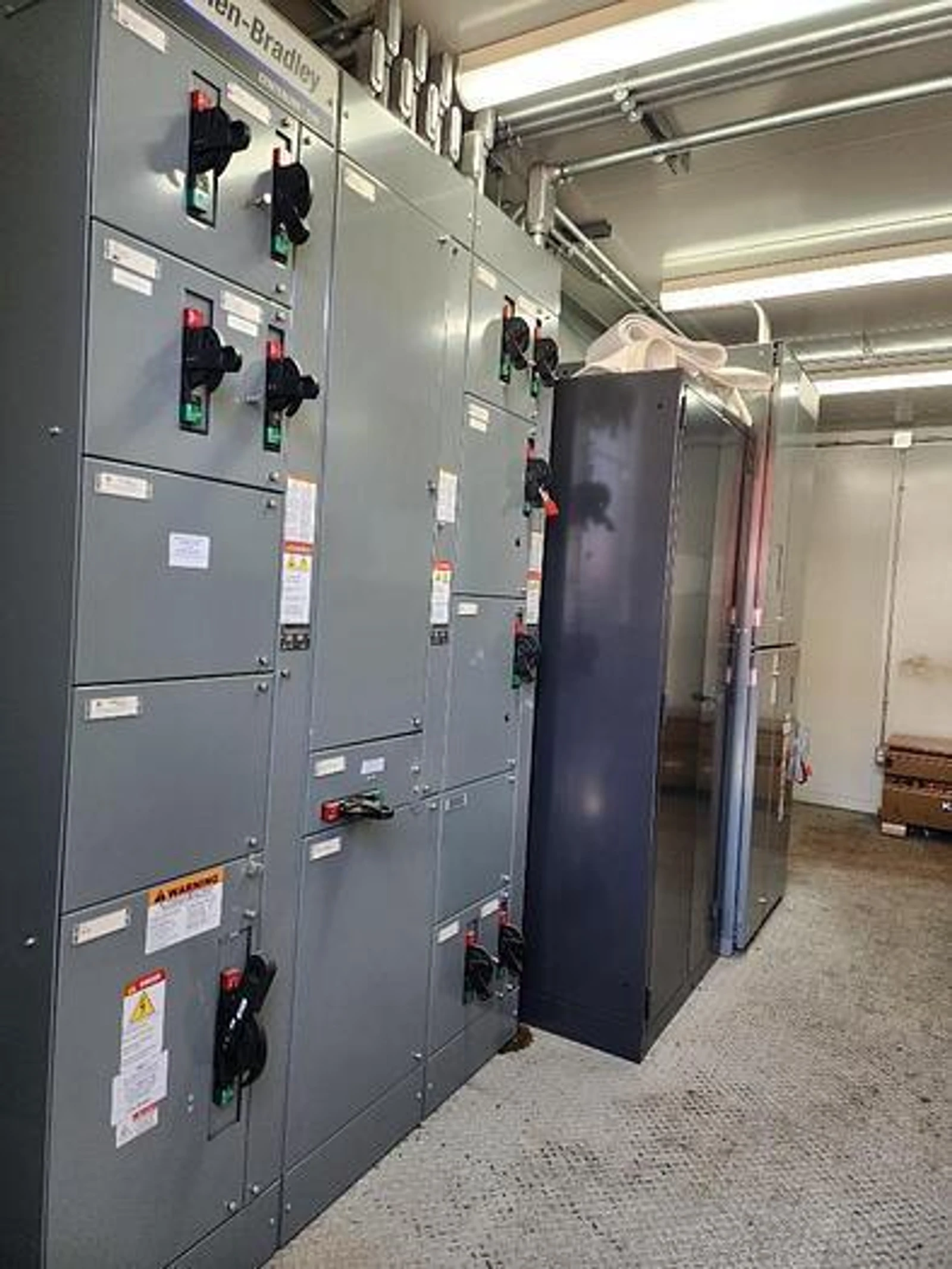

Ladle Furnace:  Mannesmann Demag

-Start-up/last revamp: 1997

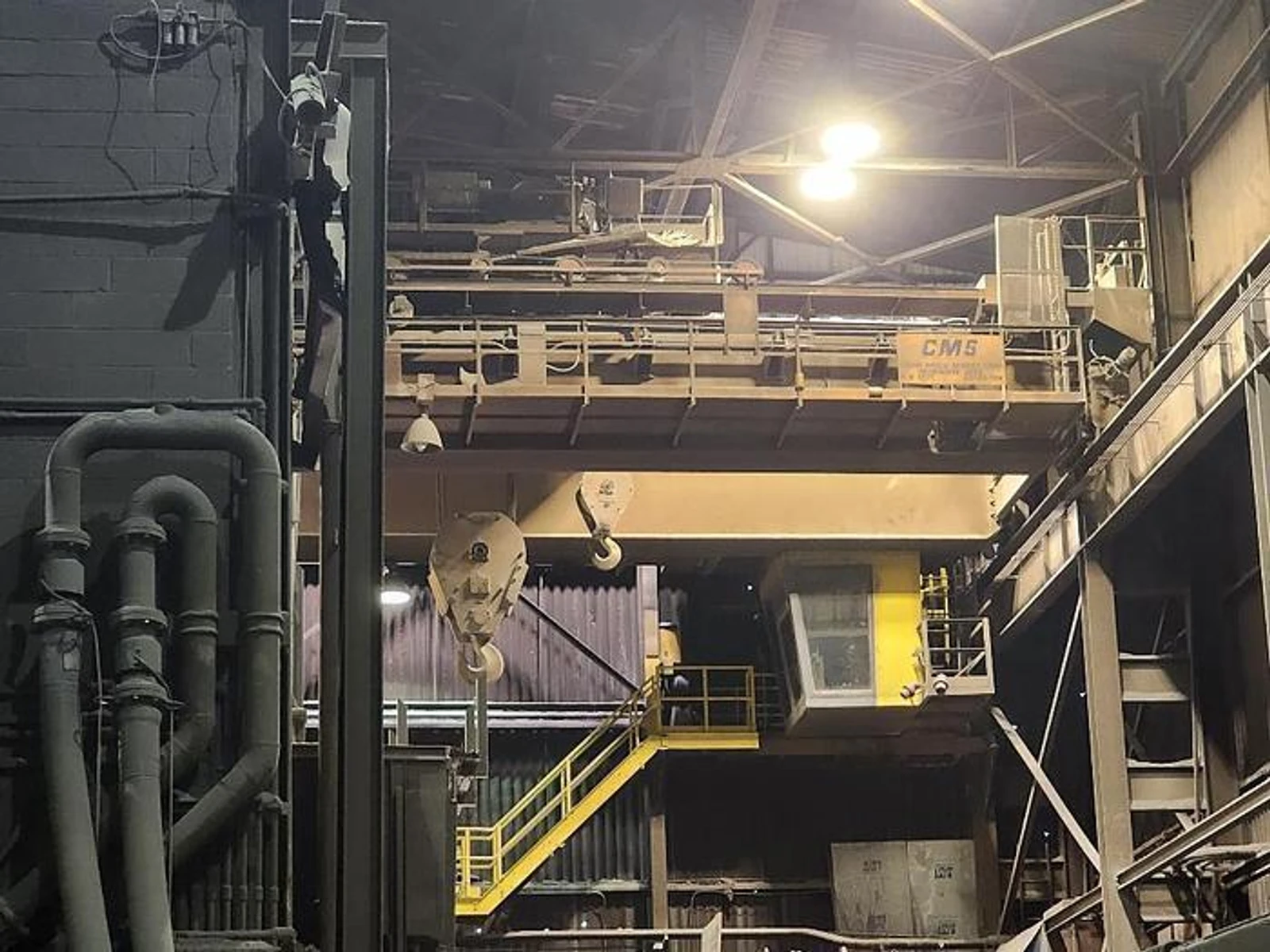

-Ladle Transfer:    crane, ladle car

-Electrodes:          12"

-Transformer:        Westinghouse

-Power:                 20 MVA

-Input:                   13.8 KV

-Output:                 154V - 350V / 6 taps

-Stirrer:                  Argon / Nitrogen - purous plug

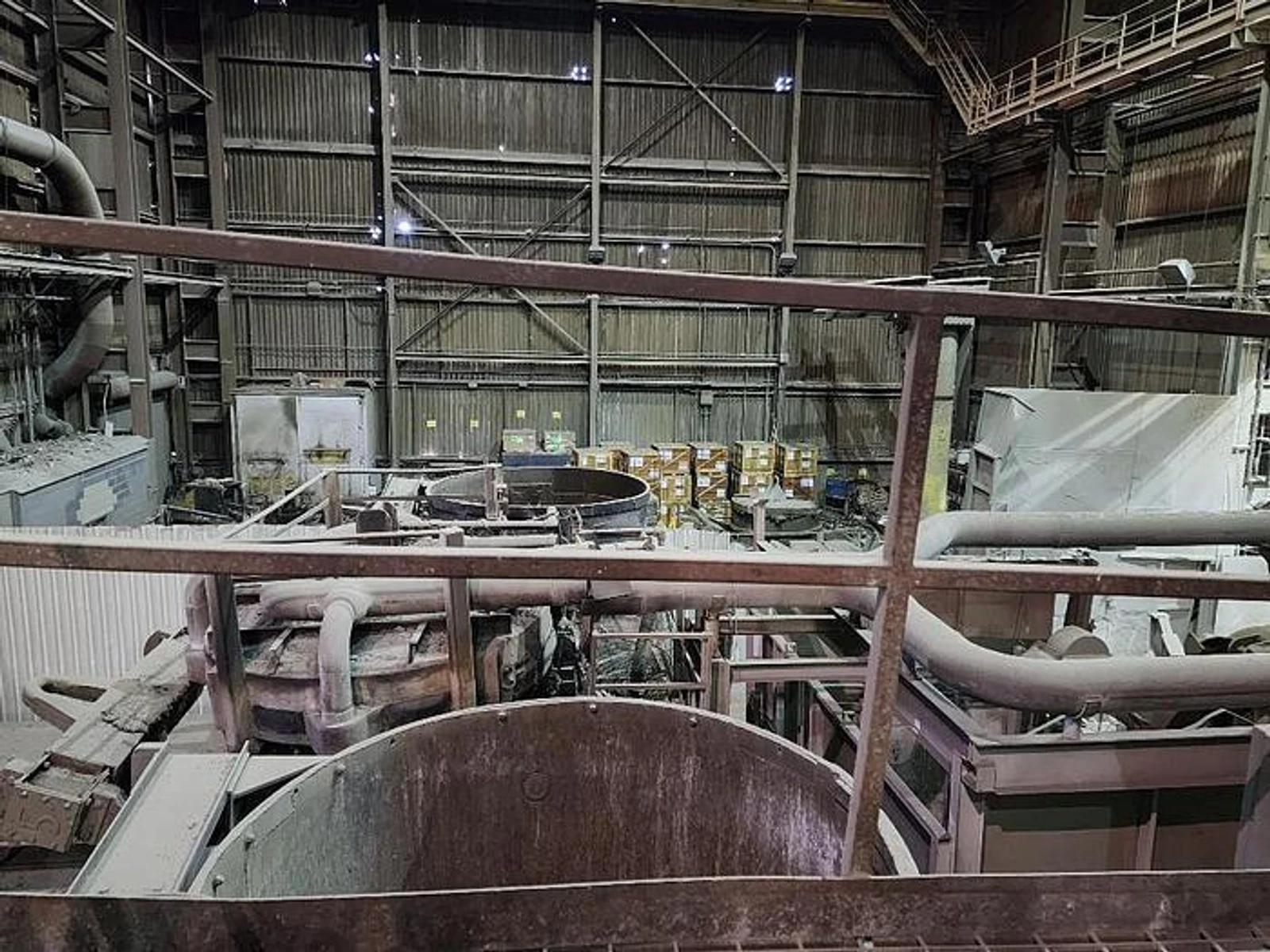

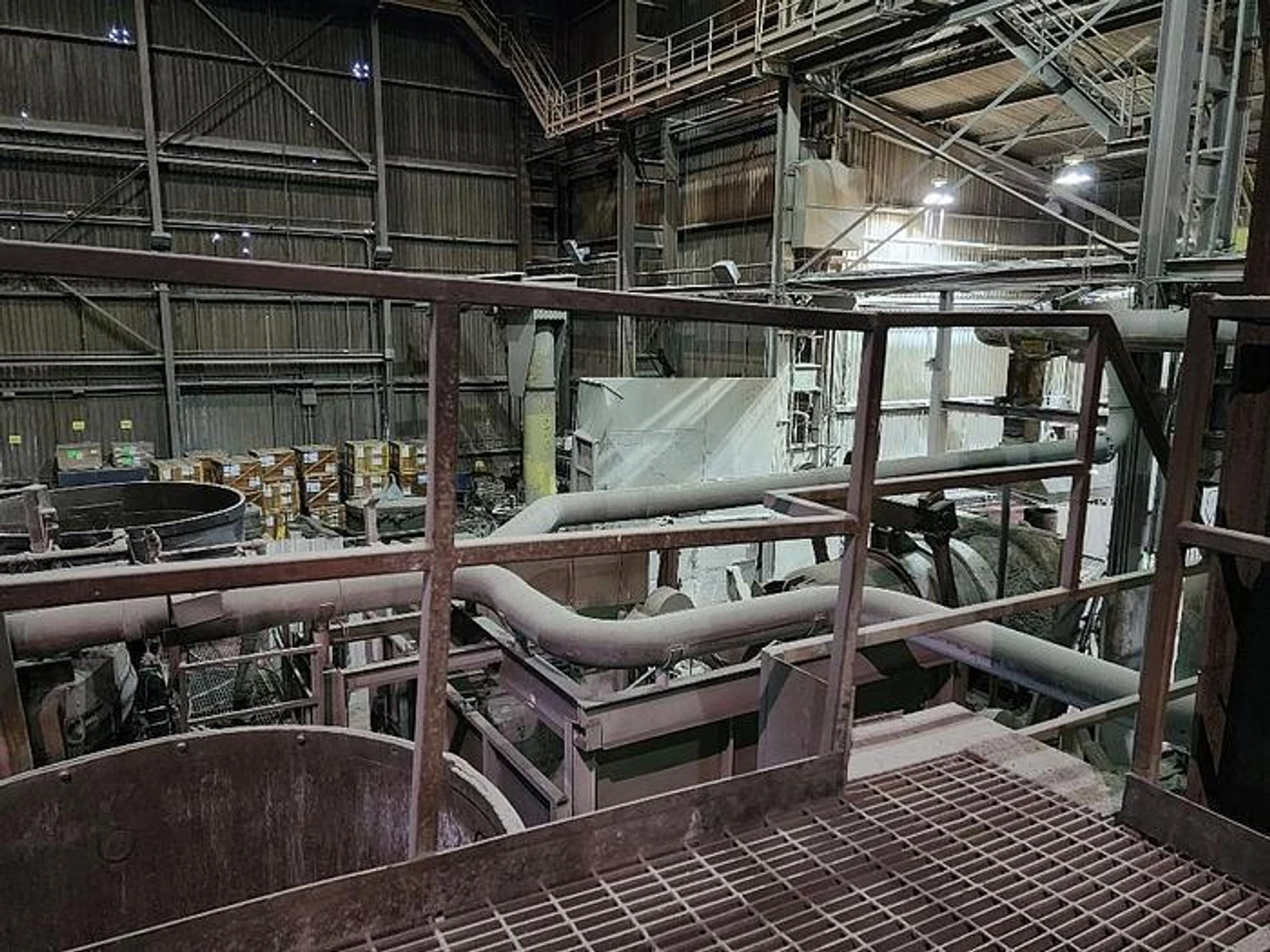

Ladles:

-Number:              9 Engineering steel

-Ladle heaters and dryers:

-3 heaters - 6M BTU (natural gas)

-2 dryers - 6M BTU (natural gas)

Degasser

Continuous Caster: 2 Strand Caster, call us for details +1 973-344-6100.

Alloy System:

-to buckets:          lime

-to EAF:               Foamy Carbon, Dolostone

-to ladles @ EAF:                     by alloy charge car

-to ladle @ LF & VAD:                 by hopper & wire feed

Storage:

-Dolostone:          158T

-Lime:                   40T

-LF Bins:              113T

-VAD Bins:           19T

-EAF Bins:        205T
