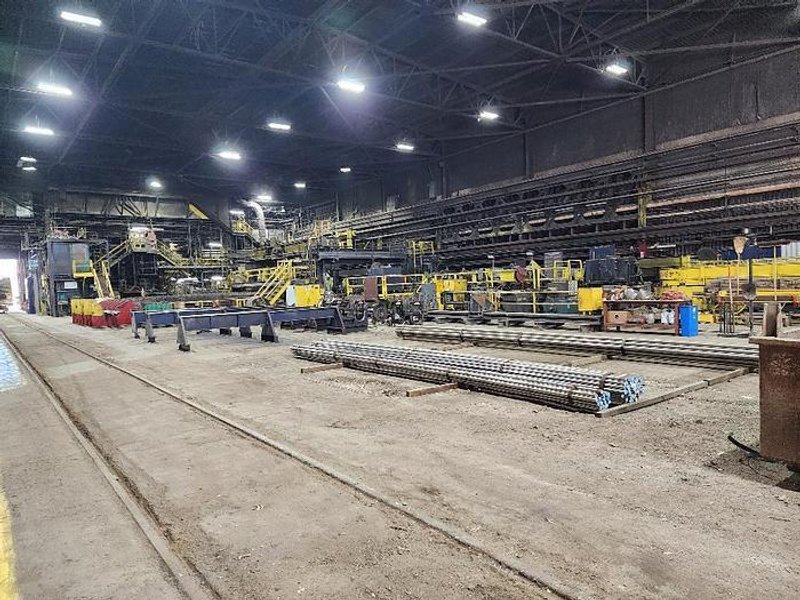

VOEST ALPINE COMPLETE SBQ BAR MILL

Brand
VOEST ALPINE
Category
Roll Formers & Rolling Mills
Type
Bar Mills
Model
Not specified
Stock #
116003
Year
Not specified
Condition
Used

Location

Not specified
REQUEST FINANCING
General Specifications:

Bar Mill Manufacturer: VoestAlpine

Upgrades:
-2019 - Walking Beam Furnace refractory (new stock)
-2015 - WEST mill DRIVES (AVTRON)
-2014 - Induction Heaters IH-P-2068print# (spare coils and hardware’s)
-2013 to 2016 – WEST mill gearboxes (all brand new gears and bearings)
-2010 - ZENAR crane w/complete spare for AS-CAST bars (spare on-site)
-2007 – EAST mill shear (spare parts)
-West & East mill spare parts (lists available)
Incoming Cast Product: Rounds
Size of Cast Product: 160 to 195 mm (diameter)
Types of Steel: Carbon Special Bar Quality (SBQ)
Finished Products: 25.4 to 108 mm
Production Capacity:  260,000t/yr.

Complete Bar Mill Includes:

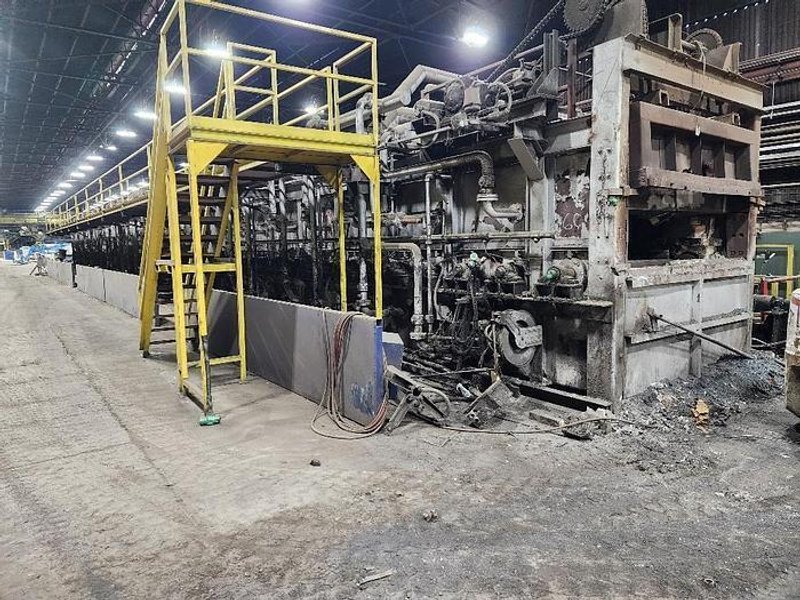

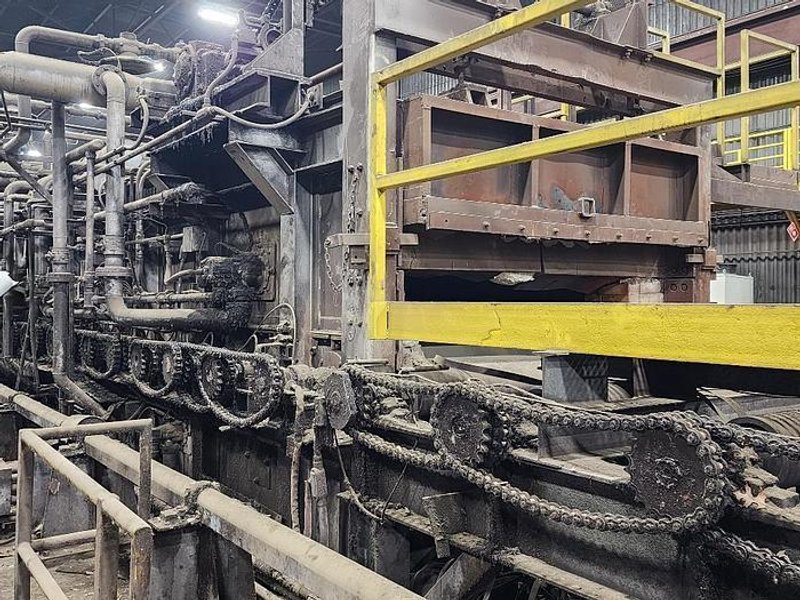

Reheat Furnace 1:
-Capacity (cold/hot):   15 Ton
-Hearth (wide x length): 7'x26'
-Type:                Walking beam
-Zones:             1
-Burners:          10 8 MBTU Total
-Fuel:                Natural gas
-Descaler:         Hydraulic (2000 psi)

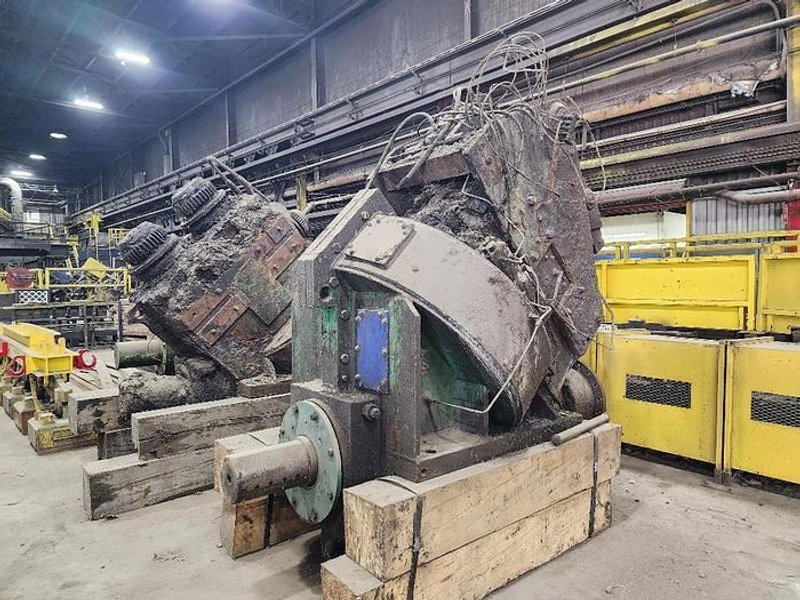

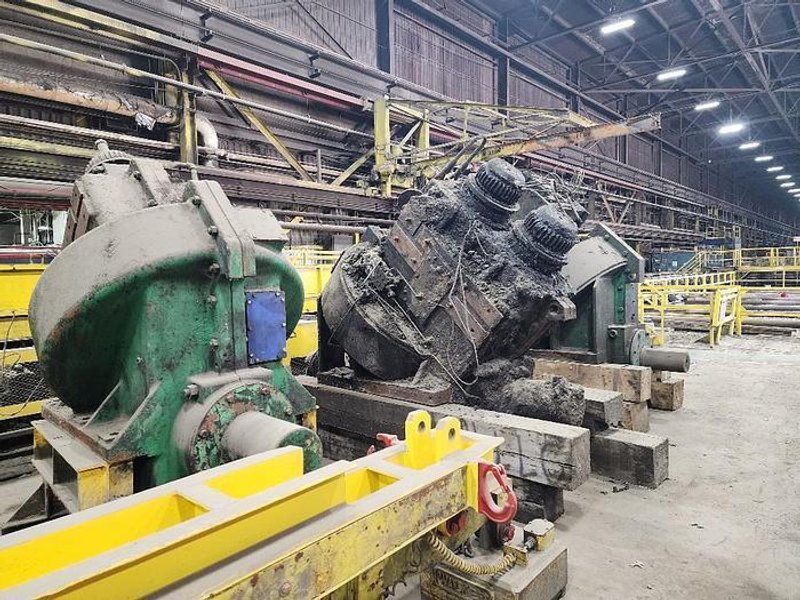

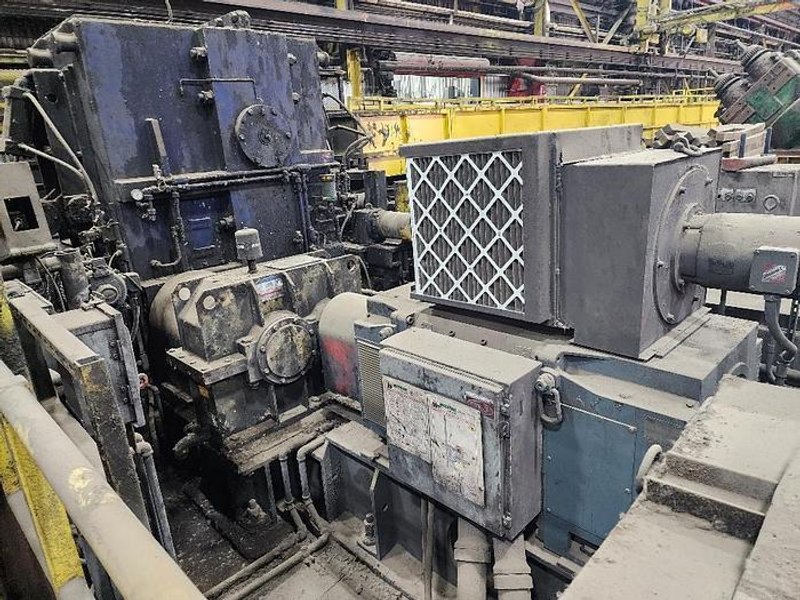

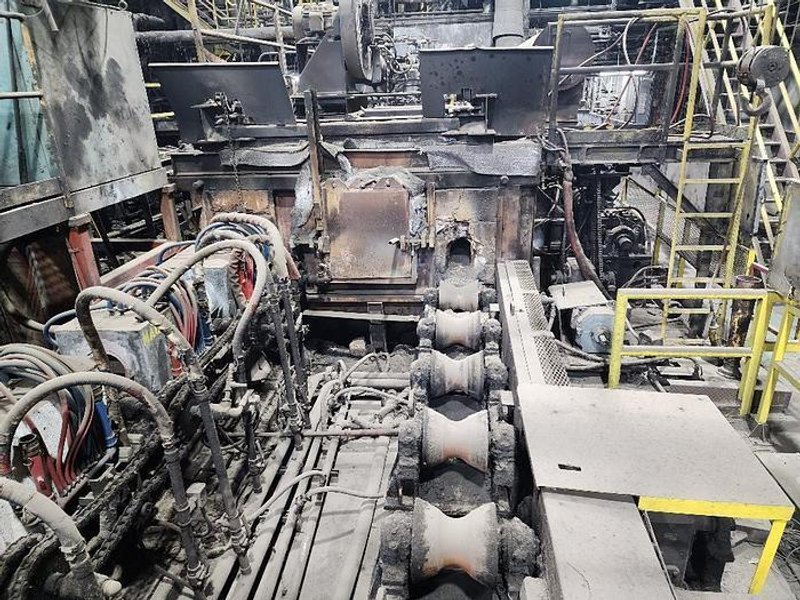

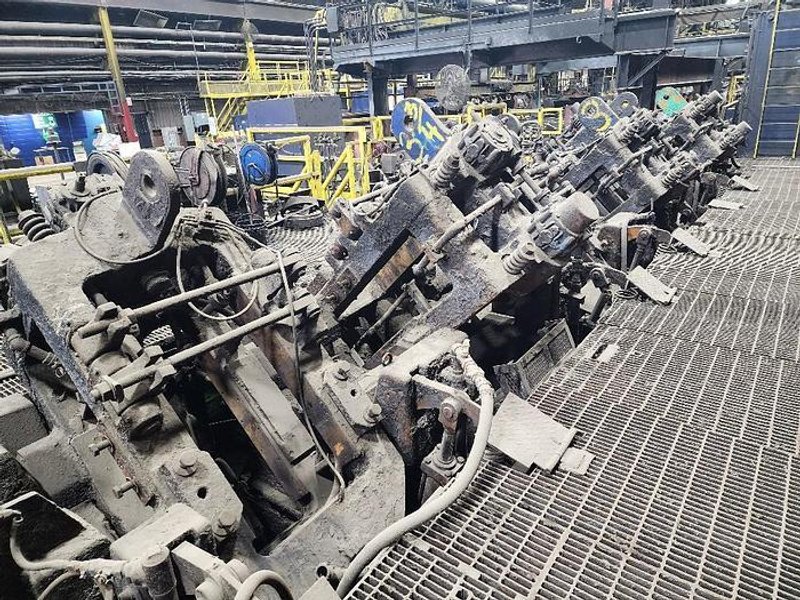

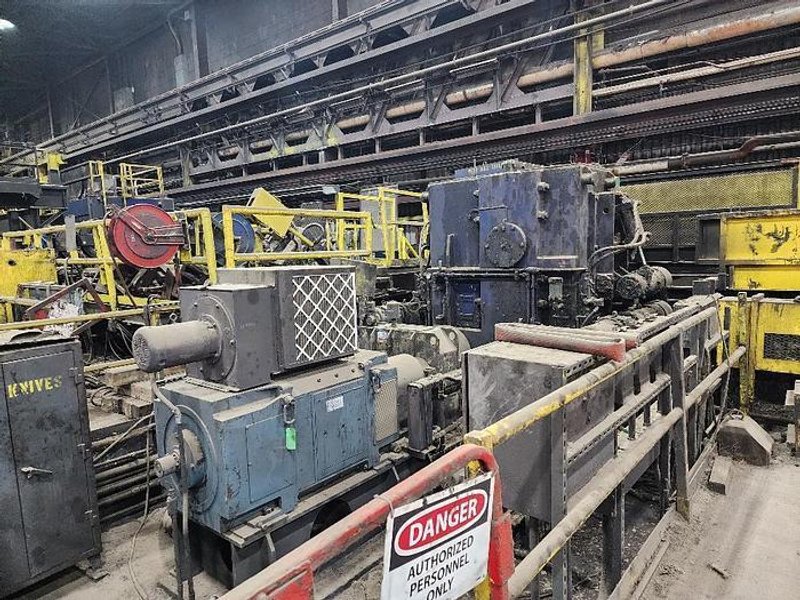

Bar Mill:         Voest/Alpine

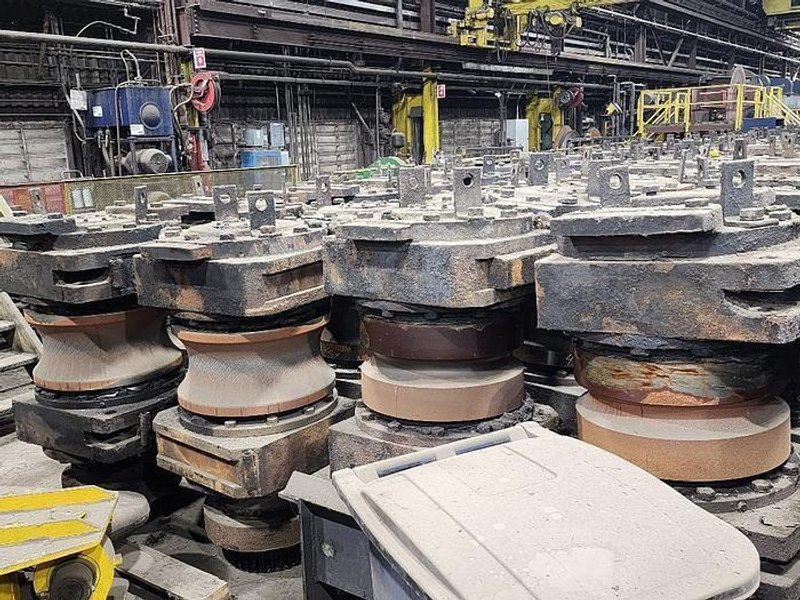

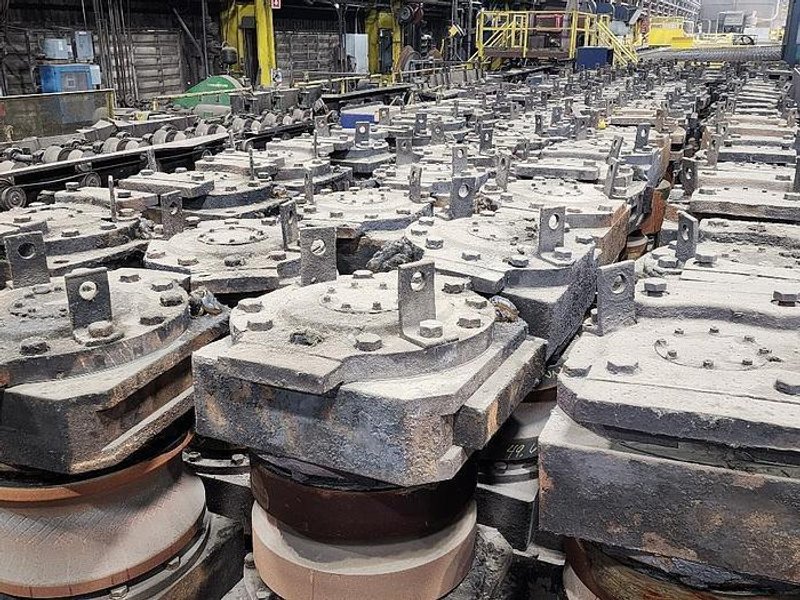

-Number of stands:     6 stand - 45 Deg.
-Number of passes:    1
-Speed last stand:       120/200 ft/min
-Roll diameter:   24"
-Motor:             600 HP

Shear:            Simac 3 1/4" max.

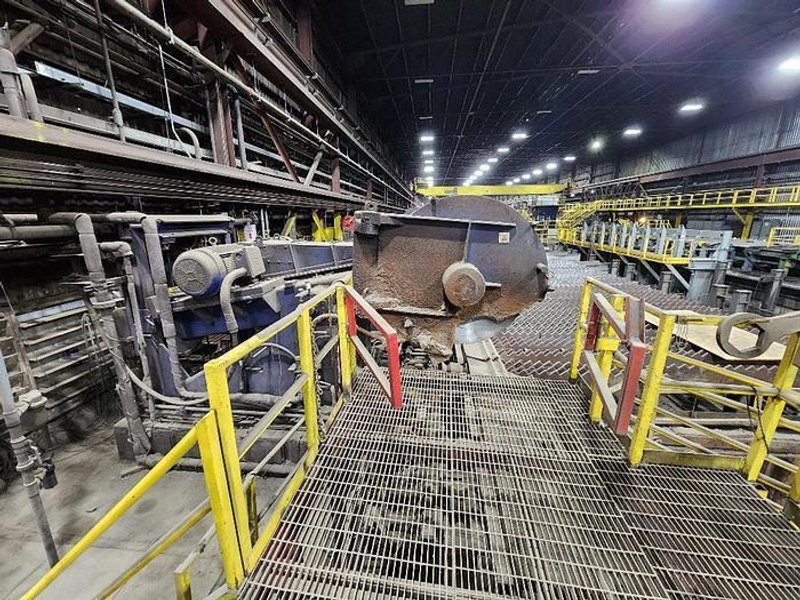

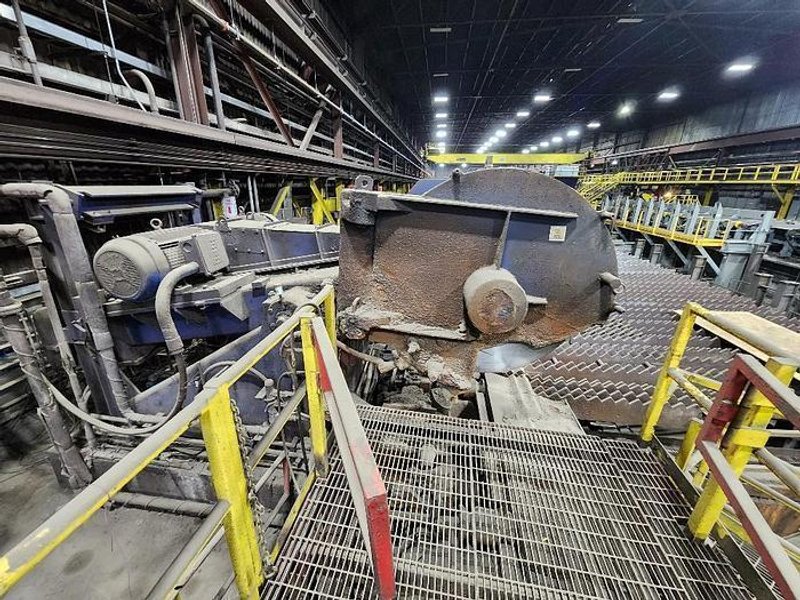

Hot Saws:      Birdsboro
-Blade:             60"
-Motor:            (2) 200 HP

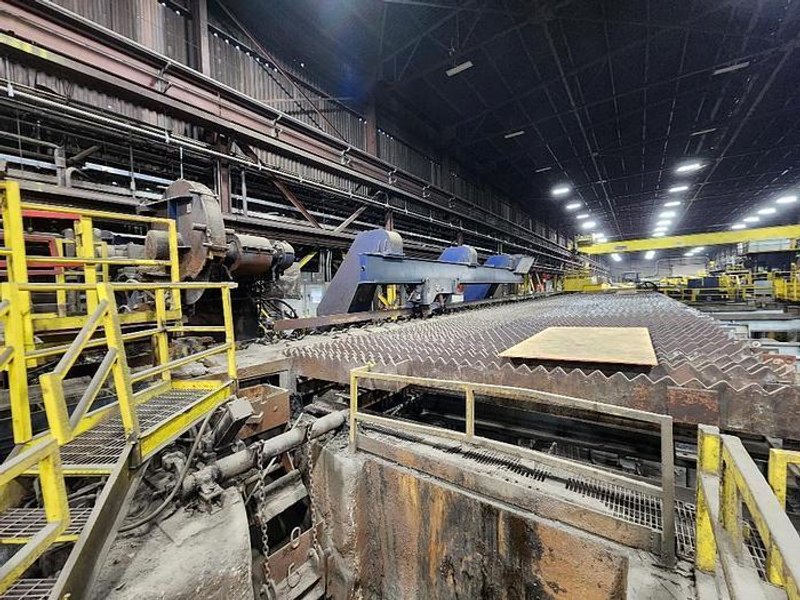

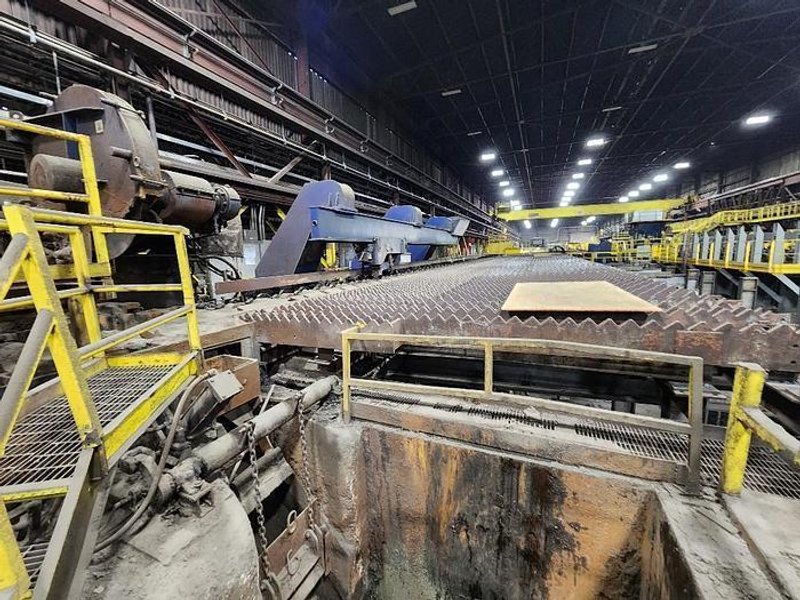

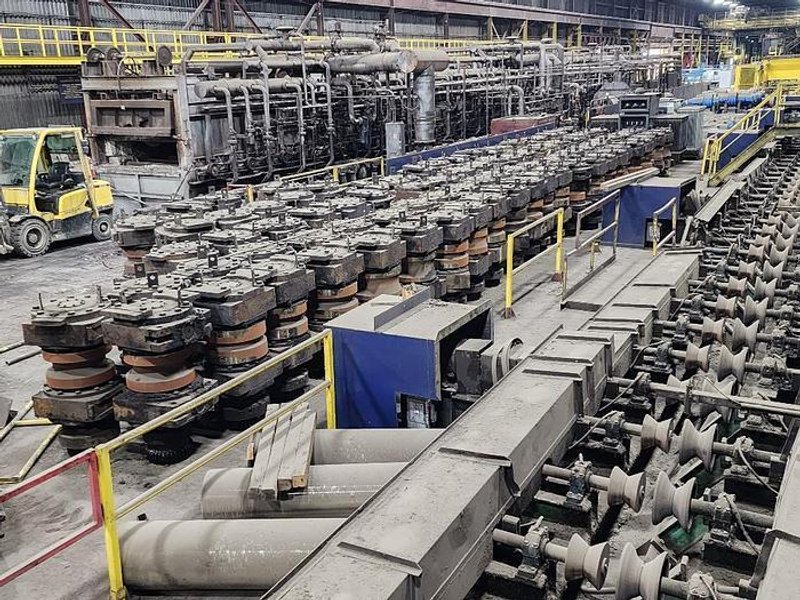

Cooling Bed: Voest/Alpine
-Length x Wide: 65' x 37'
-Notches x Pitch: 47 @ 9.44"

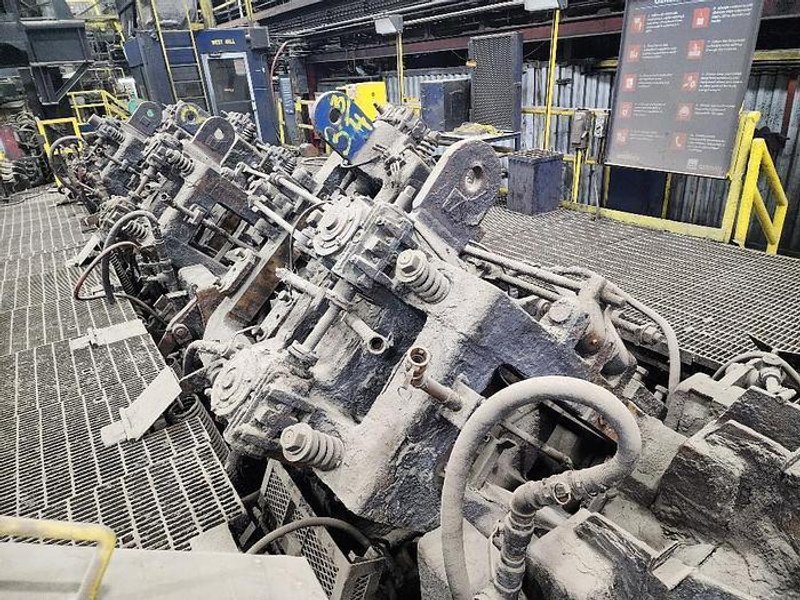

Finishing Mill:  Kocks
-Descaler:         hydraulic (3000 psi)
-Stands:            6 stand - 45 Deg.
-Roll Diameter: 17.87"
-Motor:             800 HP
-Speed:           120/800ft/min.

PSB:   Kocks
-500 mm Housing
-Stands:            3
-Motor:             500 HP
-Shear:             Quad 2-3/4" max.

Cooling Bed: United #3 1" to 4 1/2"
-Length x Width:                   105" x 52"
-Notches x Pitch:                   110 @ 5.625"

Cooling Bed: United #4 1" to 2 7/8"
-Length x Width:                   105' x 25'
-Notches x Pitch:               100 @ 3"

Induction Heating
East Mill:         2-1500kw, 1-1000kw/500hz
-coils:               6 total

West Mill:        3-750kw/1000hz
-coils:               3 total

PFL
Abrasive saw: (2) CMS 60 hp
Blade:              32"-28"
Transfer Table: 16" wide
Chamfer Table:    (2) SES
Wheel:             20" dia. X 30' (1) 40 hp
Bundles:          20,000#
Stacker:

Stack former:
Tying / strapping:  Signode
Bundle transfer table:  Krasny
