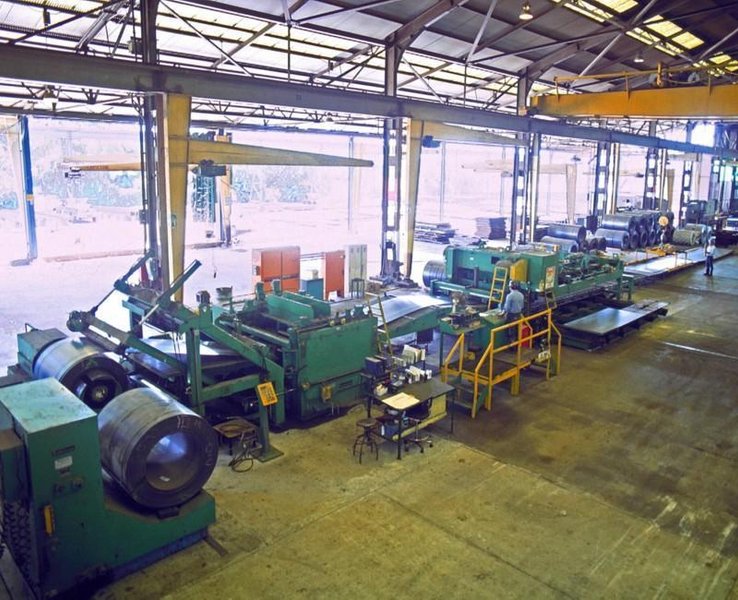

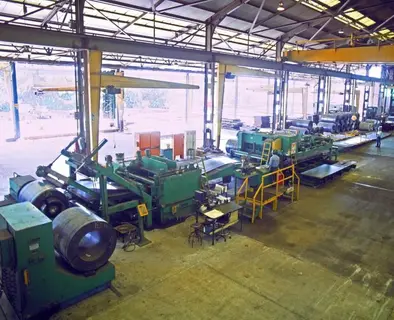

72" x 0.250" x 40,000# DAHLSTROM CUT TO LENGTH LINE STOCK# 3469

CONSISTING OF THE FOLLOWING:

-COIL CAR:

  MODEL:  MCL-40-21L

  SERIAL NUMBER:  L254

  CAPACITY:  40,000 LBS.

  WIDTH:  12" - 72"

  COIL O.D. MAX.:  72"

  MAX. RAISE:  21"

  LINE / VOLTS:  460 / 3  60

  CONTROLS:  115 VAC

-UNCOILER:

  MODEL:  40H-72-226W

  SERIAL NUMBER:  R534

  MAX. CAPACITY:  40,000 LBS.

  MAXIMUM WIDTH:  72"

  I.D. RANGE:  22" - 26" (30" W/RUBBER EXPANSION)

  REEL TRAVERSE:  8"

  COIL O.D. MAX.:  72"

  LINE / VOLTS:  460 / 3 / 60

  CONTROLS:  115 VAC

-FLATTENER:

  MODEL:  SF72-188-10BU

  SERIAL NUMBER:  SF461

  5.50" DIA. ROLLS

  9 ROLLS, 4 OVER 5 ROLLS WITH BACKUPS

  CAPACITY - .187" - .047" @ 85,000 PSI

  CAPACITY - .250" - .047" @ 50,000 PSI

  WIDTH:  72.312"

  SPEED RANGE:  30-120 FEET PER MINUTE

  MOTOR:  100 HP DC

  LINE / VOLTS:  460 / 3 / 60

  CONTROLS:  115 VAC

-HUMP TABLE:

  MODEL:  HT-F-72

  SERIAL NUMBER:  HT213

  LENGTH:  72" X 15'8"

-SHEAR:

  MODEL:  SHG72-250-SP

  SERIAL NUMBER:  SH227

  CAPACITY:  .047" - .250"

  WIDTH:  72.312"

  STROKE:  2.250"

  LINE / VOLTS:  460 / 3 / 60

  CONTROLS:  115 VAC

  FLYWHEEL:  240 RPM

-DROP TABLE:

  MODEL:  MSU1272-216-250-SP

  SERIAL NUMBER:  SP751

  LENGTH:  36" - 242"

  GAUGE:  .047" - .250"

  STACK MAX.:  20,000 LBS.

  LINE / VOLTS:  460 / 3 / 60

  CONTROLS:  115 VAC

-INSTALLED AND UNDER POWER
