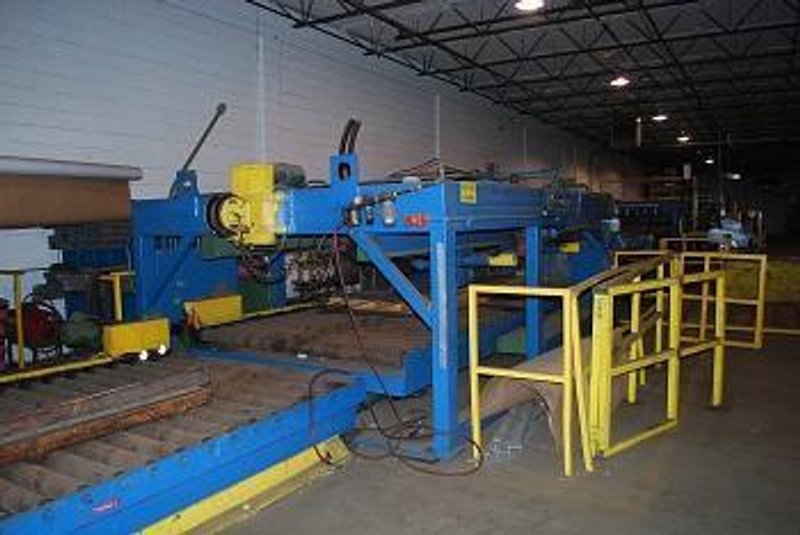

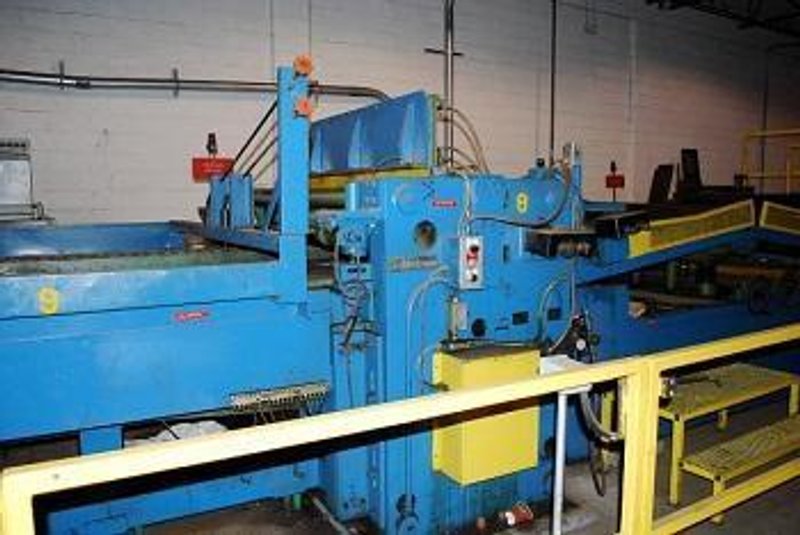

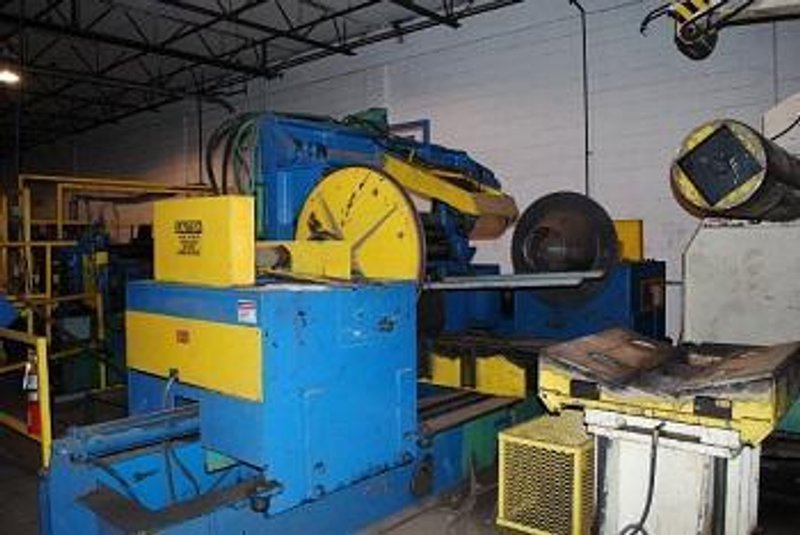

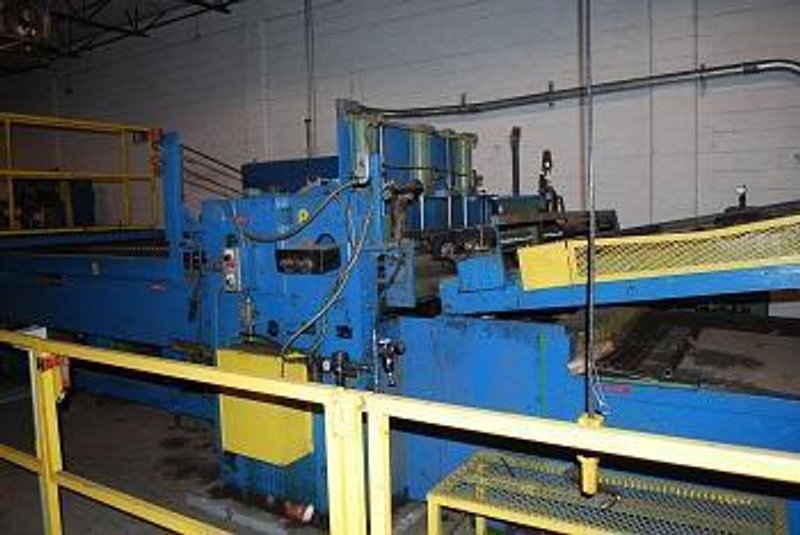

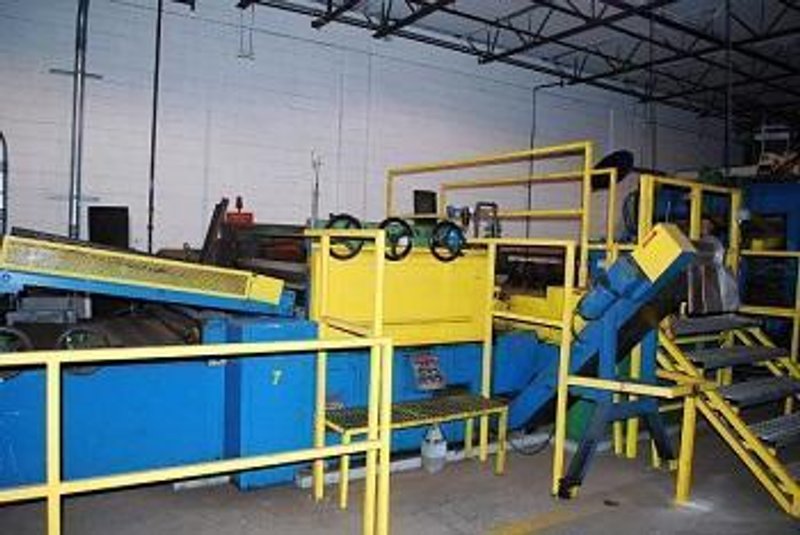

72" x .105" x 20,000# DAHLSTROM CUT TO LENGTH LINE
Brand
Category
Type
Model
Not specified
Stock #
114101
Year
Not specified
Condition
Used
Location
Not specified
| Max Weight | 20000 ounces |
| Max Coil Width Capacity | 72 inches |
| Max Stock Thickness Capacity At Full Width | .105 inches |
| Max Diameter | 72 inches |
|
Make: Dahlstrom Industries
Coil Width: 24" - 72" Material Thickness: .010" - .105" Coil ID: 16" - 24" Coil OD: 72" Speed: 210 feet per minute Direction: Right to Left Entry Coil Conveyor Floor Standing V-Type Coil Car Mechanical Lift and Traverse Cone-Type Uncoiler Feed-Up Motor Motorized Brake Sliding Base Powered Hold-Down Roll Hydraulic Peeling Table Powered Entry Pinch Rolls Adjustable Edge Guides Edge Trimming Head Sliding Knives Design Scrap Chopper with Run-Out Conveyor Coil Flattener Model: S72-12-10 Nine (9) Working Rolls Manual Work Roll Adjustment Powered Entry Pinch Rolls Motor: 40HP DC Coil Hump Table Manual Height Adjustment Mechanical Shear Model: SH72-12 Air Clutch & Brake Flywheel Speed: 375RPM Motor: 20HP AC 460/3/60 Powered Belt Run-Out Conveyor Drop Type Sheet Stacker Model: SU1272-1244-12 Weight Capacity: 10,000Lbs Width Capacity: 12" - 72" Sheet Length: 12" - 144" Powered Run-Out Conveyor Electrics, Hydraulics, Controls |
|
