48" x 7.00" x 20,000# PAXSON SLITTING LINE STOCK# 3466
Brand
Category
Model
Not specified
Stock #
3466
Year
1962
Condition
Good
Location
Ohio
| Max Width of Workpiece | 48 inches |
|
48" x 7.00" x 20,000# Paxson Slitting Line

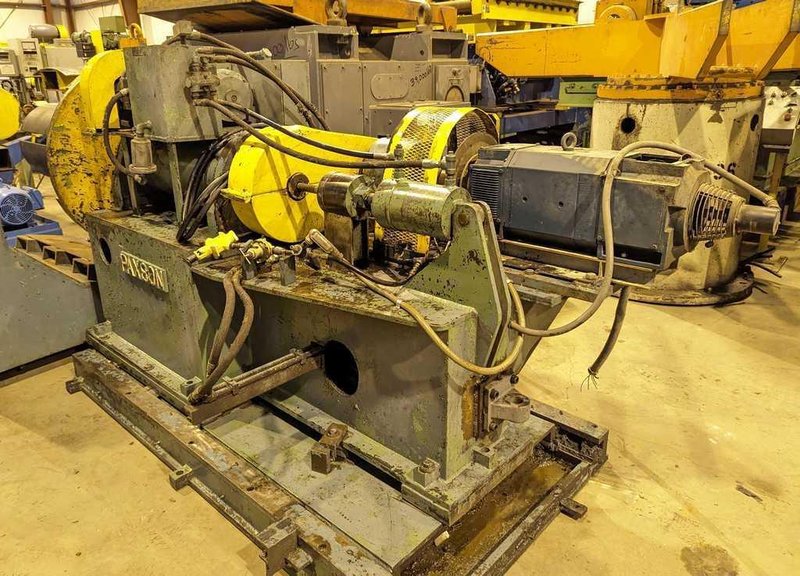

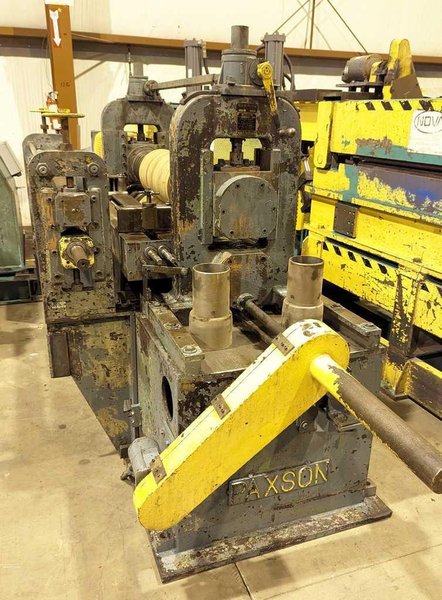

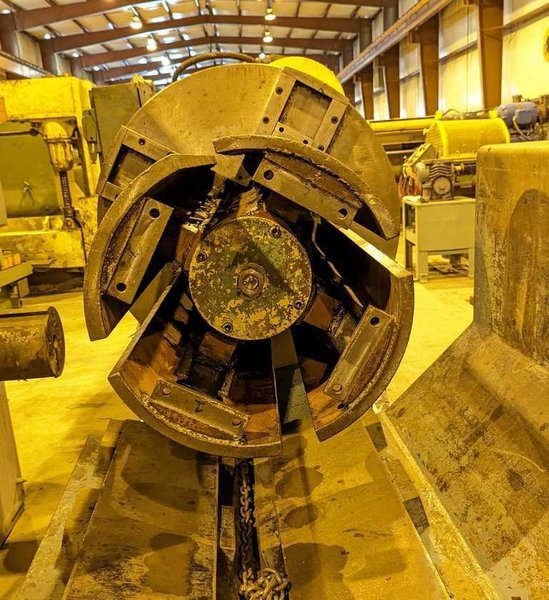

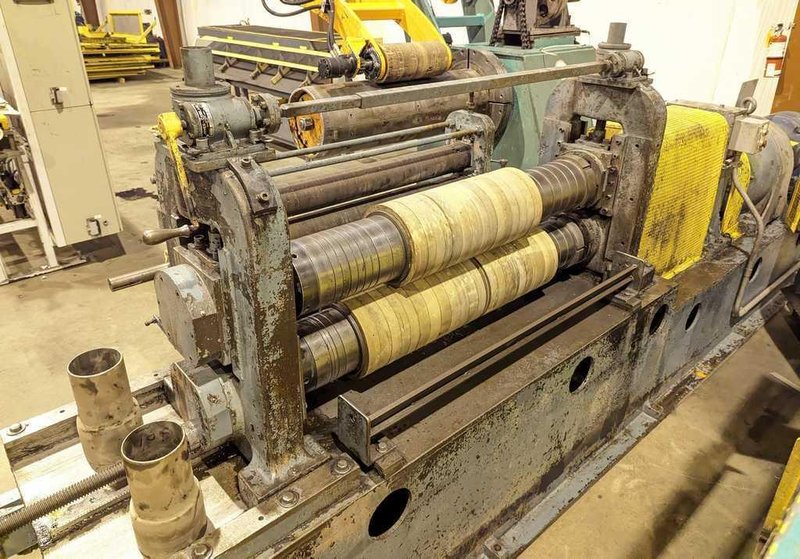

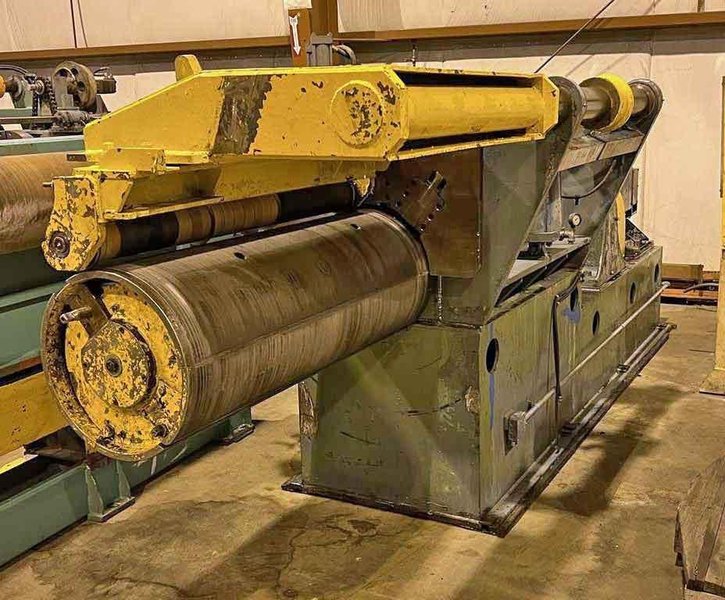

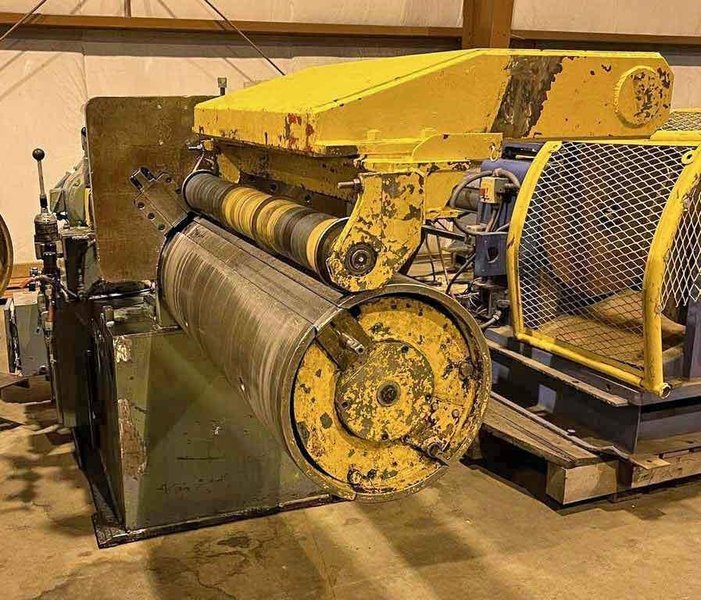

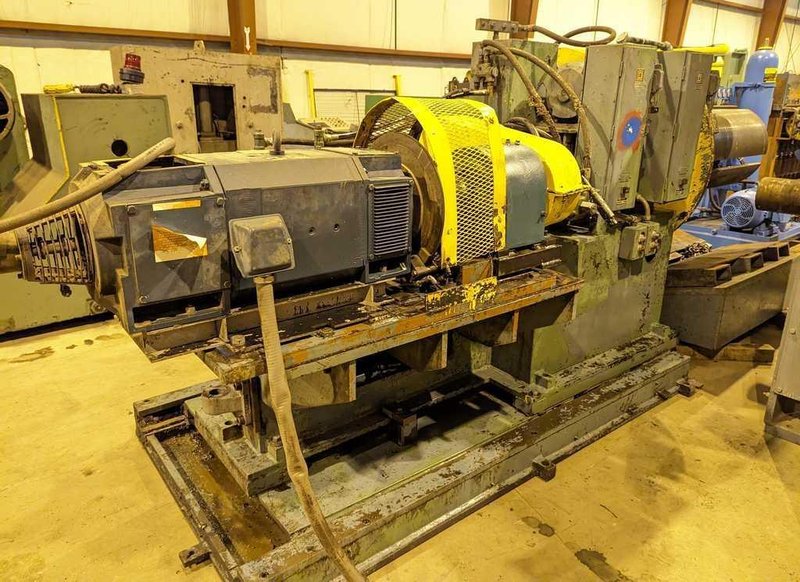

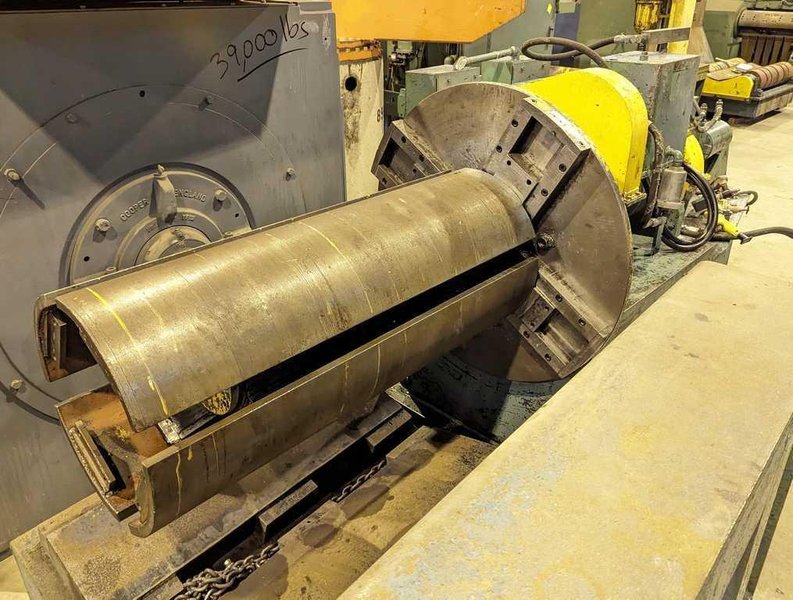

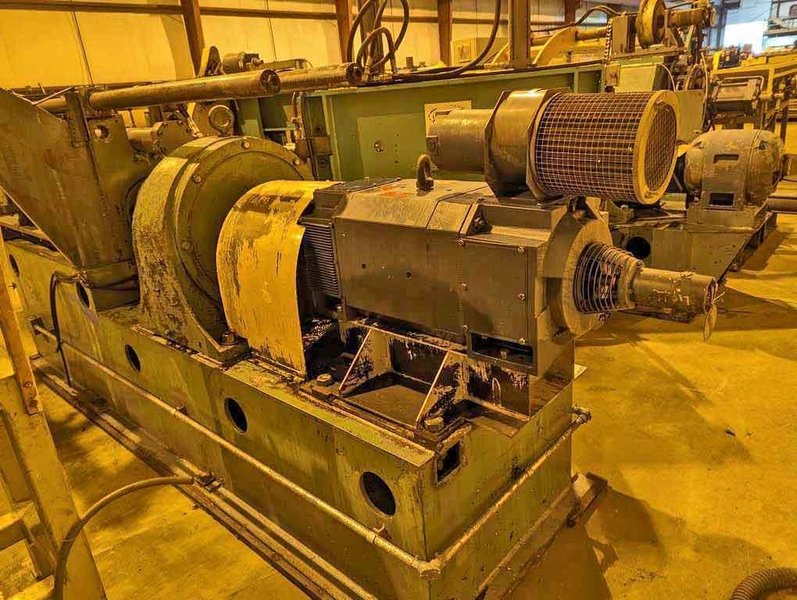

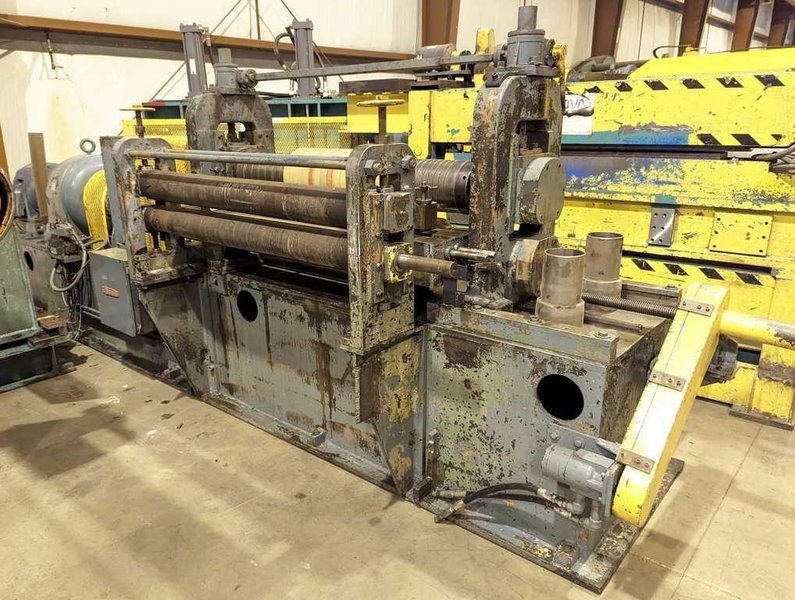

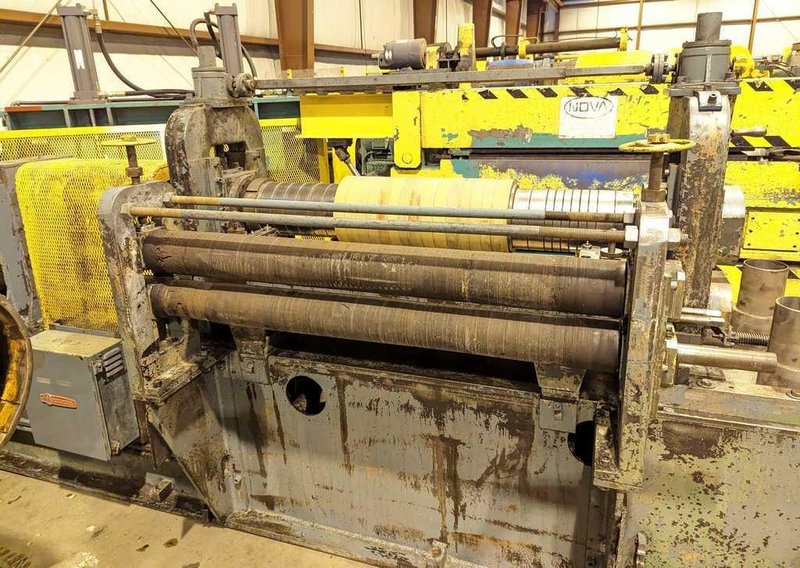

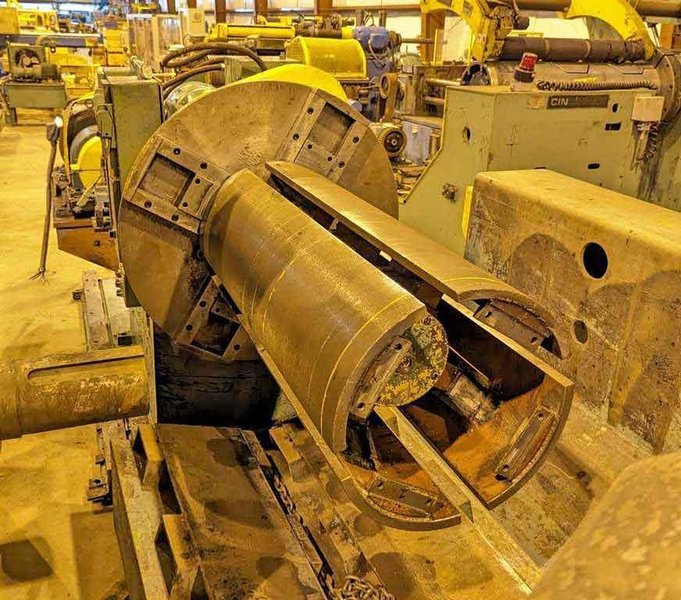

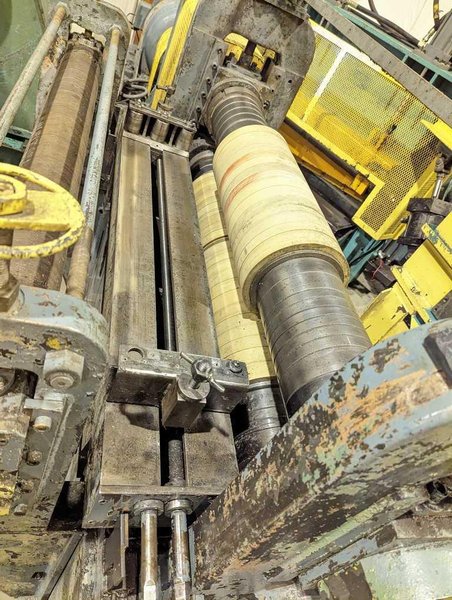

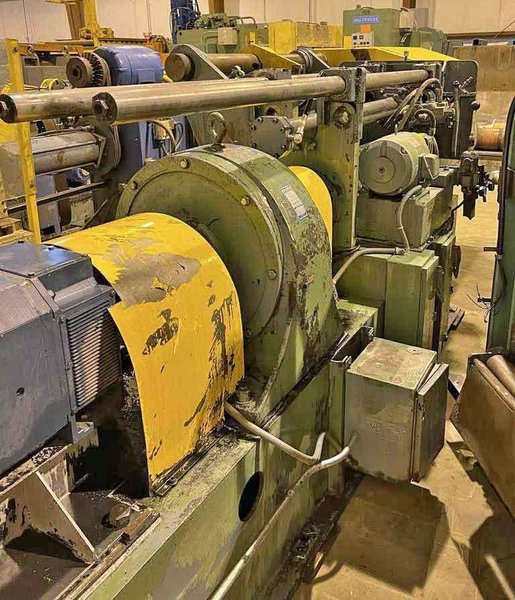

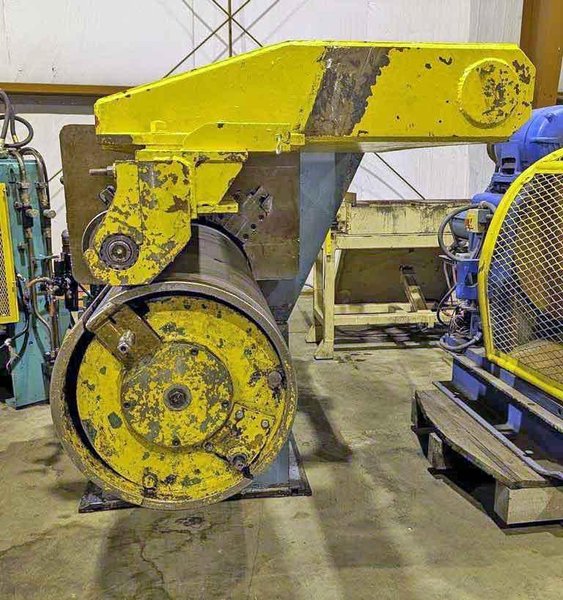

Consisting of: -Uncoiler: 20" I.D. Hydraulic Wedge-Type Expansion, 17" - 21" Exp. Range (approx.) 48" Face Mandrel Sliding Base 15 HP Reliance DC Motor, 850/2550 RPM, 500 V Disc Type Brake Dodge Reducer w/11.4:1 Ratio Thru Sprockets w/3:1 Ratio (Total Reduction approx. 34.2:1) Self-Contained Hydraulics, 5 HP AC Motor, 1750 RPM, 220/440 V Passline: 43.5" from Floor to Center of Mandrel Overall Size: 164" L x 57" W x 68" High -Slitter Head: 7" Dia. x 49.5" Face Arbors Parallel Arbor Adjustment Entry Passline Rolls, 5" Dia. x 51" Face, Rubber Covered Entry Side Guides, Manual Adjustment 20 HP AC Motor Threading Drive, 1760 RPM, 220/440 V Foote Bros. Reducer w/38.4:1 Ratio 40" Passline Height Powered Opening of Outboard Housing for Tooling Change Overall Size: 222" L x 48" W x 69" High -Scrap Winder: Manual Scrap Eject Oscillate Wind AC Drive Motor -Recoiler: 20" Dia. x 52" Face Drum Spare Drum, 16" Dia. x 53" Face Manual Clamp and Expansion 7.5" Dia. Main Shaft Hydraulic Pushoff Overarm Separator 64" O.D. Max. 50 HP Reliance DC Motor, 850/2550 RPM, 500 V, w/Blower Foote Brothers Reducer w/31.4:1 ratio, rated at 76.5 HP at 1750 RPM IN Self-Contained Hydraulic Power Unit, 5 HP AC Motor Passline: 41" from Floor to Center of Drum Overall Size: 213" L x 62" W x 69" High -No Electrics -Line Direction: Left To Right -Removed and in Storage: Toledo, OH. |
|
