Control | Mitsubishi M800 CNC |

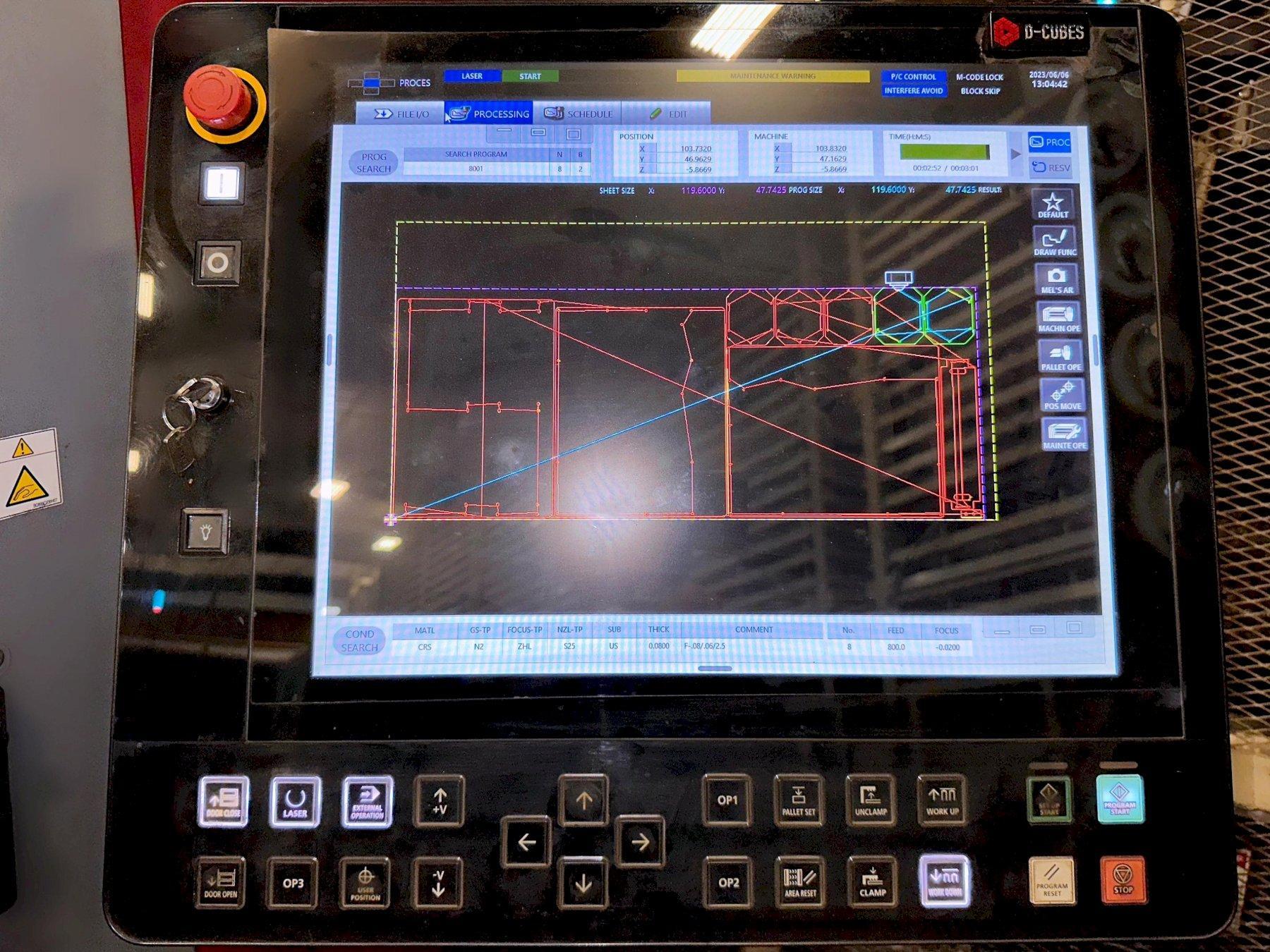

Display | 19” Mitsubishi-Electric Touch Screen |
Laser Type | Fiber Optic |
Machine Design | Flying Optics |
Rated Power Output | 6 KW |
Power Source | IPG Fiber |

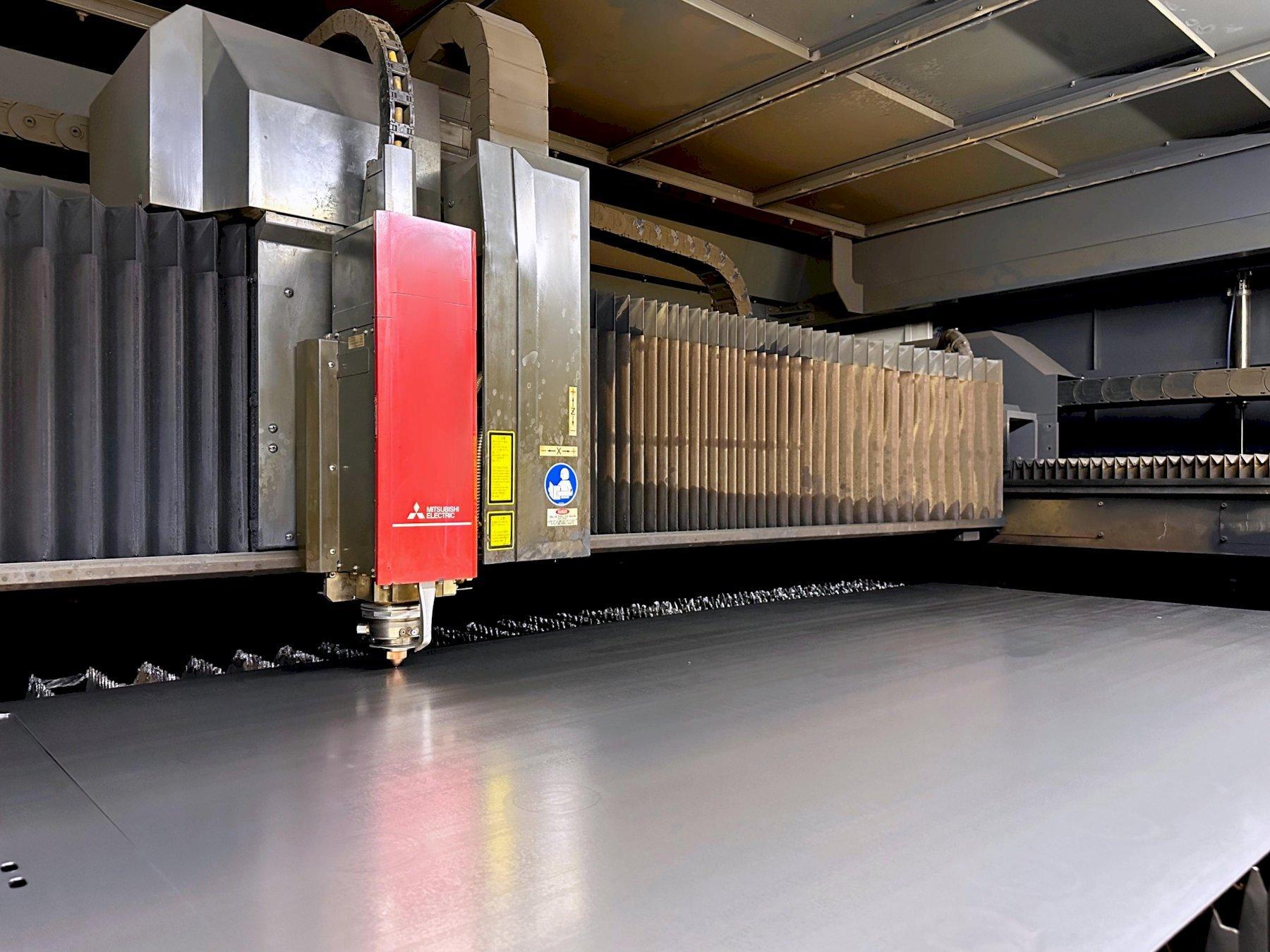

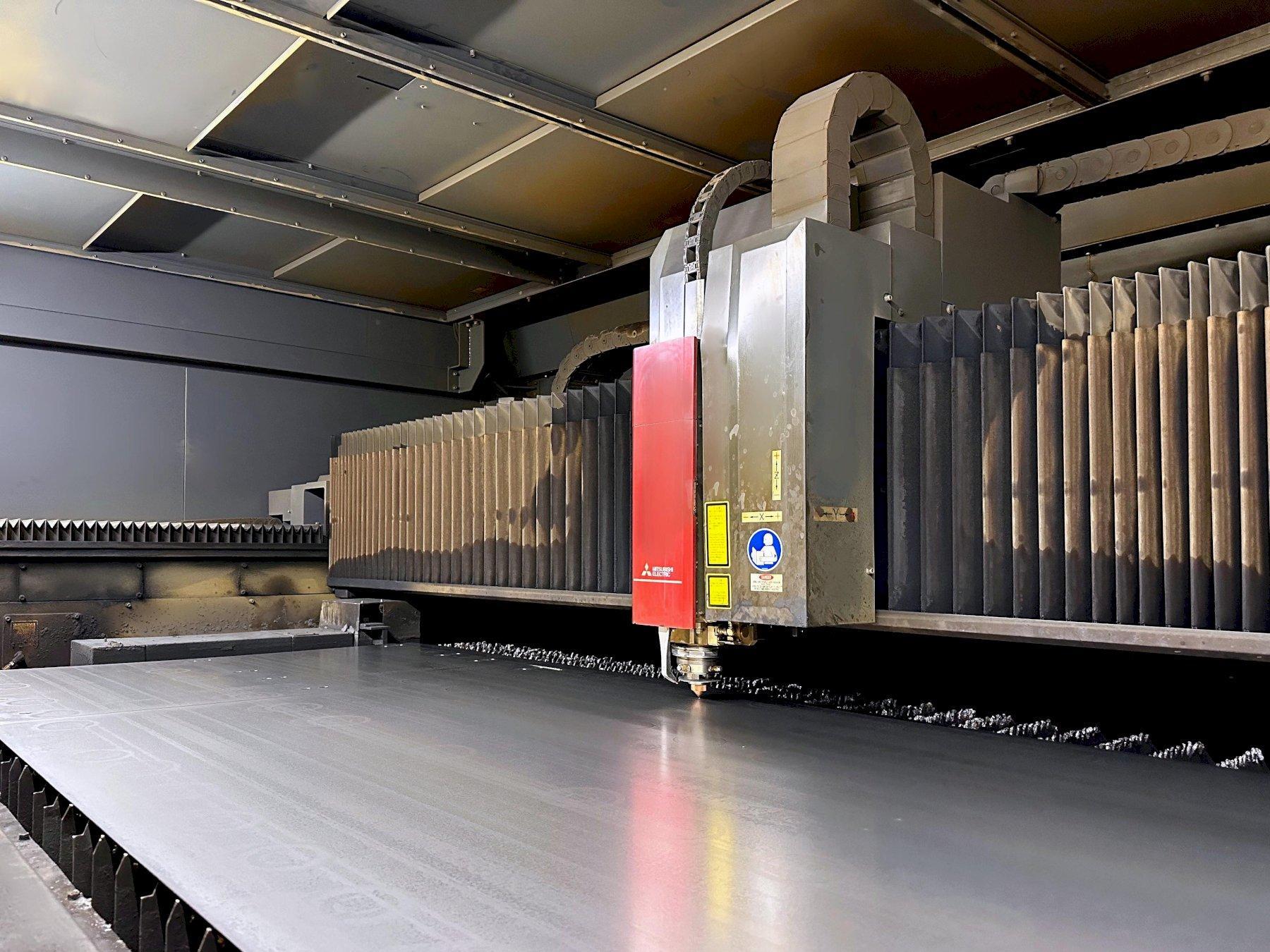

Processing Head | Zoom-Head |
Max.Material Thickness - Mild Steel | 1.00" |
Machine Structure X/Y | Precision Rack & Pinion |
Machine Structure Z | Precision Ball Screw |
Max. Workpiece Size | 120.1” x 60” |
Table Pass Height | 34.6” |
X-axis Stroke | 122” |
Y-axis Stroke | 61” |
Z-axis Stroke | 5.9” |
Rapid travel speed (X,Y) | 3,940 Single Axis |
Rapid Travel Speed (X,Y) | 5,550 Simultaneous |
Max. Processing Federate | 3,937 IPM |
Repeat Accuracy | ± .00039" |
Drive Motor Type | Intelligent AC Servo |
Max. Workpiece Weight | 2,050 lbs. |
Cutting Thickness - Mild Steel | .98” |
Cutting Thickness - Stainless Steel | .98” |
Cutting Thickness - Aluminum | .98” |
Cutting Thickness - Copper | .31” |
Cutting Thickness - Brass | .59” |
Machine Dimensions | L 408.3” x H 88.6” x W 115.2” |
Machine Weight | 28,090 lbs. |

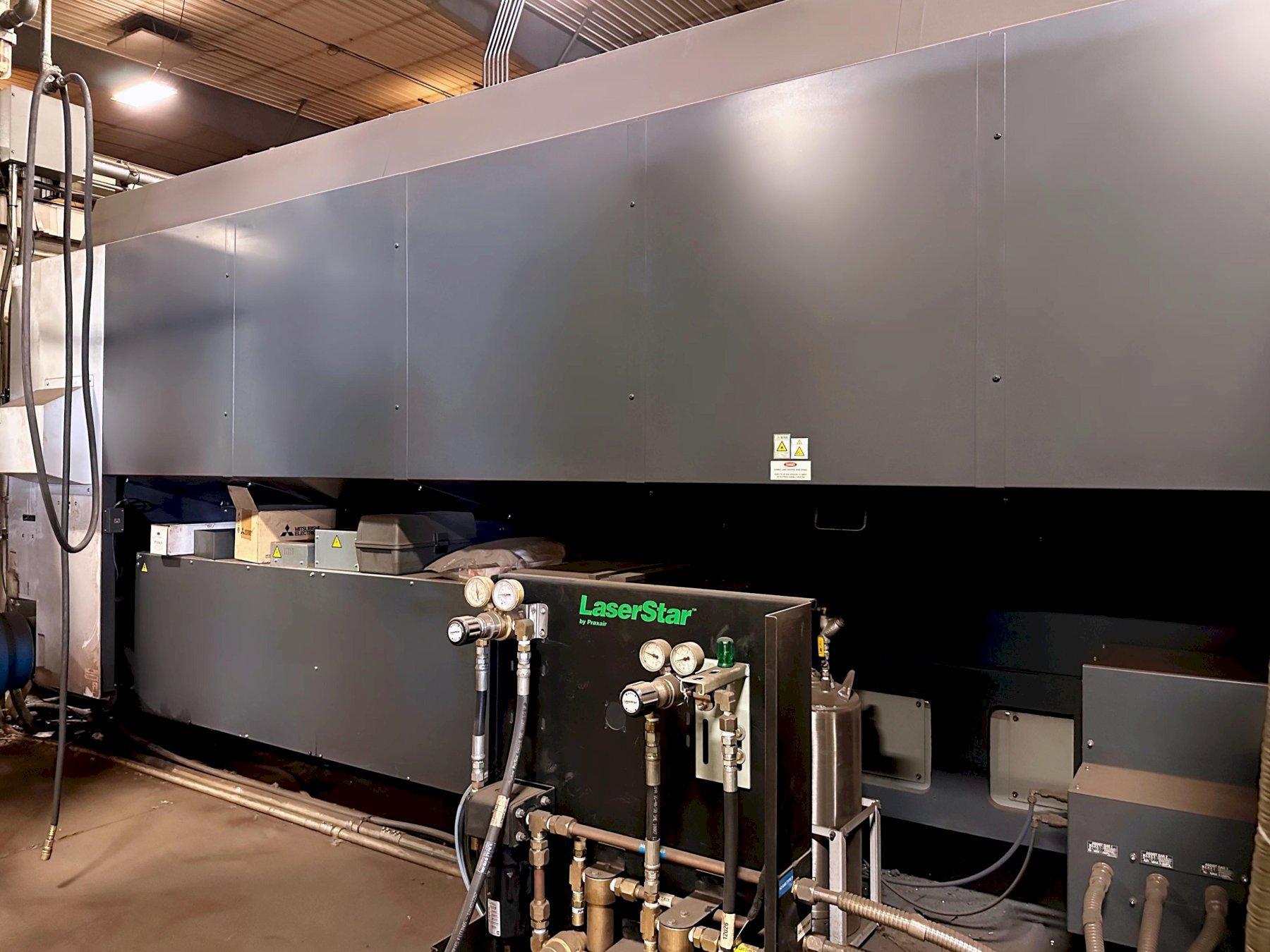

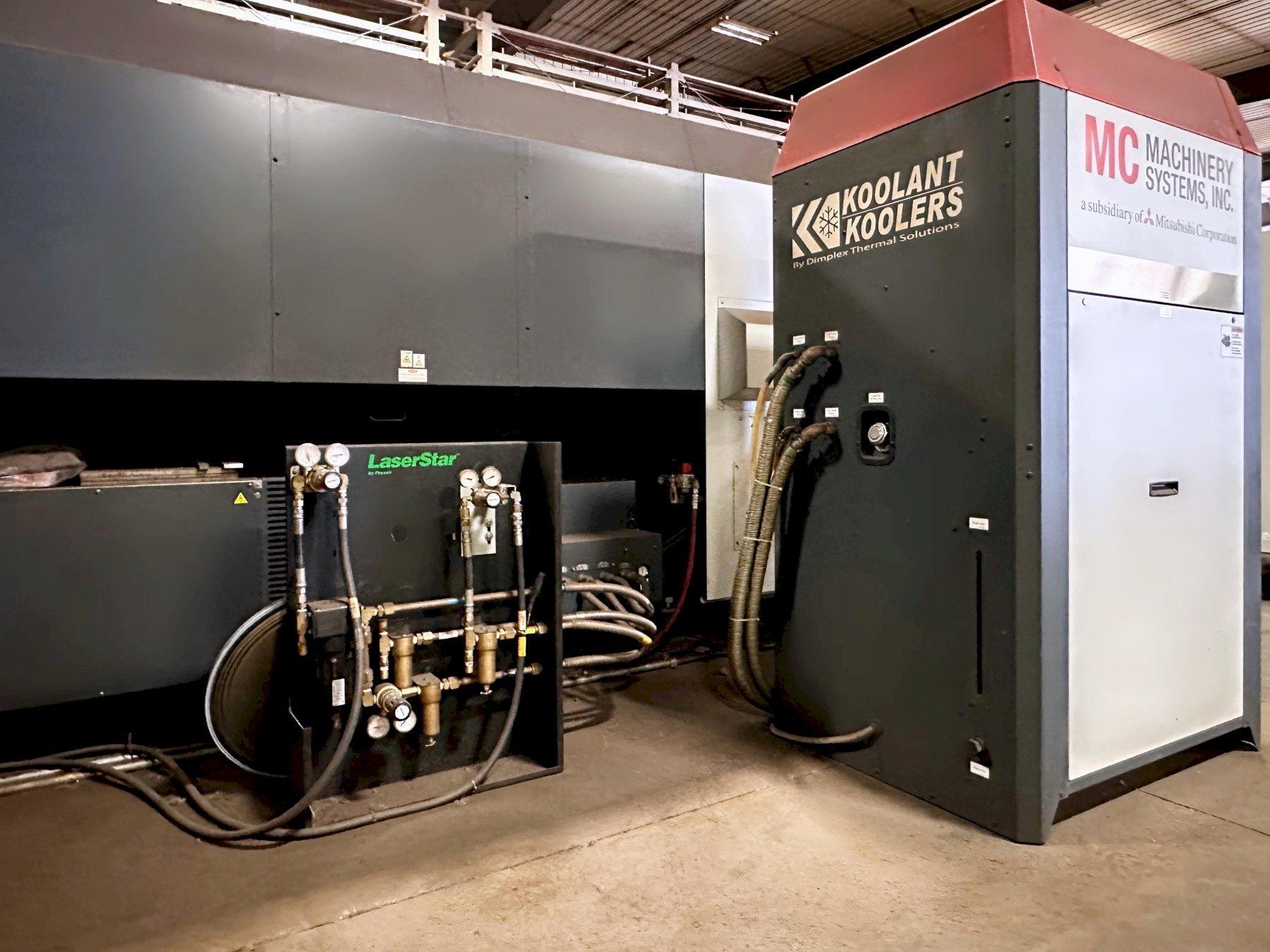

Equipped With: IPG 6000 Watt Fiber Resonator/Engine Mitsubishi M800 19” Control All In One Zoom Head Design Magnetic Breakaway Head One Button Press Automatic Safety Door Two High Pressure Assist Gas Ports HPP Pierce Technology Autofocus (Focal Range From 3.75” - 10”)
|
