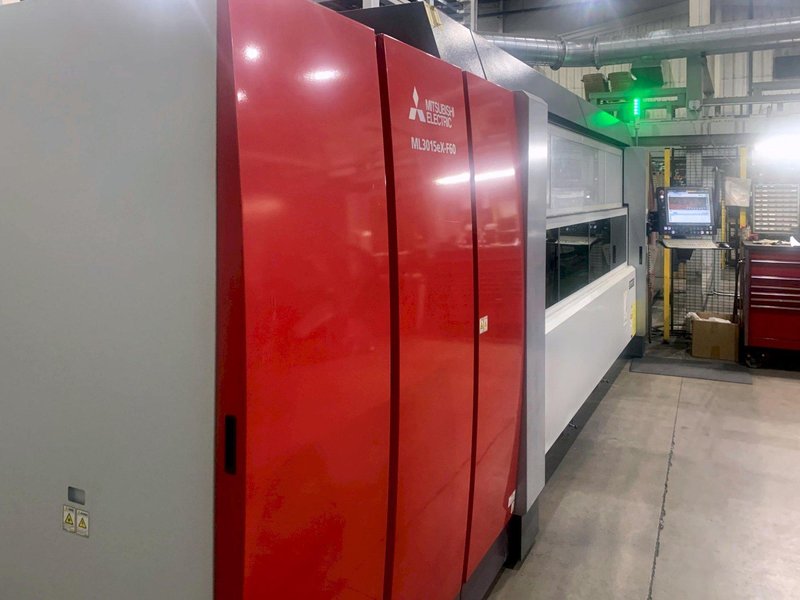

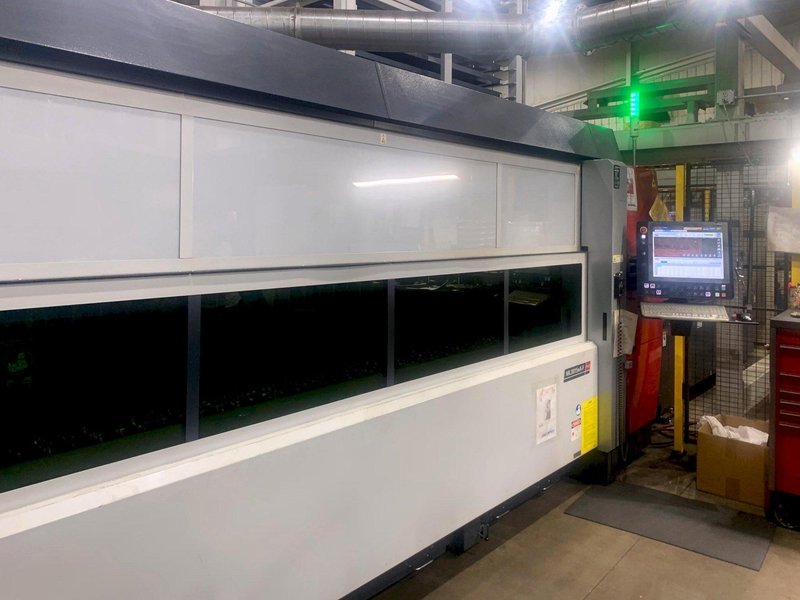

Mitsubishi ML3015eX-F60 Fiber Laser
Brand
Category
Type
Model
ML3015eX-F60
Stock #
100433
Year
2018
Condition
Excellent
Location
Not specified
| Machine Design | Flying Optics |
| Machine Structure X/Y | Precision Rack & Pinion |
| Machine Structure Z | Precision Ball Screw |
| Max. Workpiece Size | 120.1” x 60” |
| Table Pass Height | 34.6” |
| X-axis Stroke | 122” |
| Y-axis Stroke | 61” |
| Z-axis Stroke | 5.9” |
| Rapid travel speed (X,Y) | 3,940 Single Axis |
| Rapid Travel Speed (X,Y) | 5,550 Simultaneous |
| Max. Processing Federate | 3,937 IPM |
| Repeat Accuracy | ± .00039" |
| Drive Motor Type | Intelligent AC Servo |
| Max. Workpiece Weight | 2,050 lbs. |
| Processing Head | Zoom-Head |
| Rated Power Output | 6 KW |
| Power Source | IPG Fiber |
| Max.Material Thickness - Mild Steel | 1.00" |
| Machine Dimensions | L 408.3” x H 88.6” x W 115.2” |
| Machine Weight | 28,090 lbs. |
| Laser Type | Fiber Optic |
| Control | Mitsubishi M800 CNC |

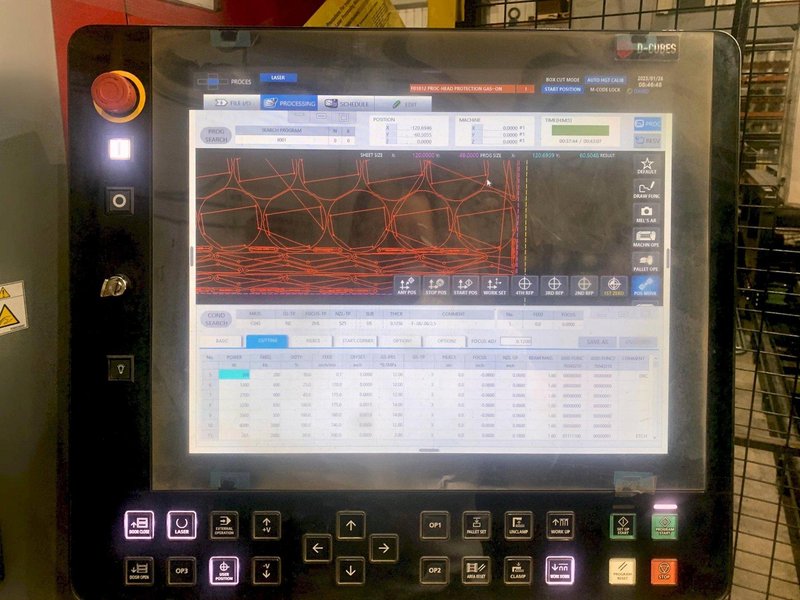

| Display | 19” Mitsubishi-Electric Touch Screen |
|

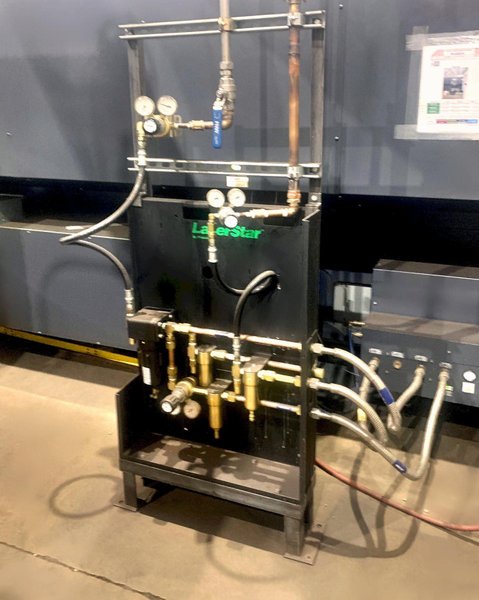

Equipped With: IPG 6000 Watt Fiber Resonator/Engine Mitsubishi M800 19” Control All In One Zoom Head Design Magnetic Breakaway Head One Button Press Automatic Safety Door Two High Pressure Assist Gas Ports HPP Pierce Technology Autofocus (Focal Range From 3.75” - 10”)
|
|
