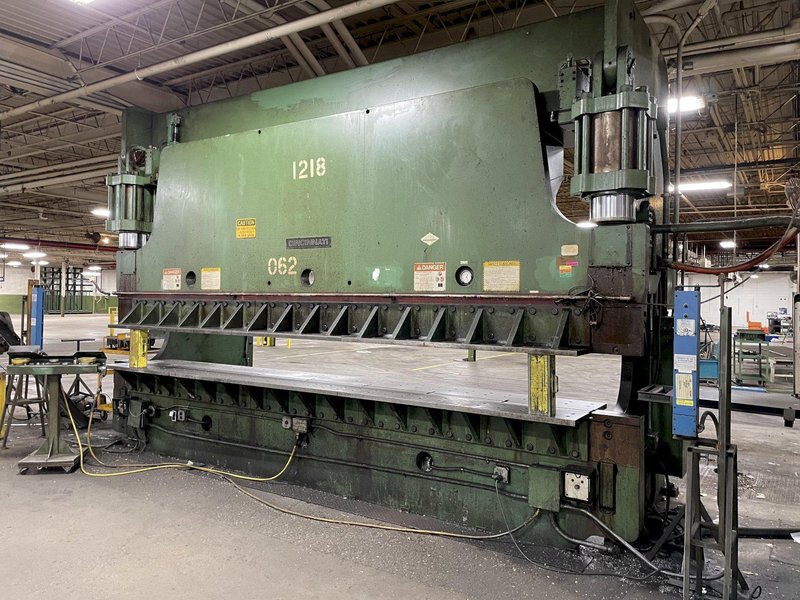

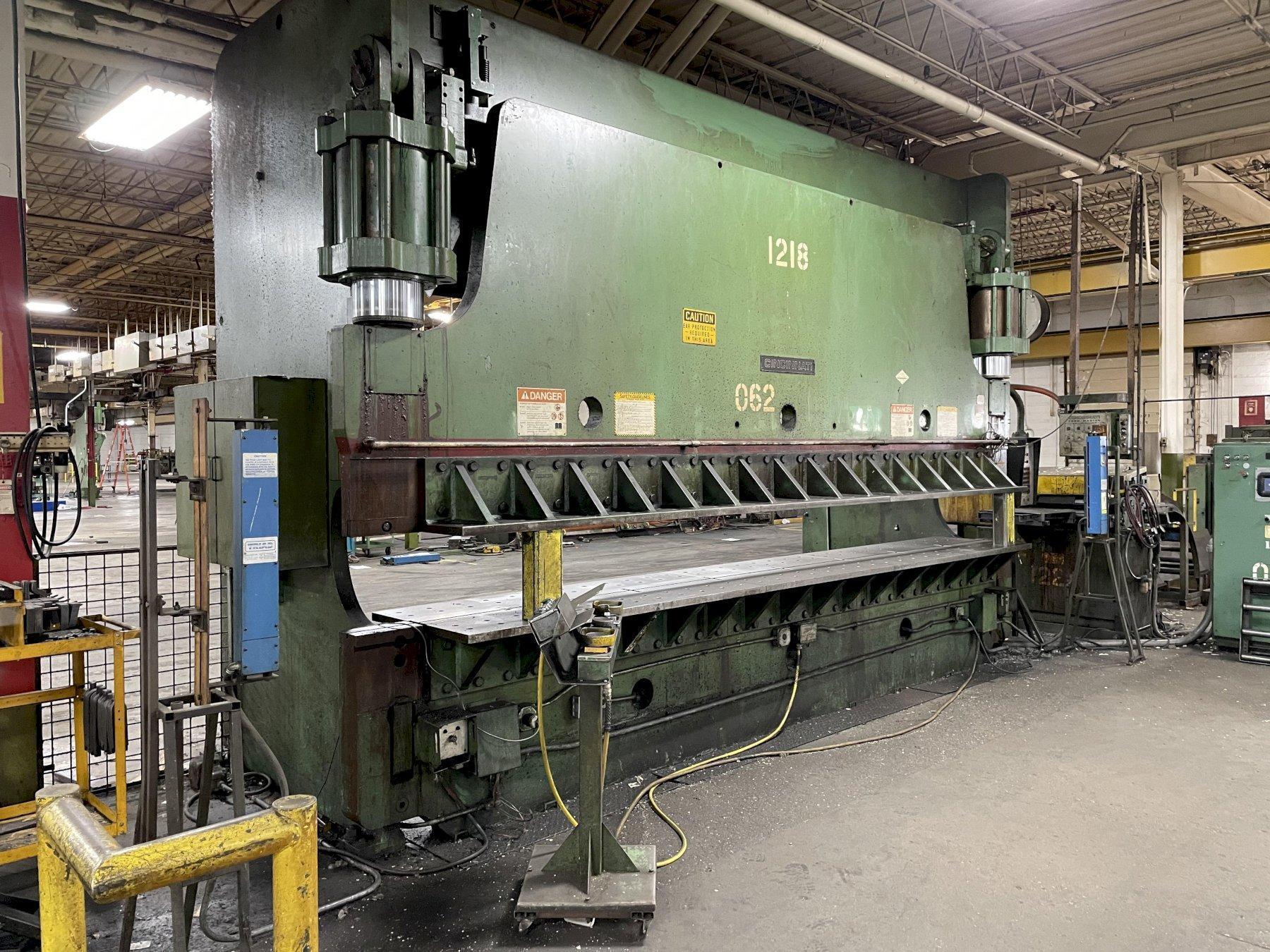

350 TON X 18' CINCINNATI #350FM-16 HYDRAULIC PRESS BRAKE
Brand
Category
Type
Model
350FM-16
Stock #
115751
Year
Not specified
Condition
Used
Location
Not specified
|

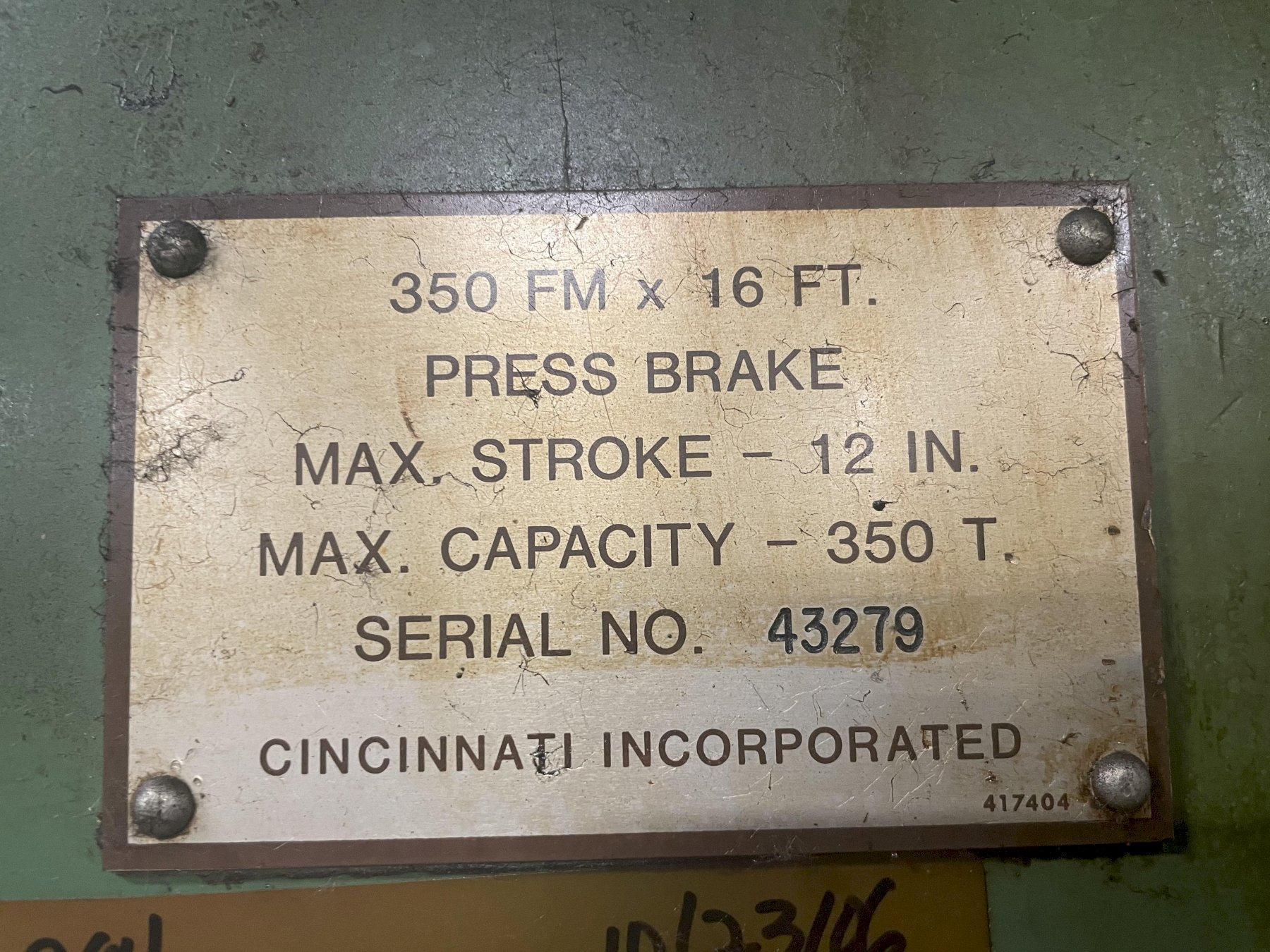

SERIAL ....................... 43279
YEAR NEW ..................... 1980
MODEL ........................ 350FM X 16
CAPACITY ..................... 350 TON
OVERALL LENGTH OF BED & RAM .. 18'
DISTANCE BETWEEN HOUSING ..... 16'9"
STROKE OF RAM ................ 12"
OPEN HEIGHT .................. 20"
CLOSED HEIGHT ................ 8"
THROAT ....................... 18"
TOP & BOTTOM FLANGES ......... BOLT ON, REMOVABLE
TOP FLANGES .................. 16' LONG X 27" WIDE
BOTTOM FLANGES ............... 16' LONG X 30" WIDE
RAM SPEEDS ................... 64 IPM FAST PRESS
RAM SPEEDS ................... 27 IPM PRESSING
RAM SPEEDS ................... 51 IPM RETURN
TOP RAIL DIE CLAMPS .......... YES
LIGHT CURTAINS ............... YES
ELECTRIC FOOT PEDAL .......... YES
DUAL PALM BUTTONS CONTROLS ... YES
E-STOP BUTTON ................ YES
MOTOR ........................ 40 HP
|
