36" (915mm) X 4" (102mm) Ruesch Slitting Line (14162)

Manufacturer: Ruesch Machinery Co. (USA)
Our Stock No. 14162
Type: Complete Slitting Line with Uncoiler, Head, Recoiler,
Scrap Winders and Tooling
Previous Gauge Range: .060" (1.5mm) - .008" (0.2mm)
Direction of Travel: Right to Left

Payoff
Type: Expanding Mandrel
ID. Range: 12" (305mm) - 16" (406mm)
Mandrel Face Width: 37-1/2" (952mm)
Feed-up Drive Motor

Slitter Head
Entry Pinch Rolls
Entry Strip Side Guides: Roller Type
Electric Eye Strip Edge Guide System
Arbor Adjustment: Single Handwheel
Drive up Feed Motor for Strip Entry
Tooling included

Take-Up
Type: Expanding Mandrel with Gripper Slot
I.D. Range: 15-1/2"/16" (394mm/406mm)
Mandrel Width: 40" (1016mm)
Motor: 50 HP, 208/220-440 Volt, 1780 RPM
Hydraulic Coil Pushoff
Two Arm Turnstyle: 44" (1117mm) Long Arms

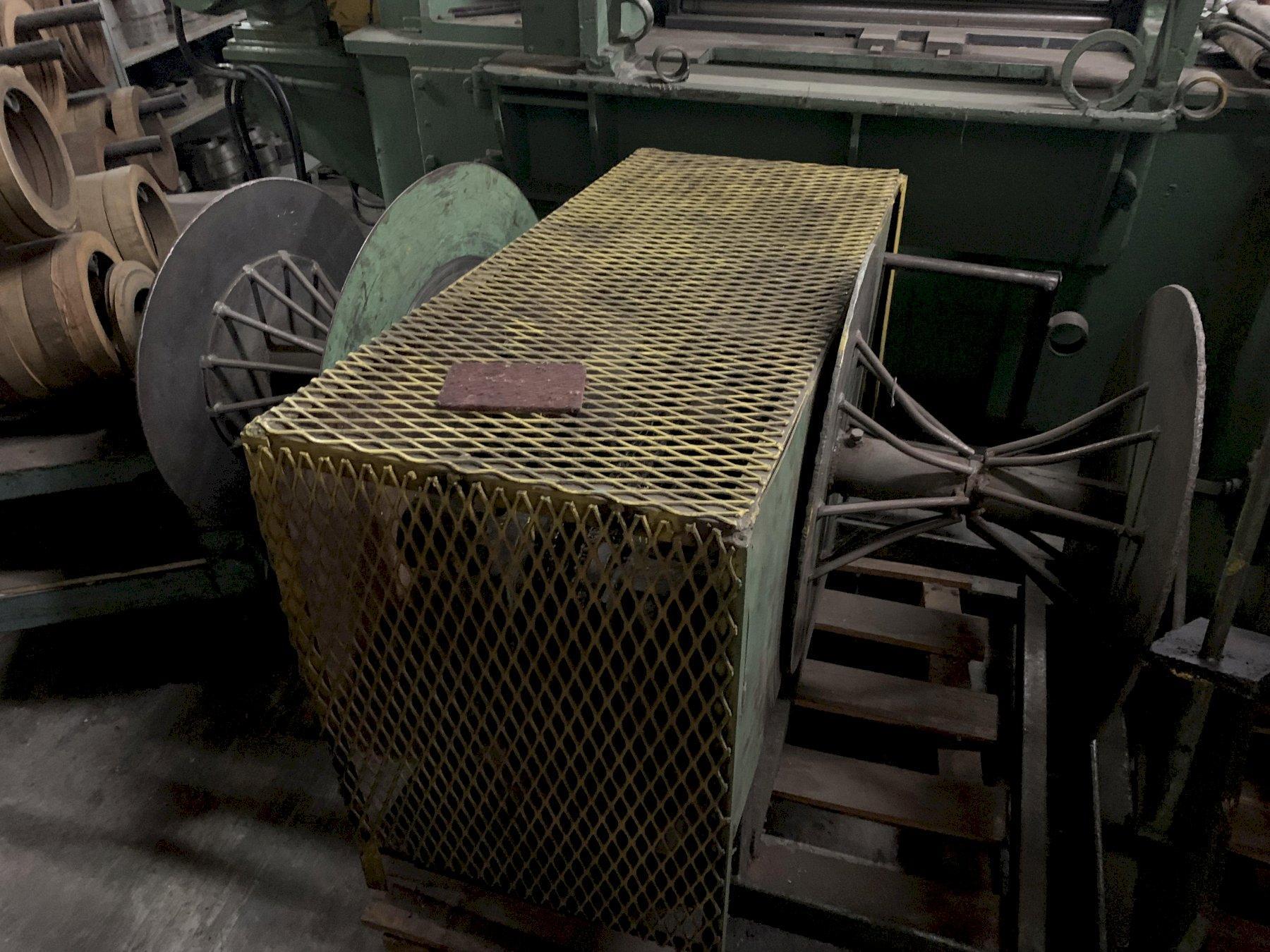

Dual Scrap Winders

Machine is in Storage
