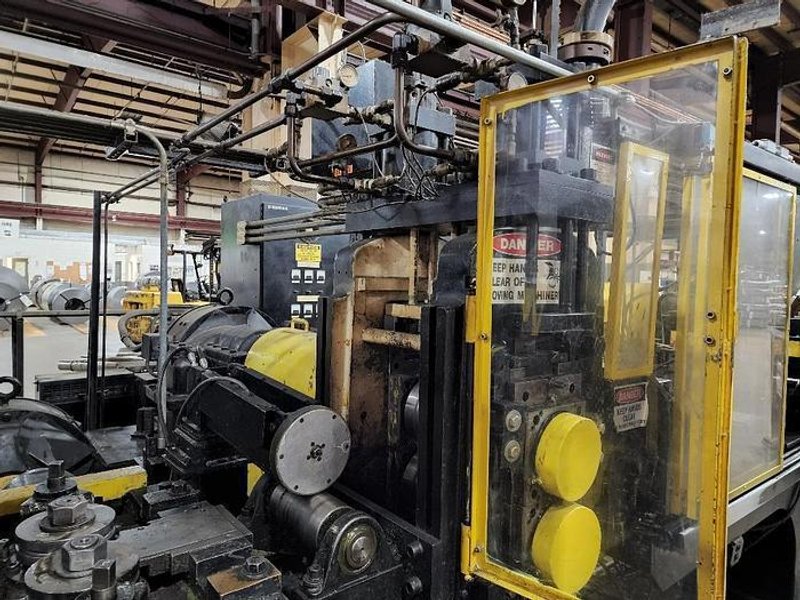

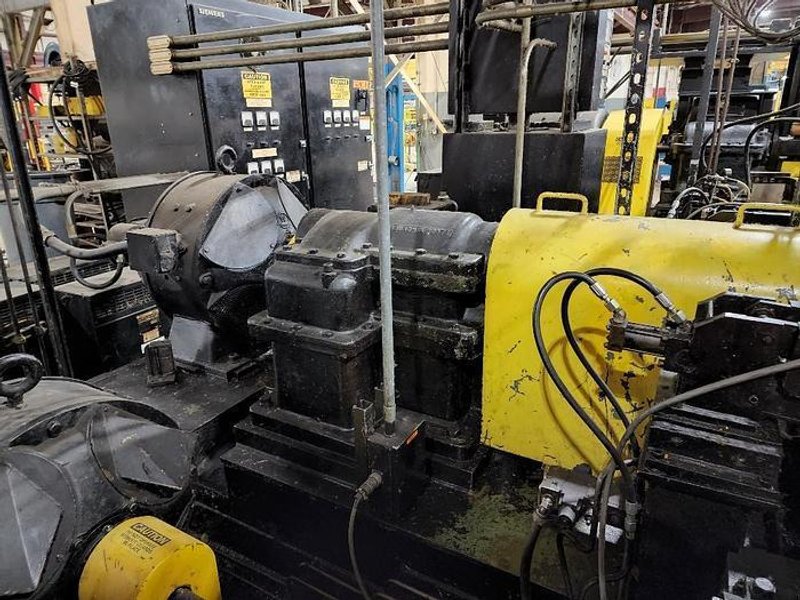

8" x 8" Torrington 2 High Rolling Mill Hydraulic Screw Down with Edging, Stock #14168
Brand
Category
Type
Model
2 HIGH ROLLING MILL W/EDGER
Stock #
14168
Year
Not specified
Condition
Not specified
Location
Not specified
| Max Width Workpiece | 8 inches |
| Max Roll Dia. | 8 inches |
| CNC Control | yes |
|

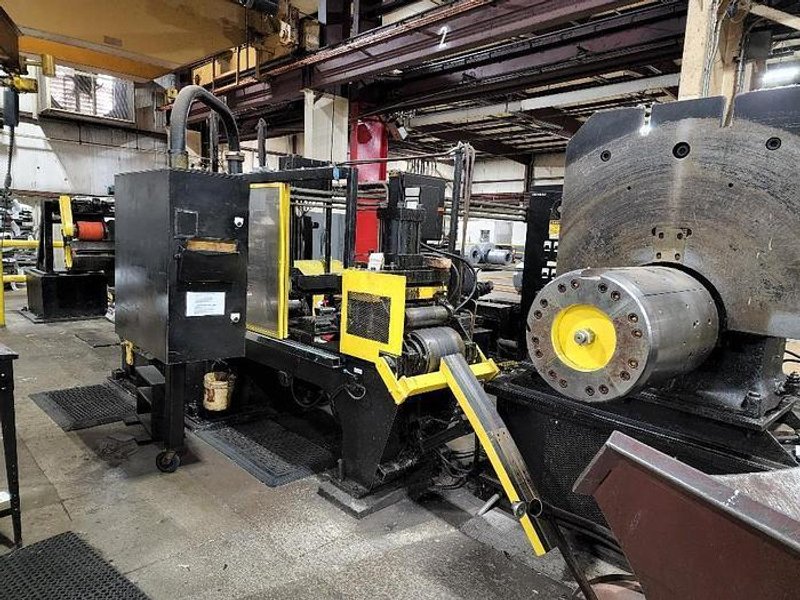

8" x 8" Torrington 2 High Rolling Mill with Edging

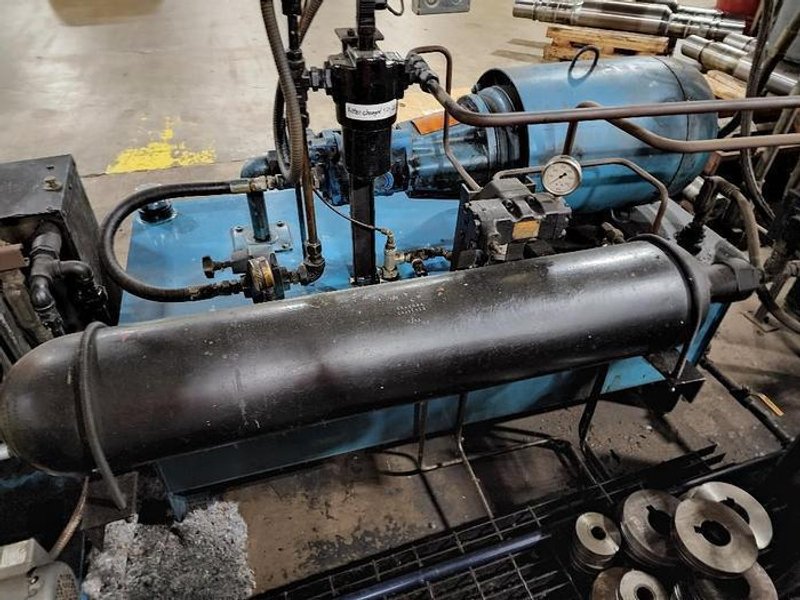

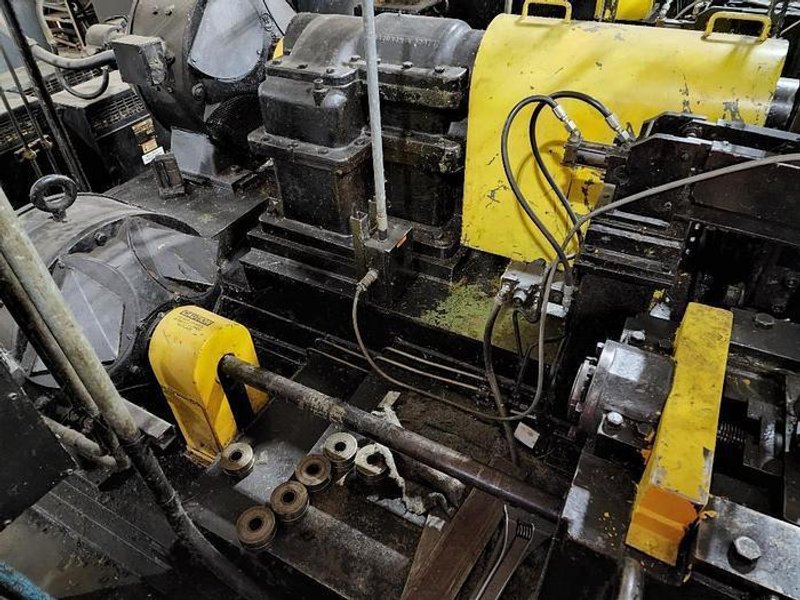

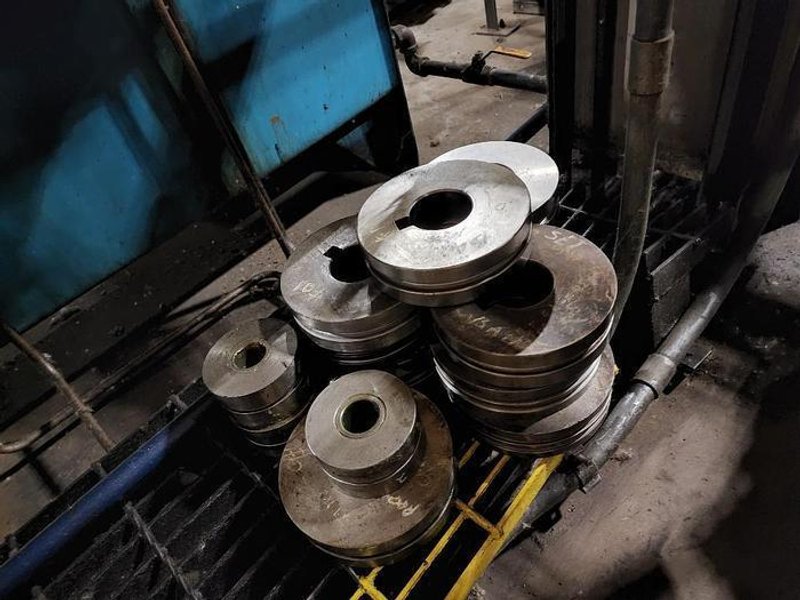

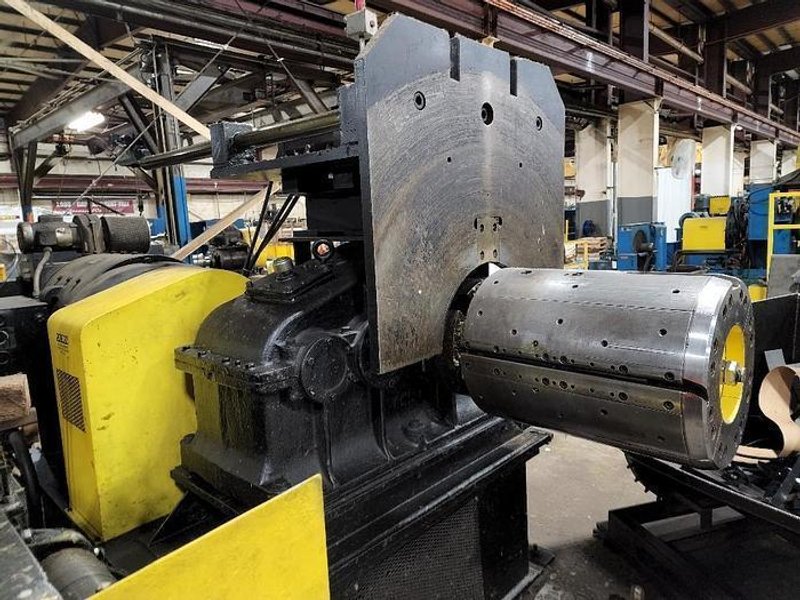

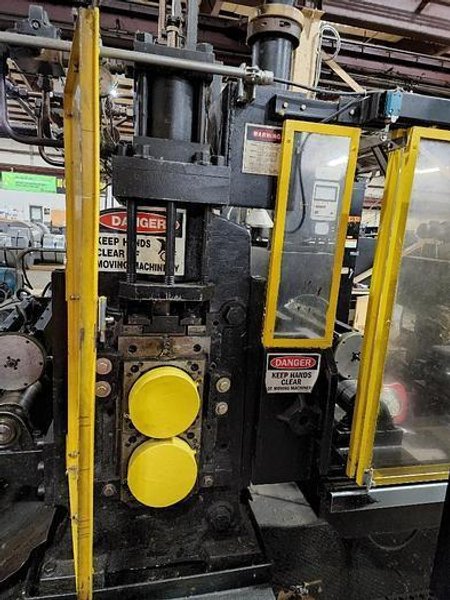

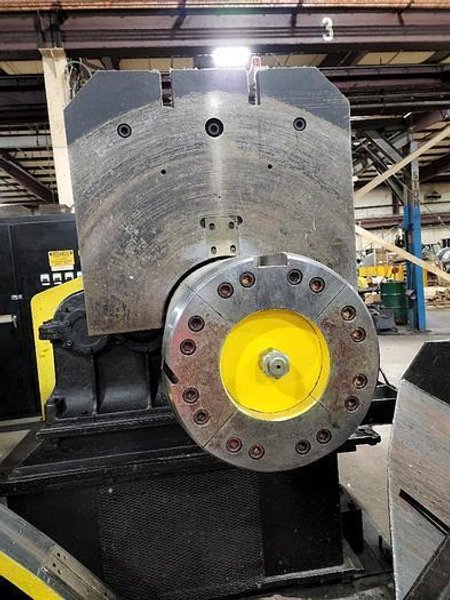

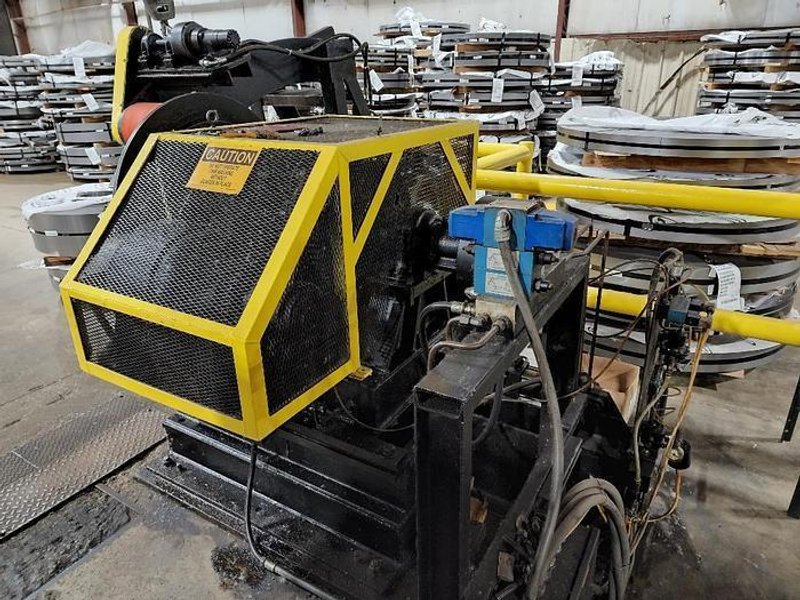

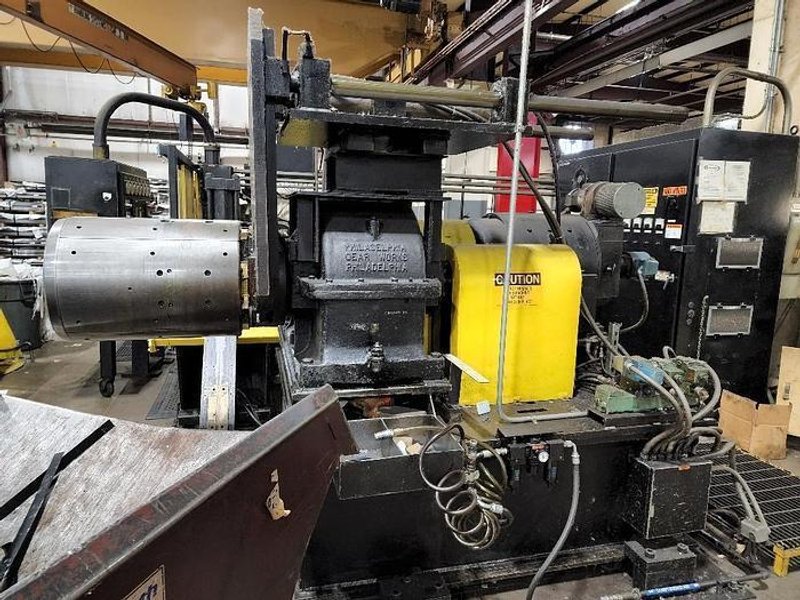

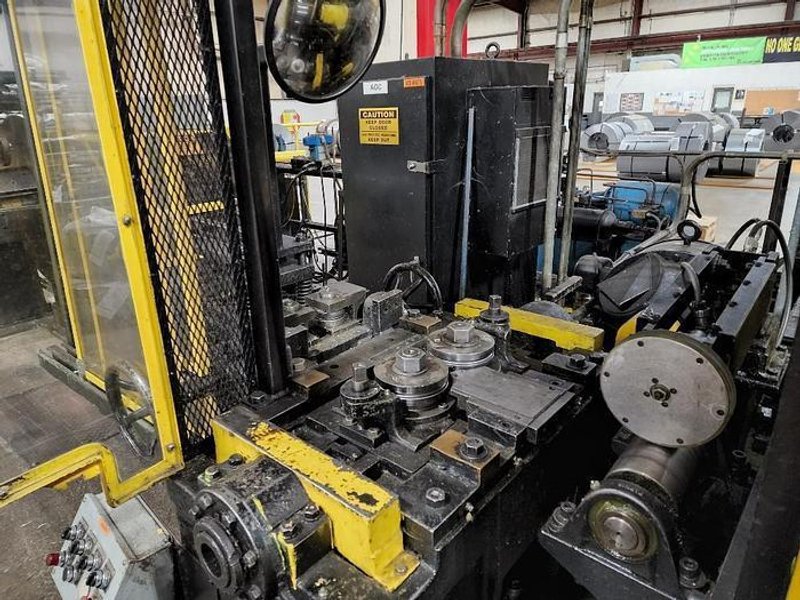

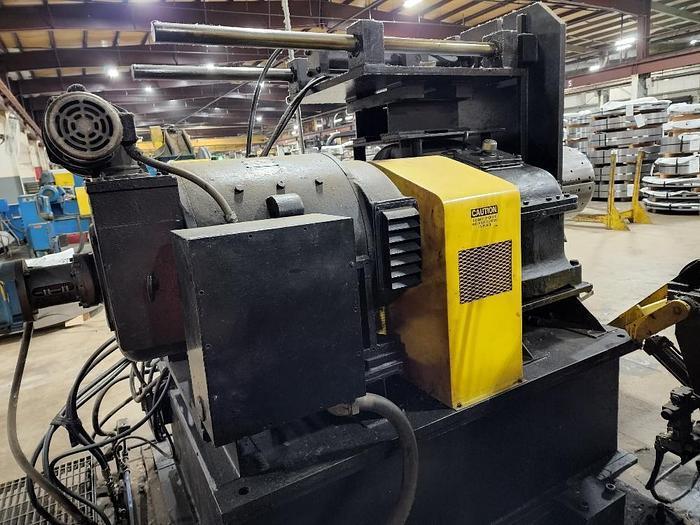

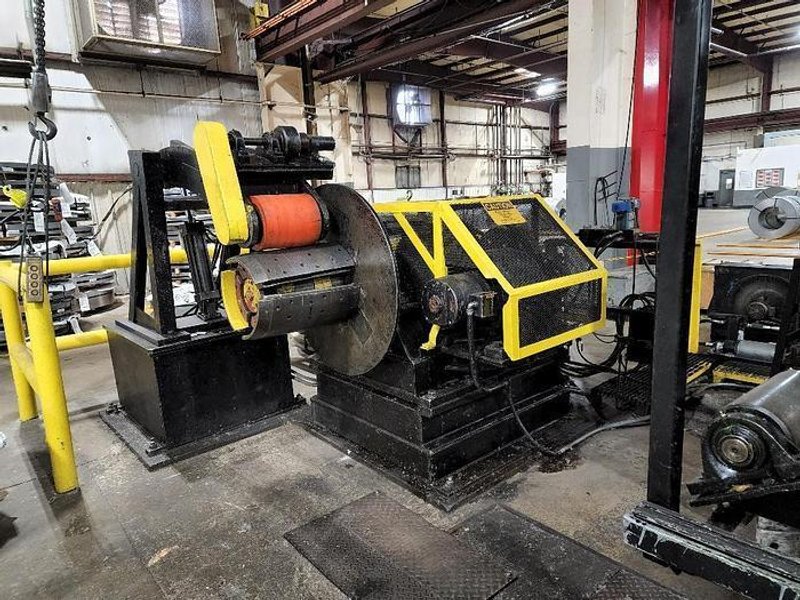

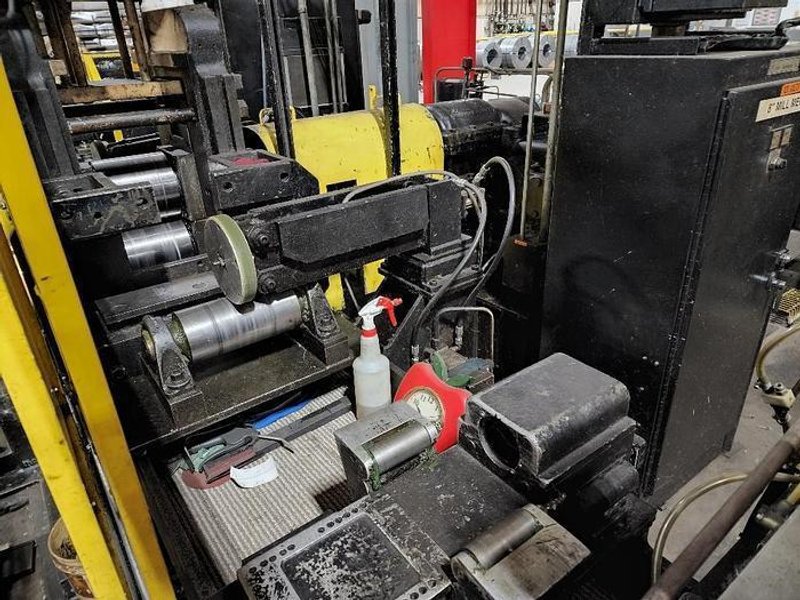

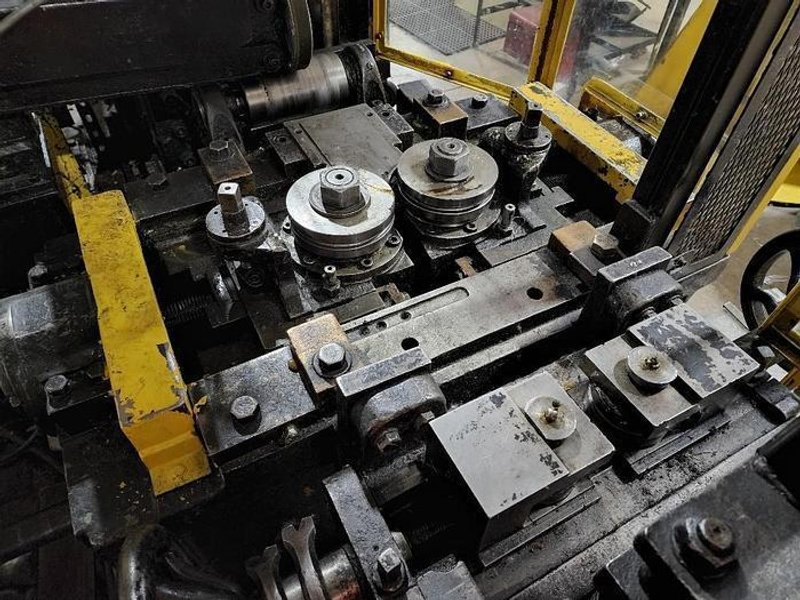

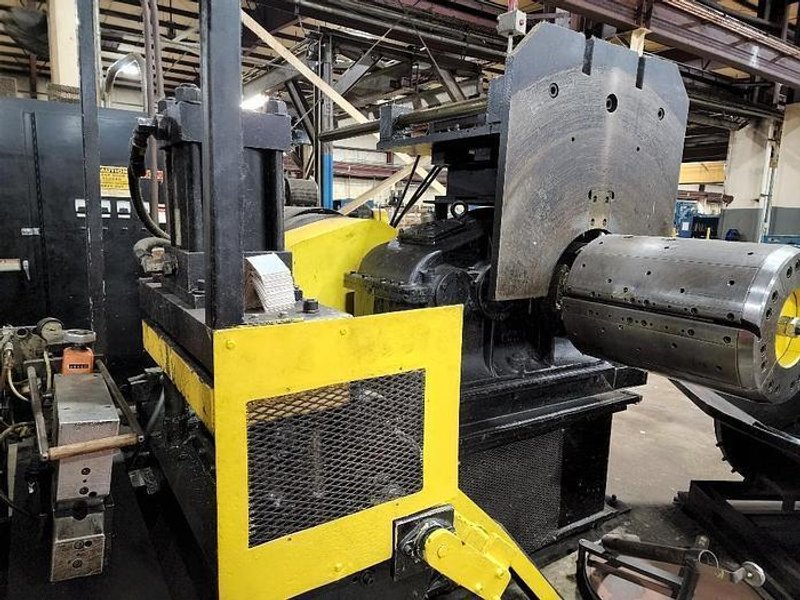

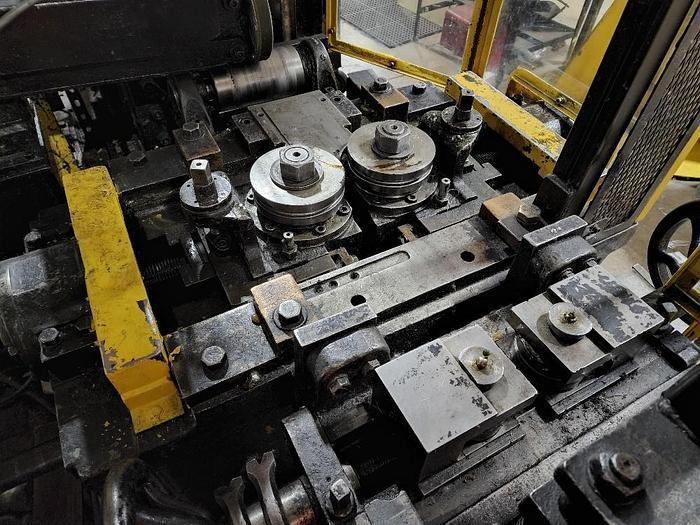

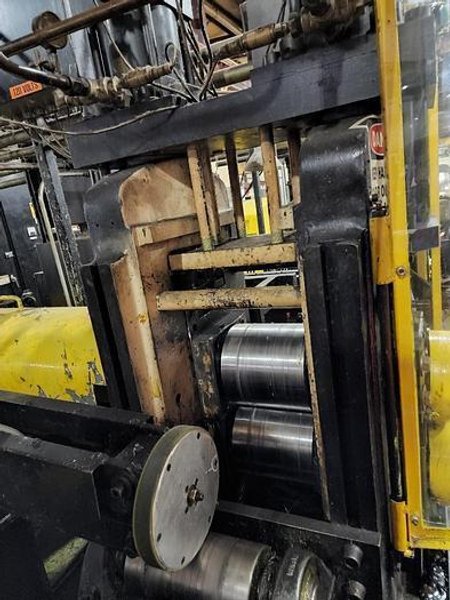

Stock # 14168 General Specifications: 8” Wide 6000 Lbs. MAX Coil 20” ID - 72” Max OD on Recoiler 20” Min. ID on payoff Gauge Range .020”/.310” Width Edging 1 – 4” Width Rolling 1 – 4” Edging #5 Deburred to #4 Full Round Line Direction: Left to Right Line Includes: Uncoiler 20" Wide Drum Face Collapses to 16" Expands out to 21" Free Standing Hold Down Feed Up Gear Motor with Chain & Sprocket Drive to Main Shaft Linkbelt, 3-hp, 1750-rpm, 208-220/440-volts, 9/4-amps, Hydraulic Expansion Air Brake Edging Stands 2 Edging Passes with Edging Dies Motorized Open & Close on Main Edging Dies Westinghouse, 20/25-hp, 740/1800-rpm, arm volts-230, arm amps-74/92, Mill Stand - 2-HI 8" Wide Rolls x 8" Diameter Rolls Hydraulic Screwdowns 40 HP AC Westinghouse Motor, 500/1500-rpm, arm volts-230, arm amps-145 on Mill Measuring Counting Unit Gauge Caliper Exit Shear, Hydraulic Downcut Recoiler 24" Wide 20" Diameter Drum 30 HP DC Motor, 400/1600-rpm, arm volts-250, arm amps-105, Recoiler blower - Baldor, .33-hp, 3450-rpm, 115/206-230-volts, 6/3.2-3-amps, Also Includes: Hyd. unit - Lincoln, 30-hp, 1760-rpm, 230/460-volts, 74/37-amps, Heat exchanger fan - Baldor, 1/8-hp, 1140-rpm, 115/208-230-volts, 4.6/2.4-2.3-amps, Heat exchanger pump - Baldor, 2-hp, 1725-rpm, 206-230/460-volts, 6.5-6.2/3.1-amps, **Temporary Specifications Subject to Revisions** **PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE** **ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION** |
|
