12" (305mm) X 2-5/8" (66mm) Torrington Slitting Line (14147)
Manufacturer: Torrington Machinery Co. (USA)

STOCK NO. 14147

Arbor Dia.: 2-5/8" (66mm)
Arbor Width: 18" (457mm)
Note: Limiting Factor of Strip Width is 12" (66mm) Wide Payoff
Status: Currently in Operation

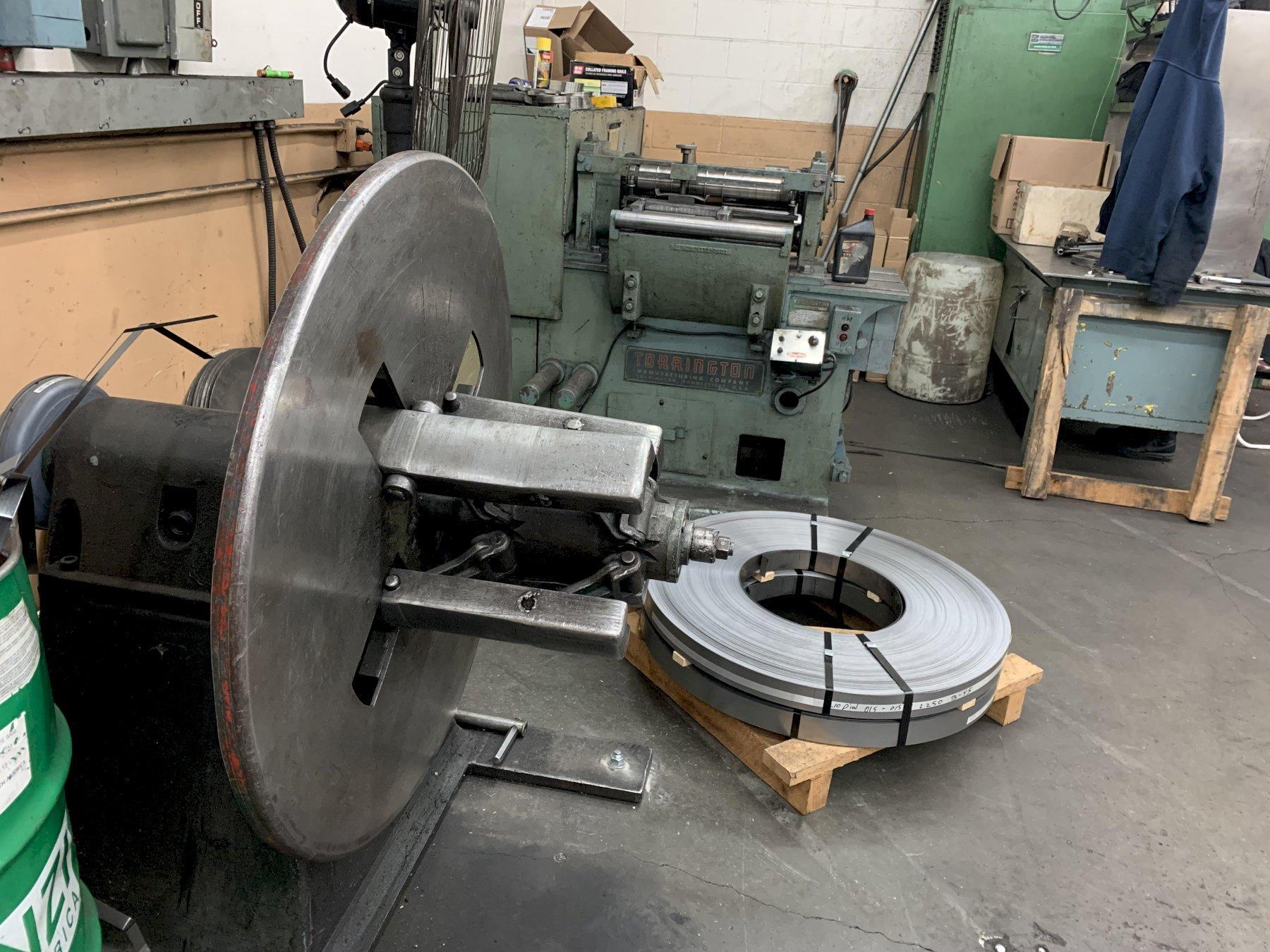

PAYOFF
Manufacturer: Littel Machinery Company (USA)
Type: Non-Driven with Brake for Back Tension
I.D. Range: 12" - 16" (305-406mm)
I.D. Adjustment: Manual
Face Width: 12" (305mm)

SLITTER HEAD
Manufacturer: Torrington Machinery Co. (USA)
Entry Guide Roll
Manual Side Guides for Strip
Entry Strip Wiper
Wrench Arbor Adjustment
Arbor Width: 18 (457mm)
Arbor Diameter: 2-5/8" (66mm)

TAKE-UP
Type: Driven with Slitter Head
Horsepower: Unknown
Block Diameters: Interchangeable in various diameters

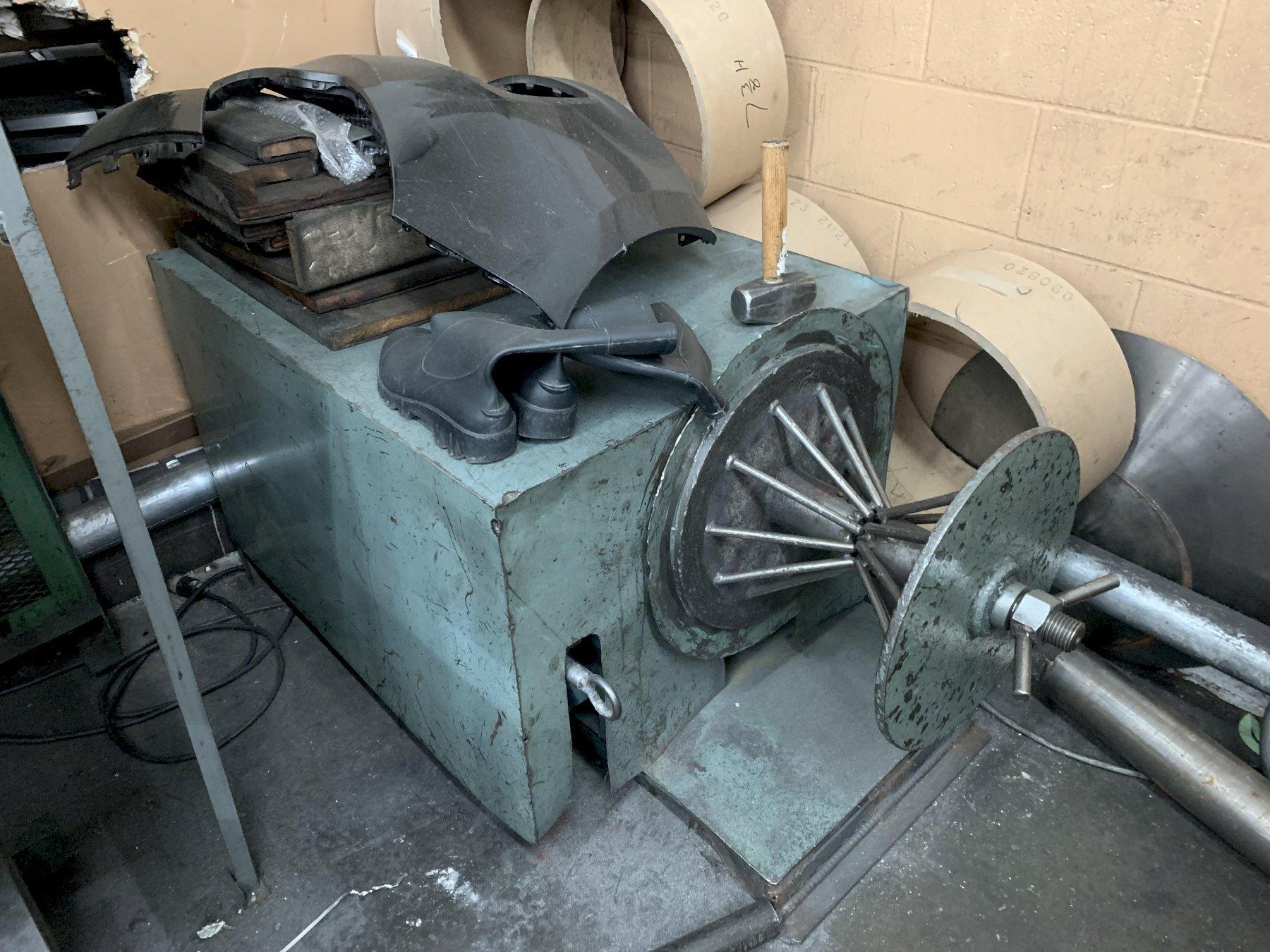

Scrap Winder
Direction of Travel: Left to Right

NOTE: Line can accommodate up to 18" Wide Strip by replacing
the 12" Wide Payoff

**Temporary Specifications Subject to Revisions**

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
