18" (457mm) X 2-7/8" (73mm) Waterbury
Farrel No. 2 Slitting Line (14146)

STOCK NO. 14146

Manufacturer: Waterbury Farrel Foundry (USA)
Model: No. 2 Gang Slitter
Arbor Diameter: 2-7/8" (73mm)
Arbor Width: 18" (457mm)
Status: Currently in Operation

PAYOFF
Manufacturer: JACO
Type: Expanding Mandrel
Type Expansion: Manual
Mandrel Width: 18" (457mm)
Mandrel I.D. Range:
3 Arm Holding Plates

SLITTER HEAD
Manufacturer: Waterbury Farrel Foundry (USA)
Model: No. 2
Arbor Size: 2-7/8" Dia. (73mm)  X 18" (457mm) Width
Drive Motor: 15HP Variable Speed
Motor Controls: Speed Stat II
Entry Strip Wiper
Manual Side Guides
Single Handwheel Arbor Adjustment
2 Roll Exit Tension Rolls
Direction of Travel: Left to Right

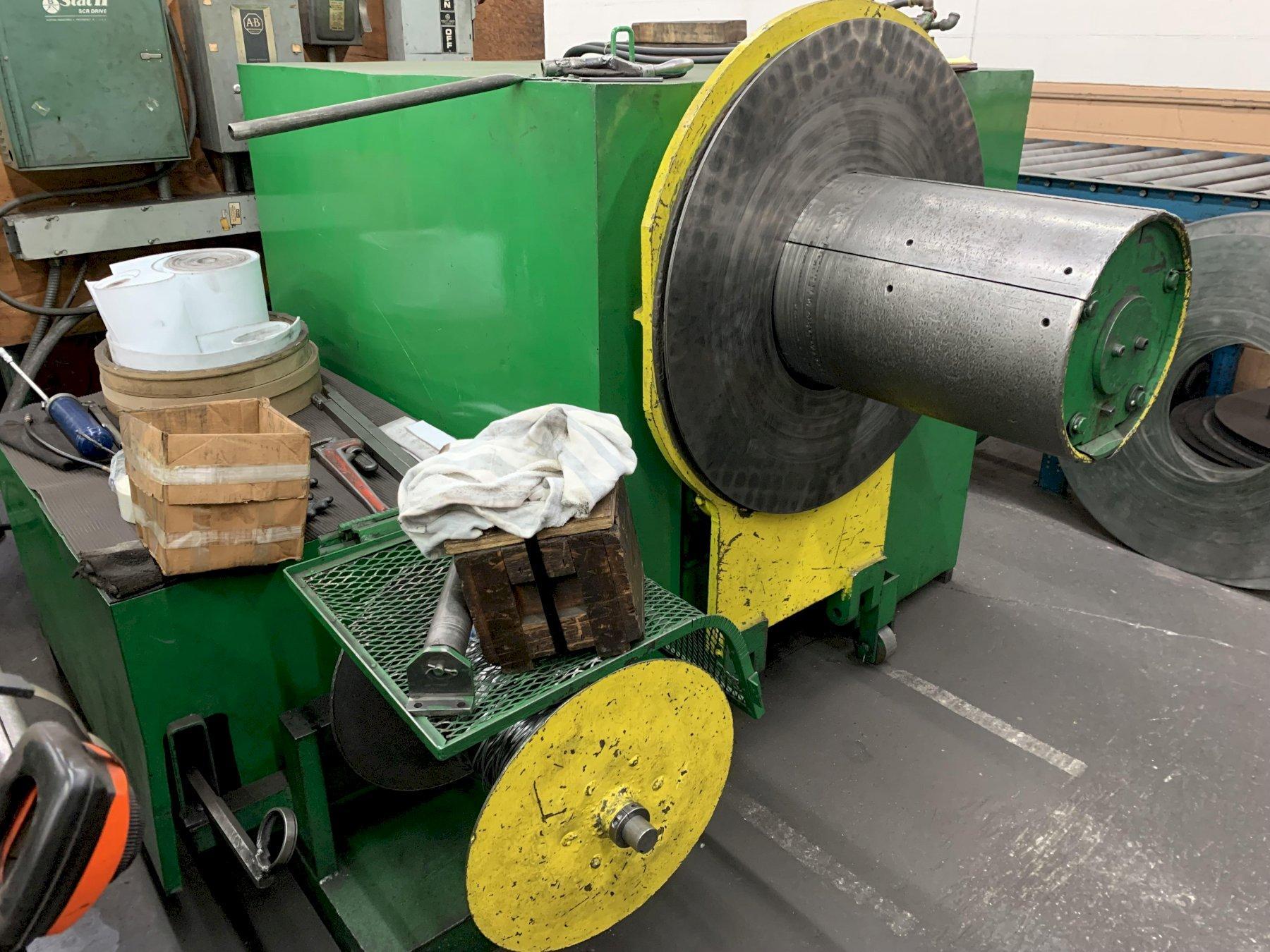

TAKE-UP
Type: Solid Block with Gripper slot
Block Size: 15-1/2"/16" I.D. X 21" Wide Face
Separator Disks
Coil Pushoff
Scrap Winder
Drive Motor: (50HP (est.) Variable Speed
Controls: Speed Stat II

Tooling Included

**Temporary Specifications Subject to Revisions**

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
