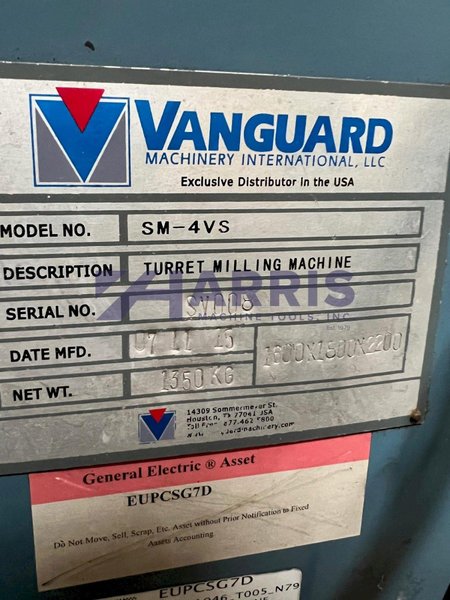

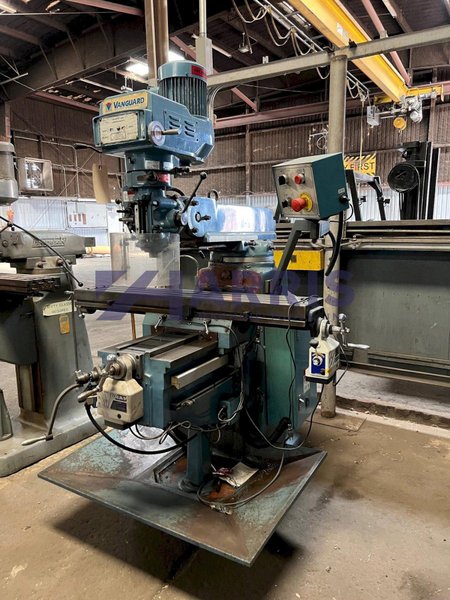

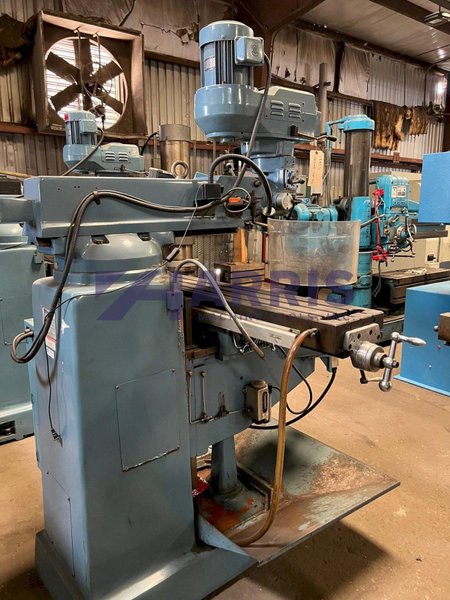

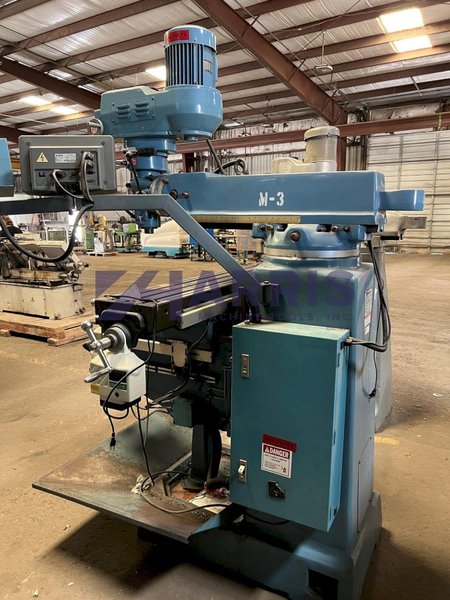

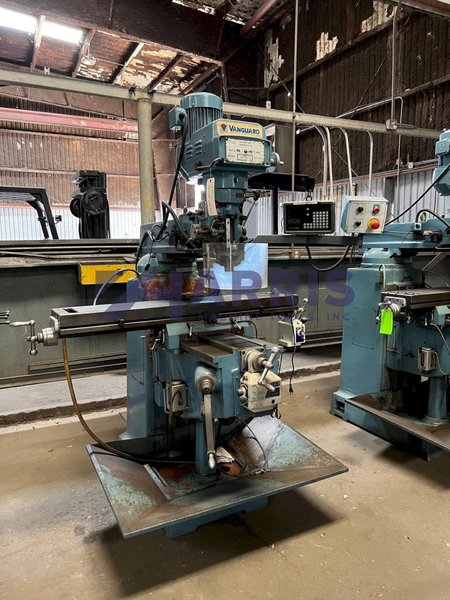

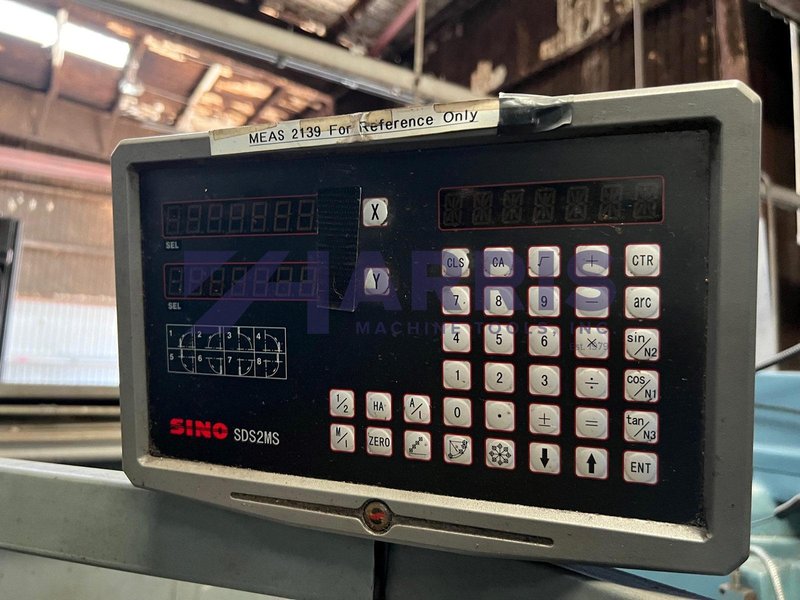

Used, Vanguard SM-4VS Vertical Milling Machine

Brand
VANGUARD
Category
Milling Machines
Type
Knee Mills
Model
SM-4VS
Stock #
19953
Year
Not specified
Condition
Used

Location

Texas
REQUEST FINANCING
Table Size: 54" x 10"
Table Longitudinal Travel: 36"
Table Cross Travel: 16-1/2"
Knee Vertical Travel: 16-1/2"
Spindle Speeds: 60 - 4200 RPM (VAR.)
Spindle Taper: R-8
Quill Travel: 5"
Quill Diameter: 3-3/8"
Quill Feed Rates: 0.0015, 0.003, 0.006 IPR
Ram Travel: 22-3/4"
Milling Head Tilt (F-B): +/- 45 Deg.
Milling Head Swivel (L-R): +/- 90 Deg.
Table to Spindle Distance: 0" - 16-1/2"
Column to Spindle Distance: 4" - 27"
Spindle Motor: 3 HP
OAD (Approximate): 79" x 67" x 96" High
Weight (Approximate): 3,000 lbs.
Equipped With:

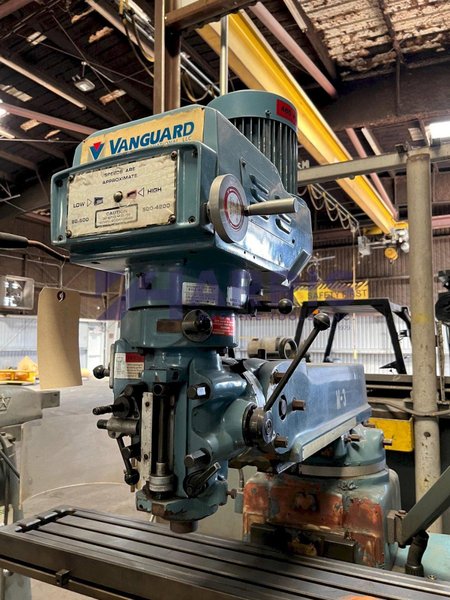

Variable Speed Head

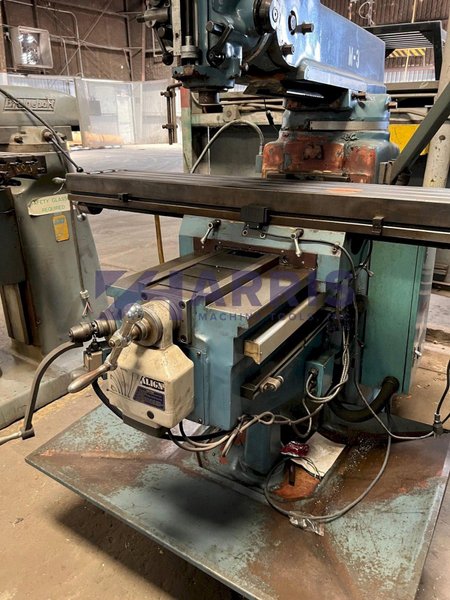

Power Table Feed (Longitudinal and Cross)
Power Knee Elevation
Power Draw Bar
Way Covers
Coolant System
Box Ways
Splash Pan Base

Note: All Specifications Subject to Verification
No files or videos to display

Want to request a quote from the owner of this listing?

Similar Listings to - Used, Vanguard SM-4VS Vertical Milling Machine
Trak DPM V5 3-Axis CNC Mill, 2005 – 50″ X 12″, Prototrak VM Control, USB, Coolant
TRAK

Knee Mills
BRIDGEPORT VERTICAL MILLING MACHINE WITH PROTRAK EMX 2-AXIS CONTROL WITH 3-AXIS DIGITAL READOUT
BRIDGEPORT

Knee Mills

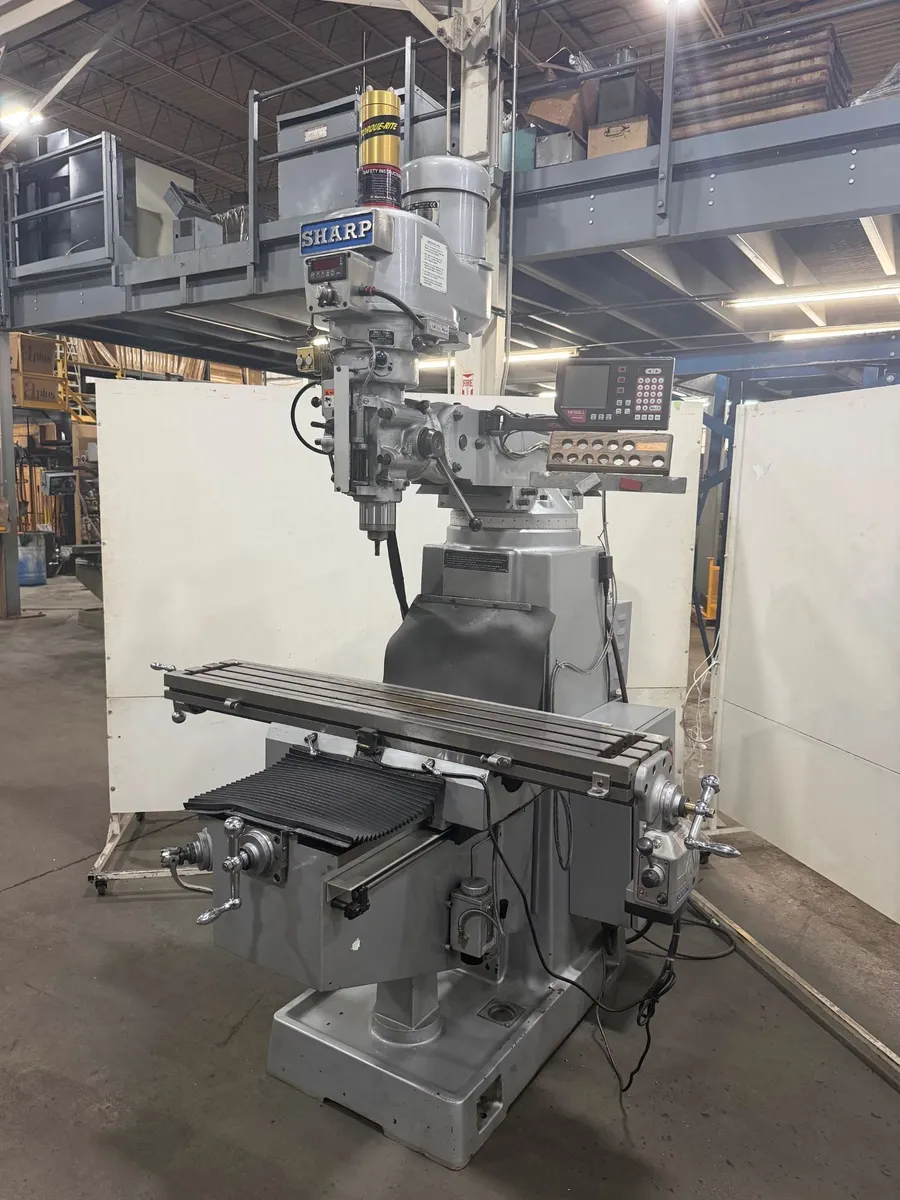

2009 Sharp TMV with 3 Axis Act-Rite MILLPWR CNC Control Vertical Mill Very low hour and usage machine. Need to clear space for new CNC Mill. In excellent working condition and available for inspection.
