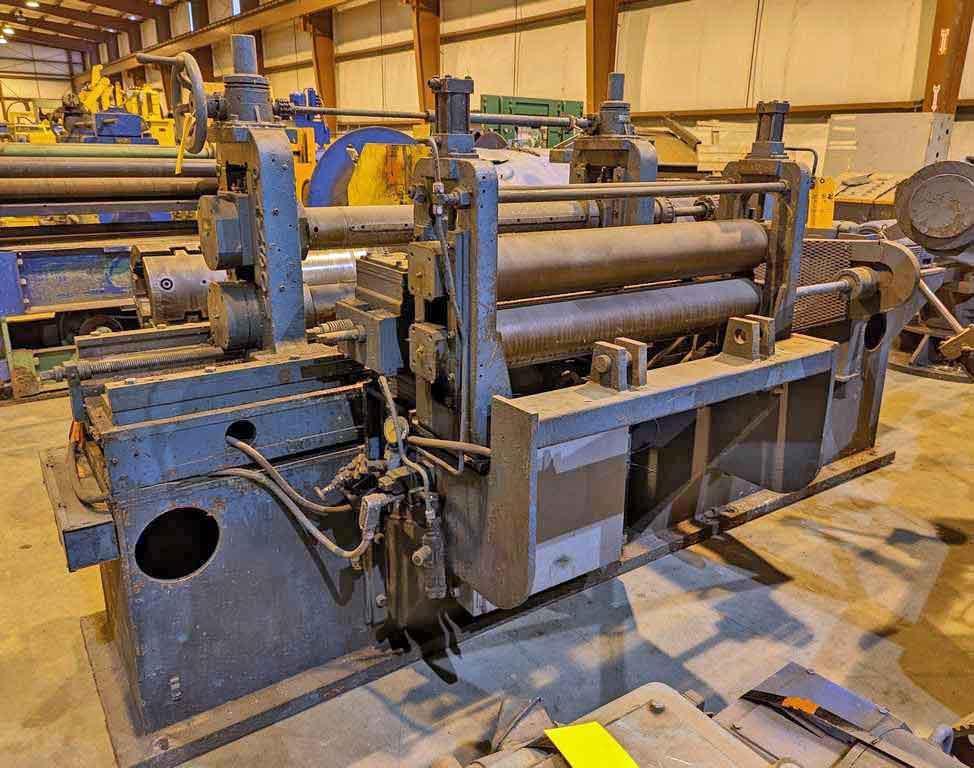

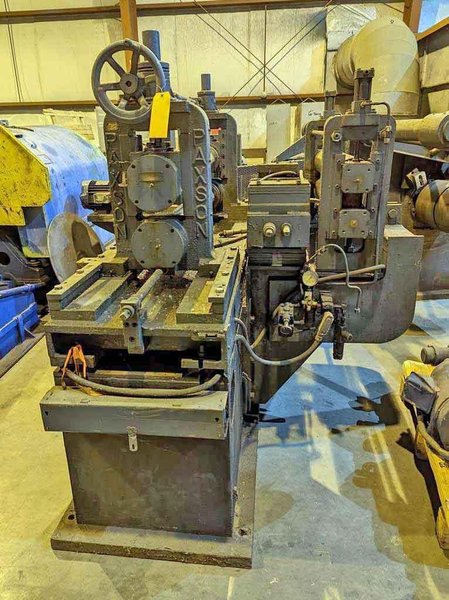

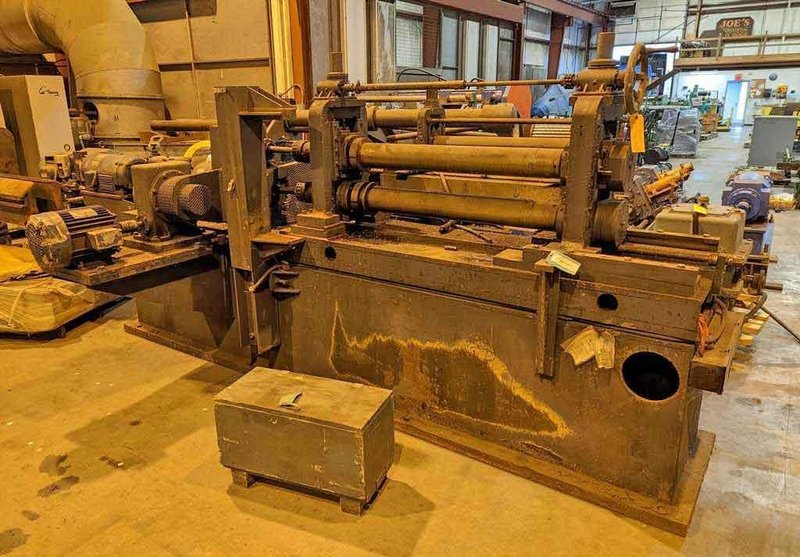

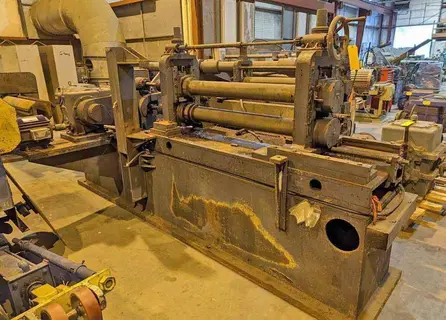

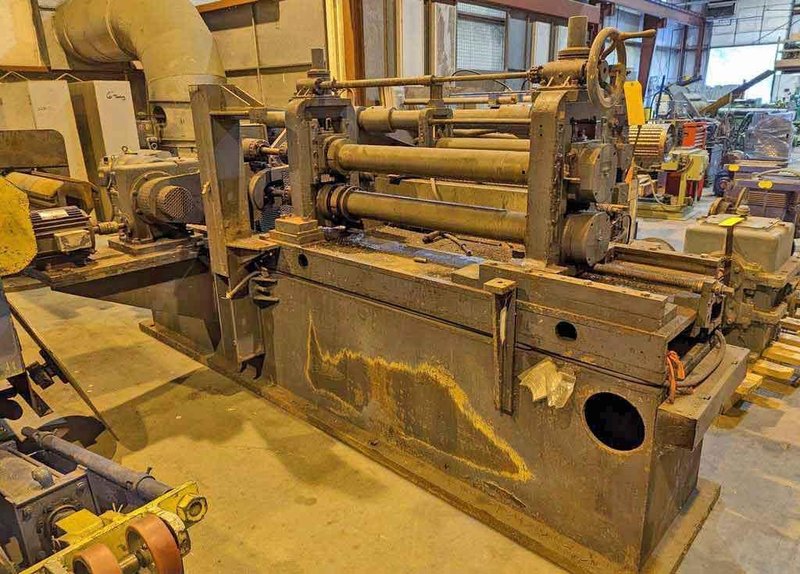

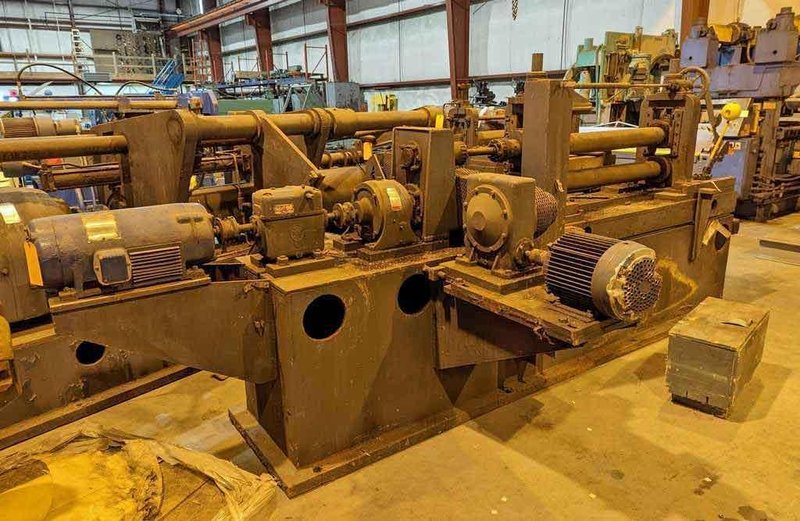

36" x 5.00" PAXSON SLITTER HEAD #3302
Brand
Category
Model
Not specified
Stock #
3302
Year
Not specified
Condition
Good
Location
Ohio
|
MAKE ..................................... PAXSON SLITTER HEAD

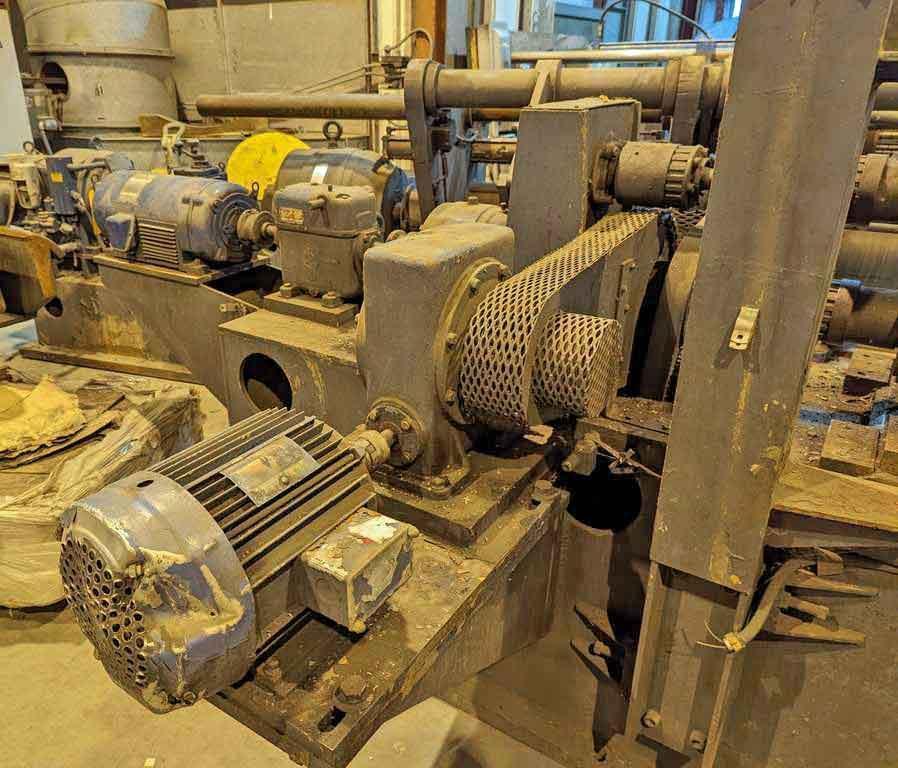

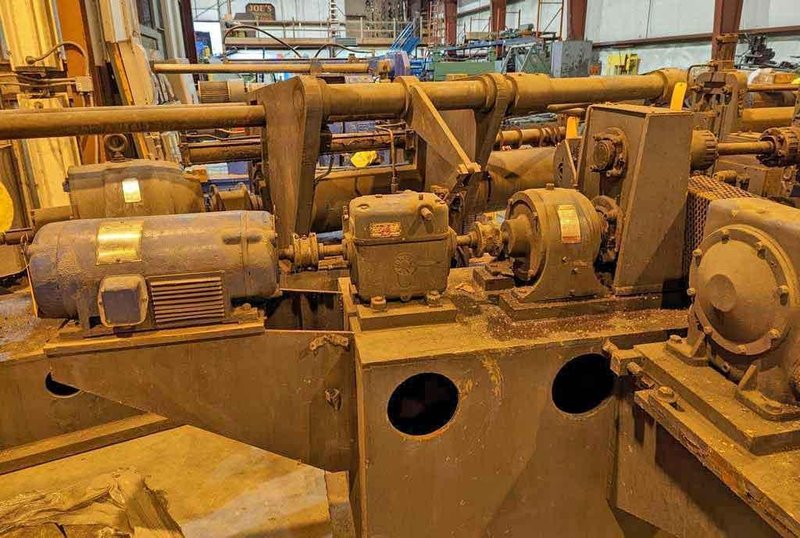

DIAMETER ................................. 5.00" INCHES FACE ARBORS .............................. 37" INCHES ENTRY DRIVEN PINCH ROLLS ................. YES ENTRY SIDE GUIDES ........................ YES ( MANUAL ADJUSTMENT) PARALLEL ARBOR ADJUSTMENT ................ YES AC MOTOR THREADING DRIVE ................. 7.5 HP 1745 RPM VOLTS .................................... 230/460 EATON DYNAMATIC AJUSTO SPEDE DRIVE ....... 5 HP 1755 RPM MODEL DAU 512 TRANSMISSION ............... 1:1 RATIO AND 3:1 RATIO LINE DIRECTION ........................... LEFT TO RIGHT OVERALL SIZE ............................. 180" INCHES LENGTH X 94" INCHES WIDTH X 78" INCHES HIGHT WEIGHT .............................................................. 12,000 LBS |
