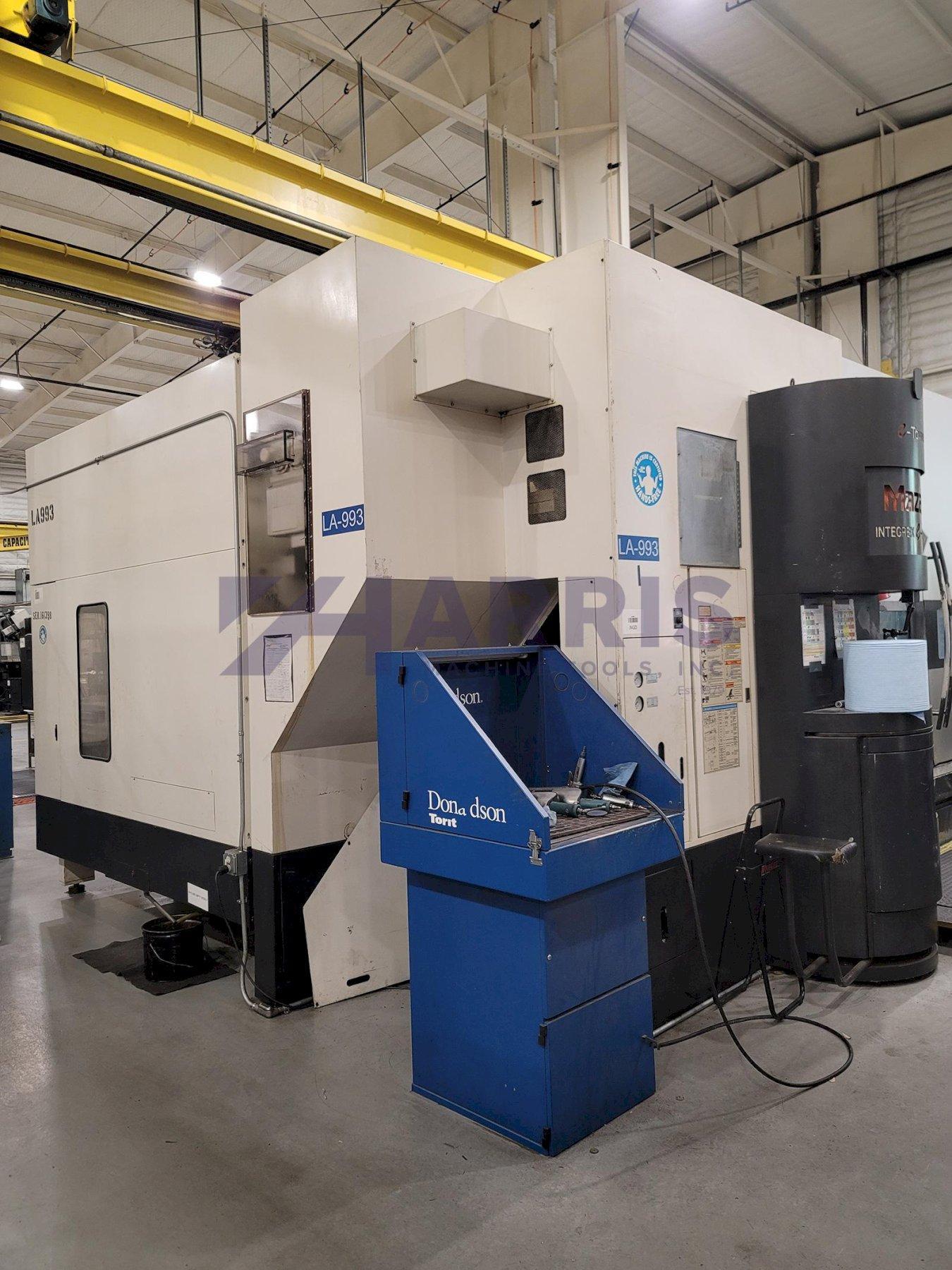

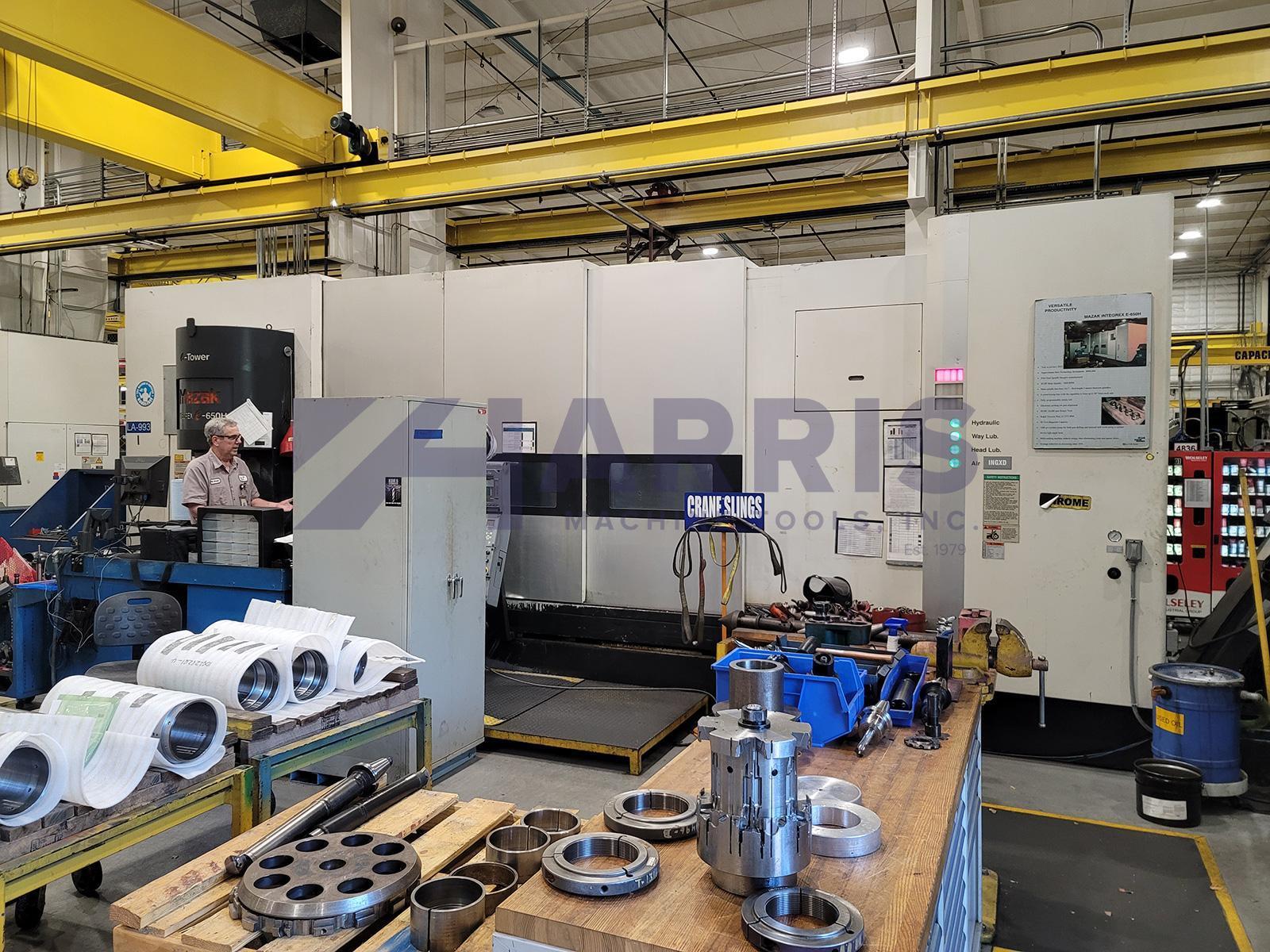

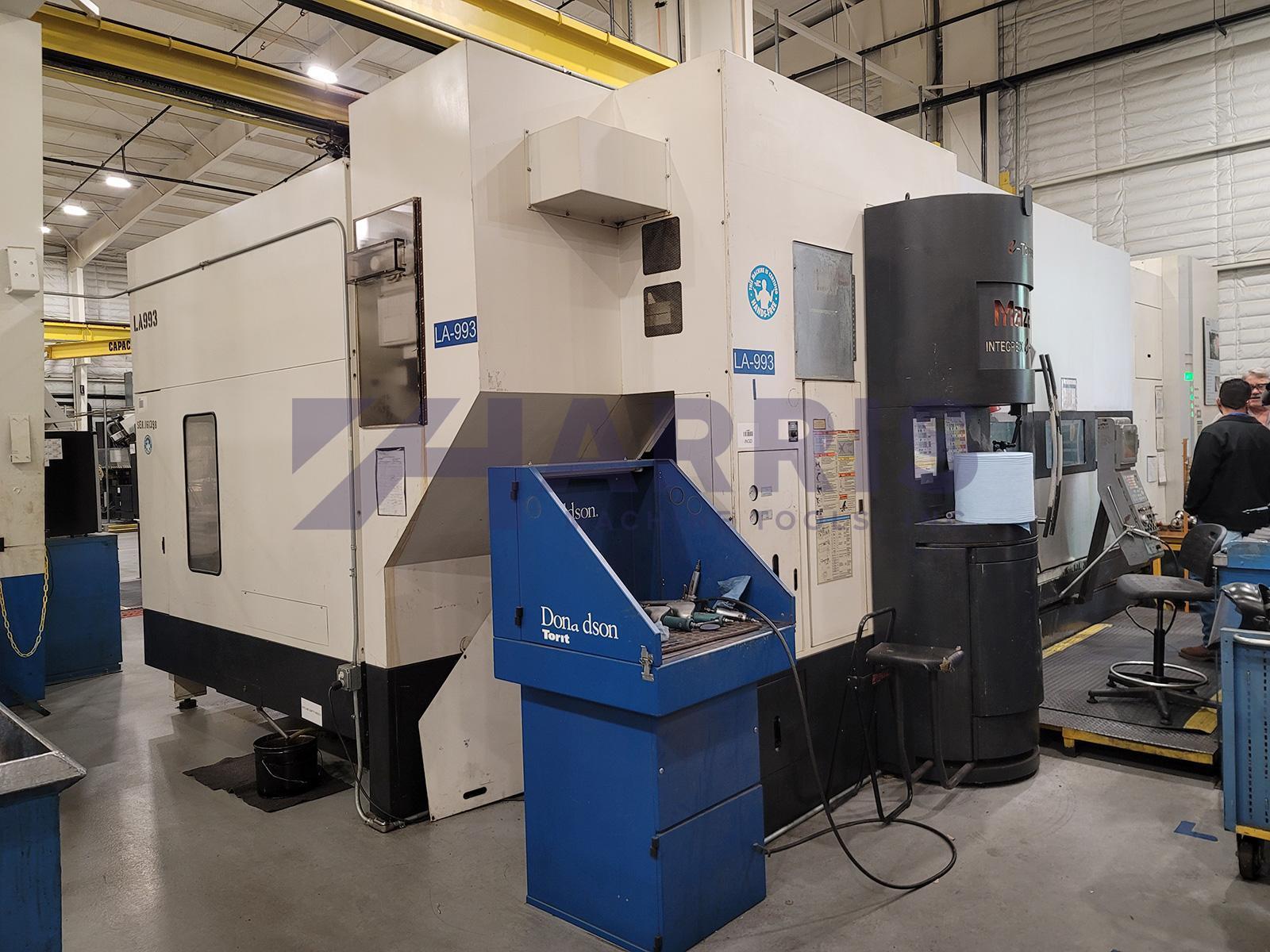

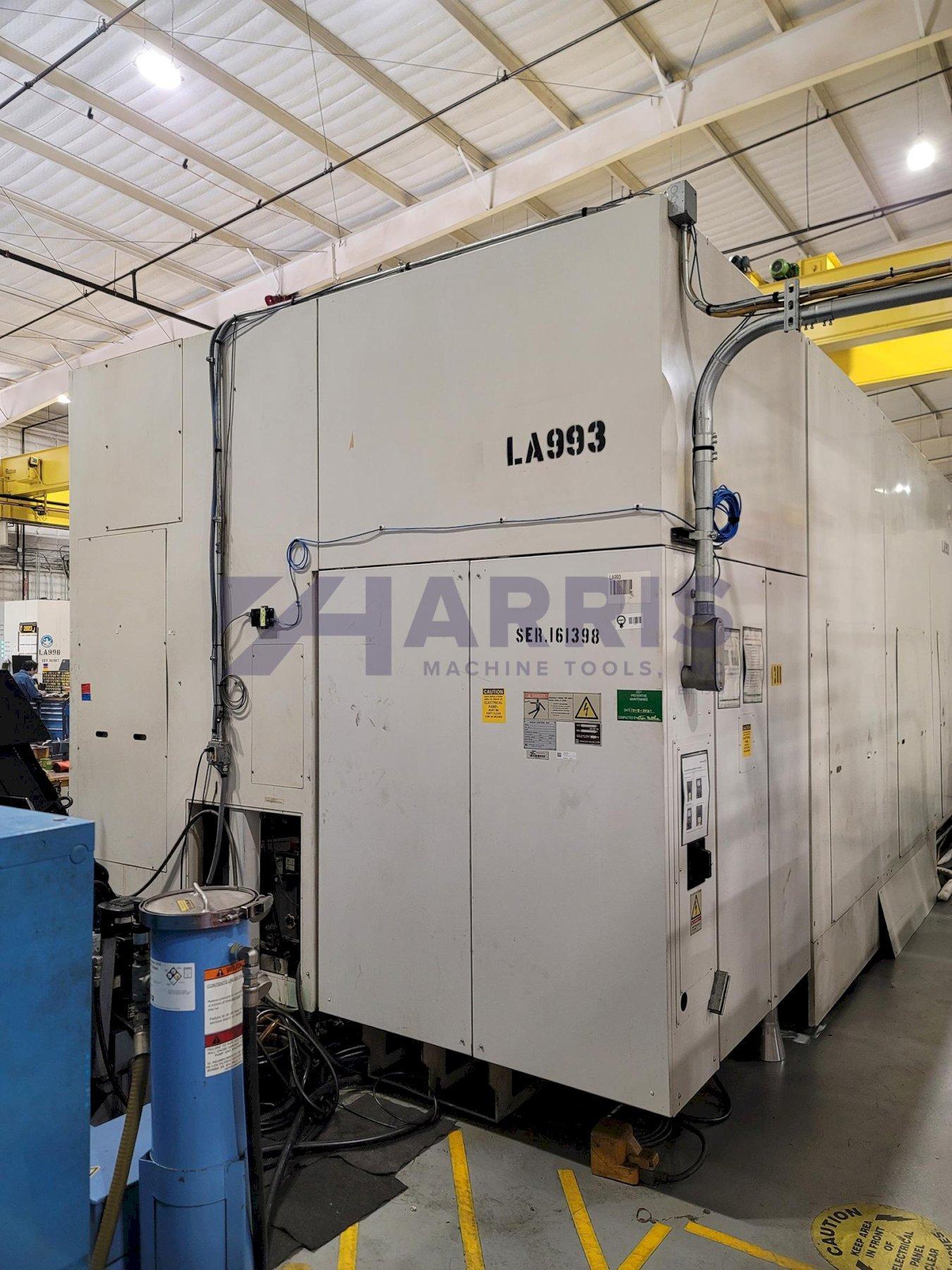

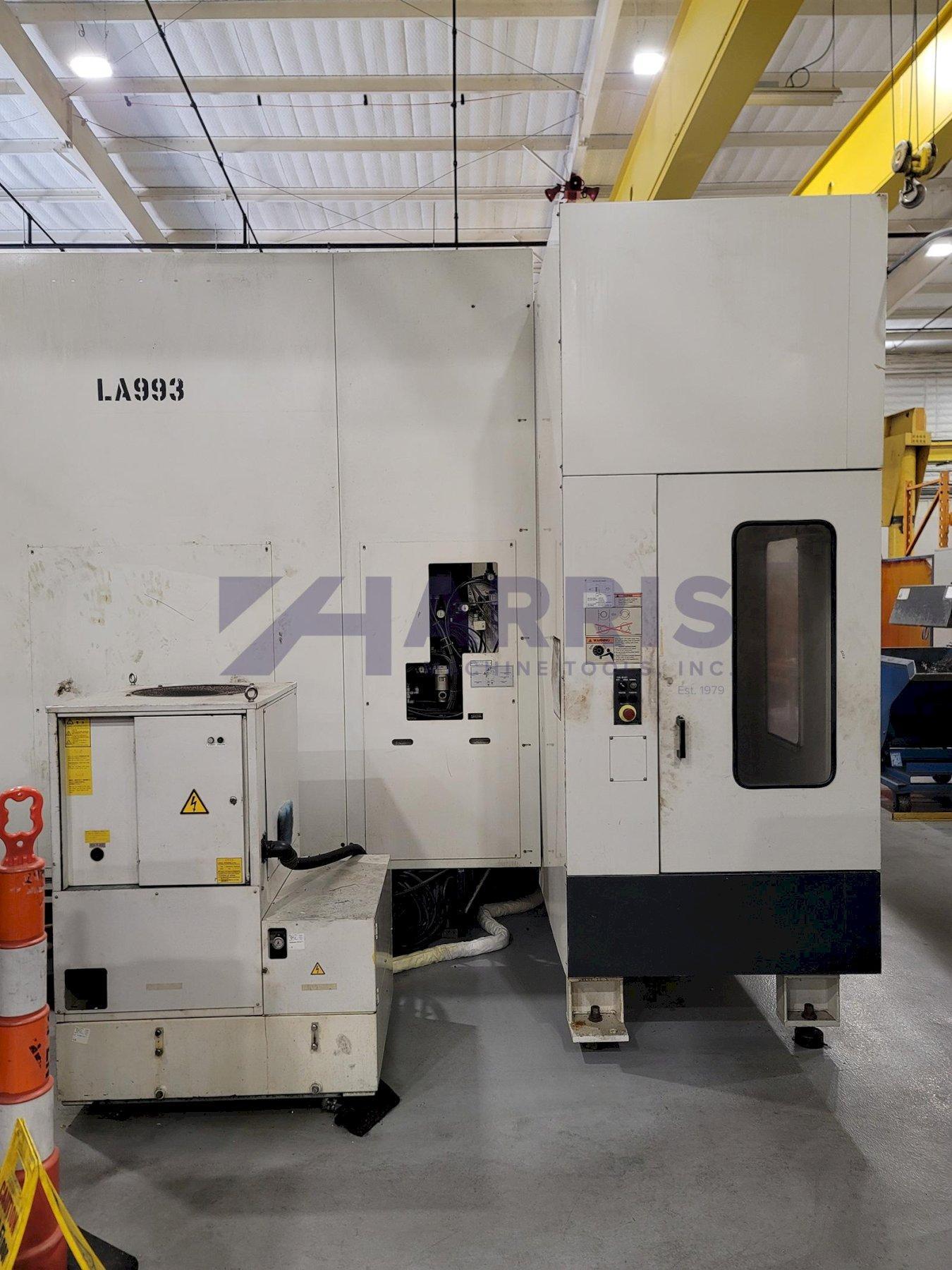

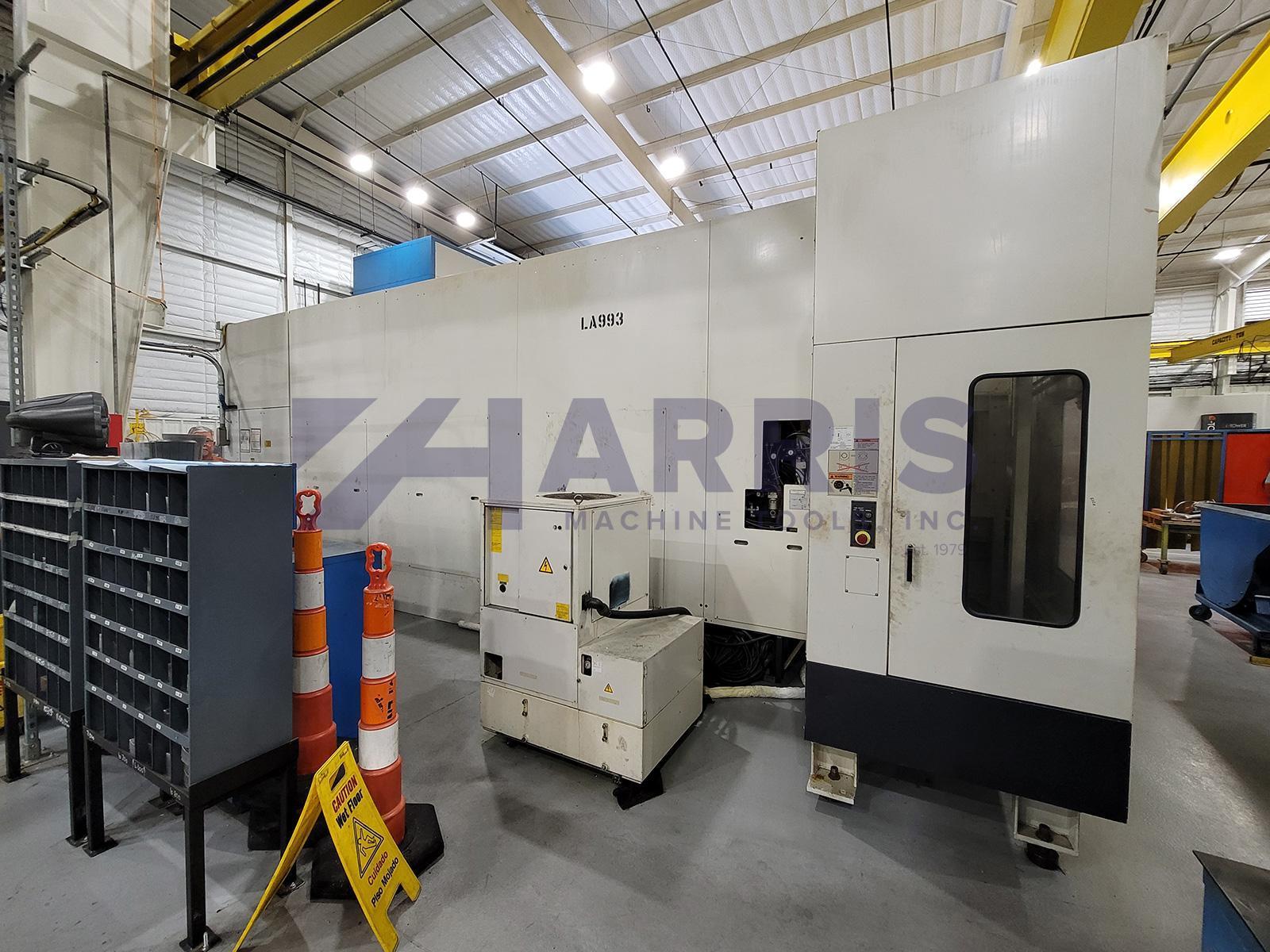

USED, MAZAK INTEGREX e-650H CNC TURNING CENTER
Brand
Category
Model
INTEGREX E-650H
Stock #
19921
Year
2003
Condition
Used
Location
Texas
|
SWING OVER BED: 36"

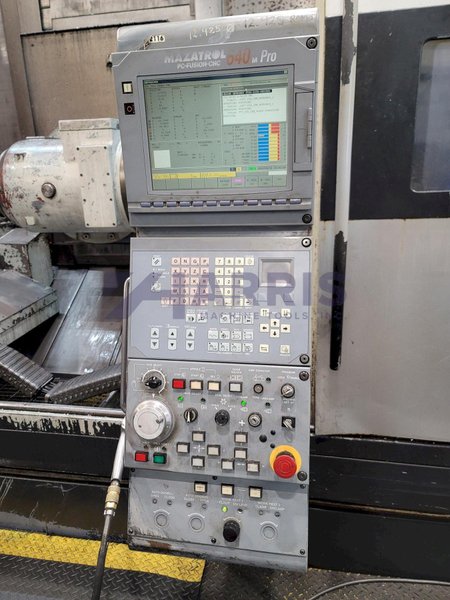

MAXIMUM MACHINING DIAMETER: 36" DISTANCE BETWEEN CENTERS: 120" MAXIMUM MACHINING LENGTH: 120" MAIN SPINDLE SPEED: 1,600 RPM SPINDLE MOTOR: 50 HP MAIN SPINDLE BORE: 10.2" SPINDLE TAPER: CAT 50 SUB SPINDLE BORE: 6" C-AXIS SPINDLE SPEED: 10,000 RPM X-AXIS TRAVEL: 40" Z-AXIS TRAVEL: 123" Y AXIS TRAVEL: 26.6" B-AXIS TRAVEL: -30° TO 210° C-AXIS INCREMENTS: 0.001° EQUIPPED WITH: MAZAK MAZATROL 640M CNC PRO CNC CONTROL PROGRAMMABLE TAILSTOCK

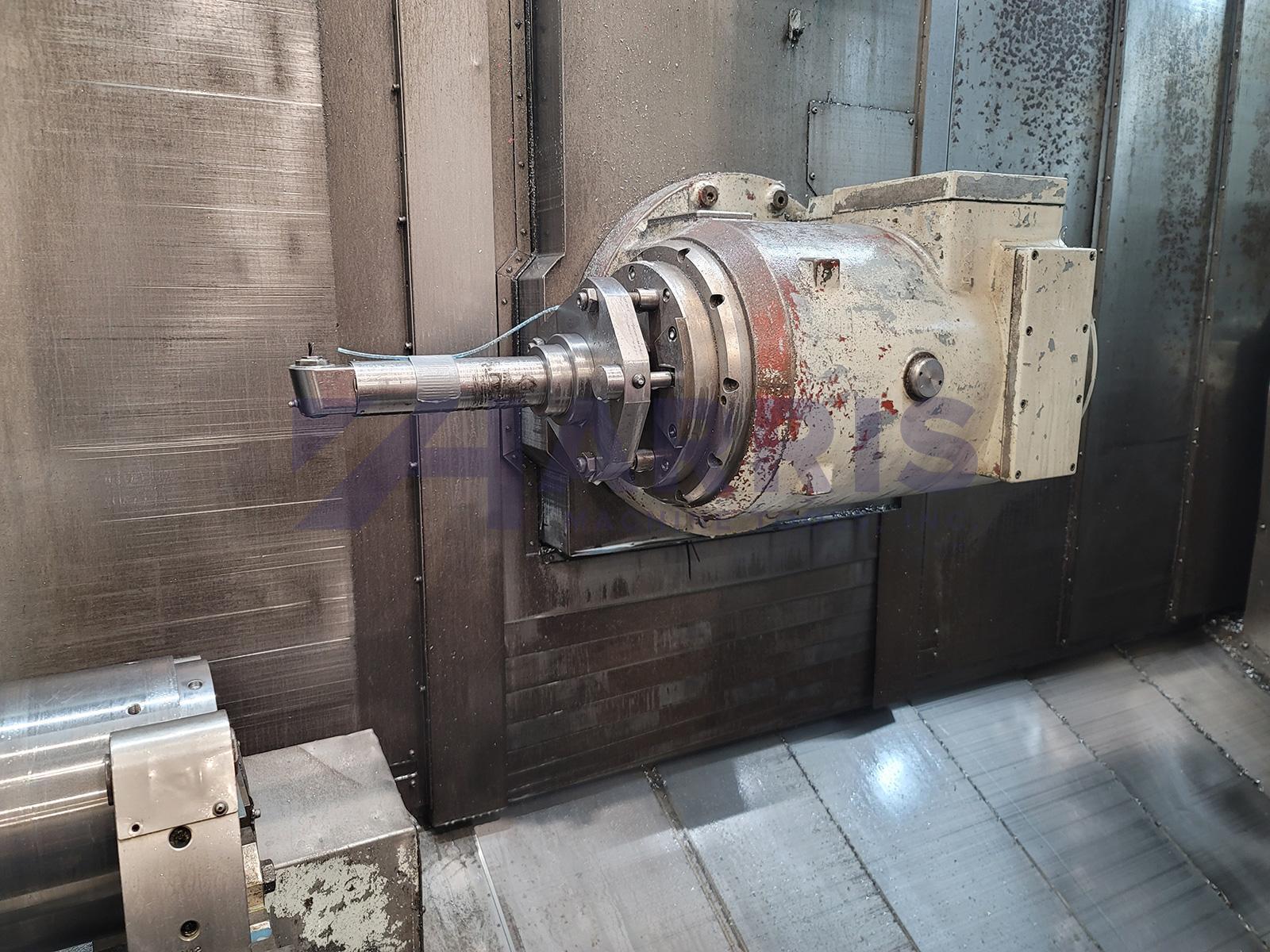

B-AXIS / C-AXIS / Y-AXIS LIVE TOOLING
B AXIS: 0.0001 DEGREE CONTOURING
B AXIS INDEX WITH COUPLING CLAMP - 5 DEGREE
C AXIS DEGREE INCREMENT: 0.0001

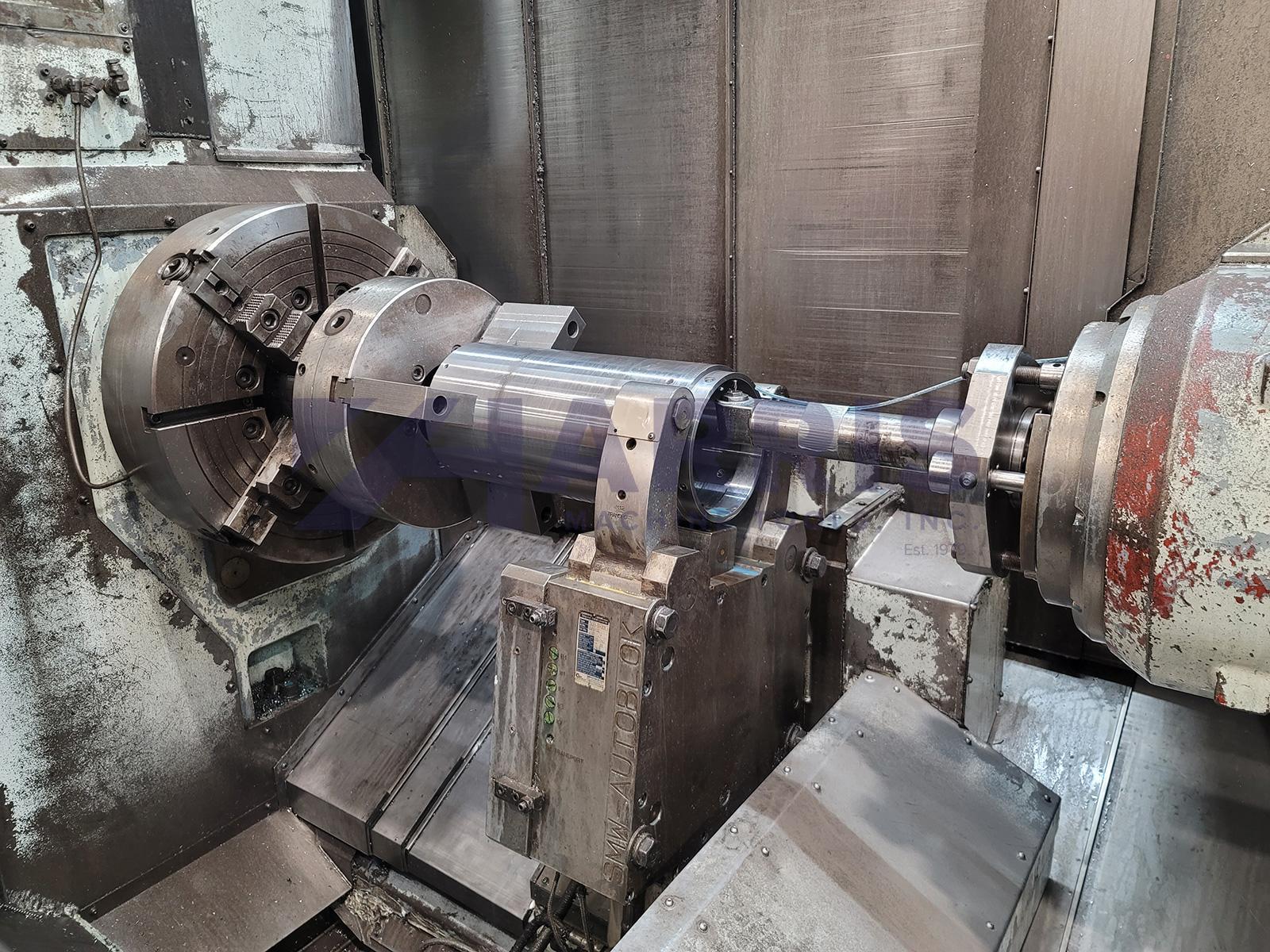

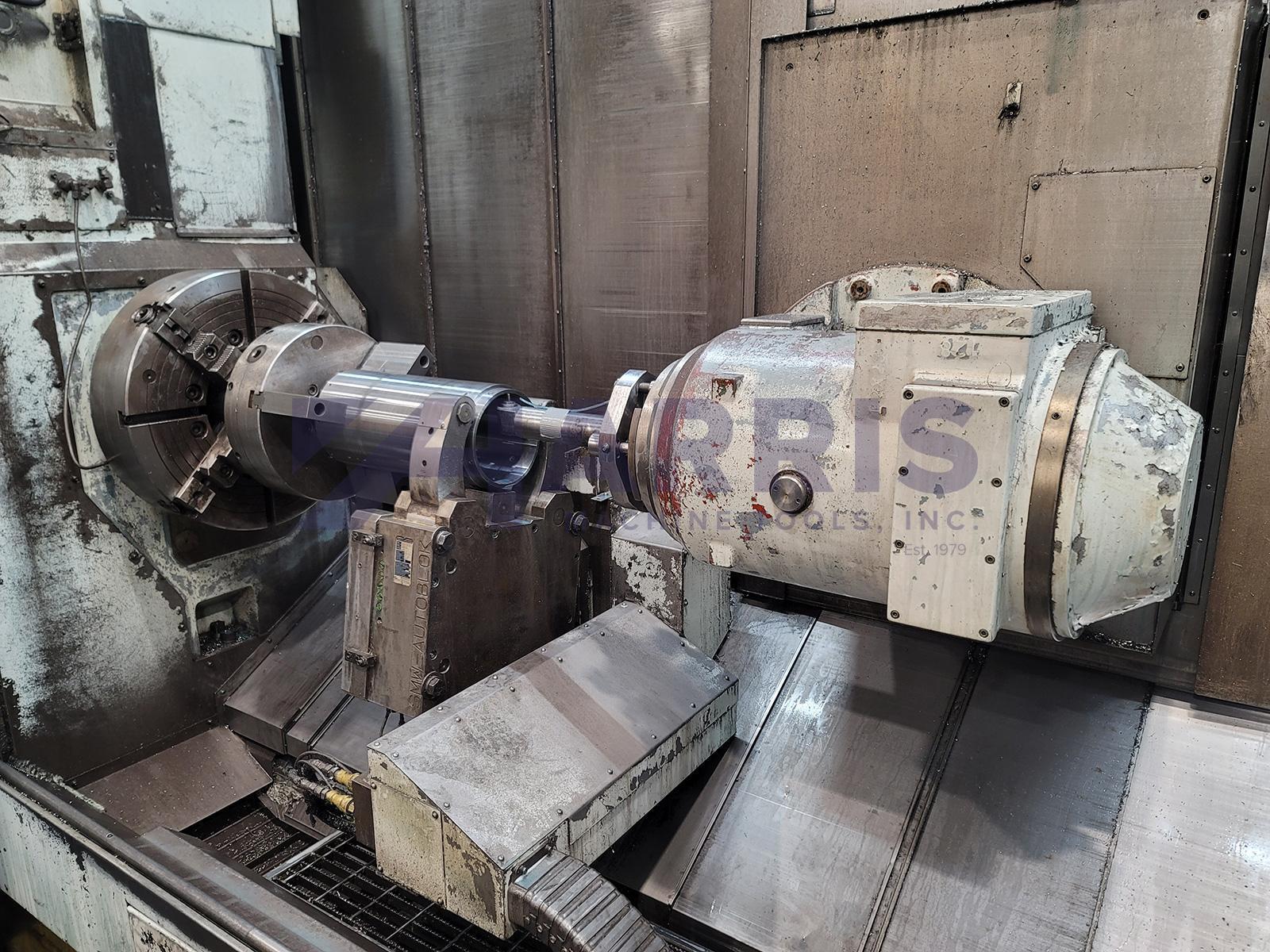

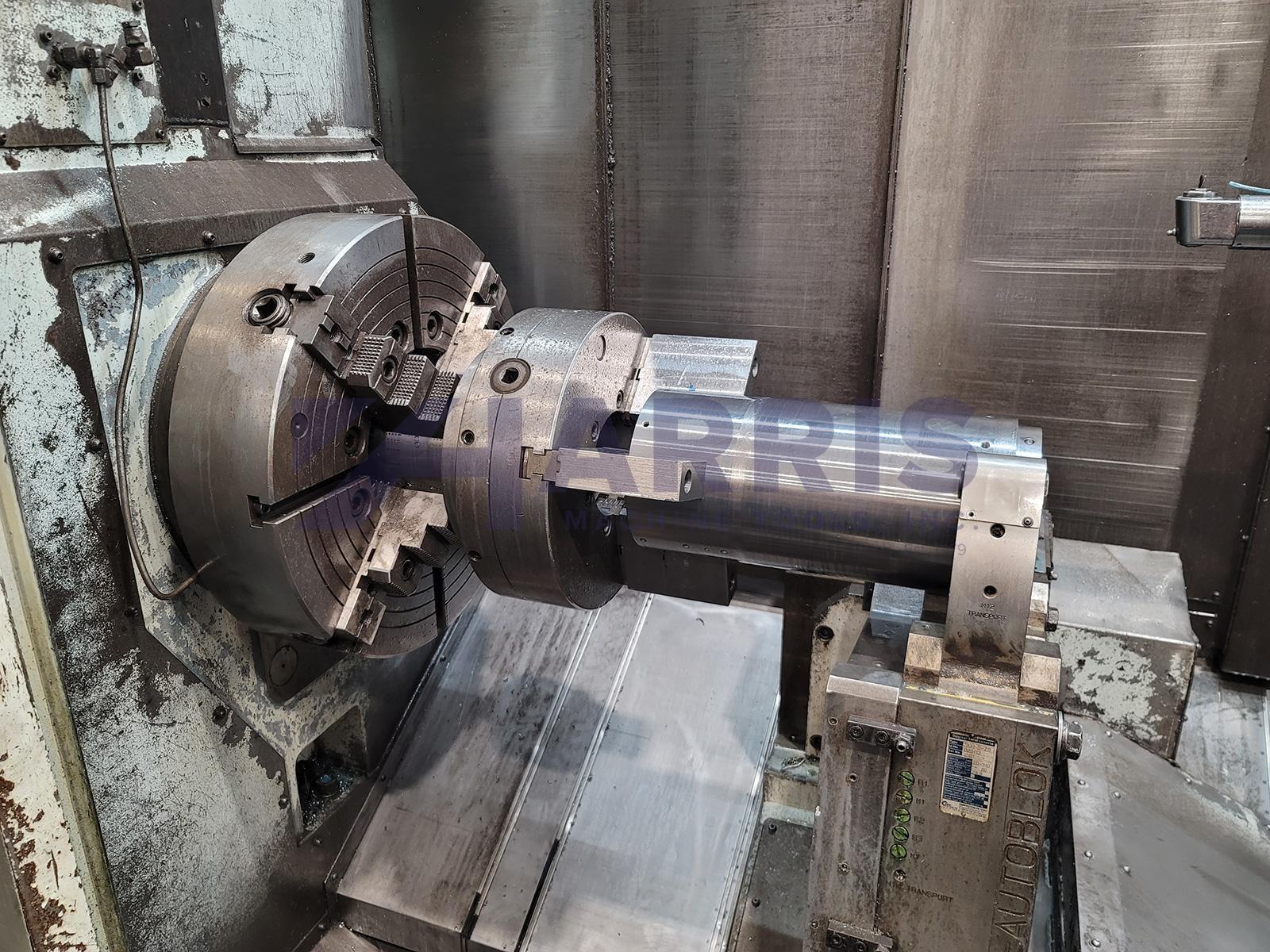

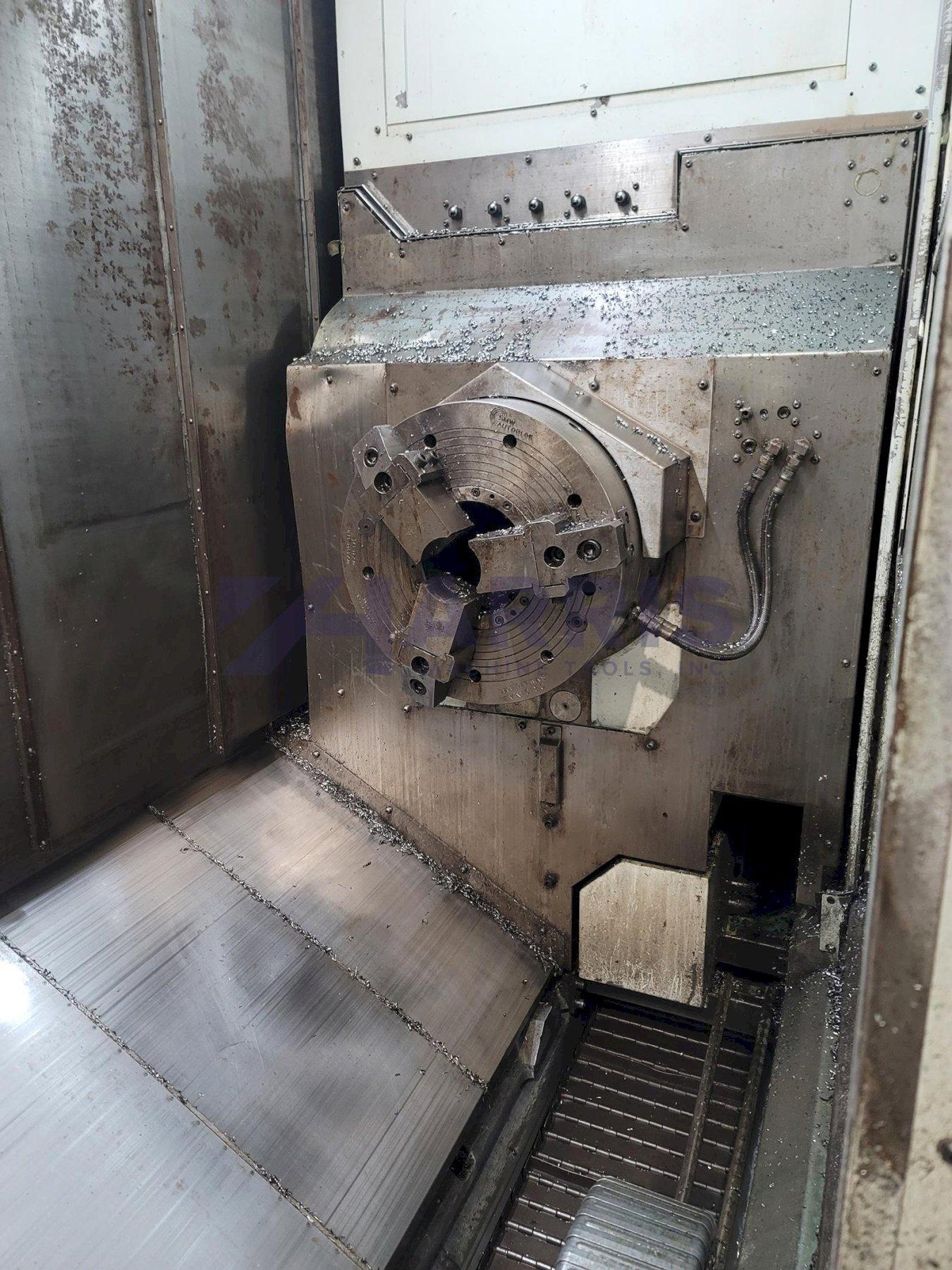

MAIN SPINDLE: 4-JAW CHUCK

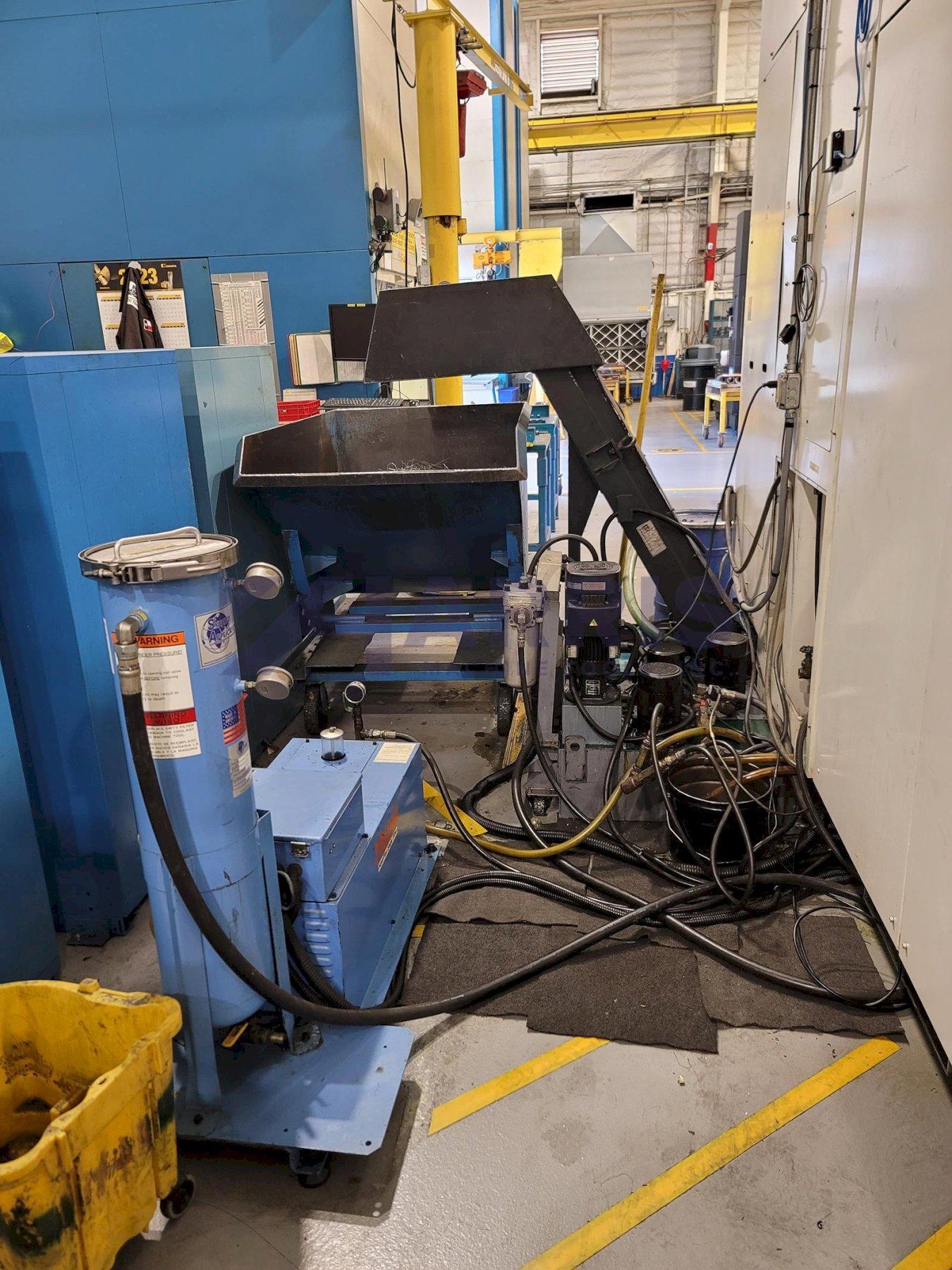

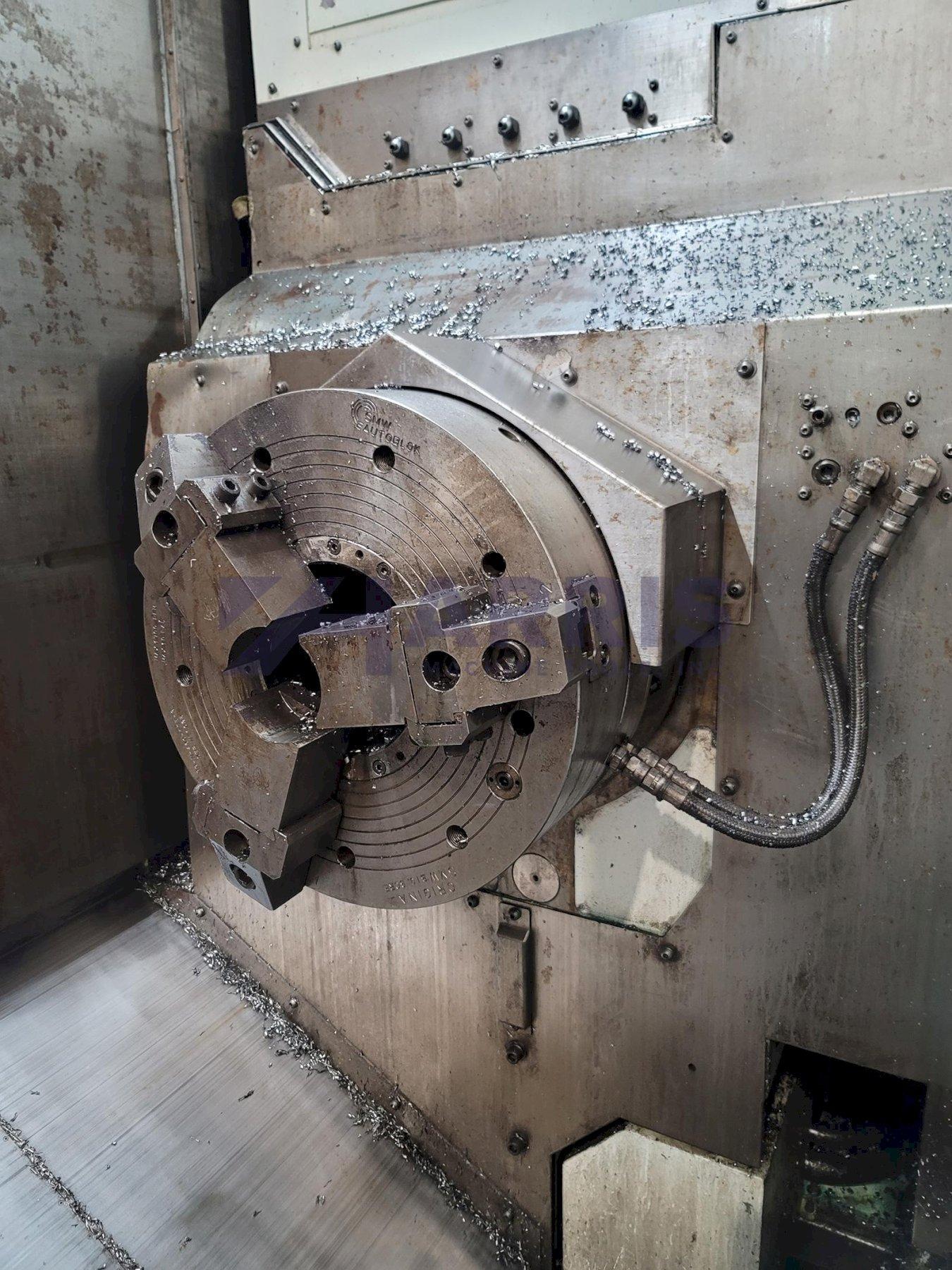

SUB SPINDLE: 3-JAW SMW AUTOBLOK 16" AIR CHUCK WITH 6" BORE SUB SPINDLE TAILSTOCK CHIP CONVEYOR

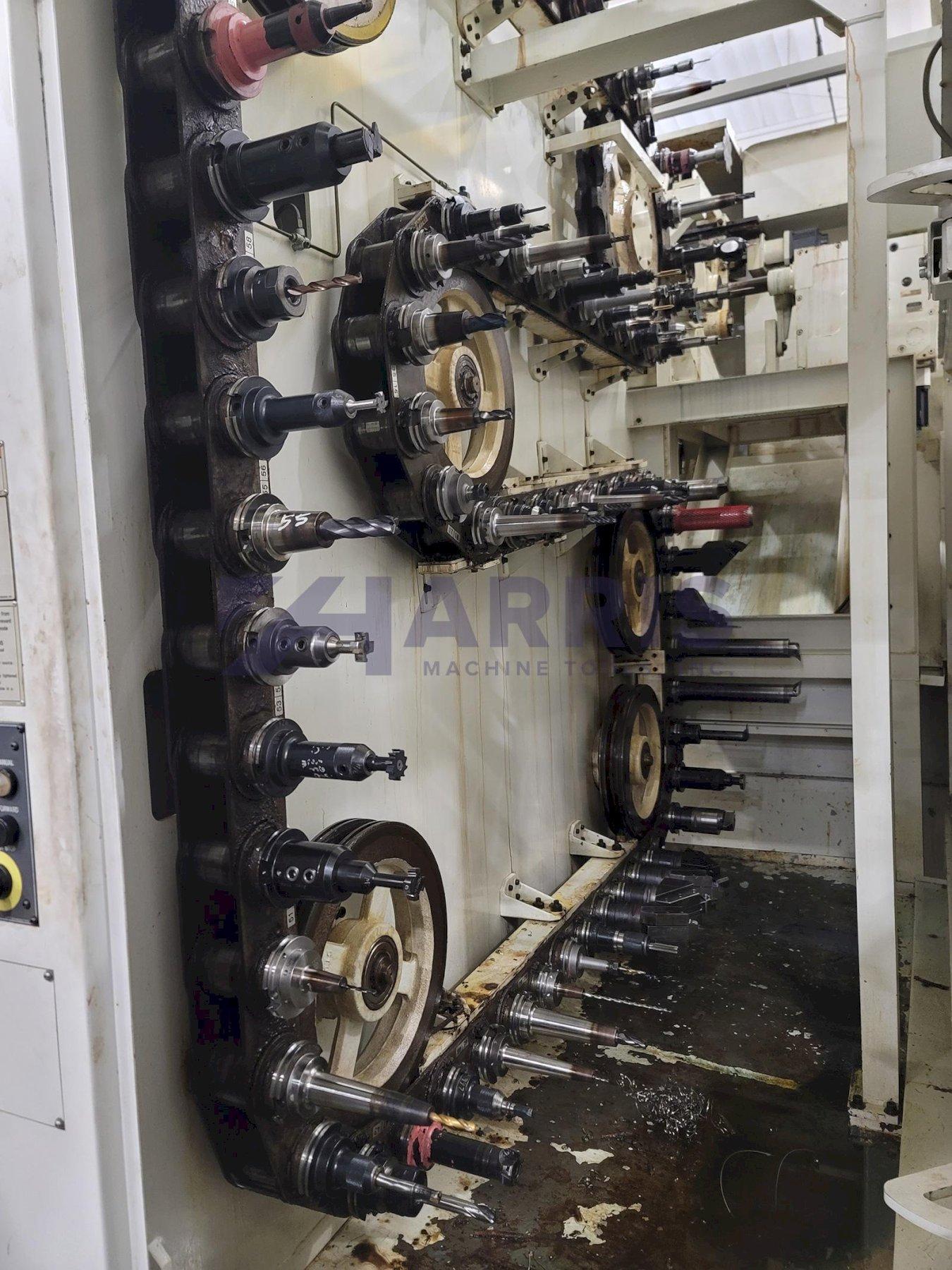

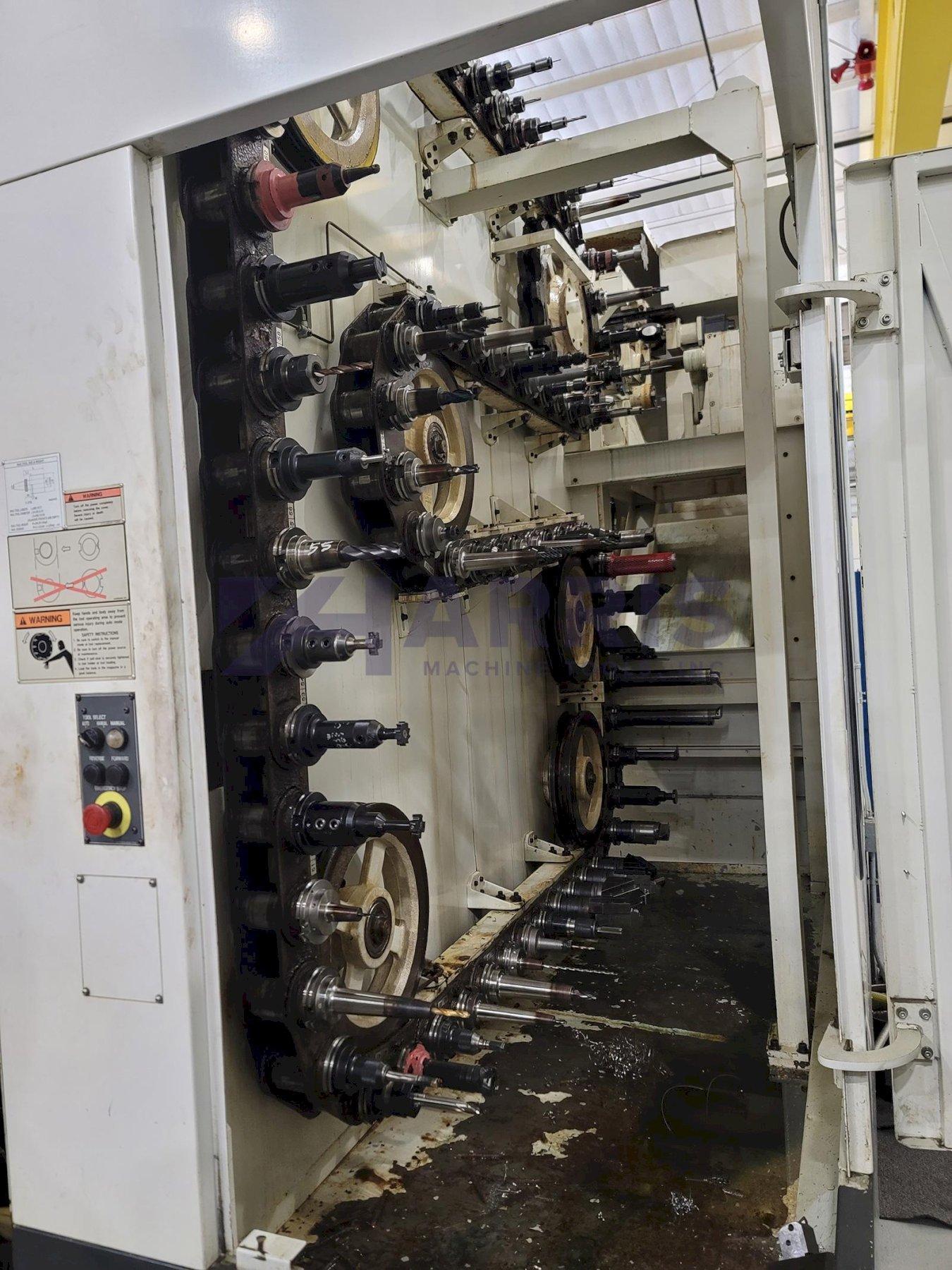

120 TOOL ATC
HYDRAULIC STEADY REST

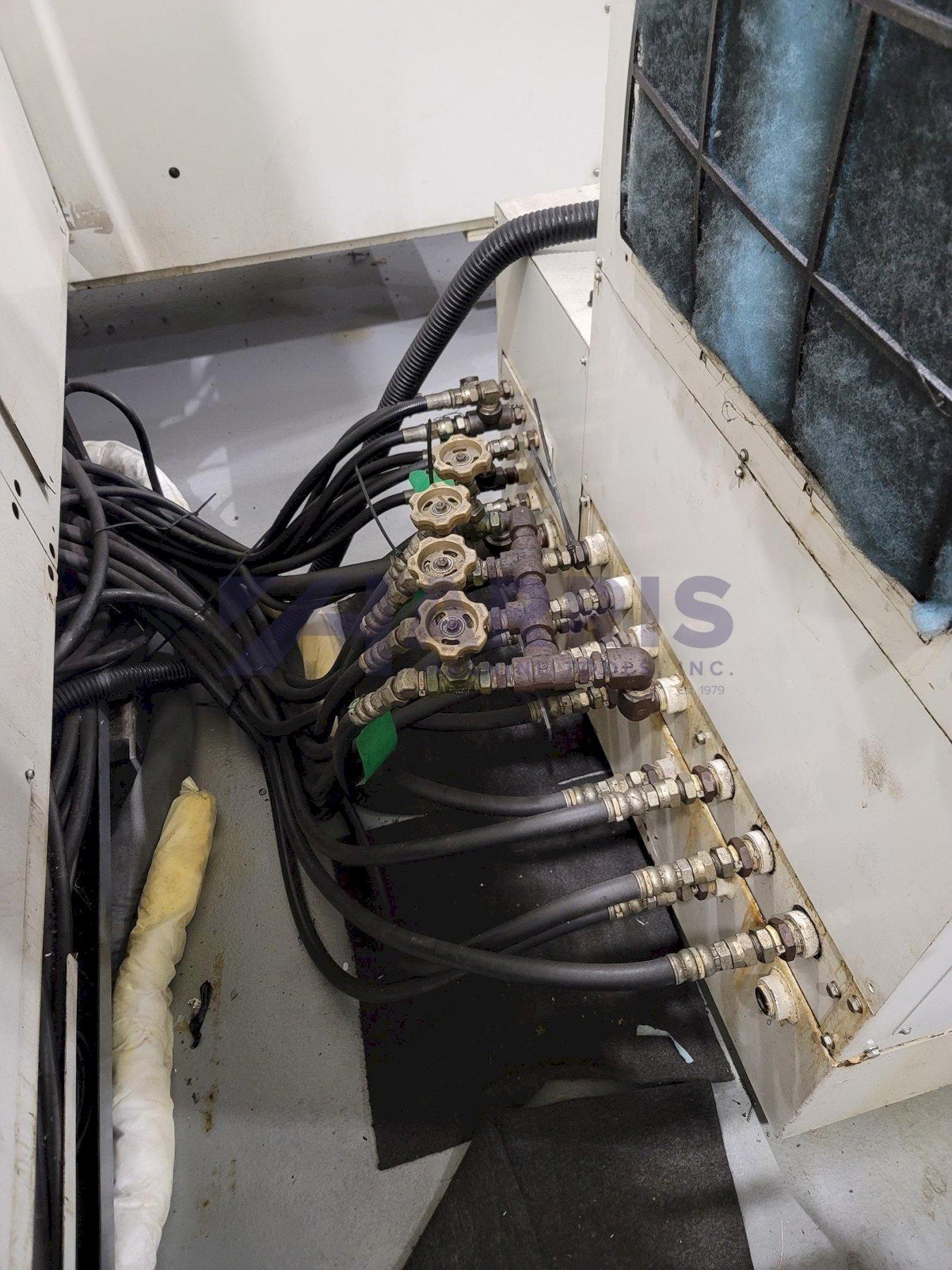

HIGH PRESSURE COOLANT NOTE: ALL SPECIFICATIONS SUBJECT TO VERIFICATION |
