36" x 4.00" x 30,000# Paxson Slitting Line STOCK#3220

Brand
Model
Not specified
Stock #
3220
Year
Not specified
Condition
Good
Location
Ohio
Max Width of Workpiece 36 inches
Max Thickness of Workpiece (in.) 4.00 inches
Weight 30000 ounces
Paxson Driven Loop Slitting Line
Line Direction: Right to Left

Consisting of the following:

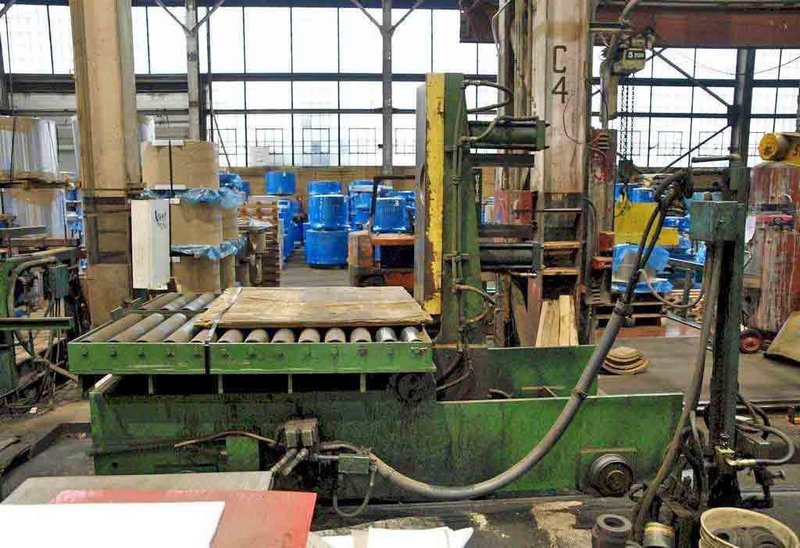

-Entry Coil Car:
  Pit Type
  Self-Contained Hydraulics

-Uncoiler:
  Hydraulic Expansion
  16" - 20" Coil I.D. Range
  Sliding Base
  Wichita Brake
  AC Motor Threading Drive

-Peeler Table:
  Entry Passline Rolls
  Entry Side Guides

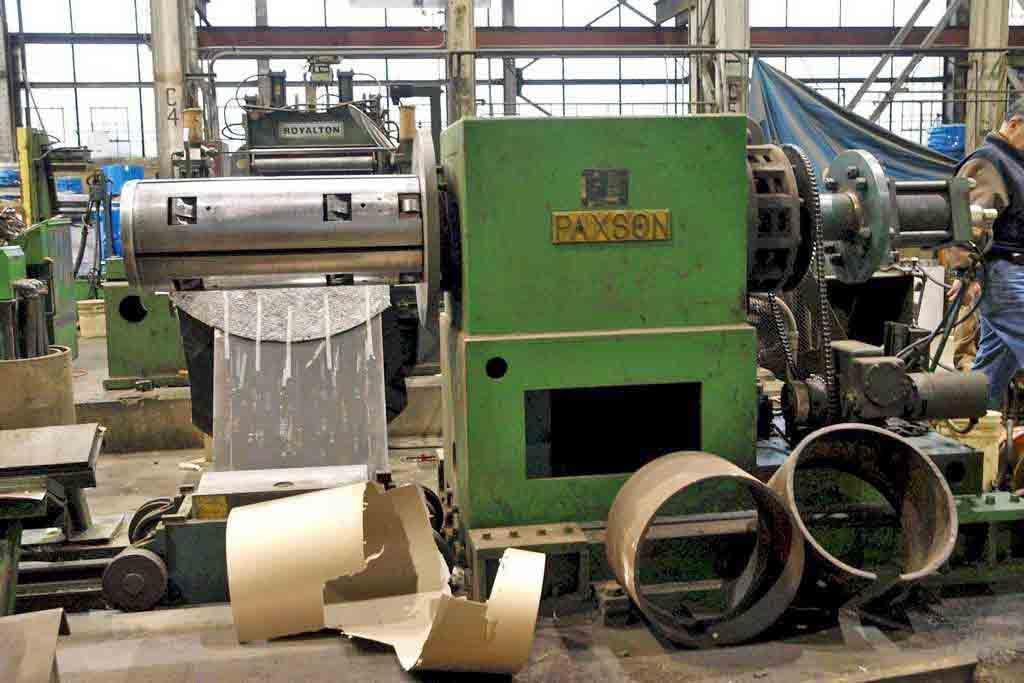

-Slitter Heads:
  (2) Heads (Crane Removal Type)
  Parallel Arbor Adjustment
  DC Motor Drive w/Blower
  Shimless Tooling

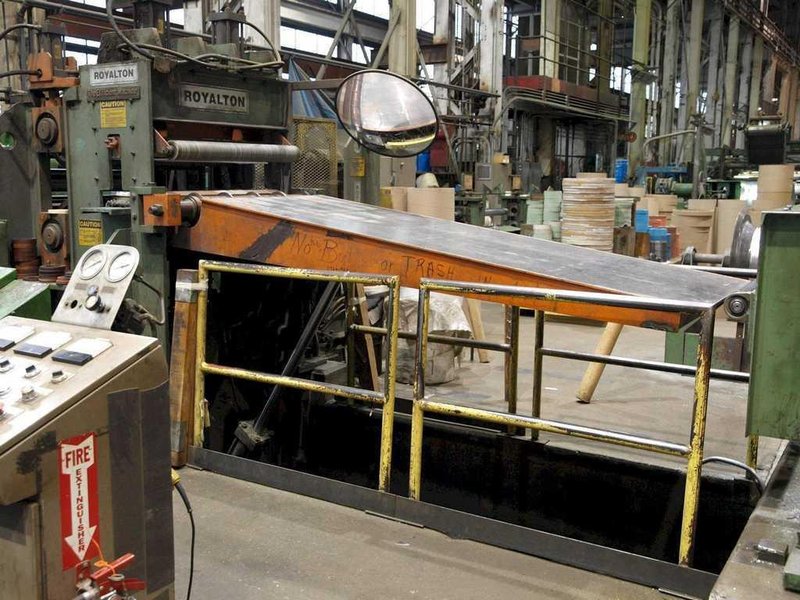

-Pit Cross Over Table:

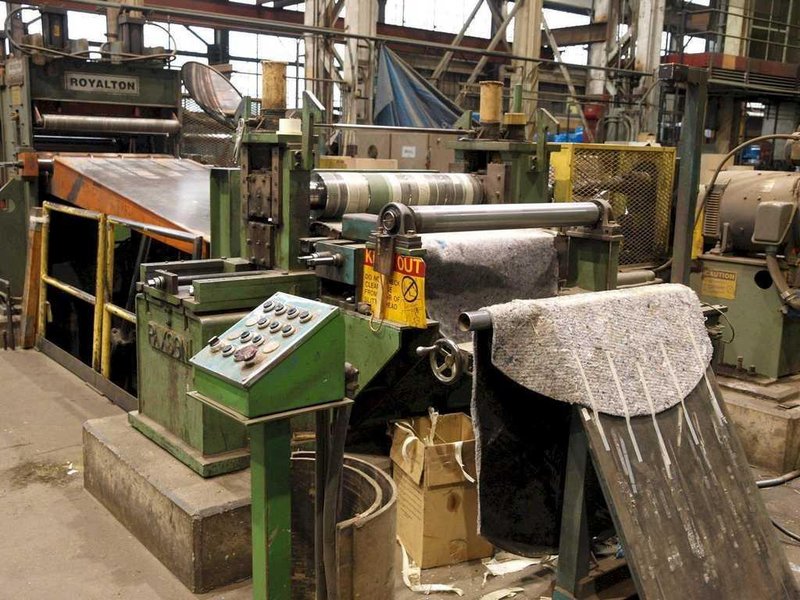

-Tension Stand: Royalton
  Combination Roll and Pad Type
  Entry Separator Tooling Bar

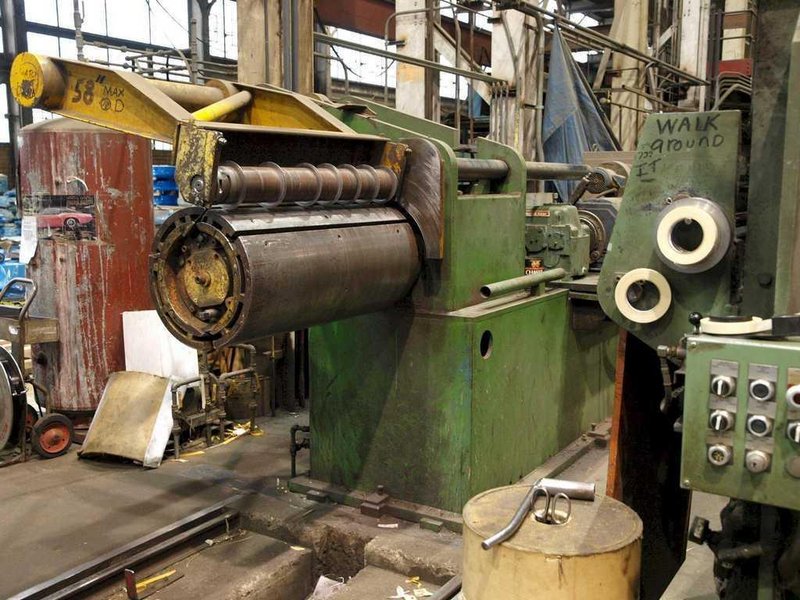

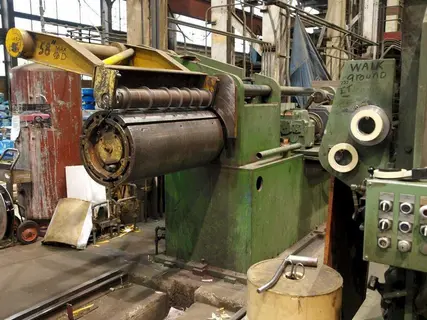

-Recoiler:
  16" Dia. Drum with Pads for 20" Dia.
  Manual Clamp and Expansion
  58" Max. O.D.
  Hydraulic Pushoff
  Overarm Separator
  DC Motor w/Blower

-Exit Coil Car/Upender:
  Hydraulic Cylinder for Tipping
  "V" Cradle with Twin Hydraulic Cylinder Lift
  Conveyor Rolls on Flat side
  Hydraulic Motor Driven for Traversing

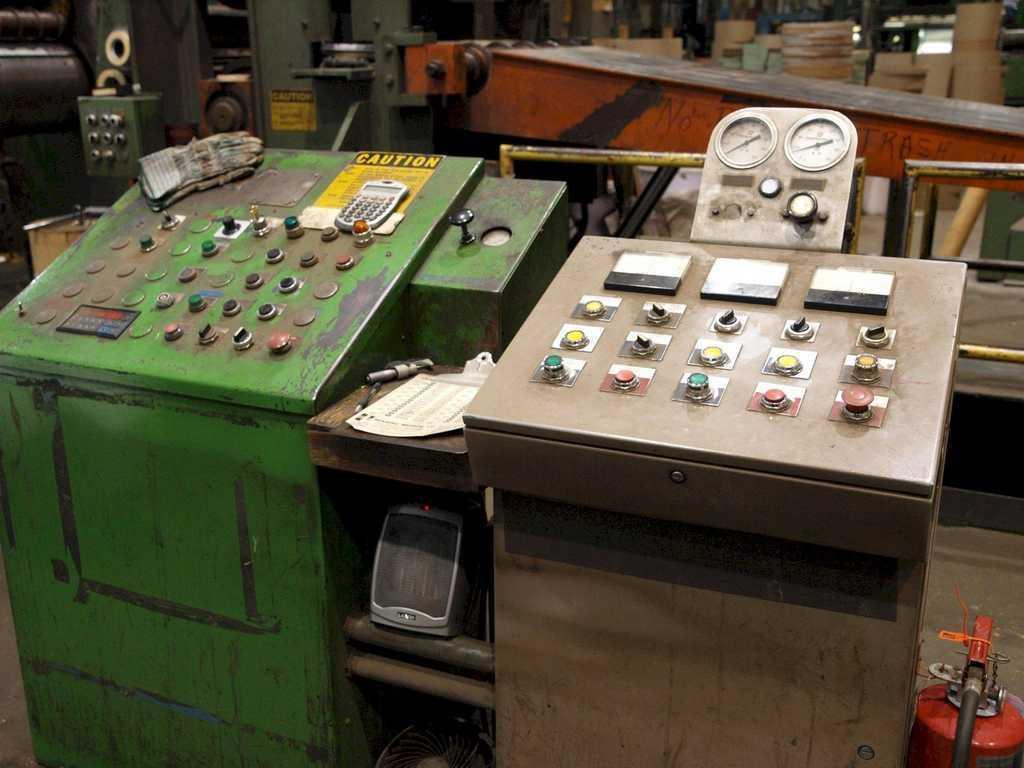

-Operators Control Panels:

-Removed and in Storage: Toledo, OH
