Maximum Coil Weight:             24,000 lbs. (10,890 kg)

Coil Width:                      36" (914.4mm)

Line Speed:                      0 - 700 FPM (0 - 214 M/Min.)

Max. Coil O.D.:                  72" (1828mm)

Direction of Travel:             Left to Right

Pass Line Height:                44" (1117mm)

Previous Use Capacity:           1010 Tin

                                 0.010" - 0.034" (0.25mm to 0.86mm)

                                 12 Cuts at 0.034" (0.86mm)

Theoretical Cat. Capacity:       21 Cuts at 0.0156" (0.40mm)

                                 2 Cuts at 0.187" (4.7mm) @ 185 FPM

Consisting of the following:

-Pit Coil Car: Paxson

  34" Wide "V" Cradle

  Self-Contained Hydraulics

    5 HP AC Motor, 3450 RPM, 230/460 V

  Overall Size: 75" L x 35" Wide x 71" High

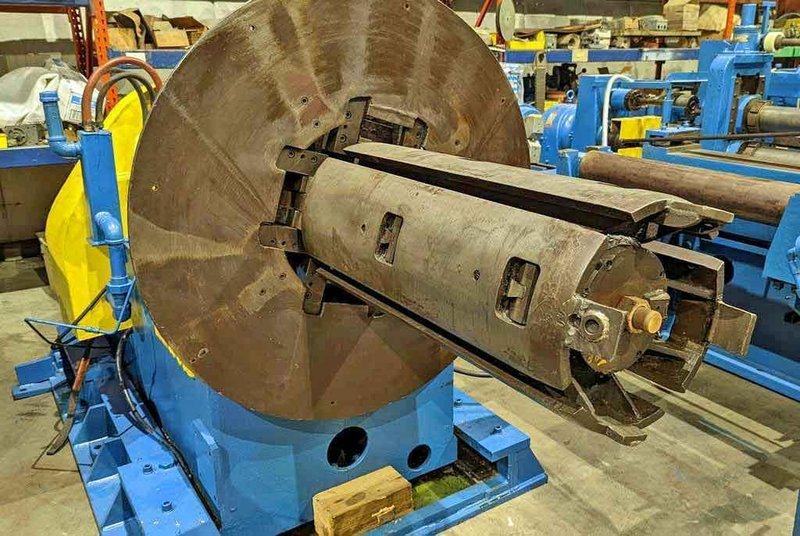

-Uncoiler:  Paxson

  S/N: 11234-3

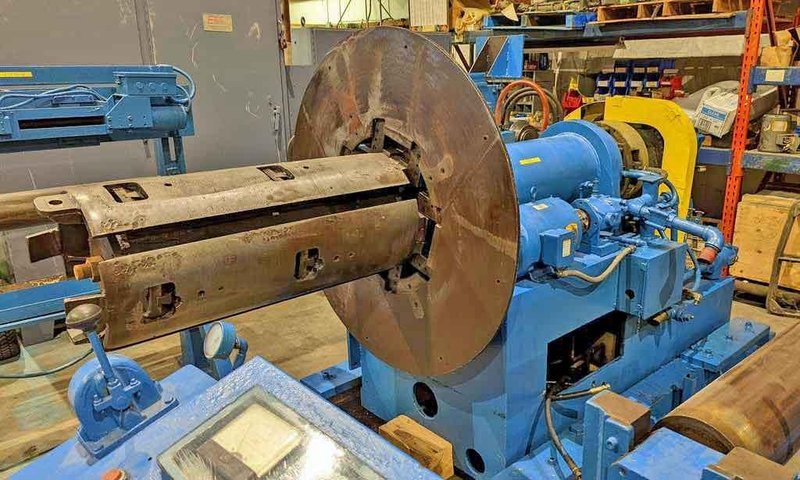

  Type:                          4 Segment Expanding Mandrel

  Type Expansion:                Hydraulic Wedge

  Mandrel Diameter:              16" - 20" (406mm - 508mm)

  Mandrel Face Width:            36" (914mm)

  AC Motor Threading Drive:      3 HP, 1170 RPM, 230/460 V

  Self-Contained Hydraulics:     7.5 HP, 1760 RPM, 230/460 V

  Water Cooled Brake:            Eaton Airflex

  Sliding Base:

  Passline Height:               44.5" from Floor to center of Mandrel

  Overall Size:                  138" L x 67" W x 68" High

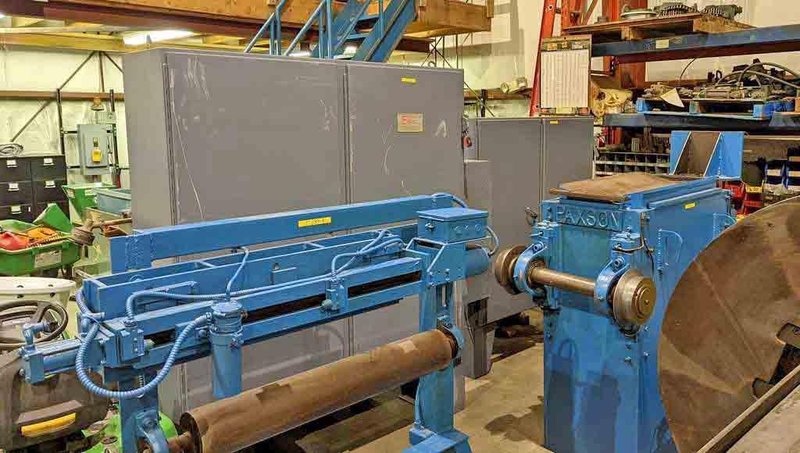

-Automatic Edge Guide:

  Overall Size:                  67" L x 27" W x 64" High

-Thickness Gauge:                Vollmer

  S/N:                           7603/P76/837

  Overall Size:                  60" L x 14" W x 50" High

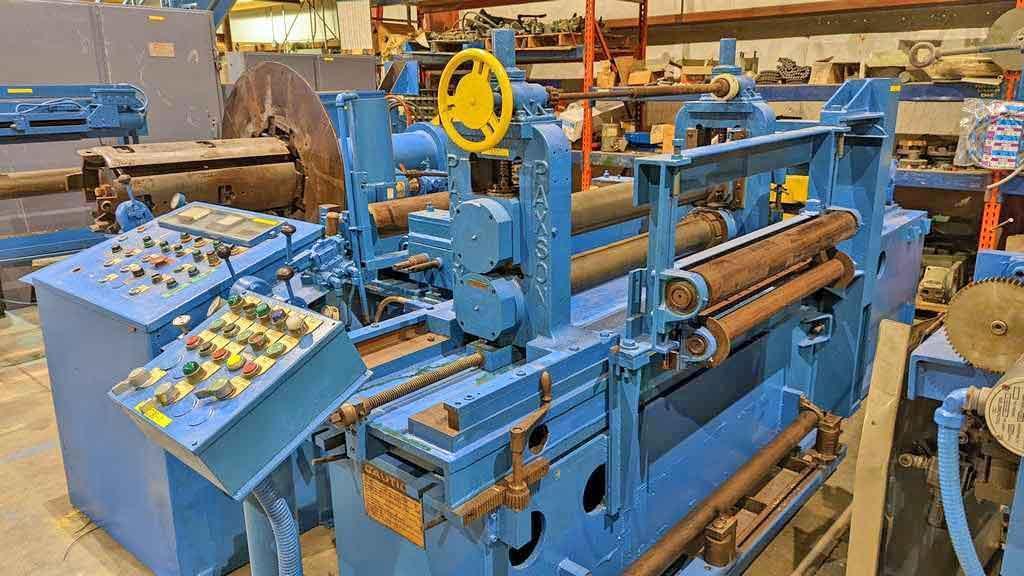

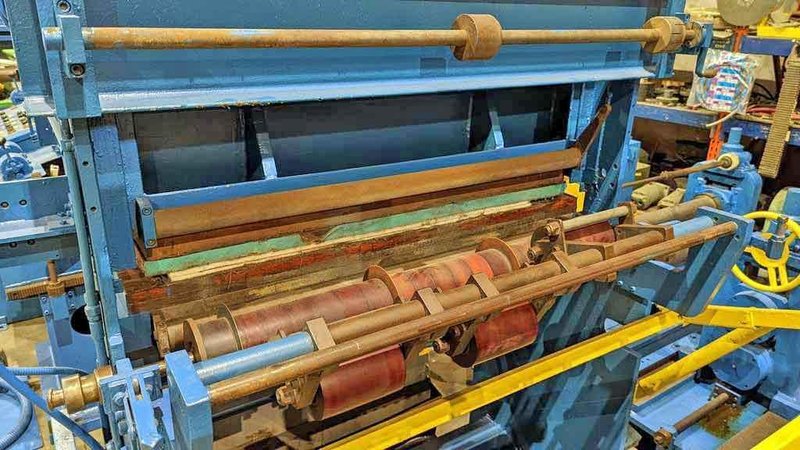

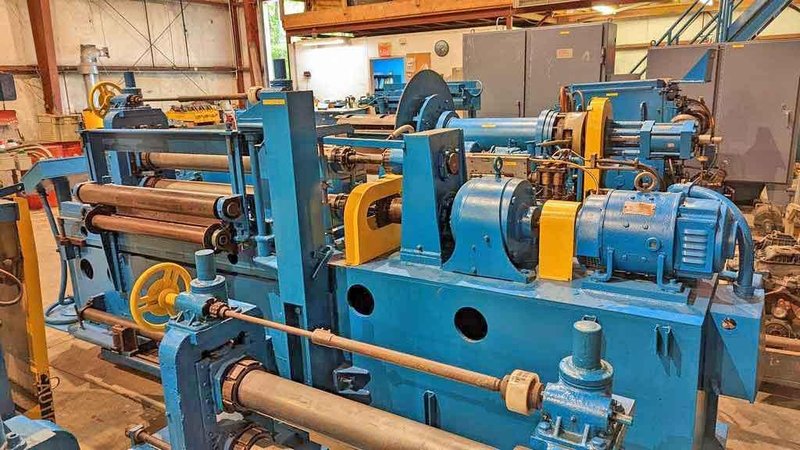

-Slitter Heads:  Paxson

  No. of Interchangeable Heads:  3

  Entry Passline Roll:           6" Dia. x 38" Face Width

  Entry Side Guides, Manual Adjustment

  Parallel Arbor Adjustment

  Arbor Size:                    5" (127mm) Dia. x 37.5" (952.5mm) Wide

  Knife Dia.:                    10.5" O.D. Max.

  Drive Motor:                   15 HP DC, 2500 RPM, 240 V.,

                                 55 Amps, Variable Speed

  Foote Bros. Reducer:           7.6:1 ratio

  Overall Size:                  162" L x 72" W x 69" High

-Exit Passline Rolls:

  Top Roll:                      4.5" Dia. x 44" Face Width

  Bottom Roll:                   3" Dia. x 39" Face Width

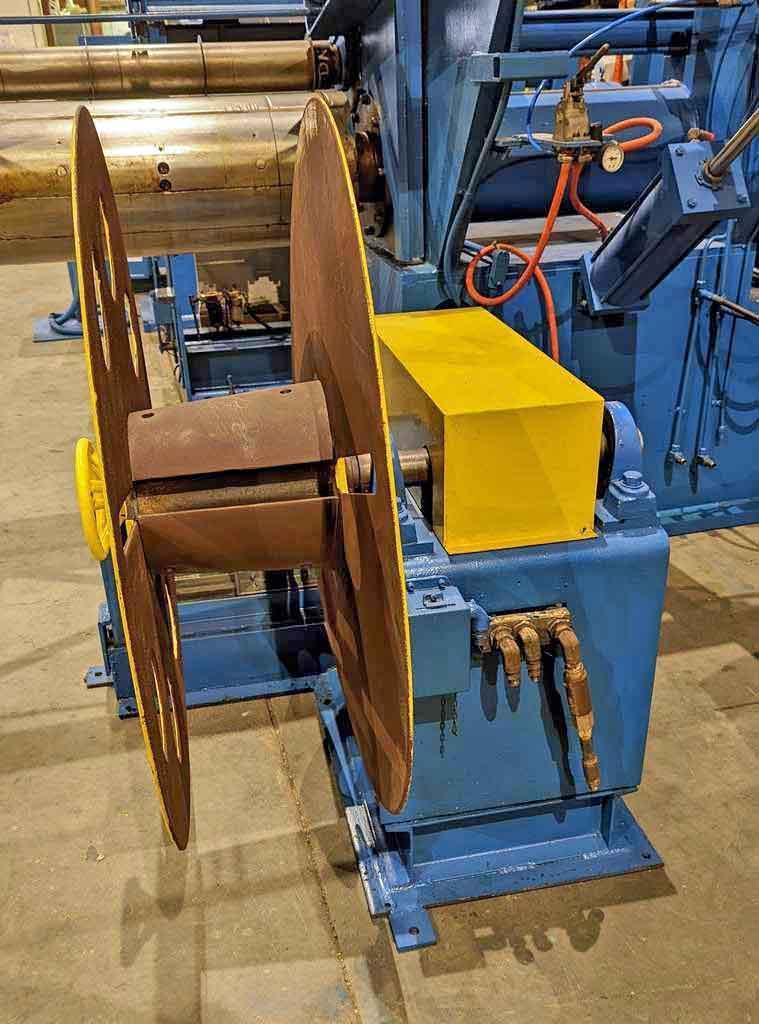

-Scrap Winder: Paxson

  Maximum Capacity:              1,500 lbs. (680 Kg)

  Scrap Ball Size:               12" W x 36" O.D. (approx.)

  Hydraulic Motor Driven

  Oscillate Wind

  Manual Scrap Ball Removal

  Overall Size:                  56" L x 37" W x 54" High

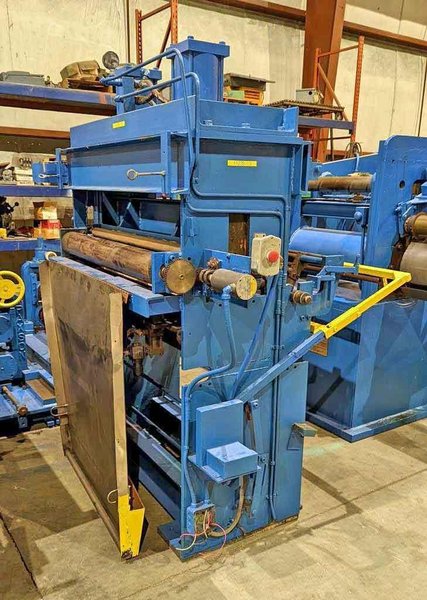

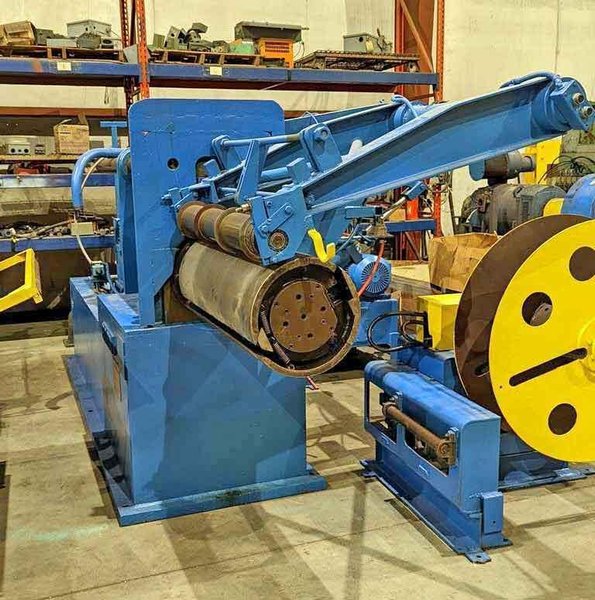

-Tension Stand:

  Pad Type

  (2) Air Cylinders for Pad Pressure

  Entry Loop Arm

  Entry Passline Rolls

  Entry Separator Tooling Bar

  Exit Passline Roll:            5" Dia. x 44" Face Width w/Tachomotor

  Overall Size: 70" L x 60" W x 85" High

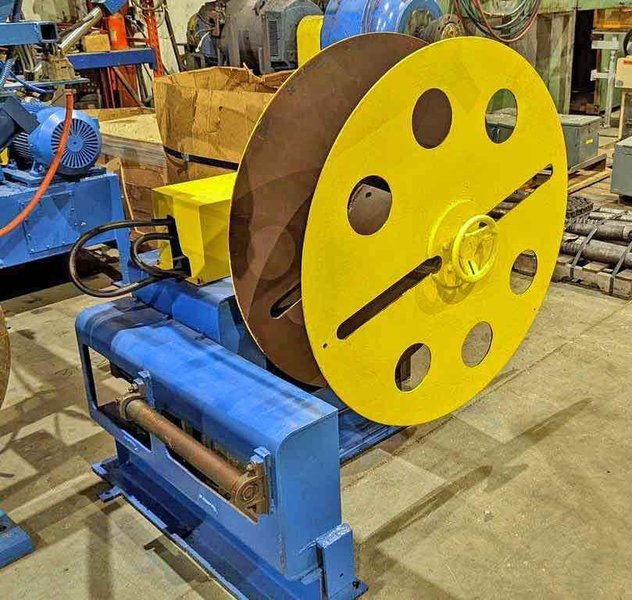

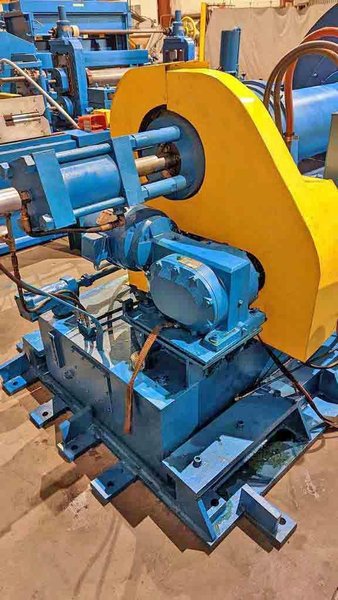

-Recoiler:  Paxson

  S/N: 11234-7

  Drum Expansion:                Hydraulic

  Coil Pushoff:                  Hydraulic

  Drum Size:

   Diameter:                     16" (406mm)

   Width:                        42" (1066.8mm)

  Overarm Separator:             Air Cylinder Operated

  Passline:                      44" from Floor to center of Drum

  Drive Motor:                   25 HP DC, 400/1600 RPM, 240 V, 8.8 Amps

                                  into Falk Gearbox with 9.084:1 ratio

  Holding Brake:

  Overall Size:                  183" L x 77" W x 75" High

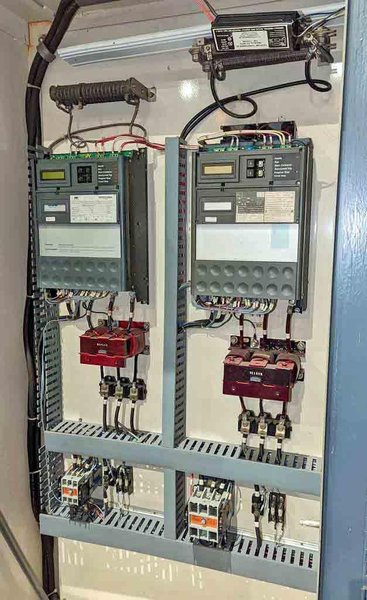

-Electrics:

  Mfg.:                          Excel Industrial Electronics

  Date of Electronic Rebuild:    1999

  PLC Controls:                  SSD 590 Digital Drives

                                 Allen-Bradley SLC 150

  DC Panel:                      85" L x 21" W x 89" High

  AC panel:                      61" L x 16" W x 79" High

-Main Operators Control Panel:   57" L x 26" W x 50" High

-Pedestal for Entry Equipment:   24" L x 24" W x 47" High

-(2) Hydraulic Power Units:

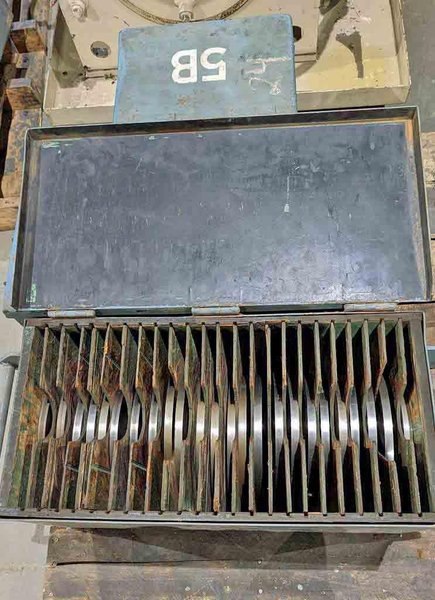

-Slitter Tooling:                Approx. Count

  0.500" Wide Wapak Knives:      24 - 8.6875" O.D.

                                 96 - 8.75" O.D.

                                 23 - 9" O.D.

                                 24 - 9.187" O.D.

                                 16 - 9.5" O.D.

  Keyway Size:                   1" x 0.500"

  Misc. Rubbers:

-Parts and Service Manual
