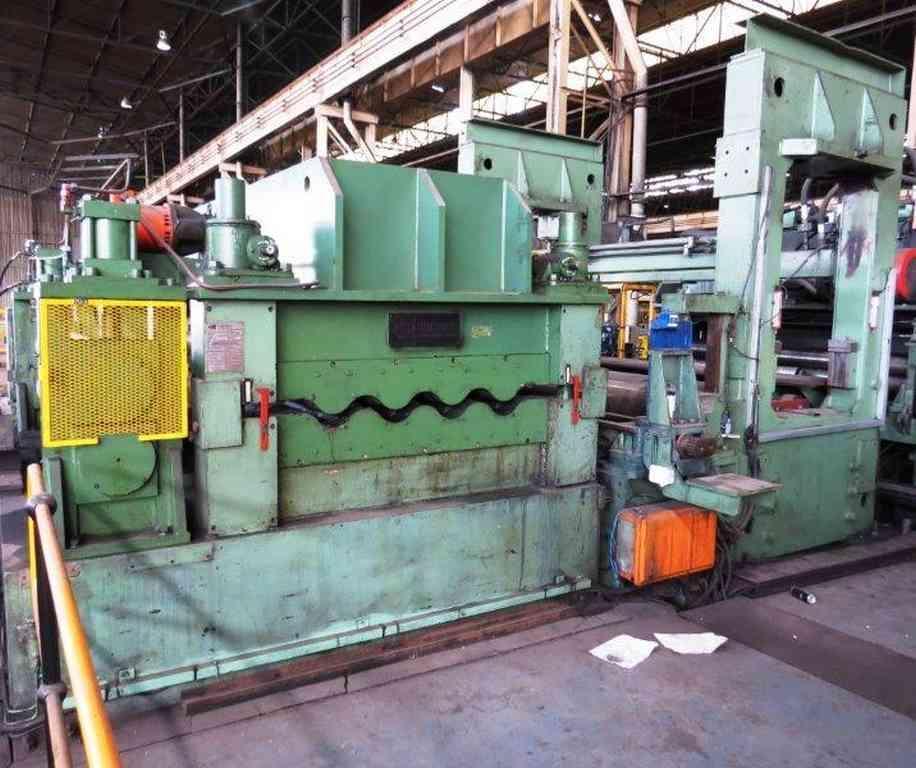

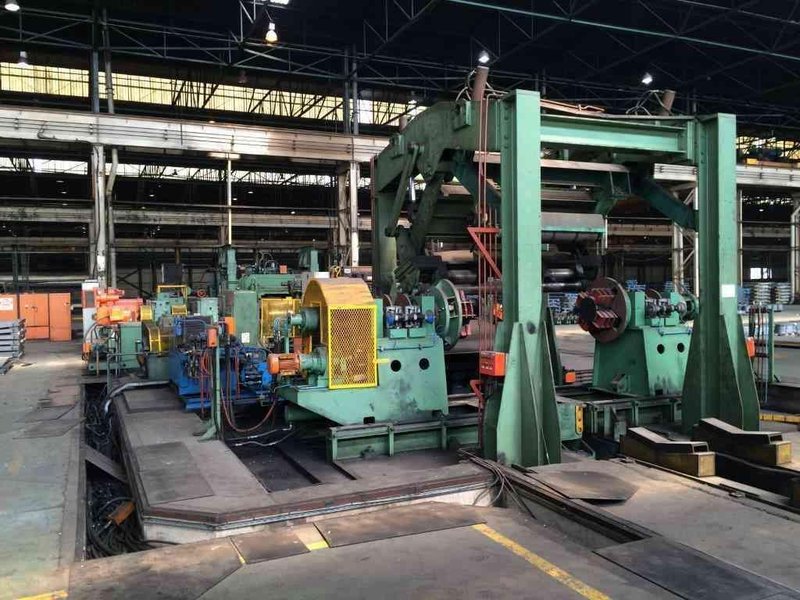

96" x 0.550" x 60,000# Delta Cut To Length Line STOCK #3200

Brand
DELTA
Category
Coil Handling Equipment
Type
Cut To Length Lines
Model
Not specified
Stock #
3200
Year
1982
Condition
Good
Location
Ohio
Max Weight 60000 pounds
Max Coil Width Capacity 96 inches
Materials:                         HRS, P/O, Tread Plate
Max. Coil Width Range:             30" - 96" (98" Untrimmed)
Thickness Range:                   0.125" - 0.550" (Flattener)
                                   0.187" - 0.500" (Leveler)
Max. Shear:                        50,000 PSI
Max. Yield:                        50,000 PSI
Max. Coil Weight:                  60,000#
Coil I.D.:                         20" - 30" (Cones)
Max. Coil O.D.:                    82"
Line Direction:                    Left to Right
Sheet Length:                      24" - 40'
Mode of Operation:                 Start / Stop
Line Speed:                        0 - 100 FPM
Max. Finished Bundle:              20,000# @ 40'

Consisting of the following:

-Entry Coil Car:
  Pit Type
  Self Contained Hydraulics
  Powered Lift and Traverse
  Cable Reel

-Feedup Assist Assembly:
  Floor Mounted
  Holddown with Powered Snubber Rolls

-Uncoiler:
  Double Expanding Stub Type
  Powered Expansion - Each Head
  AC Feedup Motor - One Side
  Wichita Air Cooled Brake - One Side
  Slide Base - Each Head

-Entry Unit:
  Extending Blade Peeler
  Powered Side Guides
  Driven Pinch Rolls
  Double-Stub Edge Trimmer

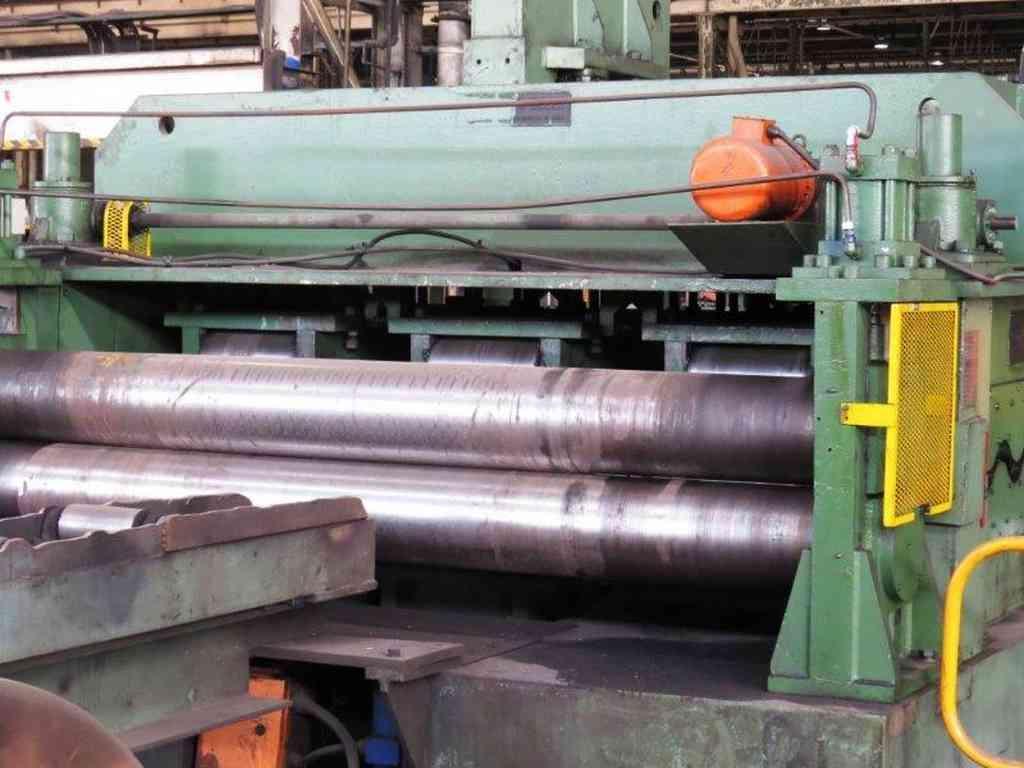

-Flattener:
  Powered Entry Pinch Rolls
  Nine (9) Work Rolls in an 4/5 Configuration
  8" Diameter Work Rolls
  Three (3) Flights of Backup Rolls (one powered)
  250 HP DC Motor

-Entry Unit:
  Powered Entry Pinch Rolls
  Powered Side Guides

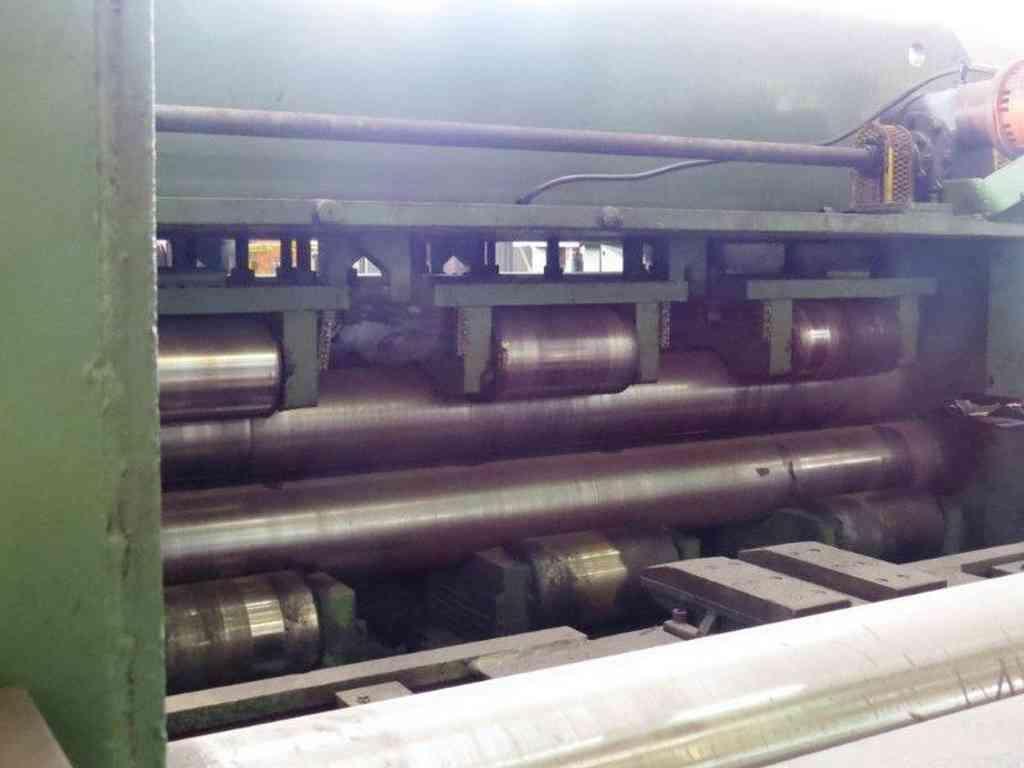

-Corrective Leveler:
  4 HI Configuration
  Nine (9) Work Rolls in an 4/5 Configuration
  5" Diameter Work Rolls

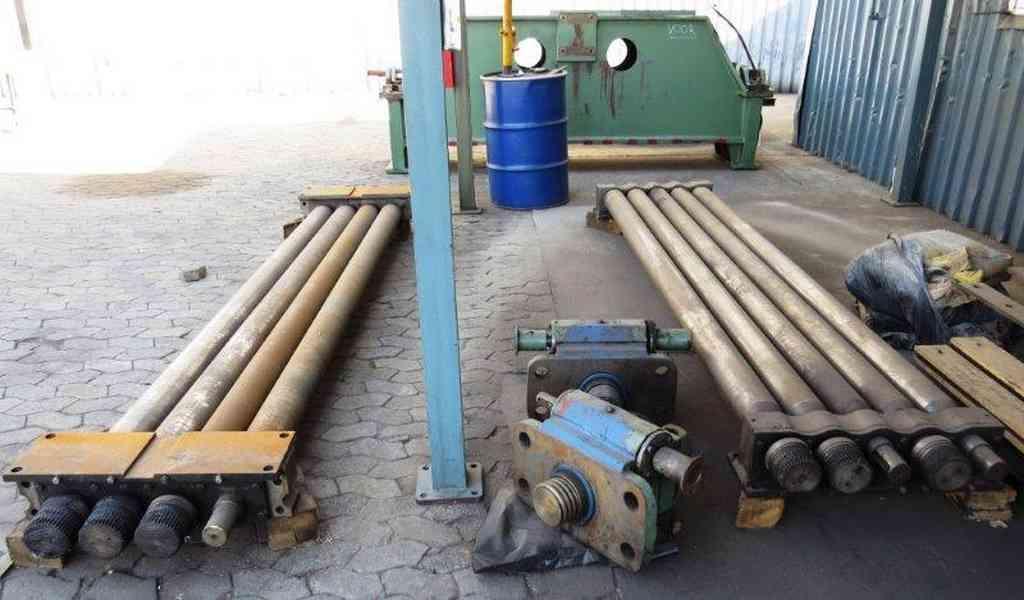

  Seven (7) Flights of adjustable Backup Rolls
  220 HP DC Motor
  *this unit will require a complete rebuild*

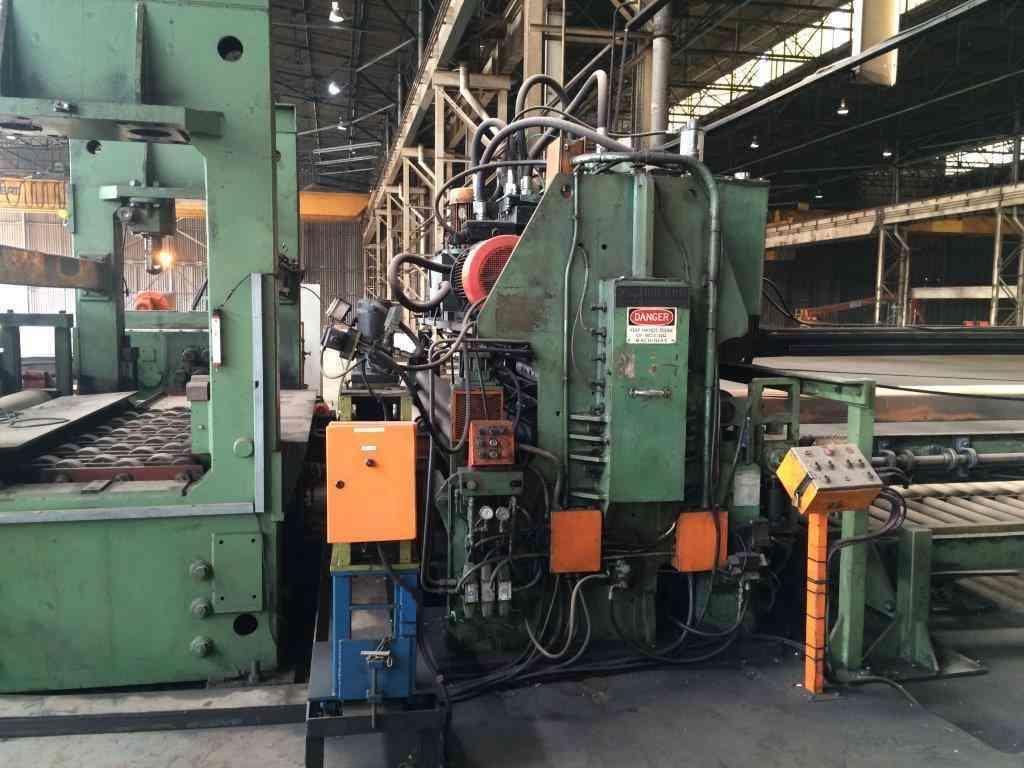

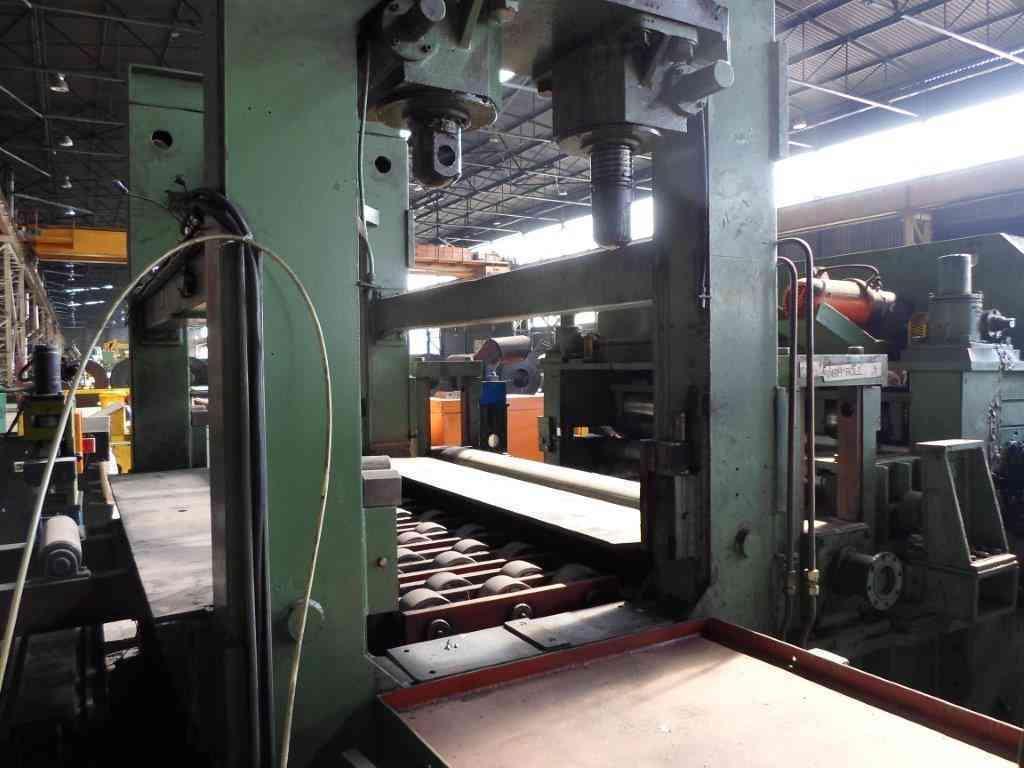

-Shear:
  Powered Entry Pinch Rolls
  Hydra-Mechanical Actuation
  Single Rake Blade
  Lube System
  Powered "Kick-Out" Rolls into Stacker
  Hydraulic Unit

-Stacker:
  "Slide-Out" Type
  Powered Side Tampers
  Powered End Stop

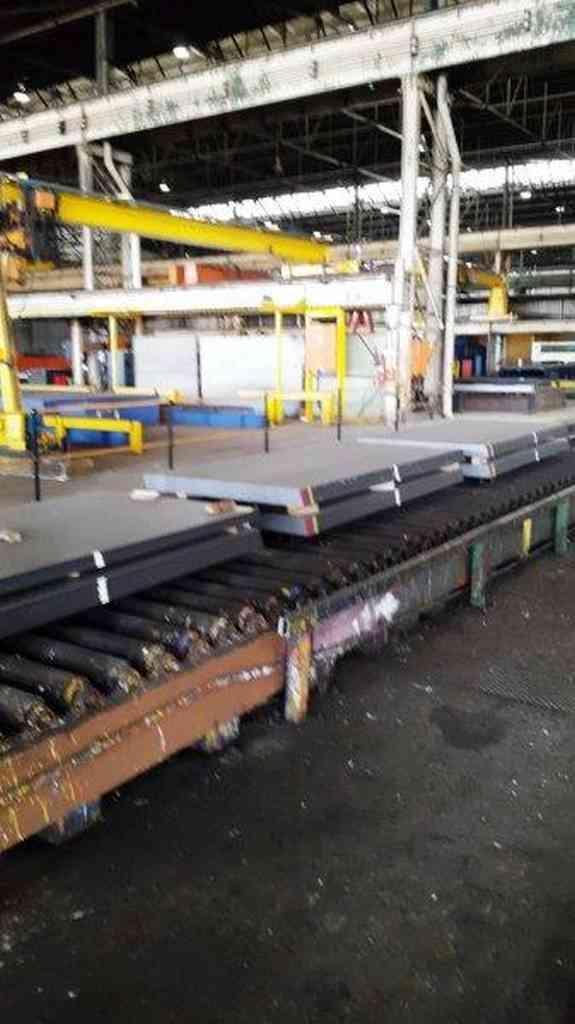

-Exit End Discharge Conveyor:
  22' Long Powered Conveyor

-Hydraulic System:

-Electronics:
  AC/DC Cabinets
  Siemens and Eurotherm Drives

-Misc. Operators Control Consoles

-Minimal Drawings / some Manuals

-Line is Removed and in Storage; Africa
