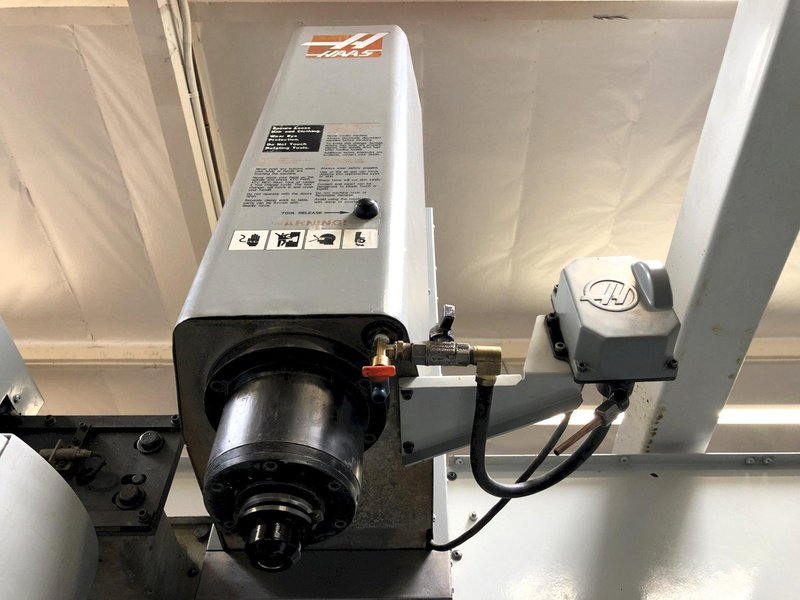

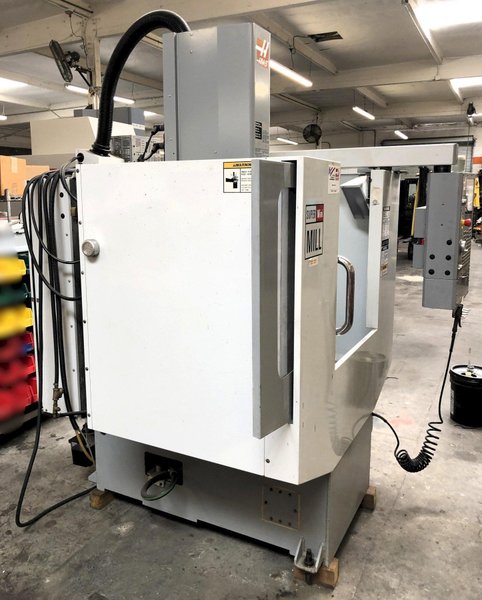

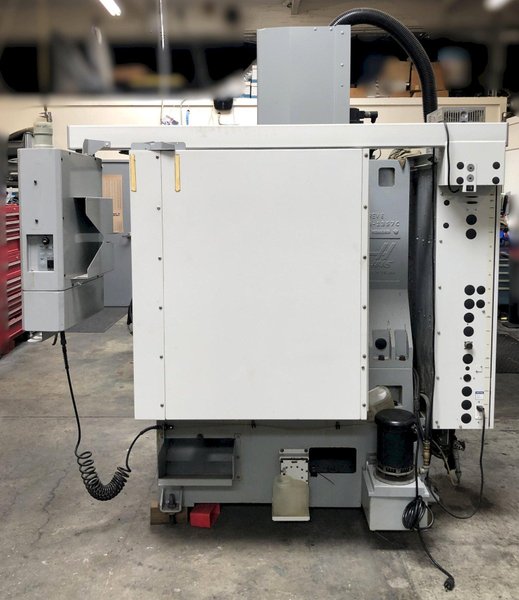

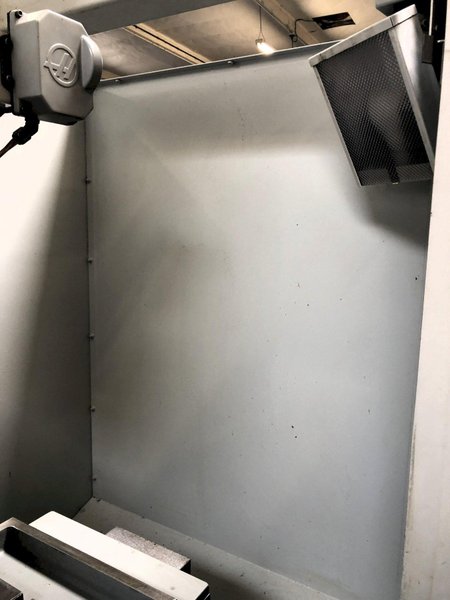

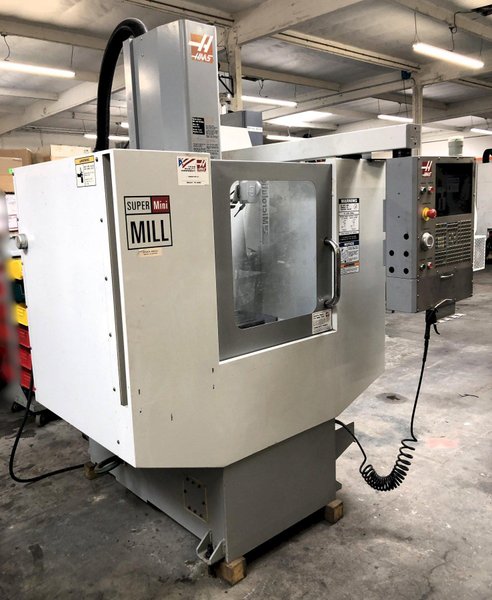

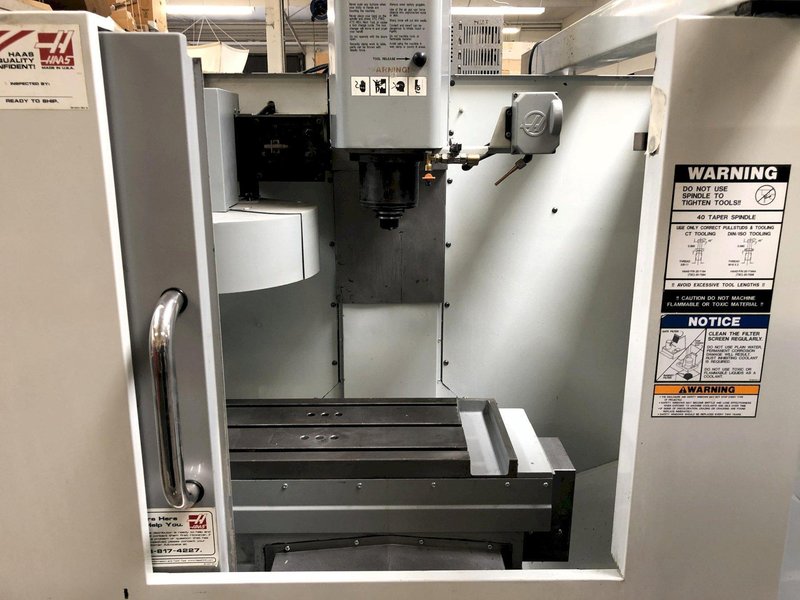

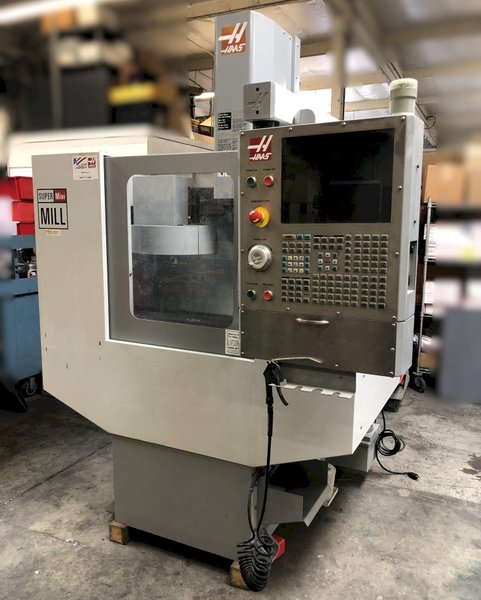

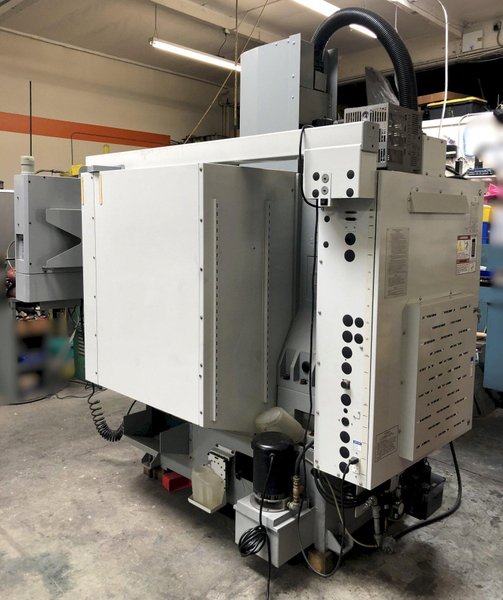

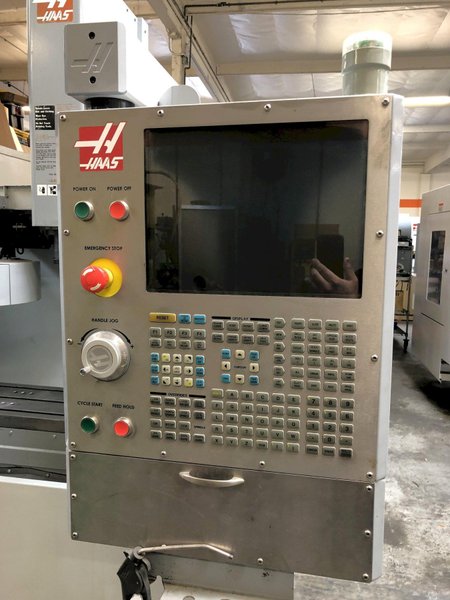

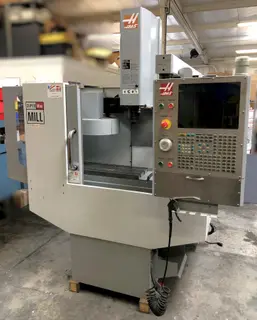

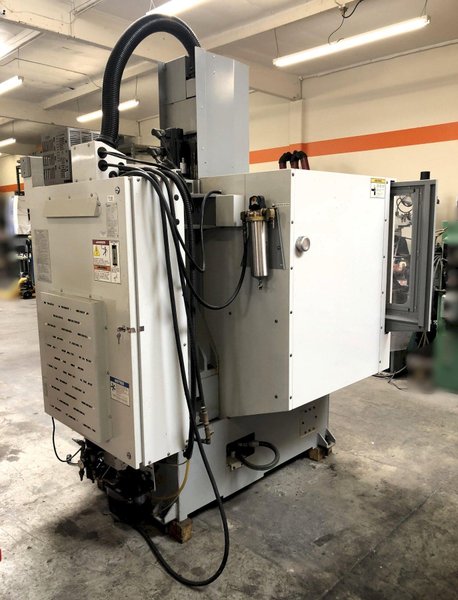

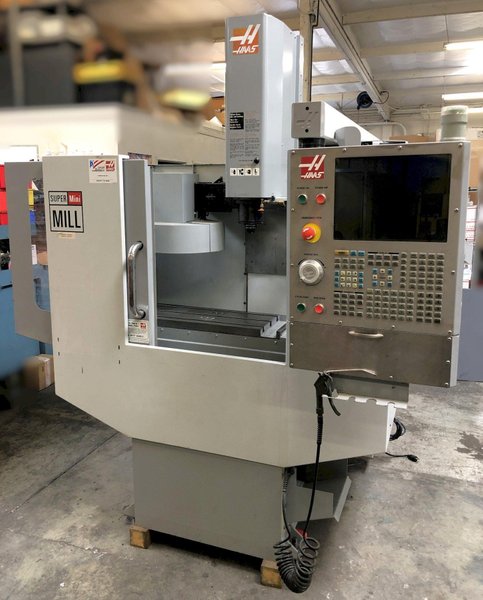

Haas Super Mini Mill CNC Vertical Machining Center 2006
Brand
Category
Model
Super Mini Mill
Stock #
6541
Year
2006
Condition
Used
Location
California
| X-Axis Travel | 16.0 inches |
| Y-Axis Travel | 12.0 inches |
| Z-Axis Travel | 10.0 inches |
| Spindle Nose To Table (~MAX) | 14.0 in |
| Spindle Nose To Table (~MIN) | 4.0 in |
| Spindle Max Rating | 15.0 HP |
| Spindle Max. Speed | 10,000 RPM |
| Spindle Max Torque | 17.0 ft-lbf @ 4,600 RPM |
| Spindle Drive System | Direct Speed, Belt Drive |
| Spindle Taper | CT or BT 40 |
| Spindle Bearing Lubrication | Air / Oil Injection |
| Spindle Cooling | Air Cooled |

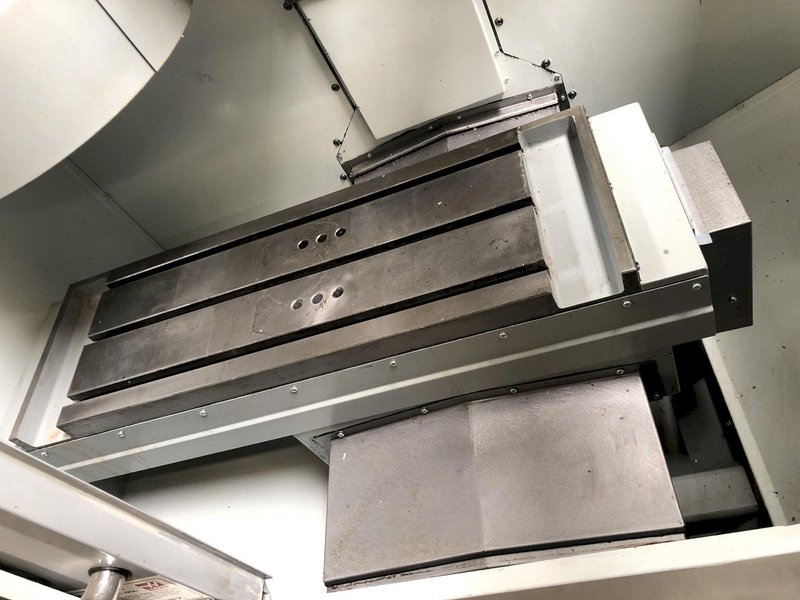

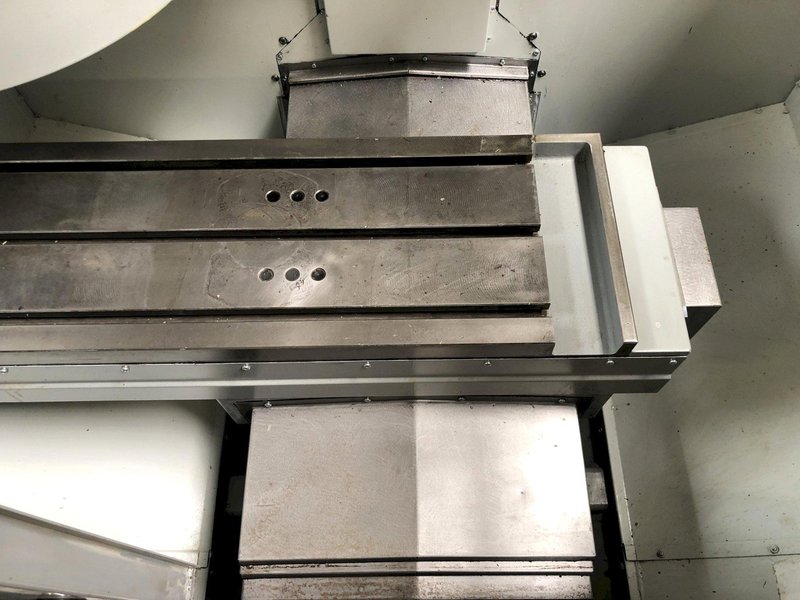

| Table Size | Length: 36.0 in, Length (Work Area): 28.75 in. x Width: 12.0 in. |
| T-Slot Width | 0.626 in. to 0.630 in |
| T-Slot Center Distance | 4.33 in |
| Number Of Std T-Slots | 3 |
| Max Weight On Table (Evenly Distributed) | 500 pounds |
| Max Cutting | 833 IPM |
| Feedrates: Rapids On X-Axis | 1,200 IPM |
| Feedrates: Rapids On Y-Axis | 1,200 IPM |
| Feedrates: Rapids On Z-Axis | 1,200 IPM |
| Axis Motor Max Thrust X | 2,000 IBF |
| Axis Motor Max Thrust Y | 2,000 IBF |
| Axis Motor Max Thrust Z | 2,000 IBF |

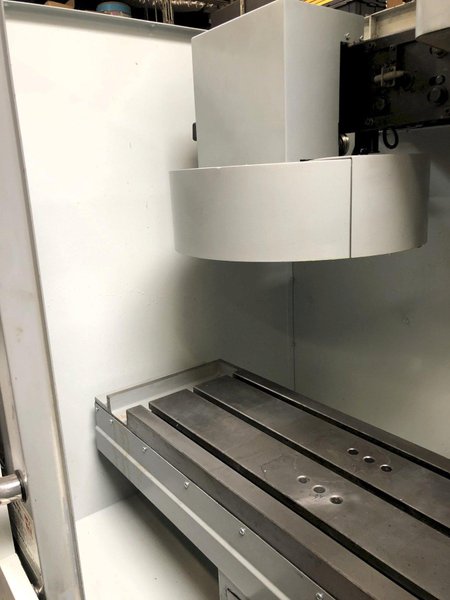

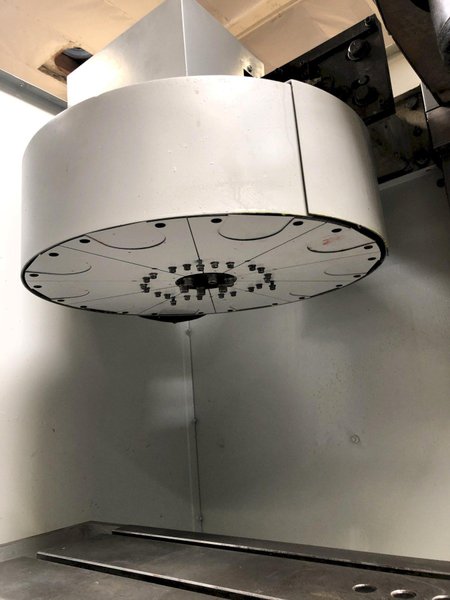

| Tool Changer Type | Carousel |
| Tool Changer Capacity | 10 |
| Max Tool Diameter (Full) | 3.5 in |
| Max Tool Weight | 12 lbs |
| Tool-to-Tool (AVG) | 4.2 s |
| Chip-to-Chip (AVG) | 5.0 s |
| Coolant Capacity | 40 gal |
| Air Requirements | 4 scfm @ 100 PSI |
| Inline Air Hose | 3/8 in |
| Coupler (Air) | 3/8 in |
| Air Pressure Min | 80 PSI |
| Spindle Speed | 10,000 RPM |
| Drive System | Direct Speed, Belt Drive |
| Spindle Power | 15.0 HP |

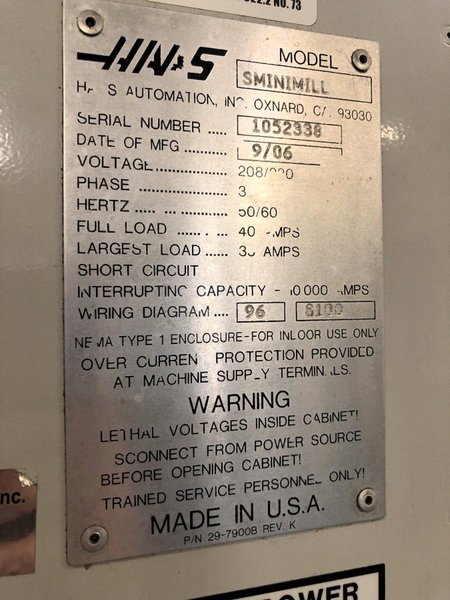

| Input AC Voltage (3 Phase) - Low | 220 VAC |
| Full Load Amps (3 Phase) - Low | 40 A |
| Input AC Voltage (3 Phase) - High* | 440 VAC |
| Full Load Amps (3 Phase) - High* | 20 A |
| Dimensions (Shipping Pallet) | 90 in. x 64 in. x 100 in. |
| Weight | 4000 pounds |
|
Haas Super Mini Mill CNC Vertical Machining Center 2006 ACT Machinery 2424 Cypress Way Fullerton, Ca 92831 Financing Available / Se Habla Español |
|
