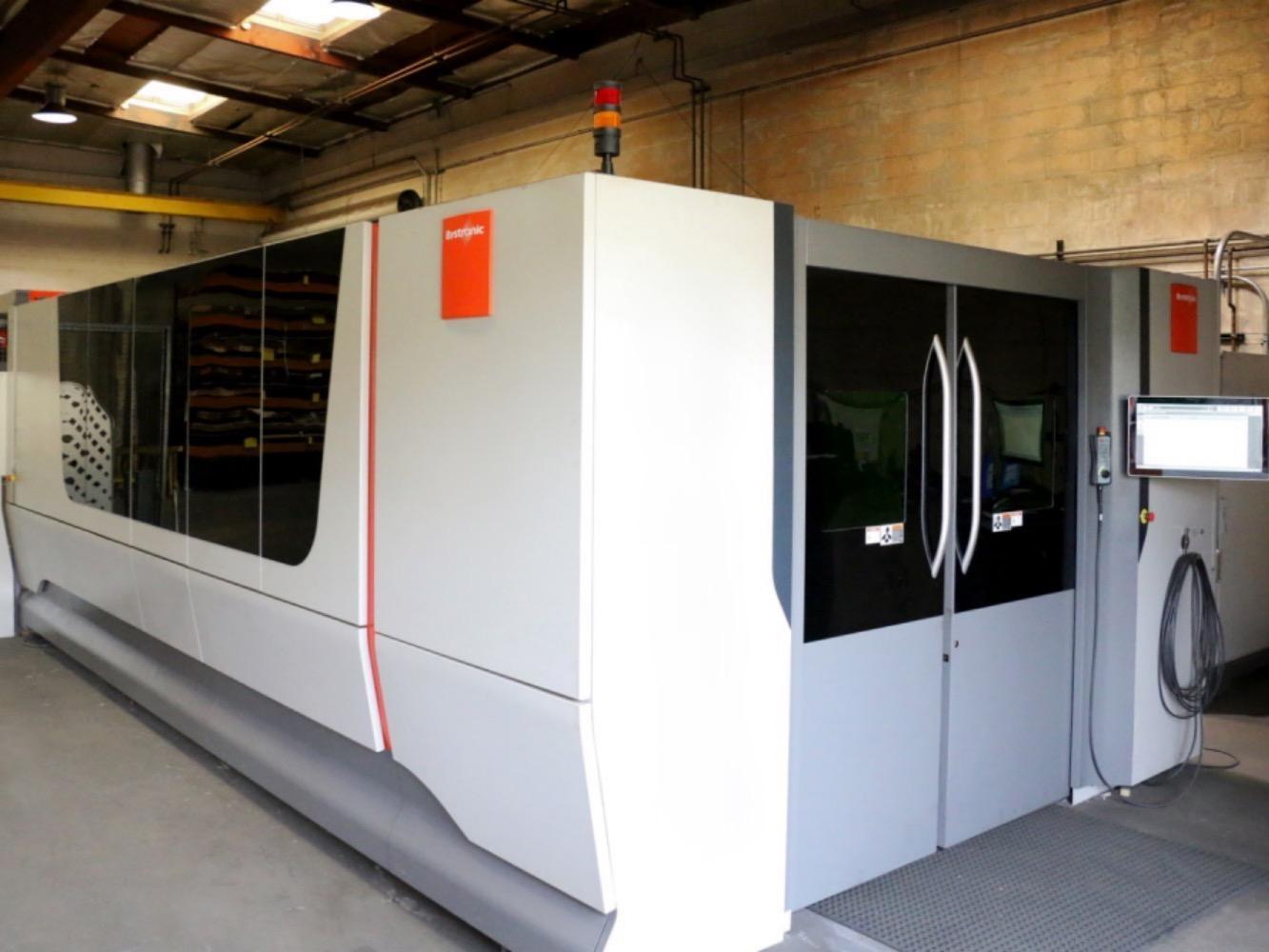

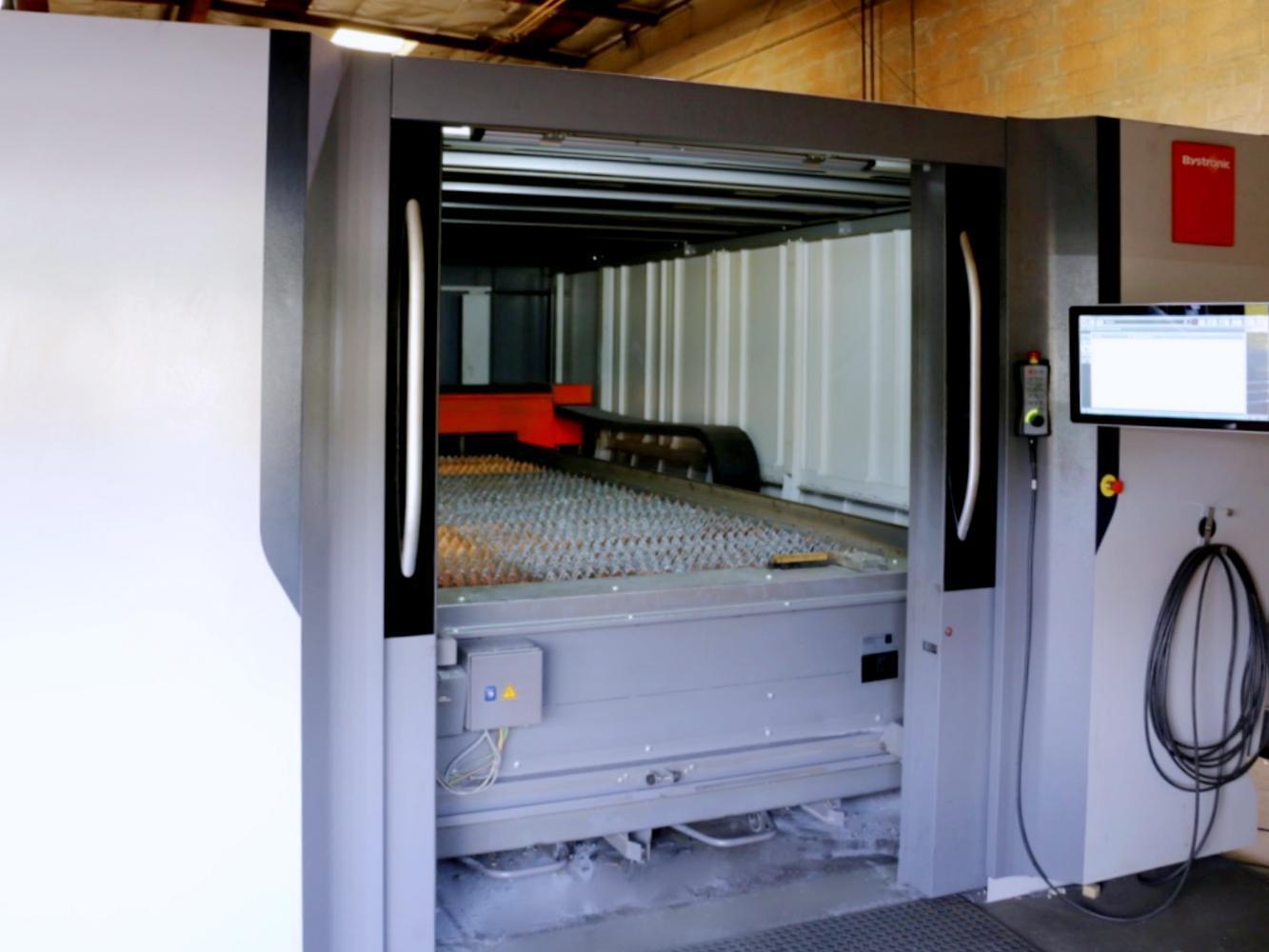

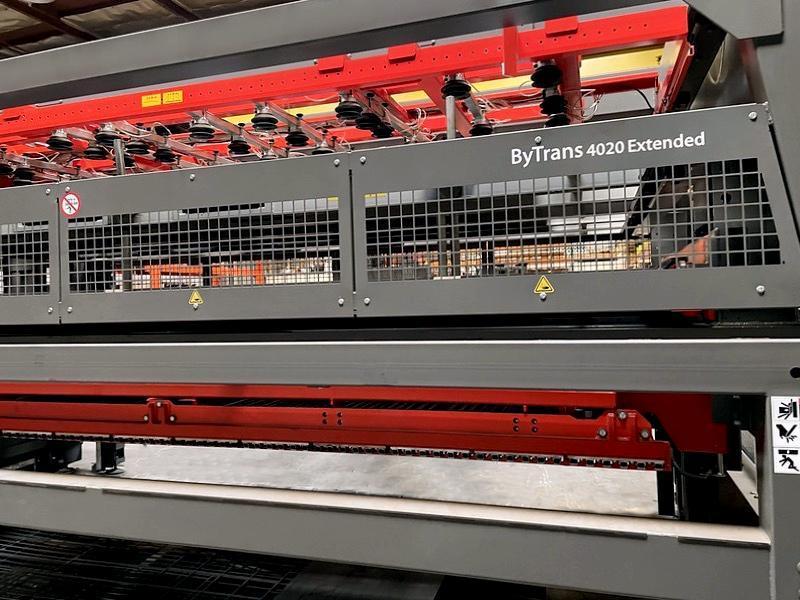

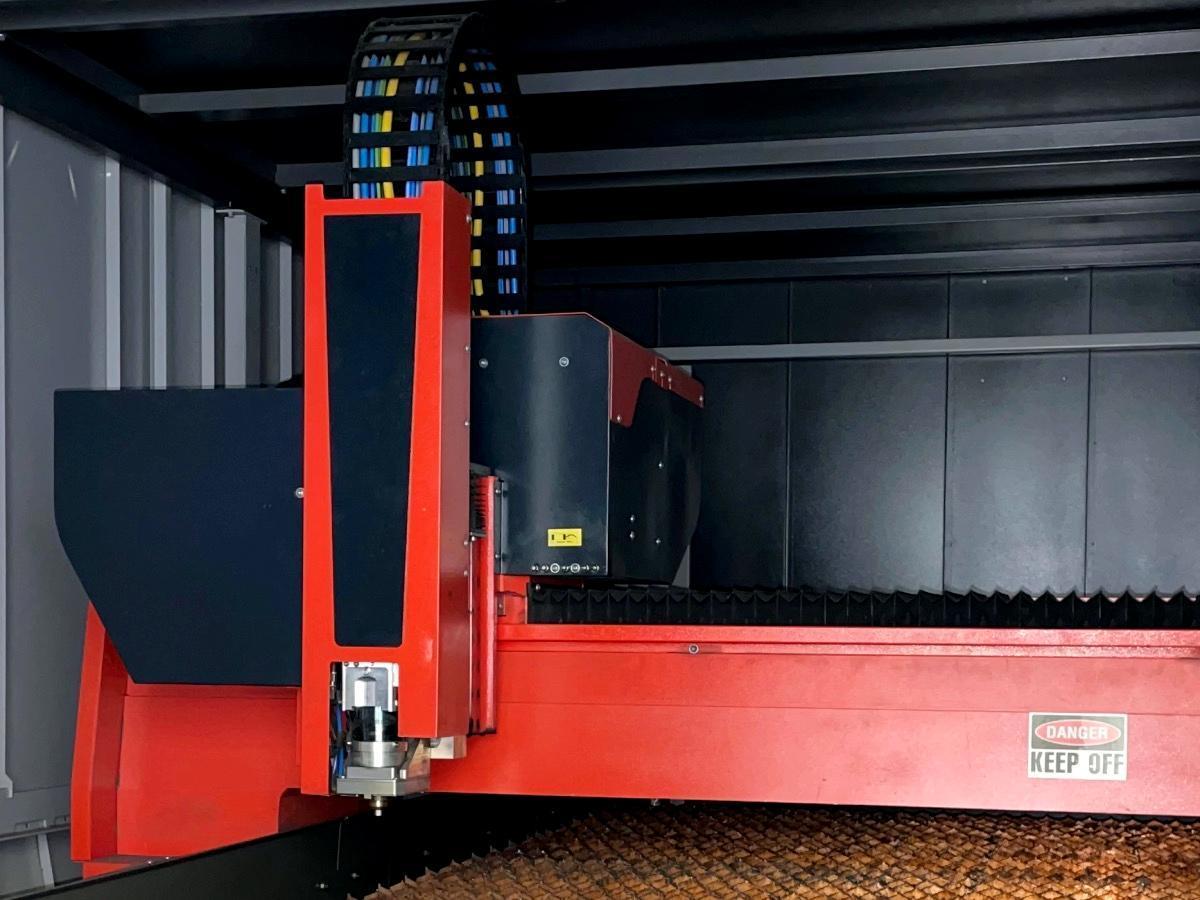

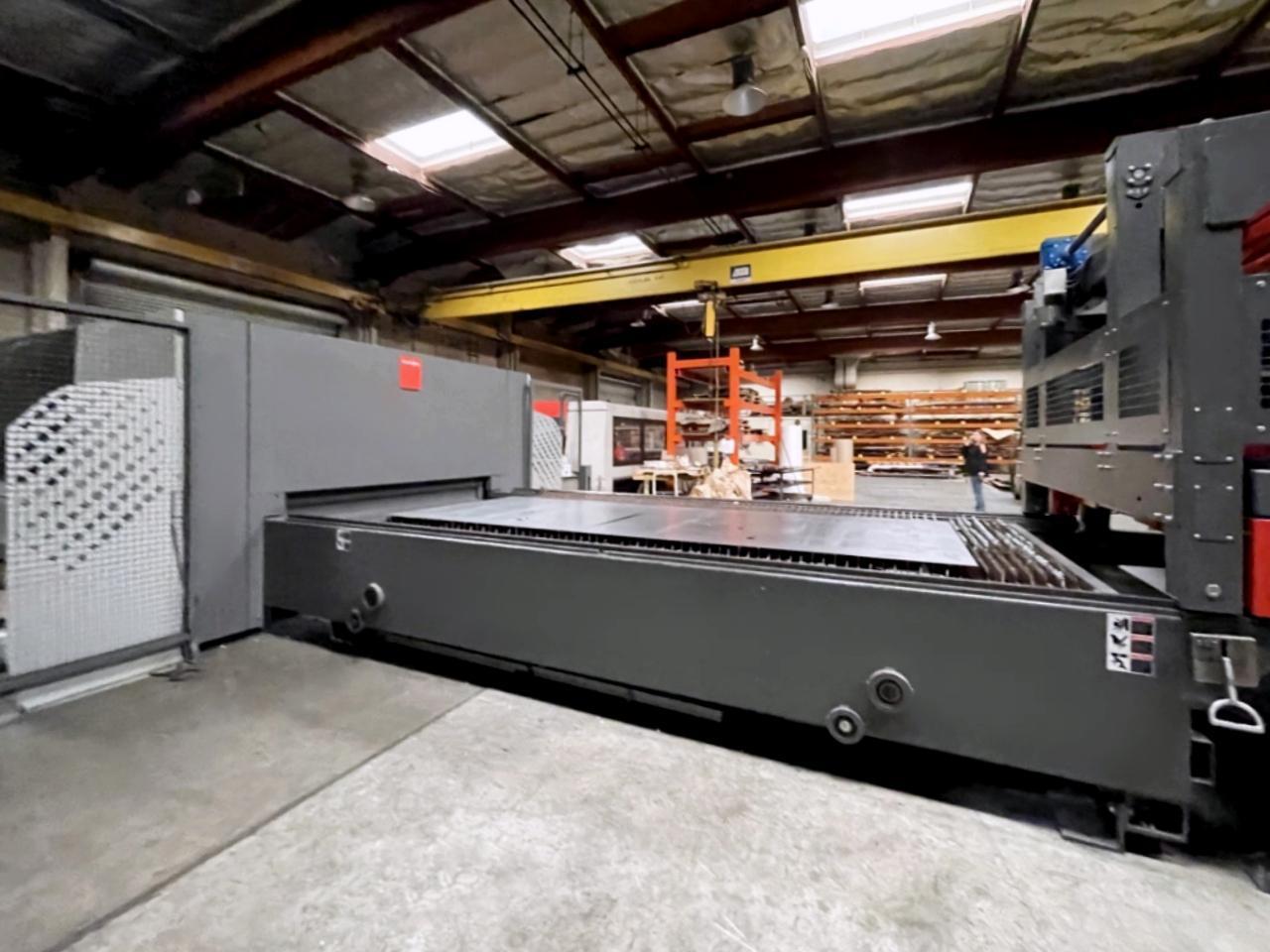

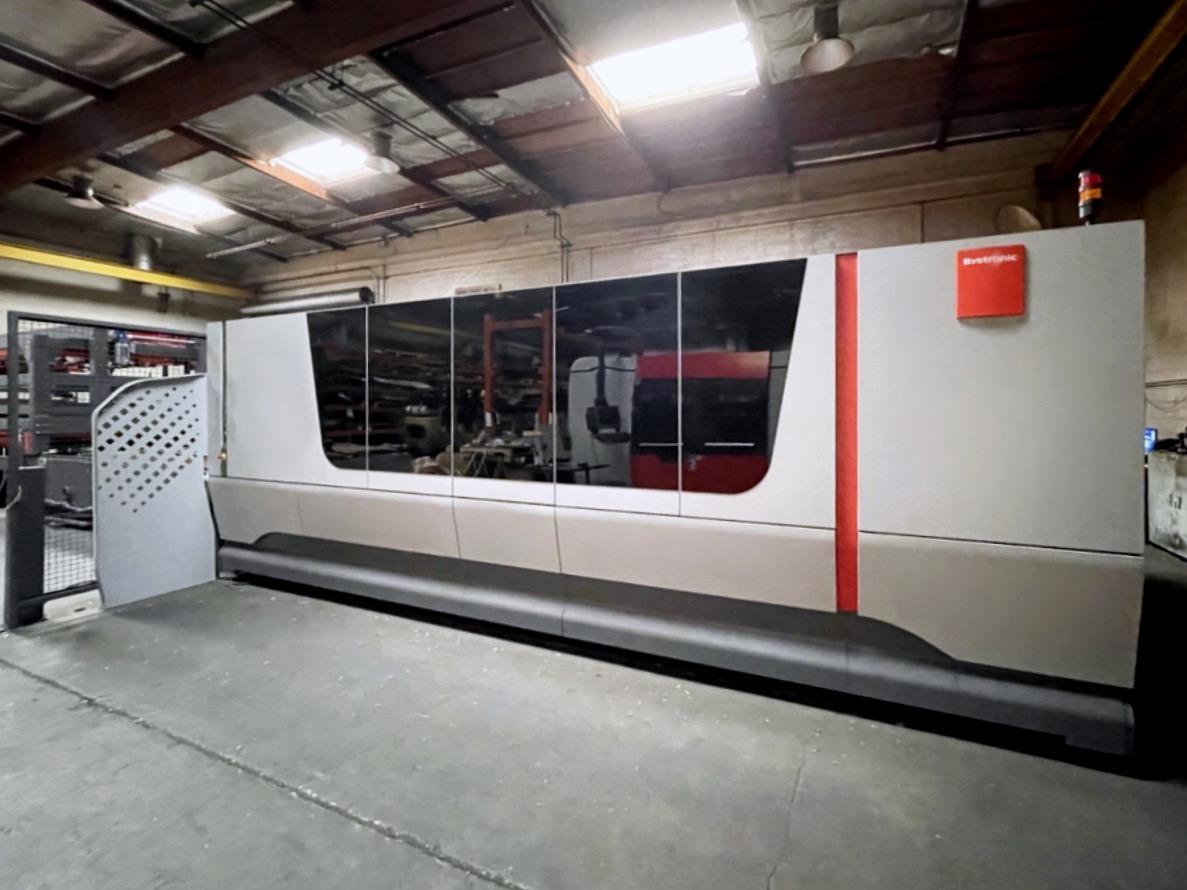

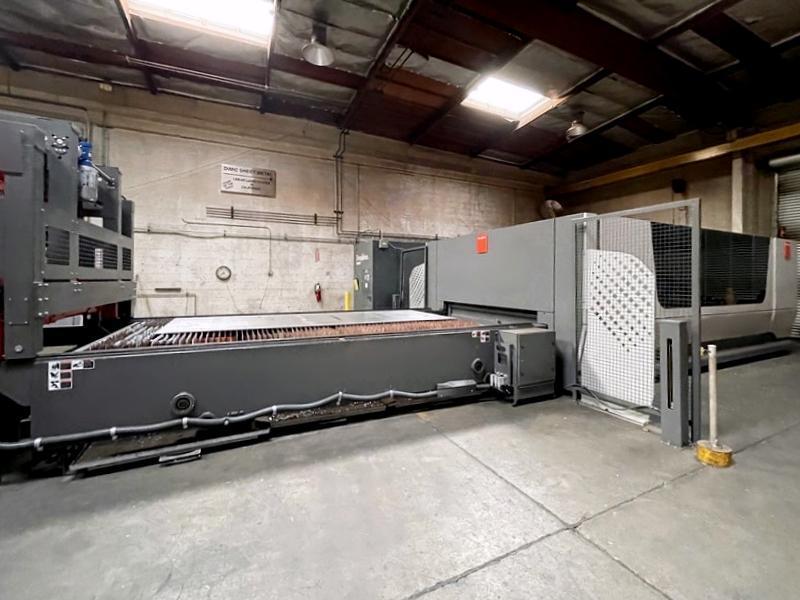

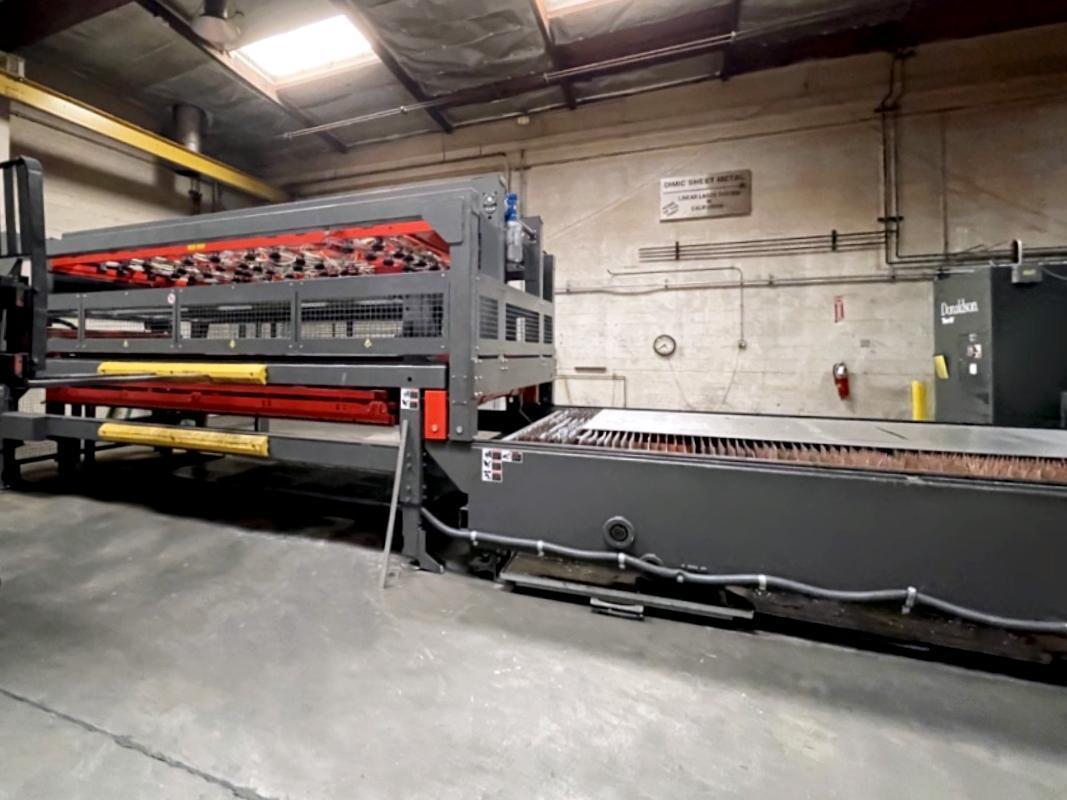

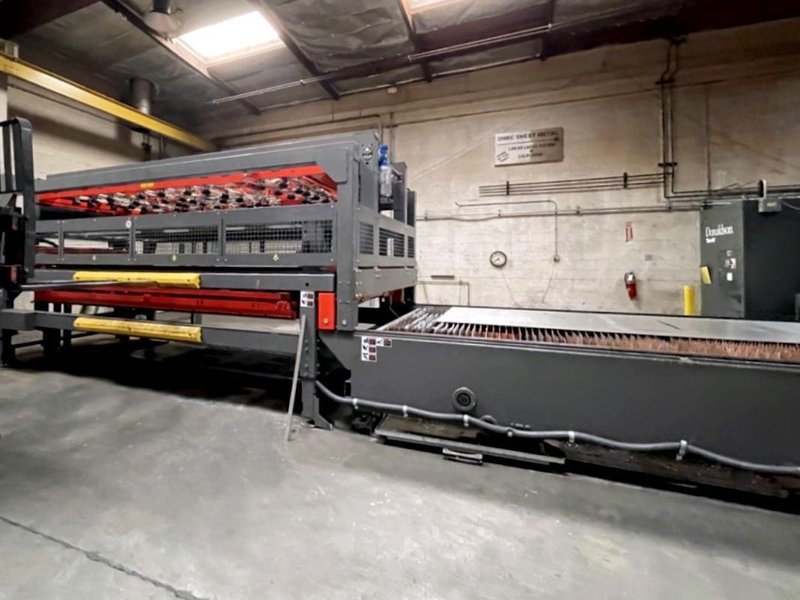

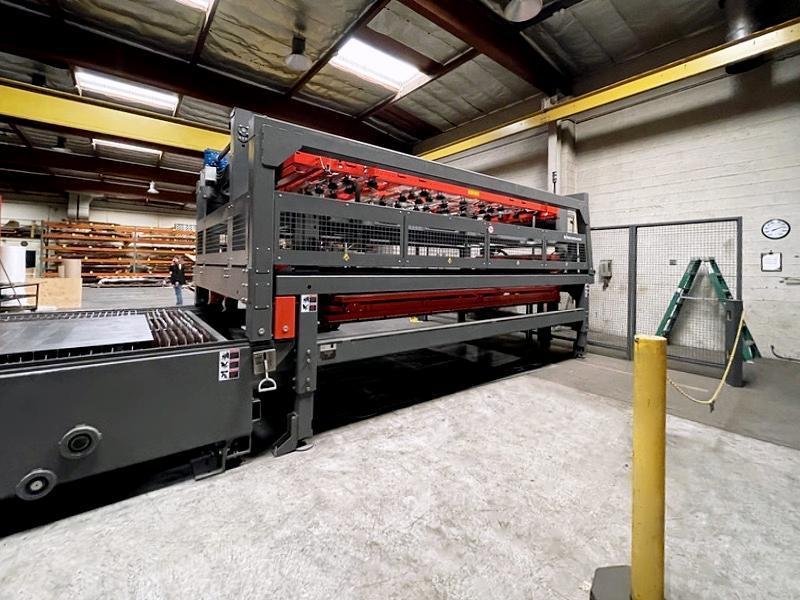

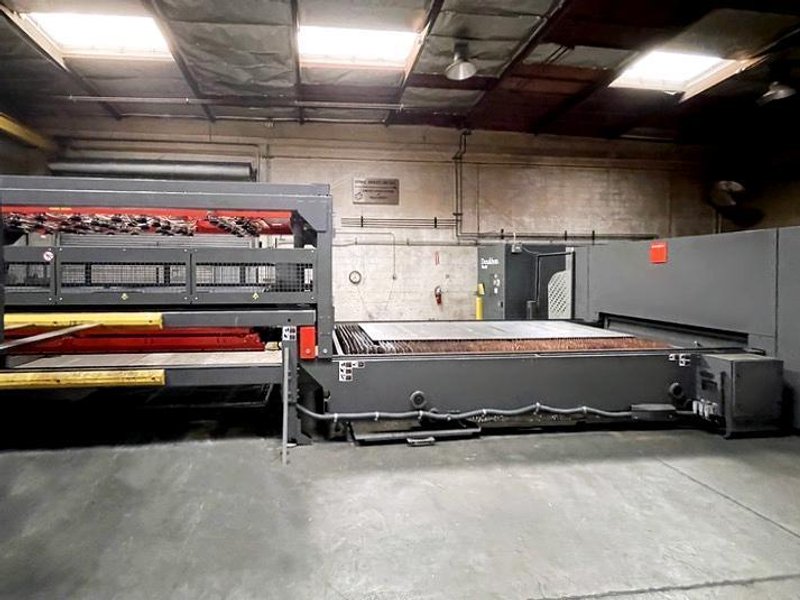

Bystronic BySmart 4020 Fiber w/ ByTrans Extended
Brand
Category
Type
Model
BySmart 4020 Fiber
Stock #
100391
Year
2020
Condition
Excellent
Location
Not specified
| Control | Byvision Cutting Touchscreen |
| Manual Control Unit | Yes |
| Nominal Sheet Size | 160” × 80” |
| Cutting Area (X) | 162.20” |
| Cutting Area (Y) | 83.07” |
| Cutting Area (Z) | 3.937” |
| Max. Pos. Speed Parallel Axis X/Y | 3,937 IPM |
| Max. Sim. Positioning Speed | 5,511 IPM |
| Edge Detection Accuracy | (±) 0.019” |
| Max. Workpiece Weight | 4,188 Lbs. |
| Table Changeover Time | 27 Sec. |
| Machine Weight (Machine Only) | 32,628 Lbs. |
| Laser Dimensions | L 503" x W 297" x H 113" |
| Laser Wavelength | Fiber |

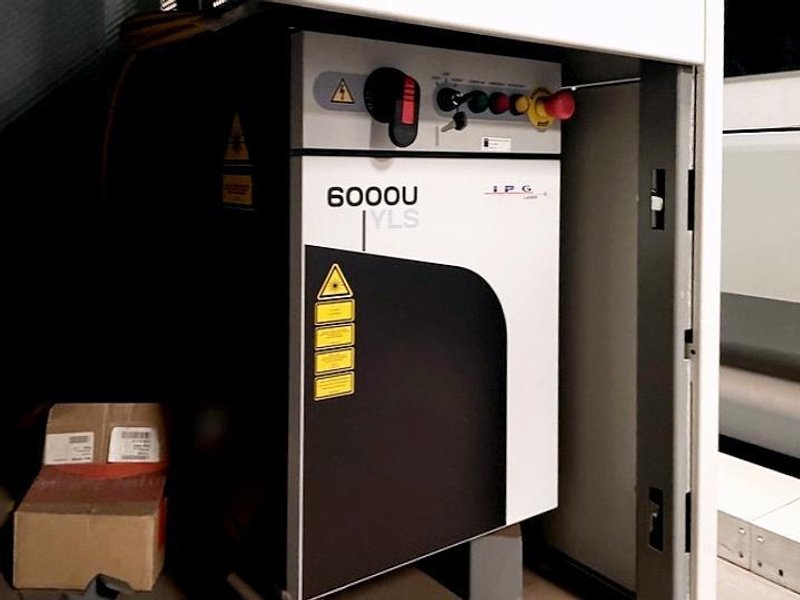

| Power | 6,000 Watts (6kw) |
| Range of Adjustment | 600 W - 6,000 W |
| Max. Cutting Sheet Thickness Steel | 0.984” |
| Max. Cutting Sheet Thickness Stainless | 1.18” |
| Max. Cutting Sheet Thickness Aluminum | 1.18” |
| Max. Sheet Thickness Brass | 0.59” |
| Max. Sheet Thickness Copper | 0.47” |
| Total Electric Consumption of System | 17 Kw |
|
Equipped With: Byvision Cutting Touchscreen High Speed Cutting Automatic Nozzle Changer w/ 40 Positions Netbox (Router) Chiller Unit Donaldson Torit Dust Collection Unit
|
|
