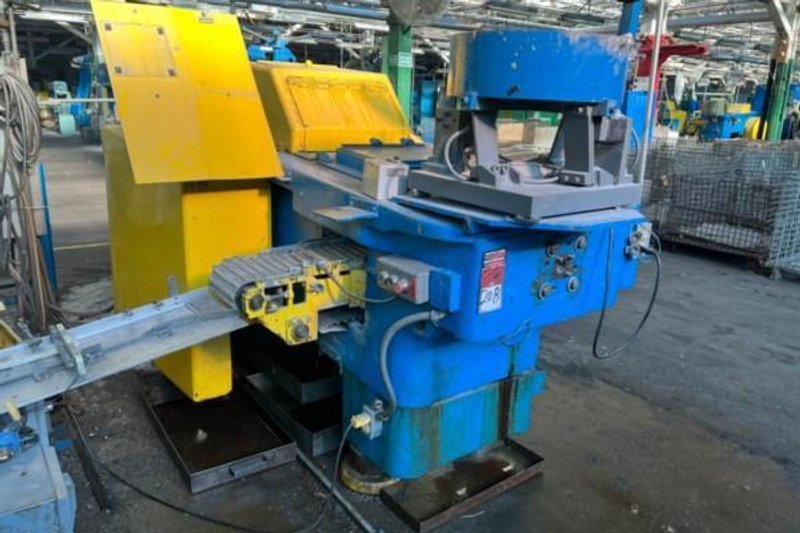

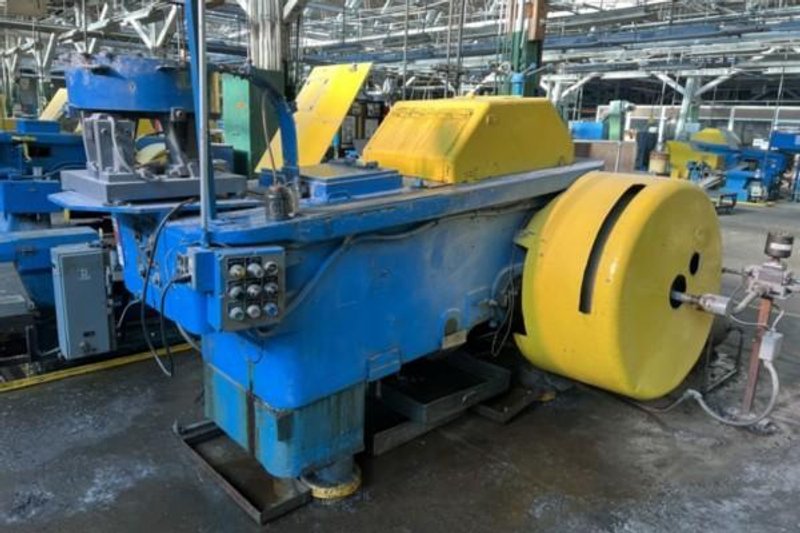

240 Ton HERLAN P5 IMPACT EXTRUSION PRESS
Brand
Category
Type
Model
P5
Stock #
115503
Year
Not specified
Condition
Used
Location
Not specified
|
Nominal Power Mp: 240
Stroke Length mm: 300
Aluminum - 99.5 :
Max Diameter mm: 38
Wall Thickness mm: 0.1
Max Extruded Length mm: 250
Zinc 130 deg C :
Max Diameter mm: 32
Wall Thickness mm: 0.35
Max extruded Length mm: 80
Max Diameter Soft Metal mm: 50
Number of Strokes per minute spm: 85
Motor Power kW: 15
Size :
Length mm: 3230
Width mm: 2200
Height mm: 1680
Weight kp: 7120
Weight with seaworthy packing : 8000
Outside Dimensions of Seaworhty Crating :
Length mm: 3400
Width mm: 2190
Height mm: 2010
Includes

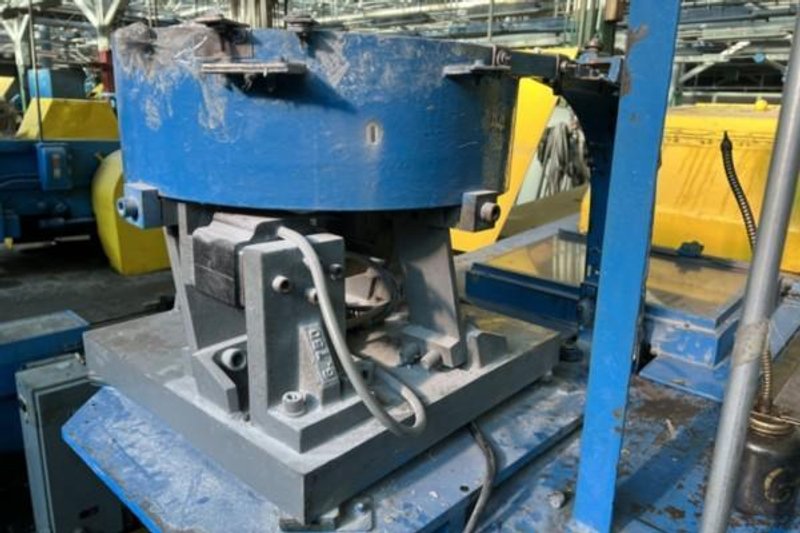

Bowl Feeder
Air Actuated Clutch
Motor
Ejector
|
