Nominal Power Mp: 620
Stroke Length mm: 325
Aluminum - 99.5 :
Max Diameter mm: 75
Wall Thickness mm: 0.3
Max Extruded Length mm: 270
Zinc 130 deg C :
Max Diameter mm: 65
Wall Thickness mm: 0.5
Max extruded Length mm: 200
Max Diameter Soft Metal mm: n/a
Number of Strokes per minute spm: 60
Motor Power kW: 37
Size :
Length mm: 4930
Width mm: 3180
Height mm: 1940
Weight kp: 18800
Weight with seaworthy packing : 21150
Outside Dimensions of Seaworhty Crating :
Length mm: 4420
Width mm: 2700
Height mm: 2550
Includes

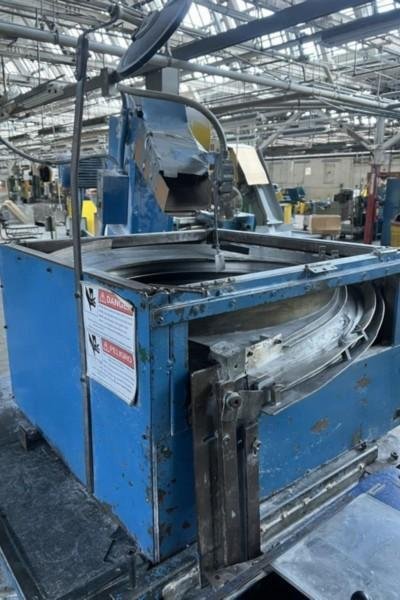

Bowl Feeder
Air Actuated Clutch
Motor
Ejector |
