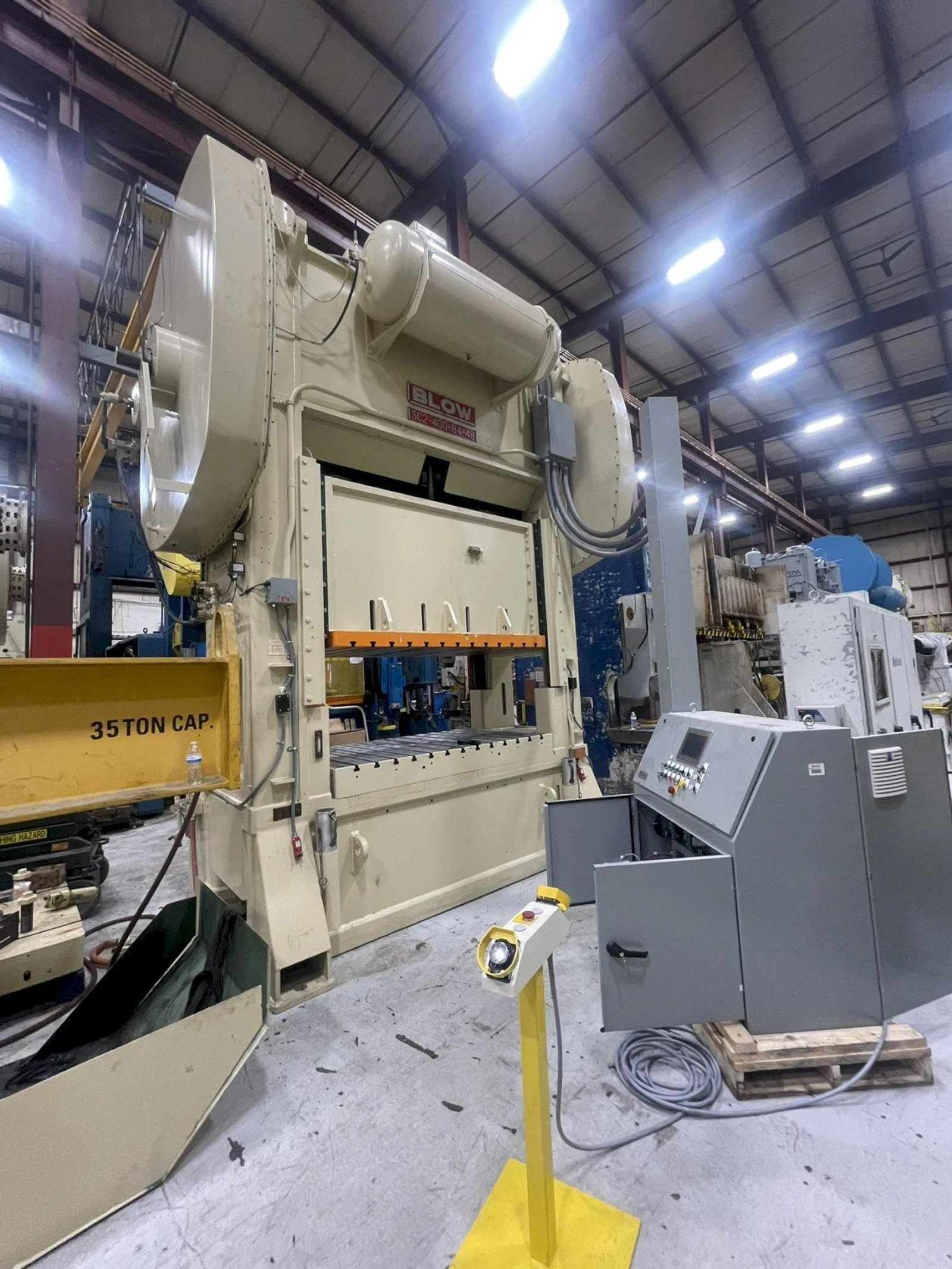

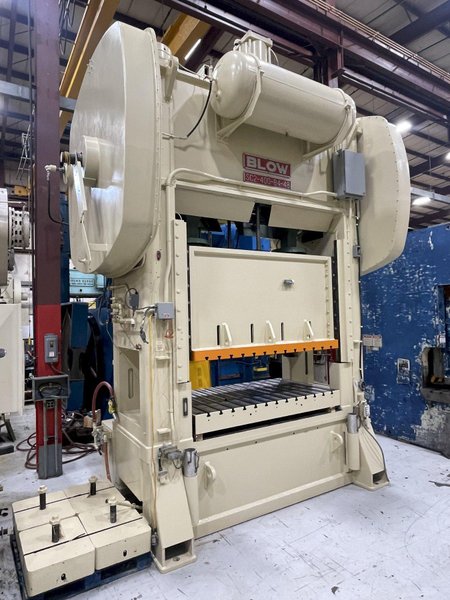

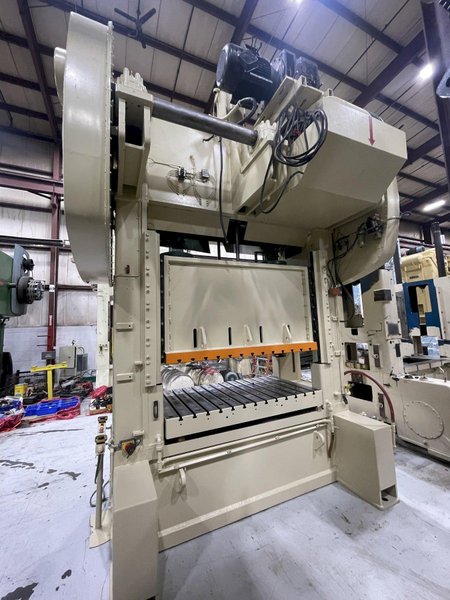

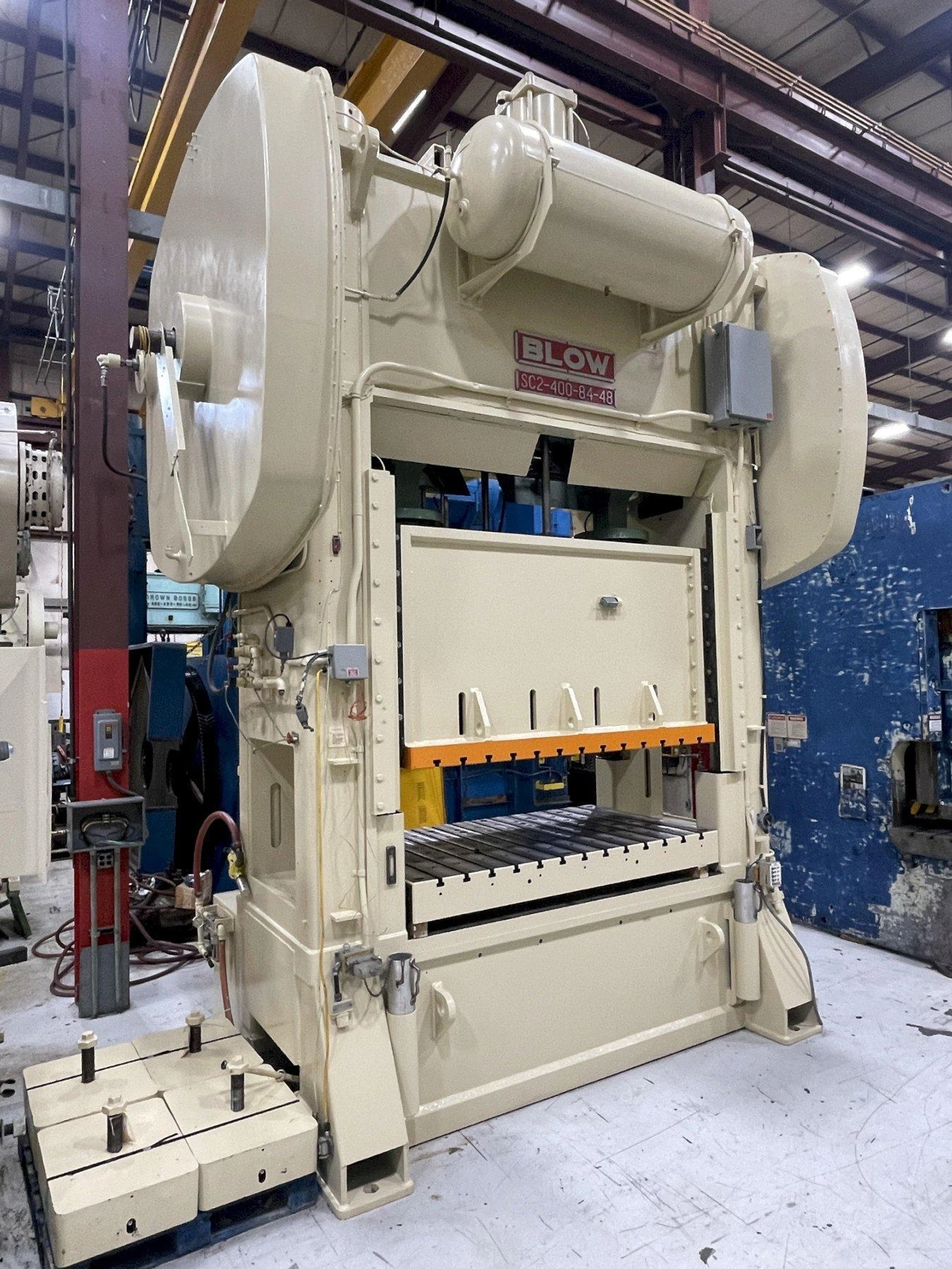

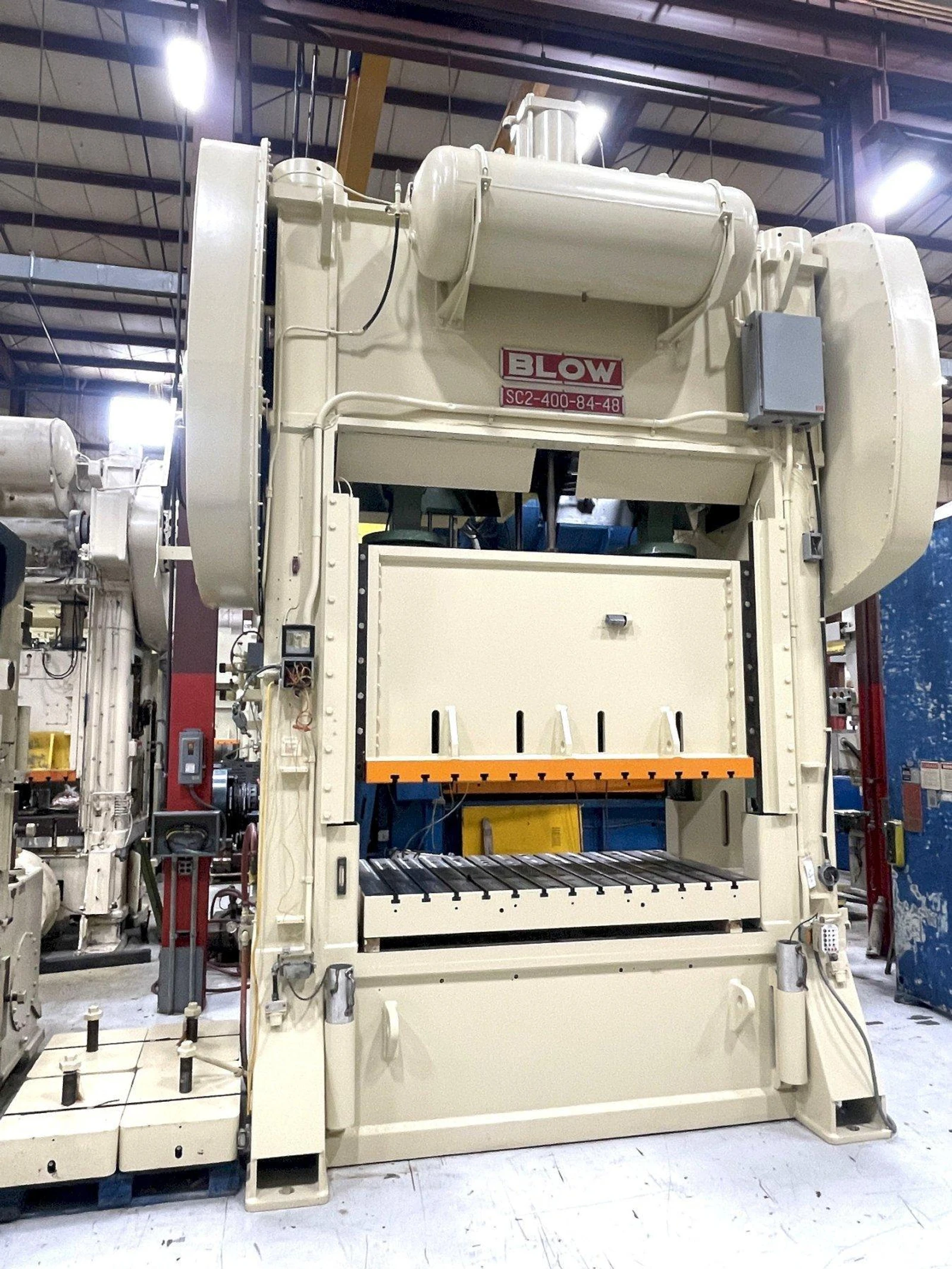

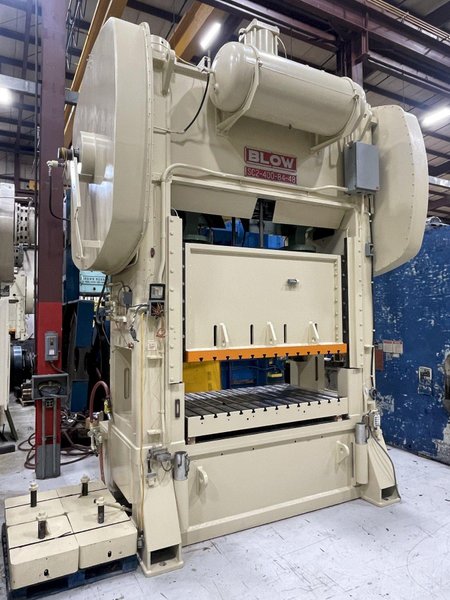

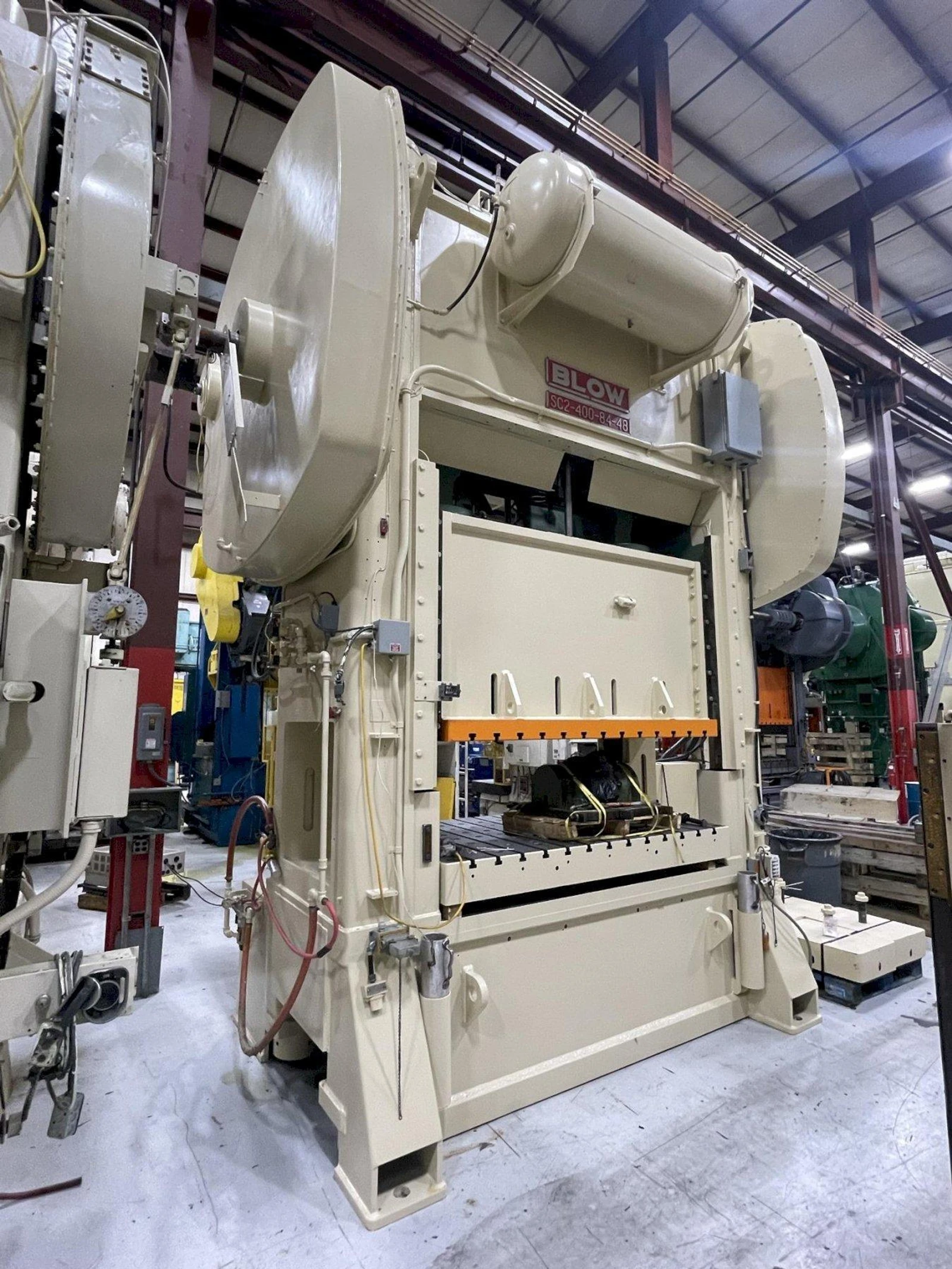

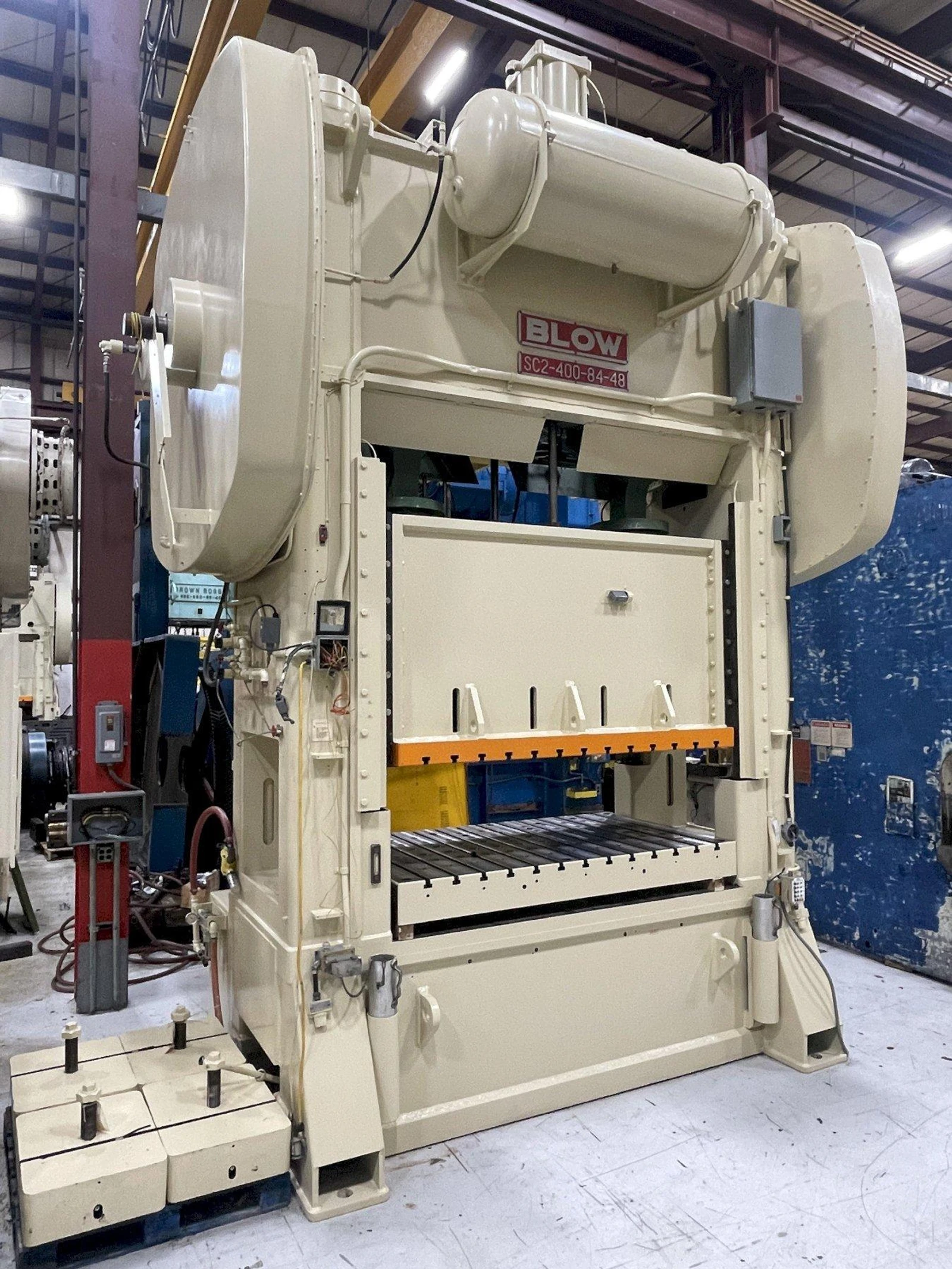

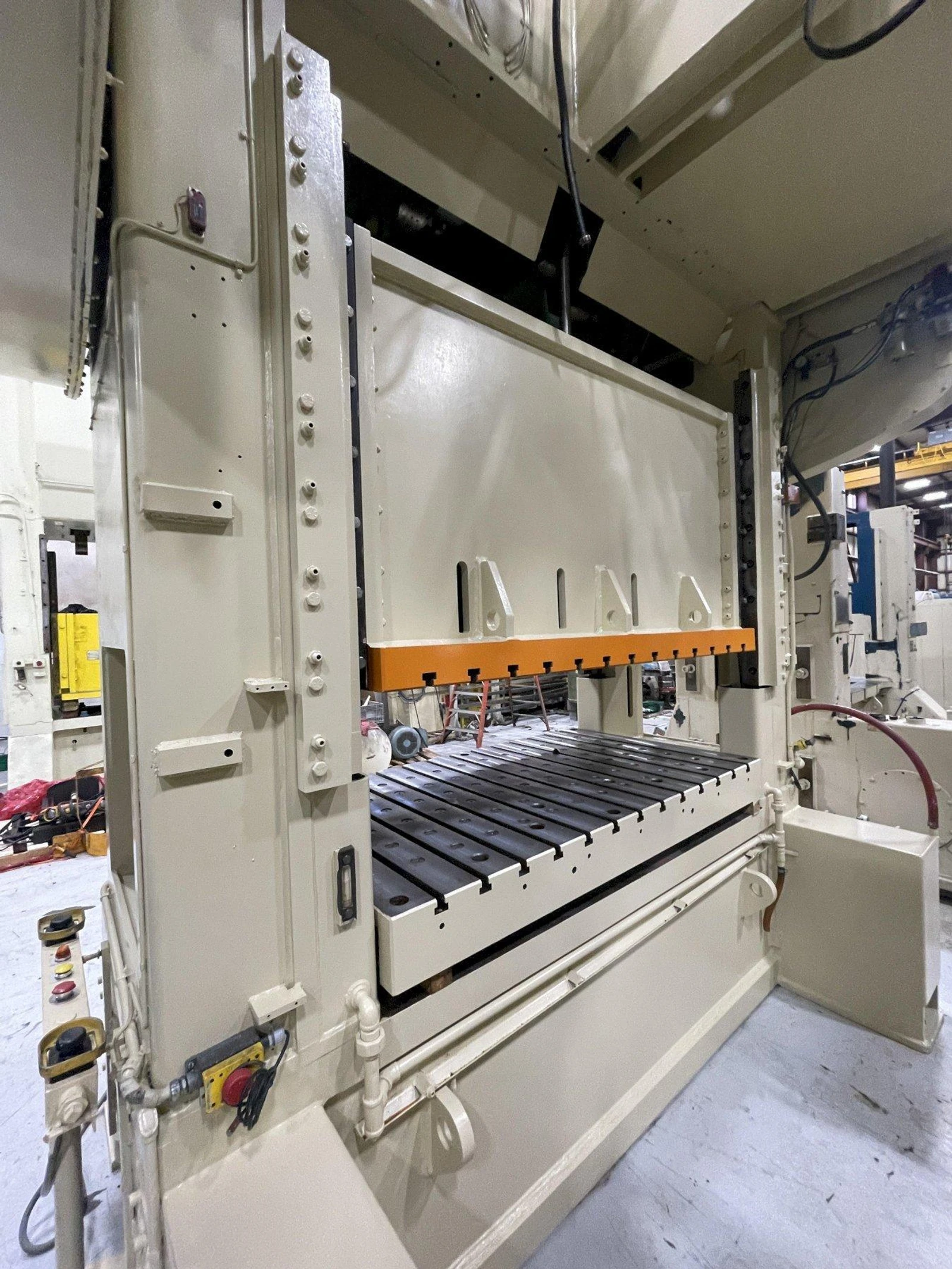

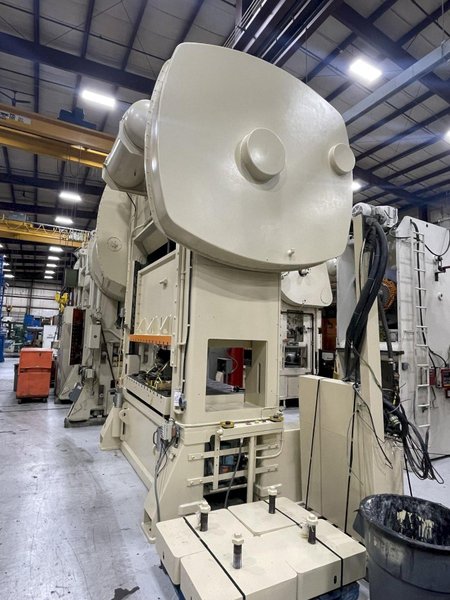

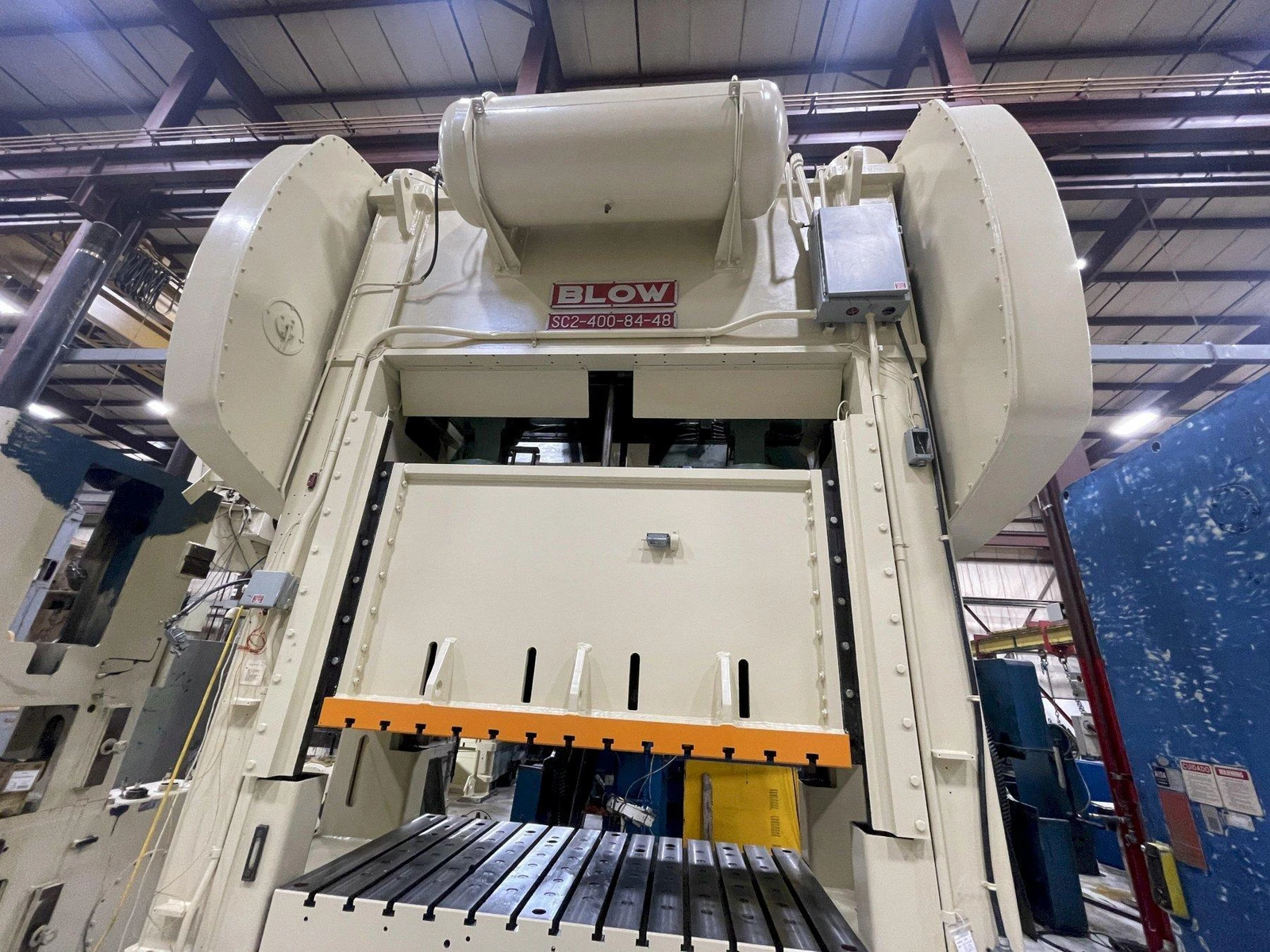

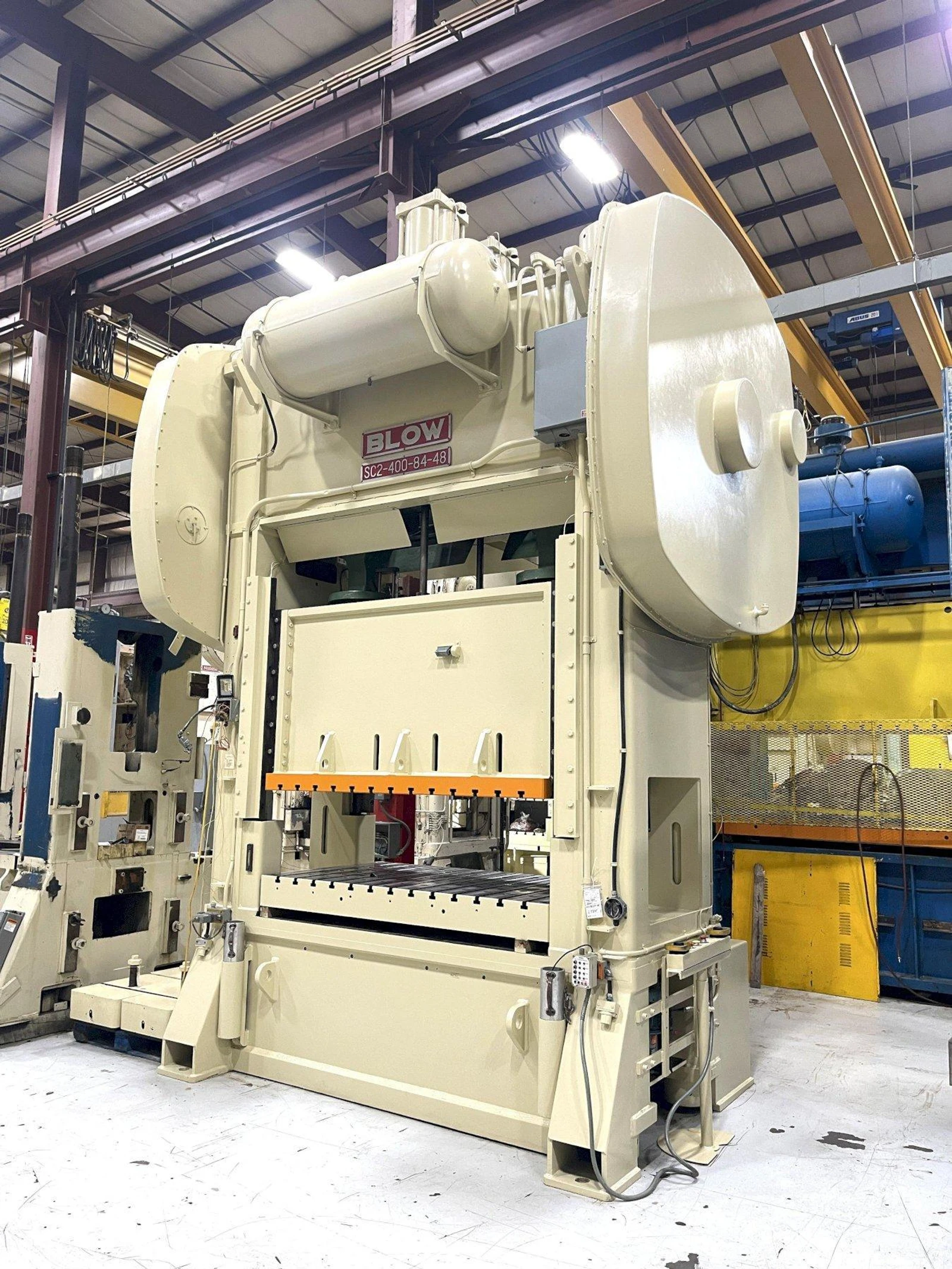

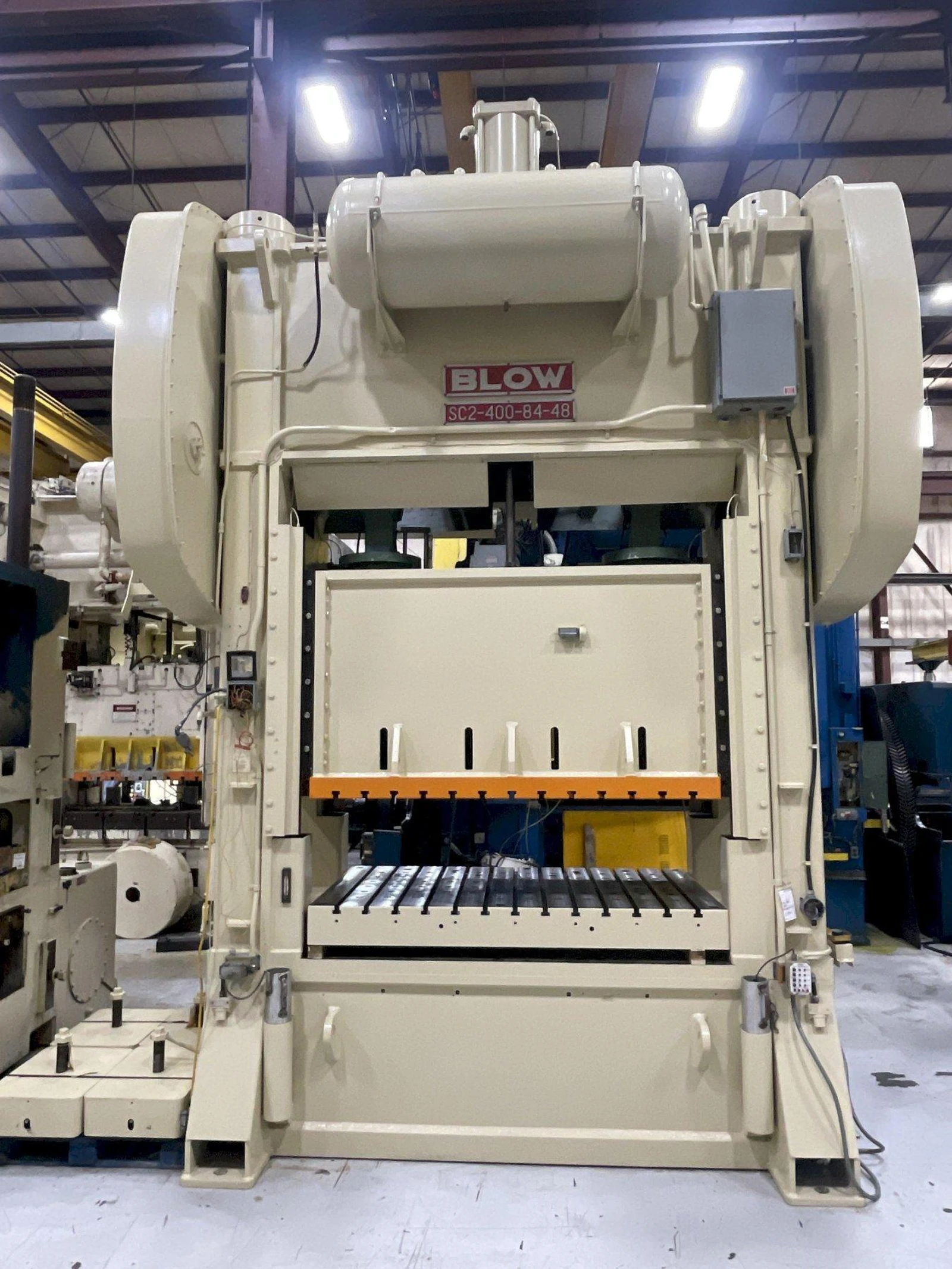

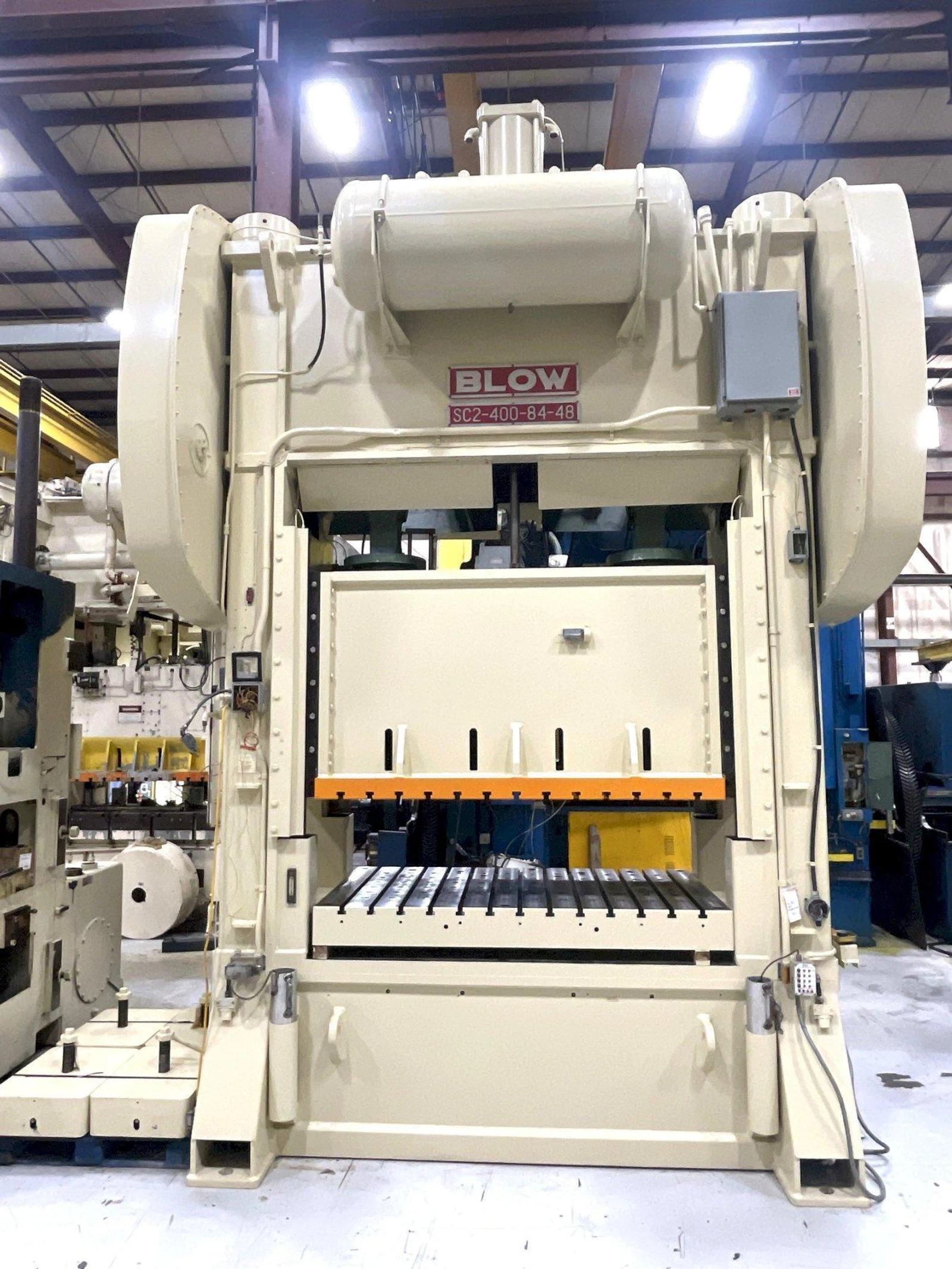

400 ton Blow SC2-400-84-48 Used Straight Side Mechanical Metal Stamping Press For Sale, Year 1989, RECONDITIONED!

Brand
Model
SC2-400-84-48
Stock #
2784
Year
1989
Condition
Used
Location
Michigan
Tonnage 400
Stroke 10 inches
Shut Height 34 inches
Adjustment 10 inches
Bed Size 84" LR x 48" FB
Ram Area 84" LR x 48" FB
SPM 25-50 VSPM
Standard Specifications
Blow Press Model SC2-400-84-48
Reconditioned Straight Side Mechanical Press
400-ton Capacity Press
10" Stroke
34" Shut Height On Bed
28" Shut Height On Bolster
10" Motorized Adjustment
84" LR x 48" FB Bed Area
84" LR x 48" FB Slide Area
25-50 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System

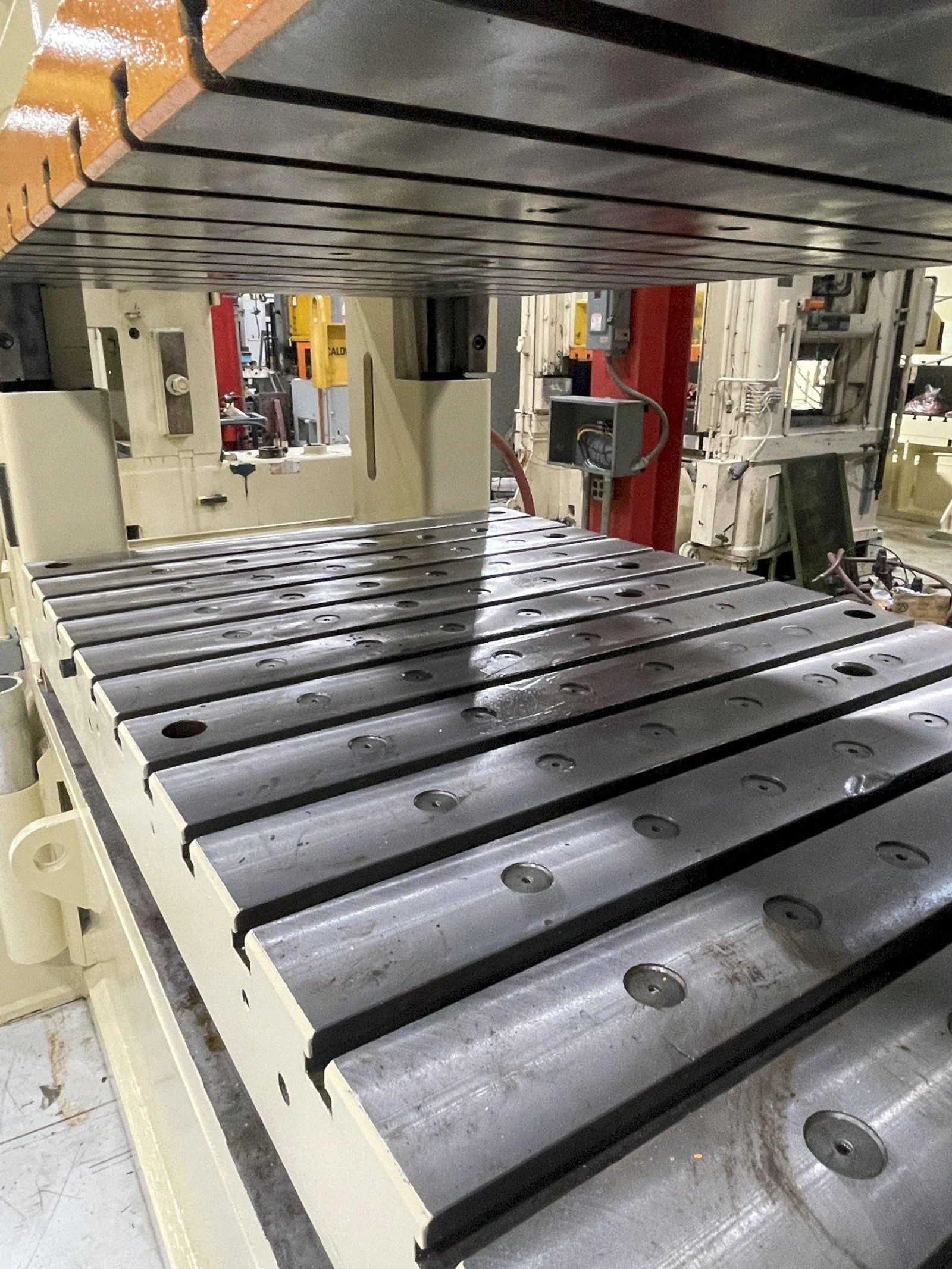

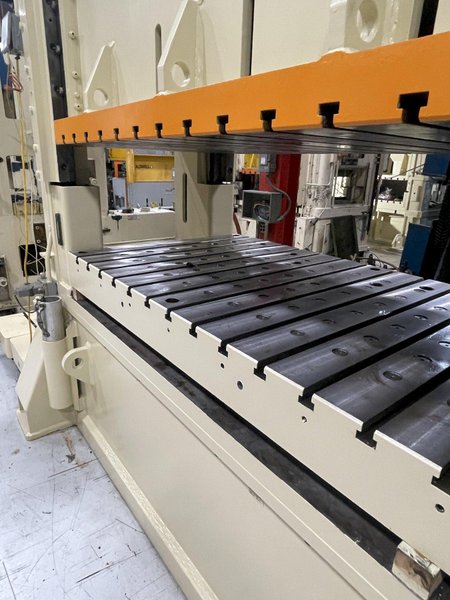

T-Slotted Ram and Bolster
Upgrade PLC Controls -
- Wintriss Die Protection
- 0-20 Programmable Cams
-Torspec Variable Speed Drive 5001TCP
Safety Light Curtains
Includes Vibro Dynamic Floor Pads
30" Wide Windows
Floor Standing

Overall Height 228" Tall (Without Floor Pads)
Footprint:  124" Wide x 84" Depth

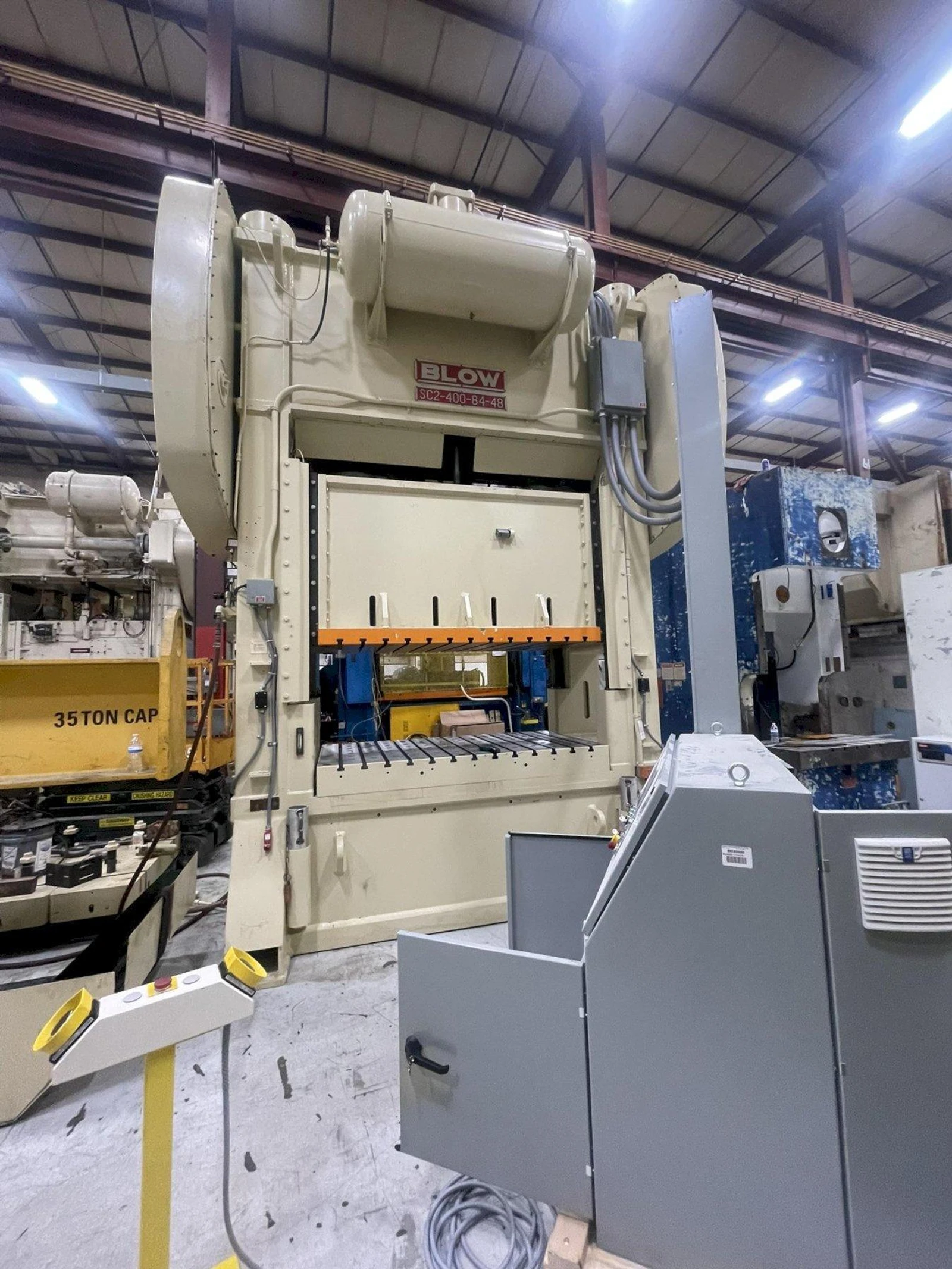

This Reconditioned 400 ton Blow Straight Side Mechanical Metal Stamping Press an be seen under power in the S&G Press Livonia MI Warehouse Upon Request!

Used Straight Side Double Crank 400 ton Blow Mechanical Press For Progressive Die Stamping
