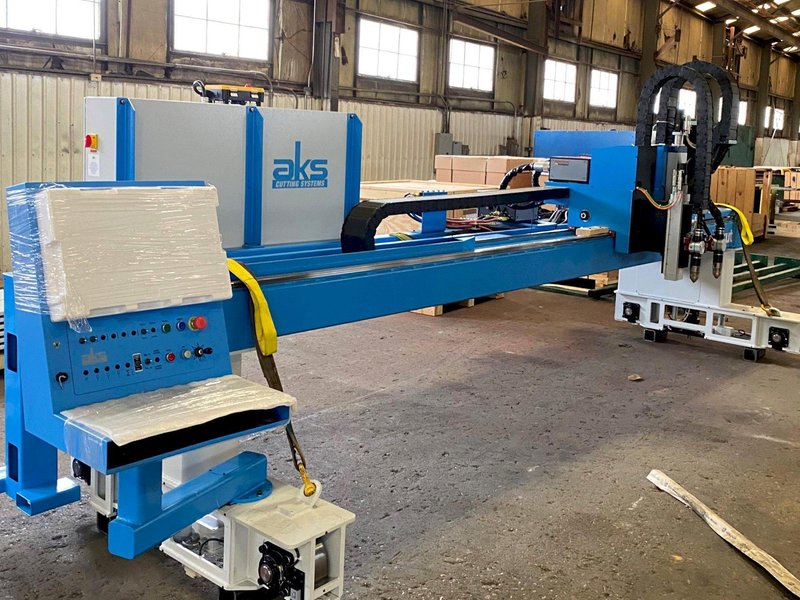

AKS Dura-Kut Plasma System w/Tube Cut
Brand
Category
Type
Model
Dura-Kut
Stock #
100376
Year
2022
Condition
New
Location
Not specified
| Table Size | 10’ x 40’ |
| Table Type | Down Draft (Zoned w/ Mechanical Air Gates) |
| Table Features | Tube-Kut / Dome Cutting Capabilities |
| Max Cutting Area | 12’ x 51’ |
| Control | Hypertherm EDGE Connect |
| Y Axis | 12’ Bridge Single Drive w/ Helical Rack & Pinion Drive |
| X Axis | 52' Dual Synchronized Drives w/ Straight Tooth Rack & Pinion |
| Power Source | (2) Hypertherm XPR300 Plasma Power Supply |

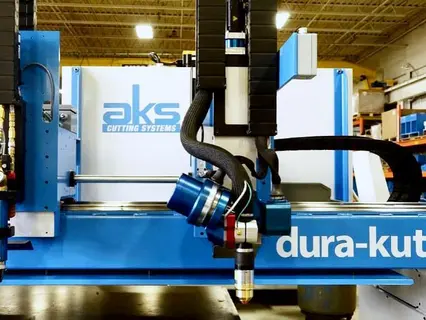

| Cutting Head (Primary) | Robo-Kut 5 Axis Bevel Cutting Head |
| Cutting Head (Secondary) | Hypertherm XPR Plasma Torch |
| Tube Cutting Unit | Tube-kut Tube/Pipe Processing System |
| Chuck Type | 4 Jaw Chuck |
| Max Tube Length | 20' |
| Tube Cut Range Round | 2"-24" OD |
| Tube Cut Range Square | 12" OD |
|

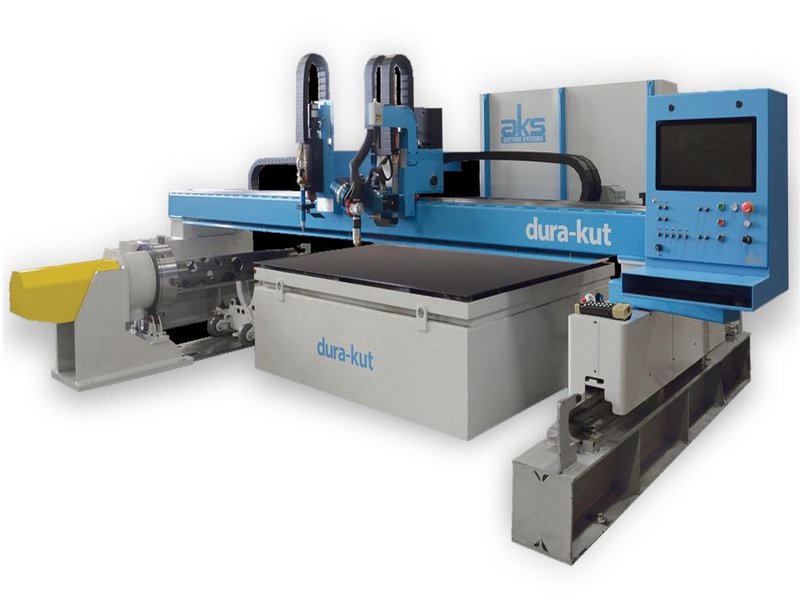

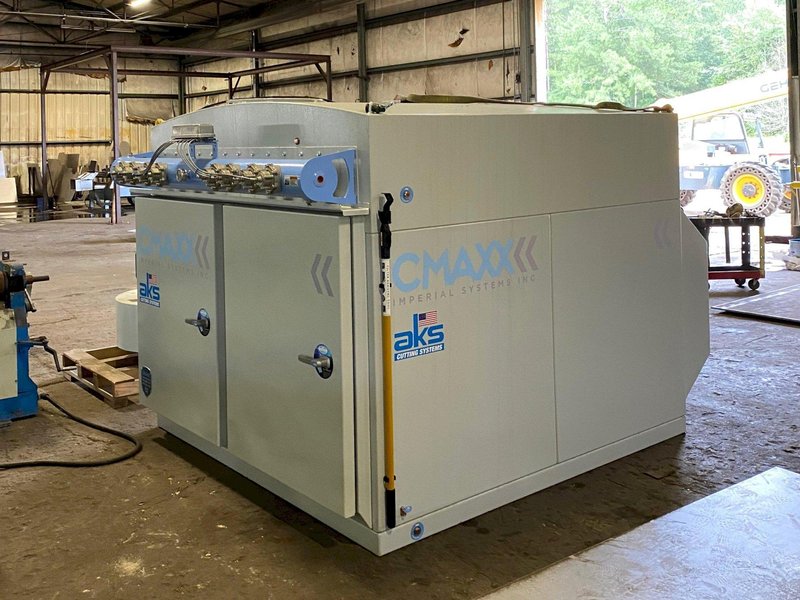

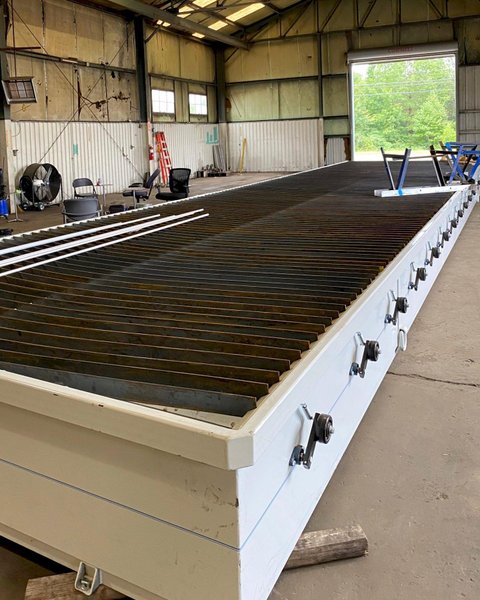

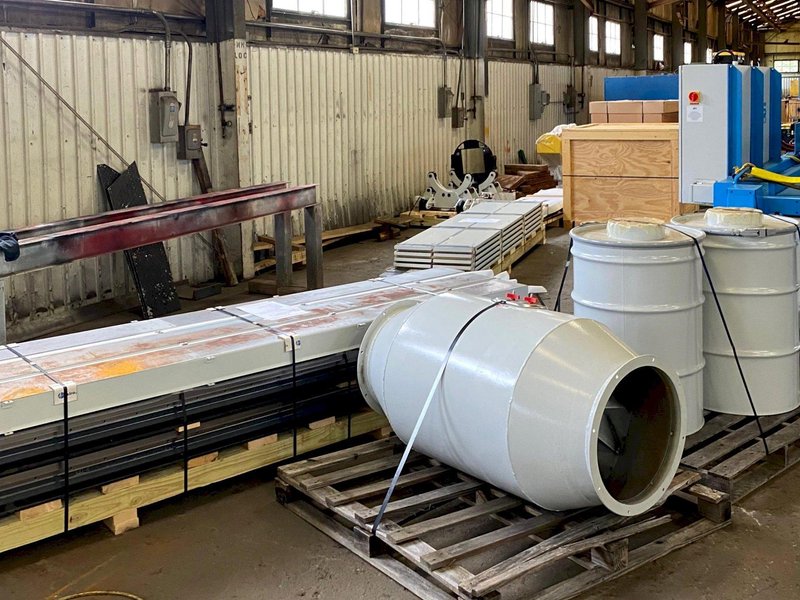

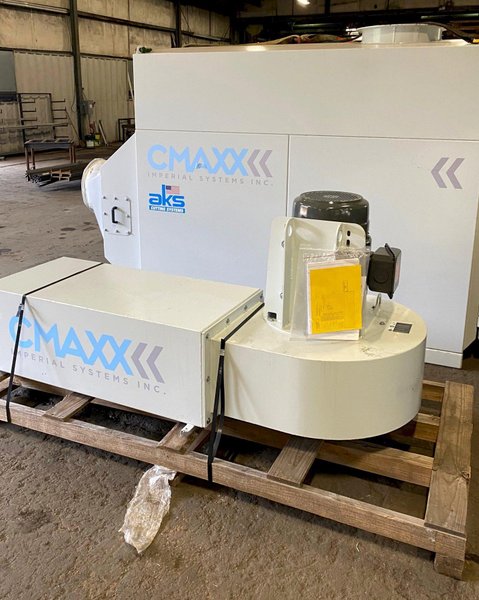

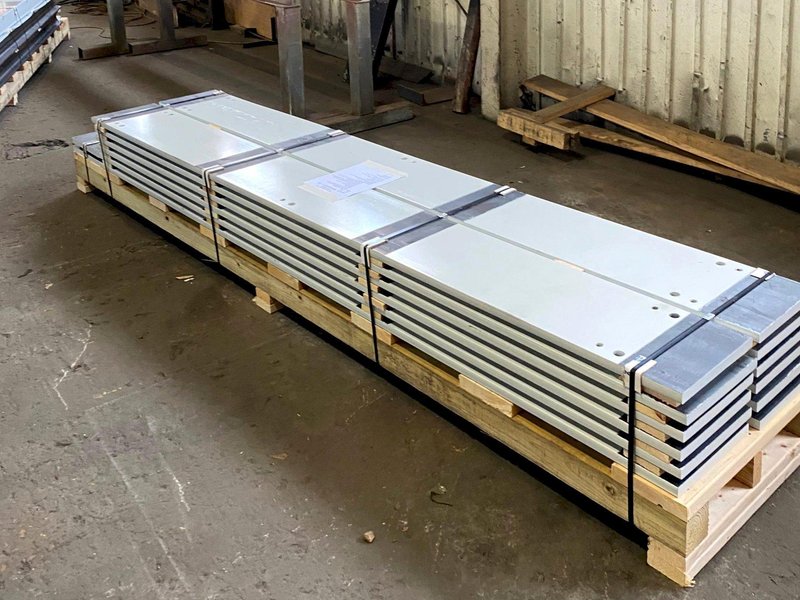

Equipped With: 10’ x 40’ Large Format Down Draft Cutting Table Tube-Kut & Dome Cutting Capabilities Includes Manual Removable Lift Out Slag Pans 7,500 CFM Requirement For Use w/ Dual Head Plasma AKS Dura-Kut Plasma Cutting System Hypertherm EDGE Connect CNC Control Heavy Duty Crane Rail 124' of Floor Mounting Plate (62'Each Side) Imperial CM016 (460v) Dust Collector Hypertherm Consumables From AKS Cutting Systems

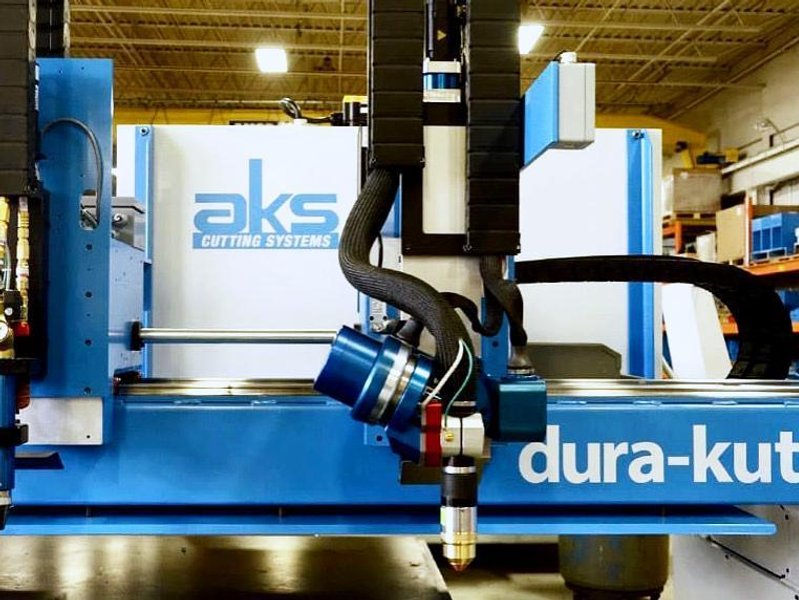

Primary Plasma Unit Hypertherm XPR300 Plasma Power Supply Unit (480v) Robo-Kut 5 Axis Bevel Cutting Head Hypertherm VW1 Vented Water Injection Console Hypertherm Mild Steel Start-Up Klt for Plasma Unit Robo-kut 5-Axis Bevel Cutting Head on Primary Independent Carriage Heavy Duty Slide Advanced Torch Height Control (THC) Lifter Servo Driven Ball Screw with Arc Voltage Control System Magnetic Torch Breakaway Laser Pointer for Plate Alignment
Second Plasma on Bar Driven Carriage Hypertherm XPR300 Power Supply Hypertherm VW1 Vented Water Injection Console XPR300 Straight Torch Cutting Head Hypertherm Mild Steel Startup Kit Hypertherm Sensor Advanced Torch Height Control (THC) Lifter, & Magnetic Breakaway

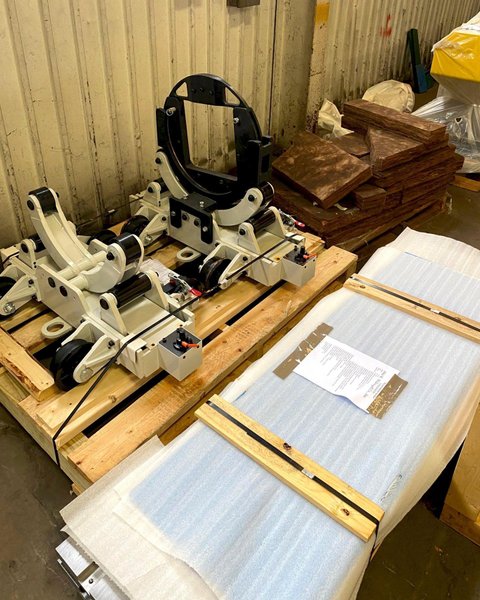

Tube-kut Tube/Pipe Processing System 4 Jaw Chuck Supports 2"-24" OD Round Pipe & 12" Square Tube and 20' Length (2) Round/Square Tube Supports
|
|
