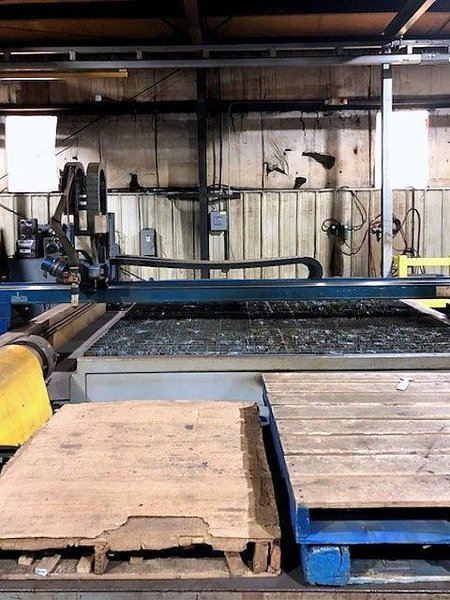

Cut-Width | 8 feet |
Cut-Length | 12 feet |
Dimensions | 10' x 12' |

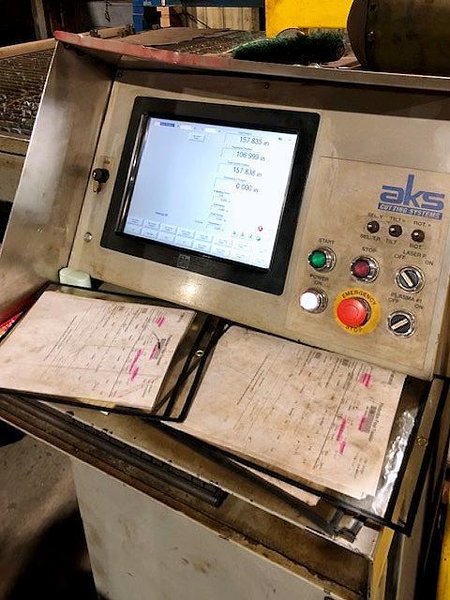

Control | Hypertherm CNC Edge™ |
Control Type | 19” Color Touch Screen |

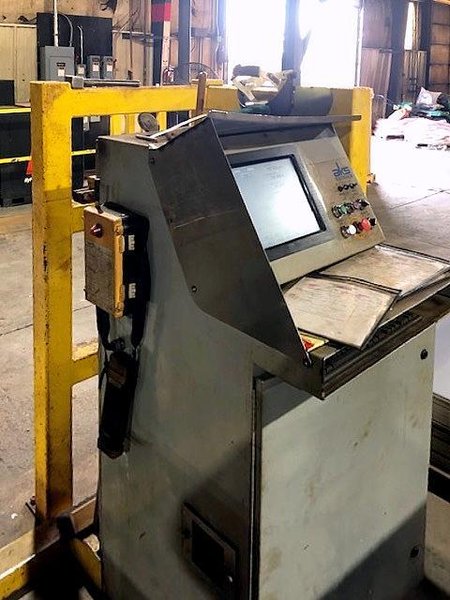

Console | Free-Standing Operator Console |
X-Axis | Vertical Rack & Pinion Drive |
Y-Axis | Helical Rack & Pinion Drive |
Accuracy of Motion | +/- 0.003” Per 3’ |

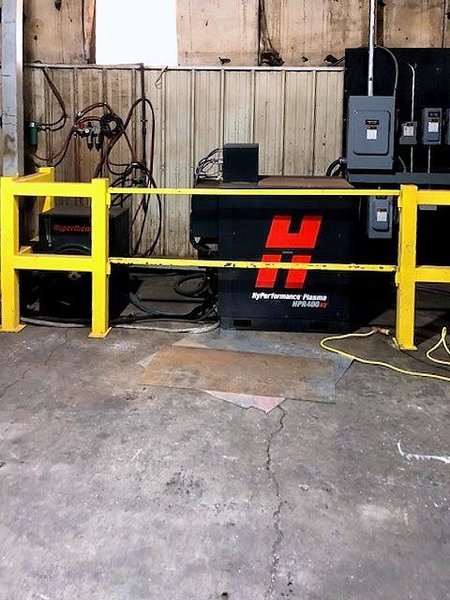

Plasma Source | Hypertherm HPR400XD |
Plasma Power | 400 amperes |
Mild Steel Max Cut Capacity | 3.2” |
Travel Speed | 1200 IPM |

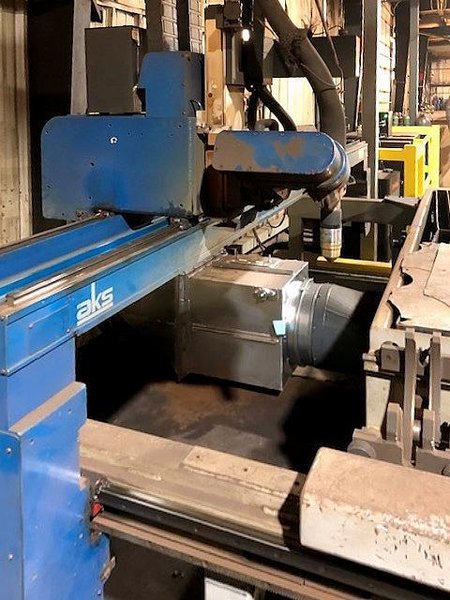

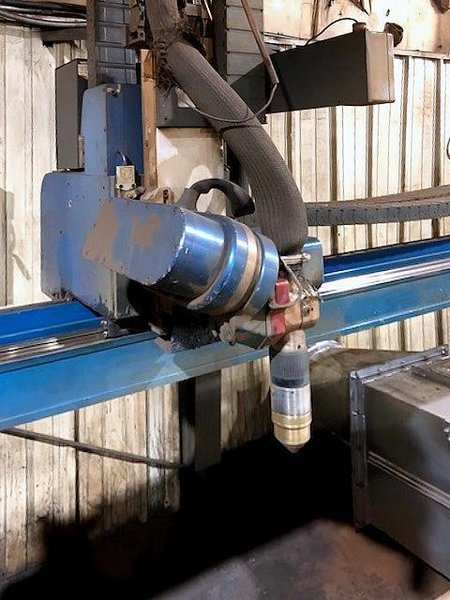

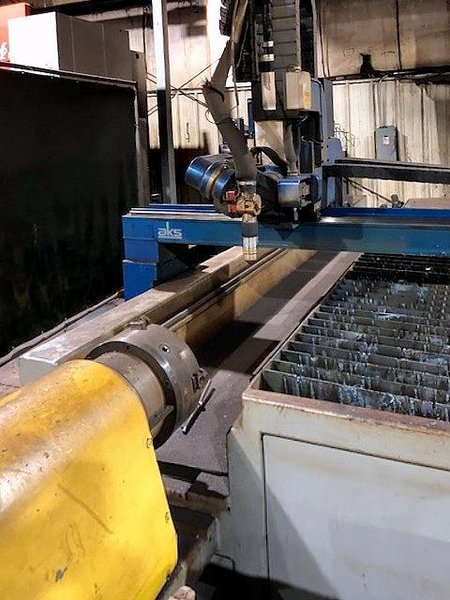

Cutting Head | AKS 5-axis Robo-Kut |

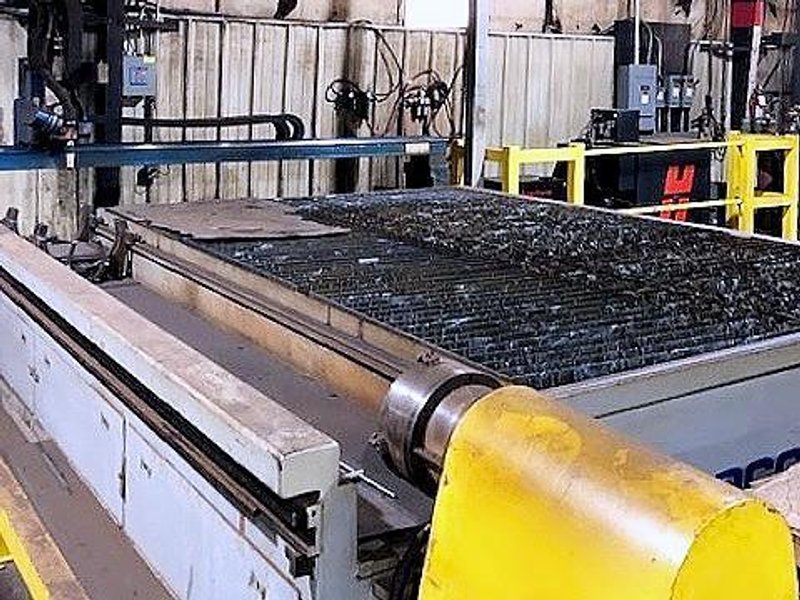

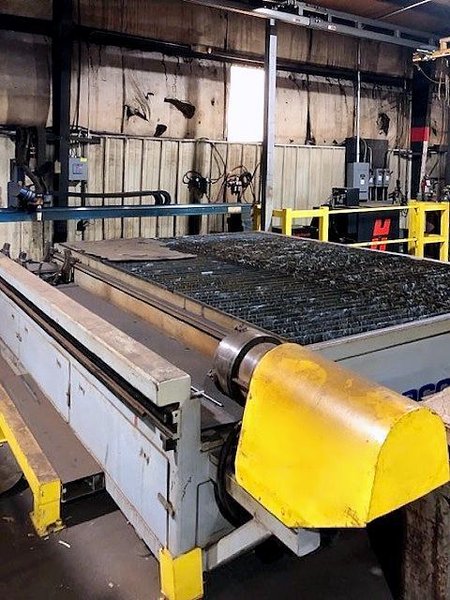

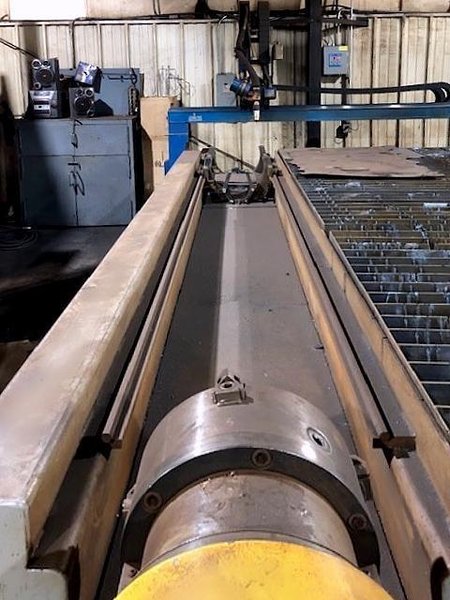

Rotary Unit | AKS 6th Axis Tube-Kut |
Square Tube | Up to 8″x8″ Rectangular/Square Tube |
Round Tube | 2″-10.75″ OD Round Tube |
Tube Weight | 1,800 lbs. |
Chuck Type | 3 Jaw (Round) or 4 Jaw (Square/Rectangular) |
Clamping System | Manual |

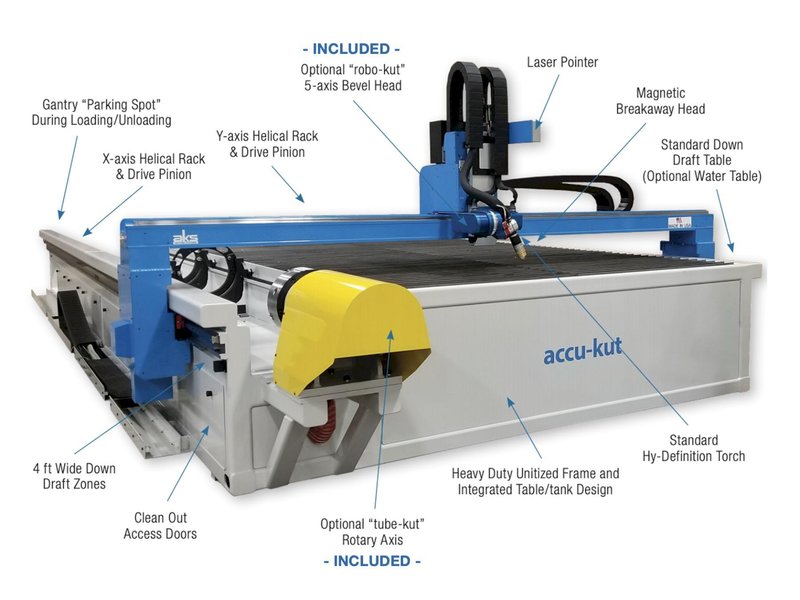

Equipped With: Hypertherm Edge™ CNC Controller Hypertherm HPR400XD Power Source Heavy-Duty “Unitized” One-Piece Frame AKS Robo-Kut 5-Axis Bevel Cutting Head AKS Tube-Kut Rotary Axis Tube/Pipe Cutting Unit Laser Pointer (Plate Alignment & Position Finding) Magnetic Breakaway Torch Wireless Remote Control Down Draft Zones Clean-Out Access Doors |
