MANUFACTURER - BLISS
CONFIGURATION - 2HI
TYPE - ONE WAY TEMPER
WIDTH RANGE - 4" - 20"
THICKNESS RANGE - 0.008" - .250" ALUMINUM / 0.019" - .200" STEEL
ROLL DIMENSIONS- 20" DIAMETER X 22" FACE
COIL ID/OD - 20" ID ENTRY/EXIT, 60" OD ENTRY/80" OD EXIT
LINE SPEED - 900 FPM
MAIN MILL MOTOR - 450 HP DC , 600/1200 RPM, 250 VO, 1238 AMP W/ SCR DRIVES
PAYOFF - 35 Kw DC, 400/1200 RPM DRAG GENERATOR W/ SCR DRIVES
RECOILER - 150 HP DC, 400/1200 RPM W/ SCR DRIVES
ELECTRICS - SIEMENS SERIES 5 & SERIES 7 (NEW 2001)
HYDRAULIC SCREWS - YES
AGC SYSTEM - YES, SOUTHEAST ASIA CONTROL & AUTOMATION
MILL CONTROLS - SOUTHEAST ASIA CONTROL & AUTOMATION
FILTRATION SOLUTION - OIL
GAUGES - (2) DMC-450 GAUGES (NEW 1981)
WORK ROLLS - 6 SETS
CHOCKS - 2 SETS
ROLLER BEARINGS - YES
LINE DIRECTION - RIGHT TO LEFT
STATUS - MILL IS CURRENTLY INSTALLED & OPERATING

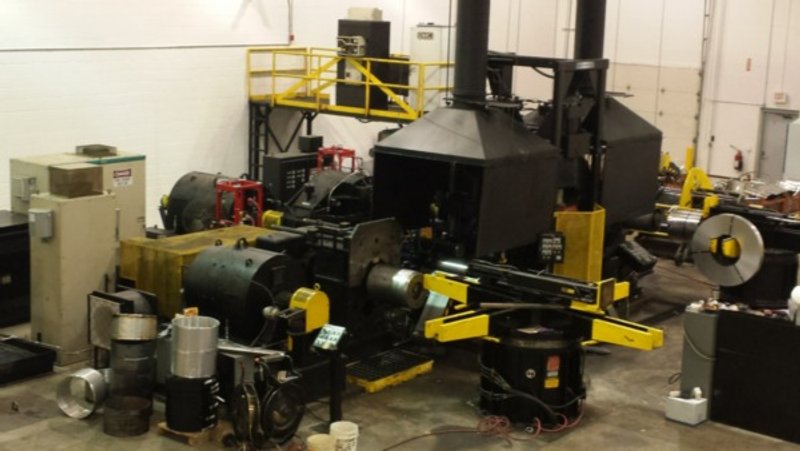

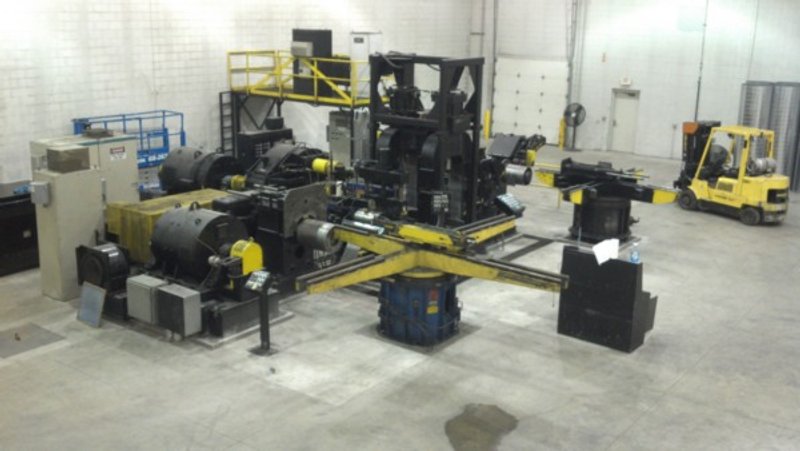

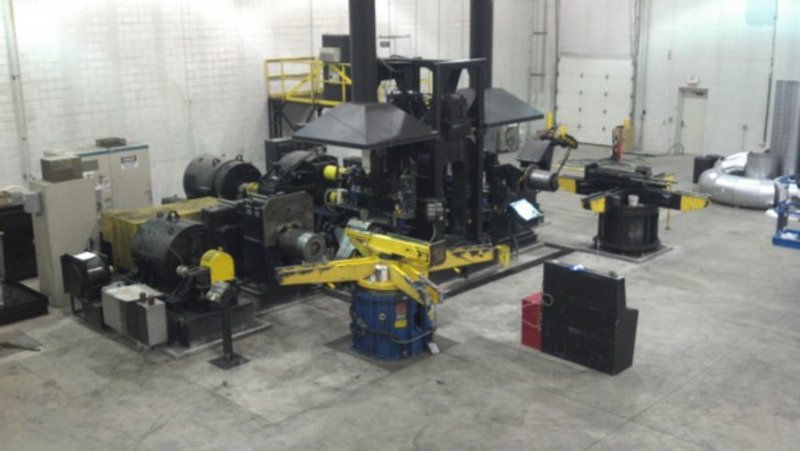

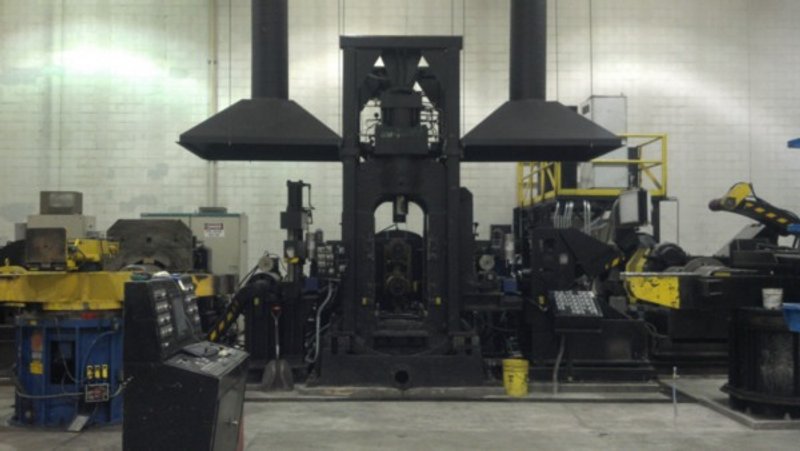

20" BLISS 2HI MILL CONFIGURATION:

ENTRY 4 ARM TURNSTILE

MANDREL UNCOILER WITH COIL HOLDDOWN ROLL

ENTRY PINCH ROLL ASSEMBLY

ENTRY DMC THICKNESS GAUGE

BILLY ROLL

2HI BLISS MILL

EXIT DMC THICKNESS GAUGE

EXIT BILLY ROLL

MANDREL RECOILER WITH PUSHER PLATE

EXIT 4 ARM TURNSTILE

MILL HYDRAULICS, ELECTRICS, OPERATORS DESK

MILL EXHAUST SYTSTEM

FILTER SKID

KELLER TRAMP OIL REMOVAL SYSTEM

UPADTED COOLANT SYSTEM

FIRE SUPPRESSION SYSTEM
