MODEL 2015-EXXX,    SERIAL NUMBER 6-44-13

                  CONDITION: EXCELLENT WORKING CONDITION

SPECIFICATIONS

CAPACITY:

     OVERALL LENGTH OF ROLLS…………………………………. 20 FEET (6,096MM)
     THICKNESS………………………………………………… 0.190" (4.572MM)

     MINIMUM RADIUS………………………………………… 1.344"  (34.14MM)

     TENSILE STRENGTH ………………………………………… 60,000 P.S.I. (4,136.86 BARS)

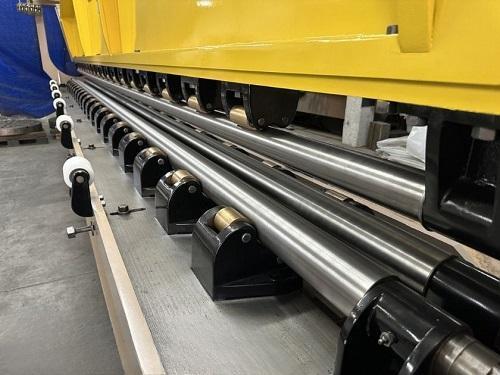

ROLL DIAMETER:

     TOP ROLL…………………………………………………… 2-11/16" / 2.6875"  / 68.034MM)

     BOTTOM ROLL……………………………………………….  3-7/16"  / 3.4375"  / 87.323MM)

TOP ROLL LIFT MOTORS

     GEARED MOTOR TO SCREW LOCATED ON EACH END, WITH MANUAL OVERRIDE ADJUSTMENT.

     MECHANICAL COUNTER FOR EACH END OF TOP ROLL TO READ HEIGHT

     EACH MOTOR WITH MECHANICAL ELECTRIC BRAKING

BOTTOM ROLLS:

     IN/OUT ADJUSTMENT WITH INDICATORS

MOTOR DRIVES: WIRED 440 VOLTS, 3 PHASE, 60 HTZ

     ALL ROLLS DRIVEN BY 2-SPEED MOTOR……………… 5 & 2.5 HP (3.68KW & 1.84KW)
                                                                                       1725 & 860 RPM 440 VOLTS

    TOP ROLL ELEVATION MOTORS (TWO)…………...…… 1½ HP, (1.1KW) 860 RPM 220/440 VOLTS

OPERATOR CONTROL STATION:

     START/STOP BUTTONS, FORWARD/REVERSE BUTTONS,     FAST/SLOW BUTTONS,  SLOW/FAST SWITCH,
     (2) SETS SCREW UP/DOWN BUTTONS.

EQUIPPED WITH:
     OPERATOR CONTROL STATION

     ALL OUTBOARD ROLLS, NEW TEFLON.     ROLL DRIVE MOTOR WITH ELECTRIC BRAKE.

     TOP ROLL EACH MOTOR WITH MECHANICAL ELECTRIC BRAKING

NOTE: ALL ROLLS REMOVED: CHECKED FOR STRAIGHTNESS AND THE RE-SURFACED
COMPLETE FACTORY SAFETY GUARDS

DIMENSIONS: 29′ 6" LR X 49" FB X 9′8" HEIGHT  (8,991.6MM X 1,244.6MM X 2,946.4MM HT.)
APPROXIMATE WEIGHT 22,000 LBS.
