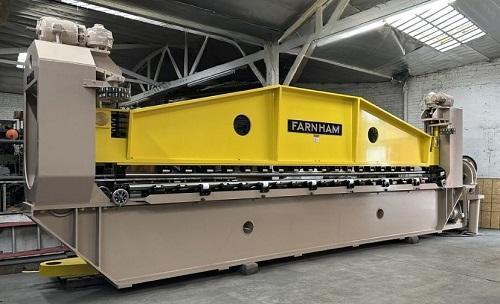

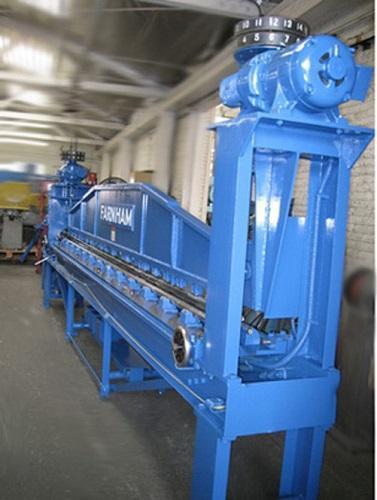

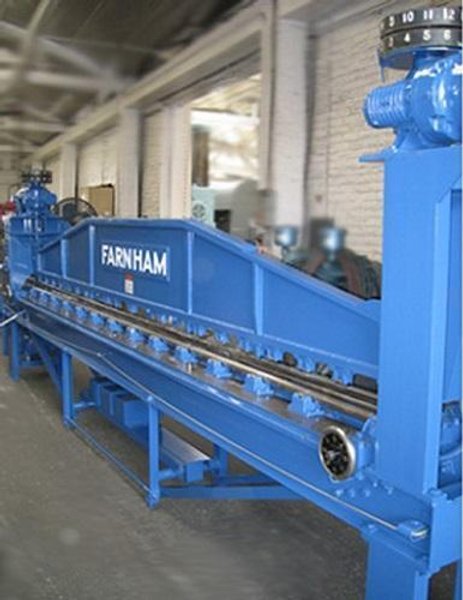

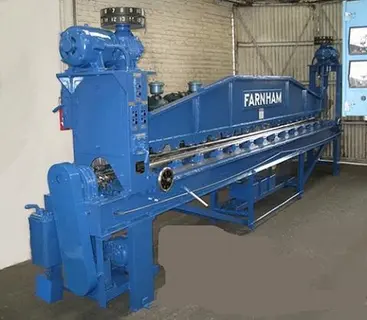

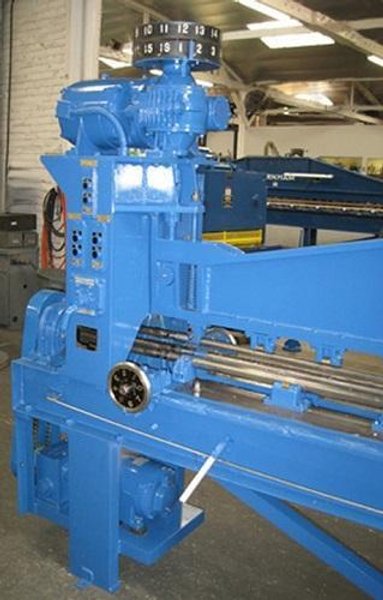

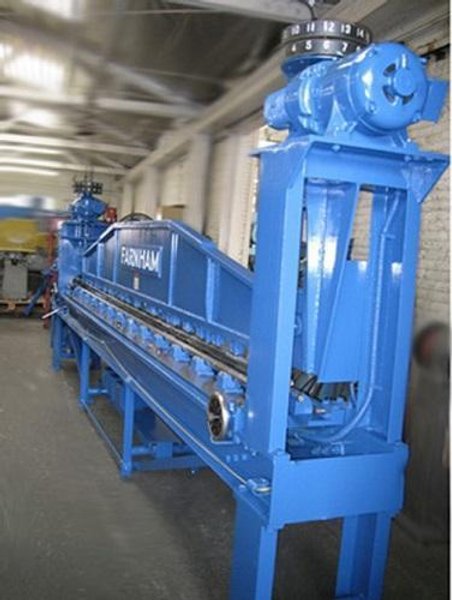

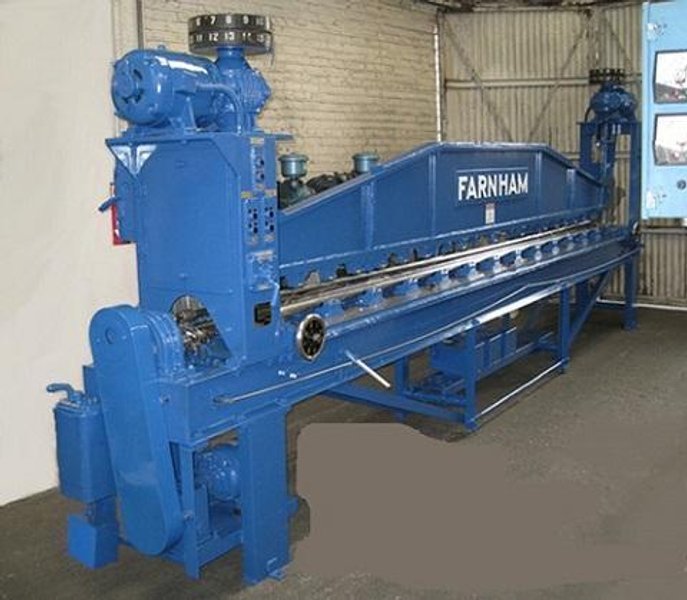

FARNHAM #1558-E FORMING ROLL
Brand
Category
Model
1558-E
Stock #
116065
Year
Not specified
Condition
Used
Location
Not specified
|
FARNHAM FORMING ROLL
MODEL 1558-E SERIAL NUMBER 10-40-9
SPECIFICATIONS
CAPACITY:
OVERALL LENGTH OF ROLLS 15' (180") (4,572MM)
THICKNESS 0.63" (16.002MM)
RADIUS, MINIMUM 0.62" (15,748MM)
ROLL DIAMETER:
TOP ROLL 1" (25.4MM)
BOTTOM ROLLS 1-11/16" (42.8625MM)
TOP ROLL LIFT MOTORS
GEARED MOTOR TO SCREW LOCATED ON EACH END.
MECHANICAL COUNTER FOR EACH END OF TOP ROLL
EACH MOTOR WITH MECHANICAL BRAKE
BOTTOM ROLLS:
EACH WITH IN/OUT ADJUSTMENT AND INDICATORS LOCATED ON BOTH END.
TIE ROD BED ADJUSTMENT TO PUT SLIGHT BOW IN BED.
MOTOR DRIVES: WIRED 440 VOLTS, 3 PHASE
ALL ROLLS DRIVEN BY 2-SPEED MOTOR......... 1 HP. (0.74 KW) & 2 HP. (1.47
KW) 440 VOLTS
TOP ROLL ELEVATION MOTORS (TWO) EACH........ _ HP. (0.552 KW) 440 VOLTS
CONTROLS:

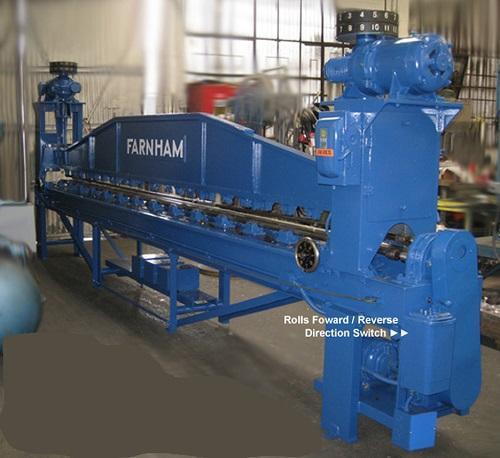

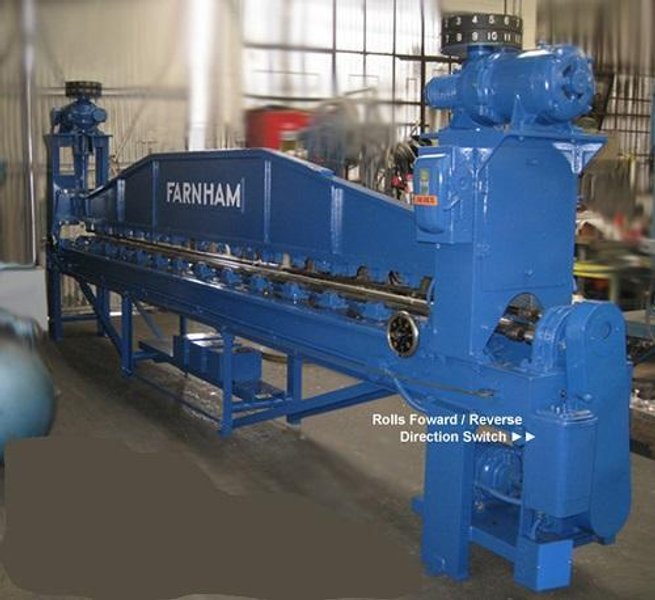

ROLL DRIVE MOTOR START/STOP BUTTONS.
TWO ROLL SPEED IN FORWARD/ ONE ROLL SPEED IN REVERSE.
TOP ROLL UP/DOWN BUTTONS TO ADJUST BOTH END ELEVATION SCREWS AT SAME
TIME.
TOP ROLL UP/DOWN BUTTONS TO INDEPENDENTLY ADJUST EACH END ELEVATION
SCREWS.
SAFETY STOP LINE LOCATED ON FRONT AND REAR.
COMPLETE FACTORY SAFETY GUARDS
DIMENSIONS 36" FB X 242" LR X 69" HT. (914.4MM FB X 6146.8MM LR X 1752.6MM
HT. APPROXIMATE WEIGHT 8000 LBS.
|
