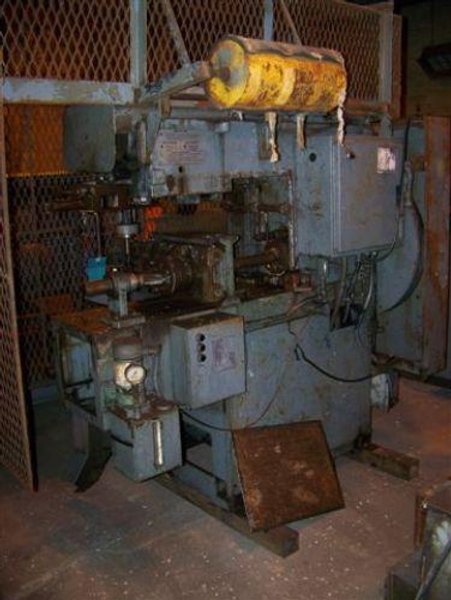

SLEEPER & HARTLEY # 2 SERIES 732 TORSION WIRE SPRING COILER
Brand
Category
Type
Model
2 SERIES 732
Stock #
103829
Year
Not specified
Condition
Used
Location
Ohio
|
Wire Range ..................... .035"-.148" (0,9mm-3,8mm)
Maximum Turns .................. 100-.080" Wire (2,0mm)
.................. 68-.120" Wire (3,0mm)
.................. 52-.148" Wire (3,8mm)
Maximum Spindle Travel ......... 8" (203,2mm)
Maximum Wire Feed .............. 12" (304,8mm)
Feed Accuracy .................. +.003" (0,07mm)
Maximum (2-slide) .............. 11.5"
Last ......................... (292,1mm)
End (2-slide) .............. 6"
Length ......................... 152,4mm
Standard Tool Slide Travel ..... 2" (50,8mm)
Maximum Arbor Diameter ......... 2" (50,8mm)
Wire Line Height ............... 42" (1067mm)
Floor Space .................... 50"x68" (1270mm x 1727mm)
Parts per minute ............... 8-80 optional
Motor .......................... 5 H.P.
Net ............................ 4,700 Lbs. (2132 Kg)
Basic Machine Weight ........... 5,000 Lbs. (2268 Kg) crated
Export Case .................... 5,500 Lbs. (2495 Kg)
Crate Size (domestic) .......... 78"x59"x91" (1981x1499x2311mm)
(export) ............ 81"x61"x93" (2057x1549x2362mm)
* Weight for machine with standard equipment only *
STANDARD EQUIPMENT:
Dual Speed winding head
Multiplex forming table with one two-slide
Adjustable Front stop mechanism
End Squaring |
