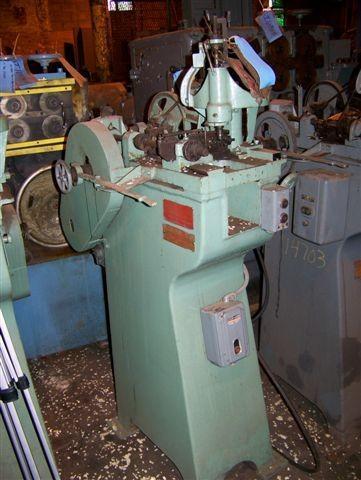

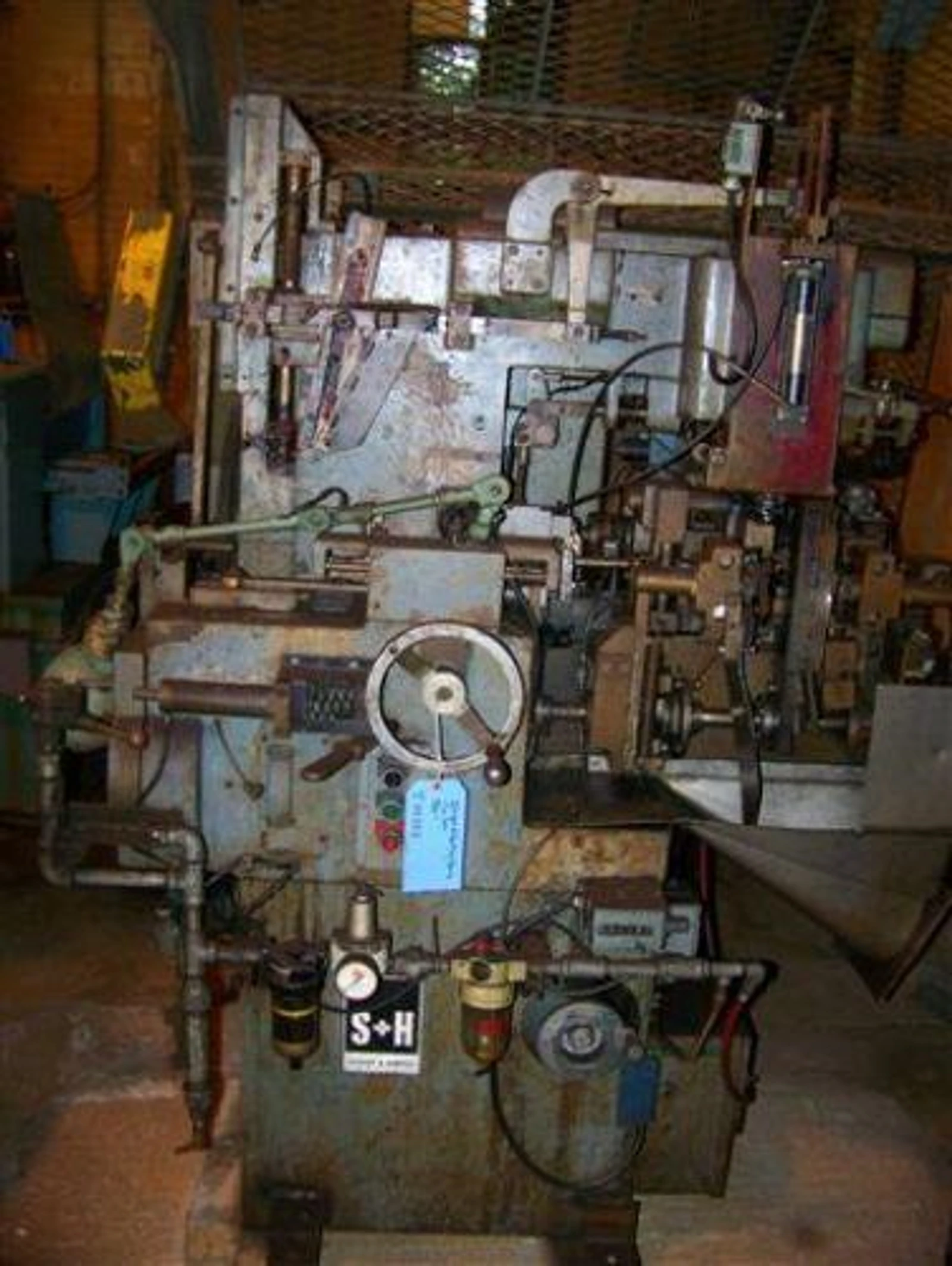

SLEEPER & HARTLEY # 1 SERIES # 731 TORSION WIRE SPRING COILER
Brand
Category
Type
Model
1 SERIES #731
Stock #
103825
Year
Not specified
Condition
Used
Location
Ohio
|
Wire Range ..................... .010"-.072" (0,25mm-1,8mm)
Maximum Turns .................. 94-.042" Wire (1,0mm)
.................. 72-.054" Wire (1,4mm)
.................. 51-.072" Wire (1,8mm)
Maximum Spindle Travel ......... 4" (101,6mm)
Maximum Wire Feed .............. 8" (203,2mm)
Feed Accuracy .................. +.002" (0,05mm)
Maximum (2-slide) .............. 6.5"
Last ......................... (165,1mm)
End (2-slide) .............. 4"
Length ......................... 101,6mm
Standard Tool Slide Travel ..... 1" (25,4mm)
Maximum Arbor Diameter ......... 1" (25,4mm)
Wire Line Height ............... 42" (1067mm)
Floor Space .................... 32"x52" (813mm x 1329mm)
Production Range ............... 12-120 standard
Parts per minute ............... 12-240 optional
Motor .......................... 2 H.P.
Net ............................ 1,600 Lbs. (726 Kg)
Basic Machine Weight ........... 1,800 Lbs. (817 Kg) crated
Export Case .................... 2,200 Lbs. (992 Kg)
Crate Size (domestic) .......... 57"x43"x75" (1448x1092x1905mm)
(export) ............ 60"x45"x77" (1524x1143x1956mm)
* Weight for machine with standard equipment only *
STANDARD EQUIPMENT:
Dual Speed winding head
Multiplex forming table with one two-slide
Adjustable Front stop mechanism
End Squaring |
