TONNAGE CAPACITY PLUNGER ................... 145 TONS
BLANKHOLDER ................................ 90 TONS
STROKE OF PLUNGER .......................... 22"
STROKE OF BLANKHOLDER ...................... 15"
SLIDE ADJUSTMENT ........................... 6"
SHUTHEIGHT OF PLUNGER ...................... 30"
SHUTHEIGHT OF BLANKHOLDER .................. 28"
BED AREA ...............(LR X FB)........... 30-1/2" X 30"
RAM AREA ...............(LR X FB)........... 24" X 25"
BOLSTER ................(LR X FB X THICK)... 24" X 30" X 4"
RAM PLATE ..............(LR X FB X THICK)... 24" X 24" X 2-1/2"
BED OPENING ................................ 14-1/2" DIAMETER
SIDE FRAME OPENING .....LR X HIGH).......... 12" X 15"
WIDTH BETWEEN UPRIGHTS ..................... 30-1/2"
O.A. DIMENSIONS ........(LR X FB X HIGH).... 8' X 7'6" X 14'
WEIGHT (PER CATALOG) ....................... 44,000 LBS.

EQUIPPED WITH: AIR TANK
AUTO LUBE SYSTEM
MANUAL ADJUSTMENT OF SLIDE
TIE ROD FRAME

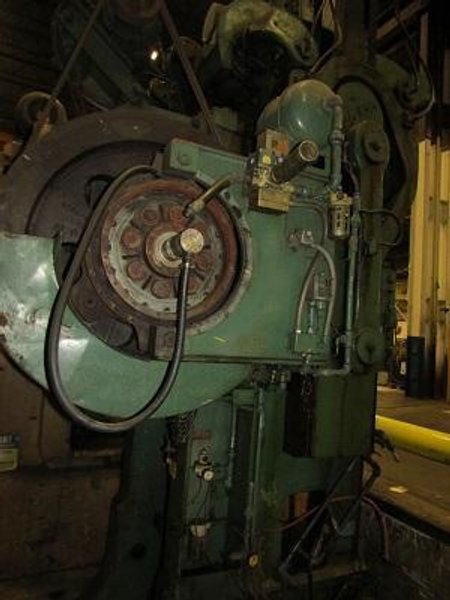

AIR CLUTCH ON FLYWHEEL
DOUBLE BACK GEARED
FLYWHEEL V-BELT DRIVE
15 HP 3/230-460/60 MOTOR
